2.4 GHz WIRELESS COLOR
SECURITY SYSTEM WITH
WEATHER RESISTANT* CAMERA
* IP44 rated for Indoor and Outdoor use. Not recommended for direct exposure to water, rain or snow.
Instruction Manual
English Version 1.0
Before operating the system, please read this manual
thoroughly and retain it for future reference.
MODEL: SG6352
www.lorexcctv.com
Copyright © 2005 Strategic Vista International Inc
This product broadcasts over public airwaves and its video and audio signals may be
intercepted without your consent.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
Explanation of two Symbols
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage“ within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
!
THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON
THE BOTTOM OF THE SYSTEM.
operating and maintenance(servicing) instructions in
the literature accompanying the appliance.
!
WARNING: To prevent fire or shock hazard, do not expose this unit to
rain, water, or wet locations. Do not insert any metallic object
through the ventilation grills
FCC CLASS B NOTICE
Note:
This equipment has been tested and found to comply with the limits For a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, (which can be determined by turning the equipment off and on), the
user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Connect the equipment into an outlet on a circuit different from that to which
other devices may be connected.
• Consult the dealer or an experienced radio or television technician for help.
.
i
SAFETY INSTRUCTIONS
IMPORTANT SAFEGUARDS
All the safety and operating instructions should be read before the
system is operated, and retained for future reference.
1. HEED WARNINGS - All warnings on the appliance and in the operating
instructions should be adhered to.
2. FOLLOW INSTRUCTIONS - All operating instructions should be
followed.
3. WATER AND MOISTURE - Do not use this video product near water –
for example, a bath tub, wash bowl, kitchen sink, laundry tub or
swimming pool, or in a wet basement.
4. POWER SOURCES - This product should be operated only from the type
of power source indicated on the marking label.
5. OVERLOADING - Do not overload outlets and extension cords, which
can result in a risk of fire or electric shock.
6. SERVICING - Do not attempt to service this product yourself. Opening or
removing covers may expose you to dangerous voltage or other hazards.
Refer all servicing or repairs to qualified service personnel.
7. DAMAGE REQUIRING SERVICE - Unplug this product from the wall
outlet and refer servicing or repairs to qualified service personnel under
the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the
operating instructions.
e. If the product has been dropped or the cabinet has been damaged.
f. When the product exhibits a distinct change in performance.
8. REPLACEMENT PARTS - When replacement parts are required, be
sure the service technician has used replacement parts that are
specified by the manufacturer or have the same characteristics as the
original part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.
9. SAFETY CHECK - Upon completion of any service or repairs to this
video product, ask the service technician to perform safety checks to
determine if the video product is in proper operating condition.
10. An appliance and cart combination should be moved with care.
Do not place this equipment on an unstable cart, stand, or table.The
equipment may fall, causing serious injury to a child or adult, and
serious damage to the equipment. Wall or shelf mounting should
follow the manufacturer's instructions and should be done with
a mounting kit approved by the manufacturer.
ii
TABLE OF CONTENTS PAGE
INTRODUCTION & FEATURES………………………………………
SYSTEM INCLUDES…………………………………………………..
CONTROLS AND FUNCTIONS
Wireless Camera….......…….......….……………………..……...
Wireless Receiver...……..............................……….……...……
INSTALLATION OF WIRELESS CAMERA………………………….
INSTALLATION OF WIRELESS RECEIVER
Operation with TV (Using RCA Cables)......……………….…....
Operation with TV (Using Coaxial Cable) ..............…..……......
SYSTEM OPERATION
Multiple Cameras / Auto Scanning…………………………………
Auto/Manual Options / Selectable Settings………………………
TROUBLE SHOOTING ..............................................………..…...
1
2
3
4
5
6
7
8
9
10
TECHNICAL SPECIFICATIONS ....................................................
CARE & MAINTENANCE……………………………..……………….
11
12
iii
INTRODUCTION:
Thank you for purchasing the 2.4 GHz Wireless Color Camera & Receiver System.
This system turns your TV into a Video Security System, providing instant
protection in your home or office. Avoid the hassle of running wires. This system is
easy to install and operate for immediate applications.
The system is capable of connecting up to 4 cameras (additional cameras sold
separately) with the option to automatically scan between locations.
To learn more about this 2.4GHz Wireless Camera & Receiver System and our
complete range of CCTV products, please visit our website at:
www.lorexcctv.com
FEATURES:
• Turns your TV into a Video Security System
• Camera rated IP44* for Indoor and Outdoor use
• Listen-in audio
• 300 ft Wireless Transmission (open space)
• 2.4 GHz Wireless Transmission
• Crystal clear Video and Stereo audio
• 4 Channel Wireless System
• Record picture to any standard VCR
• Automatic IR illumination provides B&W video images in low light conditions**
• Bonus clip-on stand included for quick mounting application
* IP44 rated for Indoor and Outdoor use. Not recommended for direct exposure to water, rain or snow.
** IR illumination range of 6ft. under ideal conditions. Objects at or beyond this range may be partially
or completely obscured, depending on the camera application.
1
SYSTEM INCLUDES:
1 - 2.4 GHz Color Wireless Camera
Owner’s Manual
Bracket
1 - 2.4 GHz Wireless Receiver
1 - Clip-on Stand 1 - Wall Mounting
Also includes:
2 – 9V DC Adapters
1 – RCA Audio/Video Cable
1 – Coaxial Cable
2
CONTROLS & FUNCTIONS

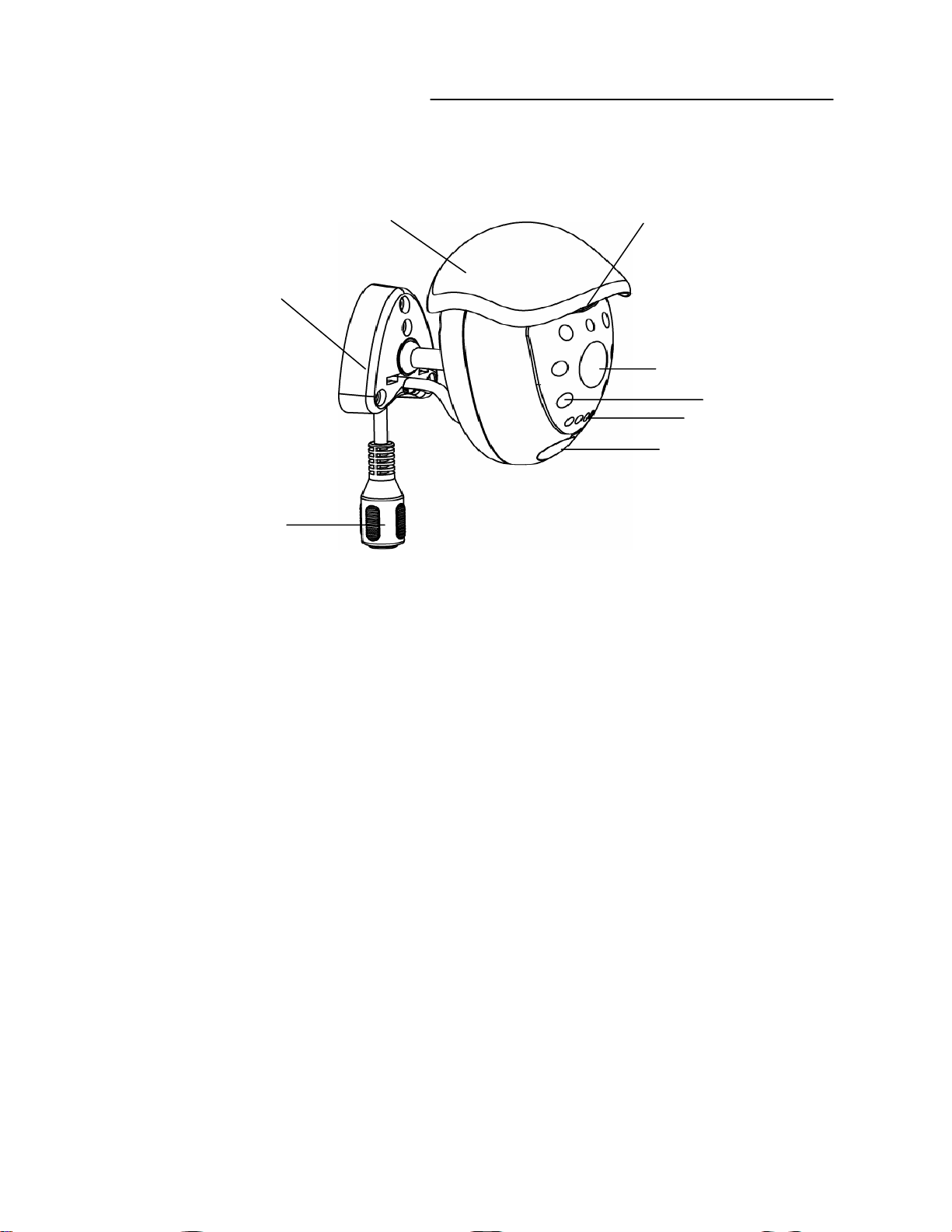

WIRELESS CAMERA
7
Front/Side View
1
5
2
3
8
4
6
6
1. Microphone – Built-in condenser microphone provides listen-in audio
capability from camera to monitor
2. Lens – B&W CMOS Image Sensor
3. 6 Infrared LED’s – Enhances the picture quality in low light conditions*
4. Channel Selector/Power Button – Selects channels 1-4. Holding this button for 3
seconds turns the power ON/OFF (by default the camera is ON).
5. Bracket – Plastic bracket connects to camera for mounting to walls,
ceilings or table
6. DC IN Jack – Connects to the 9V DC adapter.
7. Sunshade Visor – Protects camera from the elements and blocks the camera
from the direct glare of the sun.
8. LED Channel Indicator – Shows the channel (1-4) that the camera is set to.
* IR illumination range of 6ft. under ideal conditions. Objects at or beyond this range may be
partially or completely obscured, depending on the camera application.
3
CONTROLS & FUNCTIONS
WIRELESS RECEIVER
3
2
9 10
TOP VIEW
4
1
BOTTOM VIEW
REAR VIEW
56 78
1. Auto/Manual Button – Used to activate/deactivate auto sequencing
2. Channel Selector Button – Used to manually switch channels from 1-4
3. LED Channel Indicators – Indicator light shows selected channel
4. 2.4 GHz Antenna – High gain dipole antenna receives audio and video
signal from the wireless camera
5. Video Output Jack (Yellow) – RCA jack for video output connector
(when using RCA connector)
6. Audio Output Jacks L (White) & R (Red) – RCA jacks for audio
output connector (when using RCA connector)
7. RF Out Jack (To TV) – Connects the receiver to a TV using the supplied
coaxial cable (alternative to RCA cable connection).
8. DC IN Jack – Connects to the power supply of the receiver
9. ON/OFF Power Switch – Ensure this switch is set to OFF before
plugging the system into an electrical outlet
10.Channel 3/4 Selector Switch – Used to view picture on television when
using coaxial cable (preset to channel 3)
4
INSTALLATION OF CAMERA
OPTION #1 – Permanent Wall Mount
STEP 1:
Camera mounted
Wall
To 9V Power
Adapter
1. Attach the stand base to the wall or ceiling where you want to install the
camera. Locate a wall stud or ceiling, and secure the bracket using the
three supplied screws.
2. Secure the camera to the bracket by sliding the camera socket over the stand, and
fasten it in place with the supplied screw.
3. Connect the supplied 9V DC adapter to the DC IN jack at the rear
of the camera, and plug it into an electrical outlet. Make sure the adapter connected
to the camera is labeled camera. You can turn the camera ON/OFF by holding the
Channel for 3 seconds.
OPTION #2 – Temporary Mounting
1. Connect the clip-on stand
onto any object.
5
INSTALLATION OF RECEIVER
CONNECTING THE RECEIVER TO A TV
STEP 2:
You have two options to connect the Receiver: A) Using RCA Cables (see below),
or B) Coaxial Cables, please refer to page 7 of this manual.
A)
NOTE
1. Place the wireless receiver near your television (or monitor).
2. Connect one end of the RCA cables to the Audio/Video output jacks at the
back of the receiver. Plug the other end of RCA cables into the
Audio/Video In jacks on your television. Be sure the yellow, red and white
plugs match the yellow, red and white jacks on both the receiver and TV.
Ensure the Power Switch on the Receiver is turned OFF before
proceeding with the following steps.
Back of Receiver
Electrical Outlet
Television
3. Connect one end of the supplied 9V AC adapter into the DC IN
jack at the back of the receiver; the other end into an electrical outlet. Turn the
receiver ON. The system is defaulted to channel 1.
4. Turn your TV to AX (Aux. Mode or TV/Video) to view the camera picture on your
TV.
5. Adjust the antenna on the receiver if necessary for optimum viewing.
For optimum viewing reception you may need to change the
NOTE
channels of both your camera and receiver to the same
channels between CH 1 – CH 4
6
INSTALLATION OF RECEIVER

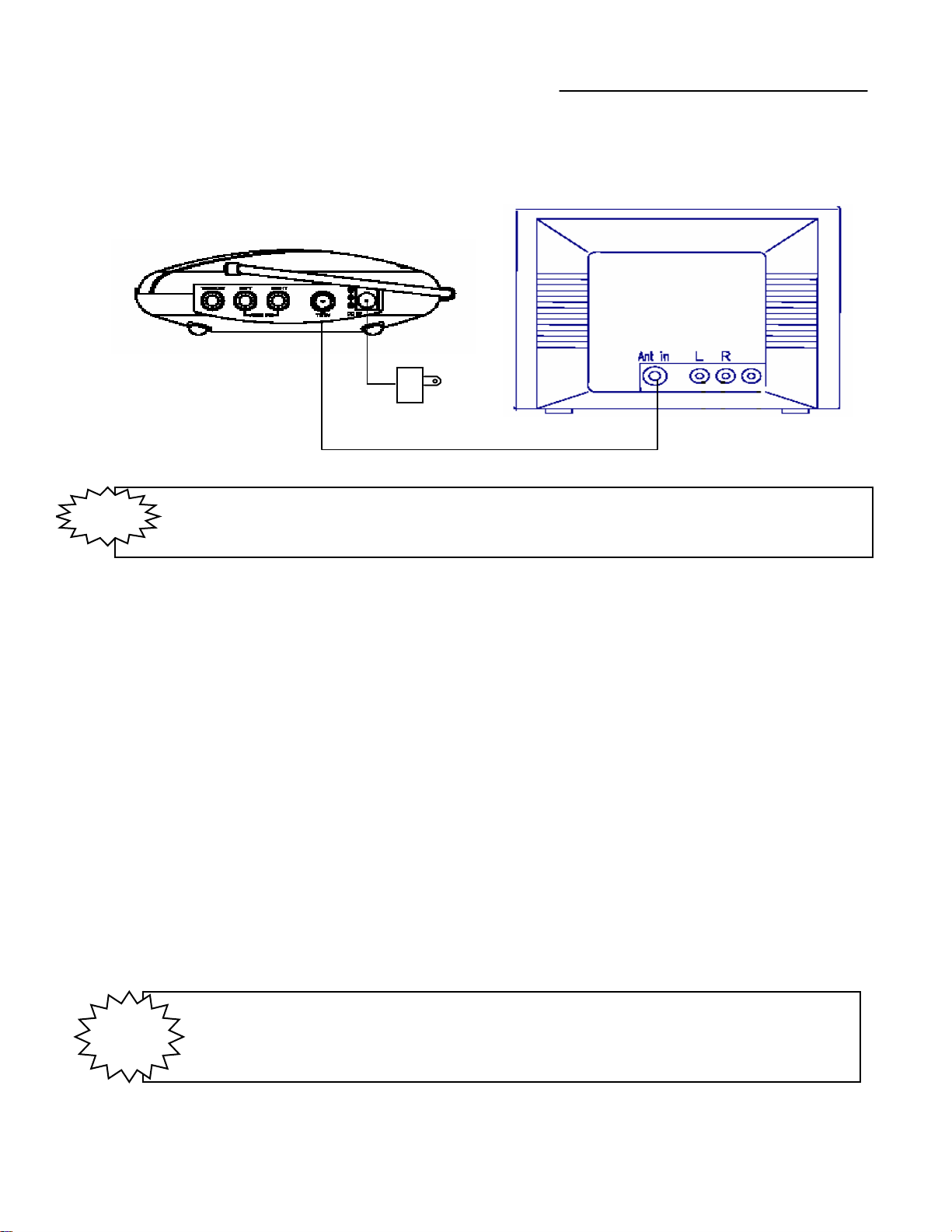

CONNECTING A RECEIVER TO A TV USING COAXIAL CABLES
Television
B)
Back of Receiver
Electrical Outlet
Coaxial Cable (75 ohm)
Audio Video
NOTE
1. Place the wireless receiver near your television (or monitor).
2. Connect one end of the coaxial cable to the back of the receiver. Plug the
other end of the coaxial cable to the television.
3. Connect one end of the supplied 9V AC adapter into the DC IN jack
at the back of the receiver; the other end into an electrical outlet. Turn the
receiver ON. The system is defaulted to channel 1.
4. Turn your TV to channel 3 to view the picture.
5. Adjust the antenna on the receiver if necessary for optimum viewing.
Ensure the Power Switch on the receiver is turned OFF prior to
proceeding with the following steps.
NOTE
For optimum viewing reception you may need to change the
channels of your camera and receiver to the same channels
between CH1 – CH 4
7
SYSTEM OPERATION
CONNECTING MORE CAMERAS TO YOUR SYSTEM (MAX. OF 4)
The receiver will automatically do a self diagnostic when it is powered up to
determine how many cameras are connected. It will detect which channels are receiving a
video signal. To purchase additional wireless cameras, please visit
www.lorexcctv.com
When connecting additional cameras to this system, ensure the camera is set to a
different channel. Use the Channel Selector button to navigate between channels.
AUTO SCANNING - WHEN UTILIZING MORE THAN 1 CAMERA
The video security system provides you with the option to automatically scan/switch
between four camera locations. If you are utilizing less than four cameras, you can also
set the system to scan only within two or three locations.
Setting Auto Scan to 2 or 3 camera locations:
1. Press and hold the Auto/Manual button for more than 2 seconds. All four
LED lights on the front of the receiver will turn ON. Releasing the
Auto/Manual button to remain in the four channel switching option.
2. Continue to press and hold the Auto/Manual button. The Channel 4 LED
button will turn off. The system is now set to scan between three camera
locations (Channel 1-3).
3. Continue to press and hold the Auto/Manual button. The Channel 3 LED
button will now be turned off. The system is now set to scan between two
camera locations (Channel 1-2).
4. Continue to press and hold the Auto/Manual button to return to the four
camera viewing option (all four LED lights will be illuminated).
8
SYSTEM OPERATION
AUTO AND MANUAL VIEWING OPTIONS
This system is preset to the Manual mode. In Auto mode, the LED light will turn ON.
To manually view a specific camera location, set the system to Manual and press the
Ch. Select key to view the desired camera location. Auto Mode is used when more than
1 camera is connected to the system.
Set the Auto/Manual button to Auto Mode in order to have the system automatically
rotate between camera locations.
SELECTABLE DWELL SETTING
Dwell Setting is the time duration between each camera view in the auto sequence mode
This system provides you with three selectable dwell options (2, 5 and 10
seconds) when the system is set to Auto Mode. This system is preset to a 2
second selection.
Changing Dwell Time
1. Press and hold the CH Select button. The LED button will turn on to
indicate that it is set to 2 seconds.
2. Continue to press and hold the CH Select button. The LED button will flash
at a one second interval to indicate that it is now set to the 5 second
setting.
3. Continue to press and hold the CH Select button. The LED button will flash
three times to indicate it is set to the 10 second setting.
9

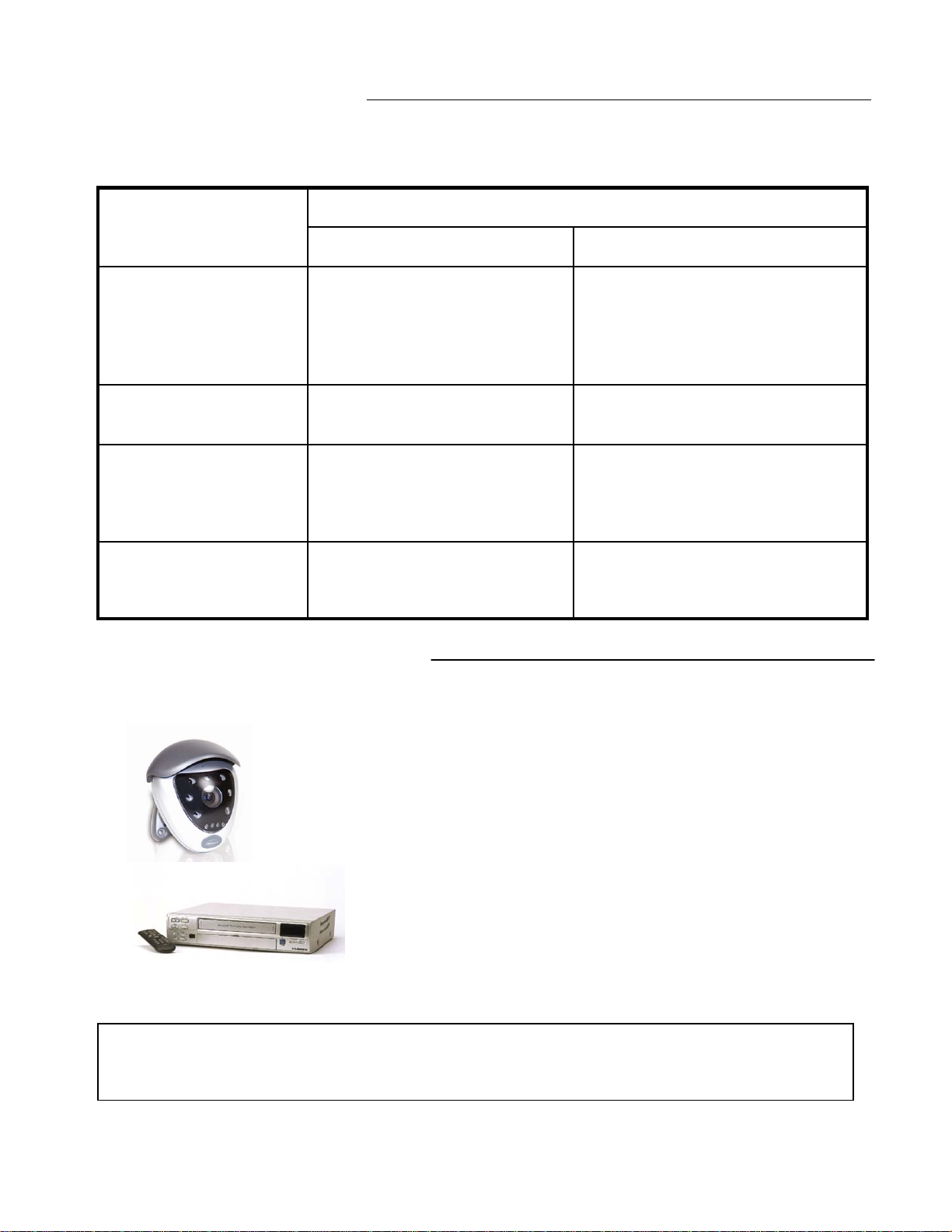

TROUBLESHOOTING
If the system does not function properly, check the following points before
contacting the service center.
Causes & Remedies
Problems
Receiver/TransmitterCamera
No power
(no picture/sound)
Picture flickering
Picture too bright
or too dark
jumps or scrambled
- AC adapter not plugged in
- Power not turned ON (press
and hold the Channel button
for 3 seconds)
- AC adapter not plugged inPoor Reception
- Strong spot light in the
field of view
- Lighting source in the
field of view
- AC adapter not plugged in
- Power switch not turned on
- TV or Monitor not turned on
- Improper A/V or coaxial
cable connection
- Adjust antenna direction
- Improper channel
- Adjust brightness control on
TV/monitor
- Adjust antenna directionPicture rolls and
OPTIONAL ACCESSORIES
The following optional accessories are available to add to your existing system:
Accessory Camera - Used to view other camera locations
Compatible models: SG6228, SG6217, SG6115X
Time Lapse VCR - Used to record key events.
Available in 40 or 1280 Hour Time Lapse recording
modes.
FOR MORE INFORMATION, VISIT OUR WEBSITE AT:
www.lorexcctv.com
10
TECHNICAL SPECIFICATIONS
WIRELESS CAMERA
Image sensor
Lens
Scanning system
Scanning frequency
Sync. system
Resolution
Min. illuminations
Video Output
Gamma characteristics
Auto Iris
Microphone
Transmitting frequency
Modulation
RF out level
Video Output level
Antenna
Operating temperature
Power source
Dimensions
Weight
Color CMOS
3.6mm
2:1 interlace
15.734 KHz(H) 59.94Hz (V)
Internal Negative synchronization
240 Lines
3 Lux @ F2.0 (without IR LED)
1.0Vp-p/75 Ohm
r=0.45
Electrical Auto Iris
Shutter sensitivity :1/60-1/6,000
Electrronic Condenser
2.4 GHz-2.473 GHz (4Ch)
FM
90dBu/V, 3m
1.0Vp-p/75 Ohm
Internal
-14º to + 122º F (-10ºC to + 50 ºC)
9V DC Adapter
2.5”x 1.5” x 3.5”
136 grams or 4.8 oz
WIRELESS RECEIVER
Receiving frequency
Output level
Sensitivity
Antenna
Operating temperature
Power source
Dimensions
Weight
Because our products are subject to continuous improvement, SVII and its subsidiaries reserve the right to modify
product design and specifications without notice and without incurring any obligation. E&OE
2.411GHz - 2.473GHz (4CH)
1.0Vp-p(Video), 3.0Vp-p(Audio)
> 85 dBm
Dipole antenna
-14º to + 122º F or (-10ºC to + 50 ºC)
9V DC Adapter
5.25”(Diameter) x 1.5” (Height)
181 grams or 6.4 Oz
11
CARE AND MAINTENANCE:
Please follow these instructions to ensure proper
care and maintenance of this system
Keep your monitor and camera dry. If it gets wet,
wipe it dry immediately.
Use and store your unit in normal temperature
environment. Extreme temperatures can shorten
the life of the electronic devices.
Handle the monitor carefully. Dropping it can cause
serious damage to the unit.
Occasionally clean the unit with a damp cloth to keep
it looking new. Do not use harsh chemicals, cleaning
solvents or strong detergents to clean the unit.
Keep the unit away from excessive dirt and dust. It
can cause premature wear of parts.
12
It’s all on the web
Product Information
User Manuals
Quick Start Guides
Specification Sheets
Software Upgrades
Firmware Upgrades
VISIT
www.lorexcctv.com
Strategic Vista International Inc.
www.lorexcctv.com
Loading...
