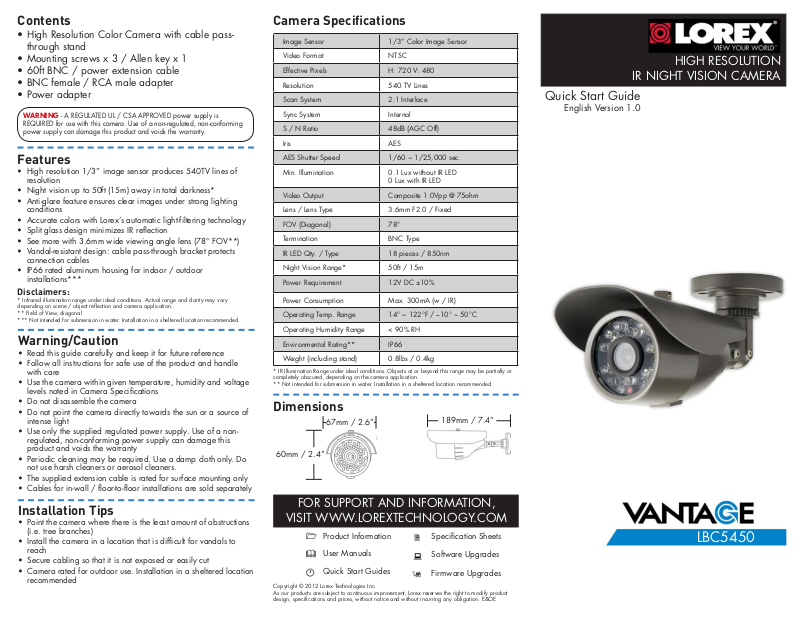

LOREX Technology LBC5450 User Manual

•High Resolution Color Camera with cable pass­through stand
•Mounting screws x 3 / Allen key x 1
•60ft BNC / power extension cable
•BNC female / RCA male adapter
•Power adapter
WARNING - A REGULATED UL / CSA APPROVED power supply is
REQUIRED for use with this camera. Use of a non-regulated, non-conforming power supply can damage this product and voids the warranty.
Features
• High resolution 1/3” image sensor produces 540TV lines of resolution
• Night vision up to 50ft (15m) away in total darkness*
• Anti-glare feature ensures clear images under strong lighting
conditions
• Accurate colors with Lorex’s automatic light-filtering technology
• Split glass design minimizes IR reflection
• See more with 3.6mm wide viewing angle lens (78° FOV**)
• Vandal-resistant design: cable pass-through bracket protects
connection cables
• IP66 rated aluminum housing for indoor / outdoor installations***
Disclaimers:
* Infrared illumination range under ideal conditions. Actual range and clarity may vary depending on scene / object reflection and camera application. ** Field of View, diagonal *** Not intended for submersion in water. Installation in a sheltered location recommended.
Warning/Caution
• Read this guide carefully and keep it for future reference
• Follow all instructions for safe use of the product and handle
with care
• Use the camera within given temperature, humidity and voltage levels noted in Camera Specifications
• Do not disassemble the camera
• Do not point the camera directly towards the sun or a source of
intense light
• Use only the supplied regulated power supply. Use of a non­regulated, non-conforming power supply can damage this product and voids the warranty
• Periodic cleaning may be required. Use a damp cloth only. Do not use harsh cleaners or aerosol cleaners.
• The supplied extension cable is rated for surface mounting only
• Cables for in-wall / floor-to-floor installations are sold separately
Installation Tips
• Point the camera where there is the least amount of obstructions (i.e. tree branches)
• Install the camera in a location that is difficult for vandals to reach
• Secure cabling so that it is not exposed or easily cut
• Camera rated for outdoor use. Installation in a sheltered location
recommended
Camera Specifications
Image Sensor 1/3” Color Image Sensor
Video Format NTSC
Effective Pixels H: 720 V: 480
Resolution 540 TV Lines
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 48dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/25,000 sec.
Min. Illumination 0.1 Lux without IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens / Lens Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 78°
Termination BNC Type
IR LED Qty. / Type 18 pieces / 850nm
Night Vision Range* 50ft / 15m
Power Requirement 12V DC ±10%
Power Consumption Max. 300mA (w / IR)
Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C
Operating Humidity Range < 90% RH
Environmental Rating** IP66
Weight (including stand) 0.8lbs / 0.4kg
* IR Illumination Range under ideal conditions. Objects at or beyond this range may be partially or completely obscured, depending on the camera application. ** Not intended for submersion in water. Installation in a sheltered location recommended.
0 Lux with IR LED
Dimensions
67mm / 2.6”
60mm / 2.4”
FOR SUPPORT AND INFORMATION,
VISIT WWW.LOREXTECHNOLOGY.COM
Product Information
User Manuals
Quick Start Guides
Copyright © 2012 Lorex Technologies Inc. As our products are subject to continuous improvement, Lorex reserves the right to modify product design, specifications and prices, without notice and without incurring any obligation. E&OE
189mm / 7.4”
Specification Sheets
Software Upgrades
Firmware Upgrades
HIGH RESOLUTION
IR NIGHT VISION CAMERA
Quick Start Guide
English Version 1.0
LBC5450
Installing the Camera Connecting the Camera Cable Extension Options
ATTENTION - Test all connections and ensure the camera is working
correctly prior to permanent installation by temporarily connecting the camera(s) and cable(s) to the viewing / recording solution.
Before installing the camera:
• Decide whether to run the cables through the wall / ceiling (drilling required) or along the wall / celing.
• If you run the cables along the wall / ceiling, you must run the cable through the cable notch on the
Cable Notch
base. This will keep the camera base flush to the wall / ceiling when mounted.
To install the camera:
1. Set the camera in the desired mounting position and mark holes for the screws.
To Camera: To Monitor/DVR:
Male Power
BNC
Connect the BNC and power connectors to the camera
Female Power
Connect the BNC connector to the video input of the monitor / DVR, and connect the included power connector to a power adapter. See Setup Diagram below for details.
Extend the cable run for your camera up to 300ft or more depending on the cable type used. See table below:
Option Cable Type Max Cable
1 Regular BNC
(supplied with camera)
2 ‘RG59’ or ‘Coax’ or ‘Coaxial
BNC’ (sold seperately)
3 Lorex Universal Cable
(sold seperately)
Notes:
1. For optimal performance, consider using option 2 or 3. It is best to use the same cable type for the entire distance.
2. Cable run recommendation based on typical camera power consumption (up to 500mA). For specialty cameras with higher current consumption, maximum cable run may be reduced. Consider providing power to the camera at the camera side, rather then at the end of the extension cable.
3. Indicators that your cable run may be too long:
• Video is permanently black & white (even during day time)
• Video is distorted
BNC to RCA Adapter (Optional)
Troubleshooting
Problem Solution
2. Drill the holes for the mounting screws.
3. Connect the video and power cables as shown in the next section ‘Connecting The Camera‘.
4. Feed the cable through the cable notch (if running the cables along the wall / ceiling) or through the mounting surface (if running the cables through the wall / ceiling).
5. Mount the camera stand to the desired surface using the provided screws. Make sure all three screws are fastened tightly at the connection points.
6. Set the position and angle of the camera using the provided Allen key.
2. Loosen the screw near the stand and adjust the camera’s vertical position.
1. Twist the ring to tighten/ loosen the stand connection and adjust the camera’s horizontal position.
3. If needed, loosen the screw near the camera and twist the camera head on the mounting stand.
Attach the included BNC to RCA adapter to connect the extension cable to RCA inputs (i.e. for a TV connection).
Setup Diagram
ATTENTION - This camera includes an Auto Mechanical IR Cut Filter. When
the camera changes between Day/Night viewing modes, an audible clicking noise may be heard from the camera. This clicking is normal, and indicates that the camera filter is working.
No picture / signal •Ensure your TV is on the correct input channel.
Picture is too bright •Ensure your camera isn’t pointed directly at a
Picture is too dark •If using during the day, the camera may not
Night vision is not working
Picture is not clear •Check the camera lens for dirt, dust,
Bright spot in video when viewing camera at night
BNC connection does not connect to my TV.
Common terms of an input channel: INPUT, AV CHANNEL, LINE1, LINE2, AUX.
•If your camera is connected to a VCR / DVR, ensure it is properly connected to your TV / Monitor.
•Ensure connections are properly connected.
•Ensure the camera power supply is plugged in.
source of light (e.g. sun or spot light).
•Slide the sunshade (bullet cameras featuring adjustable sunshades only) forward to block excess light.
•Move your camera to a different location.
be getting enough light. Slide the sunshade (bullet cameras featuring adjustable sunshades only) backwards to let in more light.
•Check the brightness and contrast settings of the device your camera connects to (TV / Monitor / DVR).
•The night vision activates when light levels drop. The area may have too much light.
spiderwebs. Clean the lens with a soft, clean cloth.
•Make sure that the cable run is within the limitations specified in the section ‘Cable Extension Options’.
•Night vision reflects when pointing a camera at a window. Move the camera to a different location.
•Use a BNC to RCA adapter at the end of the extension cable.
Run Distance
180ft / 55m 3
300ft / 92m 5
300ft / 92m 3
Max # of
Extensions
Loading...
