9 Channel Digital Video Recorder

FOR MORE INFORMATION

BEFORE OPERATING THIS SYSTEM, PLEASE READ THIS MANUAL THOROUGHLY AND

DXR109

WWW.STRATEGICVISTA.COM

RETAIN IT FOR FUTURE REFERENCE

Under the copyright laws, this documentation may not be copied, photocopied, reproduced, translated, or reduced to

THIS DEVIC

E COMPLIES WITH PART 15 OF THE FCC RULES.

any electronic medium or machine -readable form, in whole or part without the prior written consent of Strategic Vista Technologies Inc., except in the manner described in the documentation.

Strategic Vista

300 Alden Road Markham, Ontario L3R 4C1 CANADA

OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFULL INTERFERENCE, AND

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED

OPERATION.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at one’s own expense.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Table of Contents

Important Safety Instructions ..........................................................................................................................................................................3

Introduction........................................................................................................................................................................................................4

Features.............................................................................................................................................................................................................4

System Contents ..............................................................................................................................................................................................5

Getting Started..................................................................................................................................................................................................5

Front Panel Controls........................................................................................................................................................................................6

Back Panel Connections.................................................................................................................................................................................8

Accessing the Main Menu...............................................................................................................................................................................9

Main Menu....................................................................................................................................................................................................9

System Set Up ...........................................................................................................................................................................................10

Selecting the Audio Input Channel ...............................................................................................................................................10

Setting the Internal Audible Alarm Buzzer .................................................................................................................................10

Setting the External Audible Alarm device .................................................................................................................................10

Setting the Motion Audible Alarm feature...................................................................................................................................11

Setting the Alarm Duration ...............................................................................................................................................................11

Setting the Dwell Time ......................................................................................................................................................................11

Setting the Message Latch feature...............................................................................................................................................11

System Time/Date Set up ........................................................................................................................................................................11

Selecting the Date Display Format ...............................................................................................................................................11

Setting System Time & Date...........................................................................................................................................................11

Changing the System Password...................................................................................................................................................12

Clearing the Hard Drive Data..........................................................................................................................................................12

Resetting System to Factory Defaults.........................................................................................................................................12

Remote Protocol Setup.....................................................................................................................................................................13

Timer Recording Setup.....................................................................................................................................................................13

Timer .......................................................................................................................................................................................................13

Record Settings ...................................................................................................................................................................................15

HDD Overwrite Setup:.......................................................................................................................................................................15

Record IPS Setup:..............................................................................................................................................................................15

Record Quality Setup ........................................................................................................................................................................15

Alarm REC IPS setup........................................................................................................................................................................15

Alarm REC Quality setup.................................................................................................................................................................15

Motion Trigger Record......................................................................................................................................................................15

Camera Channel Setup ....................................................................................................................................................................16

Motion Detection.......................................................................................................................................................................................17

Event Log Viewing..............................................................................................................................................................................19

Operation.........................................................................................................................................................................................................20

On Screen Display (OSD)................................................................................................................................................................20

Recording Methods ............................................................................................................................................................................20

Viewing Options:.................................................................................................................................................................................20

Individual Camera Select (1 - 9):.........................................................................................................................................................20

Multi View Select: ...................................................................................................................................................................................20

Picture in Picture (PIP):.........................................................................................................................................................................21

Zoom:.......................................................................................................................................................................................................21

Video Search ........................................................................................................................................................................................21

Playing Back Video ............................................................................................................................................................................21

Key Lock................................................................................................................................................................................................22

Troubleshooting..............................................................................................................................................................................................23

Technical Specifications................................................................................................................................................................................24

Appendix 1: Installing the HDD....................................................................................................................................................................25

Appendix 2: Connection Diagram to Cameras and Monitor....................................................................................................................27

Appendix 3: Pin Configurations....................................................................................................................................................................28

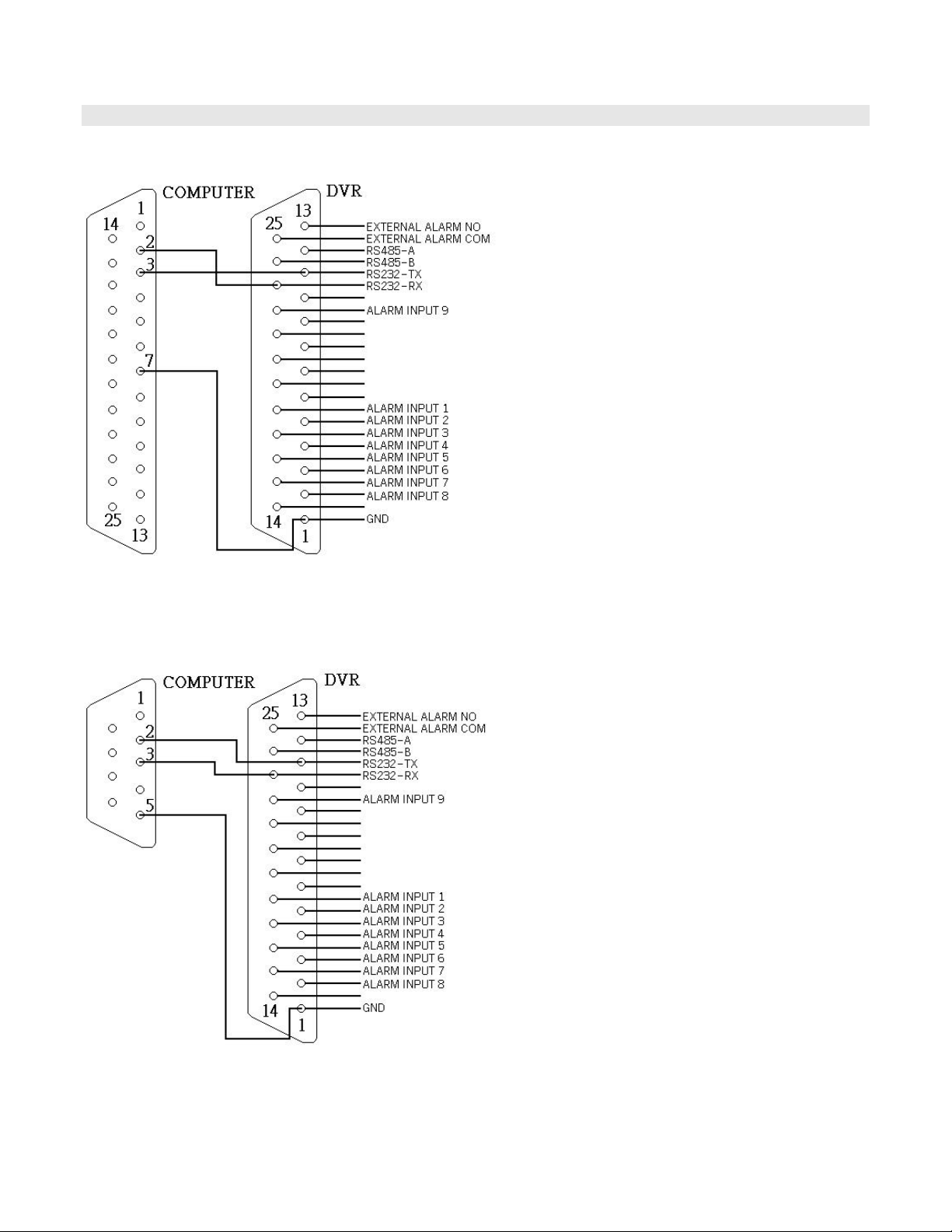

Pin References for RS -232 / Alarm Block..................................................................................................................................29

Appendix 4: Rack Mount Installation ...........................................................................................................................................................30

Appendix 5: Recording Times (in Hours)...................................................................................................................................................31

Appendix 6: RS232 Remote Protocol.........................................................................................................................................................32

Appendix 7: Compatible HDD Brands.........................................................................................................................................................33

Limited Warranty............................................................................................................................................................................................34

Care & Maintenance......................................................................................................................................................................................35

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

Important Safety Instructions

All the safety and operating instructions should be read before operating this equipment. The improper operation may cause irreparable damage to the appliance.

Lift and place this equipment gently. Do not expose this equipment to direct sunlight. Do not use this equipment near water or in contact with water. Do not spill liquid of any kind on the equipment. Do not unplug the power connector before turning the power off correctly. This equipment should be operated using only the power source from standard package. Unauthorized repair or parts substitutions may result in fire, electric shock or other hazards. Do not switch the Power On & Off within short period (within 3 seconds). Do not attempt to service this equipment by yourself. Refer all servicing to qualified service personnel. This installation should conform to all local codes.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Introduction

The DXR109 combines a 9 channel multiplexer with a Digital Video Recorder (DVR). The DVR offers many advantages over traditional time lapse VCR’s, allowing you to quickly access and search for a specific

time segment or event, which has been recorded. This high quality recorded video can be viewed at various playback speeds as well as frame -by-frame with the Jog Button feature

To learn more about StrategicVista products, please visit our website at www.strategicvista.com

Features

• Wavelet Compression Format

• 4 Audio inputs and 2 outputs

• Resolution: 704X564 - full screen, 352X282 - 4 channels, 224X188 9 - channels

• Independent main and call monitor outputs allow simultaneous or full screen viewing

• Multi screen display mode

• 9 channel alarm input, alarm display and 1 alarm output

• Video loss detection able to record 160 events on each channel

• Power-loss me mory feature (In case of power failure, set-up parameter will remain)

• Supports 1 removable HDD, IDE type (up to a maximum of 250GB)

• Display refresh rate up to 72 IPS (NTSC) and 50 IPS(PAL)

• Record refresh rate up to 25 IPS (NTSC) and 22 IPS (PAL)

• Quick mult iple search by date/time, alarm or full list

• Multiple speed playback

• Security password protection

• RS-232, RS-485 communication protocol

DXR109 Digital Video Recorder

Hard Disk Drive in Cartridge

Installation / User

Manual

2 Keys for

System Contents

The DXR109 box should include the items listed below. Please take a moment to verify that no items are missing from the package.

NOTE: KEEP THE KEYS IN A SAFE PLACE. THEY ARE NECESSARY FOR INSTALLATION / REMOVAL OF THE HARD

DISK DRIVE.

Getting Started

If the purchased DVR model did not contain a hard disk drive, please refer to Appendix #1 for HDD installation instructions.

1. Connect video sources and monitor(s) following the configuration example shown in Appendix # 2.

2. Connect the AC Power Cord to the Power Adapter and plug into an electrical outlet. A Red LED indicator light will be ON to indicate that the DVR is in Standby mode.

3. Press the Power button. The POWER LED will turn from red to orange, and other red LED indicators will turn ON. Note: the system takes approximately 5 to 15 seconds to power up. During the power-up, you will see the following messages: “HDD Detecting”, followed by “Master HDD Connected”.

Once connected, the POWER LED will change to green, and the red indicator lights will be ON next to the Alarm and Timer buttons. (The alarm and Timer LED’s simply indicate that these features are enabled)

NOTE: IF YOU GET THE MESSAGE “HDD NOT FOUND”, PLEASE SEE APPENDIX #1 AS THE HDD IS LIKELY NOT

INSTALLED CORRECTLY.

Hard Drive Cartridge

(not included in all models)

Power Adapter and Cord

12 3 4 5 6 7 9 8 10 11 12 13 14 15 16 18 17

LOREX

Front Panel Controls

1. REMOVABLE HDD CARTRIDGE Please refer to Appendix #1.

2. MENU

Press MENU to enter or exit the system setup menu.

3. ENTER

Press ENTER to select an item for change while in the setup menu.

4. SELECT

Press the SELECT button to change the camera shown in the individual panes of the multi screen modes.

5. ZOOM Press ZOOM to enlarge the picture display 2x.

6. Picture in Picture Press the PIP button to change to Picture in Picture mode.

7. 4/7 channel display mode

8. 9 channel display mode

9. REC Press REC to start recording.

10. PLAY

Press PLAY to playback the most recently recorded video.

11. REW / Left REW: Under DMR play mode, it can play video backward at different speeds. (Press REW again to adjust speed as 1, 2, 4, 8, 16, 32 times) Left: When in the setup mode, it works as Left directional button.

12. STOP / Down

• STOP: Under DMR Record / Play mode, it can stop the moment action.

• DOWN: When in the setup mode, it works as the Down directional button.

13. FF / Right FF: It can play video forward at high speed, and press FF again to adjust speed from 1, 2, 4, 8, 16, 32 times. Right: When in the setup mode, it can work as the Right directional button.

14. POWER

Press Power to turn ON / OFF the DMR.

15. PAUSE / Up

Pause: Under DMR play mode, it can pause the action. UP: When in the setup mode, it works as an Up directional button.

16. LED INDICATORS These LED Light are ON under following condition.

• HDD Full: HDD is full

• ALARM: If you want to turn off the ALARM LED light, please refer to page 13 and set the Camera / ALARM item as

OFF (all of the cameras should be set as OFF.)

• TIMER: When Timer is set as Enabled

• PLAY: On Play mode

• REC: On Recording mode

17. SLOW

Press to slow down the playback speed.

18. CAMERA SELECT (1-9) Press the Camera Select (1-9) to select specified camera

Back Panel Connections

1. POWER INPUT

Connects to the Power cord.

2. EXTERNAL I/O

Connects to a PC for Remote Control via RS-232 or to an Alarm Block. (see appendix 6 for more info)

3. 75/HI

When using the LOOP function, allows for HI impedance or 75ohms.

4. VIDEO INPUT (1-9)

Connects to a video source i.e. (camera).

5. CALL

Connects to the CALL monitor for real time sequencing.

6. AUDIO OUTPUTS (1-2)

Connects to a speaker (or a monitor with audio speaker).

7. AUDIO OUTPUTS (R/L)

Connects to an audio source for recording purposes (i.e. microphone).

8. MONITOR

Connects to the main display monitor.

9. LOOP

Allows connection to other video devices.

(Menu)

Accessing the Main Menu

The Menu allows you to configure your DVR settings and program various recording options. Follow these steps in order to access the Menu:

Press the MENU button. The password screen will appear: The default Password is 0000. To change the number of the Password, use the ? / ? buttons to scroll left and right between numbers, and use the ? / ?

buttons to change the value of the number that is flashing. Press the ENTER button once the correct Password is entered. The menu options screen will appear.

NOTE: If you get a message “Password Error”, you have entered an incorrect password.

Main Menu

When the correct password is entered, the main menu options will be displayed. There are 5 options available in the Main Menu:

Timer: Scheduling Recording Record: Record mode set -up Camera: Camera channel set -up System: System Setup (Sets the date, chooses an HDD overwrite setting, changes

password, resets system settings, or clears the HDD)

Event: Event List - Allows you to view video from a list of recorded events Navigating the Menu:

? / ?: Scroll up and down through menu options; change values when an option is selected and is blinking ? / ?: Scroll sideways within a menu option that has been selected

ENTER: Selects a submenu / an option in a submenu for browsing / modification MENU: Completes modification of a menu option; exits a menu

NOTE: The Menu setup will timeout after 1 minute of no key presses.

Password: 0000

? Search

Timer Record Camera System

Event

System Set Up

The system menu is used to configure the system level options of the DXR109… To access the System features, press MENU followed by the 4-digit password. Use the ? / ? to scroll to the ‘System’ option

and press ENTER.

(SYSTEM) Audio Input: 1 Int Audible Alarm: ON Ext Audible Alarm: ON Motion Audible Alarm: ON Alarm Duration: 10 SEC Dwell Time: 02 SEC Message Latch: NO Title Display: ON Time Display: Y/M/D 2003-JAN-02 (THU) 17:37:09 New Password: XXXX Clear HDD: NO System Reset: NO Remote Mode: RS-232 Baud Rate: 9600

Using the ? / ? buttons, scroll to the desired option and press ENTER to select it.

Remote ID: 000

Selecting the Audio Input Channel

This Feature is used to select the audio channel to record. To set this Audio Input Channel:

1. On the System screen, press ? / ? to select Audio Input, then press ENTER.

2. Press ? / ? to select the desired time audio channel (1-4)

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit.

Setting the Internal Audible Alarm Buzzer

To enable or disable the internal audible alarm buzzer: If enabled, the buzzer will sound when the external alarm input is activated.

1. On the System screen, press ? / ? to select Internal audible alarm buzzer, then press ENTER.

2. Press ? / ? to enable or disable the internal audible alarm buzzer. Options are:

ON = Buzzer is on. When the DVR detects an alarm, the system sounds the internal buzzer to alert the user. OFF = Buzzer is off.

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit.

Setting the External Audible Alarm device

To enable or disable the External Audible Alarm Device:

1. On the System screen, press ? / ? to select External Audible Alarm Device, then press ENTER.

2. Press ? / ? to enable or disable the External Audible Alarm Device. Options are:

ON = External Device is on. When the DVR detects an alarm, the system triggers the external audible alarm. OFF = External Device is Off

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit. 10

Setting the Motion Audible Alarm feature

If enabled, the buzzer will sound if the video motion detect feature is set and motion is detected.

5. On the System screen, press ? / ? to select Motion Audible Alarm, then press ENTER.

6. Press ? / ? to enable or disable the External Audible Alarm Device. Options are:

ON = Buzzer will sound when motion is detected. OFF = The buzzer will remain silent when motion is detected.

7. Press MENU to confirm your change.

8. Press ? / ? to move to another field on the System screen or press MENU to exit.

Setting the Alarm Duration

To set the duration of the Alarm:

1. On the System screen, press ? / ? to select Alarm Duration, then press ENTER.

2. Press ? / ? to select the desired time (10s, 15s, 20, 30, 1min, 2min, 3min, 5min, 10min, 15min, 30min, always)

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit.

Setting the Dwell Time

This timer is used to select the amount of time (between 1-10s) a channel appears on the call monitor before sequencing to the next channel. To Set the Dwell Time:

1. On the Sy stem screen, press ? / ? to select Dwell Time, then press ENTER.

2. Press ? / ? to select the desired time (1-10s)

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit.

Setting the Message Latch feature

This feature determines if the On Screen messages will remain on the screen or disappear after 10s. To set the Message Latch:

1. On the System screen, press ? / ? to select Message Latch, then press ENTER.

2. Press ? / ? to enable or disable the Message Latch feature. Options are:

NO = Screen messages will disappear after a 10 sec. (this is the default setting) YES = On Screen messages will remain on the screen for the duration of the event.

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit.

System Time/Date Set up

Selecting the Date Display Format

1. On the System screen, press ? / ? to select Date Display, then press ENTER.

2. Press ? / ? to choose a display format. Options are:

Y-M-D = Year - Month - Day M-D-Y = Month - Day - Year D-M-Y = Day – Month - Year Off = The date and time will not show on the screen.

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit this screen and confirm the

current operation.

Setting System Time & Date

1. On the System screen, press ? / ? to select System Time & Date, then press ENTER.

All Data in HDD

2. Press ? / ? to choose a number, then press ? / ?to move to the next digit:

2003-Jan-01 (Mon) 22:38:29

3. Press MENU to confirm your change.

4. Press ? / ? to move to another field on the System screen or press MENU to exit this screen and confirm the

current operation.

Changing the System Password

1. On the System screen, press ? / ? to select New Password, then press ENTER.

2. Press ? / ? to choose a number, then press ? / ? to move to the next digit:

3. Press MENU to confirm your change.

4. Press ? / ? move to another field on the System screen or press MENU to exit this screen and confirm the current

operation.

5. If you have completed all your system configuration changes, press MENU again to exit and close menu setup.

Clearing the Hard Drive Data

This option will erase all data from the hard drive.

Ensure that there are no important recordings on the disk before using this option.

1. On the System screen, press ? / ? to select Clear HDD, and then press ENTER.

2. Press ? / ? to choose YES to clear the HDD or NO to leave as is.

3. When you choose “Yes” on this option and press ENTER, the DVR will prompt:

4. Press ?to confirm clearing, or ? to cancel.

5. Press MENU to confirm your change.

6. Press ? / ? to move to another field on the System screen or press MENU to exit this

screen and confirm the current operation.

NOTE : Clearing the data from the Hard Drive results in permanent, irreversible loss of all video and related data currently

stored on the Hard Drive.

Will Be Cleared

Are you sure?

(? : No ? : Yes )

Resetting System to Factory Defaults

Using the System Reset option will set all options back to factory default settings. Use the steps below to perform this option.

1. On the System screen, press ? / ? to select System Reset, and then press ENTER.

2. Press ? / ? to choose:

Yes = Confirm the system reset and load the default settings. No = Do not reset the system at this time.

3. Press MENU to exit this screen and confirm the current operation.

4. If you have completed all your system configuration changes, press MENU again to exit and close menu setup.

NOTE : This will not affect the time and date settings.

(Menu)

Event

Remote Protocol Setup

(Timer)

FUNCTION

(Menu)

Event

This feature is used to set the basic RS-232/RS-485 protocols to control the DVR remotely from a PC.

Pressing ENTER after scrolling to the Remote option will bring up the following menu options:

Remote mode: Selects whether to use an RS-232 or RS-485 interface. Baud rate: Selects the baud rate (bps) to be used for the connection.

The available settings are: 115200, 57600, 19200, 9600, 3600, 2400, 1200. ID: Selects a numerical number representing the DVR being controlled if multiple The available setting are: 000 – 255 The remote connection on the DVR uses 8 data bits, 1 start bit, and 1 stop bit, no Parity. Below is an example of the data stream with the control codes shown.

ACT – OxFF OxCO ID

Please refer to Appendix 3 for information on the Pin connections and command protocols that would be used in this application.

units are being used.

STOP – Ox7F

Search Timer Record Alarm

?Remote

System

Timer Recording Setup

On the Main menu, selecting the Timer option will allow you to set daily schedules in which you would like the DVR to automatically record.

Pressing ENTER after scrolling to the Timer option will bring up the following menu options:

Timer

Day Start End IPS Daily 01:00 02:00 Off SUN 12:00 13:00 Off MON 08:00 09:00 Off MO~FR 00:00 01:00 Off SA~SU 20:00 21:00 Off JAN-01 15:00 16:00 Off Timer Enable: No

1. Press ? / ? to select the day(s) to record on, the available options are…

Daily: Everyday SUN: Sunday MON: Monday TUE: Tuesday WED: Wednesday THU: Thursday FRI: Friday SAT: Saturday MO-FR: Monday to Friday SA-SU: Saturday & Sunday JAN-01: Special Date OFF: Not activated

?Timer

Record Alarm

Remote

System

2. Use the ? / ? scroll keys to move to START record time 00:00 (HH:MM)

Press ? / ? to set the start time

3. Press ? / ? move to END record time 00:00 (HH:MM)

Press ? / ? to change END record Time numerical digit

4. Press ? / ? move to QUALITY

Press? / ? to choose options of

BEST, HIGH, NORMAL, BASIC

5. Press ? / ? move to Record IPS (Images Per Second)

Press? / ? to choose one of the following options

NTSC: 15A, 15, 8, 4, 2, 1 PAL: 12A, 12, 6, 3, 2, 1

6. Press MENU to confirm current operation, and enter to next Timer Record setup.

7. Press ? / ? move location to Timer Enable:Yes or No setup

YES : To confirm Timer Enable:Scheduling Timer Record feature NO : To confirm no Timer Enable:No Scheduling Timer Record feature

8. Press MENU to exit and confirm current operation.

9. Press MENU again to exit and close TIMER setup mode.

NOTE: WHEN THE TIMER IS SET, THE REC LED INDICATOR WILL BE ON. ALTHOUGH THE LIGHT MAY BE ON, THE

SYSTEM IS NOT NECESSARILY RECORDING SINCE IT WILL ONLY RECORD DURING ITS SCHEDULED TIME.

Record Settings

(Menu)

(RECORD)

On the Main menu, selecting the Record option will allow you to set the quality and speed of recordings.

Pressing ENTER after scrolling to the Record option will bring up the following menu options:

HDD Overwrite: NO Record IPS: 25A Record Quality: Normal Alarm Rec IPS: 25A Alarm Rec Quality: Normal

Motion Trigger Record: ON

HDD Overwrite Setup:

1. Press ENTER to confirm HDD OVERWRITE setup.

2. Press ? / ? to choose HDD OVERWRITE.

NO: When HDD full will stop recording YES: When HDD full will overwrite the HDD recording

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close HDD OVERWRITE setup mode.

Record IPS Setup:

1. Press ENTER to confirm RECORD IPS setup.

2. Press ? / ? to choose IPS record speed. Note that ‘15A’ indicates 15 ips with audio.

NTSC: 25A, 15, 8, 4, 2, 1 PAL: 18A, 12, 6, 3, 2, 1

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close RECORD IPS setup mode.

Record Quality Setup

1. Press ENTER to confirm Record Quality setup.

2. Press? / ? to choose Record Quality level.

BEST, HIGH, NORMAL, BASIC

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close RECORD QUALITY setup mode.

Alarm REC IPS setup

1. Press ENTER to confirm ALARM REC IPS setup.

2. Press ? / ? to choose ALARM REC IPS record speed.

NTSC: 15A, 15, 8, 4, 2, 1 PAL: 12A, 12, 6, 3, 2, 1

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close ALARM REC IPS setup mode.

Alarm REC Quality setup

1. Press ENTER to confirm ALARM REC QUALITY setup.

2. Press? / ? to choose ALARM REC QUALITY level.

BEST, HIGH, NORMAL, BASIC

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close ALARM REC QUALITY setup mode.

Search Timer

? Record

Alarm Remote System Event

Motion Trigger Record

1. Press ENTER to confirm MOTION TRIGGER RECORD setup.

2. Press? / ? to toggle the option between ON and OFF.

Camera Channel Setup

To access the Camera option, press MENU followed by the 4-digit password. Use the ? / ? to scroll to the Camera option and press ENTER.

TITLE DWELL ALARM RECORD

---01 ON 5 5 5 LOW EVENT

---02 ON 5 5 5 LOW EVENT

---03 ON 5 5 5 LOW EVENT

---04 ON 5 5 5 LOW EVENT

The options available in this section are as follows…

Title

This feature is used to assign a 6-character title to each camera input.

1. Press ? / ? to select the desired time camera channel (1-9), and then press ENTER.

2. Press ? / ? to select the desired character and ? / ?to move to the next character

3. Press MENU to confirm and exit the Title setting.

4. Press MENU again to exit the Camera Setup Option

Dwell

This feature is used to enable or disable the dwell feature for each camera when viewing using the call monitor output.

1. Press ? / ? to select the desired time camera channel (1-9), then press ENTER.

2. Press ? / ? to select the Dwell feature on the screen.

3. Press MENU to confirm and exit the dwell setting.

4. Press MENU again to exit the Camera Setup Option

Brightness / Contrast / Color This feature is used to adjust the video settings on each channel.

1. Press ? / ? to select the desired time camera channel (1-9), then press ENTER.

2. Press ? / ? to select the Brightness, Contrast, or Color feature on the screen.

3. Press ? / ? to select 0~9 on the screen.

4. Press MENU to confirm and exit the Brightness, Contrast, or Color control feature

5. Press MENU again to exit the Camera Setup Option

Alarm Polarity This feature is used to select the alarm polarity as LOW / OFF / HIGH.

1. Press ? / ? to select the desired time camera channel (1-9), then press ENTER.

2. Press ? / ? to select the Alarm Polarity feature on the screen.

3. Press ? / ? to select LOW / OFF / HIGH on the screen.

4. Press MENU to confirm and exit the Alarm Polarity feature

5. Press MENU again to exit the Camera Setup Option

Record Method

This feature is used to select the DVR record method as either EVENT / NORMAL / OFF.

1. Press ? / ? to select the desired time camera channel (1-9), then press ENTER.

2. Press ? / ? to select the Record Method feature on the screen.

3. Press ? / ? to select EVENT/ NORMAL/ OFF on the screen.

EVENT: when the alarm input is triggered, the DVR will increase the recording time to that channel.

i.e. the normal record sequence for cameras is camera 1, camera 2, camera 3 etc… In Event mode, when an alarm in triggered from channel 1, the DVR will record using the following sequence…., Camera 1, Camera 2, Camera 1, Camera 3, Camera 1, Camera 4 etc….

NORMAL: When an External Audible Alarm is triggered, the DVR will record normally as set up. OFF: An Alarm Trigger will not cause the DVR to start recording

4. Press MENU to confirm and exit the Record Method feature

5. Press MENU again to exit the Camera Setup Option

Motion Detection

The Motion Detect feature provides a visual indication on the monitor when movement is detected in the picture. Also, if the ‘Motion Trigger Record’ option is enabled in the ‘Record’ menu, recording will active on all cameras when motion is detected. Use the steps below to enable/disable the detection zones for each camera.

Press MENU to enter the menu set up, then ? to CAMERA setup. Press ENTER twice to enter the Motion Detection Setup.

Each screen displays the current camera picture overlaid with the motion targets (as Figure 1). Pressing the ? / ? , ? / ? buttons will toggle the motion detection between ON or OFF.

The targets on each motion setup can be turned to ON or OFF individually by row. To set up targets, using the following front panel buttons:

1. Press ENTER to confirm the channel

2. Press ENTER to enter motion mode

3. ? moves the target cursor up one row at a time.

4. ? moves the target cursor down one row at a time.

5. ? moves the target cursor left one column at a time.

6. ? moves the target cursor right one column at a time.

7. Press ENTER to turn the target cursor ON

Press ENTER again to turn the target cursor OFF

8. Camera Select (1-15) toggles the corresponding target on the cursor line ON or OFF. (see Figure 1.1) There are

only 15 targets in a row, therefore; only Camera Selected (1-15) can be operated.

9. Zoom: turns all targets in the current row ON or OFF. (Figure 1-2)

10. PIP: turns all targets on the screen ON or OFF. (Figure 1-3)

Press SLOW button to setup the Sensitivity list up to 255

1. Press REC button to setup the Sensitivity list down to 000

2. Sensitivity value is related to motion and brightness change.

3. Low value (as 001) means higher sensitivity on motion and brightness change.

4. High value (as 255) means lower sensitivity on motion and brightness change.

User can choose the suitable sensitivity value in different locations. The default value is set on 32.

Figure 1 MOTION DETECTION SETUP

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

Figure 1-1 MOTION DETECTION SETUP – 1~9

-- --

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

Figure 1-2 MOTION DETECTION SETUP – LINE

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

-- --

Figure 1-3 MOTION DETECTION SETUP – ALL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

032

-- --

(Menu)

Event Log Viewing

To access the Event Log Viewing option, press MENU followed by the 4-digit password. Use the ? / ? to scroll to the Event option and press ENTER to view the list of logged events.

Use the ? / ? to scroll through the events on the display and ? / ? to go to the next page. To view the video associated with an event, scroll to the event and press ENTER.

The following is a list of events that can be displayed on the DXR109.

M-HDD WARNING : Master HDD might be failed M-HDD LOSS: Master HDD does not exist. User can use other HDD. M-HDD ERROR: Master HDD may contain error. S-HDD WARNING: Slave HDD may have failed. S-HDD LOSS: Slave HDD does not exist. User can use other HDD S-HDD ERROR: Slave HDD may contain error. HDD FULL: HDD is full. SYSTEM ERROR: System may have failed.

------02 VLOSS: Channel: 2 Video Loss

------03 ALARM: Channel: 3 External I/O Alarm triggered. POWER RESTORE: Power restore.

Search Timer Record Alarm Remote System

? Event

2002

–

JAN

–

01 01:02:03

2002

–

JAN

–

01 01:02:03

Operation

On Screen Display (OSD)

The DXR109 will display all current status on the OSD. Here is an example of the display. The following status will be shown:

Time and Date – The current time and date will be shown on the first line. Record Type – The current recording method will be shown:

M= Manual, T= Timer, A= Alarm, E= External Trigger

Record Status – An icon will be displayed when the unit is currently recording HDD Status – This will display either the remaining HDD capacity in GB or OW to indicate

that it is set to Overwrite.

Video Loss - Screen will display if the video input is not connected properly.

Recording Methods

The DXR109 offers a variety of flexible recording modes. The unit can be set up to record continually, following a schedule, or by record events. In addition, the recording speed and resolution is also configurable (these options are configurable through the system menu). Under the recording status, if power is stopped accidentally, recorded video will still be stored in the HDD and will be available when the power is restored, and the original recording setup will remain.

When recording, the top line of the display will show the date, time, and the amount of available HDD memory (in GB). In the example below, the letter “A” represents the alarm trigger and the letters “OW” represents HDD over write.

A?OW

There are 3 record modes for DXR109: Alarm Record, Timer Record, and Manual Record.

1. Alarm Record

The display will indicate a recording triggered by an Alarm using the letter “A”.

2. Timer Record

The display will indicate a scheduled recording using the letter “T”.

3. Manual Record

The display will indicate a manual recording (by pressing the REC button) using the letter “M”.

4. Motion Trigger Record

Viewing Options:

Individual Camera Select (1 - 9):

Multi View Select:

Recording will be triggered by motion sensing and is indicated with the letter ‘D’.

Press Camera Select (1 - 9) button to select the desired camera to display in full screen mode.

This button is used to select the ideal viewing configuration.

E 32GB

1. Press the buttons to toggle the camera views. 20

?Last Record

An example of a Full List search is shown on the left.

Picture in Picture (PIP):

This button is used to configure the monitor so a full screen is displayed in the background with a 1/16th size screen insert.

1. Press the button to display the PIP mode.

2. Press SELECT then ? / ? button to move the insert screen.

3. Press MENU to exit

Zoom:

Feature is used to enlarge the display (2X) the size of the main picture. The screen will now display the “zoomed” picture as the main picture with a small window inserted containing a moveable 1/4 view size of the appointed camera.

1. Select the desired camera by pressing Camera Select (1-9).

2. Press the Zoom button to zoom the image on the display.

3. Press the Zoom button again to move the zoom pointer.

4. Press MENU to exit

Video Search

The DVR allows you to easily find sections of recorded video using the Search feature. Press the SEARCH button and you will see the following options:

Last Record: Plays the last recorded piece of video. Full List: Shows a listing of all recorded video on the HDD, sorted by time. Alarm List: Shows a listing of all recorded video triggered by an Alarm. Time Search: Finds video recorded on a specific date that is entered.

?M 2002-JAN-01 01:02:03 M 2002-JAN-01 01:02:03 A 2002-JAN-01 01:02:03 T 2002-JAN-01 01:02:03 E 2002-JAN-01 01:02:03 M 2002-JAN-01 01:02:03

?: Page Up ?: Page Down

Note that the date and time appear, along with the letter representing the method of recording that took place.

Simply press ENTER to view a selected piece of video on the list. The DVR will play that video, followed by the next video in chronological order, until it hits the End of the list. You can stop the video at any time by pressing the STOP button.

Full List Alarm List Time Search

Playing Back Video

Pressing PLAY while in Normal operation will play back the most recently recorded video clip. The controls below will allow you further controls over the playback whether in this mode or when viewing video from the Search mode.

Fast forward - Press PLAY on the front panel, then press FF/? to open the fast forward search screen.

Press FF/? once to increase the speed to 2X, twice to increase the speed to 4X, and so on. The maximum fast forward speed is 32X.

Fast Reverse - Press PLAY on the front panel, then press REW/? to open the fast reverse search screen.

Press REW/? once to increase the reverse speed to 2X, twice to increase the reverse speed to 4X, and so on. The maximum fast rewind speed is 32X.

Slow forward - Press PLAY on the front panel, then press SLOW for slow play. Press FF/? to play images at slow speed

(1/2X). Press FF/? again to slow the speed to 1/4X. Continue to press FF/? to slow down the speed. The minimum slow speed is 1/32X.

Slow reverse Press PLAY on the front panel, then press SLOW for slow forward. Press REW/? to play images slowly

forward (1/2X). Press REW/? again to slow the speed to 1/4X. Continue to press REW/? to slow down the

Image Jog Press PLAY on the front panel, then press PAUSE to lock the current image on the screen.

Pause Press PLAY on the front panel, and then press PAUSE/? to lock the current image on the screen. Stop Press STOP on the front panel whenever you want to return the DVR to live monitoring mode.

Key Lock

For added security, you can Lock the buttons on your DXR109. Locking disables the functionality of the buttons and prevents accidental key presses from altering the operation of the DXR109.

To enable the Key Lock feature, press and hold the ENTER and MENU at the same time. To disable the Key Lock feature when it is locked, press and the ENTER and MENU at the same time.

speed. The minimum slow forward speed is 1/32X.

Press FF/? to select single image play. Each time you press FF/? the next image will display. Continuing to press FF/? will result in forward image-by-image playback. Pressing REW/? will result in reverse image by image playback.

Check that the HDD has been installed

correctly

Check camera’s video cables and

Check monitor’s video cables and

Check that Timer / Alarm Enable is set to

YES

Timer / Alarm recording isn’t

working

Check if the s

ystem is in Key Lock mode

Buttons aren’t working when

Check the power source cord connections

Check that there is power at the outlet

Need to insert HDD

locked, then press any key to continue

Troubleshooting

HDD not found

No Power

SOLUTION PROBLEM

Make sure that the HDD Cartridge is

pressed

No recorded video

No video

Press MENU and ENTER at the same time to escape the Key Lock mode

connections

Technical Specifications

Video format NTSC/EIA or PAL/CCIR HDD storage IDE type, UTMA 66 above, 1 removable HDD supported Record mode Manual / Alarm / Timer Camera input signal Composite video signal 1 Vp-p 75O BNC, 9 Channels Camera loop back Composite video signal 1 Vp-p 75O BNC, 9 Channels Main monitor output Composite video signal 1 Vp-p 75O BNC Call monitor output Composite video signal 1 Vp-p 75O BNC Audio input/ output 4 audio inputs, (RCA) and 2 audio outputs, (RCA) Motion detect area 15 X 12 Targets per camera (NTSC)/ 15*14 targets per camera (PAL) Motion detect sensitivity 256 Levels Video loss detection Yes Refresh rate 72 IPS for NTSC / 100 IPS for PAL Recording rate 25 IPS for NTSC / 12 IPS for PAL Dwell time Programmable (1 - 10 Sec) Picture in picture Yes (Moveable) Key lock Yes Picture zoom 2X (Moveable) Camera title 6 Characters Video adjustable Color / Contrast / Brightness Adjustable Alarm input / output Input: TTL input, Hi (5V), Low (GND) Output: COM,/N.O/N.C Remote control RS-232 or RS-485 Time display format YY/NN/DD, DD/MM/YY, MM/DD/YY, OFF Power source AC 100-240V +/- 10% switching adaptor Power consumption <45W Operation temperature 10 - 40 degrees C RS - 232c / RS-485 115200, 57600, 19200, 9600, 4800, 3600, 2400, 1200 bps Dimension (mm) 432 (W) x 110 (H) x 325 (D) Net weight 5.7 Kgs

Because our products are subject to continuous improvement, SVII and its subsidiaries reserve the right to modify product design and specifications without notice and without incurring any obligation. E&OE

Appendix 1: Installing the HDD

NOTE: The HDD has the same purpose in a DXR109 as a videocassette does in a VCR. However, installing the HDD is a bit

more complicated. Please follow the next steps carefully in order to ensure proper installation.

The compartment (with the handle) located on the front panel of the DXR109 is the removable Cartridge Casing where the HDD is inserted. The various parts of the Cartridge Casing are labeled for your reference.

1. Keyhole

2. LED indicator lights (Power indicator & HDD Access indicator)

3. Handle

Step 1: Remove the Cartridge Casing from the DXR109

Lift the Handle and pull towards you. The Cartridge Casing will slide out of the DXR109.

NOTE : The Cartridge must be unlocked to remove it, (please see step 8 for more information on locking and unlocking the

Step 2: Remove the Cover from the Cartridge Casing

Step 3: Unclip the release latch with the word “OPEN,” printed beside it by gently pushing on the latch. Step 4: Slide the cover off the Cartridge Casing.

Cartridge Casing

removable HDD cartridge).

Step 5: Insert the HDD into the Cartridge Casing

Take the Hard Disk Drive and connect the two cables from the back of the Cartridge Casing to the HDD. The cables should be pushed in firmly, but not forcibly.

B (unlocked)

Step 6: Secure the HDD in the cartridge casing.

Position the HDD into place and secure it using the six screws supplied.

Step 7: Slide the top Cover over the Cartridge Casing

Slide the Cover forward over the Cartridge Case. Ensure it is secured in place over the release latch.

Reinsert the Cartridge Casing into the DXR109

Step 8: Lock the Cartridge

To Lock the cabinet, turn the key clockwise to Position A.

A (locked)

To unlock the cabinet, turn the key counter-clockwise to Position B. NOTE : The DXR109 will not function if the key is not in the locked position.

Appendix 2: Connection Diagram to Cameras and Monitor

Video Camera

....

2 1

.. . .

Main Monitor

Alarm

Sensor

Video Output

Audio Output

Alarm Input

RS232

Audio Input

(4 Channels)

Call Monitor

Appendix 3: Pin Configurations

9 pin Com Port

25 Pin Com Port

Pin References for RS-232 / Alarm Block

PIN 1. GND

GROUND

PIN 18. ALARM INPUT 1

PIN 5. ALARM INPUT 2

PIN 17. ALARM INPUT 3

PIN 4. ALARM INPUT 4

PIN 16. ALARM INPUT 5

PIN 3. ALARM INPUT 6

PIN 15. ALARM INPUT 7

PIN 2. ALARM INPUT 8

PIN 22. ALARM INPUT 9

PIN 11. RS232-TX

PIN 23. RS232-RX

PIN 12. RS485-A

PIN 24. RS485-B

PIN 13. EXTERNAL ALARM NO

PIN 25. EXTERNAL ALARM COM

Used to connect an alarm sensor between ALARM INPUT 1 (PIN 18) and GND (PIN 1) to trigger an alarm on Camera 1, which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 2 (PIN 5) and GND (PIN 1) to trigger an alarm on Camera 2 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 3 (PIN 17) and GND (PIN 1) to trigger an alarm on Camera 3 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 4 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 4 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 5 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 5 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 6 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 6 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 7 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 7 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 8 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 8 which can activate the internal audible alarm and start recording.

Used to connect an alarm sensor between ALARM INPUT 9 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 9 which can activate the internal audible alarm and start recording. \

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS232 serial communications signals.

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 serial communications signals.

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

Under normal operation COM disconnect with NO. But when alarm triggered, COM connect with NO.

Appendix 4: Rack Mount Installation

Screws and brackets for rack mounting applications can be purchased as an optional accessory.

Front Angle with Rack Mount

Side View with Rack Mount

For more information about the rack mount & other accessories through Strategic Vista, please visit: www.strategicvista.com

Appendix 5: Recording Times (in Hours)

NTSC SYSTEM

IPS 25A 15 8 4 2 1

Best 16hr 32hr 60hr 120hr 240hr 480hr

Record Quality

HDD Type 80GB

IPS 25A 15 8 4 2 1

Record Quality

HDD Type 120GB

NOTE : The above data has been taken from actual test data obtained using recordings from a normal TV program and is to be used for reference purposes only.

High 20hr 40hr 75hr 150hr 300hr 600hr

Normal

Basic 54hr 105hr 200hr 400hr 800hr 1600hr

Best 24hr 48hr 90hr 180hr 360hr 720hr High 30hr 60hr 1136hr 225hr 450hr 900hr

Normal

Basic 80hr 160hr 300hr 600hr 1200hr 2400hr

32hr 64hr 120hr 240hr 480hr 960hr

48hr 96hr 1600hr 360hr 720hr 1440hr

)

0xCO

FUNCTION

Appendix 6: RS232 Remote Protocol

The RS-232 protocol allows you to control the DXR109 from a PC or any other serial device. Data: 8 bit data, 1 start bit, 1 stop bit

ACT (0xFF

FUNCTION CODE ASCII FUNCTION CODE ASCII

KEY_MENU 0x4D M KEY_CH1 0x31 1

KEY_SELECT 0x73 s KEY_CH2 0x32 2

KEY_ENTER 0x0D ENTER KEY_CH3 0x33 3

KEY_4CUT 0x61 a KEY_CH4 0x34 4

KEY_ZOOM 0x5A Z KEY_CH5 0x35 5

KEY_9CUT 0x62 b KEY_CH6 0x36 6

KEY_PIP 0x70 p KEY_CH7 0x37 7

KEY_16CUT 0x63 c KEY_CH8 0x38 8

KEY_SLOW 0x53 S KEY_CH9 0x39 9

KEY_REC 0x72 r

KEY_LEFT 0x4C L

KEY_UP 0x55 U

KEY_PLAY 0x50 P

KEY_DOWN 0x4E N

KEY_RIGHT 0x52 R

KEY_POWER 0x57 W

KEY_KEY_LOCK 0x4B K

STOP 0X7F

Manufacturer

Model

Capacity

Rotation

160GB

Appendix 7: Compatible HDD Brands

HITACHI Deskstar 180 GXP (120 GB) 120GB 7200 rpm HITACHI Deskstar 7K250, HDS722516VLAT20

7200rpm

HITACHI Deskstar 7K250, HDS722525VLAT80 250GB 7200rpm

IBM Deskstar 120GXP (80GB) 80GB 7200 rpm

IBM Deskstar 120GXP (120GB) 120GB 7200 rpm Maxtor DiamondMax 536DX(60GB) 4W060H4 60GB 5400rpm Maxtor DiamondMax Plus 9 80GB 7200 rpm

Maxtor DiamondMax Plus 9, Model#6Y120L 120GB 7200 rpm Maxtor DiamondMax Plus 9, Model#6Y160L0 160GB 7200rpm

Seagate Barracuda ATA IV, ST380021A 80GB 7200rpm Seagate Barracuda ATA V, ST3120023A 120GB 7200 rpm

Seagate Barracuda 7200.7 Plus, ST3160023A 160GB 7200 rpm Western Digital Caviar WD1200BB-00CAA1 120GB 7200rpm Western Digital Caviar WD2000BB-00DWA0 200GB 7200rpm

Note: The above bran ds and models of HDD have been tested and they are compatible with the DGR109.

Limited Warranty

manufacturing defects in material and workmanship, provided the Product is used in normal conditions and is installed and

This warranty shall be for the following warranty periods (the “Warranty Period”), commencing on the date the Purchaser

found be LOREX to be

This warranty is invalidated if other than LOREX accessories are or have been used in or in connection with the Product or

This warranty does not apply to defects or damages arising by use of the Product in other than normal (including normal

of the Product other than in strict accordance with

This warranty does not apply to defects in or damages to the Product caused by (i) negligent use of the Product, (ii) misuse

ss or implied, and LOREX neither assumes nor authorizes any person to

assume for it any other obligation or liability in correction with the sale or service of the Product. In no event shall LOREX

from the use of the Product or arising from the malfunctioning or

functioning of the Product, or for any delay in the performance of this warranty due to any cause beyond its control.

he Product require service under this warranty, the Purchaser must provide LOREX with a copy of his/ her original, dated bill of sale, receipt

ranty, proceed with the following

ndling (send check or money order, no cash please),

along with a copy of your dated bill of sale, receipt, or invoice, plus a description of the Product’s apparent malfunction and the telephone

ing (send cheque or money order, no cash

please), along with a copy of your dated bill of sale, receipt, or invoice, plus a description of the Product’s apparent malfunction and the

Always use discretion when installing video and/or audio surveillance equipment especially when there is

LOREX PRODUCT LIMITED WARRANTY

LOREX warrants, to the original retail purchaser only (the “Purchaser”), that this item (the “Product”) is free from

used in strict accordance with the instructions contained in the Product’s Owner’s Manual.

buys the Product at retail in an unused condition.

Parts and Labor: 1 year (Warranted parts do not include Bulbs, LED’s and Batteries)

LOREX’s obligations under this warranty shall be limited to the repair or replacement of any warranted parts found by LOREX to be defective in the Product, or, in LOREX sole discretion, the replacement of the Product defective. Any replacement parts furnished be LOREX in connection with this warranty shall be warranted to the Purchaser for a period equal to the unexpired portion of Warranty Period for the Product.

Warranty Exclusions

This warranty does not apply to Bulbs, LED’s and Batteries supplied with or forming part of the product.

in any modification or repair is made to the Product be other than a service depot authorized by LOREX.

atmospheric, moisture and humidity conditions) or by installation or use the instructions contained in the Product’s owners Manual.

or abuse of the Product, (iii) electrical short circuits or transients, (iv) Purchaser adjustments that are not covered in the Owner’s Manual, (v) use of replacement parts not supplied by LOREX (vi) improper Product maintenance, or (viii) accident, fire, flood or other Acts of God. LOREX reserves the right to make change in design or to make additions to or improvements in its products without incurring any obligation to modify any product which has already been manufactured. This warranty is in lieu of other warranties, expre

be liable for any special or consequential damages arising nonThis warranty shall not apply to the appearance or accessory items including, but not limited to cabinets, cabinets parts, knobs etc., and the uncrating, setup, installation or the removal and reinstallation of products after repair.

LOREX does not make any claims or warranties of any kind whatsoever regarding the Product’s potential, ability or effectiveness to prevent minimize, or in any way affect personal or property damage or injury. LOREX is not responsible for any personal damage, loss or theft related to the Product or to its use for any harm, whether physical or mental related thereto. Any and all claims or statements, whether written or verbal, by salespeople, retailers, dealers or distributors to the contrary are not authorized by LOREX, and do not affect this provision of this warranty.

The purchaser may have other rights under state, provincial, or federal laws and where the whole or part of any item of this warranty is prohibited by such laws, it shall be deemed null and void, but the remainder of the warranty shall remain in effect.

Obtaining Service

Should t or invoice, failing which LOREX will not perform any of its obligations under this warranty. To claim on this war steps. 1 Pack the Product in a well-padded sturdy carton.

2. i). If the unit was purchased in the United States proceed as follows: a. Include $US 12.00 for monitors and VCR’s and $8.00 for Cameras for postage and ha

number where you can be reached during the day.

b. Return the unit to: Strategic Vista USA Inc.

ii). If the unit was purchased in Canada proceed as follows: a. Include CDN $18.00 for monitors and VCR’s and $12.00 for Cameras for postage and handl

telephone number where you can be reached during the day.

b. Return the unit to: Strategic Vista Corp.

perceived privacy. Inquire regarding federal, state and/or local regulations applicable to the lawful installation of video and or audio recording or surveillance. Party consent may be required.

C/O The Advantage Center 1955 Wehrle Drive Williamsville NY 14221

300 Alden Road, Markham, Ont. L3R 4C1

www.strategicvista.com

Care & Maintenance

Please follow these instructions to ensure proper care and maintenance of this system

Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme

temperatures can shorten the life of the electronic devices. Handle the monitor carefully. Dropping it can cause serious damage

to the unit. Occasionally clean the unit with a damp cloth to keep it looking new.

Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the unit.

Keep the unit away from excessive dirt and dust . It can cause premature wear of parts.

LOREX Technology DXR109 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
