Lorex Technology C2415 Users Manual

SWEET PEEP
VIDEO BABY MONITOR
ENGLISH
USER’S GUIDE
Version 1.0
FRANÇAIS
ESPAÑOL
www.lorexbaby.com
• Adult assembly is required. Keep small parts away from children when assembling.
• This product is not a toy. Do not allow children or infants to play with it.
• This video monitor is not a substitute for responsible adult supervision.
• Test the video monitor before use. Become familiar with its functions.
• Keep the cords out of reach from children and infants.
• Never use extension cords with power adapters.
• Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.
• Insert battery with the correct polarity.
• Keep all batteries away from children and infants.
• Do not cover the video monitor with a towel or blanket.
• Do not use the video monitor near water.
• Do not use the video monitor near a heat source.
• Do not touch the plug contacts with sharp or metal objects.
• Keep this user’s guide for future reference.

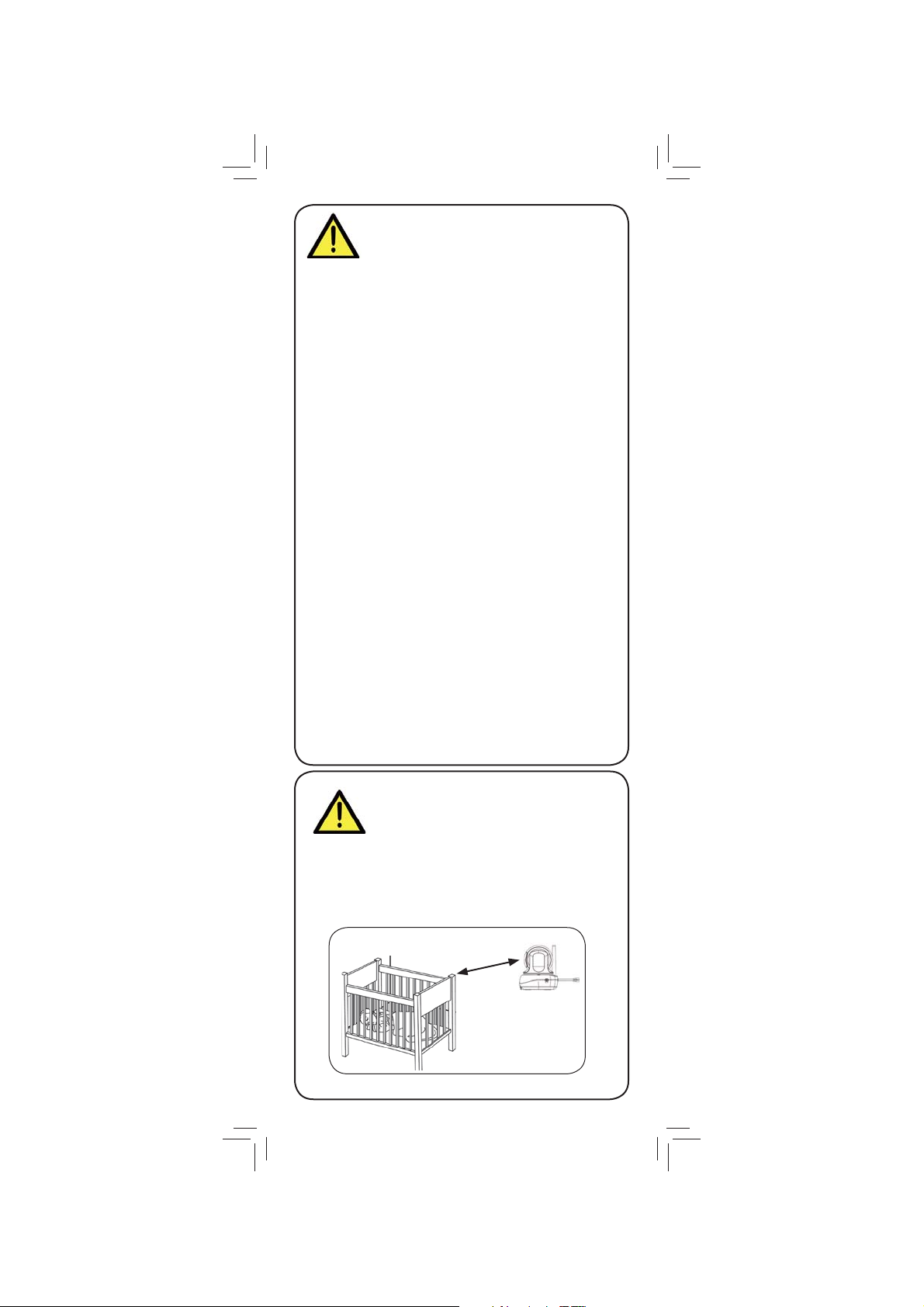

To Avoid Injury to Children & Infants:
MAKE SURE to keep the camera and all power
cords are at least 3ft / 1m away from cribs and out of reach of your child.
• Use the included cable clips to help keep power cords away from your child.
3ft / 1m
Table of Contents:
Product Includes ..............................2
Monitor Overview ...........................2
Camera Overview ...........................3
Getting Started ...............................4
Using Your Baby Monitor ................7
Using the Menus .....................................7
Talking to Your Baby ................................ 8
Changing Channels ................................. 8
Using Scan Mode
Adjusting Volume ..................................11
Adjusting Screen Brightness ....................11
Using Pan / Tilt Mode ............................12
Using Digital Zoom................................13
Turning on the Night-Light .......................13
Playing Lullabies ...................................14
Temperature Alerts ................................. 15
Using VOX Mode (Voice Trigger) ............17
Video Off Mode (Audio Only Mode) ....... 18
(multiple cameras only) ........ 9
ENGLISH
Pairing Additional Cameras ..........19
Technical Specifications .................21
Camera ...............................................21
Monitor ................................................ 21
Troubleshooting ............................22
Need Help? ...................................22
1

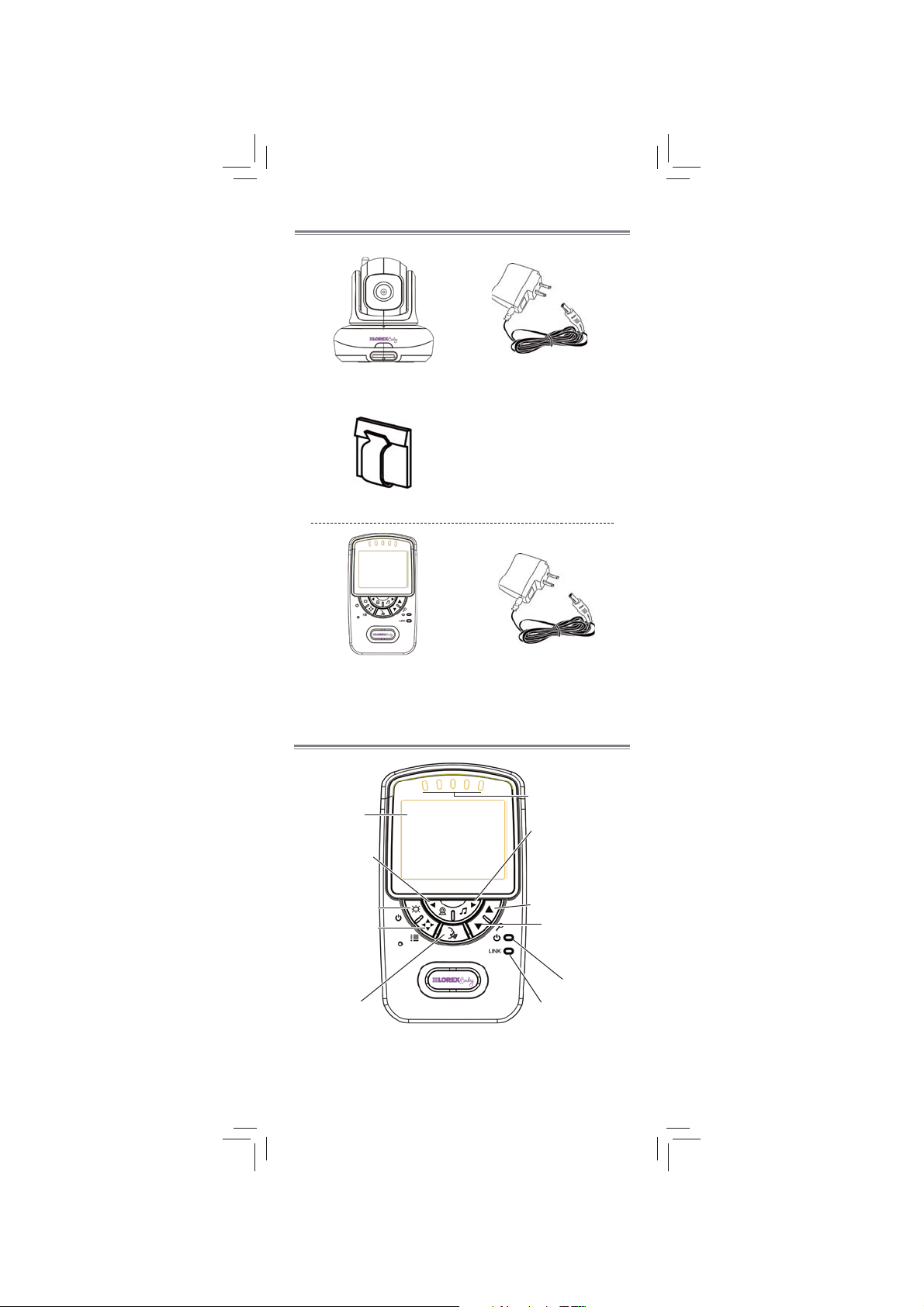

Product Includes
x1*
Camera
x2*
Cable Clips
x1
Monitor
*Contents may vary by model
x1*
Power Adapter
x1
Power Adapter
Monitor Overview
Sound LED’s
Video Display
Select Channel / Scan Mode
Power / Video Off Menu / PT Mode*
Talk
* To control the camera’s pan / tilt function, see “Using Pan / Tilt Mode” on page 12.
2
Start / Stop Lullaby
Volume Up / Zoom In
Volume Down / Zoom Out
Power LED
Link LED
Fold-out Antenna
Belt Clip
Camera Overview
Antenna
ENGLISH
Battery Compartment
Lens
Infrared LEDs
Night Light
Light Sensor
Speaker
Temperature Sensor
Power Switch
Pairing Button
3
Getting Started
Connect the power adapter to the camera.
1
Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child.
Use the included cable clips to help keep power cords away from your child.
Slide the power switch to ON.
2
Press down on the belt clip to remove it
3
from the monitor. Press down on the battery compartment door
4
with both thumbs to slide it off the monitor.
4
Connect the battery cable to the monitor.
5
ENGLISH
Battery
The battery cable only connects one way. Do not force the battery cable.
Replace the battery compartment door
6
and the belt clip. Connect the power adapter to the monitor.
7
Ensure you charge the monitor for 6 hours
Battery Cable
before using for the first time.
Battery Terminals
Press and hold the power button to turn on
8
the monitor. The power LED will light up.
Power Button
Power LED lights up
5
Tips
• It is recommended to charge the battery for before use.
• For overnight monitoring, it is recommended to connect the power adapter. When fully charged, the monitor will stay on up to 6 hours in normal mode, up to 8 hours in VOX mode (page 17), and up to 10 hours in Video OFF mode
18)
.
• For better reception, flip up the antenna on the monitor.
Pull up to extend antenna
When choosing a location for your camera:
• Determine where you will get the best view of your baby.
• Ensure the power cable is long enough to power the camera.
6 hours
(page
Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child.
Use the included cable clips to help keep power cords away from your child.
Cable Clips
6
Using Your Baby Monitor
The monitor shows the following icons during use:
ENGLISH
Icon Meaning
Signal strength
Selected channel Scan mode
Scan
activated
Volume muted
Digital zoom
X2
activated Song currently
playing
Talk activated
P/T mode activated
VOX (Voice
VOX
Trigger) on
Using the Menus
1
Icon Meaning
Battery full
Battery low
Battery charging
Battery finished charging
68°F
Current room temperature
Pairing channel
Camera out of range or off (e.g. batteries dead)
Press to exit menu.
2
Press and hold to access the menu.
Press repeatedly to cycle through menu options.
7
Talking to Your Baby
Press and hold to talk to the selected camera.
If a lullaby is playing, it will stop playing when the talk feature is used.
Changing Channels
1
C1
9
Press to cycle through connected cameras.
The channel number for the selected camera is shown on screen.
Press to select a channel.
2
1
The monitor only plays sound from the camera that is currently being viewed.
Currently selected channel
8
Using Scan Mode (multiple cameras only)
When two or more cameras are connected, you may use Scan mode to cycle through video from each camera. Each camera channel is displayed for 10 seconds.
To enable Scan mode:
1
Scan
Press repeatedly until Scan is shown on screen.
Press to exit menu. The monitor
2
cycles through the connected channels.
ENGLISH
Current channel
1 Scan
To connect additional cameras to the monitor, see “Pairing Additional Cameras” on page 19.
9
Scan mode activated
If you wish to only monitor some of your cameras using Scan mode, you may choose to hide certain channels. Hidden channels will not be shown in Scan mode.
To show / hide channels in Scan mode:
1
9
C1
Press to cycle through connected cameras to the channel you wish to show or hide.
By default, each channel name has a checkmark beside it, which means it is enabled for monitoring and included in the viewing cycle on Scan mode.
2
C1
8
Press to change the checkmark to an X. This will disable video from the channel and remove it from the viewing cycle in Scan mode.
Press to include it again.
10
Adjusting Volume
Press to adjust the volume

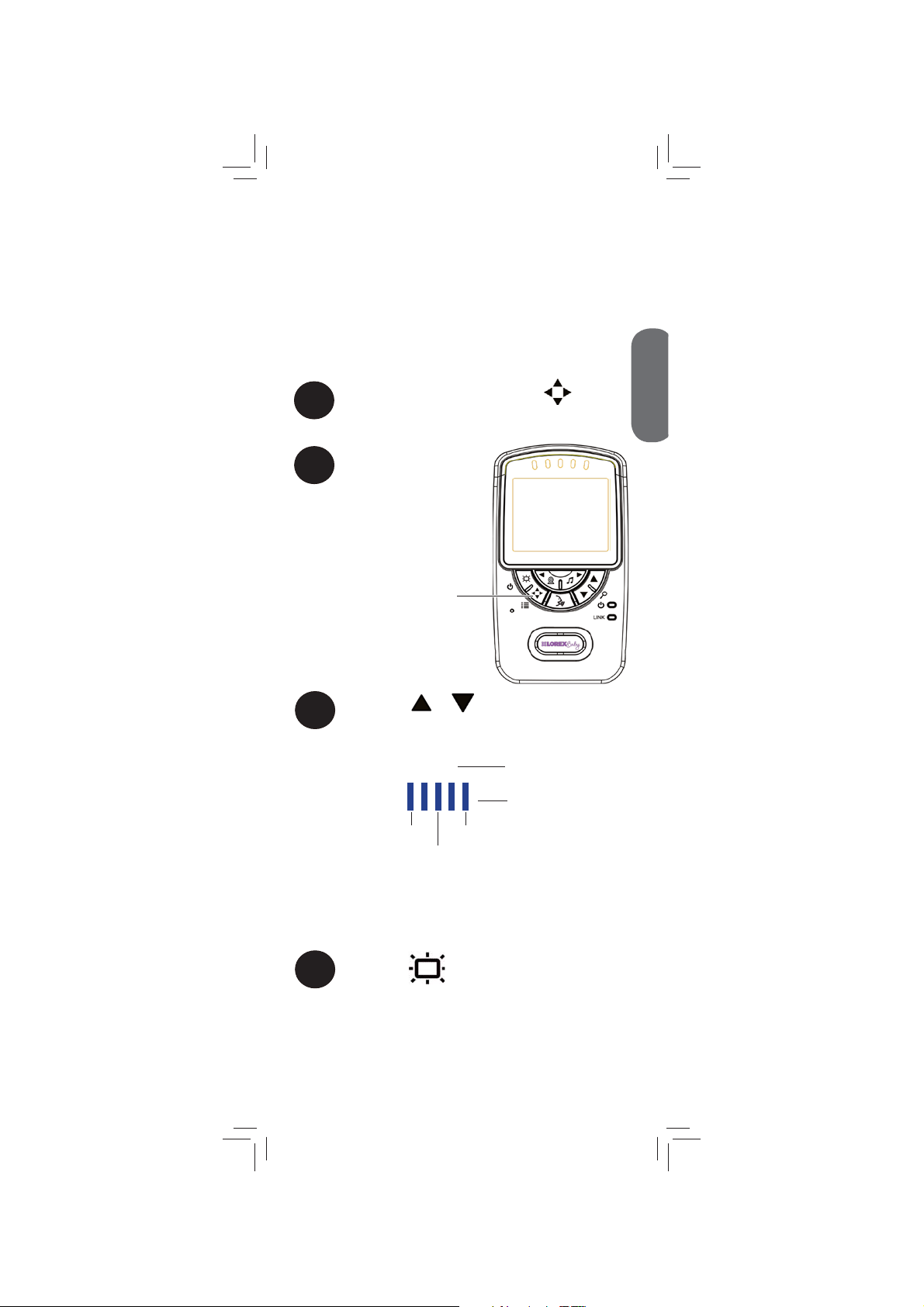

Adjusting Screen Brightness
1
ENGLISH
Press and hold until is shown.
2
Press to adjust brightness
Press to exit menu.
3
11
Using Pan / Tilt Mode
You can use pan / tilt mode to move the selected camera’s viewing area remotely using the monitor. This feature is only compatible
with the included pan / tilt camera and BB2415AC1.
1
Press to activate pan / tilt mode. Four arrows appear on the screen.
2
Press to move the camera left / right.
Press to move the camera up / down.
Press to exit P/T mode.
3
You must exit P/T mode to use other features that rely on the arrow keys (e.g., adjusting monitor volume).
12
Using Digital Zoom
The video monitor features a 2x digital zoom feature for up-close viewing.
ENGLISH
1
X2
x2
Press and hold to zoom in. An X2 icon appears on the screen.
2
x1
Press and hold to return to normal viewing mode.
Turning on the Night-Light
Press and hold until the first menu
1
item is shown.
2
OFF
Press until is shown.
Press
3
off for the camera currently being viewed.
or to turn the night-light on and
13

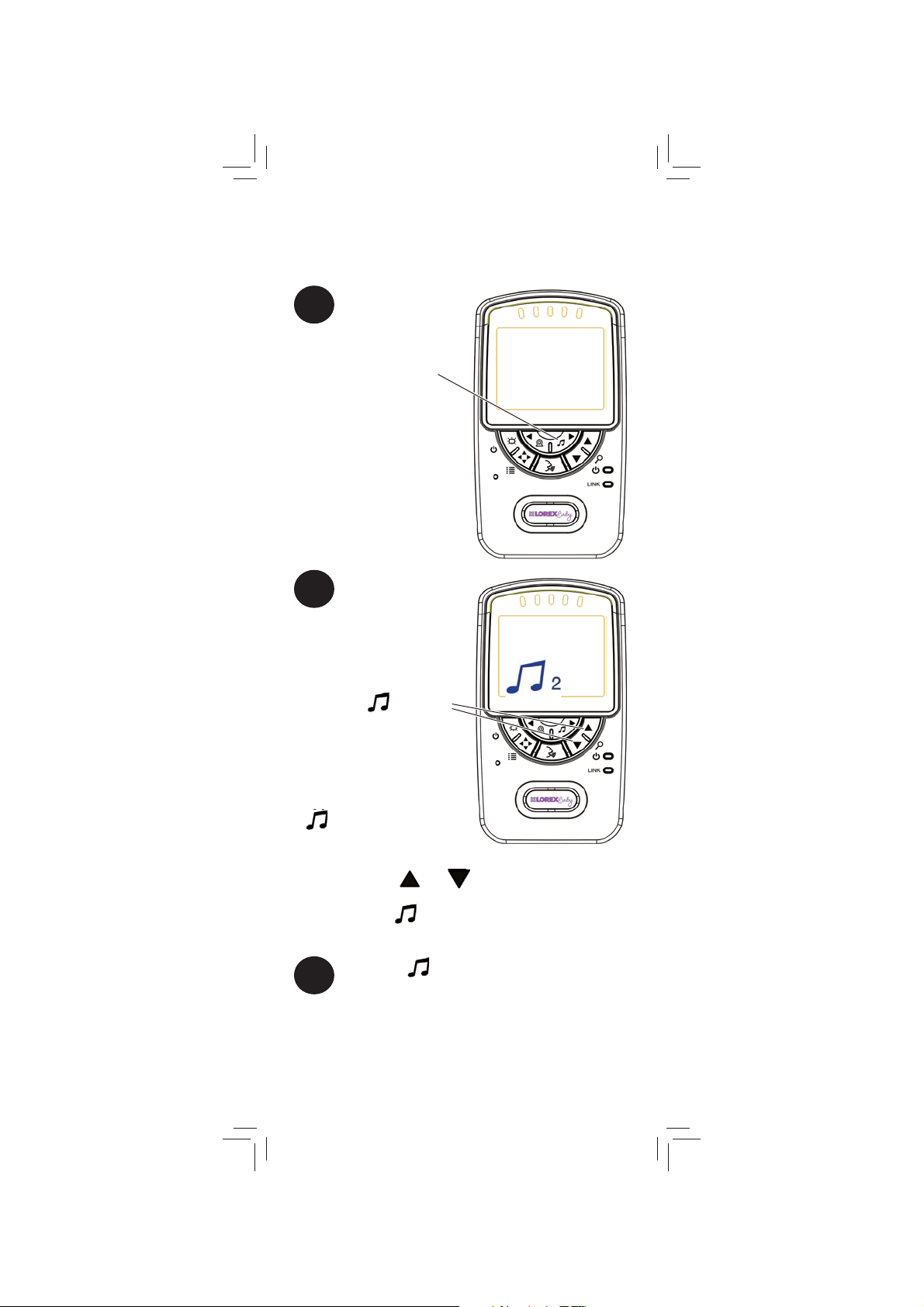

Playing Lullabies
y
y
The camera can play 5 different pre-loaded lullabies.
1
Press to play a song on the selected camera.
2
Immediately after pressing
, press to change the
song.
The song number is shown on the monitor.
If volume controls appear, press twice to restart the song. Volume controls will appear if you
press few seconds after pressing
3
or
Press to stop playing the song.
a
.
14
Temperature Alerts
The temperature alert feature allows you to ensure the baby’s room is at a comfortable, safe temperature. The monitor beeps if the temperature gets too hot or cold. Temperature sensor is accurate within 3°F/1°C.
You can select if you would like temperature readings and alerts to be in Fahrenheit or Celsius.
To select Fahrenheit or Celsius:
Press and hold until the first menu
1
item is shown.
2
°F
Press until is shown.
Press and to select °F (Fahrenheit)
3
or
°C (Celsius)
ENGLISH
Press to exit menu.
4
Once your preferred temperature unit has been selected, you can control the high and low temperatures that trigger alerts or disable temperature alerts.

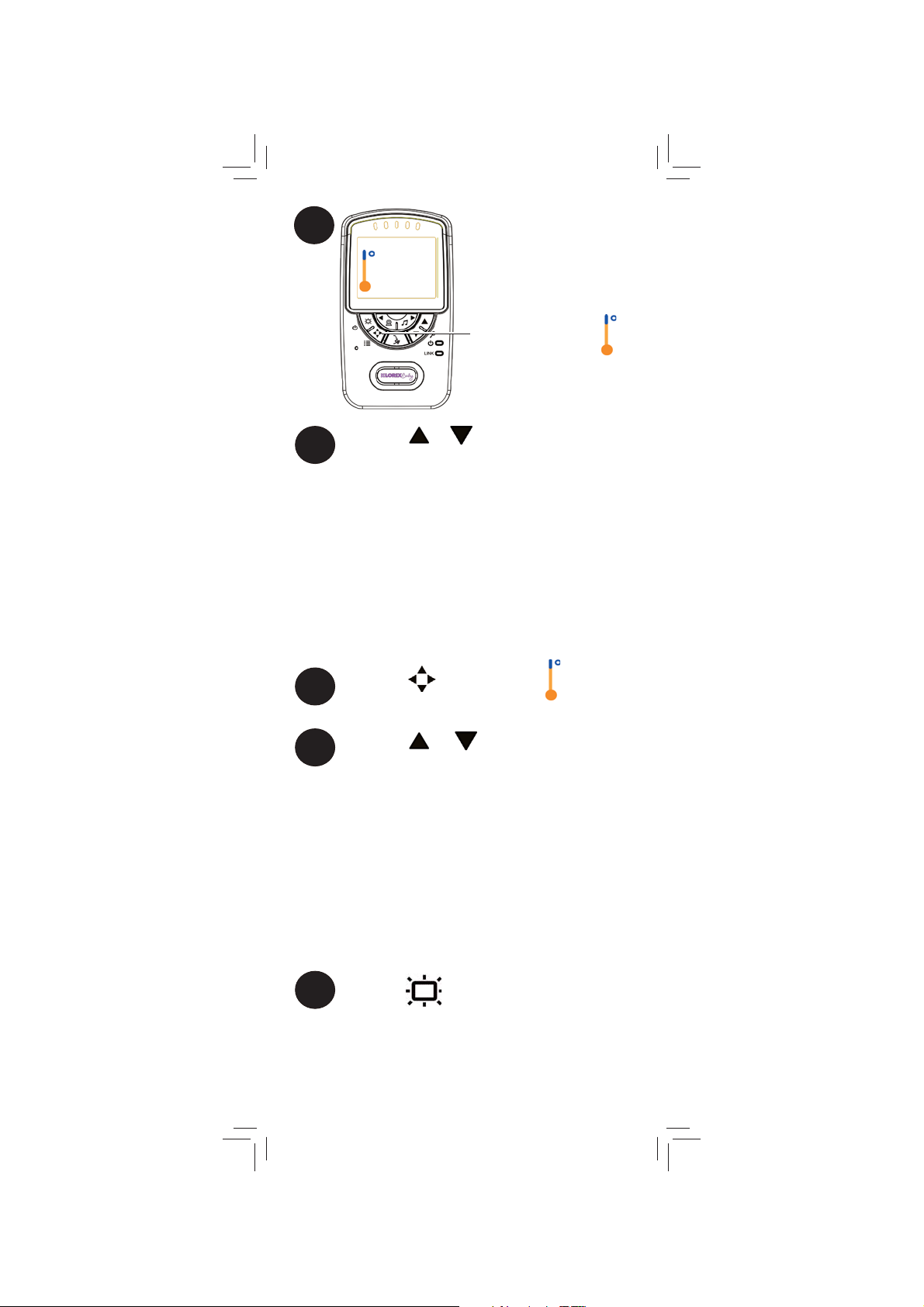

To set temperature alerts:
Press and hold until the first menu
1
item is shown.
2
Lo 66° F
Press until Lo is shown.
15
Press and to adjust the low
3
temperature.
If the temperature at the selected camera goes below this temperature, the monitor will beep and the temperature reading on the monitor will say “Lo”.
If you select a temperature below 62°F / 17°C, the low temperature alert will be turned OFF.
Press
4
Press and to adjust the high
5
temperature.
If the temperature at the selected camera goes above this temperature, the monitor will beep and the temperature reading on the monitor will say “Hi”.
If you select a temperature above 86°F / 30°C, the high temperature alert will be turned OFF.
Press to exit menu.
6
until Hi is shown.
16
Using VOX Mode (Voice Trigger)
In VOX mode, the monitor’s screen and speaker will turn off after a minute unless sound is detected at the selected sensitivity level. This conserves battery power, and alerts you only when needed.
Press and hold until the first menu
1
item is shown.
2
VOX OFF
Press until VOX is shown
Press and to adjust the audio
3
sensitivity for VOX mode.
ENGLISH
VOX OFF
VOX
Low sensitivity
If you want softer noises to trigger the monitor (such as a faint whimper), set the sensitivity setting higher. If you only want louder noises to trigger the monitor (such as a loud cry), set the sensitivity setting lower.
Press to exit menu.
4
While VOX is activated, the monitor’s screen and speaker will turn off after a minute unless sound is detected at the selected sensitivity level. Press any button to turn the screen back on. When VOX is on, a VOX icon is shown on the screen.
VOX mode will not work while Scan mode is activated.
High sensitivity
Medium sensitivity
17
VOX mode is off
VOX mode is on
Video Off Mode (Audio Only Mode)
Press to turn the screen off and
1
monitor sound only.
The monitor will play sound from the selected channel only.
Notes
• If Scan mode is enabled, the monitor will play sound from the channel that is currently selected.
• VOX mode will override Video Off mode. See “Using VOX Mode (Voice Trigger)” on page 17 for details.
Press any button to turn the screen back
2
on.
18
Pairing Additional Cameras
The camera(s) included have already been paired with the monitor. If you have
purchased additional add-on cameras (model# BB2415AC1 or BB2411AC1), OR if your monitor and camera are not paired up, follow the steps below.
Place the camera and monitor next to each
1
other. Ensure that the monitor and camera are both powered on.
2
C1 9
Press and hold until is shown.
ENGLISH
Press or to select the channel you
3
would like to pair the camera to.
If a camera is already connected to this channel, the new camera will replace the existing camera.
4
Press to begin pairing
The link LED flashes to show that pairing mode is on.
19
Press the pairing button on the bottom
5
of the camera within 10 seconds of activating pairing mode.
Pairing button
Images from the camera are immediately shown on the monitor once the camera is successfully paired.
If your monitor reads “Out of Range“, then pairing was not successful. Complete the pairing process again.
Notes
• Immediately move the camera away from the monitor to avoid speaker feedback.
• The monitor can connect to up to 4 cameras.
20
Technical Specifications
Camera
Frequency 2.4GHz Maximum Range
Image Sensor 1/5” Color CMOS Lens 2.8mm F2.8 IR LED 8 pcs Power Adapter 6.0V DC 800mA Weight
Monitor
Frequency 2.4GHz Display 2.4” TFT Color LCD Power Adapter 6.0V DC 800mA Battery Li-ion Rechargeable Battery 3.7V DC
Battery Life Up to 6 hours in normal mode
Weight
*Based on unobstructed line of sight. Actual range will vary based on surroundings.
Up to 450ft / 138m outdoors* Up to 150ft / 46m indoors*
0.5lbs / 0.2kg
1500mAh
Up to 8 hours in VOX mode Up to 10 hours in Video Off mode
0.3lbs / 0.1kg
ENGLISH
4.0in
102mm
4.8in
121mm
3.7in
93mm
2.7in
67mm
5.9in
149mm
1.3in
32mm
21
Loading...
+ 53 hidden pages
