Lorex SG17F6584 Instruction Manual

Download

17" COLOR FLAT SCREEN CRT

DUAL QUAD OBSERVATION SYSTEM

WITH INTERNET REMOTE VIEWING • VIEW UP TO 8 CAMERAS

Instruction Manual

English Version 1.0

MODEL:

SG17F6584

www.lorexcctv.com

Thank you for purchasing the IP enabled 17” 2 Page/8 Channel Color Quad Observation system. Lorex is committed to providing our customers with a high quality, reliable security product.

The IP enabled Observation system allows you to make an ethernet LAN connection from the monitor to a router for internet monitoring. With this 2 Page Quad system, you are capable of viewing up to 8 camera locations in real time (4 cameras per page). This system provides multiple viewing options including: Quad, Sequential, Picture in Picture, Zoom and full screen viewing options..

This system includes 4 Color CCD cameras and Web Ready Software to connect the monitor to a home network. Connect a DVR or a time lapse VCR to this system to record key events. Additional cameras can be added to view up to 8 locations.

The Lorex 17” Color Flat Screen CRT Dual Quad Observation system with Internet Remote Security Viewing provides flexibility and peace of mind. To learn more, visit us on the web at:

http://www.lorexcctv.com

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO A QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE

OF PLUG TO WIDE SLOT, FULLY INSERT.

Important Safeguards

In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to assure your enjoyment and proper use of the video product and accessory equipment. Please read them carefully before operating and using your video product.

Installation

1. Read and Follow Instructions - All the safety and operating instructions should be read before the video product is operated. Follow all operating instructions.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - Comply with all warnings on the video product and in the operating instructions.

4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other.

A grounding type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet

5. Power Sources - This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your location, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions.

6. Overloading - Do not overload wall outlets of extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.

7. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the video product.

8. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video equipment on a bed, sofa, rug, or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the video product manufacturer’s instructions have been followed.

9. Attachments - Do not use attachments unless recommended by the video product manufacturer as they may cause a hazard.

10. Water and Moisture - Do not use this video product near water. For example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool and the like.

Caution: Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the UL listing mark of CSA certification mark on the accessory itself and should not be modified so as to defeat the safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact qualified service personnel.

11. Accessories - Do not place this video equipment on an unstable cart, stand, tripod, or table. The video equipment may fall, causing serious damage to the video product. Use this video product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the video product. Any mounting of the product should follow the manufacturer’s instructions and use a mounting accessory recommended by the manufacturer.

Important Safeguards

Service

13. Servicing - Do not attempt to service this video equipment yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

14. Conditions Requiring Service - Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions.

A. When the power supply cord or plug is damaged.

B. If liquid has been spilled or objects have fallen into the video product.

C. If the video product has been exposed to rain or water.

D. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation.

E. If the video product has been dropped or the cabinet has been damaged.

Use

19. Cleaning - Unplug the video product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

20. Product and Cart Combination - Video and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the video product and car combination to overturn.

21. Object and Liquid Entry - Never push objects for any kind into this video product through openings as they may touch dangerous voltage points or “short-out” parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

22. Lightning - For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video product due to lightning and power line surges.

F. When the video product exhibits a distinct change in performance. This indicates a need for service.

15. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the video product manufacturer can prevent fire, electric shock or other hazards.

16. Safety Check - Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the video product is in safe operating condition.

17. Wall or Ceiling Mounting - The cameras provided with this system should be mounted to a wall or ceiling only as instructed in this guide, using the provided mounting brackets.

18. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

General Precautions

NOTE

This equipment has been certified and found to comply with the limits regulated by FCC, EMC, and LVD. Therefore, it is designated to provide reasonable protection against interference and will not cause interference with other appliance usage.

However, it is imperative that the user follows this manuals guidelines to avoid improper usage which may result in damage to the unit, electrical shock and fire hazard injury

In order to improve the feature functions and quality of this product, the specifications are subject to change without notice from time to time.

FCC CLASS B NOTICE

Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by one or more of the following measures:

z Reorient or relocate the receiving antenna z Increase the separation between the equipment and receiver z Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected

z Consult the dealer or an experienced radio or television technician for assistance

General Precautions

1. All warnings and instructions of this manual should be followed

2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning

3. Do not use this unit in humid or wet places

4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet should not be blocked

5. During lightning storms, or when the unit is not used for a long time, disconnect the power supply, antenna, and cables to protect the unit from electrical surge

LOREX TECHNOLOGY INC.

http://www.lorexcctv.com

Observation System Features

• 17” TRUE FLAT Monitor with Network Interface for Remote Viewing over the Internet *

• Dual Quad Technology allows for viewing of up to 8 cameras

• Convenient operation using remote control

• 8 camera inputs (8 DIN, 4 BNC)

• Multiple Viewing Modes (Full Screen, Sequencing, Quad & PIP)

• 2 Times Digital Zoom

• On-screen viewing of date, time and camera title

• Universal power supply (100 - 240 VAC)

• Sturdy Metal Cabinet

• Free DDNS Service Included for Easy Remote Internet Access *

* Broadband Internet connection and Router required for Remote viewing over the internet

NOTE: To increase the life of the CRT and to help prevent BURN-IN on the monitor,

it is strongly recommended that the monitor be set to POWER SAVE MODE when

not in use for observation. In POWER SAVE MODE, output to a connected recording

system will continue.

Standard Camera Features

• Color Night Vision** camera with listen-in audio

• 1/4" advanced CCD image sensor

• 12 IR LEDs provide illumination up to 15 ft. (4.5M)

• Color video by day, automatically switches to B&W at night

• Excellent low light sensitivity with built-in infrared LED

• Profession Grade Weatherproof *** camera

** Night Vision Range up to 15ft in ideal conditions

*** IP44, Not intended for direct exposure to rain, snow or water

NetViewer Software

• View and Record from your PC - Connect your Observation System to your Network

• Minimum System Requirements: Windows XP, Pentium 4 processor with 256MB RAM

Table of Contents

Getting Started .......................................................................................... 9

SG17F6584 - Front .......................................................................... 10 - 13

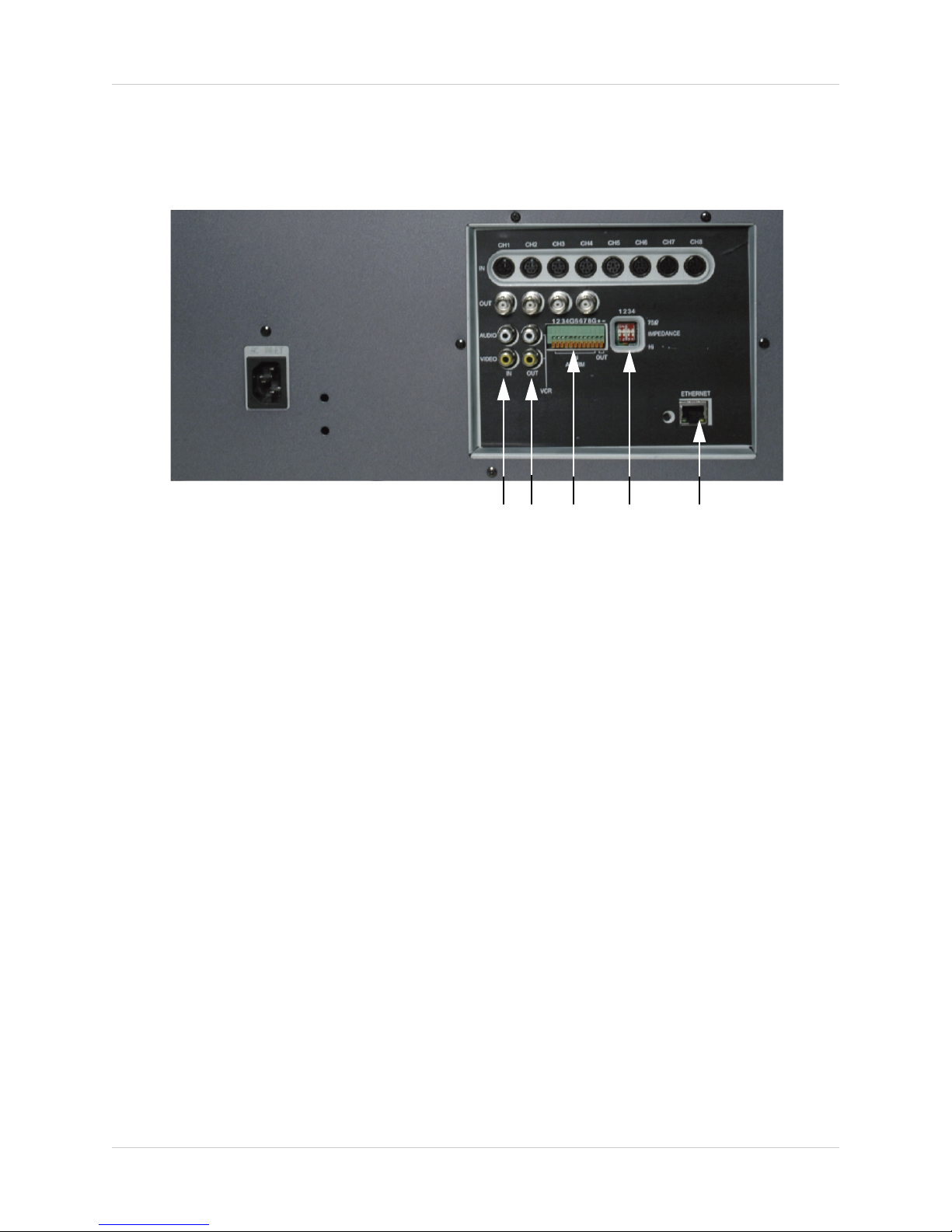

SG17F6584 - Back .......................................................................... 14 - 15

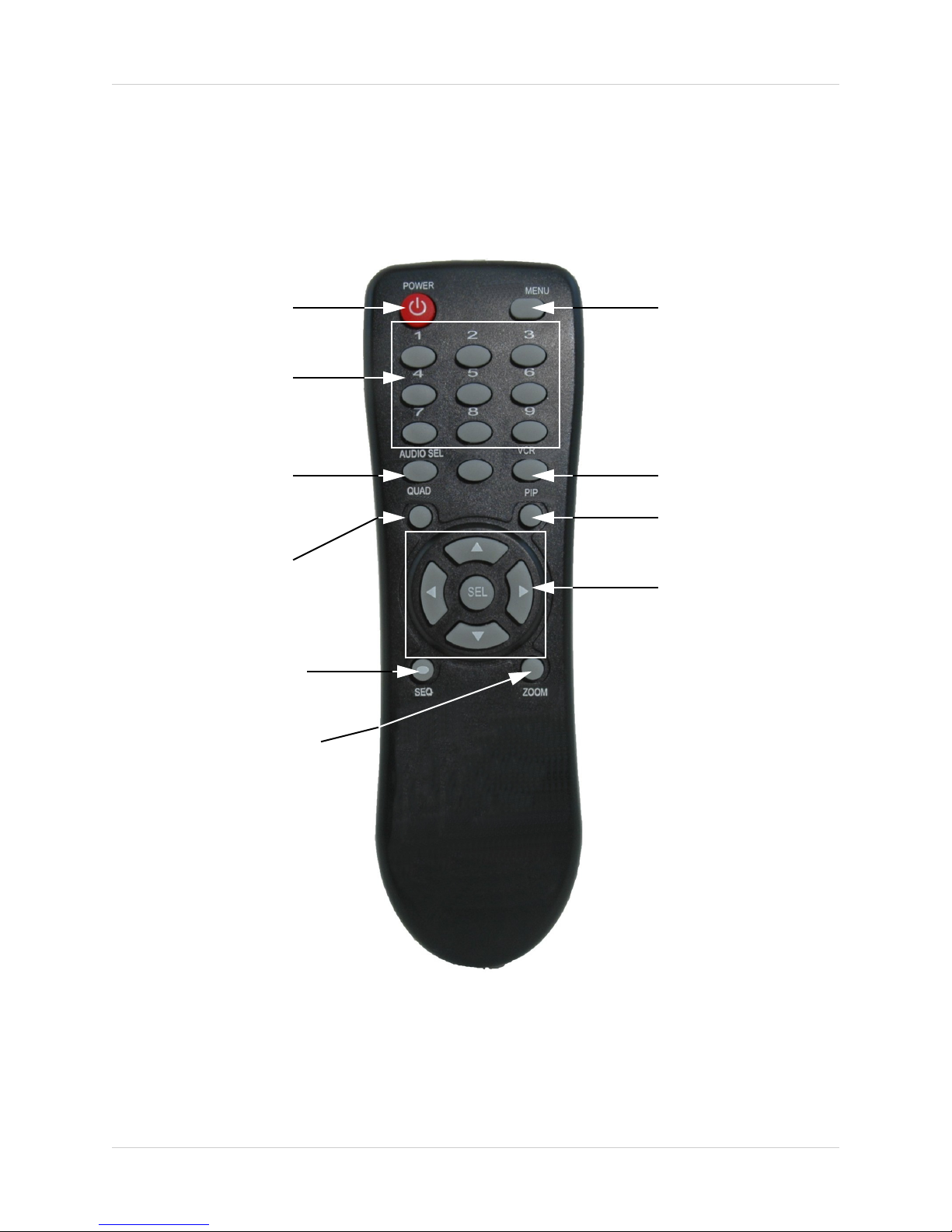

SG17F6584 - Remote Control ................................................................ 16

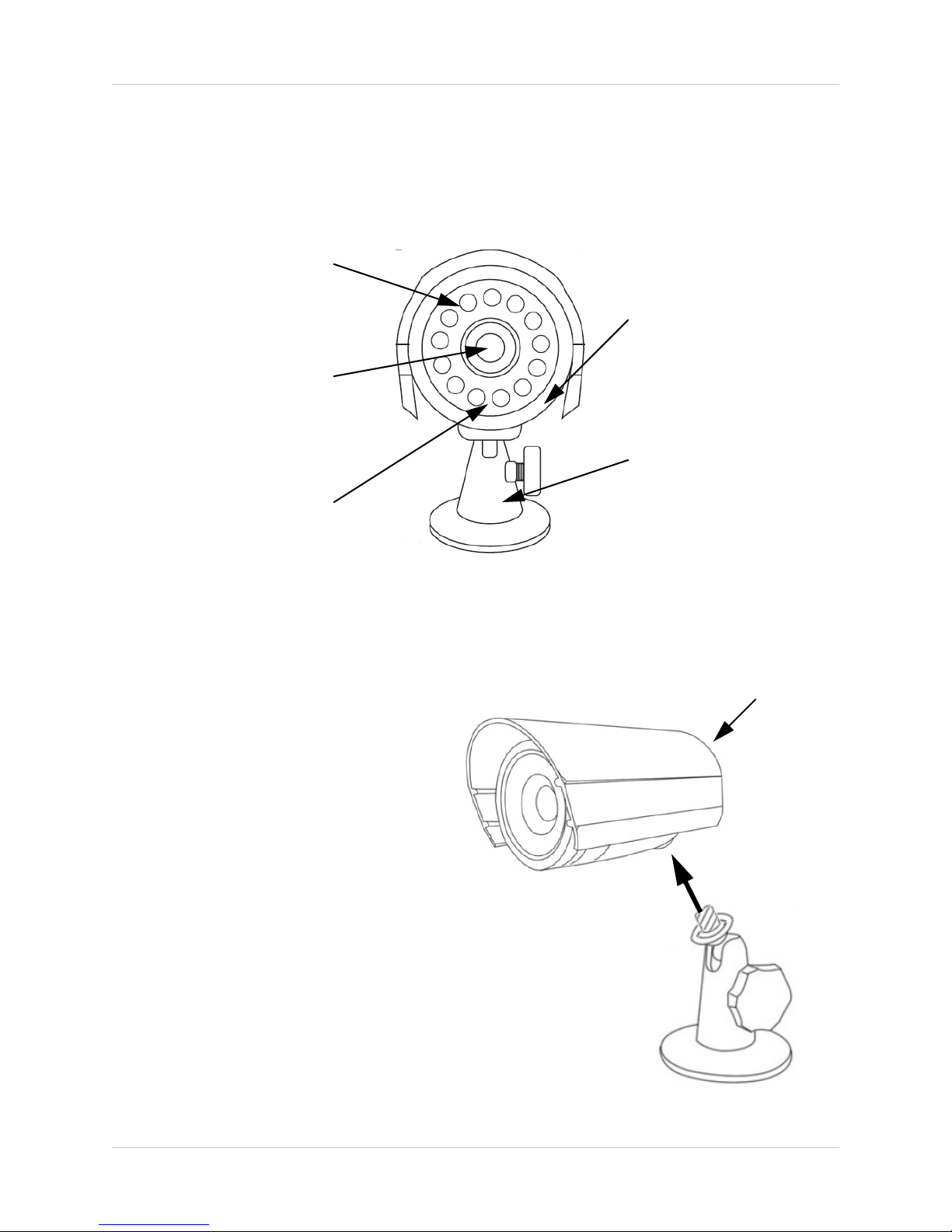

Installing Cameras .................................................................................. 17

Connecting Cameras .............................................................................. 18

DIN Connected Cameras ..........................................................................................................18

BNC Connected Cameras ......................................................................................................... 18

Main Menu Control .................................................................................. 19

SETUP [1] ............................................................................................... 20

DATE - TIME ............................................................................................................................. 20

ALARM ENABLE ....................................................................................................................... 21

MISC .......................................................................................................................................... 21

NEXT / EXIT .............................................................................................................................. 22

SETUP [2] ............................................................................................... 22

CHN ........................................................................................................................................... 23

PREV / EXIT .............................................................................................................................. 23

NetViewer - Installation Requirements .................................................... 24

Network Connectivity .............................................................................. 25

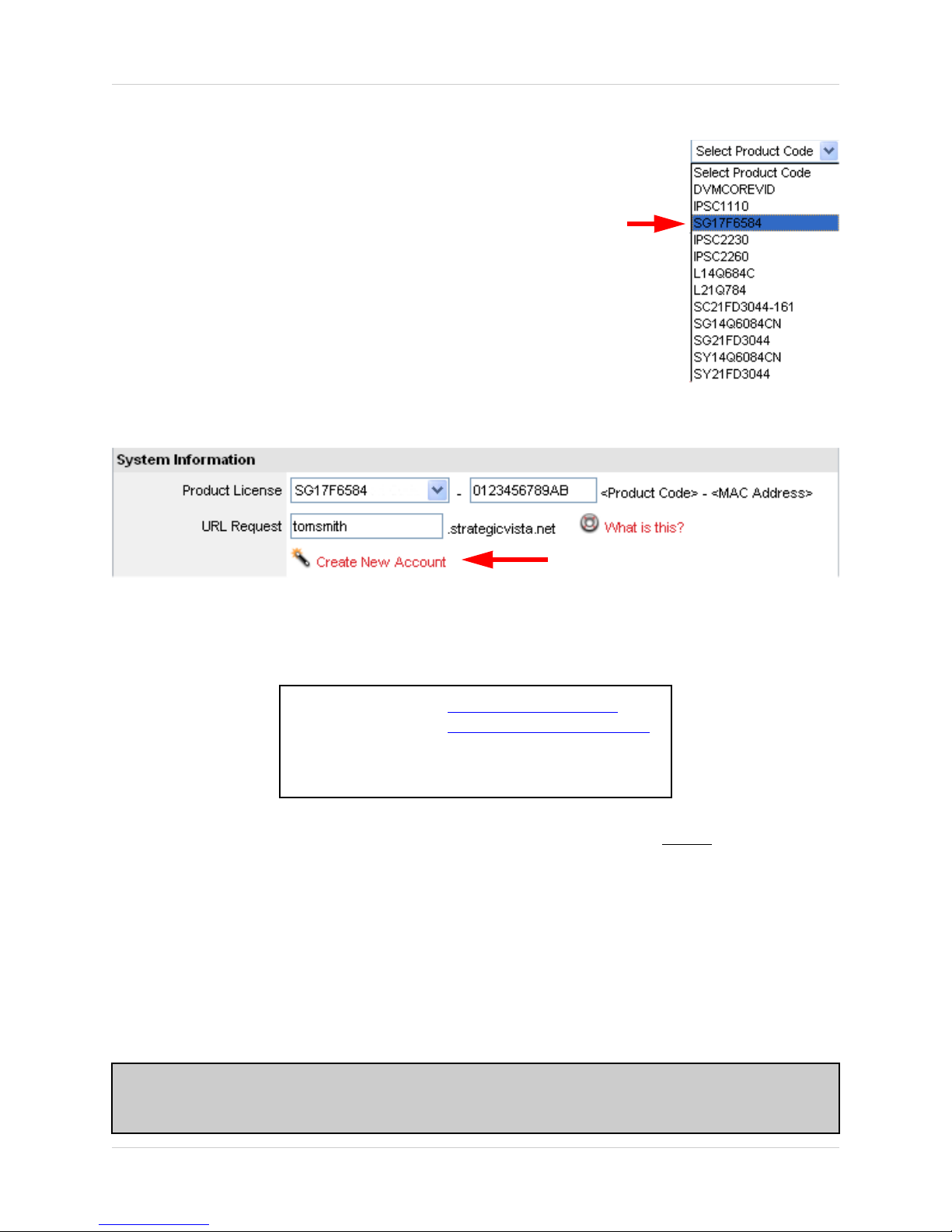

Setting Up Your DDNS Account ...................................................... 26 - 27

Using the Lorex IPEdit Application .......................................................... 28

Finding Your External IP Address ............................................................................................. 28

Router Port Forwarding ........................................................................... 29

Troubleshooting ............................................................................... 30 - 31

Observation System Specifications - Appendix #1 ................................. 32

Camera Specifications - Appendix #2 ..................................................... 33

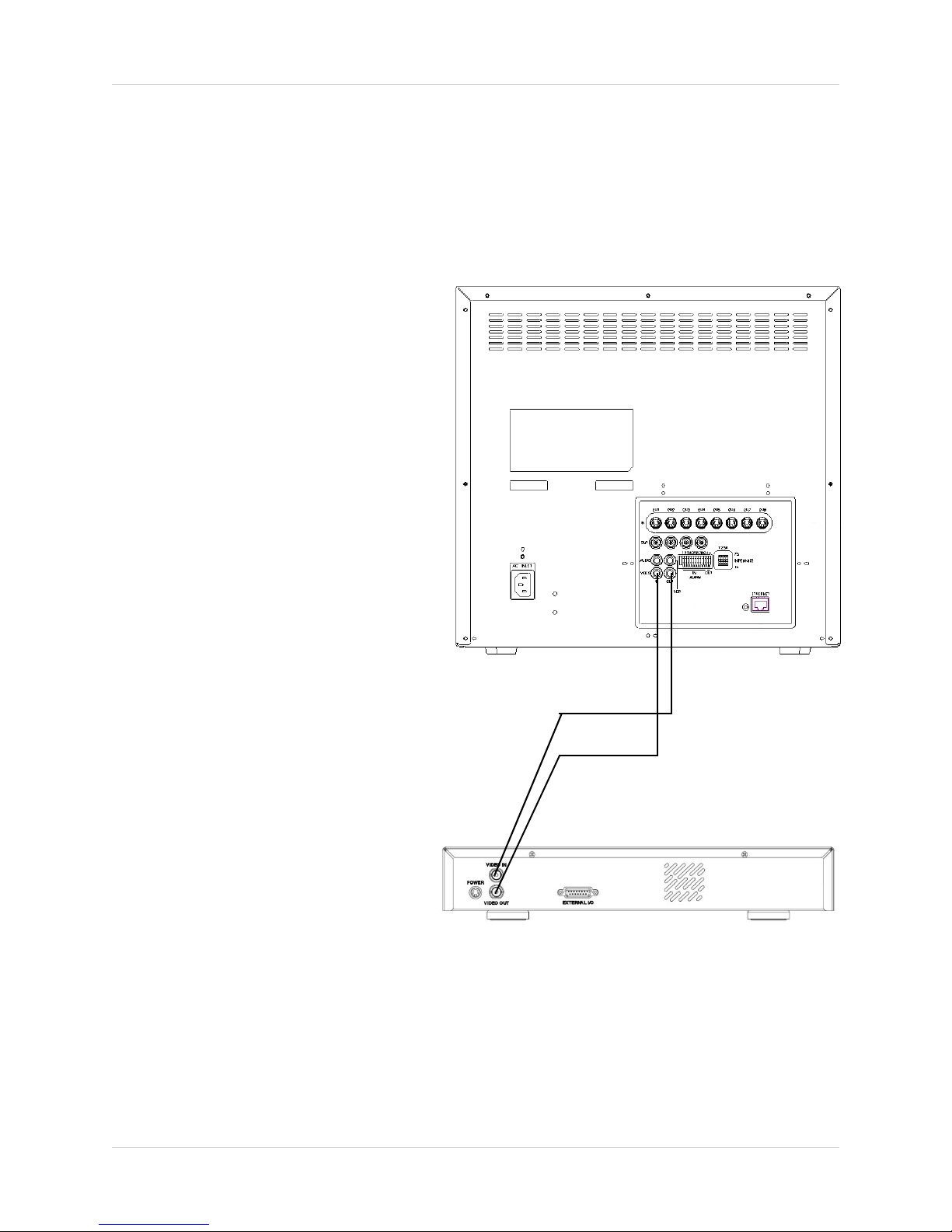

Connecting to a Single Channel DVR / VCR - Appendix #3 ................... 34

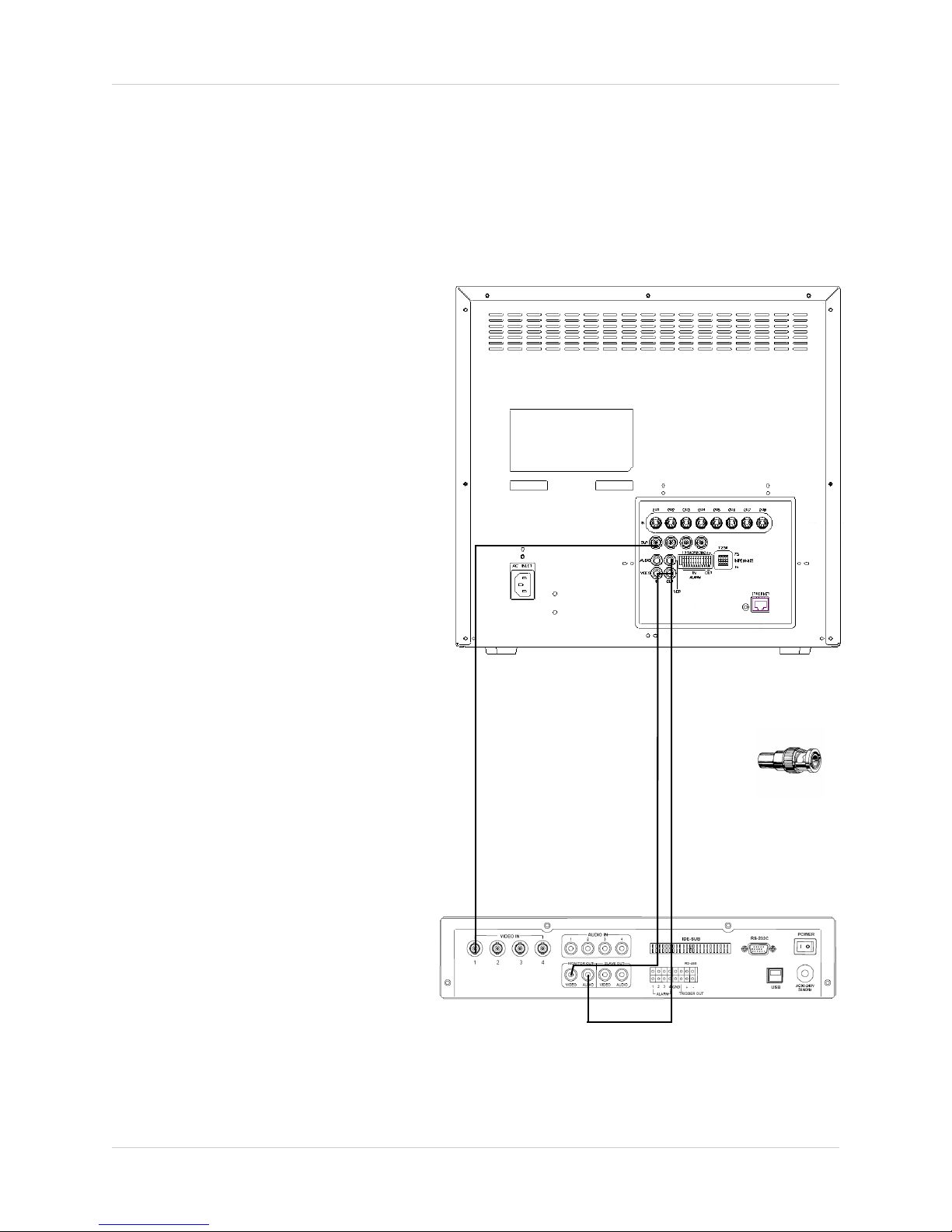

Connecting to a Multi-Channel DVR - Appendix #4 ................................ 35

Connecting a Slave Monitor - Appendix #5 ............................................. 36

Connecting Motion / Alarm Device - Appendix #6 .................................. 37

Installing a Sensor ..................................................................................................................... 37

Optional Accessories .............................................................................. 38

Getting Started

The SG17F6584 system comes with the following components:

Getting Started

17” Color 2 Page / 8 Channel Dual

Quad Monitor

Cables (57’ Length)

Ethernet

Cable

4 x 1/4” CCD Color IR Day/Night

Cameras (with

Removable Sunshade)

Standard Power Cable4 x Camera

Remote Control NetViewer

CHECK YOUR PACKAGE TO CONFIRM THAT YOU HAVE RECEIVED THE COMPLETE

SYSTEM, INCLUDING ALL COMPONENTS SHOWN ABOVE.

Software

SG17F6584 - Front

1 23 4 5 6789101112

13 14 15 16

1. SPEAKER - Used to output Audio from Cameras.

2. TALK BUTTON - Press and hold this button to talk to a specific camera location. This button must be pressed the entire time, while talking. To listen to the camera location, release the Talk button.

NOTE: The supplied cameras DO NOT support this function. The supplied cameras support LISTEN IN AUDIO only.

3. CONTRAST / BRIGHTNESS - Used to change the Contrast and Brightness of the Monitor.

• Press the CONTRAST/BRIGHTNESS button once to access the CONTRAST settings, and twice to access the BRIGHTNESS settings.

• Use the VOLUME +/- Keys to adjust the settings

4. VOLUME +/- - Press to raise or lower the volume on the Monitor

SG17F6584 - Front

567

5. SHUTTLE (JOG) CONTROL / ENTER / ALARM RESET - The Shuttle buttons are used under multiple circumstances:

• SHUTTLE (JOG) CONTROL - The shuttle performs multiple functions in different modes:

z In Single Camera View Mode, the shuttle is used to switch between active

cameras. Rotate the shuttle to navigate channels in full screen mode.

z In QUAD Camera View Mode, the shuttle is used to switch between Page 1

(Cam 1-4) and Page 2 (Cam 5-8). Select a Camera and press down on the shuttle (ENTER) to switch.

z In Menu Mode, the Shuttle is used to scroll LEFT / UP / DOWN / RIGHT.

When a menu option is selected, they are also used to scroll though the various options. The ENTER button in the center confirms selections in the Menu mode

• ENTER - The ENTER (pressing down on the SHUTTLE CONTROL) functions in different modes: Single Camera, QUAD Camera, Menu Mode, and Zoom Mode.

• ALARM RESET - The ALARM RESET (pressing and holding down on the SHUTTLE CONTROL) turns off the active Alarm (audio and video)

6. MENU BUTTON - Press the [Menu] button to enter the menu option screen. For further details on MENU OPTIONS, please refer to Page 19.

7. QUAD BUTTON - Press the QUAD button to display the CAM 1 - CAM 4 cameras in 4 equal Quadrants on the monitor. Press the QUAD button again to display CAM 5 - CAM 8 Cameras.

To exit QUAD mode (and return to Full Screen mode), use the Shuttle control to select a Camera, and press the Shuttle to ENTER the single Camera.

SG17F6584 - Front

8910

8. PIP BUTTON - Display a main camera image with secondary camera sub-images:

• PIP (Picture In Picture) allows you to view two locations simultaneously, one being the main channel, and the other being viewed as small image on the screen. To change the PIP location, see Menu Controls on Page 21.

9. SEQ BUTTON - This function is used to Sequence between all camera locations in Full Screen and QUAD modes in sequential order. The letters SEQ will appear in the on-screen display during sequencing and QUAD MODE display.

• To change Sequence settings through the MENU, refer to Page 21.

To exit Sequence Mode, Press the SEQ button again.

10. ZOOM BUTTON - This monitor is equipped with 2 times digital ZOOM. To utilize this feature, proceed as follows:

• Set the monitor to Full Screen mode or Quad mode for the desired location

• Press the ZOOM button. ZOOM mode is now active

• Use the SHUTTLE (JOG) CONTROL knob on the front of the Observation System to move the area being captured in 2x ZOOM MODE. Press the SHUTTLE CONTROL ENTER button to activate ZOOM Mode.

PIP MODE

• To exit ZOOM MODE, press the ZOOM button again.

SG17F6584 - Front

11 12

13 14 15 16

11. LIVE / VCR BUTTON - Changes the display from the Live Mode Camera inputs to the DVR/

VCR. To return to the normal viewing of the Camera inputs, press the VCR button again.

NOTE: VCR mode is intended for playback purposes only. AV Out ceases to function while in VCR Mode.

12. AUDIO SEL BUTTON - Used to select a camera to send Audio to the Observa while in QUAD Mode. The letter ‘A’ indicates which Audio channel is active.

13. POWER SAVE BUTTON - This switch will turn the screen ON/OFF. Press the button to turn the screen ON. Allow for 5-7 seconds for the picture to appear.

NOTE: To provide longer life to the CRT monitor, press the Power Save Button when the system is not in use for viewing. The system will continue to record images to the DVR/VCR.

14. COLOR / TINT- Used to change the Color and Tint of the Monitor.

• Press the COLOR / TINT button once to access the COLOR settings, and twice to access the TINT settings. Press the COLOR / TINT button again to exit the menu.

• Use the VOLUME +/- Keys to adjust the settings

To access VCR MODE, press and hold the VCR Button for 3 Seconds.

tion System

15. IR RECEIVER - Receives a signal from the Remote Control.

16. POWER BUTTON - Turns the unit ON/OFF.

SG17F6584 - Back

123

45 6 7 8

1. AC INPUT - Connect the AC power using the power cord provided with the unit from the monitor to an electrical outlet

2. 6 PIN DIN CAMERA INPUTS - Channel 1-8 Camera inputs (for cameras with 6 pin DIN connection).

Cameras can be connected using either 6 PIN DIN or BNC (Video) terminals.

6 PIN DIN JACK

3. BNC VIDEO INPUTS - Channel 1-4 camera inputs (used to connect Cameras with BNC connection type)

NOTE: When DIN type cameras are connected on a channel, the BNC CONNECTORS serve as LOOPING VIDEO OUTPUTS, and will send video to another device (such as a DVR or SLAVE MONITOR). If this BNC terminal is used for looping output the Impedance switch to HIGH (see #7) for proper looping operation.

SG17F6584 - Back

45 6 7 8

4. DVR / VCR AUDIO AND VIDEO IN - Use with A/V cables (not supplied) to receive audio and video from an external source (DVR/VCR)

5. DVR / VCR AUDIO AND VIDEO OUT - Use the A/V cables (not supplied) to send audio and video from the monitor to a DVR/VCR

6. ALARM FUNCTION TERMINALS (INPUT/OUTPUT) - These terminals are used to connect external alarm devices such as a motion sensor or door/alarm sensor.

7. IMPEDANCE SWITCH (75ohm / High) - When the BNC camera input is used for looping Video Output (to connect to a DVR/VCR), set this switch to HIGH.

8. ETHERNET PORT - Connects the monitor to a router for connection to the internet. Refer to the Network Connectivity Instructions on Page 25 for Remote Connection.

SG17F6584 - Remote Control

POWER - Turns the Power Save mode ON/OFF

1-8 - Switch between Cameras 1 - 8

AUDIO SEL - Select the active audio channels in QUAD Mode

QUAD - Switch between QUAD screens (Channels 1-4 and 5-8)

SEQ - Active Sequence Mode

ZOOM - Activate ZOOM Mode

MENU - Enter the Menu setup mode

VCR - Switch to VCR/ DVR view

PIP - Starts PIP viewing mode

NAVIGATION / SEL CONTROLS - Move

UP/DOWN and LEFT/ RIGHT in Menu Mode. Use SEL to access menu options.

Installing Cameras

The SG17F6584 Observation System includes 4 - 1/4” CCD Color IR Day/Night Indoor/Outdoor Cameras*

INFRA-RED LEDs Provides illumination for low light conditions

INPUT CABLE (BACK) -

Delivers Video / Audio / Power from the Observation

CAMERA LENS Delivers CCD Color image to the Observation System using a 3.6mm lens

MICROPHONE Picks up sound near the camera and transmits to the Observation System

System to the Camera

BRACKET -

Metal bracket connects to the Camera for mounting to walls, ceilings and other surfaces

* Picture changes from Color to B&W under low light conditions.

Mounting Bracket Installation

1. Attach the pedestal to the ceiling, wall or other surface by the base using the provided screws.

2. The mounting bracket must be attached to a structural device such as a wall stud or ceiling rafter using the supplied screws.

3. Attach the camera to the pedestal

Adjust the angle of the camera, and tighten the thumbscrew to set the position

Installation Warnings:

• Install the camera away from direct sunlight.

INPUT CABLE

• Avoid places where humidity is high, or where the camera cannot adequately be protected from the rain or other elements.

Connecting Cameras

The SG17F6584 Observation System includes 4 x 1/4” Color CCD DIN Cameras. Additional cameras can be added to the 4 additional camera inputs using the DIN or BNC ports.

DIN Connected Cameras

4 x 1/4” COLOR CCD DIN cameras are included with the Observation System. These cameras have a single cable, and receive power directly from the Observation System. The DIN ports are located on to the top row of inputs, and are labeled as CH1 - CH8

To Connect the Cameras to the Monitor:

1. Connect the female end of the supplied 57’ extension’ cable to the camera

2. Connect the male end of the supplied 57’ extension cable to an open DIN channel on the back of the Observation System

Continue connecting additional DIN cameras.

OBSERVATION SYSTEM

BNC Connected Cameras

BNC connected cameras are not included with the Observation System, however can be ordered online at www.lorexcctv.com

BNC Cameras utilize separate Video / Power, and receive power from a wall outlet via the power supply unit (such as an AC Adapter)

1. Connect the Video cable to an open BNC Video Port (middle row of ports) on the back of the Observation System labeled CH1 - CH4

2. Connect the power supply unit to an electrical outlet

DIN Connected

Camera

(4 x 1/4” CCD

Included)

Power

BNC Connected

Camera

(Optional)

Main Menu Control

Enter the MENU screen by pressing the MENU button. Scroll through the 2 option pages by turning the SHUTTLE (JOG) and pressing the ENTER button (pressing down on the SHUTTLE). To select the option setting, navigate through the option by pressing the ENTER button. Change the settings by turning the shuttle, and press the MENU button to exit the options menu.. To exit the MAIN MENU, select the EXIT option and press the ENTER (press down on the SHUTTLE).

Outlined below are the buttons used to access menu settings:

SHUTTLE (JOG)

ENTER

Setup Page 1: Includes settings for:

• Date/Time

• Alarm

• Misc.

Navigate through the MENU and change the OPTION SETTINGS Press this button to select and move the positioning of the cursor in a menu option (press down on the SHUTTLE) Press to EXIT the MENU

SETUP [ 1 ] V1.0N/RC2

DATE-TIME

DATE 2006-01-01 TIME 01:23:45 AM DATE TYPE: M-D-Y HOUR TYPE: 12 TIME DISP: ON

ALARM ENABLE

FROM 12:00PM TO 12:00PM

USE JOG, ENTER, MENU BUTTONS

MISC

PIP LOC: “ SEQUENCE: FULL NAME DISP: ON AUDIO: ON ALM BEEP: ON ALARM OUT: H ALARM RST: 60S

NEXT ...... EXIT

Setup Page 2: Includes settings for:

• Channel Name

• Channel View Length

• Alarm Type

SETUP [ 2 ] V1.0N/RC2

CHN

1 2 3 4 5 6 7 8 1-4 5-8

USE JOG, ENTER, MENU BUTTONS

NAME

CAM1_ _ _ _ CAM2_ _ _ _ CAM3_ _ _ _ CAM4_ _ _ _ CAM5_ _ _ _ CAM6_ _ _ _ CAM7_ _ _ _ CAM8_ _ _ _ QUAD-1 QUAD-2

DWELL

02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S

ALARM

N/O N/O N/O N/O N/O N/O N/O N/O

PREV ...... EXIT

SETUP [1]

This submenu allows you to change the DATE-TIME, ALARM and MISC settings.

SETUP [ 1 ] V1.0N/RC2

DATE-TIME

DATE 2006-01-01 TIME 01:23:45 AM DATE TYPE: M-D-Y HOUR TYPE: 12 TIME DISP: ON

ALARM ENABLE

FROM 12:00PM TO 12:00PM

USE JOG, ENTER, MENU BUTTONS

MISC

PIP LOC: “ SEQUENCE: FULL NAME DISP: ON AUDIO: ON ALM BEEP: ON ALARM OUT: H ALARM RST: 60S

NEXT ...... EXIT

DATE - TIME

Controls the date and time display settings on the Observation System. Use the SHUTTLE (JOG) to navigate to the DATE-TIME option, and press ENTER (press down on the SHUTTLE) to adjust the options.

Continue pressing the ENTER (SHUTTLE) button to switch between options within the DATE-TIME menu , and turn the SHUTTLE (JOG) to adjust the setting.

1. DATE - Setup for the System Date. Use the Shuttle JOG to change increase/decrease the Year, Month and Day settings.

2. TIME - Setup for the System Time. Use the Shuttle JOG to change increase/decrease the Hour, Minute, Second and AM/PM settings.

3. DATE TYPE - Setup for the System Date Format. Use the Shuttle JOG to change the setting to M-D-Y, D-M-Y or Y-M-D.

4. HOUR TYPE - Setup for the System Hour Format. Use the Shuttle JOG to change the setting to either a 12 Hour Clock or a 24 Hour Clock.

5. TIME DISP - Turns the Time Display ON or OFF on the Observation System. Use the Shuttle JOG to change the setting to ON or OFF.

To exit the DATE-TIME menu, press the MENU key on the front panel of the Observation System.

SETUP [1]

ALARM ENABLE

Controls when an alarm will become active (if detected) on the Observation System. Use the SHUTTLE (JOG) to navigate to the ALARM ENABLE option, and press ENTER (press down on the SHUTTLE) to adjust the options.

Continue pressing the ENTER (SHUTTLE) button to switch between options within the DATE-TIME menu, and turn the SHUTTLE (JOG) to adjust the setting.

1. FROM - Sets the Start Time for alarm detection. Use the Shuttle JOG to change the time setting for Hour and Minute.

2. TO - Sets the End Time for alarm detection. Use the Shuttle JOG to change the time setting for Hour and Minute

To exit the ALARM ENABLE menu, press the MENU key on the front panel of the Observation System.

MISC

Controls the Miscellaneous settings on the Observation System. Use the SHUTTLE (JOG) to navigate to the MISC option, and press ENTER (press down on the SHUTTLE) to adjust the options.

Continue pressing the ENTER (SHUTTLE) button to switch between options within the MISC menu, and turn the SHUTTLE (JOG) to adjust the setting.

1. PIP LOC - Sets the PIP (Picture in Picture) onscreen location. Use the Shuttle JOG to change the location setting to Top Left, Top Right, Bottom Left of Bottom Right.

2. SEQUENCE - Changes the SEQUENCE mode setting. Use the Shuttle JOG to change the sequence setting to Full Screen or PIP Sequence Mode.

3. NAME DISP - Turns the Name Display ON or OFF on the Observation System. Use the Shuttle JOG to change the setting to ON or OFF

4. AUDIO - Sets Audio to ON or OFF on the Observation System. Use the Shuttle JOG to change the setting to ON or OFF

5. ALM BEEP - Turns the Alarm Beep ON or OFF on the Observation System. Use the Shuttle JOG to change the setting to ON or OFF

6. ALARM OUT - Sets the Alarm OUT voltage to HIGH (5V) or LOW (0V). Use the Shuttle JOG to change the setting to H or L.

7. ALARM RST - Sets the length of time that an Alarm will be active. Use the Shuttle JOG to change the setting to 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60 or OFF.

To exit the MISC menu, press the MENU key on the front panel of the Observation System.

SETUP [2]

NEXT / EXIT

NEXT - Switch to the second SETUP page. Use the SHUTTLE (JOG) to navigate to the NEXT option, and press ENTER (press down on the SHUTTLE) to access SETUP [ 2 ].

EXIT - Exits the Menu Setup. Use the SHUTTLE (JOG) to navigate to the EXIT option, and press ENTER (press down on the SHUTTLE) to exit the Menu.

NOTE: Pressing the MENU button (instead of selecting the EXIT option) will also exit the menu.

SETUP [2]

This submenu allows you to change the CAMERA settings.

SETUP [ 2 ] V1.0N/RC2

CHN

1 2 3 4 5 6 7 8 1-4 5-8

USE JOG, ENTER, MENU BUTTONS

NAME

CAM1_ _ _ _ CAM2_ _ _ _ CAM3_ _ _ _ CAM4_ _ _ _ CAM5_ _ _ _ CAM6_ _ _ _ CAM7_ _ _ _ CAM8_ _ _ _ QUAD-1 QUAD-2

DWELL

02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S 02 S

ALARM

N/O N/O N/O N/O N/O N/O N/O N/O

PREV ...... EXIT

SETUP [2]

CHN

Controls the CHANNEL settings on the Observation System. Use the SHUTTLE (JOG) to navigate to the Name, Dwell and Alarm options, and press ENTER (press down on the SHUTTLE) to adjust the options.

Continue pressing the ENTER (SHUTTLE) button to switch between options within the CHN menu, and turn the SHUTTLE (JOG) to adjust the setting.

1. NAME - Changes the Camera NAME setting. Use the SHUTTLE JOG to switch between CHANNELS, and press ENTER to begin changing the NAME (to a maximum of 8 characters). Use the SHUTTLE to change the letters / numbers, and continue pressing ENTER to move left within the name.

Press the MENU key to exit back to the SETUP [2] submenu.

2. DWELL - Changes the length of time each Camera is displayed in SEQUENCE mode (Single and QUAD Display). Use the SHUTTLE JOG to switch between CHANNELS, and press ENTER to begin changing the DWELL Length. Use the SHUTTLE to set the length between 01 seconds to 60 seconds, or OFF.

Press the MENU key to exit back to the SETUP [2] submenu.

3. ALARM - Changes the alarm type for each Channel. Use the SHUTTLE JOG to switch between CHANNELS, and press ENTER to begin changing the ALARM Type. Use the SHUTTLE to set the ALARM type to N/O (Normally Open) or N/C (Normally Closed).

Press the MENU key to exit back to the SETUP [2] submenu.

To exit the DATE-TIME menu, press the MENU key on the front panel of the Observation System.

PREV / EXIT

PREV - Switch to the first SETUP page. Use the SHUTTLE (JOG) to navigate to the PREV option, and press ENTER (press down on the SHUTTLE) to access SETUP [ 2 ].

EXIT - Exits the Menu Setup. Use the SHUTTLE (JOG) to navigate to the EXIT option, and press ENTER (press down on the SHUTTLE) to exit the Menu.

NOTE: Pressing the MENU button will also exit the menu.

NetViewer - Installation Requirements

The NetViewer software (included with the Observation System) has the following installation requirements.

Minimum System Requirements:

Operating System Windows 2000

Windows XP Home Edition

Windows XP Professional

Processor .Pentium 4 - 1.5 GHz Processor (or equivalent)

Memory 256 MB RAM

Hard Drive 50 MB - Installation space required

* Additional Hard Drive space required for recording.

Recorded file size will vary depending on recording quality settings

Recommended System Requirements:

Operating System Windows XP Home Edition

Windows XP Professional

Processor Pentium 4 / 3 GHz Processor (or equivalent)

Memory 1024 MB RAM

Hard Drive 50 MB - Installation space required

* Additional Hard Drive space required for recording.

Recorded file size will vary depending on recording quality settings

Please refer to the NetViewer Installation Guide included with your Observation System for further details.

Network Connectivity

The SG17F6584 Observation System can be remotely controlled using your existing network and the provided NetViewer software.

1. Connect the Observation System to the Router using the supplied Ethernet Cable. Power the Observation unit on.

NOTE: The Observation System must be connected to the router prior to powering on the system. This allows the system to communicate on your network

2. Set up a web account at http://

DDNS.strategicvista.net. Refer to

Pages 26 - 27 for setup and configuration instructions.

3. Install the NetViewer software on your PC. See Page 24 for installation requirements, and refer to the provided ‘NetViewer Guide’ with your product for details on using the software.

4. Find the IP address of your Observation using the Lorex IPEdit application. See Page 28 for details

OBSERVATION SYSTEM

5. Enable PORT FORWARDING on your Router. Refer to the instructions on Page 29 for details.

INTERNET

ROUTER

(Not Included)

Setting Up Your DDNS Account

Lorex offers a free DDNS server for use with your System. A DDNS account allows you to set up a web site address that points back to your Local Network. The following outlines how to set up your free DNS account.

1. Navigate to http://DDNS.strategicvista.net

2. Select the Create Account option from the list on the left side of the screen.

3. Complete the Account Information fields with your personal information

Setting Up Your DDNS Account

4. Complete the System Information fields as follows:

• Product License: Select your product model from the Product License drop down menu

• <Product Code> - <MAC Address>: Locate the MAC address of your (recorded while loading the System)

• URL Request: Choose a URL for your DDNS connection (i.e. your name, your company or business name, or anything of your choice.)

NOTE: The URL request must not exceed 8 CHARACTERS

5. Click the Create New Account link at the bottom of the form to submit your request.

6. Your Account information will be sent to you at the E-mail Address you used in Step 3.

Service provider: Domain name: User name: Password:

You will need this information for remote access to your System. Record YOUR

dns1.strategicvista.net tomsmith.strategicvista.net

tomsmith1 <leave this field blank>

information

below:

Service Provider: _____________________________________________

Domain Name: _______________________________________________

User Name: _________________________________________________

Password: __________________________________________________

NOTE: The information sent to you in E-mail is CASE SENSITIVE. It is important when setting up your DDNS information on your Observation System.

Using the Lorex IPEdit Application

The Lorex IP Edit application allows you to find and change the details of your Lorex network device (i.e. Observation System, DVR, or IP Camera).

1. Connect the LAN output of the OBSERVATION SYSTEM to your router using the provided Ethernet cable.

2. Download the Lorex IPEdit application from the http://www.lorexcctv.com website

3. Double -click the application to run

4. A list of all detected Lorex Network Devices will be shown. Click on the name of the device on the MONITOR LISTS section (left side) to populate the device data on the right side list

5. The IP address can be changed from this screen.

• Click on the IP address fields to change

• Click on SUBMIT to update the system IP address

Finding Your External IP Address

You will need to have your External IP address to set up your DDNS account. One of the fastest ways to find this information is to use a 3rd Party website such as http://www.showmyip.com

Your IP address can also be found within your Router settings. Refer to your router user guide for further details.

Router Port Forwarding

How do I enable Port Forwarding on my Router?

You will need to enable port forwarding on your Router to allow for external communications with your Observation System.

Computers, Observation Systems, and other devices inside your network can only communicate directly with each other within the internal network. Computers and systems outside your network cannot directly communicate with these devices. When a system on the internal network needs to send or receive information from a system outside the network (i.e. from the Internet), the information is sent to the Router.

NETWORK EXAMPLE

Router

External IP

216.13.154.34

Internet

When a computer on the Internet needs to send data to your internal network, it sends this data to the external IP address of the Router. The Router then needs to decide where this data is to be sent to. This is where setting up Port Forwarding becomes important.

Port Forwarding tells the router which device on the internal network to send the data to. When you set up port forwarding on your Router, it takes the data from the external IP address:port number and sends that data to an internal IP address:port number (i.e Router External IP

216.13.154.34:5000 to Observation System Internal IP 192.168.0.3:5000).

Router

Internal IP

192.168.0.1

Internal Network

Computer

Internal IP

192.168.0.2

Observation System

Internal IP

192.168.0.3

The instructions found online in the Router Configuration Guide forwarding configurations for a selection of different router models.

Visit our Consumer Guides Support

will assist you in the port

website at http://www.lorexcctv.com for more details

Troubleshooting

When a malfunction occurs, it may not be serious and can be corrected easily. The following describes the most common problems and solutions. Please refer to the following before calling your Observation System dealer

Problem:

Observation System Unit is not receiving power, or is not powering up

Check:

• Confirm that all cables are connected correctly

• Confirm that the ON/OFF button on the front of the unit is set to ON:

• Confirm that there is power at the outlet:

z Connecting the power cable to another outlet z Test the outlet with another plugged device (such as an electric calculator or

phone charger)

If the unit is connected through a power bar or surge protector, try bypassing the bar and connecting the power directly to the wall outlet

Problem:

The image on the Observation System is too dark or too bright

Check:

• Adjust the CONTRAST and BRIGHTNESS of the unit using the Front Panel buttons. See descriptions on Page 10.

Problem:

The image on the Observation System does appears, but does not have sound

Check:

• Check the VOLUME

• Check the CAMERA connection to the Observation System

• Confirm that the Camera has sound capabilities (Refer to the manual for the camera model for further information on the Camera functionality)

Troubleshooting

Problem:

The picture on the Observation System is poor, shrinks or flickers

Check:

• Check the camera video cable and connections

• Disconnect and reconnect the cable at the Observation System and at the Camera

• Clean the camera lens

• Adjust the CONTRAST and BRIGHTNESS settings using the Front Panel buttons. See descriptions on Page 10.

• Check that the Camera is not in direct sunlight

Problem:

There is no picture appearing on a Channel / Camera is not displaying

Check:

• Check the camera video cable and connections

• Disconnect and reconnect the cable at the Observation System and at the Camera

• Try moving the camera to another channel or use another cable

Observation System Specifications - Appendix #1

Picture Tube 17” Full Flat Color CRT - 90° Deflection

Horizontal Resolution 380 TV lines at center

Camera Input 8 DIN, 4 BNC

Video Input Composite Video 1.0Vp-p, 75 ohm

Video Output Composite Video 1.0Vp-p

Audio Output Max 1W

Linearity Less than 10% Horizontal/Vertical

Power Source 100~240 V AC, 50~60 Hz

Power Consumption 60 W with 4 Cameras

Operating Temperature 14

Storage Temperature -4°F ~ 140°F (-20°C ~ 60°C)

Dimensions 15.7” (W) x 16.2” (D) x 15.2” (H)

Weight 34 lbs (15.5 kg)

Color Charcoal Grey

°F ~ 122°F (-10°C ~ 50°C)

398 cm (W) x 411 cm (D) x 368 cm (H)

Camera Specifications - Appendix #2

Image Device

1/4" Interline transfer type color CCD

Effective Pixels 512 H x 492 V (252k PIXELS)

Scanning System 525 Lines 2:1 Interlace

Resolution Horizontal 350 TV lines

Shutter Speed 1/60 ~ 1/10,000 sec.

S/N Ratio More than 48dB (AGC off)

Sync. System Internal

Min. Illumination 1.0 Lux (without LED) / 0.1 Lux (with LED

White Balance AWB

Video Output VBS 1.0 Vp-p (75 ohms load)

Lens

Power Supply

Power Consumption

Operating Temp

Fixed Lens (3.6mm)

DC12V ±10% (from the monitor)

100mA (without LED) / 180mA (with LED)

14°F - 113°F ( -10°C - +45°C)

)

Weather Proof Rating

Operating Humidity

As our products are subject to continuous improvement, LOREX Technology Inc. and its

subsidiaries reserve the right to modify product design, specifications and prices, without notice

IP44

90% RH max.

and without incurring any obligation.

E&OE

Connecting to a Single Channel DVR / VCR - Appendix #3

The SG17F6584 Observation System can be used with a Single Channel DVR or VCR unit (not included)

1. Connect the Video cable from the VIDEO OUT port on the Observation System to the VIDEO IN port on the DVR or VCR Unit

2. Connect the AUDIO cable from the AUDIO OUT port on the Observation System to the AUDIO IN port on the DVR or VCR unit (if available)

DVR NOTE:

When recording to a Digital Video Recorder, the DVR may indicate a Video Loss as the monitor sequences between channels. This Video Loss occurs because the monitor’s switching function is analogue, whereas the DVR is a digital product. Therefore a synchronization problem will result.

The solution to this problem is to adjust the Video Loss alarm sensitivity setting to 3 frames on your DVR unit, or simply disable the video loss function on your DVR. Please refer to the manual for your specific model of DVR for further information.

OBSERVATION SYSTEM

VCR NOTE:

Ensure the Standard VCR channel is set to A/V Mode in order to ensure reception. Consult the manual for your specific VCR for setting the A/V settings.

NOTE: VCR OUT ports are used for connecting recording devices (such as a DVR). SLAVE OUT ports are used for connecting display devices (such as a Slave Monitor)

SINGLE CHANNEL DVR OR VCR

(Not Included)

Connecting to a Multi-Channel DVR - Appendix #4

The SG17F6584 Observation System can be used with a Multi-Channel DVR (not included). A Multi-Channel DVR enables you to record multiple video streams with a single device

NOTE: The CH1 - CH4 BNC Video inputs serve as Looping Video Outputs by individual channels when a DIN camera is connected to the associated channel.

1. Attach the BNC to RCA (Male to Female) adapters on the BNC CH1-CH4 found on the Observation System.

2. Attach the BNC to RCA (Male to Female) Adapters on the BNC CH1-CH4 found on the DVR

3. Connect the standard RCA cables from the Observation System to the DVR.

4. Connect cables from the DVR Video / Audio Out to the VCR IN (Video and Audio) on the Observation System

OBSERVATION SYSTEM

To switch from viewing the Observation System to viewing the DVR, press the VCR button on the front panel of the Observation System.

RCA to BNC

Adaptor

DVR UNIT

(Not Included)

Connecting a Slave Monitor - Appendix #5

Connections to a Slave Monitor (not included) can be made through the SLAVE OUT ports on the back of the Observation System

A Slave Monitor is used as a View Only device. A Slave Monitor can only display camera data as it is shown on-screen on the Observation System.

Specific controls for the Observation System are configured through the Menu Options

1. Connect the VCR VIDEO OUT port on the back of the Observation System to the VIDEO IN port on the back of the Slave Monitor

2. Connect the VCR AUDIO OUT port on the back of the Observation System to the AUDIO IN port on the back of the Slave Monitor

OBSERVATION SYSTEM

SLAVE MONITOR

(Not Included)

Connecting Motion / Alarm Device - Appendix #6

Motion detection and Alarm controls are enabled through the Menu system on the Observation System. Additional motion sensor devices can be connected to the system (Motion Sensors, Door/Window Sensors).

A motion detection or sensor unit can be used to send a signal to the Observation System to begin camera viewing on the matching Video Channel (when enabled in the MENU/ALARM SET MODE)

• Example: A Window sensor unit has been installed on Alarm Block port #4. When this sensor is activated, the camera on DIN or BNC VIDEO port #4 will become active (if enabled in the MENU on the Observation System)

For the corresponding Menu Programming, refer to Page 21.

Installing a Sensor

1. Connect the GROUND Cable to the GND port on the Alarm Block on the Observation System

OBSERVATION SYSTEM

2. Connect the SIGNAL Cable to a numbered port (1-4 and 5-8)

To start ALARM RECORDING on a DVR unit, refer to the manual for your specific DVR product.

SENSOR

(Not Included)

Optional Accessories

The following accessories are available to add to your existing system

CABLE

Extends the length

between the CAMERA

and MONITOR.

Available in 65’, 100’ and

250’ lengths

OBSERVATION

CAMERAS

DVR UNIT

Accessory DVR units - Record

and Replay from your

Observation System

CAMERA

ACCESSORIES

QUAD LOOPING OUTPUT CABLE

Connects 4 video outputs

of a multi-channel CCTV

MONITOR to a 4 Channel

DVR

SUNSHADE

HOUSING

Accessory PIR motion

sensor

observation

system camera

TO ORDER THESE ACCESSORY ITESMS OR FOR A COMPLETE LISTING OF AVAILABLE

PRODUCTS, PLEASE VISIT US ON THE WEB AT:

Night Vision Accessory

with 68 LED

illuminators for viewing in

total darkness

WWW.LOREXCCTV.COM

Protects the

CAMERA from direct

sunlight (which pre-

vents over-

exposing the image)

It’s all on the web

Product Information

User Manuals

Quick Start Guides

Specification Sheets

Software Upgrades

Firmware Upgrades

VISIT

www.lorexcctv.com

Strategic Vista International Inc.

wwwlorexcctv.com

Lorex SG17F6584 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
