Thank you for purchasing this product. Lorex is committed to providing our customers
with a high quality, reliable security solution.
This manual refers to the following model(s):
• QLR460 (4-Channel)
For more information on this product, firmware updates, and accessory products, please
visit us at:
www.lorexcctv.com
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT
REMOVE COVER. NO USER SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated "dangerous voltage"
within the products ' enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE
OF THE PLUG TO THE WIDE SLOT AND FULLY INSERT.
B E F O R E Y O U S T A R T
THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION
LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS
• We have developed user friendly products and documentation.
Please read the Quick Start Guide and User Manual before you
install this product.
• Consumer Guides and Video Tutorials are available on our web
site at www.lorexcctv.com/support
• If you require further installation assistance, please visit
www.lorexcctv.com/installation or contact a professional
installer.
• Please refer to the “Need Help” insert for technical support and
customer care information.
• Please note that once the components of this product have been
unsealed, you cannot return this product directly to the store
without the original packaging.
www.lorexcctv.com
AVANT DE
A N T E S D E
COMMENCER
CE PRODUIT POURRAIT EXIGER UNE
INSTALLATION PROFESSIONNELLE
LOREX S’ENGAGE À SATISFAIRE
VOS BESOINS SÉCURITAIRES
• Veuillez lire le guide de démarrage rapide et le
mode d’emploi avant d’installer ce produit.
• Les guides du consommateur et les séances
de tutorat vidéo sont disponibles sur l’Internet en
visitant www.lorexcctv.com/support
• Si vous avez besoin de l’aide pour l’installation,
E M P E Z A R
ESTE PRODUCTO PUEDE EXIGIR UNA
INSTALACIÓN PROFESIONAL
LOREX SE COMPROMETE A SATISFACER
SUS NECESIDADES EN SEGURIDAD
• Favor de leer la guía de instalación rápida y la
guía del usuario antes de instalar este producto.
• Puede conseguir las guías del consumidor y
los cursos en enseñanza video sobre el Internet
visitando www.lorexcctv.com/support
• Si necesita ayuda para la instalación, visite
veuillez visiter www.lorexcctv.com/installation
ou contactez un spécialiste en installation
• Veuillez référer à l’insert “Need Help” pour
ob¬tenir de l’information sur le service à la cli-
entèle et le support technique
• Veuillez constater qu’une fois que les
com¬posantes de ce produit ont été retirées de
l’emballage, vous ne pourrez plus retourner ce
produit directement au magasin.
www.lorexcctv.com/installation o contacte un
especialista en instalaciones
• Favor de referir al documento “Need Help” para
obtener información acerca del servicio al cliente
y al soporte técnico
• Favor de notar que una vez que los compo-
nentes de este producto han sido removidos del
embalaje, no podrá devolver este producto di-
rectamente a la tienda
w w w . l o r e x c c t v . c o m
NEED HELP?
CONTACT US FIRST
DO NOT R E T U R N THIS PRODUCT TO THE STORE
Please make sure to register your product at www.lorexcctv.com to receive product updates and information
3 EASY WAYS TO CONTACT US:
Online:
Pr od u ct S up p or t is a v ai la b le 2 4/ 7 i nc lu di n g pr od u ct
in fo r ma ti on , us er ma nu al s, q ui ck s t ar t up gu id es an d FAQ ’s
at w ww.lorexcct v.com/ suppo rt
To o rd er ac ce ss o ri es , v i si t
www.l orex cctv.com
By Email:
Te ch ni ca l S up po r t (f or te ch ni c al /i ns tal la ti o n is su es )
sup port@ lore xcorp.co m
Cu st o me r Ca r e (f or wa rr an ty an d ac c es so r y sa le s )
cus tomer servic e@lor exco rp.com
Cu st o me r Fe e db ac k
inf o@lor exco rp. com
By Phone:
NORTH AMERICA:
CUSTOMER SERVICE: 1-888-425-6739 (1-888-42-LOREX)
TECH SUPPORT: 1-877-755-6739 (1-877-75-LOREX)
MEXICO: 1-800-514-6739
INTERNATIONAL: +800-425-6739-0
(Ex amp le: Fr om the UK , dia l 0 0 i nst ead of +)
Ve rs i o n 7 - No v 2 6 2 0 0 9
NECESITA AYUDA
VOUS AVEZ BESOIN
D’AIDE?
COMUNÍQUESE PRIMERO
CON NOSOTROS
NO DEVUELVA ESTE PRODUCTO A LA TIENDA
Cerciór ese de p or favor colocar su prod ucto en www.
lorexcc tv.c om/regis tration para rec ibir act ualiz aciones y l a inform ación de l produc to
3manera ssencillas dec omunicarse
co nnosotros:
www
En línea:
apoyo al producto disponible 24/7 incluyendo información del product o, manuales par a el usuario, g uías
de inicio rápido y preguntas más frecuentes en
www.lorexcctv.com/support
Para colocar pedid os de accesorios, visite
www.lorexcctv.com
CONTACTEZ-NOUS
D’ABORD
NE RETOURNEZ PAS CE PRODUIT AU MAGASIN
Veu illez ve iller à enregist rer votr e produi t à w ww.
lorexcc tv.c om/regis tration pour rec evoir de s mis es à
jour et l’infor mation d e produi t
3façons facilesdenous contacter:
www
En ligne:
le support des pro duits est disponible 24 heures sur 24, 7
jours sur 7, y compris les informations sur les produits, les
guides de l’utilis ateur, les guides de démarrage r apide et
les foires à questions
www.lorexcctv.com/support
Pour commander des accessoires, v isitez
www.lorexcctv.com
Por Correo Electrónico:
soporte técnico (p ara asuntos técnicos/la instalación)
support@lorexcorp.com
O
servicio al cliente (respecto a la garantía y a l a venta
de accesorios)
customerservice@lorexcorp.com
Comentarios de cli ente
info@lorexcorp.com
Por Teléfono:
L’AMÉRIQUE DU NORD:
ATENCIÓN AL CLIENTE: 1-888-425-6739 (1-888-42-LOREX)
SOPORTE TÉCNICO: 1-877-755-6739 (1-877-75-LOREX)
(Exemple: À partir du Royaume-Uni, composez 00 au lieu de +)
nous serions heureux de recevoir vos
commentaires à info@lorexcorp.com pour
commander des accessoires, visitez
www.lorexcctv.com
www.lorexcctv.com
Ve rs i o n 7 - No v 2 6 2 0 0 9
Important Safeguards
In addition to the careful attention devoted to quality standards in the manufacturing process of
your video product, safety is a major factor in the design of every instrument. However, safety is
your responsibility too. This sheet lists important information that will help to assure your
enjoyment and proper use of the video product and accessory equipment. Please read them
carefully before operating and using your video product.
Installation
1.Read and Follow Instructions - All the safety and
operating instructions should be read before the
video product is operated. Follow all operating
instructions.
2.Retain Instructions - The safety and operating
instructions should be retained for future reference.
3.Heed Warnings - Comply with all warnings on the
video product and in the operating instructions.
4.Polarization - Do not defeat the
safety purpose of the polarized or
grounding-type plug.
A polarized plug has two blades
with one wider than the other.
A grounding type plug has two
blades and a third grounding prong.
The wide blade or the third prong
are provided for your safety.
If the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
5.Power Sources - This video product should be
operated only from the type of power source
indicated on the marking label. If you are not sure of
the type of power supply to your location, consult
your video dealer or local power company. For video
products intended to operate from battery power, or
other sources, refer to the operating instructions.
6.Overloading - Do not overload wall outlets of
extension cords as this can result in the risk of fire
or electric shock. Overloaded AC outlets, extension
cords, frayed power cords, damaged or cracked wire
insulation, and broken plugs are dangerous. They
may result in a shock or fire hazard. Periodically
examine the cord, and if its appearance indicates
damage or deteriorated insulation, have it replaced
by your service technician.
7.Power Cord Protection - Power supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them,
paying particular attention to cords at plugs,
convenience receptacles, and the point where they
exit from the video product.
8.Ventilation - Slots and openings in the case are
provided for ventilation to ensure reliable operation
of the video product and to protect it from
overheating. These openings must not be blocked or
covered. The openings should never be blocked by
placing the video equipment on a bed, sofa, rug, or
other similar surface. This video product should
never be placed near or over a radiator or heat
register. This video product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the video
product manufacturer’s instructions have been
followed.
9.Attachments - Do not use attachments unless
recommended by the video product manufacturer as
they may cause a hazard.
10. Camera Extension Cables – Check the rating of
your extension cable(s) to verify compliance with
your local authority regulations prior to installation.
11. Water and Moisture - Do not use this video product
near water. For example, near a bath tub, wash
bowl, kitchen sink or laundry tub, in a wet
basement, near a swimming pool and the like.
Caution
operated equipment or accessories connected to
this unit should bear the UL listing mark of CSA
certification mark on the accessory itself and should
not be modified so as to defeat the safety features.
This will help avoid any potential hazard from
electrical shock or fire. If in doubt, contact qualified
service personnel.
12. Accessories - Do not place this
video equipment on an unstable
cart, stand, tripod, or table. The
video equipment may fall, causing
serious damage to the video
product. Use this video product
only with a cart, stand, tripod,
bracket, or table recommended by the
manufacturer or sold with the video product. Any
mounting of the product should follow the
manufacturer’s instructions and use a mounting
accessory recommended by the manufacturer.
: Maintain electrical safety. Powerline
iii
Service
13. Servicing - Do not attempt to service this video
equipment yourself as opening or removing covers
may expose you to dangerous voltage or other
hazards. Refer all servicing to qualified service
personnel.
14. Conditions Requiring Service - Unplug this video
product from the wall outlet and refer servicing to
qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled or objects have fallen into
the video product.
• If the video product has been exposed to rain or
water.
• If the video product does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions. Improper adjustment of other controls
may result in damage and will often require
extensive work by a qualified technician to restore
the video product to its normal operation.
• If the video product has been dropped or the cabinet
has been damaged.
• When the video product exhibits a distinct change
in performance. This indicates a need for service.
Use
19. Cleaning - Unplug the video product from the wall
outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
20. Product and Cart Combination - Video and cart
combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may
cause the video product and car combination to
overturn.
21. Object and Liquid Entry - Never push objects for
any kind into this video product through openings as
they may touch dangerous voltage points or
“short-out” parts that could result in a fire or
electric shock. Never spill liquid of any kind on the
video product.
22. Lightning - For added protection for this video
product during a lightning storm, or when it is left
unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage
to the video product due to lightning and power line
surges.
15. Replacement Parts - When replacement parts are
required, have the service technician verify that the
replacements used have the same safety
characteristics as the original parts. Use of
replacements specified by the video product
manufacturer can prevent fire, electric shock or
other hazards.
16. Safety Check - Upon completion of any service or
repairs to this video product, ask the service
technician to perform safety checks recommended
by the manufacturer to determine that the video
product is in safe operating condition.
17. Wall or Ceiling Mounting - The cameras provided
with this system should be mounted to a wall or
ceiling only as instructed in this guide, using the
provided mounting brackets.
18. Heat - The product should be situated away from
heat sources such as radiators, heat registers,
stoves, or other products (including amplifiers) that
produce heat.
General Precautions
iv
General Precautions
FCC CLASS B NOTICE
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not in-stalled and used in accordance with the instruction, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception (which can be determined by turning the
equipment on and off), the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connnected.
• Consult the dealer or an experienced radio or television technician for assistance
www.lorexcctv.com
1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents.
3. Do not use this unit in humid or wet places.
4. Keep enough space around the unit for ventilation. Slots and openings in the storage cabinet
should not be blocked.
5. During lightning storms, or when the unit is not used for a long time, disconnect the power
supply, antenna, and cables to protect the unit from electrical surge.
This equipment has been certified and found to comply with the limits regulated by FCC, EMC, and
LVD. Therefore, it is designated to provide reasonable protection against interference and will not
cause interference with other appliance usage.
However, it is imperative that the user follows the guidelines in this manual to avoid improper
usage which may result in damage to the unit, electrical shock and fire hazard injury.
In order to improve the feature functions and quality of this product, the specifications are subject
to change without notice from time to time.
v
Features
• Digital Recording of live video to PC’s hard drive
• Can also record on an external hard drive (not included)
• Internet Remote Monitoring
• H.264 video compression maximizes recording time
• View up to four locations simultaneously
• PC compatible with Windows XP™, Vista™ and 7
• Viewing options: Quad / Full Screen / Sequencing
• Easy search and playback of digitally recorded video
• Password security protection
• Free Lorex DDNS (Dynamic Domain Name System) service keeps you connected anywhere
CAMERA CONFIGURATIONS AND CONTENTS MAY VARY BY MODEL. PLEASE REFER TO YOUR
PACKAGE FOR SPECIFIC CONTENT DETAILS.
CHECK YOUR PACKAGE TO CONFIRM THAT YOU HAVE RECEIVED THE COMPLETE SYSTEM,
INCLUDING ALL COMPONENTS SHOWN ABOVE.
1
INSTALLING THE QLR460 SERIES PCI CARD
Before You Start
• Ground yourself properly before performing hardware
upgrades. Improper grounding damages electronic
components in your system
• It is recommended to work over a non-carpeted area to
prevent static electricity build-up
• Work on a level surface
Prerequisites & Hardware Requirements
Ensure that your system meets the following requirements before you begin installation.
Prerequisites
The system must have:
• A free PCI slot
• A standard PCI opening at the back of the system. Micro form factor cases may not be able to
accomdate the QLR460 series
Minimum System Requirements
• Intel Pentium 4 or higher processor
• Windows XP, Vista, 7 (32-bit versions)
• Optical Drive
• 250GB SATA hard drive
• Separate video card with 64MB of memory
• 800 x 600 VGA color display or better
• Broadband connection required for remote management
2
Installing The QLR460 Series Surveillance Card
Empty PCI slot
Figure 1.0 Empty PCI slot.
Be careful of sharp edges while
removing the metal plate.
Figure 1.1 Remove PCI slot bracket.
Gold-colored Connector
pins
Figure 1.2 Push the card firmly into the PCI slot until it clicks in place.
1. Shut down the computer. Unplug the power cord from the computer’s power supply.
2. Remove the computer case cover screws. Remove the case cover to access the
motherboard’s PCI slot.
NOTE: Refer to your computer’s owner’s manual for instructions on how to remove the case
cover.
3. Remove the PCI slot’s metal plate at the back of the computer.
4. Push the card firmly into the PCI slot until it clicks in place. The gold-colored connector pins
should not be visible after the card is secure.
3
Installing The QLR460 Series PCI Card
Figure 1.3 Secure PCI card in chassis.
Figure 1.4 Insert BNC connectors into the
video in ports of the surveillance card.
Tip!
Make sure your cameras are
fully functional before
mounting them in the final
location.
5. Secure the PCI card onto the case.
6. Replace the chassis cover on your system.
OPTIONAL: You may connect the 2-Channel audio cable into your sound card if you have an
2. Screw in the BNC connector from the camera to the back of the QLR card. The connection
should be snug and secure.
4
INSTALLING THE SOFTWARE
Figure 2.0 Vista Pro 6 Server (Local Viewing) installation window.
Click Install
Click Express
The QLR460 includes local monitoring software, and remote monitoring software. The local
monitoring software is called Vista Pro 6 Server. The remote monitoring software is called Vista
Pro 6 Client. Use Vista Pro 6 Client to monitor your system from another computer.
INSTALLING VISTA PRO 6 SERVER (LOCAL VIEWING)
To install Vista Pro 6 Client:
1. Insert the installation disc into your computer’s CD/DVD reader.
2. Click on the Vista Pro 6 Software button when the software autorun window opens.
• If your system does not support auto-run, you can browse the CD, and search for the Vista Pro
6 Client in the X:\package\DVRMain\ directory, where "X" is your CD/DVD drive. Double click
Setup.exe to install Vista Pro 6 Client.
3. The installation screen opens. Click Install then click Express to install Vista Pro 6 Server.
4. After the installation is complete, remove CD and restart your system.
NOTE: You may receive installation warnings during setup. This is normal. Allow the software
to continue installation when the warning window appears.
INSTALLING VISTA PRO 6 CLIENT (REMOTE VIEWING)
If you want to view your local system from a remote computer, install Vista Pro 6 Client. Vista Pro
6 Client allows you to back up and search your video remotely. You do not need to install Vista Pro
6 Client on a local machine.
To install Vista Pro 6 Client:
1. Insert the installation disc into your computer’s CD/DVD reader.
2. Click on the Vista Pro 6 Software button when the software autorun window opens.
5
Installing the Software
Figure 2.1 Vista Pro 6 Client installation window.
Click Install
Click Advanced
Click on Vista Pro 6 Client
Vista Pro 6 Server (Local Viewing)
Vista Pro 6 Client (Remote Viewing)
• If your system does not support auto-run, you can browse the CD, and search for the Vista Pro
6 Server in the X:\package\Remote Client\ directory, where "X" is your CD/DVD drive. Double
click Setup.exe to install Vista Pro 6 Client.
3. The installation screen opens. Click Install then click Advanced.
4. Click on Vista Pro 6 Client to begin installation.
5. After the installation is complete, remove CD and restart your system.
NOTE: To install Vista Pro 6 Client in the Advanced menu, you must install the following programs
in this order : 1) DVR Board Driver 2) Vista Pro 6 Client 3) Storage Management
NOTE: You may receive installation warnings during setup. This is normal. Allow the software
to continue installation when the warning window appears.
To start the program, double-click the Vista Pro 6 icon on your desktop.
6
Installing the Software
Select hard drive
Drag slider to adjust video
storage space
Figure 2.2 Selecting a save directory and allocating storage space.
SELECTING A SAVE DIRECTORY AND ALLOCATING STORAGE SPACE
During the software installation, a save directory window opens.
To select the save directory:
• Select the hard drive in the hard drive list.
To allocate video storage space:
1. Drag the slider to the right to increase storage space; drag the slider to the left to decrease
storage space.
NOTE: If you allocate a large percentage of your hard drive for video storage, your hard-drive
icon may show up with a red bar (in Windows Vista, 7). This is normal.
2. Click OK to continue. The software begins allocating storage space on your hard drive.
Changing a save directory and re-allocating storage space
You can change the save directory and re-allocate storage space by using the Storage
Management program.
For more information, see:
• Storage Management (See “Appendix E: Re-Allocating Storage Space” on page 72.)
INSTALLING EXTRA SOFTWARE
To install the extra software, you must access the Advanced installation menu. During setup,
instead of selecting Express installation, select Advanced then click Extras.
To install the Image Analyst and Backup Viewer software, click the Extras button in the Advanced
installation window.
For more information, see:
• Image Analyst (See “Appendix C: Using The Image Analyst Software” on page 70.)
• Backup Viewer (See “Appendix D: Using Backup Viewer” on page 71.)
7
Installing the Software
During installation, the software will ask
you to create a directory to store your
videos. Depending on your computer’s
hard drive setup, you will need to select
your save directory accordingly.
HARD DRIVE SETUP SCENARIOS
Your computer may have:
A hard drive with a recovery partition (ie. C drive and D drive with Recovery Software)
If you have a recovery partition, it is recommended to set your C drive as the primary video storage
location. The "recovery" partition is reserved for the operating system, and does not have
adequate space to store your surveillance videos.
A single hard drive (ie. C drive only)
If you only have a single hard drive without a partition, then set your C drive as your storage
directory for the surveillance videos.
A hard drive with a partition (ie. C and D drive)
If you have a second partition in your hard drive (ie. a D drive with ample space (for example,
100GB and above), it is recommended to set your partition as the storage directory for the
surveillance videos. This reduces the chance of losing stored videos if your main hard drive (ie. C
drive) fails.
A hard drive with an external hard drive (ie. C drive + external hd)
If you have an external hard drive, you can set your external hard drive as your storage directory.
It is recommended that you do not remove the external hard drive during recording or playback.
8
Installing the Software
Click on Turn User Account Control on or off
De-select checkbox
Figure 2.3 Disabling User Account Control.
Disabling User Account Control
In order for the Vista Pro 6 software to continually run even after a system restart, you must
disable User Account Control (Windows Vista, 7) . This prevents the login window from appearing
if a system restarts.
To disable User Account Control:
1. Click on the Start Menu>Control Panel>User Accounts>User Accounts.
2. Click Turn User Account Control on or off.
3. De-select the checkbox beside "Use User Account Control to protect your computer" and
then click OK to save your settings. Click on Restart Now to restart your computer.
Disabling Login Password
Disabling the login password allows Vista Pro 6 software to resume automatically in an event that
your system restarts due to power failure or errors.
To disable your user login password:
1. Click on the Start Menu>Control Panel>User Accounts>User Accounts
2. Click Remove Your Password and then enter your current password in the blank field.
3. Click on the Remove Password button.
9
Vista Pro 6 Server: Viewing Mode
1. Viewing Area
9. View Buttons
7. Exit button
10. Setting buttons
6. Lock Button
2. Camera List
8. Video Log List
3. Live Audio Button
4. Relay Control Button
5. Video Color Adjustment
Figure 3.0 Lorex Viewer in Viewing Mode.
11. Date/Time display
VISTA PRO 6 SERVER: VIEWING MODE
Viewing Mode
Viewing Mode allows you to watch live, streaming events from your cameras. While in Viewing
Mode, you can watch up to 4 cameras simultaneously in split-screen mode.
1. Viewing Area: Displays live video from video cameras connected to the card.
2. Camera List: Displays active cameras. Active camera channels highlight buttons in blue.
Inactive camera channels highlight buttons in red.
3. Live Audio Button: Click to display camera channels with live audio. Channels with active live
audio highlight buttons in red. Channels with inactive audio do not appear in camera list.
4. Relay Control Button: Not supported in this model.
5. Video Color Adjustment: Adjust video brightness, contrast, saturation, and hue.
6. Lock Button: Click to log in to the system to begin viewing or searching video.
7. Exit Button: Click to exit a window or to exit the program.
8. Video Log List: Displays a log of video events.
9. View Mode Buttons: Click to display video in 1-channel, 4-channel, or full screen view.
1. Click the Vista Pro 6 Server shortcut on your desktop, or locate the application in the start
menu.
2. Click the Lock Button ( ). The Logon window appears.
3. Under ID, enter admin; under Password, enter 1111. Click the checkmark button( )to
log in.
NOTE: Click the Virtual Keyboard button ( ) to type in the User ID and Password if you
do not have access to a keyboard.
NOTE: It is recommended to change the default password. For details on changing the admin
password,
NOTE: Click the Exit button on the bottom right hand corner of the window to exit the program.
see “Changing User Account Password” on page 38.
11
Vista Pro 6 Server: Viewing Mode
Figure 4.1 Camera List.
Live Audio button
Figure 4.2 Listening for Live Audio.
ADJUSTING VIEWING MODES
To change how the live video feed displays in the window:
• Click the 1-channel view button (), 4-channel view button () or Full Screen button ().
• While in 1-Channel view, press the Auto Sequence button ( ) to cycle through channels 1~4.
• To change the Auto Sequence dwell time, click the
Setup button ( ). Under Auto Sequence
Dwell Time, enter desired dwell time in seconds (1~20 seconds)
Understanding The Camera List
The Camera List allows you to have a "bird’s eye view" of the current status of the channels.
• A Blue button indicates the channel is active.
• A Red button indicates the channel is offline.
• A Gray button indicates the channel is not in use.
Understanding The Audio List
To listen to audio during live viewing, click the Live Audio Button. Then click on the channel with
the audio input. This allows you to listen to audio that the camera receives.
For details on how to set up audio on audio-enabled cameras (not included), see “Audio Tab” on
page 33.
12
Vista Pro 6 Server: Viewing Mode
Color Adjust Button
Figure 4.3 Adjusting video colors.
Brightness
ContrastSaturation
Hue
Apply To All Cameras
Default Values
ADJUSTING VIDEO COLOR
You can adjust the brightness, contrast, saturation and hue of the video images.
To adjust the video color:
1. Click the desired channel you wish to adjust color. A red box around the channel indicates the
channel is selected.
2. Click the Color Adjust button ( ) . The Color Adjust settings open near the bottom of the
window.
3. Click the channel that you wish to adjust colors. A red outline around the channel indicates
the channel is selected.
4. Click and hold or to increase or decrease Brightness, Contrast, Saturation, or Hue
settings.
• To apply settings to all channels, adjust the desired video settings, then click the Apply To All
Cameras
button ()
• To reset color settings to the default value, click the Default Value button ()
13
Vista Pro 6 Server: Viewing Mode
Setup button
Figure 5.0 Accessing the Setup tab.
Figure 5.1 Enabling Watch Dog
System Tab
The System tab allows you to configuire backup settings, auto-reboot settings, and editing your
system information.
To access the System Tab:
• Click the Setup ( ) button in Live View mode.
ENABLING WATCH DOG
Watch Dog is a feature that continuously monitors potential system errors while the viewer runs.
When a system error occurs, the Watch Dogforces the system to restart. Once the system
restarts, the viewer automatically begins recording.
Forcing a system to restart when there are potential problems ensures the viewer’s stability. This
increases the likelyhood your computer continues to record even if it encounters a system error.
To enable Watch Dog:
1. Click the Setup ( )button. The System tab opens.
2. Beside Watchdog Setting, select the checkbox beside Use Watchdog.
14
Vista Pro 6 Server: Viewing Mode

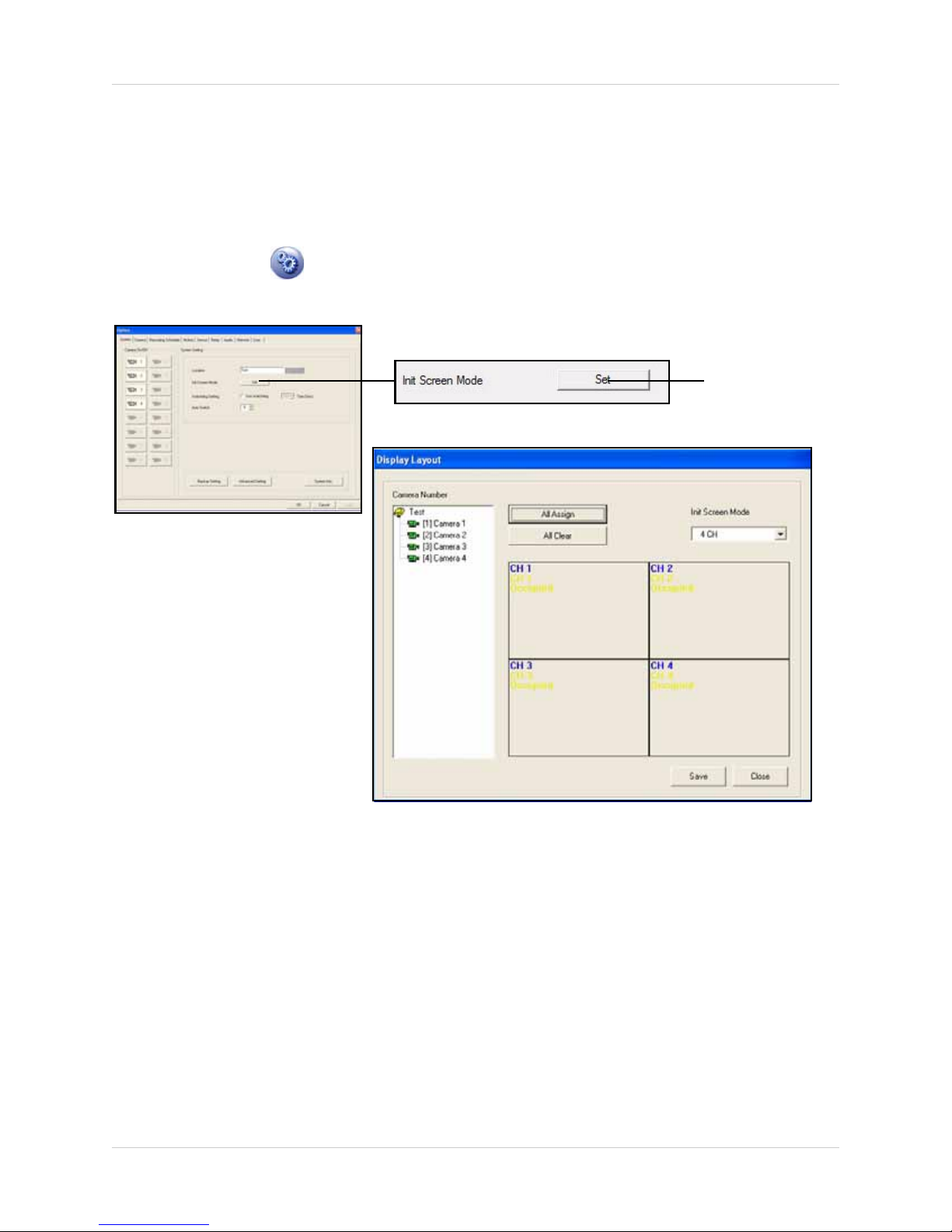

Display Layout window
Figure 5.2 Enabling the Display Layout
window.
Click to open
Display Layout
window.
ASSIGNING START-UP SCREEN POSITIONS
You can adjust the initial position of the camera feeds in the live viewer. For example, you may
want camera 4 to be in the top left corner of the screen, instead of being on the bottom right.
To adjust the position of your camera feeds:
1. Click the Setup ( )button to open the System tab.
3. Click the All Clear button to empty the assigned cameras in the window. The camera list on
the left hand side turns from green (active) to gray (inactive). The channels now show in red
text, "Empty".
NOTE: Click the All Assign button to assign cameras to all 4 channels.
15
Vista Pro 6 Server: Viewing Mode
Drag camera
icons into an
empty channel
Empty channel
Figure 5.3 Assigning cameras to new window positions.
Figure 5.4 Assigning cameras to different channels.
4. Under Camera Number, drag a camera icon from the list into the desired location in the
empty channel window.
5. Click Save, then click OK on the bottom of the window to save your settings.
STARTING THE VIEWER IN 1-CHANNEL OR 4-CHANNEL VIEW
To start the program with 1-channel or 4-channel view:
1. Click the Setup button. The System tab opens.
2. Beside Init Screen Mode, click Set.
3. Under the Init Screen Mode drop-down menu, select 1 CH or 4 CH.
4. Click Save and then click OK near the bottom of the window to save your settings.
16
ENABLING SCHEDULED DATA BACKUP
Click the Backup Setting button
Click the Select
button to
choose save
directory.
Select the Enable schedule
Backup checkbox.
Select Year and
Time range to
begin backup.
Select backup
type.
Backup frequency
drop-down menu
Figure 5.5 Schedule Backup Setup window.
Enable Concurrent Backup
Overwrite
checkbox
Scheduled Backup allows you to backup your videos on a specified date and time.
To start Scheduled Data Backup:
1. Click the Setup ( )button. The System tab opens.
2. Click the Backup Setting button. The Schedule Backup Setup window opens.
17
Vista Pro 6 Server: Viewing Mode
Figure 5.6 Backup Type window.
Figure 5.7 Start Backup Time and Start Date
3. Select the checkbox beside Enable schedule Backup on the top left corner of the window.
• Select Enable Concurrent Backup to back up the data in parallel to a separate directory. Then
click Select to choose a save directory. You will have two copies of the file if you enable
Concurrent Backup. Skip to step 9 to complete your setup.
4. Under Backup Device Select, press the Select button. Browse for a directory you wish to save
the backup files. Click OK to save your settings.
5. Select the Overwrite checkbox to enable the hard drive to re-write itself when it is full.
6. Under Backup Type, select Full Backup to back up the entire library of video events.
or
Under Backup Type, select Selected Specification time Backup. Select the start and end time for
the scheduled backup (Figure 5.6).
7. Under Start Backup Time, select the Year , Month, Day, Hour and Minute you want the data to
begin backing up (Figure 5.7)
.
8. Beside the Run Backup Per drop-down menu, select how many days in between you want the
system to perform the backup.
• For example, if you select 2 Days, the system performs a backup of the video content every 2
days.
9. Click OK to save your settings, then click OK again on the bottom of the window Option
window.
18
Backup Scenarios
Figure 5.8 Scheduling recording between 9:00am to 6:00pm.
SCENARIO A: BACKING UP VIDEO DURING A SPECIFIED TIME
You may only want to back up your video during a specific time to conserve your storage space.
For example, a shop owner may want to back up the video content of the business between 9:00am
to 6:00pm to monitor the employees and the shop.
The shop owner also wants to back up video data every 2 days. The shop owner also wants to start
the back up on 11:00 pm on December 24th during the holiday break.
To schedule backup for a specific time:
Open the Backup Window
1. Click the Setup ( )button. The System tab opens.
2. Click the Backup Setting button. The Schedule Backup Setup window opens.
Enable Schedule Backup and Choose a Save Directory
1. Select the Enable schedule backup check box on the top-left corner of the window.
2. Under Backup Device Select, click the Select button and choose a save directory.
3. Select the Overwrite checkbox. This will allow your system to over-write content if the
hard-drive becomes full.
Select the Time Range to Back Up
1. Under Backup Type, select Selected Specification time Backup.
2. To set the start time, beside Start, enter 9 for the hour; beside minute, enter 0. This tells the
system to start the back up time range at 9:00am.
• To set the end time, beside End, enter 18 for the hour; beside minute, enter 0. This tells teh
system to end teh back up time range at at 6:00pm.
• Note: The time must be entered in 24-hour formats.
19
Vista Pro 6 Server: Viewing Mode
Figure 5.9 Scheduling backup start time.
It is recommended to perform
daily backups (1 day) to prevent the
system from overwriting video
content.
Tip!
Select the Date and Time the Backup Should Begin
1. Under Start Backup Time, enter the Year, Month, Day, Hour and Minute to begin backup. In
this example, the shop owner would enter 2010 beside Year; 12 beside Month; 24 beside Day; 23 beside Hour, 00 beside Minute.
• This triggers the scheduled backup to start at December 24, 2010 at 11:00pm, and will back
up all the content between 9:00am and 6:00pm.
• Beside the Run Backup Per drop-down menu, select 2 Days. This schedules the system to
back up the data every 2 days.
2. Click OK to save your settings.
Result
The the backup sequence begins on December 24, 2010 at 11:00pm. The system backs up all
content between 9:00am and 6:00pm. Since the shop owner wanted the back up to take place
every 2 days, on December 26, at 11:00pm, the system copies all the backup videos to the specified
directory.
The system will continue to back up data every 2 days on an endless loop.
SCENARIO B: SCHEDULING A 24-HR FULL BACKUP
The shop owner may want to backup all 24 hours of video starting on December 24th, 2010 at
11:00pm, every 2 days.
To back up 24-hours of video on a scheduled time:
1. Click the Setup ( )button. The System tab opens.
2. Click the Backup Setting button. The Schedule Backup Setup window opens.
3. Select the Enable schedule backup check box on the top-left corner of the window.
4. Under Backup Device Select, click the Select button and locate a save directory.
5. Select the Overwrite checkbox. This will allow your system to over-write content if the
hard-drive becomes full.
6. Under Backup Type, select Full Backup.
7. Under Start Backup Time, enter 2010 beside Year; 12 beside Month; 24 beside Day; 23 beside
Hour, 00 beside Minute.
8. Beside the Run Backup Per drop-down menu, select 2 Days. This schedules the system to
back up the data every 2 days.
9. Click OK to save your settings.
• The system will perform a full backup every 2 days, starting on December 24, 2010, at 11:00pm.
20
Vista Pro 6 Server: Viewing Mode
Figure 5.10 Advanced system setting window.
CONFIGURING ADVANCED SYSTEM SETTINGS
The Advanced System Settings window allows you to configure when your computer’s auto restart
time, and other system settings.
To open the Advanced System Settings window:
1. Click the Setup ( )button. The System tab opens.
2. Click the Advanced Settings button. The Advanced system setting window opens.
3. Under System Setting, configure the following:
• Video Signal Type: Select NTSC or PAL
• Video loss beep: Select check box if you want the computer to "beep" upon video loss
•
Use Event (SensorMotion) Log: Select check box if you wish to enable the Sensor Motion log.
:
• Use day-light-saving time
Select the directory of where you would like the system to save
video content that over-laps due to daylight savings time.
21
Vista Pro 6 Server: Viewing Mode
Setting button
Figure 5.11 Auto Reboting window.
Use Everyday button
Click the days of
the week you
want the
system to auto
restart
Figure 5.12 Auto Rebooting window.
4. Under Auto Rebooting, press the Setting button. The Auto Rebooting and Auto Shutdown
Setting window opens.
5. Under Auto Rebooting, click the Use Everyday button. Select the Hour and Minute you want the
system to reboot. This will apply the changes to 7-days of the week.
Or
Click the buttons with the days of the week (SUN~SAT), and from the drop-down menu, select
Hour (24-hour clock) and Minute you want the system to reboot.
the
6. Under Auto Shutdown, click the Use Everyday button. Select the Hour and Minute you want the
system to reboot.This will apply the changes to 7-days of the week.
Or
22
Click the buttons with the days of the week (SUN~SAT), and from the drop-down menu, select
Figure 5.13 System Information window.
IP address and network
information
Site Information (System
Information)
Hour (24-hour clock) and Minute you want the system to shut down.
the
7. Click OK until you reach the main viewer screen to save your settings. A message will read
"Apply Setting Value" to confirm the system changes.
RETRIEVING YOUR IP AND CHANGING SYSTEM INFORMATION
You will need your system IP to log in remotely into the viewer. You can also personalize the
information on the DVR. This allows you to easily distinguish which system you are connected to
if you operate more than one system.
To retrieve your IP:
1. Click the Setup ( ) button. The Setup Tab opens.
2. Click the System Info. button. The About window opens.
3. Under Site Information, fill in the optional information about the DVR in the blank fields.
4. Click OK, and then click Apply on the bottom of the window to save your settings.
23
Vista Pro 6 Server: Viewing Mode
Active
Cameras
Figure 5.14 Camera On/Off window.
ENABLING AND DISABLING CAMERAS FROM RECORDING
Periodically, you may want to prevent a camera from recording.
To disable a camera from recording:
1. Click the Setup ( )button. The System tab opens.
2. Under Camera On/Off, click the camera that you want to enable or disable.
3. Click OK to save your settings.
24
Vista Pro 6 Server: Viewing Mode
Camera tab
Camera ID
PTZ (Pan/Tilt/
Zoom) settings
Apply All button
Covert mode checkbox
Figure 6.0 Camera tab window.
Video Quality
settings
Select Camera
(Camera List)
Camera Tab
The camera tab allows you to configure the camera’s name, resolution, frame rate and video
quality.
To open the Camera tab:
1. Click the Setup ( )button.
2. Click the Camera tab. The Camera tab opens.
CHANGING THE CAMERA NAME
You can change the camera name to easily distinguish what video feed you are viewing. This is
useful in night time footage since you can quickly identify what camera you are viewing.
To change the camera name:
1. Click the Setup ( )button and then click the Camera tab. The Camera tab opens.
2. Under Select Camera, click the camera you wish to rename.
3. Under Camera ID, enter the camera name.
4. Press OK to save your settings.
25
Vista Pro 6 Server: Viewing Mode
Figure 6.1 Camera Quality settings.
CHANGING CAMERA QUALITY SETTINGS
To change the camera quality settings:
1. Click the Setup ( )button and then click the Camera tab. The Camera tab opens.
2. Under Select Camera, click the camera you wish to adjust video quality settings.
3. Under the Resolution drop-down menu, select the desired resolution (352 x 240 ; 720 x 240).
4. Under the Frame Rate drop-down menu, select the desired frame rate.
5. Under the Video Quality drop-down menu, select the desired video quality.
NOTE: Lower video quality results in longer record times.
ENABLING COVERT RECORDING
Covert recording allows you to discreetly record your events. The screen will display a black
screen while the system records.
To enable Covert recording:
1. Click the Setup ( )button and then click the Camera tab. The Camera tab opens.
2. Under Camera Select, click the camera you wish to apply covert recording to.
3. Under the Covert check box, select the check box.
4. Click OK to save your settings.
CHANGING PTZ SETTINGS
If you connect a PTZ (Pan/Tilt/Zoom) camera (not included), you must configure it with the proper
settings before it will work on your system. Consult your PTZ camera’s manual for configuration
details.
To configure PTZ settings:
1. Click the Setup ( )button and then click the Camera tab. The Camera tab opens.
2. Under Receiver (Pan/Tilt), click the Use checkbox.
3. Apply the necessary settings to your PTZ camera.
4. Click OK to save your settings.
26
Vista Pro 6 Server: Viewing Mode
Camera
Select
(Camera
List)
Scheduled
Recording
settings
Holiday
Settings
Pre & Post recording options
Figure 7.0 Recording Schedule tab.
Each camera can have
individual recording
schedules.
Tip!
Recording Schedule Tab
The Recording Schedule tab allows you to configure the recording modes for each camera.
To access the Recording Schedule tab:
• Click the Setup ( )button and then click the Recording Scheduletab. The Recording Schedule
tab opens.
ADJUSTING SCHEDULED RECORDING MODES
Scheduled Recording offers flexible recording modes that allow you to save storage space, and to
specify the type of recording you want for each camera. Setting cameras to record Motion is the
most common setting.
To adjust recording modes:
1. Click the Setup ( )button and then click the Recording Scheduletab. The Recording
Schedule tab opens.
2. Under Select Camera, select the camera you wish to apply the settings to.
27
Vista Pro 6 Server: Viewing Mode
Schedule buttons
Date Grid
Figure 7.1 Scheduled Recording window.
Figure 7.2 Event Recording options.
3. Under Schedule, select the type of recording you wish to configure by clicking one of the
Schedule buttons.
Recording Modes
• No Recording: Disables recording.
•
Continuous: Records non-stop, 24-hours a day.
•
Motion: Records when camera detects motion.
•
Normal & Event: Records continuously and records Event recordings. Event recordings can be
a combination of Sensor or Motion.
4. Drag the mouse cursor across the day and time you wish to apply the scheduled recording in
the Date Grid.
5. If required, click another schedule button, and drag the mouse cursor across the Date Grid.
6. Under Event Recording, enter the duration for Pre Recording and Post Recording.
28
Vista Pro 6 Server: Viewing Mode
Figure 7.3 Configuring Normal & Event recording settings.
Normal & Event Recording
When recording in Normal (Continuous) and Event Recording, the camera can record in different
frame rates.
For example, during Normal recording, the camera can record at 9 FPS (frames per second). But
if a vehicle drives by the camera and triggers an Event recording, the camera begins recording at
15 FPS. This allows you to save hard drive space by recording higher frame videos only when an
event happens.
To Enable Normal & Event Recording:
1. Click the Normal & Event button.
2. Under Select Camera, click the camera you want to enable Normal & Event recording.
3. Drag the cursor across the Date Grid to select what days you want to enable Normal & Event
recording.
4. Under Priority Motion Recording, select the Normal recording frame rate; Under Event
Recording, select the Event recording frame rate.
5. Under Event Select, select the type of recording you wish to enable (Motion or Sensor).
6. Click OK to save your settings.
Holiday Recording
Holiday Recording overrides recording settings for that particular day, and forces all the channels
to record in Continuous mode. For example, if you were away between January 10th to January
12th, you may want to specify January 11th and 12th to record in Holiday mode. This means that
between January 11~12, the cameras will record in Continuous mode.
To configure Holiday Recording:
1. Click the Setup ( )button and then click the Recording Scheduletab. The Recording
Schedule tab opens.
29
Vista Pro 6 Server: Viewing Mode
Click the Holiday
Setting button
Figure 7.4 Holiday Setting window.
Click here to change month
Click a
date to
enable
Holiday
recording
Figure 7.5 Holiday Recording Calendar.
List of holidays
Enter name of holiday here
Add button
Figure 7.6 Holiday Setting window.
2. Under Holiday Setting, click the Holiday Setting button. The Holiday Setting window opens.
3. Under Selected Day, click the drop-down menu. A calendar opens.
4. Select the month and day you want the system to record in Holiday mode.
5. Type in the name of the holiday in the blank field. You cannot have duplicate names.
6. Click Add. Your holiday populates in the list. Click OK to save your settings.
30
Vista Pro 6 Server: Viewing Mode
Event notifications
Motion Detection Area button
Relay Selection
Camera List
Figure 8.0 Motion tab.
Motion Tab
The Motion tab allows you to configure the actions that occur when a motion recording is detected.
For example, after a detection, the system can be set to launch in full screen or begin beeping.
To open the Motion tab:
• Click the Setup ( )button and then click the Motion tab. The Motion tab opens.
CONFIGURING CAMERA NOTIFICATIONS
You can configure the type of action the system produces when motion is detected.
To configure camera notifications:
1. Under Select Camera, select a camera you wish to configure.
2. Under Local Event Notify, check off the events you want to occur when a system detects
motion.
Choices are: Launch Fullscreen, Beep, Red Border and Duration.
Red Border means the screen higlights with a red border when motion is detected.
3. Under Duration, select the check box. In the Duration drop-down menu, select the duration of
how long a notification should last (5~30 seconds).
4. Click OK to save your settings.
31
Vista Pro 6 Server: Viewing Mode
Preview screen
Motion Detection
settings
Figure 8.1 Motion configuration window.
Select
Camera
Selected area for motion
detection.
Figure 8.2 Motion detection
area selection.
CONFIGURING MOTION DETECTION AREA
To configure the camera’s motion detection area:
1. Click the Setup ( )button and then click the Motion tab. The Motion tab opens.
2. Click the Motion Detection Area button. The Motion configuration screen opens.
3. Under Select Camera, select the camera you wish to apply the setting to.
4. Under Motion Detection Area, select Full Area or Partial Area.
• If Partial Area is selected, you can select certain portions of the screen to detect motion
To select a certain portion of the screen, click the
Add button. Next, drag your cursor in the
preview screen of the area you wish to select. A box with a number appears in the selected
area. Repeat to add a new selection area.
32
Vista Pro 6 Server: Viewing Mode
Figure 8.3 Motion Detection settings.
1. Select audio channel
2. Select Live and
Recording checkboxes
3. Select the camera
you wish to enable
audio
Figure 8.4 Audio settings.
5. Under Rate of Motion, drag the slider to increase or decrease how often the camera’s
threshold of detecing motion.
6. Under Sensitivity, drag the slider to increase or decrease the camera’s motion sensitivity.
7. Click Test to verify if the settings are satisfactory.
8. Click OK , then click OK again on the bottom of the window to save your settings.
Audio Tab
The audio tab allows you to pair an audio channel with a camera. Use the included audio cable to
connect the audio-enabled camera (not included) into the Audio-In in your system.
To configure audio settings:
1. Click the Setup ( )button and then click the Audio tab. The Audio tab opens.
2. Under Select Audio, select the audio channel you wish to apply the settings to.
3. Under Audio Setting select the Live checkbox to listen to live audio; select the Recording
4. Drag the Volume slider to adjust the camera input volume.
5. Press the Test button to activate the camera microphone. Make a noise into the camera
6. Under Select Camera, select the camera you wish to pair the audio with.
7. Click OK to save your settings. Click the Live Audio button, and the highlighted channel to
checkbox to record audio from the channel.
• To listen to live audio when viewing in Vista Pro 6 Client, click on the audio-enabled channel,
then right-click and click Live Audio Play
microphone to verify that the camera microphone works. Press the Test button when you are
finished testing.
listen to audio from audio-enabled cameras (not included).
33
Vista Pro 6 Server: Viewing Mode
Figure 8.5 DDNS setting window.
Enter your DDNS address (ie.
tomsmith.lorexddns.net)
Enter your DDNS user ID
Enter your DDNS password
Network Tab
The network tab allows you to configure E-mail notification and network settings.
To configure the Network settings:
1. Click the Setup ( )button and then click the Network tab. The Network tab opens.
2. Under Network Config, select the Network Use checkbox.
Enter the following information into the blank fields: Live Port (6807 default); Playback Port
(6808 default);
3. If required, click the Network Config button. This is a shortcut to the control panel’s network
settings.
4. Click OK to save your settings.
CONFIGURING DDNS SETTINGS
If you have registered for a Lorex DDNS account, you can enter in your Lorex DDNS account
information to remotely connect to your system using the Internet Explorer web browser.
Prerequisites:
Web Port (6880 default)
You must set up a DDNS account.For details on how to set up a DDNS account, see “Appendix A:
Viewing Your System Remotely Using DDNS” on page 64.
To configure DDNS settings:
1. Click the Setup ( )button and then click the Network tab. The Network tab opens.
2. Under DDNS Setting, click the Use checkbox. Click the Set button. The DDNS Setting window
opens.
3. Under Domain Name, enter the SUBDOMAIN of your Lorex DDNS address (ie. if your domain
name is tomsmith.lorexddns.net, only enter tomsmith into the ID field)
4. Under User ID, enter in your user ID of the Lorex DDNS account.
5. Under User Password, enter the password of the Lorex DDNS account.
6. Click Register. A message should confirm a proper registration. Click OK to continue.
7. Using Internet Explorer, type in your Lorex DDNS address to access your system remotely.
3. Click Schedule
button , then drag
cursor in date grid
1. Select Camera
4. Fill in e-mail address of where to
send notification
CONFIGURING E-MAIL NOTIFICATION
The QLR460 series is capable of sending e-mail notifications if the system detects a motion event.
Your system must be connected to the internet before it can send out e-mails.
Prerequisites:
Before you can use E-mail Notification, you must set up a DDNS account, and enter the DDNS
information into your system. For details,
To configure E-Mail notification settings:
1. Click the Setup ( )button and then click the Network tab. The Network tab opens.
2. Under Network Config, click the E-Mail Set button. The E-mail configuration window opens.
see “Configuring DDNS Settings” on page 34.
3. Under Select Camera, click the camera you wish to apply the settings to. You can configure
individual cameras you want to receive notifications if an event occurs. Click the All button to
apply the settings to all cameras.
4. Under E-mail Notification, select the Use checkbox.
35
Vista Pro 6 Server: Viewing Mode
Use
checkbox
Select the type of
event to trigger
an e-mail
notification
Drag cursor in
the Date Grid
to select the
day and time
range to
monitor events
Figure 8.7 Scheduling e-mail notification time and date.
Figure 8.8 Configuring e-mail settings.
E-mail Test button
Automatically grayed out if the
Default checkbox is selected.
Default checkbox
5. Click the green Schedule button and then drag your cursor in the Date Grid to select what day
and time you want the system to send out an e-mail notification.
6. Under Condition, select the type of event that will trigger the system to send out an e-mail
alert (Choices are:
Motion; Video Loss).
7. Under Recipient, select the Default checkbox. This enables the Lorex e-mail server.
8. Beside To and CC, enter the e-mail address you want the notification to be sent to.
9. Beside Attach Picture, select the checkbox to enable the e-mail notification to send you an
image of the event via e-mail.
10. Beside Frequency, enter how many minutes in between you want notifications to be sent.
11. Click the Email Test button to send a test e-mail.
12. Click OK to save your settings.
NOTE: If you forward your email to your mobile phone, data charges may be applied when
receiving images as attachments.
NOTE: If you wish to use a custom SMTP server, de-select the Default checkbox under Recipient,
and enter in the SMTP, PORT, and User information.
36
Vista Pro 6 Server: Viewing Mode
Figure 8.9 User tab window.
Add button
Delete button
Modify button
Authority settings
Camera list
User
information
Figure 8.10 User Management window.
User Tab
The User tab allows you to change the administrator password, and to add guest accounts into the
system. Guest accounts are useful if you want a friend to log in to your system, but you do not want
them to view all the camera channels.
To open the User tab:
• Click the Setup ( )button and then click the User tab. The User tab opens.
ADDING A NEW USER FOR VISTA PRO 6 CLIENT
To add a guest account to your system:
1. Click the Add button. The User Management window opens.
37
Vista Pro 6 Server: Viewing Mode
2. Under User, fill in the blank fields (User ID, Password, Name and Comment)
3. Under Authority, select the options that you wish to grant the user.
Options are: Setup, Search, File System, Remote Connection, PTZ, Backup, Exit
4. Under Connectable Camera, click on the number boxes to grant access to the user.
5. Click OK to save your settings.
REMOVING A USER
To remove a user from the system:
1. Click the Setup ( )button and then click the User tab. The User tab opens.
2. Select a user from the User list, then click the Delete button.
NOTE: You cannot delete the admin account.
CHANGING USER ACCOUNT PASSWORD
To modify a user’s password:
1. Click the Setup ( )button and then click the User tab. The User tab opens.
2. Select a user from the User list, then click the Modify button. The User Management window
opens.
3. In Password field, enter a new password. Under Confirm, re-enter the password. Under
Name, enter a new name.
4. Click OK to save your settings.
Connecting Using A Guest Account
Once you have set up Guest account, the guest account can remotely log in to your system using
Vista Pro 6 Client. Guest accounts apply to guests who log in to the system using Vista Pro 6 Client
only.
For details on how to log in remotely using DDNS or Vista Pro 6 Client:
• See “Appendix A: Viewing Your System Remotely Using DDNS” on page 64.
• See “Vista Pro 6 Client Software” on page 53.
38
Vista Pro 6 Server: Searching For Video
Event Calendar
Video Timeline
Video Playback
Controls
Video Time Counter
Figure 9.0 Search Mode window.
Live mode
Search mode
Figure 9.1 Search mode window.
VISTA PRO 6 SERVER: SEARCHING FOR
VIDEO
Search Mode allows you to search, archive, and playback recorded events from your cameras.
To open the Search Mode window:
• Click the Search button() in Live view. The Search window opens.
39
Vista Pro 6 Server: Searching For Video
Right-click on the channel and
select time
Video Controls
Figure 9.2 Quick Playback window.
Exit button
USING QUICK PLAYBACK
Quick Playback allows you to view video 1~10 minutes previous to the event. For example, if the
event ocurred at 10:15 am, you can use Quick Playback to view events that happend at 10:00am.
To view videos in Quick Playback:
1. Right-click on the channel you wish to view events from.
2. Select how many minutes you wish to start viewing the video from. A video playback screen
appears.
3. Use the video controls to play video frame-by-frame or play video in 1x, 2x, 4x and 8x speeds.
• To jump to a different date, use the date drop-down menus on the top-left corner of the window
to change the date.
40
Vista Pro 6 Server: Searching For Video
View mode buttons
Figure 9.3 Search Mode window - Viewing modes.
Zoom button
Full Screen button
Drag slider to zoom in/ zoom
out of image
Figure 9.4 Using the Digital Zoom window.
Drag here to
move zoom field
ADJUSTING VIEWING MODES
To view video in single or 4-channel mode:
• Click to view channel in single-channel mode; click to view video in 4-channel mode.
MAGNIFYING VIDEO IMAGES
To magnify a video image:
1. Click the Digital Zoom button (). The Zoom window opens near the top of the screen.
2. Drag the slider to zoom in or out of the image. Drag within the red box to move zoom location.
3. Click the Digial Zoom button again to exit zoom mode.
41
Vista Pro 6 Server: Searching For Video
1. Select date to begin viewing
video.
2. Click the timeline to locate where
you want to begin viewing video.
3. Click the Panorama
button.
4. Click the foreward
playback button.
Figure 9.5 How to view video in panorama mode.
Foreward Playback
Reverse Playback
Increase Playback
Speed (2x, 4x, 8x)
Decrease Playback
Speed (-2x, -4x, -8x)
Forew ard fra me- by- fr ame
playback
Reverse frame-by-frame
playback
Mute Audio
Stop video
Figure 9.6 Video Controls
VIEWING VIDEO IN PANORAMA MODE
Panorma mode breaks down a video frame-by-frame, and allows you to watch the video
frame-by-frame in a 16-channel view.
To view video in panorama mode:
1. Select the day of the video by clicking the date in the Event Calendar on the top-right corner
of the window.
2. Click on the video timeline, and locate where you would like to begin viewing the video.
3. Click the Panorama button ( ) then click the foreward playback button (). The video
plays frame-by-frame in a 4x4 window.
VIDEO CONTROLS
42
Vista Pro 6 Server: Searching For Video
Double-click on green bar to browse
video in minutes
Hour Mode
Minute Mode
Figure 9.7 Timeline in Hour mode and Minute mode.
USING THE TIMELINE
The Timeline allows you to scan through a video by hour or minute.
When you double-click a timeline, the timeline changes from an hourly-timeline to a
minute-timeline. A minute-timeline allows you to navigate to a specific area of the video. When
you have found the area of the video that you would like to begin to watch, click the timeline to
mark the timeline in red. Next, click on the foreward playback button to begin viewing the video.
BOOKMARKING VIDEO EVENTS
Bookmarking video events allows you to view a log of all important video files.
To bookmark a video event:
1. Click on the Event Calendar on the top right corner of the window. Click on the date that the
event is on.
2. Use the timeline to locate the time of the event.
43
Vista Pro 6 Server: Searching For Video
Figure 9.8 Add Bookmark window.
Figure 9.9 Bookmark List window.
3. Press the Add Bookmark button ( ) to mark the event. The Add Bookmark window opens.
4. Enter a description of the bookmark, and then click OK. The event is now added to the
bookmark list.
5. Click the Bookmark List button(). The Bookmark List window opens.
6. Click the name of the event you wish to view, then click the View Image button. Click the Exit.
7. Use the Video controls to begin video playback.
PRINTING SCREENSHOTS
To print a screenshot of your video:
1. Click on the Event Calendar, and locate the date of the event.
2. Use the Timeline to locate the desired video image.
3. Click the Print button (). A Description window appears. Type in a description of the
image. Click OK to continue.
4. Click the Print Out button. The Print window opens. Select your printer and then click OK to
print the image.
44
Vista Pro 6 Server: Searching For Video
Camera List
Audio Recording
Checkbox
Recording Time
Range
Backup Options
Progress Bar
Figure 9.10 AVI Backup window.
Management button
BACKING UP VIDEO
You can back up your video archive onto CD-R/DVD-R media, or onto an external storage device
such as a USB flash drive or external hard drive.
To back up your video to an external device:
1. Click on the Event Calendar, and select what date you wish to start recording from.
2. Select on the Timeline, where you would like to begin recording.
3. Click the Save button () and then click on AVI.The AVI Backup window opens.
4. Under Channel Select, select the channels you wish to back up.
• Under Audio Recording, select the checkbox if you wish to back up audio.
• Under Select Time, select the time range you want to back up.
• Under Select Media to Save, select the backup media you wish to use.
5. To select a different CD/DVD writer, click on CD/DVD Setup and then select the desired CD/
DVD burner from the drop-down menu. Click
6. Click the Start Recording button to begin backing up your data.
NOTE: The Backup Viewer software automatically copies into your storage device. This allows
you to play the proprietary video in a different machine. Simply install Backup Viewer, and use
Backup Viewer to browse and play the video file.
Save to save your changes.
45
Vista Pro 6 Server: Searching For Video
Availible free space
Copy button
Video list
Delete button
Figure 9.11 Video management window.
Write Speed
Device (CD/DVD
writer list)
CD/DVD Content
window
Add Folder & Add File
buttons
Volume ID
(Disc name)
Figure 9.12 CD /DVD burning window.
Reset button
Write button
Managing Your Saved Video
To manage video files saved into the save directory:
1. Click the Management button. The data management window opens.
2. To delete a video, select a video in the Video list, then click Delete.
3. To copy a video to a different directory, click Copy. Select the directory you wish to save the
video file.
Copying Videos to a CD/DVD Writer
To copy data to your CD or DVD writer:
1. Click the Save button () and then click on CD Burn.The CD Burn window opens.
46
Vista Pro 6 Server: Searching For Video
2. Under the Device drop-down menu, select the appropriate CD/DVD writer.
3. Under Volume ID, enter the name you wish to name the CD/DVD disc.
4. Under the Write Speed drop-down menu on the top-right corner of the window, select desired
CD/DVD write speed.
5. Click Add Folder or Add File to add content to your disc. Locate the data in the tree directory.
OK when done.
Click
6. Click Write to begin backing up data to your blank CD/DVD disc.
NOTE: The Erase feature only work on CD-RW and DVD-RW discs.
Saving Video Screenshots
To save a screencapture of the video:
1. Click the Save button () and then click on JPEG.The Save window opens
2. Click the directory drop-down menu on the top left corner of the window to select the save
directory
3. Click OK to save your picture.
NOTE: Use the Image Analysis software to verify that images taken using Vista Pro 6 are genuine.
See “Appendix C: Using The Image Analyst Software” on page 70.
Playing Backed Up Video
To browse for backed up videos:
1. Click the Search button() in Live view. The Search window opens.
2. Click the File Browse button () in the search window.
3. Select Scheduled backup data or Manual backup data.
• Scheduled backup data searches only for data that has been backed up using scheduled backup
• Manual backup data searches only for a data that has been manually backed up
4. Locate the directory of the backed up files and then click OK.
5. In the Event Calendar on the top-right corner of the window, select the date the event
occured. Dates with events highlight in yellow.
6. Click the timebar to select the time the event ocurred.
7. Use the playback controls to view the video.
47
Vista Pro 6 Server: Searching For Video
Event list
Log list
Playback window
Figure 9.13 Log viewer window.
USING THE LOG VIEWER
The Log Viewer displays video events in list form. This is useful if you want to trace events that
occured.
To open Log Viewer:
1. Click the Event Viewer button(). The Log Viewer window opens.
2. Under Event, select the type of event you wish to search for.
3. Select the Date checkbox to search an event by date.
4. Click Run. The result list populates in the Log list.
5. Double-click on the event you wish to view. The image appears in the Playback window on the
left. Use the playback controls to navigate video.
• Click Print to print screenshot of the event.
USING SMART SEARCH
Smart Search allows you to search for patterns or similarities within a video. This can be useful
when attempting to find a face or object in a video.
To open Smart Search:
1. Click the Event Calendar and locate the date of the video. Click the Timeline to locate the time
of the event.
48
Vista Pro 6 Server: Searching For Video
Video Sensitiviy settings
Playback window
Date selection
Log list
Playback controls
Add Bookmark button
Search button
Figure 9.14 Smart Search window.
Print button
Jpeg button
Figure 9.15 Printing images: Print and Jpeg buttons in Smart
Search mode.
2. Click the Motion Search button (). The Smart Search window opens.
3. Under Condition, click Set. Drag the cursor in the Playback window, and select the area you
want the system to look for. The area highlights with a red box.
4. Under the Sensitivity slider, adjust how sensitive you want the search.
5. Under Range, select the date and time range you wish to search under.
6. Under Camera drop-down menu, select which camera you want to search.
• Click Load First to find the first immediate event that matches your search criteria.
• Click
Search to populate a list of results in the Log list.
7. Select an event from the Log list. Use the play controls to navigate video.
• Click the Add Bookmark button to add the even to the Bookmark List.
8. Click the Print button to print the particular screen in the Playback window; or click the Jpeg
button to save the image as a Jpeg image.
49
Vista Pro 6 Server: Searching For Video
Brightness
Contrast
Hue
Image Adjuster
Figure 9.16 Image Adjuster window.
Exit button
NOTE: For details on PTZ controller card installation, see “Appendix F: Installing a PTZ
Controller Card” on page 73.
NOTE: You must be in Viewing mode to access PTZ controls. PTZ cannot be accessed
during Search mode
ADJUSTING VIDEO COLORS AND CONTRAST
To adjust video color when the video is paused:
1. Click the Color Control button (). The Image Adjuster window opens.
2. Use the sliders to adjust Brightness, Contrast and Hue.
3. Use the buttons to adjust blur, sharpness, and black and white.
4. Use the buttons to Undo, Zoom, or Revert Image to default settings.
NOTE: You can move the Image Adjuster window by dragging it.
USING PTZ CONTROLS
• To control your PTZ (Pan/Tilt/Zoom) cameras (not included), click the PTZ button () to
open the PTZ menu
50
Vista Pro 6 Server: Searching For Video
PTZ button
Figure 9.17 PTZ controls.
Camera
Direction
control
Camera number
Zoom
Focus
Tog g le c a mera
power on/off
Camera Lamp on/off
Toggle Auxiliary
power on/off
Pantilt pre-set
Pantilt Tour
List of Preset
camera angles
Go Preset button
Figure 9.18 PTZ Preset window.
CONFIGURING PTZ PRE-SET SETTINGS
To configure your PTZ camera’s pre-set settings:
1. Click the Use Pantilt button ( ) to open the PTZ controls.
2. Click the Pantilt Preset button ( ). The Pantilt Preset window opens.
3. Under the Preset No field, enter the preset number (ie. Preset no. 1 can be the front door,
Preset no. 2 can be the side windows).
4. Under the Description field, enter the area that the camera will point to (ie. Front Door).
5. Go back to the PTZ control, and point the camera to the desired camera angle.
6. In the Preset window, select the camera number you wish to apply the setting to.
7. In the Preset window, click Add and then click Save.
51
Vista Pro 6 Server: Searching For Video
Figure 9.19 Touring Setting window.
1. Enter Touring number
and description.
2. Select pre-set settings
you wish to include in the
touring mode.
Tou r ing li st
Configuring PTZ Touring Settings
After you have configured your pre-set settings, you can combine those settings into touring
mode. Touring mode allows to add multiple pre-sets into one setting.
To configure the PTZ Touring Settings:
1. Click the Pant Tilt Tour button (). The Pan Tilt Touring setting window opens.
2. Under the Tour No and Description field, enter the touring number and description (ie.
touring number 1, front door)
3. Under Reg Preset No, select the pre-set settings and then click to add the pre-set
function to the list.
4. Click Add then click Save to save your settings.
5. Double-click the Touring List for the PTZ to begin touring mode.
52
Vista Pro 6 Client Software
Figure 10.0 Vista Pro 6 Client login window.
Enter system ID and Password
Default ID: admin
Default password: 1111
Figure 10.1 Vista Pro 6 Client main window.
Live View window
DVR List
(Remotely
connected
systems)
System Configuration buttons
Audio and Video Configuration buttons
VISTA PRO 6 CLIENT SOFTWARE
Vista Pro 6 is a remote viewing software that allows you to monitor your system remotely. Simply
install the Vista Pro 6 Client in any computer to connect to your system. The advantage of using
the Vista Pro 6 Client is the ability view, search videos and configure your system remotely.
To open Remote Viewing:
1. Double-click the Vista Pro 6 Client icon, or open the Vista Pro 6 Client program in your
Programs list. The Vista Pro 6 Client log-in window opens.
2. Under ID, enter admin; under Password, enter 1111. Press Log In to start Vista Pro 6 Client.
53
Vista Pro 6 Client Software
Figure 10.2 Site Setup window
Click Register New Site
Figure 10.3 Entering DDNS information: Site Setup window
CONNECTING TO YOUR SYSTEM
Before you can connect to your system:
• Obtain a DDNS address
• Obtain your DDNS user name and password
• Port forward port
For details on how to obtain a DDNS address, see “Appendix A: Viewing Your System Remotely
Using DDNS” on page 64.
To connect to your system remotely using Vista Pro 6 Client:
1. Click the Site button() near the top of the window. The Site Setup window opens.
6807, 6808, 6880 on your router
2. Click Register New Site. The Site Setup window opens.
3. Enter the following into the blank fields:
• Under Name, enter the name of the system (this can be any name you wish)
• Under IP or URL, enter the
• Under Video Port Number, enter
• Under ID enter the your system’s ID (default:
• Under Password enter your system’s password (default:
DDNS address you set up earlier (ie mylorexdvr.lorexddns.net)
6807 (default video port number)
admin)
1111)
• Optional: Under Register to Others, select other accounts that can connect to your system
4. Click Register to complete setup, and to connect to your system.
54
Vista Pro 6 Client Software
Drag a camera into one of the
empty channels marked DVR.
You can drag the cameras to any channel you wish.
Figure 10.4 Enabling cameras on Vista Pro 6 Client. Drag the desired camera into a channel to
begin viewing.
VIEWING VIDEO ON VISTA PRO 6 CLIENT
Once you have connected to your system, Vista Pro 6 Client displays a blank screen with the text
"DVR" on the Live View window. A list of connected systems and cameras appear on the left of the
window.
To connect your cameras to Vista Pro 6 Client:
• Drag a camera from the camera list to one of the channels in the Live View window.
• To disconnect from all the cameras, click the
window.
• To hide the Camera List, click View near the top of the window, and then click Hide Tree.
SEARCHING FOR VIDEO USING VISTA PRO 6 CLIENT
To search for video, click the Search button () near the top-left corner of the window. The
search menu is identical to the local viewing software. For details on operating the Search menu,
see “Vista Pro 6 Server: Searching For Video” on page 39.
CONFIGURING YOUR SYSTEM USING VISTA PRO 6 CLIENT
To configure your system remotely, click the Setup button() near the top-right corner of the
window.The setup menu is identical to the setup tabs in the local viewing software. For details on
using the setup menu,
All Disconnect button() near the top of the
see “Vista Pro 6 Server: Viewing Mode” on page 10.
55
Vista Pro 6 Client Software
1. Display
2. Channel Split
3. Text Setup
4.Save Directory
Setup
5. Auto-Change
(Auto-Sequence
Dwell time)
6. Text Size
7. Reconnection
Figure 10.5 Option Setup window.
CONFIGURING VISTA PRO 6 CLIENT SETTINGS
To open the Vista Pro 6 Client option window, click the Option button ().
The Vista Pro 6 Client Setup Window
The Option Setup window allows you to configure how information displays in Vista Pro 6 Client,
and configure other basic settings.
1. Display: Configures the overlay display, for example camera name and channel.
• Select Use overlay or Not use overlay to enable/disable overlay display.
2. Channel Split: Configure how many channels Vista Pro 6 Client should start up with.
3. Text Setup: Allows you to change the font style when overlay is enabled
• Select the Text Shown in Channel textbox, then select a font from the Font drop-down menu
• Click the Color Setup button to select desired text color
4. Save Directory Setup: Select the default save directory of saved videos.
• Click to open a directory tree, and then select your desired save location.
56
Vista Pro 6 Client Software
Click Add Group
Figure 10.6 Group Setup window.
5. Auto-Change: Adjusts the Auto-Sequence dwell-time between changing camera channels
• Use the up/down arrows to adjust the number of seconds you would like the screen-dwell to
be (between 0~60 seconds).
6. Text Size: Adjusts the font size of the overlay display, depending on how many channels are
displayed.
• Under the drop-down menus, select the font size you would like for the specified channel.
7. Reconnection: Adjusts the frequency of how often Vista Pro 6 Client should attempt to
reconnect to the system during a network interruption.
• Select the Use checkbox. Under the Count drop-down menu, select how many times you want
Vista Pro 6 Client to attempt to connect in a given time. Under the Term drop-down menu,
select the interval Vista Pro 6 Client should attempt to connect (ie every 1 minute or every 10
minutes).
VIEWING MULTIPLE DVRS AND SYSTEMS
You can view multiple systems using the Group function. For example, if you had multiple systems
configured in different locations, you can view cameras from each of the systems. You must be
connected to the systems before you can view video feeds.
To view multiple systems using Vista Pro 6 Client:
Adding and Deleting a User
1. Click Setup on the top-left corner of the window, then click on Group Setup. The Group Setup
window opens.
2. Click the Add Group button. The Group Name window opens.
3. Under Group Name, enter the name the system you are connecting to.
4. Under Group Description, enter a desription of the system.
5. Click OK to save your settings.
NOTE: To delete a group, select the group, then click the Delete group button.
57
Vista Pro 6 Client Software
1. Select user name
2. Drag camera into
desired channel
Empty channel box
Figure 10.7 Adding cameras to a group.
Select the group name from
the drop-down menu to
connect to the cameras.
Figure 10.8 Viewing Group channels.
Add Cameras to the User List
Once you have created a user account, you can add cameras to the user list.
To add cameras to the user list:
1. Click Setup on the top-left corner of the window, then click on Group Setup. The Group Setup
window opens.
2. Beside Group List, select the name of the user group. A camera list populates on the left.
3. Under the camera list on the left, drag the desired cameras into the empty channel boxes.
4. Click Save Array to save your changes.
Viewing Group Channels
To view the group channels that you created:
1. Select the group drop-down menu, and choose the name of the group.
2. A confirmation window opens. Click Yes to connect and view your cameras.
58
CONFIGURING PTZ SETTINGS
Zoom
Focus
Camera direction
controls
Tog g le c a mera
power on/off
Turn PTZ light on/off
Toggle auxillary power on/off
Pre-Set drop-down menu
Touring drop-down menu
Configure Preset/Touring settings
Figure 10.9 PTZ controls.
To configure PTZ cameras (not included) connected to the system:
• Click the PTZ button () to open the PTZ menu.
Vista Pro 6 Client Software
• For details on how to configure PTZ Preset and Touring settings on your system, see “Using
PTZ Controls” on page 50.
SAVING VIDEO
To save a video clip while watching an event:
1. Click on the channel you wish to record. The channel highlights with a red box.
2. Click the AVI Save button () to begin recording. Click the button again to stop recording.
NOTE: The video is saved into the default save folder C:\Program Files\Vista Pro 6 Client
59
Vista Pro 6 Client Software
Figure 10.13 Configuring Image quality.
Select the desired quality
level. A green checkmark
confirms the selection
CAPTURING A SCREENSHOT
To capture a screenshot while watching an event:
1. Select the channel you wish to capture a screen shot of. The channel highlights with a red
box.
2. Click the Still Image Save button (). An image preview window opens. Click Save to
save the image to the default directory.
ADJUSTING VIDEO STREAMING QUALITY
If your live streaming videos are slow or choppy, try changing the quality of the video. Higher
quality videos lead to sharper images, but slower frame rates. Lower quality videos lead to
average image quality, with fast frame rates.
To adjust video quality:
• Click the Image Quality button ( ) and select the desired quality.
ADDING AND MANAGING MULTIPLE USER ACCOUNTS
You may have more than one user that can access your system.
To add a new user to a system:
1. Click the User button (). The User Setup window opens.
2. Click the Add button. A second User Setup window opens.
3. Fill in the desired User name and Password fields.
4. Select the Authority to CMS Setup checkbox if you wish to grant the user access to system
setup settings.
5. Under the List of Accessible Sites list, select the sites the user is allowed to manage.
6. Click OK to save your settings.
60
Vista Pro 6 Client Software
List of remote systems
Select this checkbox to
grant user authority to
access system setup
menus
Click Add
Specify the systems that
the user has access to
Figure 10.14 User Setup windows.
Deleting User Accounts
To delete a user account:
1. Click the User button (). The User Setup window opens.
2. Select the user you wish to delete under the User List. Click the Delete button.
NOTE: You can only delete one user at a time.
NOTE: The admin account cannot be deleted.
61
Vista Pro 6 Client Software
Figure 10.15 Site Setup window - Adding a new user.
Figure 10.16 Site Setup window - Configuring user account settings.
System list
ADDING MULTIPLE SITES
You can manage multiple systems using Vista Pro 6 Client. For example, if you own several
grocery stores with QLR460 series systems in place, and wish to monitor all of your stores, you
can add multiple systems into Vista Pro 6 Client to monitor.
To add a new system to Vista Pro 6 Client:
1. Click the Site button (). The Site Setup window opens.
2. Click Register New Site. A second Site Setup window opens.
3. Fill in the required blank fields:
• Name: Enter the name of the system
• IP or URL: Enter the DDNS address of the system in full (ie. tomsmith.lorexddns.net)
• Video Port Number: Enter the Video Port Number. By default, the Video Port Number is 6807
• ID: Enter the ID name of the system. By default, the ID is admin
• Password: Enter the password of the system. By default, the Password is 1111
4. Under the Register to Others list on the right, select the users who can access the account.
5. Click Close to save your settings.
62
Vista Pro 6 Client Software
Figure 10.17 Selecting channel views.
VIEWING MULTIPLE CHANNELS
• To view multiple channels, select the desired channel in the channel list near the top of the
window.
ENABLING SCREEN ROTATION
You can have individual channels change locations by clicking the Display Rotation button ()
near the top of the window. Use this feature when you view video in a single channel mode, and
wish to change channels quickly.
Auto-Sequencing
Auto-sequencing allows the channels to continually switch between channels.
To enable auto sequencing:
• Click the Auto Sequence button ().
• To set the duration of Auto-Sequencing, see “Configuring Vista Pro 6 Client Settings” on
page 56. See listing number 5, "Auto Sequence Dwell Time".
63
Appendix A: Viewing Your System Remotely Using DDNS
APPENDIX A: VIEWING YOUR SYSTEM
REMOTELY USING DDNS
You can connect to your system from a web browser by setting up a DDNS (Dynamic Domain Name
Space) account with Lorex.
To connect to your system remotely using DDNS, there are five main steps:
1. Obtain your computer’s MAC address
2. Register for Lorex DDNS and enter in the MAC address during registration
3. Port forward the required ports
4. Enter in the DDNS address and system login information into your system
5. Enter the DDNS address name you obtained during DDNS registration into Internet Explorer
Obtaining Your Computer’s MAC Address
A MAC address is the physical address of your computer.
To obtain your computer’s MAC address:
1. Click on the Start Menu > Run
2. Type in the Run window: "cmd" (without quotation marks). A command-prompt window
opens.
3. Type into the command-prompt window: "ipconfig/all" (without quotation marks).
4. Press Enter on the keyboard. A list of networking information appears.
5. Under Ethernet adapter Local Area Connection, look for Physical Address.
• Beside Physical Address, it lists the MAC address (A MAC address looks like this:
00-1B-99-DF-5F-18)
6. Write down the MAC address.
64
Appendix A: Viewing Your System Remotely Using DDNS
Enter your MAC address here
(no spaces/dashes)
Select product model number
Type in the desired URL
Registering for Lorex DDNS
A DDNS account allows you to set up a web site address that points back to your Local Network.
The following outlines how to set up your free Lorex DDNS account.
1. In your web browser, go to https://secure.lorexddns.net/webapp/ andclick Create Account.
2. Complete the Account Information fields with your personal information. Complete the
Warranty Information with your purchase details (optional).
NOTE: Your account information, user ID and password will be sent to your e-mail address.
3. Under the System Information fields:
• Select the model number of your system in the drop-down menu
• Enter your MAC address (with no spaces or dashes)
• Enter in a desired URL. In this example, the URL sub domain name is:
mylorexdvr
4. Click Create New Account to complete the registration process.
• Your account information and user ID will be sent to you at the e-mail address used in step 2.
65
Appendix A: Viewing Your System Remotely Using DDNS
Click on Always Allow Pop-ups
from This Site
Port Forwarding
Port forwarding allows your computer to communicate with the remote computers connecting to
it. Please consult your router’s owner’s manual on port-forwarding instructions.
You must port forward the following ports on your router:
• 6807 (Live Port)
• 6808 (Playback Port)
• 6880 (Web Port)
Entering your DDNS
information into the system
You must enter your DDNS information into your system to enable remote viewing.
For details on entering DDNS information in your system, see “Configuring DDNS Settings” on
page 34.
Connecting to your system using Internet Explorer
Once you have registered for Lorex DDNS and port forwarded the required ports, you are ready to
connect to your system remotely.
To connect to your system remotely using Internet Explorer:
1. Open Internet Explorer.
2. Enter your DDNS address you created earlier, followed by a semi-colon, and then the web
port number. For example, you would enter:
mylorexdvr.lorexddns.net:6880
3. Click on the pop-up banner, and then click on Always Allow Pop-ups from This Site.
NOTE: There is a semi-colon (: ) right after the DDNS address.
66
Appendix A: Viewing Your System Remotely Using DDNS
Click on Install ActiveX Control to continue.
Click Install
4. When the log-in window appears enter the following:
• Under the DVR Type drop-down menu, select PC DVR
• Under DVR IP, enter your DDNS address without the port number (i.e qlr460r.lorexddns.net)
• Under User ID, enter the ID of your system (by default,
• Under User Password, enter the password of your system (by default,
• Click
Connect to connect to your system. A new window opens that shows the DDNS remote
admin)
1111)
login interface.
5. Click on the message bar near the top of the browser, and then click on Install ActiveX Control.
A new remote viewer window opens.
6. Click Install when the security pop-up appears. This installs the required software to start
remote viewing on your web browser.
7. Once connected, select a camera under the Camera drop-down menu on the left sidebar.
Under the Split Screen drop-down menu, select the number of channels you wish to display.
67
Appendix A: Viewing Your System Remotely Using DDNS
Click Playback button
Event
Calendar
Time
selection
Month and
Yea r s elec t i on
The Playback Window interface is similar to the Search mode in Vista Pro
6 Server. To view video, select the month, date, time, and camera to
begin viewing video.
Playback
controls
DDNS Viewing Interface
68
Appendix B: What Is DDNS?
APPENDIX B: WHAT IS DDNS?
DDNS stands for Dynamic Domain Name Service. DDNS allows you to connect to your system
even if your IP address changes.
Your internet provider supplies you with an address called an IP address (Internet Protocol
address). An IP address is the address to contact your computer. The IP address constantly
changes. In other words, you have a dynamic IP address. An IP address that does not change is
called a Static IP address. Static IP addresses often cost more money, and must be requested by
the user.
How does DDNS work?
Hypothetically, if your friends' phone number changed every minute, it would be impossible to
contact them. In this case, your friends' phone numbers would be dynamic: ever changing, and
never the same.
IP addresses function in a similar way: the address constantly changes. If the address of your
system constantly changes, how can you connect to your system? This is where DDNS solves the
problem.
Imagine DDNS as a human telephone operator. If you wanted to contact your friend whose phone
number changed every minute, you can tell the telephone operator your friend's home address.
Because your friend's home address never changes, the telephone operator can tell you your
friend's phone number, no matter how often their phone number changes.
Enabling DDNS
To enable DDNS, you must register with a DDNS provider. Lorex offers free DDNS service for
certain products. Only specified systems are DDNS enabled.
A typical DDNS address may look like this: mysystem.lorexddns.net.
"mysystem" is the address name of the system chosen by you. You may re-name "mysystem" to
any name you wish. For example, if you wanted to name your system: my_lorex_system, the DDNS
address would be: my_lorex_system.lorexddns.net.
How DDNS benefits you
DDNS allows you to connect to your system even if your IP address changes. To access your
system, simply enter in the DDNS name of your system into your web browser, or remote software
application.
Since your DDNS address is static, you do not have to worry about your system's address
constantly changing.
69
Appendix C: Using The Image Analyst Software
Load button
Analyze button
Image analysis result
APPENDIX C: USING THE IMAGE ANALYST
SOFTWARE
The Image Analysis software allows you to verify if images taken by the Vista Pro 6 software has
been tampered with. This can be useful if you need to prove that the image you took with the Vista
Pro 6 software is genuine.
Installing Image Analyst
To install Image Analysis:
1. Insert the software CD into your CD/DVD drive.
2. In the Setup window, click Vista Pro 6 Software. Then Click on
Install>Advanced>Extras>Image Analysis>Setup.exe
• To manually browse the file, browse for X:\extras\ImageAnalysis , where X is your CD/
DVD-Rom drive.
3. Double-click on Setup to install Image Analyst.
• Once installed, the program shortcut can be found on your desktop , or in Programs list (Start
Menu > All Programs).
Loading a file into Image Analyst
To load a JPG image into Image Analysis:
1. Click the Load button. Browse for the directory of where your image is located.
2. Click the Analyze button. A message appears on the bottom of the window to verify if the
image has been tampered with.
• If the image is genuine, a message will read: This is an original image.
• if the image has been tampered, a message will read: This is not an original image.
70
Appendix D: Using Backup Viewer
File Browse button
APPENDIX D: USING BACKUP VIEWER
Backup Viewer is identical to the Vista Pro 6 Client search mode.
The Backup Viewer software automatically copies into your storage device when you back up video
into your USB storage device, or onto a blank CD/DVD.
This allows you to play the proprietary video in a different machine. Simply install Backup Viewer,
and use Backup Viewer to browse and play the video file.
Installing Backup Viewer
To manually install Backup Viewer:
1. Insert the software CD into your CD/DVD drive.
2. Browse for X:\extras\BackupViewer, where X is your CD/DVD drive.
3. Double-click on the Setup file. Follow the on-screen instructions to install the program.
4. Click on the Start Menu > All Programs>Backup View>Playback to open Backup Viewer.
Using Backup Viewer
Use the File Browse button to search for Scheduled Backup data, and Manual backup data.
To search for segments within the Backup Viewer, Select a date from the Event Calendar on the
top-right corner of the window. Then click the timeline to select the time of the video.
71
Appendix E: Re-Allocating Storage Space
Append button
Available Workspace column
List of new allocated storage space
Input Workspace count window
APPENDIX E: RE-ALLOCATING STORAGE
SPACE
If you need to re-allocate storage space, you must use the Storage Management program to
re-configure the storage space directory.
Installing Storage Management
To install Storage Management:
1. Insert the software CD into your CD/DVD reader.
2. Double-click the CD/DVD directory in your computer to open the main menu.
3. Click VistaPro6 Software in the startup splash screen.
4. Click Install then click Advanced and then click Storage Management. A login window opens.
5. In the login window, enter admin beside User ID; enter 1111 beside Password. The Storage
Management window opens.
6. Under Drive Information, select the directory of your current storage directory. Click Append.
7. Beside Input Workspace Count, enter the amount of workspaces you wish to expand the
storage directory. Look under the "Available Work Space" column to determine how many
work spaces you can assign.
NOTE: Workspaces are 100MB (megabyte) chunks of data. This allows the system to efficiently
handle large amounts of recorded data.
8. Click Append, and then click Make to add storage space to your existing storage directory.
NOTE:
There is a Recover button when you open Storage Management. The Recover function does not
recover deleted data. The Recover function can only repair damaged or corrupted directories.
72
Appendix F: Installing a PTZ Controller Card
PTZ
Ribbon
Power connector
Ribbon cable head.
Note the bottom-left pin-slot is
covered with a plastic plug.
This is normal.
PTZ Input Block
TX -
TX +
PTZ
PTZ USB
Drivers
APPENDIX F: INSTALLING A PTZ
CONTROLLER CARD
The PTZ Controller card is an optional add-on that allows you to install PTZ (Point, Tilt, Zoom)
cameras. You must purchase the PTZ controller card , and a PTZ camera separately.
Installing the PTZ Drivers
• In the Software setup menu, click on Install>Advanced>PTZ USB Drivers
Installing the PTZ Card
To install the PTZ controller card into your motherboard, plug the ribbon cable head into the USB
pin block in your mo therboard. Tighten the card to the computer’s chassis on the back. Refer to
your motherboard user’s manual to locate the location of the USB pin block.
