Instruction Manual
NR800 Series
Instruction Manual
NR800 Series
#LX400021; r. 4.0/30344/30494; en-US
iii
Thank you for purchasing this product. Lorex is committed to providing our customers with a high
quality, reliable security solution.
This manual refers to the following models:
NR8081 (8-channel)
NR8163 (16–channel)
NR8326 (32–channel)
For the latest online manual, downloads and product updates, and to learn about our complete line of
accessory products, please visit our website at:
www.lorextechnology.com
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE
COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompanying
the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF THE PLUG
TO THE WIDE SLOT AND FULLY INSERT.
#LX400021; r. 4.0/30344/30494; en-US
iv
Table of contents
1 Important Safeguards ...... ....... ....... ................ ....... ....... ....... ....... ....... .1
1.1 General Precautions ......... ....... ....... ....... ....... ....................... ...... 1
1.2 Installation...... ....... ....... ....... ................ ....... ....... ....... ....... ........ 1
1.3 Service ....... ....... ....... ................ ....... ....... ....... ....... .................. 2
1.4 Use.. ....... ....... ....... ....... ....... .. ....... ....... ....... ....... ....... ..............3
2 NR800 Series Features...... ....... ....... .. ....... ....... ....... ....... ....... ..............4
3 Getting Started (NR800 Series) . ....... ....... .. ....... ....... ....... ....... ....... .......6
4 Front Panel (NR800 Series) .. ....... ....... ................ ....... ....... ....... ............8
5 Rear Panel (NR800 Series).... ......... ....... ....... ....... ....... ....... ................ 10
6 Basic Setup (NR800 Series) .... ................ ....... ....... ....................... ..... 11
6.1 Step 1: Connect the IP Cameras .. ....... ....... ....................... ....... .. 11
6.2 Step 2: Connect the Mouse............ ....... ....... ................ ....... ...... 11
6.3 Step 3: Connect the Ethernet Cable ......... ....... ....... ..................... 11
6.4 Step 4: Connect the Monitor..... ....... ....... ................ ....... ....... ..... 12
6.5 Step 5: Connect the Power Adapter to Power the NVR ....... ....... .. .... 12
6.6 Step 6: Upgrade Firmware to Latest Version (if Available) .. ....... ....... 12
6.7 Step 7: Verify Camera Image .... ....... ....... ......... ....... ....... ....... ..... 12
6.8 Step 8: Set the Time .. ....... ....... ....... ....... ....................... ....... .... 13
6.9 Default System Password & Port Numbers .. ....... ....... ....... ............ 13
6.9.1 FLIR Cloud™ . ................ ....... ....... ....... ....... ....... .. ....... . 13
6.10 Quick Access to System Information . ....... ....... ................ ....... ..... 13
6.11 Connecting Cameras to the Local Area Network (LAN) .... ....... ....... . 15
7 Mouse Control ...... ....... ....... .. ....... ....... ....... ....... ....... ................ ....... 18
8 Remote Control ...... ....... ....... ....... ................ ....... ....... ................ ...... 19
8.1 Setting the Remote Control Address .... ....... ................ ....... ....... .. 19
9 Using the System ............... ....... ....... ................ ....... ....... ....... .......... 21
9.1 On-Screen Display .. ....... ....................... ....... ....... ....... ....... .. .... 21
9.2 Using the Quick Menu.......... ....... ....... ....... ....... ....... .. ....... ....... . 22
9.3 Adjusting Camera Image Settings.......... ....... ....... ....... ....... ....... .. 22
9.4 Using the Navigation Bar ......... ....... ....... ................ ....... ....... ..... 23
9.5 Using the Camera Toolbar .. ....... ................ ....... ....... ....... .......... 24
9.5.1 Using Instant Playback ........ ....... ....... ....... ................ ..... 24
9.5.2 Using Digital Zoom in Live Display . ....... ................ ....... .... 25
9.5.3 Using Real-time Backup ...... ....... ......... ....... ....... ....... ..... 25
9.6 Using the Virtual Keyboard...... ................ ....... ....... ....... ....... ...... 25
9.7 Adjusting Camera Zoom & Focus . ....... ....... ................ ....... ....... .. 26
10 Setting The Time ............. ....... ....... ................ ....... ....... ....... ....... ...... 27
11 Recording.. ....... ....... ................ ....... ....... ....... ....... ....... ................ .... 28
11.1 Video Recording Types ...... ....... ................ ....... ....... ....... .......... 28
11.2 Main Stream and Sub Stream..... ....... ....... ....................... ....... ... 28
11.3 Setting up Scheduled or Manual Recording ........... ....... ....... ....... .. 28
11.4 Configuring Hard Drive Overwrite .. ................ ....... ....... ....... ........ 29
12 Recording.. ....... ....... ................ ....... ....... ....... ....... ....... ................ .... 30
12.1 Video Recording Types ...... ....... ................ ....... ....... ....... .......... 30
12.2 Main Stream and Sub Stream..... ....... ....... ....................... ....... ... 30
12.3 Setting up Scheduled or Manual Recording ........... ....... ....... ....... .. 30
12.4 Configuring Hard Drive Overwrite .. ................ ....... ....... ....... ........ 31
13 Search (Playback) ........ ....... ....... ....... ................ ....... ....... ....... ....... .. 32
13.1 Playing Back Video from the Hard Drive ................ ....... ....... ....... .. 32
13.2 Playback Controls .. ................ ....... ....... ....................... ....... ..... 33
13.3 Playing Back from a USB Drive ........ ....... ....... ....................... ..... 33
13.4 Using Smart Search ............... ....... ....... ....... ................ ....... ..... 34
#LX400021; r. 4.0/30344/30494; en-US
v
Table of contents
14 Backup.... ....... ....... ....... ....... ....................... ....... ....... ................ ...... 35
14.1 Formatting the USB Thumb Drive ...... ................ ....... ....... ....... .... 35
14.2 Backing up Video...... ....... ....... ....... ....... ....................... ....... .... 35
14.3 Using Video Clip Backup .. ....... ....... ....... .. ....... ....... ....... ....... ..... 36
14.4 Viewing Backup Files..... ....... ....... ....................... ....... ....... ....... 37
14.4.1 Viewing Backup Files on PC ...... ....... ....... ................ ....... 37
14.4.2 Viewing Backup Files on Mac .. ....... ....... ................ ....... .. 39
15 Managing Passwords and User Accounts..... ....... ....... .. ....... ....... ....... . 42
15.1 Changing Passwords... .. ....... ....... ....... ....... ....... ................ ....... 42
15.2 Adding Users ............. ....... ....... ....... ................ ....... ....... ....... .. 42
15.3 Modifying Users ...... ....... ....... ....... .. ....... ....... ....... ....... ....... ..... 43
15.4 Deleting Users .... ....... ....... ................ ....... ....... ....... ....... ....... .. 43
15.5 Account Groups ...... ....... ....... ....... .. ....... ....... ....... ....... ....... ..... 43
15.6 Adding Groups .... ....... ......... ....... ....... ....... ....... ....... ................ 44
15.7 Modifying Groups ............. ....... ....... ....... ................ ....... ....... ... 44
15.8 Deleting Groups .. ....... .. ....... ....... ....... ....... ....................... ....... 44
16 Using the Main Menu ................ ....... ....... ....... ....... ....... ................ .... 46
16.1 Camera .... ................ ....... ....... ....... ................ ....... ....... ....... .. 46
16.1.1 Remote Device .... ....... ....... ....... .. ....... ....... ....... ....... ..... 46
16.1.2 Viewing Camera Status .................... ....... ....... ............... 46
16.1.3 Viewing Camera Firmware Versions . ....... ....... ....... ........... 47
16.1.4 Upgrading Camera Firmware .. ....... ....... ....... ................ ... 47
16.1.5 Recording.. ....... ....... ....... ................ ....... ....... .............. 48
16.1.6 Configuring Recording Quality. ................ ....... ....... .......... 48
16.1.7 Configuring Snapshot Recording Settings...................... .... 49
16.1.8 Creating Custom Channel Names .. ....... ....... ....... ......... .... 50
16.2 Info ......... ....... ....... ....... ....... ....... .. ....... ....... ....... ....... ....... ..... 52
16.2.1 HDD Info .. ....... ....... ....... ....... ......... ....... ....... ....... ....... . 52
16.2.2 Record Info ........... ....... ....... ....................... ....... ....... ... 52
16.2.3 Version .. ....... ................ ....... ....... ....... ....... ....... .. ....... . 53
16.2.4 Event Info . ....... ....... ....... ................ ....... ....... ....... ........ 53
16.2.5 Online Users .................. ....... ....... ....... ....... .. ....... ....... . 54
16.2.6 Load............... ....... ....... ....... ....... ....... .. ....... ....... ....... . 54
16.2.7 Test. ....... ....... ................ ....... ....... ....... ....... ................ 54
16.2.8 BPS ...................... ....... ....... ....... ....... .. ....... ....... ....... . 55
16.2.9 Log .... ....... ....... ....... ................ ....... ....... ....... ....... ...... 55
16.3 Setting.. ....... ....... ....... ....... ................ ....... ....... ...................... 56
16.3.1 Network .... ....... ....... ................ ....... ....... ....... .............. 56
16.3.2 Selecting DHCP or Static IP Address (TCP/IP) ............... ..... 56
16.3.3 Configuring System Ports (Connection)... ....... ....... ............ 56
16.3.4 Configuring DDNS Settings .. ....... ....... ....... ................ ..... 57
16.3.5 Configuring Email Alerts .. ....... ................ ....... ....... ....... .. 58
16.3.6 Configuring Switch Settings (Advanced)... ....................... .. 59
16.3.7 Event...... ....... ................ ....... ....... ....... ....... ....... ......... 60
16.3.8 Configuring Motion Detection. ....... ................ ....... ....... .... 60
16.3.9 Configuring Video Loss Settings .... ................ ....... ....... .... 61
16.3.10 Configuring Alarm Input Devices... ....... ....... ..................... 62
16.3.11 Controlling Alarm Output Devices . ......... ....... ....... ....... ..... 63
16.3.12 Configuring Hard Drive Warnings........ ....... ....... ....... ........ 63
16.3.13 Configuring Network Warnings ...... ....... ....... ....... ....... .. .... 64
16.3.14 Storage .... ....... ....... ................ ....... ....... ....... ............... 65
16.3.15 Configuring the Video Recording Schedule ....... ....... .. ....... . 65
16.3.16 Configuring Pre-Recording ............. ....... ....... .................. 66
16.3.17 Configuring the Snapshot Schedule .... ................ ....... ...... 66
16.3.18 Configuring Hard Drive Groups (Advanced) .... ................... 67
#LX400021; r. 4.0/30344/30494; en-US
vi
Table of contents
16.3.19 Configuring Holidays... ....... ....... ................ ....... ....... ...... 69
16.3.20 Formatting the Hard Drive .... ....... ....................... ....... ..... 70
16.3.21 Configuring Hard Drive Type .. ....... ....... ....... ....... ....... .. .... 70
16.3.22 Setting up Hard Drive Mirroring (Advanced) ............. ....... ... 71
16.3.23 Configuring General System Settings .... ....... ....... ....... .. .... 72
16.3.24 Setting the Monitor Resolution (Display) ............... ....... ...... 73
16.3.25 Saving Your System Configuration to a USB Thumb
Drive ...... ....... ....... ................ ....... ....... ....... ....... ....... .. 73
16.3.26 Setting the System to Factory Defaults... ....................... .... 74
16.3.27 Upgrading Firmware from USB................. ....... ....... ....... .. 76
16.3.28 TV Adjust (NR816 and NR832 models only) .... ....... ....... ..... 76
16.4 Shutdown................ ....... ....... ....... ....... ....... ................ ....... .... 77
17 Connecting to Your System Over the Internet on PC or Mac .. ....... ....... .. 78
17.1 System Requirements...... .. ....... ....... ....... ....... ....... ................ ... 78
17.2 Step 1 of 3: Connect your System to Your Router .... ................ ....... 78
17.3 Step 2 of 3: Obtain the system’s Device ID.. ....... ....... ....... ......... .... 79
17.4 Step 3 of 3: Connect to the System Over the Internet ...... ....... ......... 79
18 Using FLIR Cloud™ Client for PC or Mac . ....... ....... ................ ....... ...... 83
18.1 Home Page ...... ....... ....... ....... ................ ....... ....... ....... ........... 83
18.2 Live View ...... ....... ....... ....................... ....... ....... ................ ..... 83
18.2.1 Live View Controls ....... .. ....... ....... ....... ....... ....... ............ 84
18.2.2 Opening Live View in Multiple Monitors ................ ....... ...... 85
18.3 Controlling PTZ Cameras . ....... ....... ....... ......... ....... ....... ....... ..... 86
18.3.1 PTZ Presets .. ....... ....... ....... ....... ................ ....... ....... .... 87
18.3.2 PTZ Tours... ....... ....... ....... ................ ....... ....... ....... ...... 87
18.3.3 PTZ Pattern ........... ....... ....... ....... ................ ....... ....... .. 88
18.3.4 PTZ Scan .. ....... ....... ....... ....................... ....... ....... ....... 89
18.3.5 PTZ Pan... ....... ....... ....... ....... ....... .. ....... ....... ....... ....... . 89
18.4 Playback. ................ ....... ....... ....... ....... ....... ................ ....... .... 89
18.5 Playback Controls .. ................ ....... ....... ....................... ....... ..... 91
18.6 Downloading Video to your Computer Hard Drive...... ....... .............. 92
18.7 Alarm ...... ................ ....... ....... ....................... ....... ....... .......... 92
18.8 Log..... ....... ....... ....... .. ....... ....... ....... ....... ....... ................ ....... 93
18.9 E-map ...... ................ ....... ....... ....................... ....... ....... ....... .. 94
18.10 Devices .. ....... ....... ................ ....... ....... ....... ....... ....... ......... .... 96
18.11 Device Config ....... ................ ....... ....... ....... ................ ....... ..... 96
18.12 Alarm CFG .. ....... ....... ....................... ....... ....... ....... ....... ......... 97
18.13 Tour & Task........ ....... ....................... ....... ....... ....... ....... .. ....... . 99
18.14 Account ........... ....... ....... ....... ....... ....... ................ ....... ....... .. 100
18.14.1 Managing User Accounts ....... ....... ....... ................ ....... . 100
18.14.2 Managing Roles... ....... ....... ....... .. ....... ....... ....... ....... ... 102
18.15 General ...... ....... ....... ....... ................ ....... ....... ....... ....... ....... 102
18.15.1 Basic . ....... ....... ....... ....................... ....... ....... ............ 103
18.15.2 File .. ....... ....... ................ ....... ....... ....... ................ .... 103
18.15.3 Alarm Prompt .. ......... ....... ....... ....... ....... ....... .............. 104
18.15.4 Version . ....... ....................... ....... ....... ................ ....... 104
19 Connecting to your System Using Smartphone or Tablet Apps... ....... .. 106
19.1 iPhone.... ....... ....... ................ ....... ....... ....... ....... ....... ......... .. 106
19.1.1 Prerequisites.... ................ ....... ....... ....................... .... 106
19.1.2 Connecting to your System on iPhone.... ....... ....... ......... .. 106
19.1.3 Live View Interface .... ....... ....... ....................... ....... ..... 107
19.1.4 Controlling PTZ Cameras. ................ ....... ....... ....... ....... 108
19.1.5 Viewing Snapshots and Videos with Local Files .. ....... ....... 109
19.1.6 Using Playback Mode on iPhone ........ ....... ....... ....... ...... 109
19.1.7 Enabling Push Notifications ...... ....... ....... .. ....... ....... ...... 110
#LX400021; r. 4.0/30344/30494; en-US
vii
Table of contents
19.1.8 Using the Event List ........ ....... ....... ................ ....... ....... 112
19.1.9 Using Favorites. ....................... ....... ....... ................ .... 113
19.1.10 Using the E-Map ........ ....... ....... ....................... ....... .... 114
19.1.11 Device Manager.... ....... ....... ....... ....................... ....... .. 116
19.1.12 Adding Devices Using an IP or DDNS Address
(Advanced)..... ....... ....... ....................... ....... ....... ....... 117
19.2 iPad ....... ................ ....... ....... ....... ....... ....................... ....... .. 118
19.2.1 Prerequisites.... ................ ....... ....... ....................... .... 118
19.2.2 Connecting to your system on an iPad .... ....... ....... ....... ... 118
19.2.3 Live View Interface .... ....... ....... ....................... ....... ..... 119
19.2.4 Controlling PTZ Cameras. ................ ....... ....... ....... ....... 120
19.2.5 Using Playback Mode on iPad....... ....... ....... ....... ....... .... 121
19.2.6 Using Local File to View Manual Recordings .. ....... ....... .... 123
19.2.7 Enabling Push Notifications ...... ....... ....... .. ....... ....... ...... 123
19.2.8 Using the Event List ........ ....... ....... ................ ....... ....... 125
19.2.9 Using Favorites. ....................... ....... ....... ................ .... 125
19.2.10 Using the E-Map ........ ....... ....... ....................... ....... .... 126
19.2.11 Using the Device Manager ........ ....... ....... ....... ....... ....... 128
19.2.12 Adding Devices Using an IP or DDNS Address
(Advanced)..... ....... ....... ....................... ....... ....... ....... 129
19.3 Android .... ....... ....... ....... ....... ....................... ....... ....... ......... 131
19.3.1 Prerequisites.... ................ ....... ....... ....................... .... 131
19.3.2 Connecting to your System on Android .... ....... ....... ......... 131
19.3.3 Live View Interface .... ....... ....... ....................... ....... ..... 132
19.3.4 Controlling PTZ Cameras. ................ ....... ....... ....... ....... 133
19.3.5 Viewing Snapshots and Videos with Local Files .. ....... ....... 133
19.3.6 Using Playback Mode on Android .. ....... ....... ....... ......... .. 134
19.3.7 Enabling Push Notifications ...... ....... ....... .. ....... ....... ...... 135
19.3.8 Using the Event List ........ ....... ....... ................ ....... ....... 136
19.3.9 Using Favorites. ....................... ....... ....... ................ .... 137
19.3.10 Using the E-Map ........ ....... ....... ....................... ....... .... 138
19.3.11 Device Manager.... ....... ....... ....... ....................... ....... .. 140
19.3.12 Adding Devices Using an IP or DDNS Address
(Advanced)..... ....... ....... ....................... ....... ....... ....... 140
20 DDNS Setup (Advanced) ...... ....... ....... ....... ................ ....... ....... ....... 142
20.1 Accessing your System within a Local Network (LAN) .. ....... ....... ... 142
20.1.1 Step 1 of 3: Connect your System to Your Router...... ....... .. 142
20.1.2 Step 2 of 3: Obtain the System’s Local IP Address ........... .. 143
20.1.3 Step 3 of 3: Connect to the System’s Local IP
Address .. ....... ....... ....... ................ ....... ....... ....... ....... 143
20.2 DDNS Setup—Access your System Remotely over the
Internet............ ....... ....... ....... ....... ....................... ....... ....... .. 145
20.2.1 Step 1 of 4: Port Forwarding .. ....... ....... ....... ....... ....... .. .. 145
20.2.2 Step 2 of 4: Create a DDNS Account ...... ................ ....... . 146
20.2.3 Step 3 of 4: Enable DDNS on the System .. .. ....... ....... ...... 148
20.2.4 Step 4 of 4: Connect to the System’s DDNS
Address .. ....... ....... ....... ................ ....... ....... ....... ....... 149
21 Connecting a PTZ Camera (NR800 Series)..... ....... ................ ....... ..... 152
21.1 Controlling a PTZ Camera (Local NVR) . ....... ....... ....... ....... .. ...... 152
21.2 Advanced PTZ Controls .. ....... ....... ....... ................ ....... ....... .... 153
21.2.1 Presets .. ....... ....... ....................... ....... ....... ....... ........ 153
21.2.2 Tours ................ ....... ....... ....................... ....... ....... .... 154
21.2.3 Pattern .... ....... ....................... ....... ....... ....... ....... ....... 154
21.2.4 Auto Scan ....... ................ ....... ....... ....... ................ .... 155
22 NR800 Series Hard Drive Installation . ....... ....... ....... ....... ................ .. 156
22.1 Installing a Hard Drive ....... ....... ....................... ....... ....... ......... 156
#LX400021; r. 4.0/30344/30494; en-US
viii
Table of contents
22.2 Removing the Hard Drive...... ....... ....... ....... ......... ....... ....... ...... 157
22.3 Formatting Hard Drives ................ ....... ....... ....... ....... ....... ....... 158
23 Recording Audio .. ....... ....... ................ ....... ....... ....... ....... ....... .. ...... 160
23.1 Step 1 of 2: Connecting an audio-capable camera ............... ....... . 160
23.2 Step 2 of 2: Configuring audio recording . ....... ....... ................ ..... 161
24 Troubleshooting .. ....... ....... ....................... ....... ....... ................ ....... 162
25 NR800 Series System Specifications .... ....... ....... ....... .. ....... ....... ...... 164
25.1 System ....... ....... ....... .. ....... ....... ....... ....... ....................... ..... 164
25.2 Inputs/Outputs .. ....... ................ ....... ....... ....... ................ ....... 164
25.3 Display ...... ....... ....... ....................... ....... ....... ....... ....... .. ...... 164
25.4 Recording ....... ................ ....... ....... ....... ................ ....... ....... . 164
25.5 Playback and Backup .. ....... ................ ....... ....... ....... ....... ....... 165
25.6 Storage & Archive .. ....... ................ ....... ....... ....... ................ ... 165
25.7 Connectivity......... ....... ....... ....... ....... ......... ....... ....... ....... ...... 165
25.8 General ...... ....... ....... ....... ................ ....... ....... ....... ....... ....... 166
25.9 Recording Resolution (Pixels) & Speed (FPS — Frames per
second) . ....... ....... ................ ....... ....... ....... ................ ....... ... 166
26 Notices......... ....... ....... ....... ................ ....... ....... ....... ....... ....... .. ...... 167
26.1 FCC/IC Notice... ....... ....... ....... ....... ....... ................ ....... ....... .. 167
26.2 Modification. .. ....... ....... ....... ....... ....... ................ ....... ....... ..... 167
26.3 ROHS .. ....... ................ ....... ....... ....... ................ ....... ....... .... 167
#LX400021; r. 4.0/30344/30494; en-US
ix
Important Safeguards
1
In addition to the careful attention devoted to quality standards in the manufacturing
process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help
to ensure your enjoyment and proper use of the product and accessory equipment.
Please read them carefully before operating and using your product.
1.1 General Precautions
1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water-dampened cloth for cleaning.
3. Do not use this product in humid or wet places.
4. Keep enough space around the product for ventilation. Slots and openings in the
storage cabinet should not be blocked.
5. It is highly recommended to connect the product to a surge protector to protect from
damage caused by electrical surges. It is also recommended to connect the product
to an uninterruptible power supply (UPS), which has an internal battery that will keep
the product running in the event of a power outage.
CAUTION
Maintain electrical safety. Power line operated equipment or accessories connected to this product
should bear the UL listing mark or CSA certification mark on the accessory itself and should not be
modified so as to defeat the safety features. This will help avoid any potential hazard from electrical
shock or fire. If in doubt, contact qualified service personnel.
1.2 Installation
1. Read and Follow Instructions - All the safety and operating instructions should be
read before the product is operated. Follow all operating instructions.
2. Retain Instructions - The safety and operating instructions should be retained for
future reference.
3. Heed Warnings - Comply with all warnings on the product and in the operating
instructions.
4. Polarization - Do not defeat the safety purpose of the polarized or grounding-type
plug.
A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety.
If the provided plug does not fit into your outlet, consult an electrician for replacement
of the obsolete outlet.
5. Power Sources - This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power supplied to your location, consult your video dealer or local power company. For products
intended to operate from battery power, or other sources, refer to the operating
instructions.
#LX400021; r. 4.0/30344/30494; en-US
1
Important Safeguards
1
6. Overloading - Do not overload wall outlets or extension cords as this can result in
the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed
power cords, damaged or cracked wire insulation, and broken plugs are dangerous.
They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.
7. Power-Cord Protection - Power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit
from the product.
8. Surge Protectors - It is highly recommended that the product be connected to a
surge protector. Doing so will protect the product from damage caused by power
surges. Surge protectors should bear the UL listing mark or CSA certification mark.
9. Uninterruptible Power Supplies (UPS) - Because this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that
will keep the product running in the event of a power outage. Uninterruptible power
supplies should bear the UL listing mark or CSA certification mark.
10. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings
must not be blocked or covered. The openings should never be blocked by placing
the product on a bed, sofa, rug, or other similar surface. This product should never
be placed near or over a radiator or heat register. This product should not be placed
in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the product manufacturer’s instructions have been followed.
11. Attachments - Do not use attachments unless recommended by the product manufacturer as they may cause a hazard.
12. Water and Moisture - Do not use this product near water — for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool
and the like.
13. Heat - The product should be situated away from heat sources such as radiators,
heat registers, stoves, or other products (including amplifiers) that produce heat.
14. Accessories - Do not place this product on an unstable cart, stand, tripod, or table.
The product may fall, causing serious damage to the product. Use this product only
with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold
with the product. Any mounting of the product should follow the manufacturer’s instructions and use a mounting accessory recommended by the manufacturer.
15. Camera Extension Cables – Check the rating of your extension cable(s) to verify
compliance with your local authority regulations prior to installation.
16. Mounting - The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cameras, using the provided mounting brackets.
17. Camera Installation - Cameras are not intended for submersion in water. Not all
cameras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation
in a sheltered area is required.
1.3 Service
1. Servicing - Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
#LX400021; r. 4.0/30344/30494; en-US
2
Important Safeguards
1
2. Conditions Requiring Service - Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled or objects have fallen into the product.
• If the product has been exposed to rain or water.
• If the product has been dropped or the cabinet has been damaged
• If the product does not operate normally by following the operating instructions.
Adjust only those controls that are covered by the operating instructions. Improper
adjustment of other controls may result in damage and will often require extensive
work by a qualified technician to restore the product to its normal operation.
• When the product exhibits a distinct change in performance. This indicates a need
for service.
3. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the
original parts. Use of replacements specified by the product manufacturer can prevent fire, electric shock, or other hazards.
4. Safety Check - Upon completion of any service or repairs to this product, ask the
service technician to perform safety checks recommended by the manufacturer to
determine that the product is in safe operating condition.
1.4 Use
1. Cleaning - Unplug the product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
2. Product and Cart Combination - When product is installed on a cart, product and
cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Object and Liquid Entry - Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or “short-out” parts that could
result in a fire or electric shock. Never spill liquid of any kind on the product.
4. Lightning - For added protection of this product during a lightning storm, or when it
is left unattended and unused for long periods of time, unplug it from the wall outlet
and disconnect the antenna or cable system. This will prevent damage to the product
due to lightning and power line surges.
#LX400021; r. 4.0/30344/30494; en-US
3
NR800 Series Features
2
NR8081
NR8163 / NR8326
Features
• Full high definition 1080p recording.
• Real-time recording at 30fps per channel.
• NR8081: 8 Built in PoE (Power Over Ethernet) ports providing video and power on a
single Ethernet cable.
• NR8163 / NR8326: 16 Built in PoE (Power Over Ethernet) ports providing video and
power on a single Ethernet cable.
• Automatically detects compatible IP cameras in the network
1
.
• 24/7 security-grade hard drive
2
.
• H.264 video compression
2
.
• Expandable High Capacity Storage up to 8TB for the NR8081(max 2x4TB HDD) and
up to 16TB for the NR8163 / NR8326 (max 4x4TB HDD).
• Mirror Hard Drive Recording - secure your recordings by backing up footage to an in-
ternal hard drive at the same time as recording to the primary hard drive
3
.
• Pentaplex operation - view, record, playback, backup & remotely control the system
simultaneously.
• Simultaneous playback and live view on the same screen
4
.
• Selectable area digital zoom in live view and playback.
• Dynamic click-and-drag camera channel assignment.
• Flip and mirror camera view settings.
• Convenient front panel button controls.
• Accurate time stamps with NTP & daylight savings time.
• Instant USB backup of live video from selected camera.
• 2 video outputs (HDMI & VGA) to connect multiple monitors.
• HDMI cable included for simple connection to HD TVs.
• Keep up to date with automatic firmware upgrades
5
.
• 3-Step remote view with FLIR Cloud™
6
.
• PC and Mac compatible
7
.
• Free iOS and Android compatible apps with live viewing, playback, video recording,
and snap shot
7
.
• Dedicated iPad app with multi-channel live viewing and playback.
• Push notifications of motion events.
• Instant email alerts with snap shot attachment.
• Dual streaming to conserve bandwidth.
• Continuous, scheduled and motion recording.
#LX400021; r. 4.0/30344/30494; en-US
4
NR800 Series Features
2
NOTE
1. Compatible with select Lorex 1080p wired PoE HD cameras only. For a list of compatible cameras,
please visit www.lorextechnology.com/support
2. Recording time may vary based on recording resolution & quality, lighting conditions and movement
in the scene.
3. Mirror recording requires a second hard drive (not included) to be installed in the NVR. Mirrored
hard drive must be as large or larger than the primary hard drive to backup all recordings. Backup
begins from when the mirrored hard drive is installed and configured.
4. Instant playback feature available on one camera at a time during live view when in quad or multiple
camera viewing mode.
5. The NVR firmware and software must be upgraded to the latest version to use the FLIR Cloud™
service. When the system is connected to the Internet, it will automatically alert you if there is a firmware upgrade available.
6. Requires a high speed internet connection and a router (not included). A minimum upload speed of
1Mbps is required for the best video performance. Up to 3 devices may connect to the system at
the same time.
7. For the latest list of supported apps and devices, please visit www.lorextechnology.com/support
Use product in accordance with the instructions provided. All trademarks belong to their respective
owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks
owned by Lorex Corporation. We reserve the right to change models, configurations or specifications
without notice or liability. Product may not be exactly as shown. Images are simulated.
#LX400021; r. 4.0/30344/30494; en-US
5
Getting Started (NR800 Series)
3
The NR8081 system comes with the following components:
NVR (Network Video Recorder) AC power cable
Remote control
(may not be exactly as shown)
USB mouse Ethernet cable HDMI cable
Quick start guides
Hard drive size, number of channels, and camera configuration may vary by model.
Please refer to your package for specific details. Check your package to confirm that you
have received the complete system, including all components shown above.
#LX400021; r. 4.0/30344/30494; en-US
6
Getting Started (NR800 Series)
3
The NR8163 / NR8326 system comes with the following components:
NVR (Network Video Recorder) AC power cable
Remote control
(may not be exactly as shown)
USB mouse Ethernet cable HDMI cable
Mount bracket
Quick start guides
Hard drive size, number of channels, and camera configuration may vary by model.
Please refer to your package for specific details. Check your package to confirm that you
have received the complete system, including all components shown above.
#LX400021; r. 4.0/30344/30494; en-US
7
Front Panel (NR800 Series)
4
NR8081
1. Playback buttons:
•
Previous file: Press to skip to the previous video file on the system.
•
Next file: Press to skip to the next video file on the system.
•
Slow: Press to slow playback / decrease playback speed.
•
Fast: Press to speed up playback / increase playback speed.
•
Play backwards: Press to play video backwards / pause video.
•
Play: Press to play video / pause video.
2. SHIFT: During text input, press to switch input types.
3. REC: Press to open manual recording controls.
4. FN: Performs special functions in some menus.
5. ESC: In menus, press to go back / exit menus. In playback, press to return to live
view.
6. Directional buttons:
•
: From live view, press once to open the System Information screen. In menus,
press to confirm menu options.
• Directional buttons: Press to move cursor in menus. In live view, press up to
change split screen layout; press left / right to select channels when single-channel mode is selected.
7. USB port: Connect a USB mouse (included) or connect a USB thumb drive (not included) for data backup or firmware upgrades.
8. Power button: Press and hold to power off the system (system password required).
Press to power the system back on.
#LX400021; r. 4.0/30344/30494; en-US
8
Front Panel (NR800 Series)
4
NR8163 / NR8326
1. Playback buttons:
•
Previous file: Press to skip to the previous video file on the system.
•
Next file: Press to skip to the next video file on the system.
•
Slow: Press to slow playback / decrease playback speed.
•
Fast: Press to speed up playback / increase playback speed.
•
Play backwards: Press to play video backwards / pause video.
•
Play: Press to play video / pause video.
2. REC: Press to open manual recording controls.
3. ESC: In menus, press to go back / exit menus. In playback, press to return to live
view.
4. SHIFT: During text input, press to switch input types.
5. FN: Performs special functions in some menus.
6. Directional buttons:
•
: From live view, press once to open the System Information screen. In menus,
press to confirm menu options.
• Directional buttons: Press to move cursor in menus. In live view, press up to
change split screen layout; press left / right to select channels when single-channel mode is selected.
7. USB port: Connect a USB mouse (included) or connect a USB thumb drive (not included) for data backup or firmware upgrades.
8. Power button: Press and hold to power off the system (system password required).
Press to power the system back on.
#LX400021; r. 4.0/30344/30494; en-US
9
Rear Panel (NR800 Series)
5
NR8081
1. Power input: Connect the included AC power cable.
2. On / Off switch: Turns the NVR on or off.
3. PoE Ports: Connect IP cameras. Integrated PoE (Power Over Ethernet) ports provide
power to cameras and video connection to NVR.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
5. VGA: Connect a VGA monitor (not included) to view the system interface.
6. Audio IN/Audio OUT: Service only; not supported.
7. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
8. R232: Service only; not supported.
9. USB port(s): Connect a USB mouse (included) or USB thumb drive (not included)
for data backup or firmware updates.
10. Alarm block: Connect alarm/sensor devices (not included).
NR8163 / NR8326
1. Power input: Connect the included AC power cable.
2. On / Off switch: Turns the NVR on or off.
3. PoE Ports: Connect IP cameras. Integrated PoE (Power Over Ethernet) ports provide
power to cameras and video connection to NVR.
4. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
5. Audio IN / Audio OUT: Service only; not supported.
6. HDMI: Connect to an HDMI monitor or TV (not included) to view the system interface.
7. USB port(s): Connect a USB mouse or USB thumb drive (not included) for data
backup or firmware updates.
8. eSATA: Connect a self-powered external eSATA HDD (not included) to extend the
storage capacity of the system or for data backup.
9. Alarm block: Connect alarm/sensor devices (not included).
10. VGA: Connect a VGA monitor (not included) to view the system interface.
11. RS232: Service only; not supported.
#LX400021; r. 4.0/30344/30494; en-US
10
Basic Setup (NR800 Series)
6
6.1 Step 1: Connect the IP Cameras
Option 1: Direct Connection to NVR
• Connect cameras to the PoE Ports on the rear panel of the NVR using Cat5e or high-
er grade Ethernet cable. The cameras will appear on the NVR without any additional
configuration when the system starts up.
NOTE
Compatible with select Lorex 1080p wired PoE HD cameras only. For a list of compatible cameras,
please visit www.lorextechnology.com/support
Option 2: Connect Cameras to Local Network
You can also connect your IP cameras to your local network for flexible installations. You
will need to do this to connect cameras 9~16 to 16–channel models. For details, see
6.11 Connecting Cameras to the Local Area Network (LAN), page 15.
6.2 Step 2: Connect the Mouse
• Connect a USB mouse (included) to one of the USB ports.
6.3 Step 3: Connect the Ethernet Cable
• Connect an Ethernet cable (included) to the LAN port on the rear panel of the system.
Connect the other end of the Ethernet cable to a router on your network.
#LX400021; r. 4.0/30344/30494; en-US
11
Basic Setup (NR800 Series)
6
6.4 Step 4: Connect the Monitor
• Connect the included HDMI cable from the HDMI port to the TV or monitor
(recommended).
OR
• Connect a VGA cable (not included) from the VGA port to the monitor.
1. VGA port.
2. HDMI port.
6.5 Step 5: Connect the Power Adapter to Power the NVR
• Connect the included AC power adapter to the NVR and connect the other end to a
power outlet or surge protector. Then turn the power switch to l to power on the NVR.
At startup, the system performs a basic system check and runs an initial loading sequence. After a few moments, the system loads a live display view.
6.6 Step 6: Upgrade Firmware to Latest Version (if Available)
If a firmware upgrade is available, you will be asked to install it once the system starts up.
It is required to upgrade your system firmware and client software or mobile apps to the
latest version to enable remote connection to the system.
If a firmware upgrade is available:
1. After startup, a notification will appear asking you to upgrade the firmware. Click OK
to upgrade.
2. Enter the system user name (default: admin) and password (default: 000000) and
click OK. Wait for the firmware update to complete. The system will restart once the
firmware has been upgraded.
WARNING
DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRMWARE INSTALLATION
6.7 Step 7: Verify Camera Image
• Power on the cameras, and then verify the camera video quality before mounting the
cameras to a permanent location.
• Mount the cameras under a sheltered location. Always verify the outdoor rating of your
camera before installing it in a permanent location.
#LX400021; r. 4.0/30344/30494; en-US
12
Basic Setup (NR800 Series)
6
6.8 Step 8: Set the Time
• Set the system time and date for accurate video time stamps. Videos with inaccurate
times may not be valid as surveillance evidence.
• For details on setting the system time, see 10 Setting The Time, page 27.
6.9 Default System Password & Port Numbers
CAUTION
By default, the system user name is admin and the password is 000000. It is essential that you create
your own password. For details, see 15 Managing Passwords and User Accounts, page 42.
The system requires a user name and password to log in to the system remotely using a
computer or mobile device. After logging on remotely the first time, you will be asked to
create a custom password for the system.
Local system and remote connectivity (LAN & Internet) user name and password:
• Username: admin
• Password: 000000
Default ports for DDNS remote access:
• Port 80 (HTTP port)
• Port 35000 (Client port)
6.9.1 FLIR Cloud™
This system features the exclusive FLIR Cloud™. This is a cloud service that allows you
to connect to your system over the Internet via a secure handshake with our servers. This
means you can easily connect to your system without requiring any network
configuration.
For details on setting up your system to connect to the Internet using FLIR
Cloud™:
• See 17 Connecting to Your System Over the Internet on PC or Mac, page 78.
OR
• See 19 Connecting to your System Using Smartphone or Tablet Apps, page 106.
Connectivity using Lorex’s free DDNS service is also available, but requires the ports
listed above to be port forwarded on your router.
6.10 Quick Access to System Information
To quickly open a window that displays vital system information:
• Right-click to open the Quick Menu and click Info. Enter the system user name (de-
fault: admin) and password (default: 000000).
OR
• Press the
button on the front panel.
OR
• Press the ENTER button on the remote control.
#LX400021; r. 4.0/30344/30494; en-US
13
Basic Setup (NR800 Series)
6
NOTE
The QR code shown in the System Info screen can be scanned during mobile setup to enter the system’s Device ID.
#LX400021; r. 4.0/30344/30494; en-US
14
Basic Setup (NR800 Series)
6
6.11 Connecting Cameras to the Local Area Network (LAN)
For flexibility, you may also connect IP cameras to the same Local Area Network (LAN)
as the NVR. This is accomplished by connecting the cameras to the same router as the
NVR.
For these installations, an external PoE switch (sold separately) or power adapter (sold
separately) must be used to provide power to each IP camera. You also must add the
cameras on the NVR before they will show a picture on the monitor or be recorded by
the NVR.
Follow the steps below to connect the cameras to the NVR over the LAN.
NOTE
• Compatible with Lorex 1080p wired PoE HD cameras only. For a list of compatible cameras, please
visit www.lorextechnology.com/support.
• Camera and NVR images in this section are used for illustration only.
Step 1 of 2 — Option A: Connecting cameras to your local network using a PoE
switch:
1. Connect an Ethernet cable from the LAN port on an external PoE switch (sold separately on www.lorextechnology.com) to your router using a CAT5e or higher Ethernet
cable. Connect the power cable to the PoE swtich and to a power outlet or surge
protector.
NOTE
Terminology may vary depending on the model of PoE switch you have.
2. Connect the IP cameras to the PoE switch using the Ethernet extension cables. The
PoE switch will provide power and video transmission the same way as your NVR.
#LX400021; r. 4.0/30344/30494; en-US
15
Basic Setup (NR800 Series)
6
Step 1 of 2 — Option B: Connecting cameras to your local network using power
adapters:
1. Connect each camera to a compatible power adapter (visit
www.lorextechnology.com for compatible power adapters for your cameras).
2. Connect the camera to your router using a CAT5e or higher Ethernet cable.
Step 2 of 2: Add the cameras to your NVR:
1. Right-click and select Device Search .
2. Log in using the admin account (default User Name: admin; default Password:
000000).
3. Click Device Search. The system searches the network for compatible cameras.
4. Check the camera(s) you would like to add.
#LX400021; r. 4.0/30344/30494; en-US
16
Basic Setup (NR800 Series)
6
5. Click Add. The Status indicator turns green to show the camera is successfully
connected.
6. Click OK to save changes.
NOTE
You can also add a camera to a specific channel by hovering the mouse over an empty channel in split-
screen view and clicking
. Then double-click the camera you would like to add and right click to exit.
#LX400021; r. 4.0/30344/30494; en-US
17
Mouse Control
7
The mouse is the primary control device for the system. To connect a USB mouse:
• Connect a USB mouse to the USB port on the front or rear panel.
1. Left-button:
• In live view, click to open the Navigation Bar. Right-click to close the navigation
bar.
• In live view, while in a split-screen display mode, double-click an individual chan-
nel to view it in full-screen. Double-click again to return to the split-screen display
mode.
• While navigating menus, click to open a menu option.
2. Right-button:
• During live view, right-click anywhere on the screen to open the Quick Menu.
• Within system menus, right-click to exit menus.
3. Scroll wheel: In live view, use the scroll wheel to zoom in/out.
#LX400021; r. 4.0/30344/30494; en-US
18
Remote Control
8
1. Power: Press and hold to power off the system. Press to power on.
2. Playback controls:
•
Pause/Play: In live view, press to enter playback mode. Press to play/pause
playback.
•
Reverse: Press to reverse playback/pause playback.
•
Fast: Press to increase playback speed.
•
Next: Press to skip to next video.
•
Previous: Press to skip to previous video.
•
Slow: Press for slow playback.
3. Esc: In menus, press to go back / exit menus. In playback, press to return to live view.
4. Directional keys:
• Enter: Press once to open the System Information screen; press twice to open
the Navigation Bar. Press to confirm menu selections.
• Press
to move the menu cursor.
• Press
to change menu options.
5. Mult: Press to switch between full-screen and split-screen layouts.
6. Number keys:
• 1~0: In live view, press to open channels in full-screen.
• In menus, press to input numbers or text input.
• Shift: Press to change input types.
7. Add: Configure remote control address. See below for details.
8. Rec: Press to open manual record menu.
9. Fn: Press to perform special functions in some menus.
8.1 Setting the Remote Control Address
If you have more than one system, you can set up your remote control to pair with a specific system.
#LX400021; r. 4.0/30344/30494; en-US
19
Remote Control
8
To set the remote control address:
1. Right-click and click Main Menu. Enter the system user name (default: admin) and
password (default: 000000).
2. Click
and then click Setting>General>General.
3. Under Device No., enter the address number you would like to assign to the remote
control.
4. Click OK.
5. Using the remote control, press Add. Then enter the address number and press
Enter.
NOTE
When entering the address number using the remote, make sure that you press three digits. A single-digit number should be preceded by two zeros. A two-digit number should be preceded by one
zero. For example, if you entered 8 as the Device No., you have to press Add then 008 on the
remote.
#LX400021; r. 4.0/30344/30494; en-US
20
Using the System
9
Use the system’s graphical on-screen display to navigate menus and configure options
and settings.
9.1 On-Screen Display
The system shows the following for all display views:
1. Display area:
• Double-click on a channel to view in full-screen; double-click again to return to split
screen.
• Right-click to open the Quick Menu.
• Left-click to open the Navigation Bar.
• Move the mouse to the top of a channel to view the Camera Toolbar.
• Click-and-drag cameras to rearrange the channel display. This does not affect the
channels each camera is connected or recording to.
2. Channel name
3. C: Camera is continuously recording.
4. M: Motion has been detected.
5. Date & time: Current system date and time. For details on setting the date and time,
see 10 Setting The Time, page 27.
#LX400021; r. 4.0/30344/30494; en-US
21
Using the System
9
9.2 Using the Quick Menu
The Quick menu gives you access to the system’s key functions. To access the Quick
Menu, right-click the screen during live view.
The Quick Menu has the following options:
• View: Select a camera in full-screen or select a multi-channel display.
• Pan/Tilt/Zoom: Access controls for PTZ cameras (not included).
• AutoFocus: Access zoom/focus controls for auto-focus cameras (not included).
• Camera Setting: Configure image settings for cameras.
• Info: Opens the system information window.
• Sequence: Click to start/stop sequence mode.
In sequence mode, the system will automatically cycle through connected cameras
every few seconds. A
will appear to show that sequence mode is on.
Click the icon to pause sequence mode on the channel that is currently shown (icon
changes to
). Click again to resume sequence mode.
Right-click and select Sequence to return to normal viewing mode.
• Disable Beep: Disable beeping alarms.
• Search: Search/playback recorded video. See 13 Search (Playback), page 32
• Manual Control: Click Record to open the Record menu to select manual recording
options. See 11.3 Setting up Scheduled or Manual Recording, page 28. Click Alarm
Output to control alarm ouput devices (not included).
• Device Search: Open the Device Search menu to manage IP cameras over the local
network.
• Main Menu: Open the Main Menu. See 16 Using the Main Menu, page 46.
9.3 Adjusting Camera Image Settings
Use the Camera menu to adjust image settings for your cameras.
To adjust image settings:
1. Right-click on the channel you would like to configure and select Camera Setting.
Enter the system password if prompted.
#LX400021; r. 4.0/30344/30494; en-US
22
Using the System
9
2. Configure the following settings as needed:
NOTE
The settings listed below are only shown if they are supported on the selected camera. Some camera models do not support all settings.
• Mirror: Select Enable to flip the image horizontally.
• Flip: Select Flip 180° to flip the image vertically, or select No Flip for the default
orientation.
• 3D Denoise: Select Enable to turn on the camera’s noise reduction feature. Noise
reduction will ensure a cleaner image, especially at night, and may reduce the
amount of disk space required to store video.
• BLC Mode: Select High or Low to enable back light compensation or Off to dis-
able. Back light compensation adjusts the lighting levels in the picture so you can
see objects in the foreground if there is a strong light source behind them.
• Scene Mode: The Scene Mode allows you to adjust white balance levels for the
camera. Select Schedule for the camera to automatically adjust the white balance. Select Sunny or Night to use preset white balance levels. Select Custom-
ized to manually set blue and red levels.
• DayLight: This setting sets the camera’s day/night mode. Select Colorful for the
camera to use color mode at all times. Select Schedule for the camera to automatically determine whether to use color or black and white mode. Select Black&-
White for the camera to use black and white mode at all times.
NOTE
It is recommended to select Schedule mode, as using Colorful may impact the camera’s performance at night.
• Saturation: Adjust the vibrancy of colors in the image.
• Hue: Adjust the color hue of the image.
• Brightness: Adjust the image brightness.
• Contrast: Adjust the image contrast.
3. Click OK to save changes.
NOTE
You must save changes to apply settings changes. It is recommended to adjust one setting at a
time so you can see the results of each change. Click Default to reset the camera to default image
settings.
9.4 Using the Navigation Bar
The Navigation Bar gives quick access to certain functions and menus.
#LX400021; r. 4.0/30344/30494; en-US
23
Using the System
9
To open the Navigation bar:
• Left click on the screen to open the Navigation Bar. The Navigation Bar has the follow-
ing options:
1. Main Menu.
2. Collapse.
3. Select display layout.
4. Sequence: Click to start/stop sequence mode.
5. PTZ: Click to open PTZ controls.
6. Camera: Click to open camera image settings.
7. Search: Search and playback recorded video. See 18.4 Playback, page 89.
8. Alarm Status: View alarms in progress. See 16.2.4 Event Info, page 53.
9. Channel Info: Click to access status information about connected cameras.
10. Device Search: Manage IP cameras over the network.
11. Network: Configure network settings for your system. See 16.3.1 Network, page
56.
12. HDD Manager: Manage hard drives connected to the system. See 16.3.20 For-
matting the Hard Drive, page 70.
13. USB Manager: Click to access options for connected USB thumb drives (not included). You can backup video, logs, or system configurations and install firmware
upgrades.
14. System Upgrade: Check for firmware upgrades. The system must be connected
to the Internet to check for or receive updates.
9.5 Using the Camera Toolbar
The Camera Toolbar is used to perform actions on a specific channel.
To access the Camera Toolbar:
• Move the mouse to the top of the channel display. The Camera Toolbar has the following options:
1. Instant Playback.
2. Zoom.
3. Real-time Backup.
4. Snapshot.
5. Audio Talk.
6. Remote Device.
9.5.1 Using Instant Playback
Instant Playback is used to playback the last 5~60 minutes of video from the selected
channel. You can also access Quick Playback in split-screen mode, while still viewing
live video from the other channels.
#LX400021; r. 4.0/30344/30494; en-US
24
Using the System
9
To use Instant Playback:
1. Move your mouse to the top of the channel display and click
.
NOTE
By default, the system will begin playback from 5 minutes ago. You can increase this to up to 60 minutes using the Realtime Play setting in Main Menu>Setting>General.
2. Right-click to exit Instant Playback.
9.5.2 Using Digital Zoom in Live Display
1. Move your mouse to the top of the channel display and click
to activate digital
zoom. A check mark will appear in the icon to indicate digital zoom is activated.
NOTE
You may activate digital zoom in multiple channels at the same time.
2. Click and drag inside the channel to zoom in.
• Click and drag to pan the zoom area.
• Right-click to zoom out and select a new zoom area.
• Click
to disable digital zoom. Note that the channel will remain at the same
zoom level until you right-click inside it.
9.5.3 Using Real-time Backup
Real-time backup allows you to save footage from the live display to a USB thumb drive
(not included) or external hard drive (not included).
To use Real-time Backup:
1. Insert the USB thumb drive or external hard drive into one of the USB ports on the
system.
2. Move your mouse to the top of the channel display and click
to start Real-time
Backup.
3. Click
again to end Real-time Backup. The file is saved to your USB device.
NOTE
If the system prompts you to log in, you will need to click
again to start Real-time Backup after
logging in.
9.6 Using the Virtual Keyboard
The Virtual Keyboard is used to input text or numeric values in certain menus.
#LX400021; r. 4.0/30344/30494; en-US
25
Using the System
9
1. Backspace.
2. Enter capital letters.
3. Confirm entry.
9.7 Adjusting Camera Zoom & Focus
Auto-focus cameras (not included) have a motorized lens. The motorized lens allows you
to control the zoom and focus settings using the menus on your system.
To adjust the camera’s zoom focus:
1. Click on the channel where the motorized lens camera is connected.
2. Right-click and then click AutoFocus. Log into the system using the admin account
(default user name is admin and password is 000000).
3. Adjust the zoom and focus using the following options:
• Use the sliders to adjust the Zoom WIDE or Focus settings for the camera.
NOTE
Hover the mouse over the sliders and use the mouse wheel to adjust by 1% at a time.
• Click the AutoFocus button to automatically focus the camera at the current zoom
level.
• Click Reset to return the camera to the default zoom and focus levels.
• Click Refresh to refresh the settings shown on the system if someone has used the
manual lens controls on the camera.
4. Right-click to exit and save changes.
#LX400021; r. 4.0/30344/30494; en-US
26
Setting The Time
10
CAUTION
It is highly recommended to set the date and time when first setting up your system.
Inaccurate time stamps may render your footage unusable for court evidence.
To set the date and time:
1. In the main viewing mode, right-click and click Main Menu.
2. Log in using the system user name (default: admin) and password (default: 000000).
3. Click
and select Setting. Click General and select the Date&Time tab.
4. Under System Time, enter the current time and select your time zone. Then, click
OK.
5. Check the DSTcheck box to enable auto Daylight Savings Time updates.
NOTE
• You can adjust the Start Time and End Time for Daylights Savings Time if the default settings
do not match your region.
• Under DST Type, select Day of Week to set the start and end time based on a day and week (e.
g. 2nd Sunday in March), or select Date to set the start and end time to a specific date.
6. (Optional) Check the NTP check box to sync your system with an Internet time server.
Click Manual Update to instantly update the time.
NOTE
• Your system must have a constant connection to the Internet to use NTP.
• (Advanced) You can enter a custom NTP server under Server IP and Port, and you can select
how often the system will sync the time using Interval.
7. Click Apply to save changes.
#LX400021; r. 4.0/30344/30494; en-US
27
Recording
11
By default, the system is set to immediately record video from connected cameras continuously, 24 hours a day. You can customize the recording settings according to your
needs.

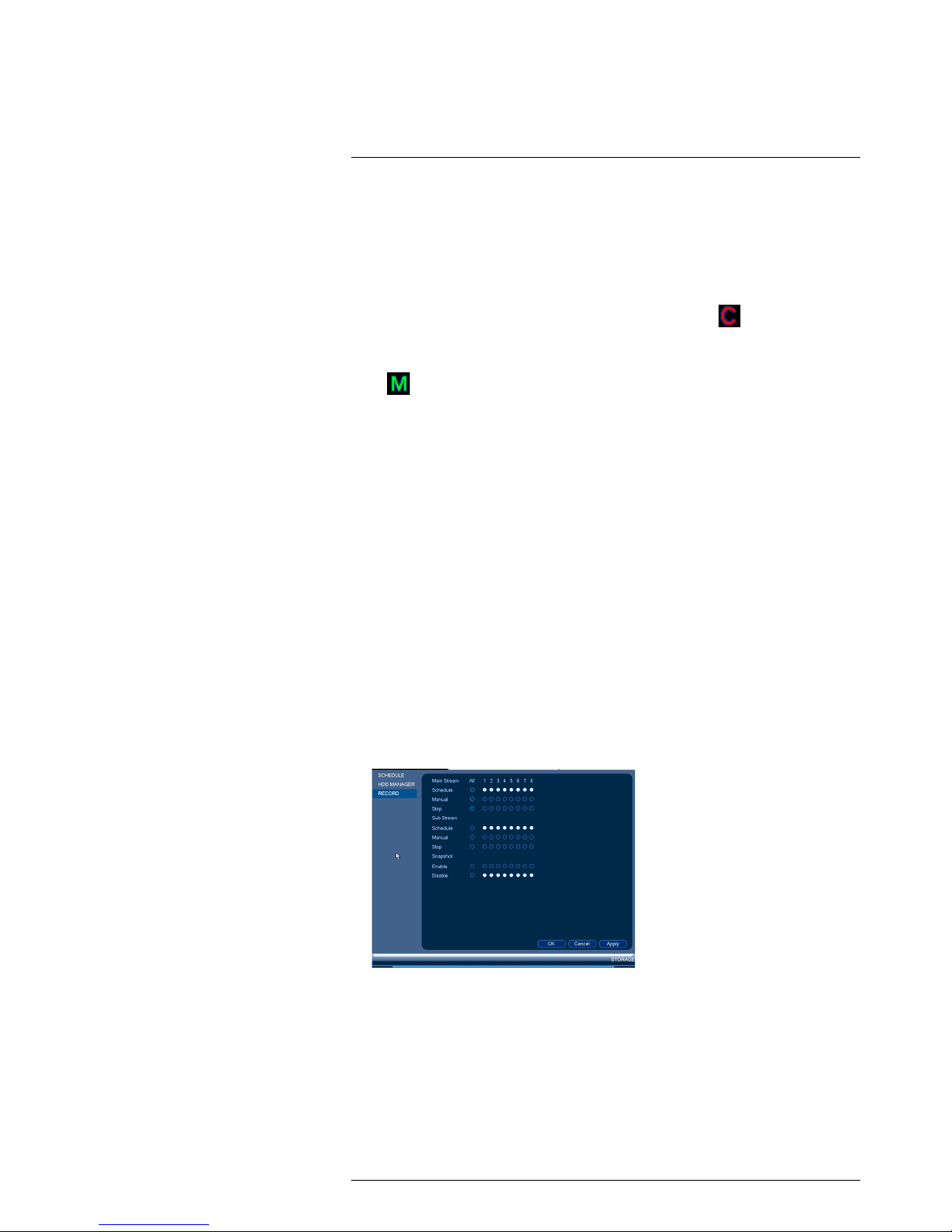

11.1 Video Recording Types
The system supports the following recording types.
• Recording—Continuous: Normal, continuous recording. A
icon is shown when
recording is in progress.
• Recording—Motion: The system records when motion is detected by the camera.
An
icon is shown when motion is detected.
11.2 Main Stream and Sub Stream
The system employs two video recording streams, a Main Stream and a Sub Stream.
Both Main Stream and Sub Stream recording are enabled by default.
The Main Stream records high quality video to your system’s hard drive.
The Sub Stream records lower resolution video for efficient streaming to devices over
the Internet. Sub Stream recording must be enabled to view video recordings on a computer or mobile device.
You can configure the video quality parameters for the Main Stream or Sub Stream. For
details, see 16.1.6 Configuring Recording Quality, page 48.
11.3 Setting up Scheduled or Manual Recording
You can set the system to record based on a schedule or you can manually turn recording on and off. By default, the system is set to record on an always on recording
schedule.
To configure the recording schedule, see 16.3.15 Configuring the Video Recording
Schedule, page 65.
To select between scheduled and manual recording:
1. Right-click and then select Manual>Record.
2. Under Main Stream, select how the system will record the Main Stream for each
channel.
• Schedule: Main Stream Recording will follow the recording schedule.
• Manual: The system will record the Main Stream continuously as long as this op-
tion is checked.
• Stop: The system will not record the Main Stream for this channel. This option is
not recommended.
#LX400021; r. 4.0/30344/30494; en-US
28
Recording11
3. Under Sub Stream, select how the system will record the Sub Stream for each
channel.
• Schedule: Sub Stream Recording will follow the recording schedule.
• Manual: The system will record the Sub Stream continuously as long as this op-
tion is checked.
• Stop: The system will not record the Sub Stream for this channel.
4. Under Snapshot, select Enable to enable snapshot recording on each channel. Or,
select Disable to disable snapshot recording.
5. Click OK to save changes.
11.4 Configuring Hard Drive Overwrite
When the hard drive is full, the system will overwrite the oldest recordings by default.
This is recommended, as it makes sure that your system will continue to record without
any input from you. You can also set the system to stop recording once the hard drive is
full.
To configure hard drive overwrite:
1. Right-click and select Main Menu. Click
> Setting>General>General.
2. Under HDD Full, select Overwrite for the system to overwrite the oldest recordings
when the hard drive is full. Or, select Stop Record for the system to stop recording
when the hard drive is full.
3. Click OK to save changes.
#LX400021; r. 4.0/30344/30494; en-US
29
Recording
12
By default, the system is set to immediately record video from connected cameras continuously, 24 hours a day. You can customize the recording settings according to your
needs.
12.1 Video Recording Types
The system supports the following recording types.
• Recording—Continuous: Normal, continuous recording. A
icon is shown when
recording is in progress.
• Recording—Motion: The system records when motion is detected by the camera.
An
icon is shown when motion is detected.
12.2 Main Stream and Sub Stream
The system employs two video recording streams, a Main Stream and a Sub Stream.
Both Main Stream and Sub Stream recording are enabled by default.
The Main Stream records high quality video to your system’s hard drive.
The Sub Stream records lower resolution video for efficient streaming to devices over
the Internet. Sub Stream recording must be enabled to view video recordings on a computer or mobile device.
You can configure the video quality parameters for the Main Stream or Sub Stream. For
details, see 16.1.6 Configuring Recording Quality, page 48.
12.3 Setting up Scheduled or Manual Recording
You can set the system to record based on a schedule or you can manually turn recording on and off. By default, the system is set to record on an always on recording
schedule.
To configure the recording schedule, see 16.3.15 Configuring the Video Recording
Schedule, page 65.
To select between scheduled and manual recording:
1. Right-click and then select Manual Control>Record.
2. Under Main Stream, select how the system will record the Main Stream for each
channel.
• Schedule: Main Stream Recording will follow the recording schedule.
• Manual: The system will record the Main Stream continuously as long as this op-
tion is checked.
• Off: The system will not record the Main Stream for this channel. This option is not
recommended.
#LX400021; r. 4.0/30344/30494; en-US
30
Recording12
3. Under Sub Stream, select how the system will record the Sub Stream for each
channel.
• Schedule: Sub Stream Recording will follow the recording schedule.
• Manual: The system will record the Sub Stream continuously as long as this op-
tion is checked.
• Off: The system will not record the Sub Stream for this channel.
4. Under Snapshot, select Enable to enable snapshot recording on each channel. Or,
select Disable to disable snapshot recording.
5. Click OK to save changes.
12.4 Configuring Hard Drive Overwrite
When the hard drive is full, the system will overwrite the oldest recordings by default.
This is recommended, as it makes sure that your system will continue to record without
any input from you. You can also set the system to stop recording once the hard drive is
full.
To configure hard drive overwrite:
1. Right-click and select Main Menu. Click
> Setting>General>General.
2. Under HDD Full, select Overwrite for the system to overwrite the oldest recordings
when the hard drive is full. Or, select Stop Record for the system to stop recording
when the hard drive is full.
3. Click OK to save changes.
#LX400021; r. 4.0/30344/30494; en-US
31
Search (Playback)
13
Search mode is used to navigate and playback recorded video files on the system.
13.1 Playing Back Video from the Hard Drive
1. From live view, right-click and then click Search.
2. Log in using the system user name (default: admin) and password (default: 000000).
3. Configure the following:
3.1. Use the calendar on the right to select the day to playback.
3.2. Use the drop-down menus to select the channels you would like to playback.
NOTE
Click the display options (
) to playback multiple channels simultaneously.
3.3. Click inside the video bar to select the playback time. The system will begin
playing back at the selected time.
#LX400021; r. 4.0/30344/30494; en-US
32
Search (Playback)
13
13.2 Playback Controls
1. Select playback device.
2. Calendar: Select the day to playback.
3. Channel select: Select channels to playback.
4. Video clip backup: Select video clip start and end times.
5. Backup video clip: Click to save selected clip.
6. Playback Bar: Click inside the bar to select a playback time.
7. Zoom Playback Bar: Select scope of time bar.
8. Recording types: Click to show/hide recording types.
9. Speed up
10. Slow
11. Previous/next frame
12. Play backward
13. Stop
14. Play
13.3 Playing Back from a USB Drive
If you have video files saved to a USB thumb drive (not included) or external hard drive
(not included), you can play them back using the system.
To play back from a USB drive:
1. Connect the USB thumb drive (not included) or USB external hard drive (not included) with video files on it into a USB port on the system.
2. From live view, right-click and click Search.
3. Log in using the system user name (default: admin) and password (default: 000000).
4. Click From HDD and select From IO Device. Click Browse to open the USB drive
and manually select the video file.
5. Double click the video file you would like to open.
#LX400021; r. 4.0/30344/30494; en-US
33
Search (Playback)
13
13.4 Using Smart Search
Smart Search makes it easy to review motion events in specific zones of your video
stream. Select the areas that interest you and Smart Search plays your recording from
the time when your camera detects motion in those areas. To set up smart search:
1. In the multiple-channel playback mode, double-click a channel and then click the
Smart Search icon
.
2. To create a Smart Search zone, left-click and select the area that you want to detect
motion.
3. Repeat these steps for each channel that you want to use Smart Search.
4. Click
to start the Smart Search playback. To stop the Smart Search playback,
click
again.
#LX400021; r. 4.0/30344/30494; en-US
34
Backup
14
Backup video files to external USB thumb drive (not included) or self-powered USB external hard drive (not included).
NOTE
USB external hard drives (not included) must be formatted in the FAT32 file format to be used with the
system.
14.1 Formatting the USB Thumb Drive
It is recommended to format your USB thumb drive (not included) before using it with the
system.
CAUTION
Formatting the USB device will permanently erase all data.
To format a USB device:
1. Insert a USB thumb drive (not included) into one of the USB ports.
2. From live view, right-click and then select Main Menu. Login if prompted.
3. Click
>Backup.
4. Click Browse .
5. Click Format. Click OK to confirm.
14.2 Backing up Video
1. Insert a USB thumb drive (not included) into one of the USB ports.
2. From live view, right-click and then select Main Menu. Login if prompted.
3. Click
>Backup.
#LX400021; r. 4.0/30344/30494; en-US
35
Backup14
4. Configure your search options:
• Type: Select the recording type you would like to search for or select All to search
all recording types.
• Record CH: Select the channel you would like to search or select All to search all
channels.
• File Format: Select DAV to save files to save files to .dav format. You can use the
Video Player from www.lorextechnology.com/support to playback .dav files on PC
or Mac. Or, select ASF for .asf format. You can playback .asf files in VLC Media
Player (free download from www.videolan.org) on PC or Mac.
NOTE
VLC Media Player is a free software available from www.videolan.org. VLC Media Player is not
supported by Lorex.
• Start Time/End Time: Select the start and end time for your search.
5. Click Add. A list of files that match your search criteria appears.
6. Check files you would like to backup and then click Start. Wait for the backup to
complete.
NOTE
HD video files saved on the system may take up a large amount of disk space. The size of video
files selected and the amount of free space on your USB device is shown at the top of the screen.
14.3 Using Video Clip Backup
Video clip backup allows you to select a duration of video during playback mode and
save it to a USB device (not included).
To use Video Clip Backup:
1. Insert a USB thumb drive (not included) or USB external hard drive (not included) into
one of the USB ports.
2. Start playing back video using the steps in 13.1 Playing Back Video from the Hard
Drive, page 32.
3. Click
to mark the beginning of the video clip. Click again to mark the end
of the video clip.
4. Click
to open the Backup menu.
#LX400021; r. 4.0/30344/30494; en-US
36
Backup14
5. Configure the following:
5.1. Check the USB device where you would like to save the file.
5.2. Check the files you would like to back up.
5.3. Click Backup then click Start. Wait for the backup to complete before remov-
ing the USB thumb drive.
14.4 Viewing Backup Files
To playback .dav backup video files, a Player is available for PC and Mac at
www.lorextechnology.com/support. The PC version of the player is automatically saved
to your USB device (not included) when you create a backup file.
14.4.1 Viewing Backup Files on PC
You can download Video Player for PC from www.lorextechnology.com/support.
To view backup video files using the Player on PC:
1. Download and install the Video Player for PC from
www.lorextechnology.com/support.
2. Click
to open a back up video file.
#LX400021; r. 4.0/30344/30494; en-US
37
Backup14
3. Use the Player controls to control playback or select other files for playback.
Video Player Controls
1. File List: Double-click to open a file.
2. Display Area: Select the split-screen mode. Double-click a video file to expand.
Click the controls inside the display area to do the following:
•
: View information about the video file.
•
: Start/stop a manual recording from the video file.
•
: Take a snapshot from the video file.
•
: Close the video file.
3. Hide/show file list.
4. Playback controls:
•
: Playback files in sequence.
•
: Synchronize playback times.
•
: Play/pause playback.
•
: Stop playback.
•
: Previous frame.
•
: Next frame.
•
: Playback speed.
•
: Volume control.
5. Zoom Timeline.
#LX400021; r. 4.0/30344/30494; en-US
38
Backup14
6. Add Files: Click to open back up video files.
7. Digital Zoom: Click to activate digital zoom mode. Click and drag in the video to
zoom in. Right-click to unzoom.
8. Drag: When digital zoom is activated, click to activate drag mode. Then click and
drag in the video to view different areas of the image.
9. Full-screen: Click to open the player in full screen. Press ESC to exit full screen.
10. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and video files saved
from the player.
14.4.2 Viewing Backup Files on Mac
A Video Player for Mac is available from www.lorextechnology.com/support.
To view backup video files using the Player on Mac:
1. Download Video Player for Mac from www.lorextechnology.com/support.
2. Double click the downloaded file in Safari to extract the Smart Player app file.
3. Drag the Smart Player app to your Desktop or Applications list. Double click Smart
Player (
) to open it.
#LX400021; r. 4.0/30344/30494; en-US
39
Backup14
4. Click
to open a back up video file in another location.
5. Use the Player controls to control playback or select other files for playback.
Video Player Controls
1. File List: Double-click to open a file.
2. Display Area: Select the split-screen mode. Double-click a video file to expand.
Click the controls inside the display area to do the following:
•
: View information about the video file.
•
: Take a snapshot from the video file.
•
: Close the video file.
3. Hide/show file list.
#LX400021; r. 4.0/30344/30494; en-US
40
Backup14
4. Playback controls:
•
: When a video file ends, this button lets you select if you want the video player
to repeat the same file or play the next file.
•
: Play/pause playback.
•
: Stop playback.
•
: Previous file.
•
: Next file.
•
: Playback speed.
•
: Volume control.
5. Zoom Timeline.
6. Add Files: Click to open back up video files.
7. Full-screen: Click to open the player in full screen. Press ESC to exit full screen.
8. Config: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and control the aspect
ratio.
9. About: Click to see version information for the Player software.
#LX400021; r. 4.0/30344/30494; en-US
41
Managing Passwords and User
Accounts
15
By default, the system user name is admin and the password is 000000. Passwords are
enabled by default and are required to access the Main Menu or connect to the system
using a computer or mobile device. You will be prompted to create a custom password
after you connect for the first time.
NOTE
If you forget the password to the system, contact technical support to have it reset.
The system includes the following default accounts:
• admin: The admin account has full access to the system, may configure all system
settings, and can manage user accounts.
• default: The default account is a limited user account that may only view live video
from the cameras.
For security reasons, it is essential that you change the password on your system. By
default, the system password is enabled.
15.1 Changing Passwords
You can change the system password of the admin and user accounts from the Users
menu.
To modify an account password:
1. From Live View, right-click and then select Main Menu.
2. If prompted, enter the system user name (default: admin) and password (default:
000000).
3. Click
and select Setting. Select Account.
4. Click
next to the user account you would like to modify.
5. Check Modify Password.
6. Under Old Password, enter the account’s previous password.
7. Under New Password, enter a new 6 character password for the account. Repeat
the new password under Confirm Password.
8. Click OK to save changes.
15.2 Adding Users
You can allow multiple users to log in to the system. When adding different users, you
can assign what menus they have access to. For example, you may want your friend to
monitor your system while you are away, while not giving full access to your system.
To add a user account:
1. From Live View, right-click and then select Main Menu.
#LX400021; r. 4.0/30344/30494; en-US
42
Managing Passwords and User Accounts15
2. If prompted, enter the system user name (default: admin) and password (default:
000000).
3. Click
and select Setting. Select Account.
4. Click Add User.
5. Configure the following:
• Username: Enter a name for the user account.
• Password: Enter a 6 character password for the user account. Enter the pass-
word again under Confirm Password.
• Memo (optional): Enter a description of the user account.
• Group: Select the group you would like to assign to this user account. A user ac-
count cannot be given permissions its group does not have.
• Multiuser: Check to enable this user account to be used to login from more than
one device at the same time.
• Authority: Check the permissions you would like the user account to have. Under
the System tab, select the menus the user account may access. Under the Play-
back tab, select which channels the user account may access recorded video
from. Under the Covert tab, select the channels the user account may view live
video from.
6. Click OK to save changes.
Now, you can log in to the system locally, or remotely using the user name and password
you created. When logging into the system with a user account, the user will only have
access to the menus you assigned.
15.3 Modifying Users
1. In the Account menu, click
next to the user account you would like to modify.
2. Update the user’s account details as needed, and then click OK to save changes.
15.4 Deleting Users
1. In the Account menu, click
next to the user account you would like to delete.
2. Click OK to confirm.
NOTE
The admin and default user accounts cannot be deleted from the system.
15.5 Account Groups
Account groups can be used to easily manage permissions for multiple user accounts.
User accounts can be given all the permissions of a group, but cannot be given permissions that the group does not have.
#LX400021; r. 4.0/30344/30494; en-US
43
Managing Passwords and User Accounts15
The system includes the following groups by default:
• admin: Accounts in the admin group are system administrators. They have full access
to the system, may configure all system settings, and can manage user accounts.
• user: Accounts in the user group are normal users. They have limited access to sys-
tem menus.
15.6 Adding Groups
1. From Live View, right-click and then select Main Menu.
2. If prompted, enter the system user name (default: admin) and password (default:
000000).
3. Click
and select Setting.
4. Click Account and select the Group tab.
5. Click Add Group.
6. Configure the following:
• Under Group Name, enter a name for the group.
• Under Memo, enter an optional comment for this group.
• Under Authority, check the permissions that the group will have. User accounts
assigned to this group can not be given any permissions the group does not have.
7. Click OK to save changes.
15.7 Modifying Groups
1. In the Group tab, click
next to the group you would like to modify.
2. Update the group’s details as needed, and then click OK to save changes.
15.8 Deleting Groups
1. In the Account menu, click
next to the user account you would like to delete.
#LX400021; r. 4.0/30344/30494; en-US
44
Managing Passwords and User Accounts15
2. Click OK to confirm.
NOTE
The admin and user groups cannot be deleted from the system.
#LX400021; r. 4.0/30344/30494; en-US
45
Using the Main Menu
16
To open the Main Menu:
• Using the Mouse: Right-click and click Main Menu.
NOTE
The system password may be required to access the Main Menu. By default the user name is admin and the password is 000000.
1. SEARCH: Open Search/Playback mode. For details, see 13 Search (Playback),
page 32
2. BACKUP: Export files to USB device. For details, see 14 Backup, page 35.
3. CAMERA: Open the menu to manage IP cameras connected to the network (see
6.11 Connecting Cameras to the Local Area Network (LAN) for details), set recording
parameters, and assign custom titles for your cameras.
4. INFO: View system information.
5. SETTING: Configure general system, schedule, network, recording, display, and motion settings. Restore system to factory defaults.
6. SHUTDOWN: Logout, restart, or shutdown the system.
16.1 Camera
Open the Remote Device menu to manage IP cameras, set recording parameters, and
assign custom titles for your cameras.
16.1.1 Remote Device
The Remote Device menus allow you to add cameras over the local area network (LAN),
configure camera image settings, view camera status, and upgrade camera firmware.
• See 6.11 Connecting Cameras to the Local Area Network (LAN) for instructions on
connecting cameras to the NVR over the network.
• See 9.3 Adjusting Camera Image Settings, page 22 for details on setting up camera
image settings.
16.1.2 Viewing Camera Status
The Camera Status menu allows you to view the connection and alarm status for all connected cameras.
#LX400021; r. 4.0/30344/30494; en-US
46
Using the Main Menu16
To view camera status:
1. From the Main Menu, click
and select Remote Device>Status.
16.1.3 Viewing Camera Firmware Versions
You can use the Firmware menu to view firmware versions for connected cameras.
To view camera firmware versions:
1. From the Main Menu, click
and select Remote Device>Firmware.
16.1.4 Upgrading Camera Firmware
You can update the firmware for connected IP cameras through the NVR. Firmware upgrades provide enhanced functionality for the cameras. Lorex provides firmware upgrades for free from www.lorextechnology.com/support.
To upgrade the camera firmware:
1. Download the camera firmware from www.lorextechnology.com/support if one is
available.
NOTE
Make sure that the firmware file you are using is compatible with your IP camera model.
2. Extract the firmware file and copy it to a USB thumb drive (not included).
3. Insert the USB thumb drive (not included) into a USB port on the system.
#LX400021; r. 4.0/30344/30494; en-US
47
Using the Main Menu16
4. Right-click and select Main Menu. Click
and select Remote
Device>Upgrade.
5. Click Select. Select the firmware file on the USB drive and click OK.
6. Check the cameras you would like to apply the upgrade to in the list and then click
Start Upgrade.
CAUTION
Wait for the firmware upgrade to complete before turning off or unplugging the cameras or NVR.
The cameras will restart during the firmware update process.
16.1.5 Recording
The Recording menu allows you to set recording parameters for your cameras, such as
the resolution and frame rate.
16.1.6 Configuring Recording Quality
The system employs two video recording streams, a Main Stream and a Sub Stream.
The Main Stream records high quality video to your system’s hard drive. The Sub Stream
records lower resolution video for efficient streaming to devices over the Internet. You
can customize the video quality settings for these streams according to your needs.
To configure recording quality:
1. From the Main Menu, click
and select Recording>Recording.
2. Under Channel, select the camera you would like to configure.
#LX400021; r. 4.0/30344/30494; en-US
48
Using the Main Menu16
3. Configure the following settings. Settings for the Main Stream are in the left column.
Settings for the Sub Stream are in the right column.
• Resolution: Select the resolution that you want to use to record the selected
channel. Higher resolutions create a more detailed image, but take up more hard
drive space to record and require more bandwidth to stream to connected computers or mobile devices.
NOTE
Available resolutions for the Main Stream and Sub Stream depend on the model of camera that
is connected to the system.
• Compression: Select the video compression type that will be used. It is recom-
mended to select H.264, as it will have the best performance and use the least
amount of disk space.
• Frame Rate (FPS): Select the frame rate in Frames Per Second (FPS) that each
stream will record at. A higher frame rate provides a smoother picture, but requires
more storage and bandwidth.
• Bit Rate Type: Select CBR (Constant Bit Rate) or VBR (Variable Bit Rate) to de-
termine the bit rate type. If you select VBR, you can set the video quality setting
between 1 and 6. If you select VBR, select the Quality from 1 (lowest) to 6
(highest).
• Bit Rate (Kbps): Select the bit rate for each recording stream. A higher bit rate re-
sults in a better image, but increases the amount of hard drive space or bandwidth
required.
NOTE
The Audio/Video setting is not supported.
4. (Optional) Click the Copy button to copy recording settings to other channels.
5. Click OK to save changes.
16.1.7 Configuring Snapshot Recording Settings
The system can be set to record snapshot images when a camera detects motion. These
snapshots can be viewed through the Search menu or can be attached to email alerts
and push notifications. The Snapshot tab in the Recording menu controls the quality and
recording parameters for each camera.
NOTE
In order to enable Snapshot recording, the following menu options must be configured:
• The Snapshot schedule must be enabled for times that you would like to save snapshots. See
16.3.17 Configuring the Snapshot Schedule, page 66.
• Snapshot recording must be enabled for motion detection in the Event menu. See 16.3.8 Configur-
ing Motion Detection, page 60.
#LX400021; r. 4.0/30344/30494; en-US
49
Using the Main Menu16
To configure snapshot recording settings:
1. From the Main Menu, click
and select Recording>Snapshot.
2. Under Snap Number, select the number of snapshots the system will take when the
snapshot button is pressed.
3. Configure the following settings for snapshots saved automatically from motion detection or the snapshot schedule:
• Channel: Select the channel you would like to configure.
• Mode: Select Timing for the system to take snapshots according to the snapshot
schedule (see 16.3.17 Configuring the Snapshot Schedule, page 66) Select Trig-
ger for the system to take snapshots only when triggered by motion detection
(snapshot must be enabled in the Motion Detect menu; see 16.3.8 Configuring
Motion Detection, page 60).
• Image Size: The image size is the same as the Main Stream resolution of the
camera.
• Image Quality: Select the snapshot image quality between 1 (lowest) and 6
(highest)
• Snapshot Frequency: Select the number of snapshots (up to 9) the system will
take each time.
4. Click OK to save changes.
16.1.8 Creating Custom Channel Names
You can assign custom names to your cameras. For example, you can name your cameras based on their location (e.g. hallway or front door).
To create custom channel names:
1. From the Main Menu, click
and select Channel Name.
2. Enter a custom name for each channel.
#LX400021; r. 4.0/30344/30494; en-US
50
Using the Main Menu16
3. Click OK to save changes.
#LX400021; r. 4.0/30344/30494; en-US
51
Using the Main Menu16
16.2 Info
Info contains menus that show you system information.
16.2.1 HDD Info
The HDD Info sub-menu shows information related to the hard drives installed in the system, including capacity, status, and type.
To access the HDD Info menu:
• From the Main Menu, click
and then click Info>HDD Info.
16.2.2 Record Info
The Record Info menu shows the start and end times of recordings saved on the hard
drive.
#LX400021; r. 4.0/30344/30494; en-US
52
Using the Main Menu16
To access the Record Info menu:
• From the Main Menu, click
and then select Info>Record Info.
16.2.3 Version
The Version sub-menu allows you to view information about the current firmware installed
on the system.
To access the Version menu:
• From the Main Menu, click
and then click Info>Version.
16.2.4 Event Info
The Event Info menu shows you a display of system alarms. Activated alarms are highlighted in white. Additional info such as channels that are currently detecting motion is
shown.
The following alarms are shown in the Alarm Status menu:
• No HDD: No hard drive is detected.
• Disk Error: Hard drive error detected.
• Disk Full: Hard drive is full.
• IP Conflict: More than one device on the network is using the same IP address.
• Net Conflict: System is not connected to the network.
• MAC Conflict: More than one device on the network is using the same MAC address.
• External Alarm: Sensor/alarm device (not included) has been triggered.
• Video Loss: Shows disconnected channels.
• Camera Masking: Camera masking alarm has been triggered (e.g. someone has
covered the camera lens).
• Motion Detect: Shows channels with active motion alarms.
• IPC Ext Alarm: Alarm/sensor device (not included) connected to camera has been
triggered.
• IPC Offline Alarm: IP camera is offline.
#LX400021; r. 4.0/30344/30494; en-US
53
Using the Main Menu16
To access the Event Info menu:
• From the Main Menu, click
and then select Event.
16.2.5 Online Users
The Online Users menu shows a list of users connected to the system using computers
or mobile devices.
To access Online Users:
• From the Main Menu, click and then select Network.
16.2.6 Load
The Load menu shows you the network traffic your system is sending and receiving.
To access Load:
• From the Main Menu, click
and then select Network>Load.
16.2.7 Test
#LX400021; r. 4.0/30344/30494; en-US
54
Using the Main Menu16
The Test menu allows you to test if your system can connect to other devices over the
LAN or Internet. You can enter the IP address of a device and click Test to determine if
your system can connect to it.
To access Test:
• From the Main Menu, click
and then select Network>Test.
16.2.8 BPS
The BPS sub-menu shows the bitrates of connected cameras. The bitrate is the amount
of data the camera is sending to the system.
To access BPS:
• From the Main Menu, click
and then select BPS.
16.2.9 Log
The Log sub-menu allows you to search for system logs.
To search for system logs:
1. From the Main Menu, click
and then select Log.
2. Under Type, select the log type to search for.
3. Under Start Time and End Time, select the start and end time for your search.
4. Click Search.
5. (Optional) Click Backup to export logs to a USB thumb drive connected to the
system.
#LX400021; r. 4.0/30344/30494; en-US
55
Using the Main Menu16
16.3 Setting
The Setting menu allows you to configure general system, schedule, network, recording,
display, and motion settings. It also allows you to restore the system to factory defaults.
16.3.1 Network
The Network menu allows you to configure network parameters for your system.
16.3.2 Selecting DHCP or Static IP Address (TCP/IP)
The TCP/IP menu allows you to configure IP address settings.
To configure IP address settings:
1. From the Main Menu, click
and then select Network>TCP/IP.
2. Check DHCP (recommended) to let the system automatically obtain an IP address
from the router or uncheck to assign a static IP address.
If you uncheck DHCP, configure the following:
• IP Address: Enter the IP address you would like to assign to the system. Make
sure that no other device on your network is using the same IP address.
• Subnet Mask: Enter the subnet mask for your network.
• Default Gateway: Enter the gateway address for your network.
• Preferred DNS: Enter the address of your primary DNS server.
• Alternate DNS: Enter the address of your secondary DNS server.
3. Click OK to save changes.
16.3.3 Configuring System Ports (Connection)
The Connection menu allows you to configure ports used by the system. Please note that
port forwarding is not required to use FLIR Cloud™ or to connect using the apps.
#LX400021; r. 4.0/30344/30494; en-US
56
Using the Main Menu16
If you are using DDNS connectivity, port forwarding is required for the HTTP Port (defaut:
80) and TCP (Client Port) (default: 35000).
To configure system ports:
1. From the Main Menu, click
and then select Network>Connection.
2. Configure the ports as needed and click OK to save changes.
NOTE
Up to 3 devices may connect to the system at the same time.
16.3.4 Configuring DDNS Settings
Lorex DDNS is available as an optional connectivity option. Please see 20 DDNS Setup
(Advanced), page 142 for details.
The primary connectivity option uses FLIR Cloud™ to connect to your system over the
Internet without requiring port forwarding or DDNS registration. For details, see 17 Con-
necting to Your System Over the Internet on PC or Mac, page 78.
To configure DDNS Settings:
1. Visit http://www.lorexddns.net and register for a DDNS account.
2. From the Main Menu, click
and then select Network>DDNS.
3. Check Enable.
4. Under Domain Name, enter the Domain Name/URL Request your received in the
email after registering for DDNS.
5. Under User Name, enter your DDNS User Name.
6. Under Password, enter your DDNS Device password.
#LX400021; r. 4.0/30344/30494; en-US
57
Using the Main Menu16
7. Click OK to save your settings.
NOTE
Please allow 10~15 minutes for the DDNS servers to update with your new DDNS address before
attempting to connect.
16.3.5 Configuring Email Alerts
You can configure the system to send out email alerts for motion detection or other
events.
NOTE
To send out motion detection alerts, you must enable the Send Email option for motion detection on
each camera you would to receive alerts from. For details, see 16.3.8 Configuring Motion Detection,
page 60.
To configure Email Alerts:
1. From the Main Menu, click
and then select Network>Email.
2. Check Enable to enable email notifications.
If you want to use Lorex’s email server (recommended):
1. Check Lorex Mail to use the Lorex email server to send out alarm notifications. This
is the recommended setting.
2. Configure the following:
• Email Schedule: Configure time periods during which email alerts will be sent.
• Receiver: Enter the email address that will receive alerts.
• Sender: Enter the sender’s email address.
• Subject: Enter the subject line for the email alert.
• Attachment: Check to include a jpg image attachment of the camera.
NOTE
You must enable the Snapshot option for motion detection on each camera you would to receive
attachments. For details, see 16.3.8 Configuring Motion Detection, page 60.
• Interval: Enter the interval between alert emails.
• Health Enable: Check to enable health check emails. Health check emails will be
sent periodically to ensure that the system is functioning normally. If you enable
health check emails, enter the Interval in minutes below.
3. Click Test to send a test email.
4. Click OK to save settings.
#LX400021; r. 4.0/30344/30494; en-US
58
Using the Main Menu16
If you want to use your own email server (advanced):
1. Configure the following:
• SMTP Server: Enter the SMTP server address.
• Port: Enter the port used by the SMTP server.
• Anonymous: Check if your server supports anonymous log ins. Otherwise, leave
this unchecked.
• User Name: Enter the SMTP user name.
• Password: Enter the SMTP password.
• Receiver: Enter the email address that will receive alerts.
• Sender: Enter the sender’s email address.
• Subject: Enter the subject line for the email alert.
• Attachment: Check to include a jpg image attachment of the camera.
NOTE
You must enable the Snapshot option for motion detection on each camera you would to receive
attachments. For details, see 16.3.8 Configuring Motion Detection, page 60.
• Encrypt Type: Select SSL or TLS if your server uses encryption. Select None if
your server does not use encryption.
• Interval: Enter the interval between alert emails.
• Health Enable: Check to enable health check emails. Health check emails will be
sent periodically to ensure that the system is functioning normally.
• Interval: Enter the interval in minutes for health check emails.
2. Click Test to send a test email.
3. Click OK to save settings.
16.3.6 Configuring Switch Settings (Advanced)
You can configure the networking settings for the internal PoE switch.
CAUTION
It is recommended to leave this menu on the default settings. Changing the information in this menu
may disrupt the connection to the cameras.
To configure switch settings:
1. From live view, right-click and select Main Menu.
2. Click
>Network>Switch .
3. Configure the IP Address, Subnet Mask, and Gateway for the internal PoE switch.
4. Click OK. Click Save to save changes. The system will restart.
#LX400021; r. 4.0/30344/30494; en-US
59
Using the Main Menu16
16.3.7 Event
The Event menu allows you to configure settings for motion detection, video loss, and
system warnings.
16.3.8 Configuring Motion Detection
Motion Detection events allow the system to mark footage that has motion. This allows
you to quickly locate relevant footage through Search. You can also configure system responses to motion detection events, such as activating the system buzzer or sending an
email alert.
To configure Motion Detection events:
1. From the Main Menu, click and then click Event>Motion>Motion Detect.
2. Under Channel, select the channel you would like to configure.
3. Check Enable to enable motion detection on the selected channel.
4. Click Setup next to Region to configure which areas of the image will be enabled for
motion detection. A grid will appear over the camera’s live view.
Motion Grid
• Areas enabled for motion detection are shown in color and areas that are disabled
are transparent.
• Hover the mouse at the top of the screen to select which motion area you would
like to configure. You can set up to 4 motion detection areas and customize the
sensitivity and threshold for motion detection separately for each area between 0
(lowest) and 100 (highest).
• The Sensitivity determines how sensitive the camera is to motion. For example, if
the sensitivity is high, small amounts of motion are more likely to trigger an event.
It is recommended to select a Sensitivity between 30~70.
• The Threshold determines how much motion is required to trigger an event. If the
amount of motion exceeds the threshold, an event occurs. It is recommended to
select a Threshold between 10~50.
• Right-click when finished.
NOTE
It is recommended to have a second person walk in front of the camera to test different Sensitivity
and Threshold settings to determine the best setting for your camera’s location.
#LX400021; r. 4.0/30344/30494; en-US
60
Using the Main Menu16
5. Under Anti-dither, enter the anti-dither time. After a motion event occurs and motion
stops, if motion is detected within the anti-dither time, the system continues the motion event and includes the new motion within the first event, rather than creating a
new motion event.
6. Under Post_REC, enter the time the system will record after a motion event occurs.
7. To configure a schedule when motion detection will be enabled on this channel, click
Setup next to Period. Configure times when motion detection will be enabled. For example, you may want to disable motion detection during business hours and enable it
outside of business hours. Click OK when finished.
NOTE
This setting can override scheduled motion recording. This means that motion recording will only
take place at times that are enabled both in the Schedule menu and here.
8. Configure the following system actions when motion is detected:
• Alarm Out: Check the box to activate alarm output devices (not included) when
the selected channel detects motion. Select the alarm output devices will be activated when motion is detected.
• Latch: Enter the number of seconds an alarm output device will activate after mo-
tion is detected.
• Show Message: Check to enable an on-screen pop-up when one of your cam-
eras detects motion. On-screen pop-up shows the channels an event occurred on
and the type of event.
• Alarm Out: Check to enable the system to upload alerts to FLIR Cloud™ Client.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Channels: Select the channels that will record when motion is detected on the se-
lected channel.
• PTZ Activation: Check to enable PTZ actions when motion is detected (PTZ
camera required; not included). Click Setup to select which PTZ actions will be
taken by each camera.
• Sequence: Check to enable a custom sequence mode when motion is detected
on the selected channel. Then click the channels you would like to display in the
custom sequence mode.
• Buzzer: Check to enable the system buzzer.
• Snapshot: Check to save a snapshot when the camera detects motion.
9. Click OK to save changes.
16.3.9 Configuring Video Loss Settings
Video Loss occurs if the system loses connection to one of the cameras.
To configure Video Loss settings:
1. From the Main Menu, click
and then click Event>Motion>Video Loss.
2. Under Channel, select the channel you would like to configure.
#LX400021; r. 4.0/30344/30494; en-US
61
Using the Main Menu16
3. Check Enable to enable video loss events for the selected channel.
4. Configure the following to customize settings for video loss events:
• Period: Click Setup to configure a schedule for video loss events. It is recom-
mended to leave this on the default setting, so you can be alerted at any time one
of your cameras loses video.
• Alarm Out: Select the alarm output devices (not included) that will trigger when
video loss occurs.
• Latch: Enter the number of seconds an alarm output device will activate after vid-
eo loss occurs.
• Show Message: Check to show a popup message on the monitor if one of your
cameras loses video.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Channels: Click the checkbox to enable video recording when video loss occurs.
You can then select the channels the system will record when video loss occurs
on the currently selected channel.
• PTZ Activation: Check to enable PTZ actions when video loss occurs (PTZ cam-
era required; not included). Click Setup to select which PTZ actions will be taken
by each camera.
• Post_REC: Enter the number of seconds the system will record after video loss
occurs.
• Sequence: Check to enable a custom sequence mode when motion is detected
on the selected channel. Then click the channels you would like to display in the
custom sequence mode.
• Snapshot: Click the box to enable snapshot recording when video loss occurs.
You can then select which channels will save snapshots when video loss occurs
on the currently selected channel.
• Buzzer: Check to enable the system buzzer when video loss occurs on the cur-
rently selected channel.
5. Click OK to save changes.
16.3.10 Configuring Alarm Input Devices
You can connect alarm input devices such as motion sensors (not included) or glass
break detectors (not included) to the system. The system can be set to trigger recording
or take other actions when these devices are activated.
To configure alarm input devices (not included):
1. From the Main Menu, click
and then click Event>Local Alarm.
2. Configure the following to activate an alarm input device:
• Alarm In: Select the alarm input port the device is connected to.
• Enable: Check to enable the alarm input device connected to the selected port.
• Type: Select NO (Normal Open) or NC (Normal Close) depending on the type
of alarm input device you have.
#LX400021; r. 4.0/30344/30494; en-US
62
Using the Main Menu16
3. Configure the following system responses and parameters for the alarm input device:
• Period: Click Setup to configure the times of the week when the selected device
will be activated. By default, the device will be activated 24/7.
• Anti-dither: Enter the anti-dither time. After the device triggers, if it triggers again
within the anti-dither time, the system continues the event and includes the second
activation within the first event, rather than creating a new event.
• Alarm Out: Check the box to activate alarm output devices (not included) and se-
lect the alarm output devices (not included) will be activated when the selected device is triggered.
• Latch: Enter the number of seconds an alarm output device will activate after the
selected device is triggered.
• Show Message: Check to enable an on-screen pop-up when the selected device
is triggered.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Channels: Select the channels that will record when the selected device is
triggered.
• PTZ Activation: Check to enable PTZ actions when the selected device is trig-
gered (PTZ camera required; not included). Click Setup to select which PTZ actions will be taken by each camera.
• Buzzer: Check to enable the system buzzer.
• Snapshot: Check to save a snapshot.
4. Click OK to save changes.
16.3.11 Controlling Alarm Output Devices
You can connect alarm output devices (not included), such as sirens or strobe lights, to
the system. The Alarm Output menu allows you to enable or disable alarm output devices
and manually an activated device.
To access the Alarm Output menu:
1. From the Main Menu, click
and then click Event>Alarm Output.
To control alarm output devices:
• To enable alarm output devices, select Schedule or Manual for each device you
would like to enable. Select Stop to disable the alarm output device. Click OK to save
changes.
• To manually disable activated alarm devices, click OK under Alarm Release.
16.3.12 Configuring Hard Drive Warnings
Hard drive warnings will notify you if an issue is detected with the hard drive.
#LX400021; r. 4.0/30344/30494; en-US
63
Using the Main Menu16
To configure hard drive warnings:
1. From the Main Menu, click
and then click Event>Warning>HDD.
2. Under Event Type, select the hard drive event you would like to configure.
• No Disk: No hard drive detected.
• Disk Error: A hard drive error has been detected.
• Disk Full: The hard drive is full or almost full. You can enter the percentage of disk
space remaining that will trigger a warning under Less Than (e.g. when less than
10% of the hard drive is empty, trigger a warning). Disk Full warnings will not occur
if overwrite is enabled.
• All: Configure warnings for all hard drive events.
3. Configure the responses the system will take when the selected event occurs:
• Show Message: Show a popup message on the monitor.
• Alarm Out: Check the box to activate alarm output devices (not included) and se-
lect the alarm output devices (not included) will be activated when the selected
event occurs.
• Latch: Enter the number of seconds an alarm will activate after the selected event
occurs.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Buzzer: Check to activate the system buzzer.
4. Click OK to save changes.
16.3.13 Configuring Network Warnings
Network warnings will notify you if there your system loses connection to the Internet or
local network or if there is an issue on your network.
To configure network warnings:
1. From the Main Menu, click
and then click Event>Warning>Network.
#LX400021; r. 4.0/30344/30494; en-US
64
Using the Main Menu16
2. Under Event Type, select the event type you would like to configure.
• Net Disconnection: The system has lost connection to the network.
• IP Conflict: More than one device on your network has the same IP address.
• MAC Conflict: More than one device on your network has the same MAC address.
• All: Configure responses for all network events.
3. Configure the following for the selected event type:
• Enable: Check to enable the selected event type.
• Show Message: Check to show a popup message when the selected event
occurs.
• Alarm Out: Check the box to activate alarm output devices (not included) and se-
lect the alarm output devices (not included) will be activated when the selected
event occurs.
• Latch: Enter the number of seconds an alarm will activate after the selected event
occurs.
• Send Email: Check to enable email alerts. You must configure email alerts before
you will be able to receive them (see 16.3.5 Configuring Email Alerts, page 58).
• Buzzer: Check to activate the system buzzer.
4. Click OK to save changes.
16.3.14 Storage
The Storage menu allows you to configure the recording schedule and hard drives connected to the system.
16.3.15 Configuring the Video Recording Schedule
You can set a custom recording schedule according to your needs. For example, you can
set the system to record continuously during business hours and record on motion detection only outside of business hours.
A custom recording schedule helps reduce the amount of hard drive space required, increasing the time your system can retain recordings.
To configure the video recording schedule:
1. From the Main Menu, click
and then click Storage>Schedule>Record.
2. Under Channel, select the channel you would like to configure or select All.
#LX400021; r. 4.0/30344/30494; en-US
65
Using the Main Menu16
3. Configure the schedule as needed:
• Check Continuous or MD (motion detection) to select the recording type you
would like to configure.
• Click and drag on each day to customize the recording schedule. The schedule is
set up as a grid, which each block representing one hour.
• Click
next to All to link the recording schedules for all days. The icon for a
day changes to
when days are linked. You can also click the boxes next to
individual days to link them to each other. If the recording schedule is linked,
changes made to one of the days will apply to every day that is linked.
• Click
to disable all recording of the selected type on the selected day.
• Click
if you need to set a more precise schedule down to the minute.
4. Click OK to save changes.
16.3.16 Configuring Pre-Recording
The system can pre-record video when motion detection events occur.
To configure pre-recording:
1. From the Main Menu, click
and then click Storage>Schedule>Record.
2. Under Channel, select the camera you would like to configure or select All.
3. Under PreRecord, select the duration for pre-recording.
4. Click OK to save settings.
16.3.17 Configuring the Snapshot Schedule
You can set a schedule for recording snapshots from the cameras.
To set up the snapshot schedule:
#LX400021; r. 4.0/30344/30494; en-US
66
Using the Main Menu16
1. From the Main Menu, click
and then click Storage>Schedule>Snapshot.
2. Under Channel, select the channel you would like to configure or select All.
3. Configure the schedule as needed:
• Check Continuous or MD (motion detection) to select the recording type you
would like to configure.
• Click and drag on each day to customize the recording schedule. The schedule is
set up as a grid, which each block representing one hour.
• Click
next to All to link the recording schedules for all days. The icon for a
day changes to
when it is linked. You can also click the boxes next to individual days to link them to each other. If the recording schedule is linked, changes
made to one of the days will apply to every day that is linked.
• Click
to disable all recording of the selected type on the selected day.
• Click
if you need to set a more precise schedule down to the minute.
4. Click OK to save changes.
16.3.18 Configuring Hard Drive Groups (Advanced)
Hard drive groups allow you to balance recordings across multiple hard drives. For example, you can record channels 1~4 to one hard drive and 4~8 to a second hard drive.
This can reduce the amount of wear on the hard drives and may extend the life of the
hard drives.
NOTE
• Two hard drives must be installed in the system to use hard drive groups, and both hard drives must
be formatted as Read-write hard drives. For details on installing hard drives, see 22 NR800 Series
Hard Drive Installation, page 156.
To configure hard drive groups:
1. From the Main Menu, click
and then click Storage>HDD Advance>HDD
Setting.
#LX400021; r. 4.0/30344/30494; en-US
67
Using the Main Menu16
2. Under HDD Group, assign a group to each hard drive. To set up two hard drive
groups, assign one hard drive to group 1 and the other to group 2.
3. Click OK. The system will restart to apply changes.
4. When the system restarts, you must decide which channels will record to each hard
drive group.
5. From the Main Menu, click
and then click Storage>HDD Advance>Main
Stream. For each channel, select the hard drive group you would like to record the
main stream (high quality) video and then click Apply.
6. Click the Sub Stream tab. For each channel, select the hard drive group you would
like to record the sub stream (reduced quality) video and then click Apply.
#LX400021; r. 4.0/30344/30494; en-US
68
Using the Main Menu16
7. Click the Picture tab. For each channel, select the hard drive group you would like to
record snap shots and then click Apply.
16.3.19 Configuring Holidays
You can set certain days as holidays. Holidays have a special recording schedule.
To configure holidays:
1. From the Main Menu, click
and then click Setting>General>Holiday.
2. Click Add New Holidays.
3. Configure the following:
• Holiday Name: Enter a name for this holiday.
• Repeat Mode: Select Once Only for the holiday to occur only this year or All-
Year for the holiday to be repeated each year.
• Holiday Range: Select Date to select a specific date, or select Week to select
holidays based on which week they fall on.
#LX400021; r. 4.0/30344/30494; en-US
69
Using the Main Menu16
4. Click Add. Now that you have added a holiday, an extra holiday setting is added to
the recording schedule.
NOTE
You cannot delete holidays, but you can disable them by selecting Stop under the Status dropdown and then click Apply.
16.3.20 Formatting the Hard Drive
The HDD Manager menu allows you to format the hard drive. If you install a new hard
drive, you must format the hard drive using the system before you will be able to record.
To format the hard drive:
CAUTION
Formatting the hard drive erases all data on the hard drive. This step cannot be undone.
1. From the Main Menu, click
and then click Storage>HDD Manager.
2. Select the hard dive you would like to format and then click Format. Click OK to
confirm.
3. Click OK to save changes. The system will restart to complete the formatting process.
16.3.21 Configuring Hard Drive Type
The system supports the following hard drive types:
• Read-write HDD: Normal recording hard drive.
• Read-only HDD: The system can playback data from this hard drive, but it will not re-
cord to it.
• Mirror HDD: The hard drive will be used for mirror recording only. You must set up
mirroring recording before this feature will work.
To set the hard drive type:
1. From the Main Menu, click
and then click Storage>HDD Manager.
#LX400021; r. 4.0/30344/30494; en-US
70
Using the Main Menu16
2. Click the hard drive you would like to configure.
3. Under Type, select Read-write HDD, Read-only HDD, or Mirror HDD.
4. Click OK to save changes. The system will restart to complete this operation.
16.3.22 Setting up Hard Drive Mirroring (Advanced)
A mirror hard drive can be used to automatically backup video footage recorded to the
recording (read-write) hard drive. When a mirroring hard drive is installed, the system
can be set to record cameras in parallel to both the recording hard drive and the mirror
hard drive. This way, the footage is automatically backed up if the recording hard drive
fails.
How hard drive mirroring works:
1. Security system.
2. Primary hard drive.
3. Mirror hard drive.
NOTE
• The mirror hard drive must be as large or larger than primary hard drive to backup all recordings.
• HDD mirroring begins from when mirror hard drive is installed and configured.
• Two hard drives must be installed in the system to use HDD mirroring. For details on installing hard
drives, see 22 NR800 Series Hard Drive Installation, page 156.
To set up hard drive mirroring:
1. From the Main Menu, click
and then click Storage>HDD Manager.
2. Click the Type drop-down under the second hard drive and select Mirror HDD.
CAUTION
Setting a hard drive for mirroring erases all data on the hard drive. This step cannot be undone.
3. Click OK to apply changes. Click Yes to confirm. The system will format the hard
drive and restart.
4. When the system restarts, click
and then click
Storage>Schedule>Record.
#LX400021; r. 4.0/30344/30494; en-US
71
Using the Main Menu16
5. Under Channel, select the channel you would like to enable for mirror recording, then
check Mirroring. Repeat the process for any additional channels.
6. Click OK to save changes.
16.3.23 Configuring General System Settings
You can use the General menu to configure miscellaneous system settings.
To configure general settings:
1. From the Main Menu, click
and then click Setting>General>General.
2. Configure the following:
• Device No.: Select the remote control address of the system. See 8.1 Setting the
Remote Control Address, page 19.
• Language: Set the system languages. Available options are English, French, and
Spanish.
• Video Standard: Select NTSC (North America) or PAL (Europe).
• HDD Full: Select Overwrite for the system to overwrite the oldest recordings
when the hard drive is full or select Stop Record for the system to stop recording
when the hard drive is full.
• Pack Duration: Select how the duration (in minutes) the system will store video
files. For example, if this is set to 30 minutes, the system will create a new video
file for each 30 minutes of continuous recording.
• Instant Playback: Select the amount of time (in minutes) the system will go back
when instant playback is activated in live view.
• Auto Logout: Select the idle time (in minutes) before the system will logout the
current user.
• IPC Time Sync: Select how often (in hours) the NVR will update the time on the
IP cameras.
• Navigation Bar: Check to enable the Navigation Bar that comes up when you left
click in live view.
• Startup Wizard: Check to enable a setup wizard when you start up the system.
• Mouse Speed: Use the slider to adjust the mouse speed.
#LX400021; r. 4.0/30344/30494; en-US
72
Using the Main Menu16
3. Click OK to save changes.
16.3.24 Setting the Monitor Resolution (Display)
The Display menu allows you to configure the systems monitor resolution and other display settings.
To set the monitor resolution:
1. From the Main Menu, click
and then click Setting>Display>Display.
2. Under Resolution, select the correct resolution for your monitor: 1920x1080,
1280x1024, 1280x720, or 1024x768.
3. Click OK to save changes. Click OK again to restart the system using the new
resolution.
To configure other display settings:
1. From the Main Menu, click
and then click Setting>Display>Display.
2. Configure the following:
• Transparency: Select the menu transparency.
• Time Display: Check to show the time on the monitor.
• Channel Display: Check to show the channel names on the monitor.
• Original Scale: Check to set the system to show the true aspect ratio of the cam-
eras on the live display. This may add black bars on the top and bottom of the
image.
• Image Enhance: Check for the system to digitally improve the video quality on
the live display. This setting does not affect recordings.
3. Click OK to save changes.
16.3.25 Saving Your System Configuration to a USB Thumb Drive
The system allows you to save your current system configuration to a USB thumb drive
(not included). This is useful if you want to backup your current settings.
#LX400021; r. 4.0/30344/30494; en-US
73
Using the Main Menu16
NOTE
This function only saves settings created in system menus. It does not save or backup any video.
To save your system configuration to a USB thumb drive:
1. Insert a USB thumb drive (not included) into one of the USB ports.
2. From the Main Menu, click
and then click Setting>Config Backup.
3. Under Device Name, select the USB device where you would like to save the
configuration.
4. Click EXPORT to save your current system configuration.
To restore a saved system configuration:
1. Insert a USB thumb drive (not included) with a saved system configuration into one of
the USB ports.
2. From the Main Menu, click
and then click Setting>Config Backup.
3. Under Device Name, select the USB device.
4. Click the folder with the configuration files you would like to restore. Configuration file
folders are labeled “Config” and then the time and date the configuration was saved
(e.g. Config_20140425103727).
5. Click IMPORT to restore the system configuration.
6. Click OK to confirm. The system will restart to complete the operation.
16.3.26 Setting the System to Factory Defaults
The Default menu allows you to reset the system to factory default settings.
#LX400021; r. 4.0/30344/30494; en-US
74
Using the Main Menu16
To reset the system to factory default settings:
1. From the Main Menu, click
and then click Setting>Default.
2. Check the menus you would like to reset to default settings.
3. Click OK.
#LX400021; r. 4.0/30344/30494; en-US
75
Using the Main Menu16
16.3.27 Upgrading Firmware from USB
Firmware upgrades provide enhanced functionality. The system will automatically check
for firmware upgrades if it is connected to the Internet. The system also supports firmware upgrades from a USB thumb drive (not included).
To upgrade firmware from a USB drive:
1. Download the firmware upgrade from www.lorextechnology.com/support.
2. Extract the firmware file and copy the firmware to a blank USB thumb drive.
NOTE
Do not have any folders on the USB thumb drive—just the firmware file.
3. Insert the USB thumb drive to a USB port on the system.
4. Right-click and then click Main Menu. Click
>Setting>Upgrade.
5. Click Upgrade.
6. Select the firmware file on the USB drive and click Start.
WARNING
DO NOT POWER OFF THE SYSTEM OR DISCONNECT THE POWER CABLE DURING FIRMWARE INSTALLATION
16.3.28 TV Adjust (NR816 and NR832 models only)
The TV Adjust feature allows you to configure the appearance of the image when streaming video to a television.
To configure the TV adjust settings:
1. Right-click and then click Main Menu. Click
>Setting>Display>TV Adjust.
2. Using the sliders, configure the television’s margins and brightness level.
3. Click OK.
#LX400021; r. 4.0/30344/30494; en-US
76
Using the Main Menu16
16.4 Shutdown
Use the Shutdown menu to shutdown, restart, or log out of the system.
To access the Shutdown menu:
1. From live view, right-click and select Main Menu.
2. Enter the system User Name (default: admin) and Password (default: 000000) and
click OK.
3. Click
>Shutdown.
4. Select one of the following:
• Logout: Log out the account that is currently active.
• Shutdown.
• Restart.
#LX400021; r. 4.0/30344/30494; en-US
77
Connecting to Your System Over
the Internet on PC or Mac
17
This system features connectivity using the exclusive FLIR Cloud™. This cloud-enabled
service allows for Internet connectivity without requiring any network configuration. Up to
3 devices may connect to the system at the same time.
NOTE
• Except where noted, the PC and Mac instructions in this section are the same.
• For smartphone/tablet setup, see 19 Connecting to your System Using Smartphone or Tablet Apps,
page 106.
• For the latest list of supported apps and devices, visit www.lorextechnology.com/support.
17.1 System Requirements
Your system must meet the system requirements below:
Description Requirement
CPU Core 2 Duo 3.0GHz
Operating System Windows™ 8/7/Vista
Mac OSX 10.7 and above
Memory
2GB
Video 512 MB of video memory and above
Network (LAN) 10/100 BaseT Network
Network (WAN) 1 Mbps upstream
High-speed Internet service is required to remotely connect to your system.
17.2 Step 1 of 3: Connect your System to Your Router
1. Power off your system by disconnecting the power adapter.
2. Connect an Ethernet cable (included) to the LAN port on the rear panel of the system.
Connect the other end of the Ethernet cable to an empty LAN port (usually numbered
1~4) on your router.
#LX400021; r. 4.0/30344/30494; en-US
78
Connecting to Your System Over the Internet on PC or Mac
17
3. Reconnect the power adapter to power the system back on.
17.3 Step 2 of 3: Obtain the system’s Device ID
The Device ID is a unique code that allows your system to handshake with FLIR Cloud™
servers for a secure connection over the Internet.
To find the Device ID:
1. The Device ID is located on a sticker on the system.
2. Write down the Device ID of the system.
17.4 Step 3 of 3: Connect to the System Over the Internet
Follow the steps below to connect to the system over the Internet.
NOTE
Make sure to upgrade your system to the latest firmware version. You must have the latest firm-
ware and client software to connect to the system over the Internet.
To connect to the system over the Internet:
1. Download and install the client software.
• PC Users: Download and install the Client Software for PC from
www.lorextechnology.com/support.
• Mac Users: Download and install the Client Software for Mac from
www.lorextechnology.com/support. Double click to extract the software. Then,
drag the software to Applications.
2. Once installation is finished, double-click the FLIR Cloud™ Client icon (
) from the
desktop or Applications list.
#LX400021; r. 4.0/30344/30494; en-US
79
Connecting to Your System Over the Internet on PC or Mac
17
3. Log into the Client Software using the Client Software user name (default: admin)
and password (default: admin) and then click Login.
4. Click Add Device.
5. Enter the following:
5.1. Device Name: Choose a name for your system of your choice.
#LX400021; r. 4.0/30344/30494; en-US
80
Connecting to Your System Over the Internet on PC or Mac
17
5.2. Device ID: Manually enter the Device ID printed on the label.
5.3. Client Port: Enter the Client Port (default: 35000).
5.4. User Name: Enter the system User Name (default: admin).
5.5. Password: Enter the system Password (default: 000000).
6. Click Add. If this is the first time you are connecting, you will be prompted to change
the system password.
7. Enter a new 6 character password and click OK. This password will be used to connect to your system from now on.
8. Click then .
#LX400021; r. 4.0/30344/30494; en-US
81
Connecting to Your System Over the Internet on PC or Mac
17
9. Click and drag Default Group to the display window to open your cameras in live
view.
Congratulations! You can now connect over the Internet to view and playback video
on your computer.
#LX400021; r. 4.0/30344/30494; en-US
82
Using FLIR Cloud™ Client for PC
or Mac
18
FLIR Cloud™ Client allows you to connect to multiple systems from a PC or Mac.
18.1 Home Page
The Home Page allows you to access all the tabs within the software. Each tab allows
you to access different features.
To open tabs:
Click a tab from the Home Page to open it or click the
button at the top of the
screen from within any tab to open a new tab.
18.2 Live View
The Live View tab is where you can view live video from connected systems.
To view live video from a system:
1. Click
and then click to create a Live View tab.
2. Click and drag a DVR, NVR, group, or individual camera to open live video. To access individual cameras, you can click + to expand groups or systems.
#LX400021; r. 4.0/30344/30494; en-US
83
Using FLIR Cloud™ Client for PC or Mac
18

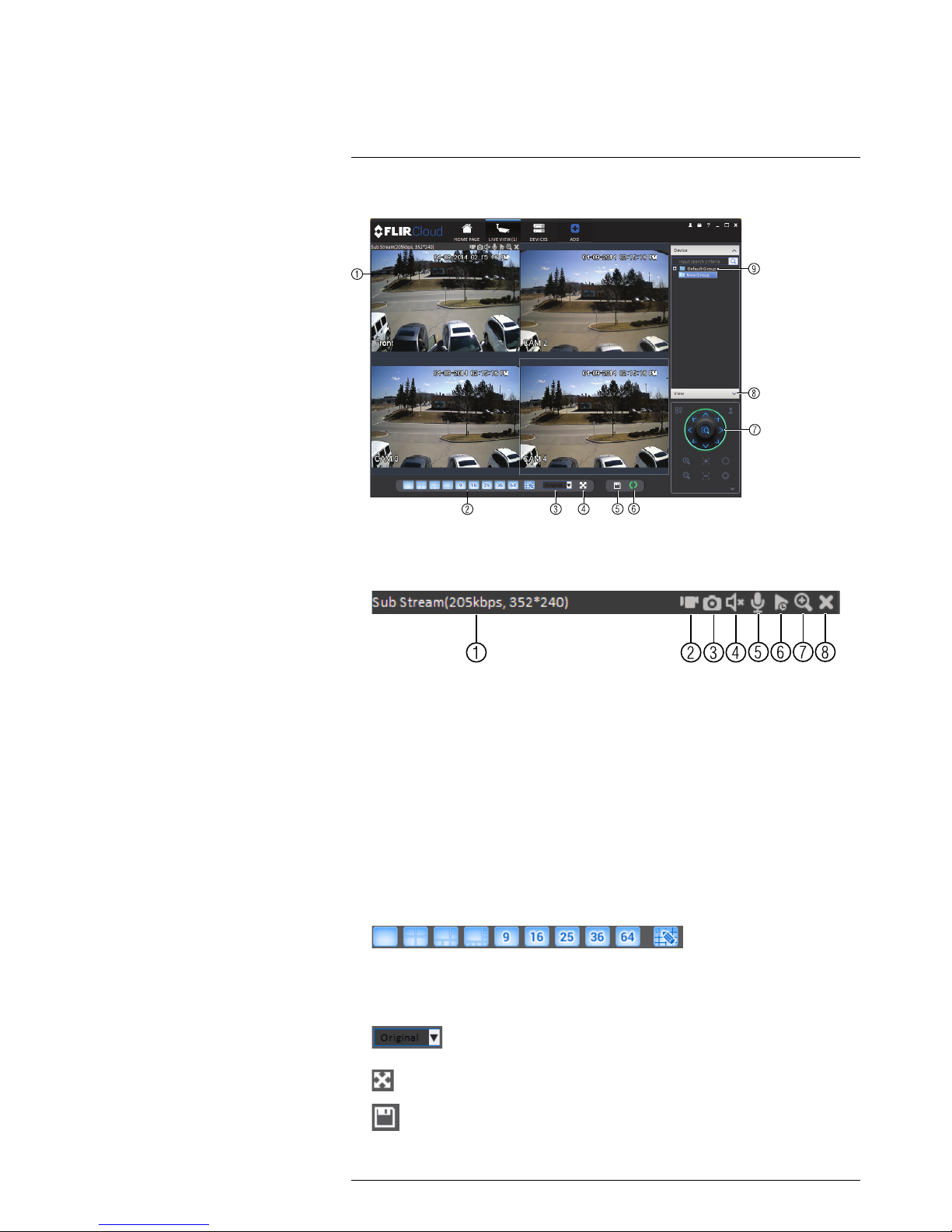

18.2.1 Live View Controls
1. Live display: Double-click to expand the area. Right-click to access additional options. Hold the mouse over the display area to access the camera toolbar.
Camera toolbar:
1.1. Streaming quality: Shows the bitrate and resolution for the stream, and
shows if display is showing the Sub Stream or Main Stream.
1.2. Manual recording: Click to start/stop manual recording.
1.3. Snapshot: Click to save a snapshot.
1.4. Mute/unmute: Click to mute/unmute audio (audio camera required).
1.5. Not supported.
1.6. Instant playback: Plays back the most recently recorded video from the
camera. By default, it will play back the last 5 minutes of recorded video from
the camera.
1.7. Digital zoom: Click to enable digital zoom mode. Click and drag over the dis-
play area to zoom on the camera. Then click and drag to pan. Click the icon
again to zoom out.
1.8. Disconnect.
1. Split-screen mode: Click to select split-screen layout.
2. Aspect ratio: Use the drop down menu to select the aspect ratio for the selected
camera. Original uses the actual aspect ratio of the image. Full-win stretches the
image to fill up the entire display area.
3. Full-screen: Click to open full-screen mode. Press ESC to exit full-screen mode.
4.
Save view: Click to save the current display layout and open cameras as a view.
Then enter a name for the view.
#LX400021; r. 4.0/30344/30494; en-US
84
Using FLIR Cloud™ Client for PC or Mac
18

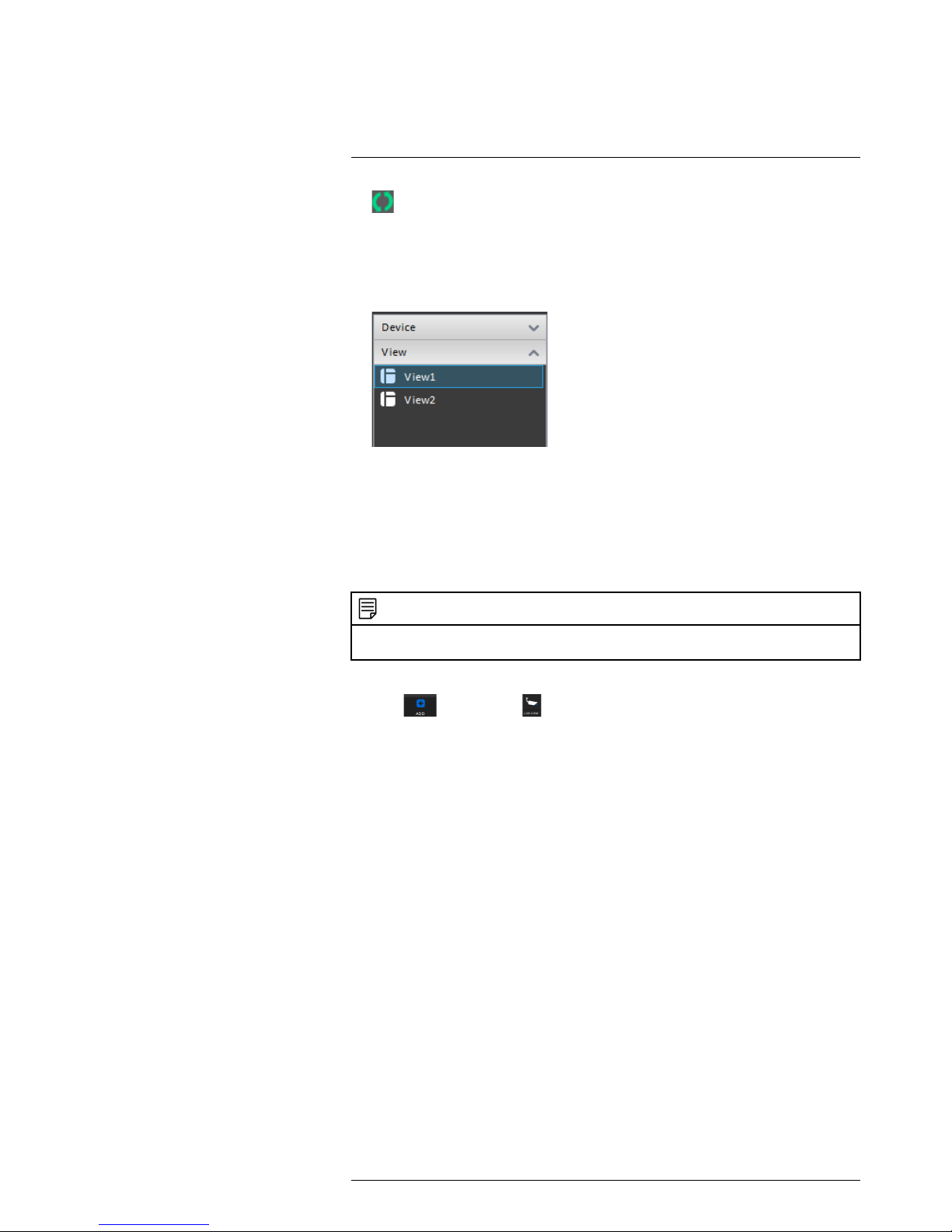

5.
Start/stop tour: Click to start the tour. During the tour the client will cycle
through all saved views every few seconds. Click again to stop the tour.
6. PTZ Controls: Controls for PTZ cameras (not included). See 18.3 Controlling PTZ
Cameras, page 86 for details.
7. View: Click View to access view menu. Then double-click on a view to open it in the
display area.
8. Devices: Shows a list of groups, cameras, and systems connected to the client. Drag
items to the display area to open live video. Right-click to view additional options.
18.2.2 Opening Live View in Multiple Monitors
If your computer has multiple monitors, you can open more than one Live View tab and
move them to secondary monitors. This allows you to monitor cameras on multiple monitors at the same time.
NOTE
Using multiple monitors significantly increases the amount of computing resources necessary to run the
application and may affect performance.
To open Live View in multiple monitors:
1. Click
and then click to create a Live View tab.
#LX400021; r. 4.0/30344/30494; en-US
85
Using FLIR Cloud™ Client for PC or Mac
18
2. Click and drag the tab outside of the client window to create a new window. You can
drag the window to one of the secondary monitors.
Result
18.3 Controlling PTZ Cameras
If you have PTZ cameras (not included), you can control them using the client.
NOTE
You must ensure the PTZ camera is properly connected to your system and your system is configured
to detect it before you can control them using the client.
To control PTZ cameras:
• Click the display area with the PTZ cameras and use the on-screen PTZ controls.
PTZ controls:
#LX400021; r. 4.0/30344/30494; en-US
86
Using FLIR Cloud™ Client for PC or Mac
18
1. Open menu: Click to open camera OSD menu controls. This feature may not be supported for all camera models.
2. Move camera: Click the arrows to move the camera.
Click
to open dynamic zoom mode. Then click and drag in the video area to
zoom in the camera on an area.
3. Zoom +/-: Click to zoom the camera in and out.
4. Focus +/-: Click to increase/decrease the focus.
5. Iris +/-: Click to increase/decrease the iris.
6. Advanced: Click to access advanced PTZ controls.
18.3.1 PTZ Presets
Presets will save a camera position for quick retrieval.
To add presets:
1. Click
to open the Advanced controls. Select Preset.
2. Click
.
3. Select the number of the preset you would like to add.
4. Move the camera to the desired position.
5. Click
to save the current position as a preset.
To go to a saved preset:
1. Select the preset number from the list or click
to go to the currently selected
preset.
18.3.2 PTZ Tours
Tours will cycle through a set of presets.
To configure a PTZ tour:
1. Click
to open the Advanced controls. Select Tour.
#LX400021; r. 4.0/30344/30494; en-US
87
Using FLIR Cloud™ Client for PC or Mac
18
2. Click
.
3. Under Cruise ID, select the number of the tour you would like to configure.
4. (Optional) Under Cruise Name, enter a name for the tour.
5. Use the chart to select which presets you would like to include in the tour and the order of presets.
• Preset: Select the preset number.
• Time(s): Enter the time in seconds the camera will remain on the selected preset.
• Operation: Click
to add a preset to the tour. Click to delete a preset from
the tour.
6. Click OK to save changes.
To run a PTZ tour:
1. Select the tour number and click
.
18.3.3 PTZ Pattern
Patterns automatically cycle the camera between two positions.
To create a pattern:
1. Click
to open the Advanced controls. Select Pattern.
2. Select the number of the pattern you would like to set up.
3. Move the camera into the desired start position.
#LX400021; r. 4.0/30344/30494; en-US
88
Using FLIR Cloud™ Client for PC or Mac
18
4. Click
to start recording the pattern.
5. Move the camera to the desired end position. Then, click
to stop recording the
pattern.
To run a pattern:
1. Select the pattern number and click
.
18.3.4 PTZ Scan
Scan automatically cycles between a left and right point.
To set up scan mode:
1. Click
to open the Advanced controls. Select Scan.
2. Move the camera to the desired left position and click .
3. Move the camera to the desired right position and click
.
To run scan mode:
1. Click
.
18.3.5 PTZ Pan
Pan makes the camera continuously pan 360°.
To run Pan mode:
1. Click
to open the Advanced controls. Select Pan.
2. Click
.
18.4 Playback
You can use Playback mode to playback video saved on systems connected to the client.
To access Playback mode:
• Click
and then click to create a Playback tab.
#LX400021; r. 4.0/30344/30494; en-US
89
Using FLIR Cloud™ Client for PC or Mac
18
To playback video:
1. Check the channels you would like to play back from in the Device List.
2. Under Type, check the file types you would like to search for.
• All: All recordings.
• General: Continuous recordings.
• MD: Motion recordings.
• Alarm: Alarm recordings. Your system must support alarm devices (not included)
to use this feature.
3. Under Stream, select Main Stream to search for Main Stream recordings (high quality) or Sub Stream to search for Sub Stream recordings (smaller file size).
4. Select the start time and end time for your search under From and To. You may not
search more than 24 hours of video.
5. Click Search. Wait for the client to find video saved to the system.
6. Click inside the play back bar to start playback.
#LX400021; r. 4.0/30344/30494; en-US
90
Loading...
