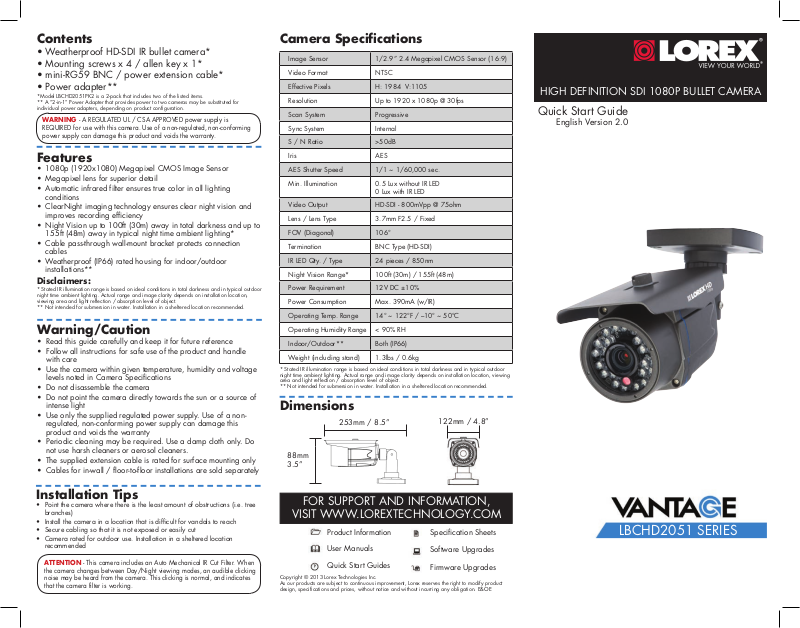

Lorex LBCHD2051 Quick Start Manual

Contents

•Weatherproof HD-SDI IR bullet camera*

•Mounting screws x 4 / allen key x 1*

•mini-RG59 BNC / power extension cable*

•Power adapter**

*Model LBCHD2051PK2 is a 2-pack that includes two of the listed items.
** A “2-in-1” Power Adapter that provides power to two cameras may be substituted for
individual power adapters, depending on product configuration.

WARNING - A REGULATED UL / CSA APPROVED power supply is

REQUIRED for use with this camera. Use of a non-regulated, non-conforming
power supply can damage this product and voids the warranty.

Features

• 1080p (1920x1080) Megapixel CMOS Image Sensor

• Megapixel lens for superior detail

• Automatic infrared filter ensures true color in all lighting

conditions

• ClearNight imaging technology ensures clear night vision and
improves recording efficiency

• Night Vision up to 100ft (30m) away in total darkness and up to
155ft (48m) away in typical night time ambient lighting*

• Cable pass-through wall-mount bracket protects connection
cables

• Weatherproof (IP66) rated housing for indoor/outdoor
installations**

Disclaimers:

* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location,
viewing area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.

Warning/Caution

• Read this guide carefully and keep it for future reference

• Follow all instructions for safe use of the product and handle

with care

• Use the camera within given temperature, humidity and voltage
levels noted in Camera Specifications

• Do not disassemble the camera

• Do not point the camera directly towards the sun or a source of

intense light

• Use only the supplied regulated power supply. Use of a non­regulated, non-conforming power supply can damage this
product and voids the warranty

• Periodic cleaning may be required. Use a damp cloth only. Do
not use harsh cleaners or aerosol cleaners.

• The supplied extension cable is rated for surface mounting only

• Cables for in-wall / floor-to-floor installations are sold separately

Camera Specifications

Image Sensor 1/2.9” 2.4 Megapixel CMOS Sensor (16:9)

Video Format NTSC

Effective Pixels H: 1984 V:1105

Resolution Up to 1920 x 1080p @ 30fps

Scan System Progressive

Sync System Internal

S / N Ratio >50dB

Iris AES

AES Shutter Speed 1/1 ~ 1/60,000 sec.

Min. Illumination 0.5 Lux without IR LED

Video Output HD-SDI - 800mVpp @ 75ohm

Lens / Lens Type 3.7mm F2.5 / Fixed

FOV (Diagonal) 106°

Termination BNC Type (HD-SDI)

IR LED Qty. / Type 24 pieces / 850nm

Night Vision Range* 100ft (30m) / 155ft (48m)

Power Requirement 12V DC ±10%

Power Consumption Max. 390mA (w/IR)

Operating Temp. Range 14° ~ 122°F / –10° ~ 50°C

Operating Humidity Range < 90% RH

Indoor/Outdoor** Both (IP66)

Weight (including stand) 1.3lbs / 0.6kg

* Stated IR illumination range is based on ideal conditions in total darkness and in typical outdoor
night time ambient lighting. Actual range and image clarity depends on installation location, viewing
area and light reflection / absorption level of object.
** Not intended for submersion in water. Installation in a sheltered location recommended.

0 Lux with IR LED

Dimensions

253mm / 8.5”

88mm

3.5”

122mm / 4.8”

HIGH DEFINITION SDI 1080P BULLET CAMERA

Quick Start Guide

English Version 2.0

Installation Tips

• Point the camera where there is the least amount of obstructions (i.e. tree
branches)

• Install the camera in a location that is difficult for vandals to reach

• Secure cabling so that it is not exposed or easily cut

• Camera rated for outdoor use. Installation in a sheltered location

recommended

ATTENTION - This camera includes an Auto Mechanical IR Cut Filter. When

the camera changes between Day/Night viewing modes, an audible clicking
noise may be heard from the camera. This clicking is normal, and indicates
that the camera filter is working.

FOR SUPPORT AND INFORMATION,

VISIT WWW.LOREXTECHNOLOGY.COM

Product Information

User Manuals

Quick Start Guides

Copyright © 2013 Lorex Technologies Inc.
As our products are subject to continuous improvement, Lorex reserves the right to modify product
design, specifications and prices, without notice and without incurring any obligation. E&OE

Specification Sheets

Software Upgrades

Firmware Upgrades

LBCHD2051 SERIES

Installing the Camera

ATTENTION - Test all connections and ensure the camera is working

correctly prior to permanent installation by temporarily connecting the
camera(s) and cable(s) to the viewing / recording solution.

Before installing the camera:

• Decide whether to run the
cables through the wall /
ceiling (drilling required) or
along the wall / ceiling.

• If you run the cables along
the wall / ceiling, you must
run the cable through the
cable notch on the base. This
will keep the camera base
flush to the wall / ceiling
when mounted.

To install the camera:

1. Use the camera base to mark holes in the wall
or ceiling.

Camera base

2. If you are running the cables along the wall /
ceiling, run the cable through the cable notch
on the base. If you are running the cables
through the wall, connect the power and video
cables according to the section ‘Connecting
the Camera.’

3. Mount the camera to the wall or ceiling using
the included mounting screws.

4. Loosen the camera stand screws using the
included allen key. Loosen the adjustment
ring.

Adjustment ring

Camera Stand Screws

5. Move the camera to the desired position,
and while holding it firmly in place, turn the
adjustment ring on the camera stand clockwise
to tighten. Tighten the screws on the camera
stand.

Cable Notch

Connecting the Camera

To Camera:

Male Power

BNC

1. Connect the BNC and
power connectors to the
camera

To HD-SDI DVR:

Female Power

2. Connect the BNC connector to
the video input of an HD-SDI DVR.

3. Connect the power connectors
to the 2-in-1 power adapter. OR
Connect each camera to an
individual power adapter. See
Power Adapter Types for details.

Power Adapter Types

Single AC Power Adapter 2-in-1 Power Adapter

Cable Extension Options

Please use the included extension cables, or visit
www.lorextechnology.com for compatible RG59
extension cables. Regular BNC extension cables are not

compatible with this camera.

Compatible Cable Types:

Specification Maximum Length

Lorex MCBL-100MRG59B—100’ high
performance RG59/Power cable

Lorex MCBL-200MRG59B—200’ high
performance RG59/Power cable

Lorex MCBL-300MRG59B—300’ high
performance RG59/Power cable

RG59 or RG6—20AWG Conductor 95% Braid
CSA/UL or C(UL) approved (video only)

Siamese—20 AWG Conductor 95% Braid (video)
with 2C/18 for power CSA/UL or C(UL) approved

The entire length of the extension cable must be made using a
single extension cable between the camera and DVR. It is not

possible to connect multiple extension cables together.
Notes:

1. Consider providing power to the camera at the camera side, rather than
at the end of the extension cable.

2. Indicators that your cable run may be too long:

• No video is received from the camera

• Video quality or resolution is lower than normal

• Video is distorted

100ft / 30m
(actual length)

200ft / 60m
(actual length)

300ft / 92m
(actual length)

300ft / 92m

300ft / 92m

Setup Diagram

HD-SDI DVR

Troubleshooting

Problem Solution

No picture / signal • There is an issue with the extension

Picture is too bright • Ensure your camera isn’t pointed directly

Picture is too dark • If using during the day, the camera

Night vision is not
working

Picture is not clear • Check the camera lens for dirt, dust,

Bright spot in video
when viewing
camera at night

cable run. For example, the cable may
be too long, may not be compatible
with the camera, or multiple cables
may be connected together. See ‘Cable
Extension Options’ for more information.

• Ensure your DVR is properly connected
to your TV / Monitor.

• Ensure connections are properly
connected.

• Ensure the camera power supply is
plugged in.

at a source of light (e.g. sun or spot
light).

• Slide the sunshade (bullet cameras
featuring adjustable sunshades only)
forward to block excess light.

• Move your camera to a different
location.

may not be getting enough light. Slide
the sunshade (bullet cameras featuring
adjustable sunshades only) backwards
to let in more light.

• Check the brightness and contrast
settings of the device your camera
connects to (TV / Monitor / DVR).

• The night vision activates when light
levels drop. The area may have too
much light.

spiderwebs. Clean the lens with a soft,
clean cloth.

• Night vision reflects when pointing a
camera at a window. Move the camera
to a different location.
