Lorex sweet peek, BB2411 User Manual
www.lorexbaby.com
ENGLISH
FRANÇAIS
ESPAÑOL
SWEET PEEK
VIDEO BABY MONITOR
Version 1.0
USER’S GUIDE
Safety Precautions
• Adult assembly is required. Keep small parts away
from children when assembling.
• This product is not a toy. Do not allow children or
infants to play with it.
• This video monitor is not a substitute for responsible
adult supervision.
• Test the video monitor before use. Become familiar with
its functions.
• Keep the cords out of reach from children and infants.
• Never use extension cords with power adapters.
• Only use the chargers and power adapters provided.
Do not use other chargers or power adapters as this
may damage the device and battery pack.
• Only insert batteries/battery pack of the same type.
• Insert batteries with the correct polarity.
• Do not mix new and used batteries.
• Do not mix alkaline, standard, and rechargeable
batteries.
• Remove exhausted batteries from the product.
• Keep all batteries away from children and infants.
• Dispose or recycle batteries in accordance with local
laws, which may vary by location.
• Do not cover the video monitor with a towel or blanket.
• Do not use the video monitor near water.
• Do not install the video monitor near a heat source.
• Do not touch the plug contacts with sharp or metal
objects.
• Keep this user’s guide for future reference.

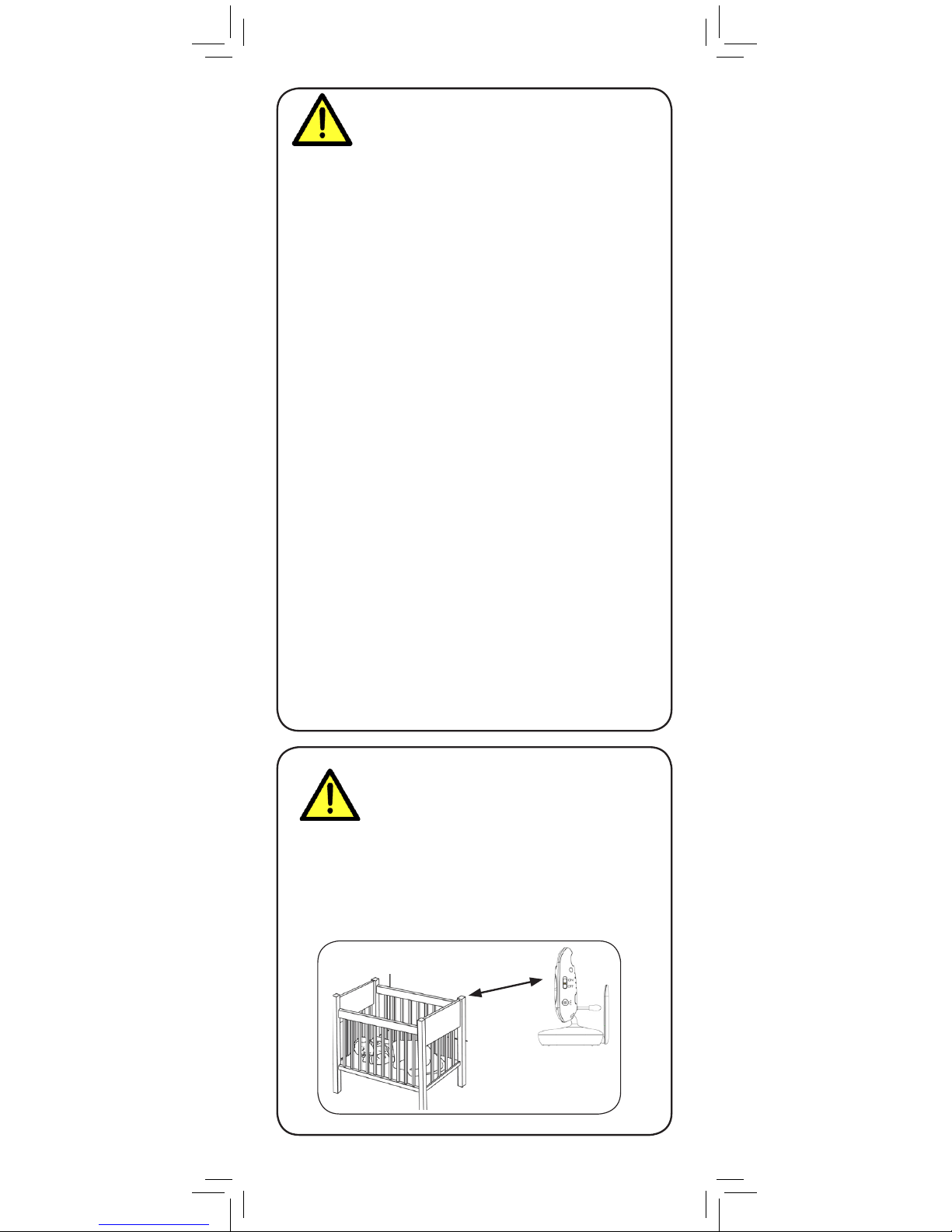

To Avoid Injury to
Children & Infants:
• MAKE SURE to keep the camera and all power
cords are least 3ft / 1m away from cribs and out of
reach of your child.
• Use the included cable clips to help keep power
cords away from your child.
3ft / 1m
Product Includes ..............................2
Monitor Overview ...........................2
Camera Overview ...........................3
Getting Started ...............................4
Optional - Camera Batteries .....................6
Optional - Wall Mounting the Camera ....... 7
Using Your Baby Monitor ................8
Using the Menus .....................................8
Talking to Your Baby ................................ 9
Changing Channels .................................9
Adjusting Volume .................................. 10
Adjusting Screen Brightness ....................10
Using Digital Zoom................................11
Turning on the Night-Light ....................... 11
Playing Lullabies ...................................12
Temperature Alerts ................................. 13
Selecting Fahrenheit or Celsius ................14
Enabling VOX Mode (Voice Trigger) ........ 14
Video Off Mode (Audio Only Mode) ....... 15
Pairing Additional Cameras ..........16
Technical Specifications .................18
Camera ...............................................18
Monitor ................................................18
Troubleshooting ............................19
Need Help? ...................................19
ENGLISH
1
Table of Contents:
2
Product Includes
x1*
x1
Camera
Monitor
Power Adapter
x2*
x2*
*Contents may vary by model
x1*
Screws & Anchors
Power Adapter
x1
Monitor Overview
Sound LED’s
Video Display
Microphone
Speaker
Power/video
off
Menu/Zoom
Select
camera/Scan
Start/stop
lullaby
Volume up
Volume down
Power LED
Link LED
Power port
Cable Clips
x2*
ENGLISH
3
Camera Overview
Light sensor
Night-light
Lens
Power LED
Microphone
Antenna
Nighttime LED’s
Mounting stand
AAA Battery Compartment
Power
switch
Power port
Temperature
sensor
Speaker
PAIR button
Antenna
Belt Clip
Battery
compartment
Make sure all power cables are at
least 3ft / 1m away from the crib and
out of reach of your child.
Use the included cable clips to help
keep power cords away from your
child.
4
Getting Started
1
2
Connect the power adapter to the
camera.
Slide the power switch to ON.
Power switch
3
Press down on the battery compartment
door and slide it off the monitor.
The battery cable only connects one
way. Do not force the battery cable.
Power button
7
Press and hold the power button to turn on
the monitor.
6
Connect the power adapter to the monitor.
ENGLISH
5
4
Connect the battery cable to the monitor.
Battery cable
5
Replace the battery compartment door.
Battery
terminals
Pull up to extend
antenna
• It is recommended to charge the battery for
6 hours before use.
• For overnight monitoring, it is recommended to
connect the power adapter. When fully charged,
the monitor will stay on up to 8 hours in normal
mode or 12+ hours on Video OFF mode
(see page 15).
• For better reception, flip up the antenna on the
monitor and camera.
Tips
AAA batteries are not intended for
overnight monitoring. The camera
can operate for up to 4.5 hours on
battery power.
Optional - Camera Batteries
Unscrew the battery compartment under the camera
and insert 4x AAA batteries (not included). Replace
the battery compartment door and screw.
4x AAA Batteries
(not included)
Battery Compartment
Screw
• If using batteries, it is recommended to use
the power adapter whenever possible to save
battery life.
• The camera power adapter cannot charge
rechargeable AAA batteries.
Notes
6
Make sure all power cables are at
least 3ft / 1m away from the crib
and out of reach of your child.
Use the included cable clips to help
keep power cords away from your
child.
Mounting points
68mm
68mm
Cable Clips
ENGLISH
7
Optional - Wall Mounting the
Camera
Tap anchors into holes with a hammer. Insert
screws 2/3 of the way.
Before permanently mounting the camera:
• Determine where you will get the best view of
your baby.
• Ensure the power cable is long enough to power
the camera.
1
Drill 2 holes in the wall with centers exactly
68mm apart.
2
3
Align the mounting points with the screws
and push the camera down.
1
Press to cycle
through menus
2
Press to
exit menu
Press to adjust
menu options
8
Using Your Baby Monitor
The monitor shows the following icons during use:
Icon Meaning
Signal strength
1
Selected
channel
Scan
Scan mode
activated
Volume muted
X2
Digital zoom
activated
2
Song currently
playing
Talk activated
Icon Meaning
VOX
VOX (Voice
Trigger) on
Battery full
Battery low
Battery
charging
68°F
Current room
temperature
Camera out of
range or off
(e.g. batteries
dead)
Using the Menus
Press and hold to talk to
the selected camera
1
Press to cycle through
connected cameras or
select Scan mode.
The currently selected
camera is shown on
screen.
When Scan mode is activated, the monitor changes
channel automatically every few seconds. A Scan icon
appears next to the currently selected channel number.
1 Scan
Currently selected
channel
Scan mode
activated
To connect additional cameras to the
monitor, see “Pairing Additional Cameras”
on page 16.
The monitor only plays sound from the
camera that is currently being viewed.
ENGLISH
9
Talking to Your Baby
Changing Channels
Press to adjust the volume
Press until is shown
1
Press to exit menu.
2
3
Press to adjust brightness
10
Adjusting Volume
Adjusting Screen Brightness
1
Press and hold to zoom
in. An X2 icon and
arrows appear on the
screen.
X2
Press to move zoom
area up/down
X2
Press to move zoom
area left/right
2
3
Press and hold to zoom out.
1
Press until is shown
2
Press to turn the night-light on or
off for the currently selected camera.
OFF
Press to exit menu.
3
ENGLISH
11
Using Digital Zoom
Turning on the Night-Light
Playing Lullabies
The camera can play 5 different pre-loaded
songs.
To play songs:
Press to play a song on
the selected camera.
1
2
Immediately after pressing
, press to change the
song.
The song number is
shown on the monitor.
If volume controls
appear, press
twice to restart
the song. Volume
controls will appear
if you press
a few seconds after
pressing .
3
Press to stop playing the song.
2
12
Press until Lo is shown.
1
2
Press to adjust the low
temperature.
If the temperature at the selected camera
goes below this temperature, the monitor
will beep and the temperature reading on
the monitor will say “Lo”.
If you select a temperature below 62°F /
17°C, the low temperature alert will be
turned OFF.
Lo 66° F
Press until Hi is shown.
3
Press to adjust the high
temperature.
If the temperature at the selected camera
goes above this temperature, the monitor
will beep and the temperature reading on
the monitor will say “Hi”.
If you select a temperature above 86°F /
30°C, the high temperature alert will be
turned OFF.
4
Press to exit menu.
5
ENGLISH
13
The temperature alert feature allows you to ensure the
baby’s room is at a comfortable, safe temperature.
The monitor beeps if the temperature gets too hot or
cold. Temperature sensor is accurate within 3°F/1°C.
You can control the high and low temperatures that
trigger alerts or disable temperature alerts.
Temperature Alerts
To setup temperature alerts:
1
Press until VOX
is shown
VOX OFF
Press until is shown.
1
°F
2
Press to select F (Fahrenheit) or
C (Celsius)
3
Press to exit menu.
14
In VOX mode, the monitor’s screen and speaker
will turn off after a minute unless sound is
detected at the selected sensitivity level. This
conserves battery power, and alerts you only
when needed.
Enabling VOX Mode (Voice
Trigger)
To activate VOX mode:
Selecting Fahrenheit or Celsius
You can select if you would like temperature
readings and alerts to be in Fahrenheit or
Celsius.
To select temperature units:
Press to turn the screen off and monitor
sound only.
The monitor will play sound from the selected
channel only.
Video Off Mode (Audio Only
Mode)
Press any button to turn the screen back
on.
2
Press to adjust the audio
sensitivity for VOX mode.
VOX OFF
VOX
VOX mode is off
VOX mode is on
Low sensitivity
Medium Sensitivity
High Sensitivity
If you want softer noises to trigger the monitor (such as
a faint whimper), set the sensitivity setting higher. If you
only want louder noises to trigger the monitor (such as
a loud cry), set the sensitivity setting lower.
3
Press to exit menu.
While VOX is activated, the monitor’s screen
and speaker will turn off after a minute
unless sound is detected at the selected
sensitivity level. Press any button to turn the
screen back on. When VOX is on, a VOX
icon is shown on the screen.
1
• If Scan mode is enabled, the monitor will
play sound from the channel that is currently
selected.
• VOX mode will override Video Off mode.
See “Enabling VOX Mode (Voice Trigger)” on
page 14 for details.
Notes
2
VOX mode will not work while
Scan mode is activated.
ENGLISH
15
2
Press and hold until
is shown
C1
3
Press to select the channel you
would like to pair the camera to.
If a camera is already connected to
this channel, the new camera will
replace the existing camera.
1
Place the camera and monitor next to each
other. Make sure the camera is turned on.
4
Press to begin pairing
The LINK LED flashes to
show that pairing mode
is on.
16
Pairing Additional Cameras
The camera(s) included have already
been paired with the monitor. If you have
purchased additional add-on cameras (model#
BB2411AC1), OR if your monitor and camera
are not paired up, follow the steps below.
To pair a camera to your monitor:
5
Press the PAIR button on the back of the
camera.
PAIR button
• Immediately move the camera away from the
monitor to avoid speaker feedback.
• The monitor can connect up to 4 cameras.
Notes
Images from the camera are immediately
shown on the monitor once the camera is
successfully paired.
ENGLISH
17
18
Technical Specifications
Camera
Frequency 2.4GHz
Maximum Range Up to 450ft / 138m outdoors*
Up to 150ft / 46m indoors*
Image Sensor 1/5” Color CMOS
Lens 3.6mm F2.8
IR LED 6 pcs
Power Adapter 6.0V DC 800mA
Battery Supports 4x AAA Batteries
(not included)
Battery Life Up to 4.5 hours on AAA batteries
Weight 0.3lbs / 0.1kg
Monitor
Frequency 2.4GHz
Display 2.4” TFT Color LCD
Power Adapter 6.0V DC 800mA
Battery Li-ion Rechargeable Battery 3.7V DC
1500mAh
Battery Life Up to 8 hours in normal mode
Up to 12+ hours in Video Off
Weight 0.3lbs / 0.1kg
*Based on unobstructed line of sight. Actual range will vary
based on surroundings.
4.8in
121mm
2.7in
68mm
1.2in
31mm
3.4in
87mm
5.3in
135mm
3.7in
95mm
ENGLISH
19
Troubleshooting
Problem Solution
No video displayed on
the monitor
• Press and hold the button
to power on the monitor.
• Monitor is out of batteries. Plug
in the monitor power adapter.
• Video Off or VOX mode is on.
Press any button to turn the
screen back on.
Monitor screen keeps
turning off
• VOX mode is on. See “Enabling
VOX Mode (Voice Trigger)”
on page 14 for details on
disabling VOX mode.
• The monitor battery is low. Plug
in the monitor power adapter
The camera is not
detected; “Out of Range”
is shown on the monitor
• Wrong channel selected. Press
repeatedly to select the
channel.
• Make sure the camera is
powered on.
• Camera may be out of batteries.
Replace the batteries.
• The camera and monitor may
be out of range. Extend the
antennas on the monitor and
camera or move the monitor
and camera closer together.
• You may need to pair the
camera and the monitor
again. See “Pairing Additional
Cameras” on page 16 for
details.
Feedback / squealing
noise coming from the
monitor
• Your camera and monitor may
be too close to each other.
Move them further apart.
• Press to lower the monitor
volume.
Feedback / squealing
noise coming from the
monitor
• Your camera and monitor may
be too close to each other.
Move them further apart.
• For optimal performance, avoid
placing the monitor and camera
near televisions, computers,
cordless/mobile phones, or
other electrical equipment.
• Lower the monitor volume.
Product Support is available 24/7 including product
information, user guides, quick start guides, and FAQ’s
at www.lorexbaby.com/support
Need Help?
Loading...
