Lorex ACCLPS281 Quick Start Manual

ACCLPS281 Quick Start Guide - English - R2

8+1 Port Fast POE Switch

Quick Start Guide

1

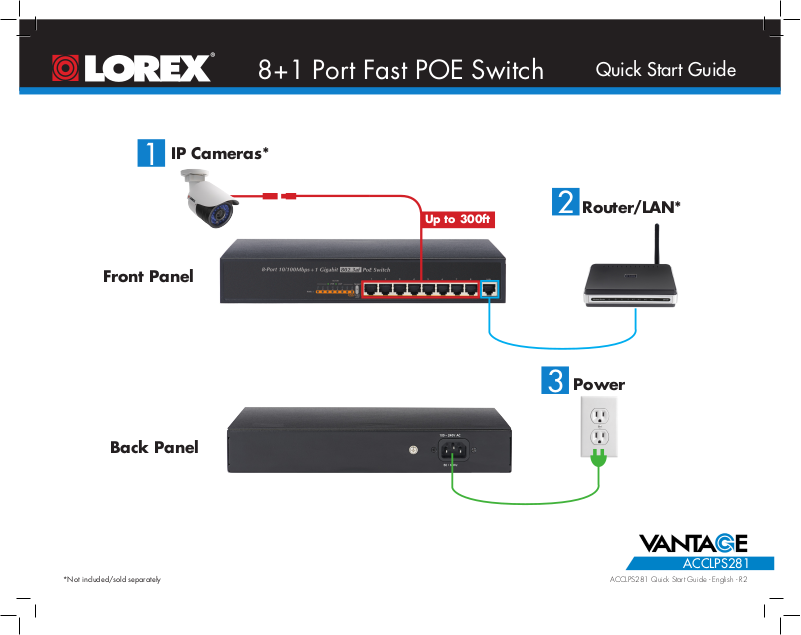

Front Panel

IP Cameras*

Up to 300ft

2

3

Router/LAN*

Power

Back Panel

*Not included/sold separately

ACCLPS281

ACCLPS281 Quick Start Guide - English - R2

8+1 Port Fast POE Switch

Quick Start Guide

LED Indicators

Name Color Meaning

PWR Green ON: The switch is receiving power.

OFF: The switch is not powered.

1~8 LINK/
ACT

1~8 POE Orange ON: Port is sending 48V DC power.

Speed Green ON: 1000Mbps connection to router.

LINK/ACT Green ON: Successful connection to router.

Green ON: Successful connection (full duplex).

Slow Flashing: Successful connection

(half duplex).
Fast Flashing: Switch is sending/
receiving data.

OFF: No connection.

OFF: Port is not sending power.

Slow Flashing: 100Mbps connection

to router.
OFF: If LINK/ACT is ON, 10Mbps
connection to router.

OFF: No connection to router.

Compatibility

Device Compatible Models

Technical Specifications

Name Specification

Ports

PoE Standard
PoE Power Output
PoE Class
Standard

Compliance

Operating
Humidity

Operating
Temperature

Power
Requirements

Dimensions
(W x D x H)

Weight

8-Port RJ-45 for 10/100Base-TX (1~8)
1-Port RJ-45 for 10/100/1000Base-T (LAN)

IEEE 802.3af Power over Ethernet / PSE
Per Port 48V DC, Max. 15.4 watts
Class 2/3
IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
IEEE 802.3x (Flow Control)
IEEE 802.3af (Power over Ethernet)

5 ~ 95%, Relative Humidity, non-condensing

32 ~ 122F / 0 ~ 50C

AC 100~240V, 50/60Hz, 2A max.

11.0” x 7.1” x 1.7”
280mm x 180mm x 43mm (W x D x H)
1U height

1.7kg

NVRs

Cameras

• LNR300 Series
(LNR341, LNR382, LNR363)

• LNB2153

• LND2152
