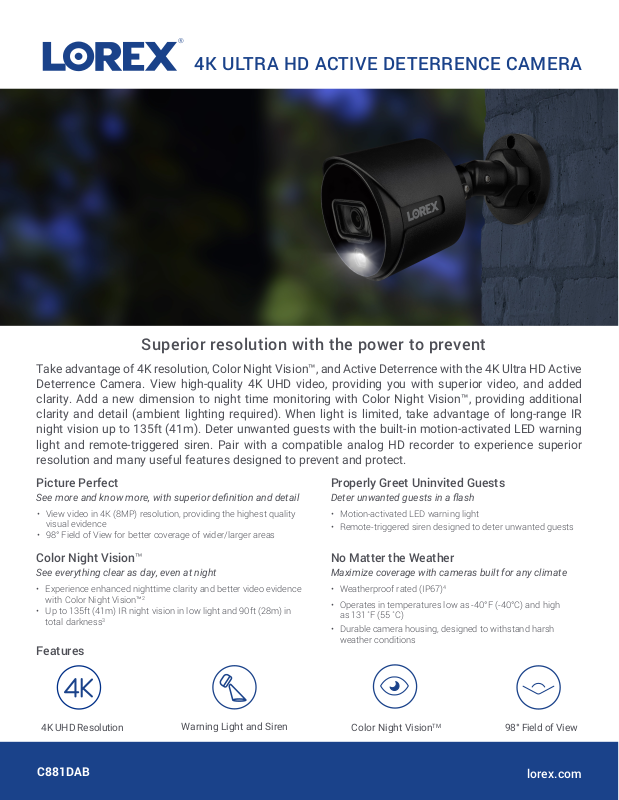

Lorex 4K ULTRA HD ACTIVE DETERRENCE CAMERA User Manual

4K ULTRA HD ACTIVE DETERRENCE CAMERA

Superior resolution with the power to prevent

Take advantage of 4K resolution, Color Night Vision™, and Active Deterrence with the 4K Ultra HD Active
Deterrence Camera. View high-quality 4K UHD video, providing you with superior video, and added
clarity. Add a new dimension to night time monitoring with Color Night Vision™, providing additional
clarity and detail (ambient lighting required). When light is limited, take advantage of long-range IR
night vision up to 135ft (41m). Deter unwanted guests with the built-in motion-activated LED warning
light and remote-triggered siren. Pair with a compatible analog HD recorder to experience superior
resolution and many useful features designed to prevent and protect.

Picture Perfect

See more and know more, with superior denition and detail

• View video in 4K (8MP) resolution, providing the highest quality
visual evidence

• 98° Field of View for better coverage of wider/larger areas

Color Night Vision™

See everything clear as day, even at night

• Experience enhanced nighttime clarity and better video evidence
with Color Night Vision™

• Up to 135ft (41m) IR night vision in low light and 90ft (28m) in
total darkness

3

2

Properly Greet Uninvited Guests

Deter unwanted guests in a ash

• Motion-activated LED warning light

• Remote-triggered siren designed to deter unwanted guests

No Matter the Weather

Maximize coverage with cameras built for any climate

• Weatherproof rated (IP67)

• Operates in temperatures low as -40°F (-40°C) and high

as 131˚F (55 ˚C)

• Durable camera housing, designed to withstand harsh
weather conditions

4

Features

4K UHD Resolution

C881DAB

Warning Light and Siren

Color Night Vision

TM

98° Field of View

lorex.com

Product Specications

4K ULTRA HD ACTIVE DETERRENCE CAMERA

General

Video Transmission

Analog HD

Technology

Image Sensor 8MP/4K 1/3” CMOS

Video Format NTSC

Optical

Viewing Angle

98°

(Horizontal)

Lens/Lens type 2.8mm F1.6/ Fixed

Video Output

Resolution/Frame rate 4K(8MP)@15fps

Effective Pixels H:3840 x V:2160

Termination BNC

Audio

Microphone/Speaker No/Yes

Siren Yes

2-Way Talk No

Night Vision

IR Night Vision Range 135ft (41m)/ 90ft (28m)

Color Night Vision Yes

Special Features

Deterrence Yes - Warning Light + Siren

Additional Specications

Camera Housing Material Polycarbonate

Power Requirements 12 V DC +/- 10%

Power Consumption

430mA / 5.2W

(max)

Camera Dimensions
(W x D x H)

2.8"x 5.9" x 3.2"
(71mm x 150mm x 82mm)

Camera Weight 0.65lb / 0.30kg

Operating Temperature -40˚F ~ 140˚F / -40˚C ~ 55˚C

Humidity < 90% RH

Environmental Rating IP67 (Indoor/Outdoor)

4

Model Information

C881DAB-Z 6-95529-02833-0

Conguration 4K Ultra HD Active Deterrence

Package Type Plain Box

Package Dimensions
(W × D × H)

Package Weight 2.25lb / 1.0kg

Security Camera

13.3 × 5.1 × 4.4” /
338 × 130 × 112mm

Package Cube 0.17 cbf / 0.004 cbm

Junction Box Compatible with: ACJNCD3BKB (Black)

(not included)

What’s Included

4K Active Deterrence

Security Camera

Disclaimers:

1. Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility

2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.

3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 90ft/28m in total darkness). Actual range and image clarity depends on

installation location, viewing area and light reection/absorption.

4. Not intended for submersion in water. Installation in a sheltered area recommended.

C881DAB

lorex.com

60ft/18m BNC/DC UL

Certied Extension Cable

Power Adapter

As our product is subject to continuous improvement, Lorex Technology & subsidiaries reserve the right to modify product

design, specications & prices without notice and without incurring any obligation. E&OE.

Mounting Kit

Quick Start Guides

Lorex Corporation

999 Corporate Blvd. Suite 110

Linthicum, MD, 21090, United States

© 2020 Lorex Technology

(19-0062-LOR) 04272020-1
