Loreme CPL35, CPL35L Configuration Handbook

E 1

AC & DC TRMS current and voltage transducer

Wattmeter, Voltmeter, Ammeter,...

LOREME 12, rue des Potiers d'Etain Actipole BORNY - B.P. 35014 - 57071 METZ CEDEX 3

Phone [phone]

Contact : [e-mail] - [e-mail]

Download manual at : www.loreme.fr

REV 2.2 - 01/10/18

CPL35

CPL35L

CONFIGURATION HANDBOOK

E 2 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

Table of contents

DEVICE PRESENTATION ......................................................................................................................................... p3

OPERATION .................................................................................................................................................... p3

1) Visualization ............................................................................................................................................... p3

2) Display change ........................................................................................................................................... p3

3) Reset of memorized alarms ...................................................................................................................... p4

4) Configuration via the front face ............................................................................................................... p4

4.1) Language configuration ............................................................................................................... p4

4.2) Inputs configuration ..................................................................................................................... p4

4.3) Network configuration ................................................................................................................. p4

4.4) Relays configuration .................................................................................................................... p5

4.5) Outputs configuration .................................................................................................................. p6

4.6) Display configuration ................................................................................................................... p7

4.7) End of configuration ..................................................................................................................... p7

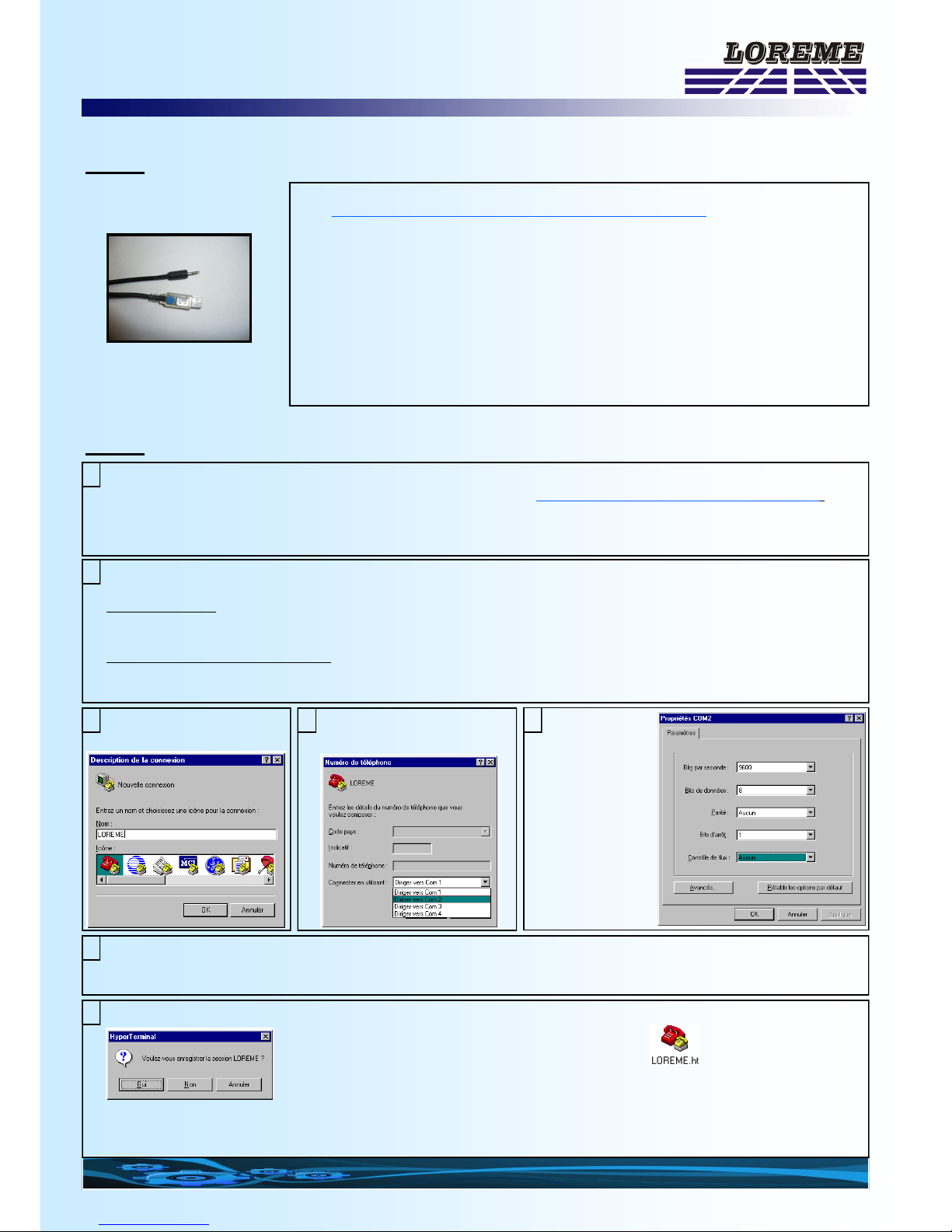

RS232 LINK SETTING ............................................................................................................................................. p8

TERMINAL MODE ..................................................................................................................................................... p9

1) Visualization .............................................................................................................................................. p9

2) Configuration ............................................................................................................................................ p9

2.1) Method .......................................................................................................................................... p9

2.1.1) Menu selection ................................................................................................................ p9

2.1.2) Parameter selection ....................................................................................................... p9

2.1.3) Value acquisition ............................................................................................................. p9

2.2) Language ...................................................................................................................................... p10

2.3) Inputs ............................................................................................................................................ p10

2.4) Network ......................................................................................................................................... p10

2.5) Relays ........................................................................................................................................... p10

2.6) Analogical outputs ...................................................................................................................... p11

2.7) Display .......................................................................................................................................... p11

2.8) Special functions ......................................................................................................................... p12

2.9) End of configuration ................................................................................................................... p12

FIRMWARE UPDATE ............................................................................................................................................... p13

EMC CONSIDERATION ........................................................................................................................................... p14

1) Introduction ............................................................................................................................................... p14

2) Recommendation of use .......................................................................................................................... p14

2.1) General remarks .......................................................................................................................... p14

2.2) Power Supply ............................................................................................................................... p14

2.3) Inputs / Outputs ........................................................................................................................... p14

WIRING ...................................................................................................................................................................... p15

WIRING EXAMPLES ................................................................................................................................................ p16

Single phase network ................................................................................................................................... p16

Balanced three phases network with neutral ............................................................................................. p16

Balanced three phases network without neutral ........................................................................................ p17

Hall sensor current input .............................................................................................................................. p17

BIPOLAR OUTPUT WIRING .................................................................................................................................... p18

 TABLE OF CONTENTS

E 3

The CPL35 and CPL35L are TRMS (AC+DC) converters for measuring, monitoring and retransmission of electrical pa­rameters. Implementation is fast by simple front face configuration. The various output options allow a wide range of ap­plication: measurement, protection, control.

Devices have several options:

 CPL35(L) : standard base version with one analog output.
 CPL35(L)-Rogo : Rogowski sensor input base version with one analog output.
 CPL35(L)-Hall : Hall sensor input base version with one analog output.
 CPL35../R1 : + 1 relay.
 CPL35../R2 : + 2 relays.
 CPL35../R3 : + 3 relays.
 CPL35../S2 : 2 analog outputs.

The technical data sheets are downloadable here: http://www.loreme.fr/fichtech/CPL35_eng.pdf
http://www.loreme.fr/fichtech/CPL35L_eng.pdf

1) Visualization

At power on, the device displays a Hard-Soft revision number (r2-1) during 1 s and then the last selected measurement.

2) Display change

Normally, the device displays the value of the currently selected measurement. Pressing the bottom button toggles the
display to the unit for 2 seconds. The units shown are:

- V for voltage measurement.

- A or mA for current measurement.

- Hz for frequency measurement on voltage inputs 600V and 150V only.

- Vpic for peak voltage measurement (only on CPL35L).

- W for the active power measurement (only on CPL35).

- VAR for the reactive power measurement (only on CPL35).

- VA for the apparent power measurement (only on CPL35).

- COS for power factor measurement (only on CPL35).

During the display of the unit, the operator can change measurement by re pressing the bottom button as many times as
necessary. The unit changes after each press. The device automatically returns to the measurement display mode after
2 seconds.

Note:

The type of measurement displayed remains active even when the device is powered off.

Device Presentation

R1 & R2

alarms state signaling LEDs

4 digits alphanumerical display

Configuration access

or

YES button

or

Increment button (+)

Cover

RS232 stereo jack link

Display change

or

NO button

or

decrement button (-)

R3 alarms state signaling LEDs

Green power LED

 TABLE OF CONTENTS

E 4 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

3) Reset of memorized alarms

Simultaneous pressing both buttons provides a alarms reset if the hold function is enabled (see relay configuration
pages 5 and 10) and whether the alarm condition no longer exists.

4) CONFIGURATION

To access the configuration, push the top button. It is possible to lock the access in the "Special Functions" rubric (see

p12). If access is locked then the message "NOT ALLOWED!" is displayed.

Note about value setting:

Use the (+)/(-) buttons to increase or decrease the value. The value is automatically validated after 4 seconds if no
button is pressed.

4.1) Language configuration

LANGUAGE CONFIGURATION? This message scrolls on the display. Push the YES button to access to the rubric.
FRENCH? or ENGLISH? YES button to choose French language, NO button to select the next choice.

4.2) Inputs configuration

The device comes in standard with two voltage inputs (high and low) and three current inputs (2 internals and 1 for ex­ternal shunt) on the standard version and one more current input and a +/- 15 V power supply for the Hall version or with
only one current input for the Rogo version. Default calibers of the inputs are:

- 600 V for the high voltage input,

- 150 V for low voltage input,

- 1 A for the internal shunt current input 1,

- 5 A for the internal shunt current input 2,

- 200 mV (200 A) for the external shunt current input (default configured shunt sensibility is 1 A/mV),

- 4000 mV for the Hall sensor current input (default configured current caliber is 100 Adc).

- 200 mV (2000 A for 100 mV/kA) for the Rogowski sensor current input.

The inputs configuration rubric permits to select the measured voltage input, the measured current input (standard ver­sion only) and the measurement response time (integration time for TRMS measurement value calculation). This pa­rameter is configurable from 0.01 s to 60 s (1 s by default). It should be noted that the amplitude of the ripple on the cal­culated TRMS measurement is inversely proportional to this value. A fast response time implies a strong ripple on the
TRMS measurement value. For example, with a filter of 1 s, the ripple is 0.6% of the measured value.

INPUTS CONFIG? This message scrolls on the display. Push the YES button to access to the rubric.
Push the NO button to go to the next rubric.

VOLTAGE INPUT? Push the YES button to access to the voltage input selection.

600V? Push the YES button to choose the 600V voltage input or the NO button to select
the next choice.

150V? Push the YES button to choose the 150V voltage input or the NO button to select
the previous choice.

CURRENT INPUT? Push the YES button to access to the current input selection (only standard & Hall).
1A? Push the YES button to choose the 1 A internal shunt current input.
5A? Push the YES button to choose the 5 A internal shunt current input.
200mV? Push the YES button to choose the external shunt current input.
HALL CURRENT INPUT? Push the YES button to choose the Hall current input (only -Hall version).

MEASURE RESPONSE TIME? Push the YES button to access to the response time setting (0.01 s to 60 s).

4.3) Network configuration

The network configurable parameters are:

- Alternative or Continuous (only on CPL35(L) or CPL35(L)-Hall),

- Single-phase or balanced three phases with or without neutral for a alternative network (only visible on a CPL35).

It is also necessary to configure:

 TABLE OF CONTENTS

E 5

- The Potential Transformer ratio.

- The Current Transformer ratio or the external current shunt sensibility or the current measurement unit and the Hall
sensor current caliber, or for the Rogo version, the Rogowski sensor sensibility.

NETWORK CONFIG? Push the YES button to access to the rubric.
Push the NO button to go to the next rubric.

ALTERNATIVE? Push the YES button to choose TRMS (AC+DC) measure mode or the NO button to select
the next choice.

CONTINUOUS? Push the YES button to choose the DC measure mode or the NO button to select
the previous choice.

Remarks:

- Per default, the Hall version is configured in CONTINUOUS mode at factory output.

- In CONTINUOUS mode, the device calculate the average value of the signal with the response time set previously.
For an AC signal the average value is 0.

Signal with an average value < 0. Signal with an average value > 0.

These 2 rubrics are only accessible on a CPL35 and if the ALTERNATIVE mode was previously selected

SINGLE PHASE? Push the YES button to choose the single phase mode or the NO button to select
the next choice.

THREE PHASES? Push the YES button to choose the three phases mode with or without neutral (see wiring
p16 & p17. In this mode the power measurements are multiply by 3.

PT RATIO? Push the YES button to access the PT ration setting (0.001 to 1 M) or the NO button
to go to the next rubric.

CT RATIO? Push the YES button to access the CT ration setting (0.001 to 1 M) in internal shunt
or current input configuration.
SHUNT SENSIBILITY? Access to the shunt sensibility setting (0.001 A/ mV to 1 MA/mV) if the external shunt current
input is selected.
or
CURRENT(A)? Choice of the Hall current measurement unit (according to the sensor caliber) in Hall current
CURRENT(mA)? input configuration.

HALL CALIBER? Access to the Hall sensor caliber setting (1 to 65500 A or mA).

or on a CPL35(L)-Rogo
ROGO SENSIBILITY? Access to the Rogowski sensor sensibility setting (10.00 to 1000 mV/kA).

4.4) Relays configuration

This rubric is only visible if the device is equipped with 1, 2 or 3 relays (option /R1 or /R2 or /R3).

RELAYS CONFIG? Push the YES button to access to the rubric.

RELAY 1? Push the YES button to access to the relay 1 configuration.

THRESHOLD ALARM? YES to activate the threshold alarm, NO to deactivate it.

WINDOW ALARM? YES to activate the window alarm, NO to deactivate it.

0 V

+100

-100 V

 TABLE OF CONTENTS

E 6 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

if the threshold alarm is activated

MEASURE: Choice of monitored measure type.

VOLTAGE? Push the YES button to choose the displayed type. Push the NO button to display the
next type.

HIGH THRESHOLD? Choose the type of detection (High or Low, see p10).
LOW THRESHOLD?

THRESHOLD? Push the YES button to access the threshold value setting.

RELAY CLOSED IN ALARM? Choose the type of security (see p10).
RELAY CLOSED OUT OF ALARM?

ALARM HOLD? YES to activate the hold function, NO to deactivate it.

ACTIVATION DELAY? Push the YES button to access the activation delay setting.

DEACTIVATION DELAY? Push the YES button to access the deactivation delay setting. Absent if the alarm
hold function is enabled.

or if the window alarm is activated

MEASURE: Choice of monitored measure type.

VOLTAGE? Push the YES button to choose the displayed type. Push the NO button to display the
next type.

LOW THRESHOLD? Push the YES button to access the low threshold value setting.

HIGH THRESHOLD? Push the YES button to access the high threshold value setting.

RELAY CLOSED IN THE WINDOW? Choose the functioning mode (see p11).
RELAY CLOSED OUT OF WINDOW?

ACTIVATION DELAY? Push the YES button to access the activation delay setting.

DEACTIVATION DELAY? Push the YES button to access the deactivation delay setting. Absent if the alarm
hold function is enabled.

RELAY 2? Push the YES button to access to the relay 2 configuration (only with /R2 option).
same as relay 1
RELAY 3? Push the YES button to access to the relay 3 configuration (only with /R3 option).
same as relay 1

4.5) Output configuration

OUTPUTS CONFIG? Push the YES button to access to the rubric.

OUTPUT 1? Push the YES button to access to the output 1 configuration.

CURRENT? Choose the output type, current or voltage.
VOLTAGE?

OUTPUT 0%? Push the YES button to access the output low scale setting.

OUTPUT 100%? Push the YES button to access the output high scale setting.

RESPONSE TIME? Push the YES button to access the output response time setting (0 to 60 s).

LIMITATION? Push the YES button to activate the output limitation, Push the NO button to
deactivate the output limitation.

 TABLE OF CONTENTS

E 7

MEASURE: Choice of monitored measure.
VOLTAGE? Push the YES button to choose the displayed type. Push the NO button to display the
next measurement type.

MEASURE 0%? Push the YES button to access the measure low scale setting.

MEASURE 100%? Push the YES button to access the measure high scale setting.

HOLD TIME? Peak voltage hold time setting access (0.01 s to 60 s). This menu is only visible if the user
has chosen the monitoring of the PEAK VOLTAGE measure.

OUTPUT 2? Push the YES button to access to the output 2 configuration (only with /S2 option).
Same as output 1 except peak voltage measure choice is not present.

The default factory parameters are:
For output 1: output scale = 4/20 mA, input scale = 0/600 V, response time = 0 s, no limitation.
For output 2: output scale = 4/20 mA, input scale = 0/5 A (standard) or 0/2000 A (Rogo) or 0/100 Adc (Hall)
response time = 0 s, no limitation. See page 11 for more details about the output parameters.

4.6) Display configuration

This section allows you to customize the display of measurements on front.

DISPLAY CONFIG? Push the YES button to access to the rubric.

DISPLAY FILTER? Push the YES button to access the display filter setting (0 to 60 s).
Allows filtering of the displayed value to smooth fluctuations of the measurement.

DECIMAL POINT? Push the YES button to access the decimal point mode setting.

AUTO(Y/N)? Pressing YES selects the automatic decimal point display mode.
Pressing NO selects the fixed mode.

NUMBER OF DECIMAL FOR: Choosing the number of decimals (0, 1 or 2) for each measure in fixed mode.
VOLTAGE? Push the YES button to access the number of decimals displayed for the voltage measure.
CURRENT? And so on for all the other measurements.
FREQUENCY?
ACTIVE P.?
REACTIVE P.?
APPARENT P.?
POWER FACTOR?

4.7) End of configuration

OK! This message indicates that all the parameters have been successfully saved.

Remark:

If, during the configuration process, no buttons are pressed for more than 90 s, the device returns to measure mode
without saving the new configured parameters.

 TABLE OF CONTENTS

E 8 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

RS232 link setting

Enter name for the new
connection

Start a "hyper Terminal" connection :

- Click on "START" button
Up to XP version

- Go to "Programs \ Accessories \ Communication \ Hyper Terminal"

- Click on "Hypertrm.exe"
Or if the software was downloaded

- Go to "All programs \ HyperTerminal Private Edition"

- Click on "HyperTerminal Private Edition"

Choose:

- 9600 bauds

- 8 DATA bits

- no parity

- 1 stop bit

- XON/XOFF

The device can be configured or updated in terminal mode via an RS232 link.

Step 1: Driver installation for USB / RS232 adapter

- download driver at www.loreme.fr:
http://www.loreme.fr/aff_produits.asp?rubid=53&langue=fr

- Click on executable file to install the driver,

- Plug the cable on a USB port, Windows install a new serial communication port COMx
(x >= 4).

Note :

The use of the cable on another USB port don’t generates a new communication port.

Use of another adapter generates another communication port number (COMx) and re­quires the reconfiguration of the HyperTerminal.

The terminal emulation software for PC « HyperTerminal » is resident in windows up to XP version. For later ver­sions, it is downloadable on : www.loreme.fr in download part ( http://www.loreme.fr/HyperTerm/htpe63.exe )

=> Run the downloaded software to install it.

1

Step 2: Setting of terminal emulation software (PC with windows).

2

3 4

5

Choose the communication port
related to the adapter.

The PC is now in terminal mode, connect it to the device by plugging the RS232 cable. The measure is now dis-

played on the terminal. To access configuration, press ’C’ key.

6

7

Note: to modify the parameters of terminal mode whereas this one is already started, it is necessary, after having car­ried out the modifications, to close the terminal and to open it again so that the modifications are effective.

When leaving Hyper terminal, the following window will
appear. By saving, the terminal
session will start with the same
configuration.

Thus, the shortcut will permit to communi­cate with all LOREME devices.

 TABLE OF CONTENTS

E 9

Terminal mode

1) Visualization

The CPL35 or CPL35L can be connected to a terminal with the RS232 link on the front of the device.

This requires a USB/Jack adapter cable, and have a ASCII emulation program like ‘HyperTerminal ' or else installed on

the PC.

Once the device is connected to the PC, it displays the following measurements page every 5 seconds.

CPL35 measurements page: CPL35L measurements page:
VOLTAGE: 200 V VOLTAGE: 89.2 V
CURRENT: 2.55 A CURRENT: 2.55 A
FREQUENCY: 50.01 Hz FREQUENCY: 50.01 Hz
ACTIVE P.: 260 W
REACTIVE P.: 22 Var OUTPUT 1: 6.27 mA
APPARENT P.: 260 VA OUTPUT 2: 12.16 mA
COSINUS PHI: 0.999

OUTPUT 1: 9.33 mA
OUTPUT 2: 12.16 mA

Remark:

In terminal mode the metrological performance of the device are degraded. It is therefore preferable to limit the
time of use in this mode.

2) Configuration

The device can also be configured by the terminal link.
To enter configuration mode, just press the "C" key. The message ‘ConF’ is displayed in front.

2.1) Method

At the configuration time, different types of questions are displayed. For each one, several answers are possible.
You will find below the detailed description of each case.

2.1.1) Menu selection

example: INPUTS CONFIGURATION The user makes a choice by pressing the keys "Y" or "N".
(Y-N)

2.1.2) Parameter selection
example: VOLTAGE or VOLTAGE
(Y-N)YES (Y-N)NO

Previous choice = YES: - pressing "Y" or "Enter" => choice validation = YES.

- pressing "N" => choice changing = NO.
Previous choice = NO: - pressing "N" or "Enter" => choice validation = NO.

- pressing "Y" => choice changing = YES.

2.1.3) Value acquisition
Example: LOW SCALE
4 mA

There are two possibilities:

- The validation without modification by typing "Enter",

- The modification with simultaneous display followed by validation with "Enter".

Remarks:

- It is possible, when a mistake is made during a value acquisition, before validating it, to go back by pressing on
backspace key. This re-displays the message without taking notice of the mistake.

- In configuration mode, if there is no action on a key during 2 minutes, device goes back in measure mode without
taking notice of the modifications made before.

- In configuration mode, if you want go back to measure mode without taking notice of modifications made before,
just press the escape key.

 TABLE OF CONTENTS

E 10 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

2.2) Language

The language possibilities are: - French

- English

2.3) Input

The input configuration is made of:

- Voltage input choice.

- Current input choice (only CPL35(L) standard or Hall).

- Measure response time.

2.4) Network
The configurable parameters are:

- Alternative TRMS (AC+DC) or continuous (DC) (only on standard and Hall version).

- Single-phase or three-phase (only on CPL35).
The three-phase mode corresponds to a balanced three-phase wiring with or without neutral (see p16-17). In this mode
the CPL35 multiplies the power measurements by three.

It is also necessary to configure:

- The Potential Transformer ratio,

And on a standard or Hall version:

- The Current Transformer ratio (1A or 5A input) or external current shunt sensibility (200mV input) or the current
measurement unit (A or mA) and the Hall sensor caliber (Hall input).

Or on a Rogo version:

- The Rogowski sensor sensibility in mV/kA (100 mV/kA per default).

2.5) Relays

The device can, by /R1, /R2 or /R3 option, provide respectively 1, 2 or 3 independently configurable alarm relays.

Relay parameters are:

- Choice of alarm: Threshold or window alarm or no alarm.

- Monitored value: voltage, current, frequency on a CPL35(L),
plus active power, reactive power, apparent power, power factor, on CPL35.
For the threshold alarm:

- Type of detection: high or low threshold.

- Threshold and hysteresis value.

- Security.

- Hold function.

- Activation and deactivation delays.
For the window alarm:

- Low threshold value.

- High threshold value.

- Functioning mode.

- Relay activation and deactivation delays.

The threshold alarm works in this manner:

- high threshold detection: .alarm is activated when measure goes above threshold,
.alarm is removed when measure goes below threshold minus hysteresis.

- low threshold detection: .alarm is activated when measure goes below threshold,
.alarm is removed when measure goes above threshold plus hysteresis.

The security function allows to choose between the activation or the de-activation of the relay when alarm is activated
(see chronograms on next page).

The Hold function keeps the alarm activated, even if the measure comes off alarm, and this until it has been disabled by
a reset on the front (see § 3 page 4).

The activation and deactivation delays, configurable from 0 to 600 s set the time above which alarm changes its state
after event appearance and disappearance (see chronograms on next page).

Configuration

 TABLE OF CONTENTS

E 11

The window alarm works in this manner:

In the "RELAY CLOSED IN THE WINDOW" mode

- The relay is activated when the measure >= to the low threshold and <= to the high threshold.

- The relay is deactivated when the measure is < than the low threshold or > than the high threshold.

In the "RELAY CLOSED OUT OF WINDOW" mode

- The relay is deactivated when the measure >= to the low threshold and <= to the high threshold.

- The relay is activated when the measure is < than the low threshold or > than the high threshold.

2.6) Analogical output

In standard the device provides one analogical output, insulated and configurable. It can by /S2 option be equipped
with a second insulated output. The two outputs are configurable independently of each other. They can also be used as
a bipolar +/- 10V output (see "special functions" next page and p18 for wiring).

Configurable output parameters:

- Type of output: Current output (mA) or Voltage output (V) with strap connected (see p15).

- Low and high output scales.

- Response time.

- Limitation.

- Monitored value: voltage, peak voltage (only for output 1 on a CPL35L), current, frequency,
plus active power, reactive power, apparent power, power factor, on a CPL35.

- Low and high input measure scales.

The limitation allows to bound the output signal swing to the configured output scales for all input signal values.

The response time allows a smoothing of the output. It is configurable from 0 to 60 s (set to 0 s at the factory).

The hold time is the time for the detected peak voltage measurement to be maintained on the output 1. It is configur­able from 0,01 to 60 s (set to 1 s at the factory). This configuration rubric is only visible if the user has chosen the
PEAK VOLTAGE measure to be monitored.

2.7) Display
This rubric permits to personalize the measurements display on the front.

The display parameters are:

- Display filter.

- Decimal point display mode.

DISPLAY CONFIGURATION?
(Y-N) Press the ‘Y’ key to access display configuration.

DISPLAY FILTER?
1 s Enter the filter value (0 to 60 s).

Event

Alarm

Security: relay closed in alarm

Security: relay closed out of alarm

Delay before activation Delay before deactivation

active

Relay off

Relay on

Relay on

Relay off

inactive

 TABLE OF CONTENTS

E 12 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

DECIMAL POINT?
(Y-N) Press the ‘Y’ key to access decimal point mode configuration.

AUTO(Y/N)?
(Y-N)YES Press 'Y' key to choose the automatic decimal point display mode or 'N' to choose
the fixed mode.

NUMBER OF DECIMAL FOR: configure number of decimal for the fixed mode for each measure.
VOLTAGE
1 Enter the number of decimals to display for the voltage measurements.

etc.......

2.8) Special functions

The device disposes of some special functions to adapt its operation.

The front face configuration lock allows the user to lock the configuration procedure accessible via the front face.

The bipolar output allows to use the 2 unipolar outputs as one +/-10 V bipolar output. It is necessary to reconfigure
output parameters after activation of the bipolar output.

SPECIAL FUNCTIONS? Press 'Y’ to access the special function configuration.
(Y-N)

FRONT FACE CONFIG. LOCK?
(Y-N)NO Press ‘Y’ to lock the front face configuration access.

BIPOLAR OUTPUT?
(Y-N)NO Press ‘Y’ to activate the bipolar +/-10 V output. A reconfiguration of the output
parameters is necessary.

2.9) End of the configuration

OK! This message indicates that all the parameters have been successfully saved.

Remark:

If no action is performed during the configuration process, the device returns automatically to measurement mode after a
wait of two minutes, without taking into account of the modifications made before.

 TABLE OF CONTENTS

E 13

FIRMWARE update

To access to the firmware update function, you must first open an HyperTerminal session on a PC, connect the device
to the PC with the RS232 link cable and then power on the device.

The following character is send to the terminal:

> <———————— The device sends this character then it waits the « F » key during 0.5 s.

If the user has pressed the « F » key in the allowed time, the following message is displayed in the HyperTerminal win­dows:

FIRMWARE LOADER Rev3
READY TO TRANSFER...

The device is now in the firmware load mode and is waiting for the firmware file. This file is provide by LOREME and
contain the firmware code in Intel HEX format.

Select the « Transfer », « Send a text file ... » in the HyperTerminal menu.
Select the directory and open the file. The HyperTerminal program begins to send the file to the device.

FIRMWARE LOADER Rev3
READY TO TRANSFER
*********** <———————— The star characters appears to show the progress of the uploading.

At the end, the message « PROGRAMMING OK ! » is display if no errors occurs. Otherwise, these following message
could be displayed:

- SERIAL COM ERROR ! Error during receipt.

- SERIAL TIMEOUT ! Waiting time of receipt elapsed (60 s).

- PROGRAMMING FAILED ! Programming error in the internal flash memory.

Attention

If an error occurs during the programming process, it is necessary to start again the whole procedure.
A bad programming leads to an inoperative device.

 TABLE OF CONTENTS

E 14 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

1) Introduction

To meet its policy concerning EMC, based on the Community directives 2014/30/EU & 2014/35/EU, the
LOREME company takes into account the standards relative to this directives from the very start of the con­ception of each product.
The set of tests performed on the devices, designed to work in an industrial environment, are made in accor­dance with IEC 61000-6-4 and IEC 61000-6-2 standards in order to establish the EU declaration of confor­mity. The devices being in certain typical configurations during the tests, it is impossible to guarantee the re­sults in every possible configurations. To ensure optimum operation of each device, it would be judicious to
comply with several recommendations of use.

2) Recommendations of use

2.1 ) General remarks

- Comply with the recommendations of assembly indicated in the technical sheet (direction of assembly,
spacing between the devices, ...).

- Comply with the recommendations of use indicated in the technical sheet (temperature range, protection
index).

- Avoid dust and excessive humidity, corrosive gas, considerable sources of heat.

- Avoid disturbed environments and disruptive phenomena or elements.

- If possible, group together the instrumentation devices in a zone separated from the power and relay cir­cuits.

- Avoid the direct proximity with considerable power distance switches, contactors, relays, thyristor power
groups, ...

- Do not get closer within fifty centimeters of a device with a transmitter (walkie-talkie) of a power of 5 W, be­cause the latter can create a field with an intensity higher than 10 V/M for a distance fewer than 50 cm.

2.2 ) Power supply

- Comply with the features indicated in the technical sheet (power supply voltage, frequency, allowance of the
values, stability, variations ...).

- It is better that the power supply should come from a system with section switches equipped with fuses for
the instrumentation element and that the power supply line be the most direct possible from the section
switch.

- Avoid using this power supply for the control of relays, of contactors, of electrogates, ...

- If the switching of thyristor statical groups, of engines, of speed variator, ... causes strong interferences on
the power supply circuit, it would be necessary to put an insulation transformer especially intended for instru­mentation linking the screen to earth.

- It is also important that the installation should have a good earth system and it is better that the voltage in
relation to the neutral should not exceed 1V, and the resistance be inferior to 6 ohms.

- If the installation is near high frequency generators or installations of arc welding, it is better to put suitable
section filters.

2.3 ) Inputs / Outputs

- In harsh conditions, it is advisable to use sheathed and twisted cables whose ground braid will be linked to
the earth at a single point.

- It is advisable to separate the input / output lines from the power supply lines in order to avoid the coupling
phenomena.

- It is also advisable to limit the lengths of data cables as much as possible.

EMC Consideration

 TABLE OF CONTENTS

E 15

Wirings

Power supply: terminals G, H.

Relay 1: terminals common (C1), rest (R1), work (T1).
Relay 2: terminals common (C2), rest (R2), work (T2).
Relay 3: terminals common (C3), rest (R3), work (T3).

Analogical output 1: terminals S1+, S1-, Shunt (Internal 500 Ohms shunt for voltage output).
Analogical output 2: terminals S2+, S2-, Shunt (Internal 500 Ohms shunt for voltage output).

High voltage input: terminals 600V, 0V.
Low voltage input: terminals 150V, 0V.

Current inputs:

Standard & Hall version
Internal 1 A shunt: terminals 1A, 0mV/0A.
Internal 5 A shunt: terminals 5A, 0mV/0A.
External shunt: terminals 200mV, 0mV/0A.
Hall version
Hall sensor input: terminals Vin, Gnd for the signal.
terminals +15V & -15V for the sensor power supply.

Rogo version
Rogowski sensor input: terminals Vin and Gnd.

Removable connectors

Removable connectors

strap for voltage output

 TABLE OF CONTENTS

E 16 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

Wiring examples

For CPL35(L) with measurements on a single phase network

1) Current measurement up to 5 A (direct wiring on the internal shunt)

2) Current measurement > 5 A with an external CT

For CPL35 with measurements on a balanced three phases network with neutral

User

device

Neutral

Phase

I up to 5 A

xxxA/5A CT I > 5 A

Neutral

Phase

User

device

N

L1

L2

L3

User

device

Wiring can also be done on phase L2 or L3.

 TABLE OF CONTENTS

E 17

For CPL35(L) with measurements on a balanced three phases network without neutral

For a CPL35(L)-Hall with Hall sensor current input

AC or DC

Power supply

<= 150 V

User

device

Hall effect sensor of type Hco with its
cable, furnished by LOREME

L1

L2

L3

User

device

Phase 2 & 3 are not measured, but serves only to reconstitute
an artificial neutral.

 TABLE OF CONTENTS

E 18 LOREME 12, rue des Potiers d'Etain - 57071 Metz  03.87.76.32.51 - Email: [e-mail] - [e-mail]

Bipolar output Wirings

+/- 10 V output

+ -
