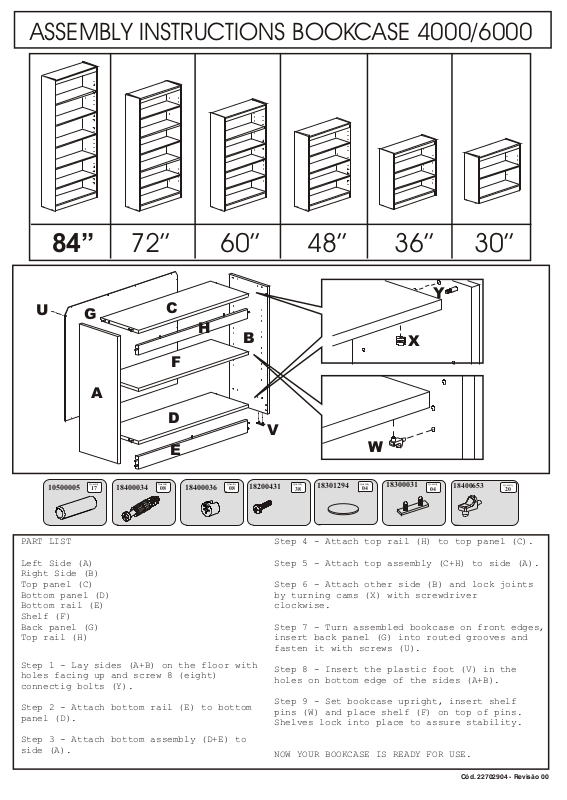

ASSEMBLY INSTRUCTIONS BOOKCASE 4000/6000
84’’
U
10500005
G
A
Quantity
17
72’’ 60’’ 48’’ 36’’ 30’’
Y
C
H
18400034
Quantity
B
F
D
V
Quantity
W
04
E
Quantity
18400036
08
08
18200431
Quantity
38
18301294
X
18300031
Quantity
18400653
04
Quantity
20

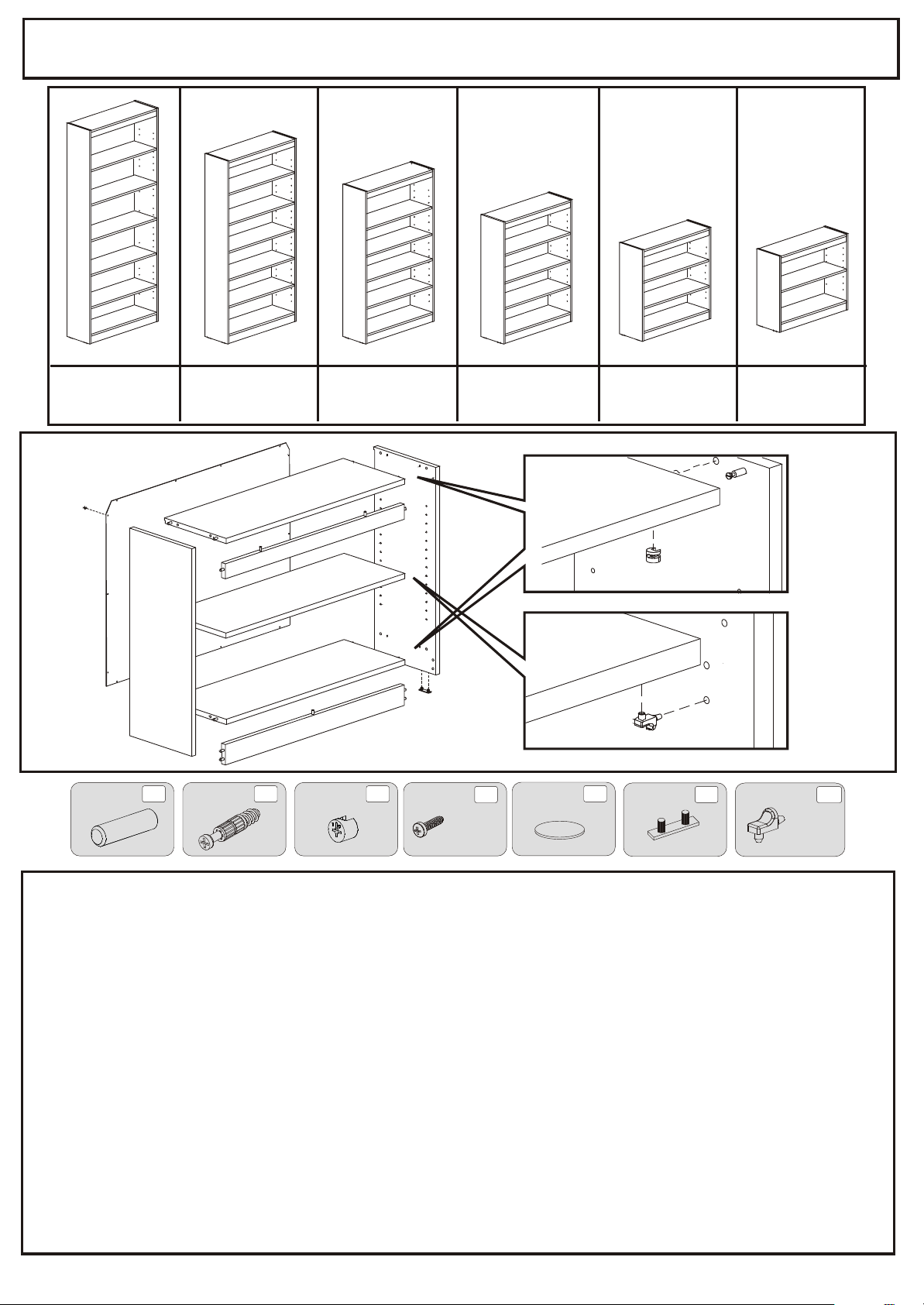

PART LIST
Left Side (A)
Right Side (B)
Top panel (C)
Bottom panel (D)
Bottom rail (E)
Shelf (F)
Back panel (G)
Top rail (H)
Step 1 - Lay sides (A+B) on the floor with
holes facing up and screw 8 (eight)
connectig bolts (Y).
Step 2 - Attach bottom rail (E) to bottom
panel (D).
Step 3 - Attach bottom assembly (D+E) to
side (A).
Step 4 - Attach top rail (H) to top panel (C).
Step 5 - Attach top assembly (C+H) to side (A).
Step 6 - Attach other side (B) and lock joints
by turning cams (X) with screwdriver
clockwise.
Step 7 - Turn assembled bookcase on front edges,
insert back panel (G) into routed grooves and
fasten it with screws (U).
Step 8 - Insert the plastic foot (V) in the
holes on bottom edge of the sides (A+B).
Step 9 - Set bookcase upright, insert shelf
pins (W) and place shelf (F) on top of pins.
Shelves lock into place to assure stability.
NOW YOUR BOOKCASE IS READY FOR USE.
Cód. 22702904 - Revisão 00
