Flipper Table

Rectangular

Assembly Instructions

Page 2

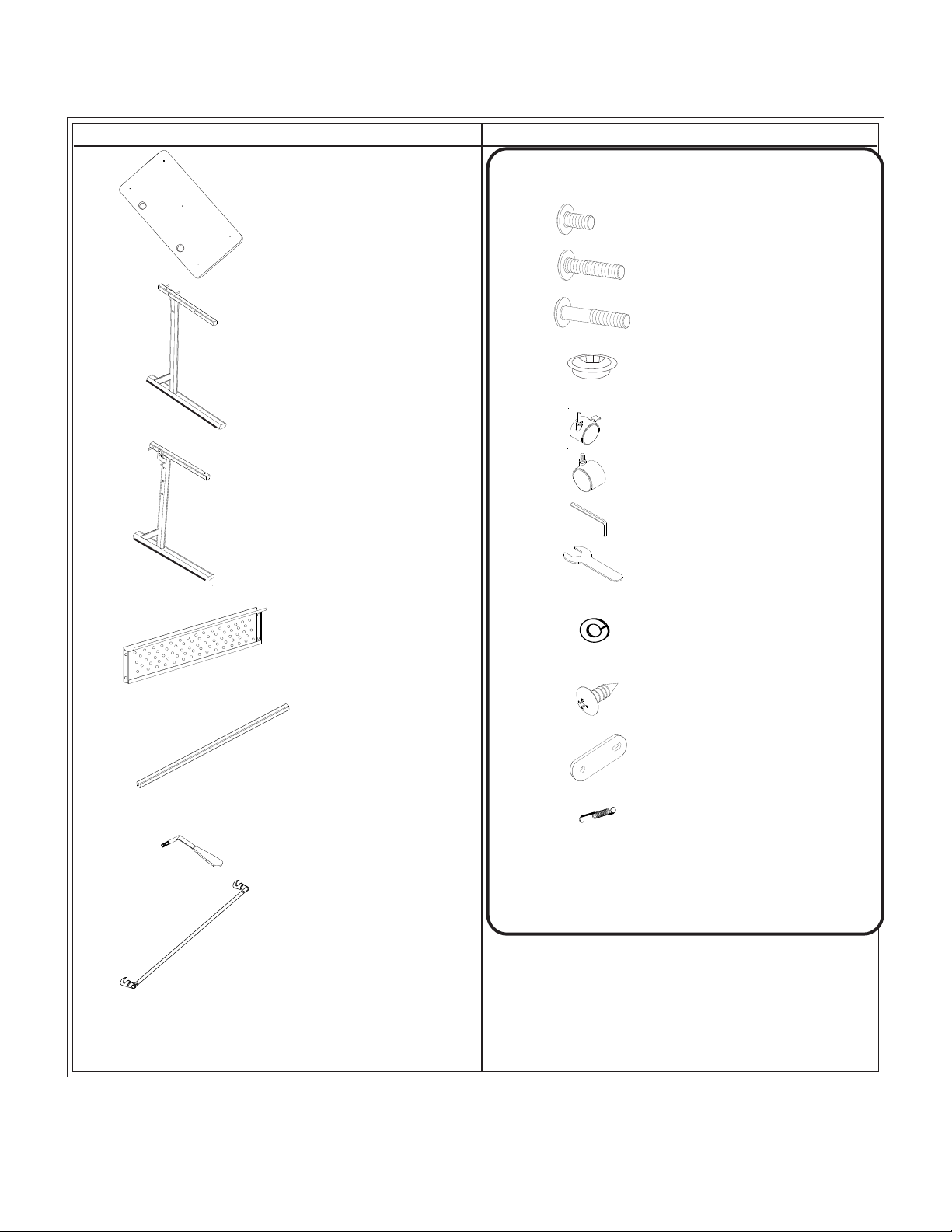

Part Drawing Description Qty

P1 Table T op 1 EA

P2 Left Leg 1 EA

Part Drawing Description Qty

Hardware List

A M6*12mm Socket Screw 8 EA

B M6*45mm Socket Screw 5 EA

B1 M6*57mm Socket Screw 2 EA

C Plastic Grommet 2 EA

D 2” Locking Caster 2 EA

D1 2” Caster 2 EA

P3 Right Leg 1 EA

P4 Modesty Panel 1 EA

P5 Top Support 1 EA

P6 Handle 2 EA

P7 Lock Rod 1 EA

E Allen Wrench 1 EA

F Caster Wrench 1 EA

G Lock Washer-Caster 4 EA

H Wood Screws 4 EA

I Connecting Bracket 2 EA

J Spring-Lock Rod 2 EA

Page 3

Assembly Diagram

EAD THROUGH INSTRUCTIONS FROM BEGINNING

TO END

1.)

2.)

BEFORE

STARTING TO ASSEMBLE UNIT

Identify and Separate all the Parts and Hardware.

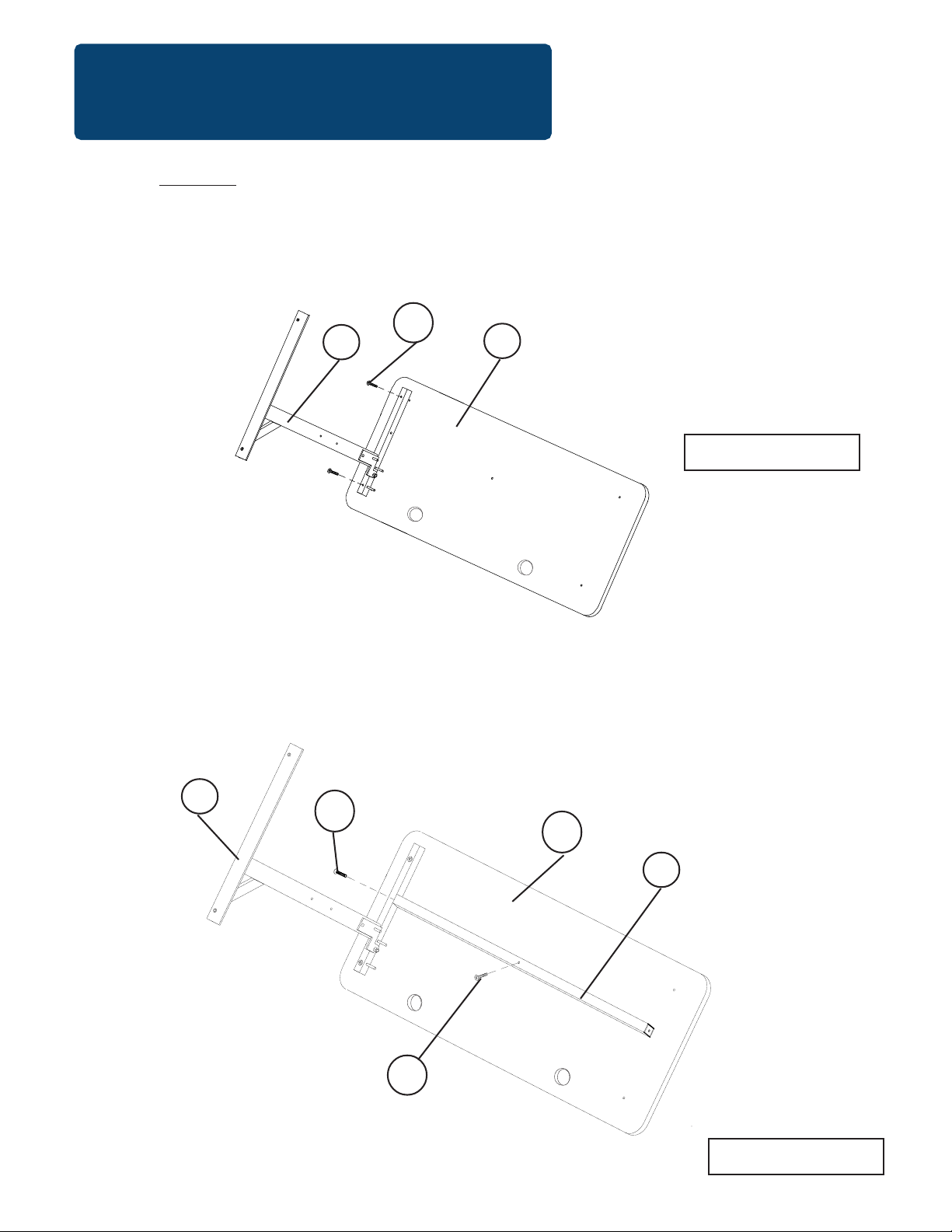

Place the Table Top (P1) face down on a padded surface. Place the Left Leg (P2) over the embedded threaded inserts in the bottom of the Table T op. Attach the Left Leg to the Table

T op using two Socket Screws (B) as shown in Illustration #1.

Illustration # 1

3.)

Attach the Top Support (P5) to the Left Leg (P2) using one Socket Screw (B1). Use one

Socket Screw (B) to attach the Top Support (P5) to the center hole in the T able Top (P1)

as shown in Illustration #2.

Illustration # 2

Page 4

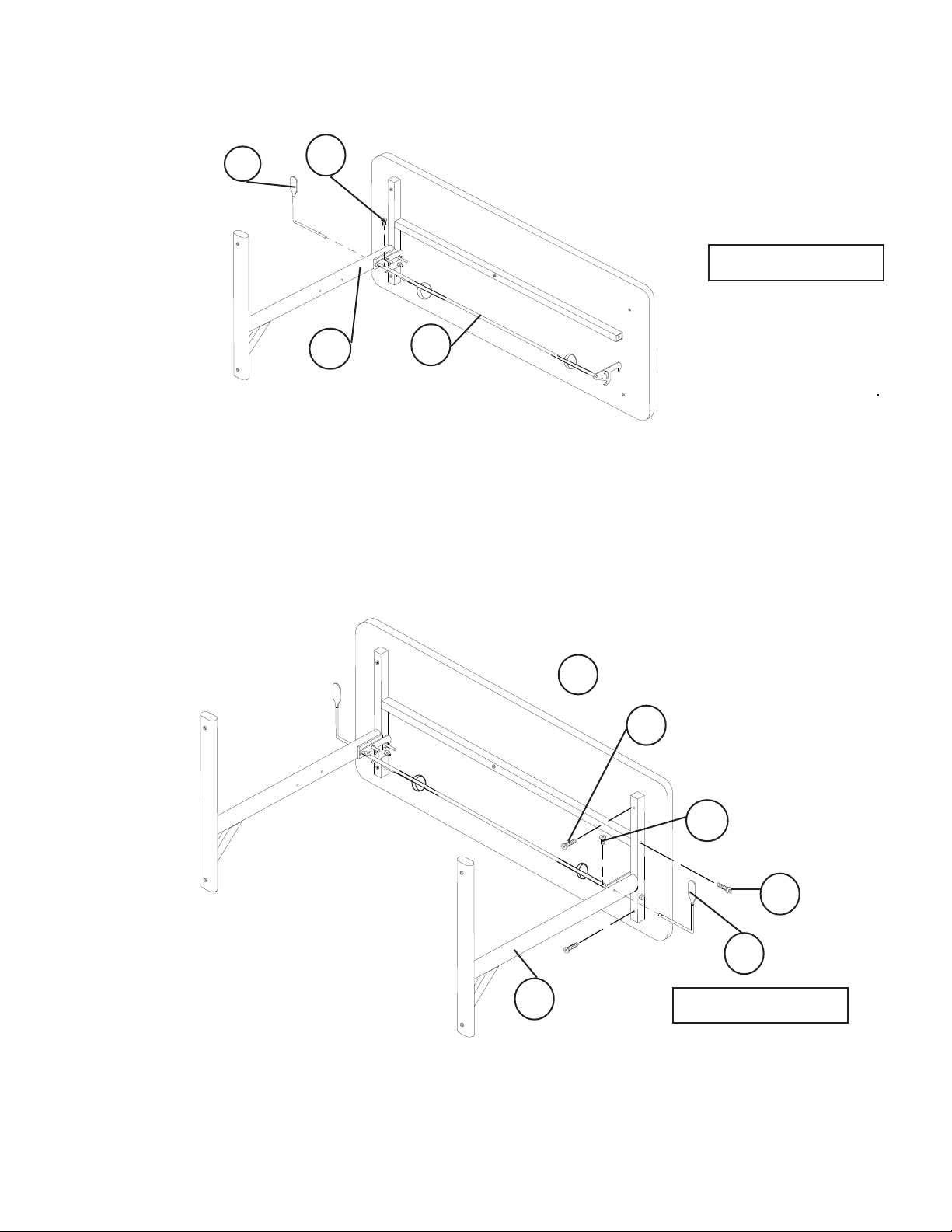

4.) Place the Lock Rod (P7), as shown in Illustration #3, against the Left Leg (P2) and align holes.

Insert the Handle (P6) through the outside hole in the Left Leg (P2) and into the hole the the Lock

Rod (P7). Align the screw holes and secure with one Socket Screw (A).

Illustration #3

5.) Place the Right Leg (P3) over the embedded threaded holes in the bottom of Table T op (P1).

Make sure the pin on the inside of the Right Leg fits into the slot of the Lock Rod (P7) as it

does on the Left Leg(P2). Secure the Right Leg (P3) to the Table T op (P1) using two Socket

Screws (B). Att ach the Top Support (P5) to the Right Leg using one Socket Screw (B1) as

shown in Illustration #4. Insert the Handle (P6) through the Right Leg (P3) and into the Lock

Rod and secure with a Socket Screw (A).

Illustration #4

Page 5

6.)

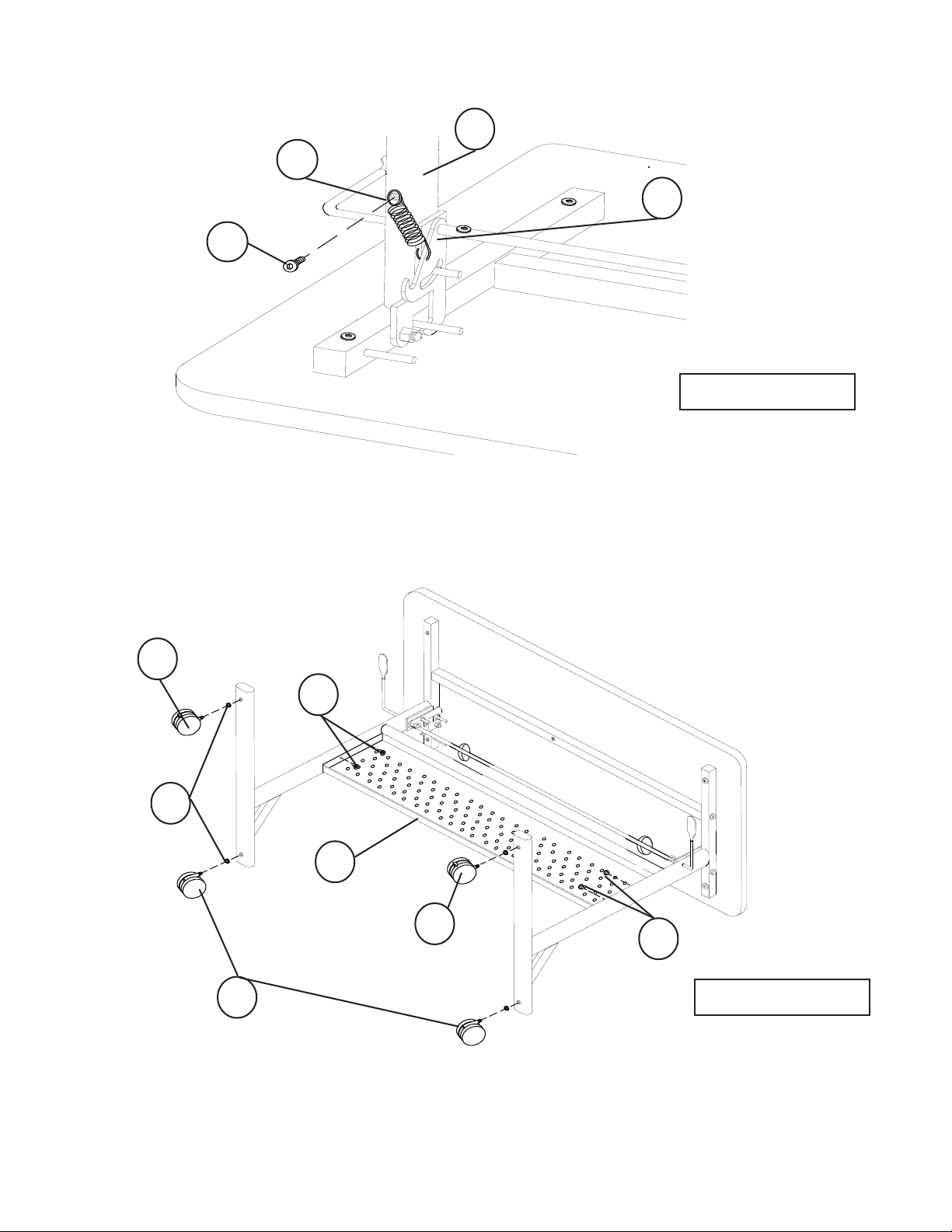

Attach the S pring (J) to the Left Leg (P2) using one Socket Screw (A) as shown in Illustration #5. Hook the other end of the Spring into the Lock Rod (P7) as shown.

Repeat this Step for the S pring (J) to the Right Leg (P#) and Lock Rod (P7).

Illustration #5

Attach the Modesty Panel (P4) between the Right Leg (P3) and the Left Leg (P2) using two

7.) Socket Screws (A) into the threaded holes in each leg. Make sure your Modesty Panel (P4)

is positioned as shown in Illustration #6.

Place a Lock Washer (G) on each Caster (D1) and screw into the back holes in the bottom of the

8.)

Illustration #6

Right and Left Legs. Place a Lock Washer (G) on each Caster (D) and screw into the front holes

in the bottom of the Right and Left Legs as shown in Illustration #6. T ighten all Casters with

Caster Wrench (F).

Page 6

Sleeve

Cap

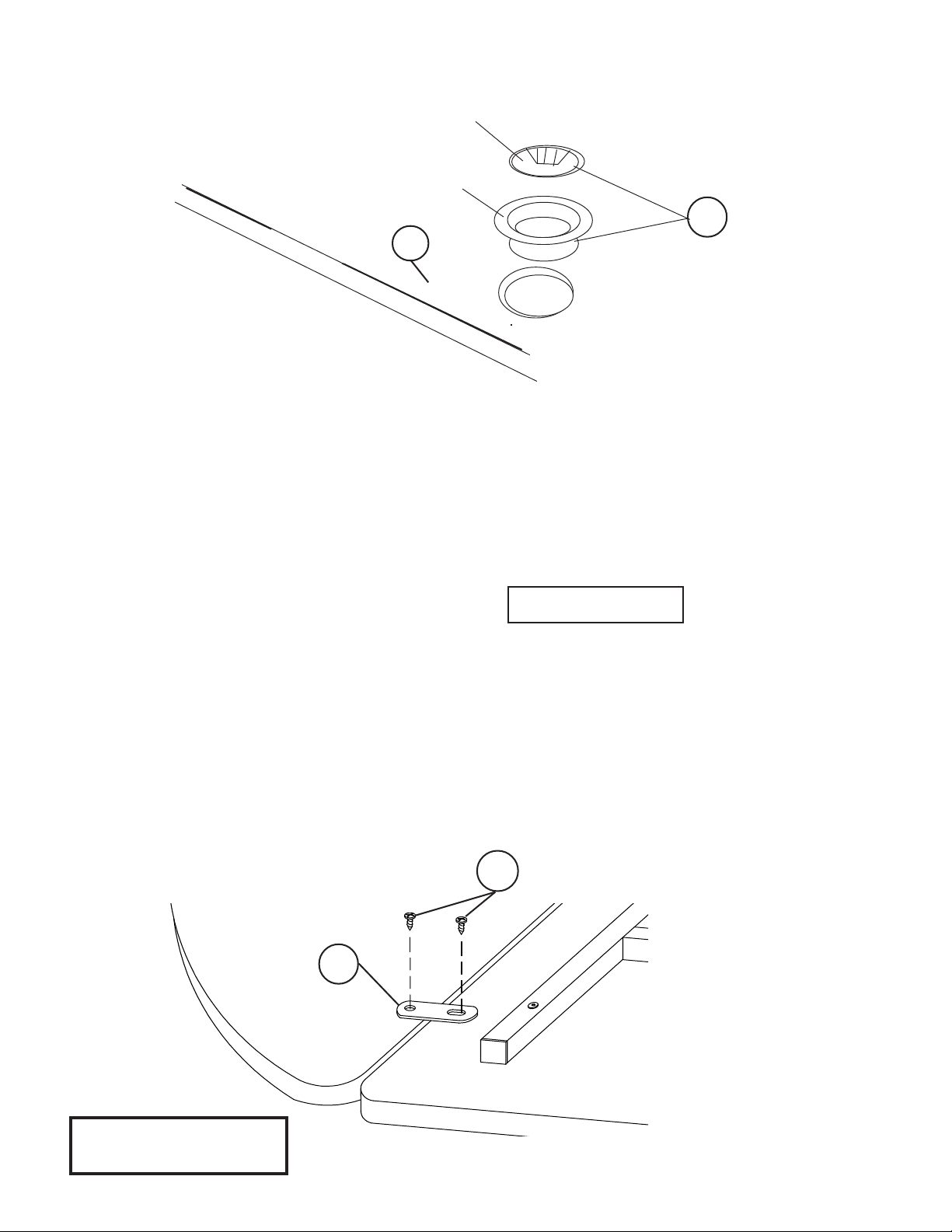

To install Grommets (C), separate parts and press Grommet Sleeves into the round opening in the T op Platform (P1) as shown in Illustration #7.

Snap 2 plastic Caps over top of the Sleeves as shown in Illustration #7.

Illustration #7

1 1

.) Use two Connecting Brackets(I) and four Wood Screws(H) to secure two tables together

as shown in Illustration #8.

Illustration #8
