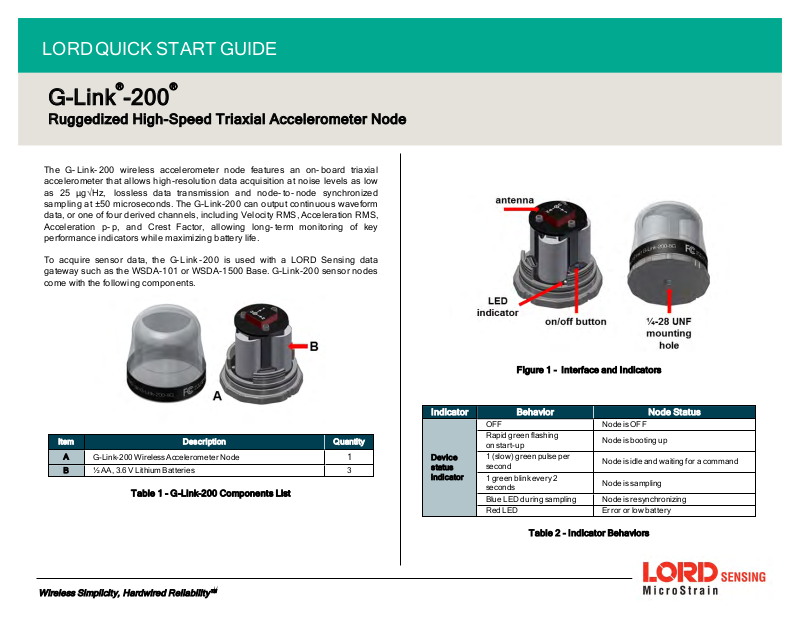

LORDQUICKSTARTGUIDE

G-Link®-200

Ruggedized High-Speed Triaxial Accelerometer Node

The G- Link- 200 wireless accelerometer node features an on- board triaxial accelerometer that allows high-resolution data acquisition at noise levels as low as 25 µg√Hz, lossless data transmission and node- to- node synchronized sampling at ±50 microseconds. The G-Link-200 can output continuous waveform data, or one of four derived channels, including Velocity RMS, Acceleration RMS, Acceleration p- p, and Crest Factor, allowing long- term monitoring of key performance indicators while maximizing battery life.

To acquire sensor data, the G-Link-200 is used with a LORD Sensing data gateway such as the WSDA-101 or WSDA-1500 Base. G-Link-200 sensor nodes come with the following components.

Item Description Quantity

A G-Link-200 WirelessAccelerometer Node B ½ AA, 3.6 V Lithium Batteries 3

Table 1 - G-Link-200 Components List

Wireless Simplicity, Hardwired Reliability™

Figure 1 - Interface and Indicators

Indicator Behavior Node Status

OFF Node isOFF Rapid green flashing

on start-up

Device status indicator

1 (slow) green pulse per second

1 green blinkevery 2 seconds

Blue LED duringsampling Node isresynchronizing Red LED Error or low battery

Table 2 - Indicator Behaviors

Node isbooting up

Node isidle and waiting for a command

Node issampling

Page 2

G-Link-200 Wireless Accelerometer Node Quick Start Guide

SYSTEM OPERATION

Sensor nodes have three operational modes: node is sampling, it is in active mode. When sampling stops, the node is switched into idle mode, which is used for configuring node settings, and allows toggling between sampling and sleeping modes. The node will automatically go into the ultra low- power sleep mode after a user-determined period of inactivity. The node will not go into sleep mode while sampling.

active,sleep

, and

idle

. When the

1. Install Software

Install the SensorConnect software on the host computer before connecting any hardware. The SensorConnect software is available on the LORD Sensing website for free download:

http://www.micros train.com/software/s oftware

2. Establish Gateway Communication

The WSDA-101-Base USB gateway is used in this example. For information on how to use other gateways, refer to the gateway or SensorConnect user manual.

Drivers for the USB gateways are included the SensorConnect software installation. With the software installed, the USB gateway will be detected automatically whenever the gateway is plugged in.

1. Power is applied to the gateway through the USB connection. Verify the gateway status indicator is illuminated, showing the gateway is connected and powered on.

2. Open the SensorConnect software.

3. The gateway should appear in the Controller window automatically with a communication port assignment. If the gateway is not automatically discovered, verify the port is active on the host computer, and then remove and re-insert the USB connector.

Figure 3 - USB Gateway Communication

Figure 2 - Node Operational Modes

Page 3

G-Link-200 Wireless Accelerometer Node Quick Start Guide

3. Connect to Nodes

The node can be connected with the automatic node discovery feature and by manually entering the node address and then searching for it on the current gateway communication frequency.

1. If the base and node are on the same operating frequency, the node will populate below the Base Station listing when powering on the G-Link-200.

Figure 4 - Automatic Node Discovery

2. If a red circle with a number appears next to Base Station, the node is operating on a separate radio channel. Select the Base Station and then select the Nodes on Other Frequencies tile.

3. Highlight the new node being added. Select Move Node to Frequency (#).

Figure 6 - Move Node

4. When manually entering the node address, select Manual Add Node, enter Node Address, last known Frequency (factory default is

15), and select Add Node.

Figure 7 - Adding a Node by Address

Figure 5 - Nodes On Other Frequencies

Page 4

G-Link-200 Wireless Accelerometer Node Quick Start Guide

4. Configure Node

Node settings are stored to non-volatile memory and may be configured using SensorConnect. For details related to node configuration, see Wireless Sensor

Configuration on page 1.

For this example, the G- Link- 200 is using the default settings found under Configure > Hardware (Figure 8 - Node Configuration).

Input Range: ± 2 G's (acceleration)

Low Pass Filter: 1,000 Hz

High Pass Filter: Disabled

3. Under Sampling, select Sample Rate from the drop down menu, select Continuously to sample indefinitely.

Figure 9 - Sampling Setting

4. Select Apply and Start Network.

5. Select Create QuickView Dashboard in the pop up window immediately to create a dashboard of the new data.

Figure 8 - Node Configuration

5. Configure Sampling Setting and Start Data Acquisition

1. Left click on the Base Station > Sampling, and indicate the nodes to be sampled by checking the box to the left of each node.

2. Under 3 Channels, select Raw Channels, ch1, ch2 and ch3 from the drop down menu.

Figure 10 - Quick View Dashboard

6. Replacing Batteries

Page 5

G-Link-200 Wireless Accelerometer Node Quick Start Guide

1. Remove the cap from the G-Link-200.

2. Remove the three ½ AA batteries from the G-Link-200.

3. Insert three new ½ AA batteries (Saft LS14250 recommended), observing the correct polarity orientation. The positive polarities are indicated on the batteries and the node by a "+" symbol.

4. Replace the cap.

7. Battery Hazards

Lithium batteries contain toxic chemicals that are harmful to humans and the environment. Disposal is subject to federal and local laws. Do not discard the battery or the node in the trash. Follow proper battery disposal protocol, or contact LORD Sensing Technical Support for information on extracting the battery or returning the product for proper recycling and disposal.

8. Regulatory Compliance Information

FCC ID: XJQMSLINK0005

IC ID: 8505A-MSLINK0005

G-Link-200Ruggedized High-Speed TriaxialAccelerometer Node

This device complies with Part 15 of the United States FCC Rules, and Industry Canada’s licenseexempt RSSs. Operation is subject to the following two conditions: 1) This device may not cause interference, and 2) This device must accept any interference, includinginterference that may cause undesired operation of the device. Changes or modifications, including antenna changes not expressly approved by LORD Corporation could void the user’s authority to operate the equipment.

Cet appareilest conforme à la Partie 15 des Règles de la FCC des États-Unis et aux RSSS exempts de licence d'Industrie Canada. Le fonctionnement est soumis aux deux conditions suivantes: 1) Cet appareil ne doit pas causer d'interférences et 2) Cet appareil doit accepter toute interférence, y compris les interférences pouvant entraîner un fonctionnement indésirable de l'appareil. Les changements ou modifications, y compris les changements d'antenne non expressément approuvés par LORD Corporation, pourraient annulerl'autorisation de l'utilisateur d'utiliser l'équipement.
