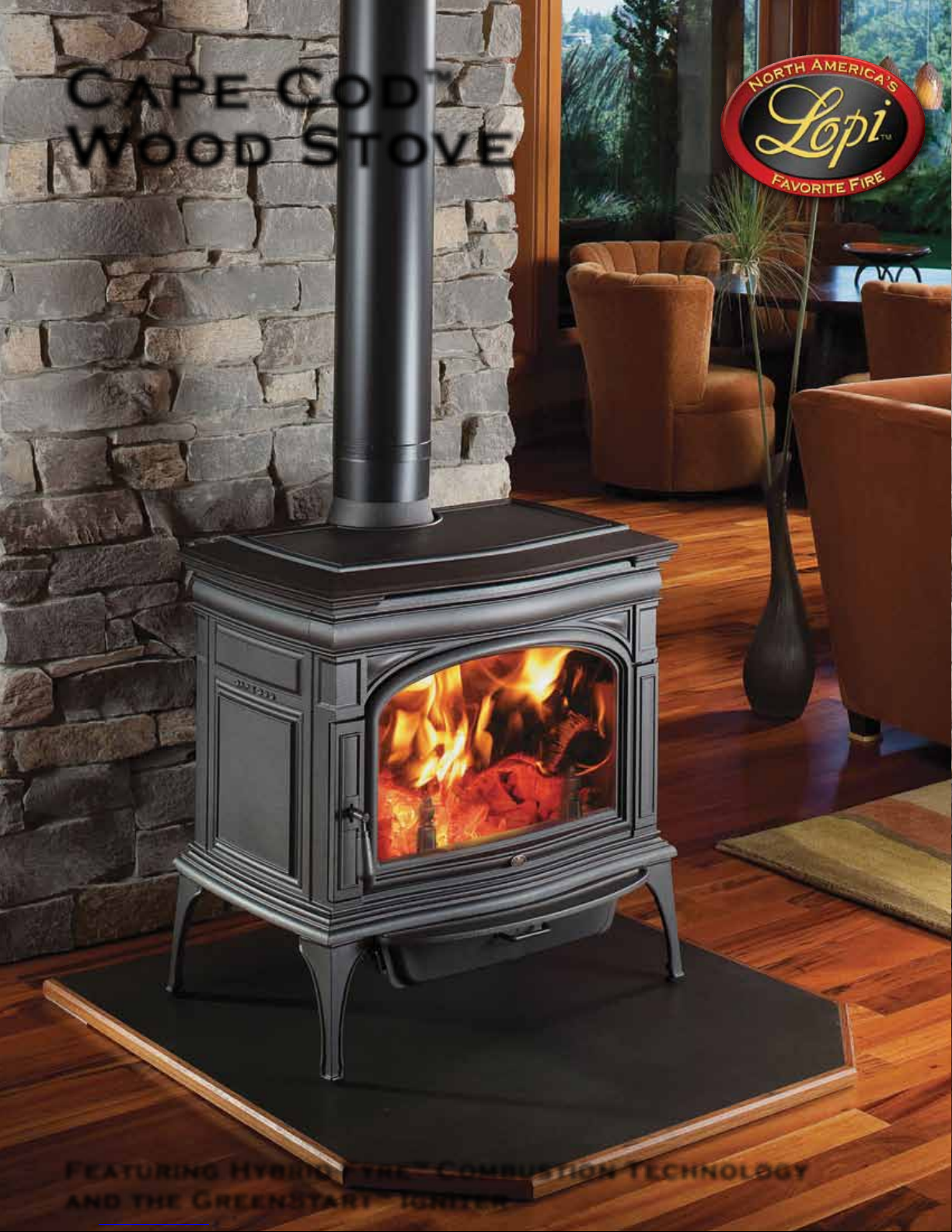

Lopi Cape Cod Quick Manual

™

Cape Cod
Wood Stove

Featuring Hybrid-Fyre
and the GreenStart

™

Combustion Technology

™

Igniter

Use your Smart Phone

QR Reader to watch a video

of the Cape Cod burning.

Winner of the prestigious Vesta Awards for

Best New Wood Stove,

Best of Show - Hearth Product

and Prestigious EPA Sponsored Green Award!

The Cape Cod™ is a game changer and has shattered
all performance records for wood heat. This is the rst
truly “Super Stove”. The most beautiful cast iron wood stove
ever built is also the cleanest burning wood stove on the planet
at EPA 0.45 grams per hour. The Cape Cod stove will out heat
any other wood stove, because of the massive rebox, convec­tion heat exchanger and record breaking overall eciency of

(The B415 efficiency test was performed on all fire

80%!

GREEN

With a push of the green button super-heated air (1400˚F) starts your Cape Cod in a New York minute. You can also use the
GreenStart Igniter when adding new wood or refreshing your re after an overnight burn. Your stove door stays closed during
start ups, no more smoky starts, no more slow starts. Anyone can do it!

START

One Touch Ignition Option

TM

burn categories - low through high, and averaged over
80% using the EPA test protocol of hhv for fuel).

This equates to less trips to the woodpile to heat your home
which in return will save you money and save you energy.

The nest grade materials, iron, steel, ceramic brick and clear
ceramic glass combine to offer years and years of safe
dependable heating for your home. Never be cold again!

The cast iron Cape Cod

pictured in beautiful porcelain

Oxford Brown enamel

STEP 1
Push Button

STEP 2
Fire Starts
Automatically

STEP 3
Relax
and Enjoy

Use your Smart Phone

QR Reader to watch a

video on the Green-

Start Igniter

Clean Burn Technology

The Cleanest & Greenest Stove Ever!

COMPLETE COMBUSTION - 0.45 Grams Per Hour

Pre-heated combustion air helps the glass

A

stay clean and the stove burn eciently.

A single air control regulates the burn

B

rate of the re making this advanced burner
system easy to operate.

Secondary air tubes combined with an

C

insulated bae slow down the re and
reburn the particulate.

A

L

F

E

D

K

A durable, large catalytic combustor

D

incinerates any left over particulate,
burning up to 99.5% of the ue gases and
all but eliminating any carbon monoxide.

J

PLUS HIGH HEAT TRANSFER
OVER 80% OVERALL EFFICIENCY

E

Bypass damper allows for smoke free
start-up and reloading when open, and
assists overnight burns when closed.

F

Room air is drawn through the air
convection chamber made of cast iron for
maximum heat transfer and eciency. Hot air is
circulated through your room through natural convection.

All This Equals:

The cleanest burning most ecient wood stove ever made.

B

KILLER FEATURES

G

H

C

F

O

A

A

I

M

Easy glide large capacity ash drawer on ball bearing glides.

G

Large reviewing door with stay clean ceramic glass.

H

Outside air connection (concealed).

I

J

Adjustable roller bar door handle.

K

Close rear and side wall clearance to combustibles.

6” ue allows for less costly installation.

L

Optional rear

mounted fan

G

OVER THE TOP ACCESSORIES

A super quiet, massive, optional 400 CFM fan will boost heat

M

circulation throughout your home.

N

Porcelain Oxford Brown enamel (picture of on the left page).

O

Add the optional GreenStart Igniter to start your re with a push of a button.

Hybrid-Fyre™ is brought to you by Lopi, North America’s favorite fire for over Three decades!

Cape Cod Wood Stove Specifications

2”

(51mm)

19-3/4”

(501mm)

6” Flue

Diameter

32-1/4”

(821mm)

35

(889mm)

Always refer to the Owner’s Manual for installation requirements!

Installation

We suggest that you have an authorized Lopi dealer install your stove. If you
install the stove yourself, your authorized dealer should review your installa­tion plans.

If this appliance is not properly installed, a house re may result. For

your safety, follow the installation directions. Contact local building or re of­cials about restrictions and installation inspection requirements in your area.

Child Safety

If you have small children or even pets, we highly recommend you consider pur­chasing a safety screen or guard to prevent the possibility of burns resulting from
accidental contact with the hot surfaces of the stove. Ask your Lopi dealer for their
recommendations on safety options for your particular installation.

Testing

Tested and listed by Intertek Laboratories Inc. Conforms to UL STD 1482 and to
ULC S627-2000

.

EPA Phase II

Approved

0.45

Grams/Hour

* Heating capacity may vary depending on degree of home insulation, oor plan and ambient temperature zone of the area you live.
** Eciency Tested to CSA B415.1-10, using the high heating value (HHV) for the test fuel. Avg. = Average of “All Burn Rates”

Eciency**

80.1% Avg.

Heating Capacity

Up to 2,500 Sq. Ft.* (232 M

Up to 3,000 Sq. Ft. with fan

Accepts 24” Wood

2

)

Up To 12 Hour

Burn Time

3.0

Cubic Foot

Firebox

Huge Fire View

20-3/4” w x 13” H

244 sq. inches

Clearance To Combustibles

Refer to the Owner’s Manual for additional details.

Straight Wall

D

B

E

E

F

A - Stove Top to Side Wall
B - Stove Top to Back Wall
C - Connector to Side Wall
D -Connector to Back Wall
E - Floor Protection Side/Back
F - Floor Protection Front

C

A

Single
Wall Pipe
12-3/4” (324mm) 12-3/4” (324mm)

14-3/4” (375mm) 11-3/4” (375mm)
26” (660mm) 26” (660mm)
15” (381mm) 12” (305mm)
6” US (8”-203mm CAN)
16” US (18” - 457mm CAN)

Double
Wall Pipe

Corner Wall

H

G

E

G - Stove Top to Corner

H - Connector to Corner Wall

E

F

Single
Wall Pipe

7-1/4” (184mm) 7-1/4” (184mm)
17-1/2” (445mm) 17” (432mm)

Floor Protection

Non combustible oor protection must be at least .018” (.45mm) thick (26 gauge).
Minimum hearth size: Depth 41-3/4” US 39-3/4” CAN
Width 44-1/4” US 48-1/4” CAN

Maximum BTUs

(Cord Wood)

86,000 Per Hour

Weight
600 lbs

(267 kg)

Alcove

Combustible Alcove
Maximum Depth of Alcove
48” (1220mm)
Minimum Width of Alcove
59” (1499mm)
Minimum Height of Alcove
84” (2134mm) above top of stove

Non-Combustible Alcove
Maximum Depth of Alcove
48” (1220mm)
Minimum Width of Alcove
50” (1270mm)
Minimum Height of Alcove
6” (152mm) above top of stove

Double
Wall Pipe

www.lopistoves.com

Manufactured in

Mukilteo, WA

Lopi reserves the right to alter or improve its products at any time without notification. All trademarks belong to Travis Industries.

Your Lopi Authorized Dealer:

Take the
video tour
or register

online for a

plant tour
in person.

©2012/09 Printed in U.S.A. - #98800547

For installation specifications refer to the Owner's Manual found on the Lopi website.
