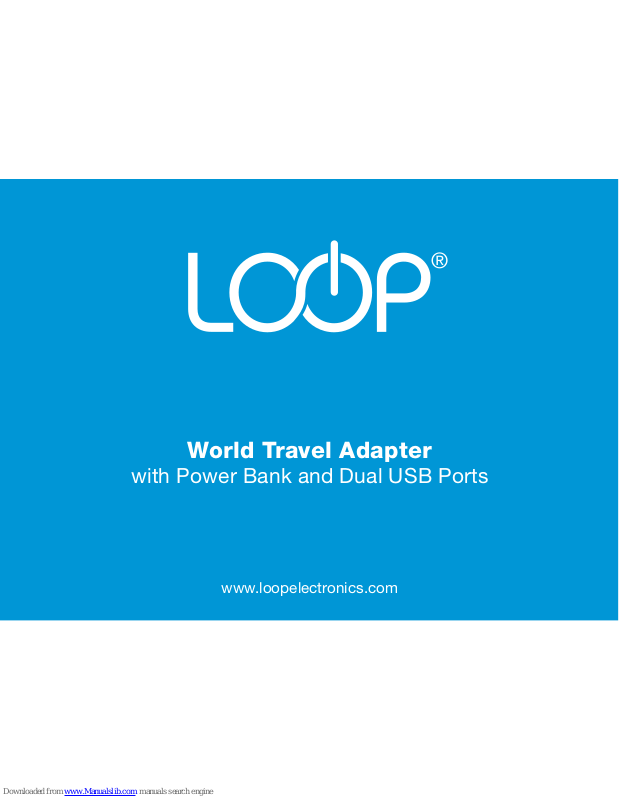

World Travel Adapter
with Power Bank and Dual USB Ports
www.loopelectronics.com
®
r Worldwide Travel Adapter rated at 110-240v 1500w.
r Dual USB Charging Ports max 2.5A 5V DC.
r Built-In Power Bank 3000mAh.
r LED mode indicator.
r Multiple built-in safety features; 6.0 Fuse,
Micro Charging Chip, Safety Shutters,
Fire Retardant Materials, Plug Lock
System and Premium Power Cell.
r Covered by LOOP
®
Electronics amazing
18-Month Warranty for your peace of mind.
To use the Euro Plug, pull the plug out from
under the travel adapter until it locks out in
the vertical position. To retract push the plug
back into the travel adapter housing.
To use the UK Plug, press down and push
forward on the slider until it locks into position.
You will also need to pull out the insulated
grounding pin from the housing.
To use the US and AUS/CHINA Plug, press
down and push forward on the slider until it
locks into position. To use this plug type in
AUS or China you will also need to twist the
prongs into a diagonal position.
The Power Bank automatically charges when
the Travel Adapter is plugged into an electrical
outlet. The LED indicator will be RED when
Power Bank is charging and GREEN when
fully charged. When the Travel Adapter is
removed from the electrical outlet the Power
Bank is automatically on, it will turn off after
10 seconds of inactivity.
To use the Power Bank, insert a USB cable into
either USB port, the LED will indicate GREEN.
When The Power Bank is nearly depleted the
LED will ash GREEN. The Power Bank is
designed to charge medium size Smart Phones,
Tablet Computers and other large devices will
deplete the Power Bank much faster.
1
2
3
4
5
FEATURES
INSTRUCTIONS
WARNINGS & INFORMATION
r The USB Charger provides a maximum
of 2.1A through a single USB port.
r To protect the USB charger, a safety cut out
prevents charging if a device(s) draw more
than 2.5A.
r Ensure that the USB device(s) you wish
to charge is compatible with third party
chargers. Certain electrical devices such as
SLR Cameras and sensitive GPS systems
only allow charging with the manufacturers
provided hardware.
r The electronics of this Travel Adapter are
coated in re retardant materials, therefore
on the rst few uses a slight Oder may be
emitted. If overcharging occurs remove all
devices and cables from the travel adapter
and allow to cool. After cooling has
completed charge one device at a time.
r This travel adapter is NOT to be used in
combination with other adapters. If the
housing of this travel adapter is broken
or cracked do not use and discard safely.
r The Power Bank is tted with a premium
Lithium-Ion battery, charge for a minimum of
8 hours before rst use. The Power Bank will
reach full capacity after 5-10 cycles, it has a
usable life-span of approximately 1000 cycles.
r When not in use unplug the travel adapter
from the wall and remove all cables. Do not
expose to liquid, moisture or humidity.
Do not handle with wet hands. Keep out
of reach from children and animals.
r World Travel Adapter does NOT convert
voltage when using the AC Socket. The input
voltage of the device you want to use must
match the local power supply.
r Do not use with electronic devices demanding
power over 240V-1500W/110V-660W you
will damage the travel adapter and your
electrical device.
r This travel adapter does NOT offer
grounding protection.
ATTENTION
To activate a FREE 18-Month Warranty on your World Travel Adapter with
Power Bank and Dual USB Ports you will need to register your email
address by clicking on the “VIP” link at www.loopelectronics.com
VIP members also get quarterly product updates and
exclusive member only discount Coupon codes.
Model: LE-TA02
Manufactured for
LOOP® Electronics in PRC
