LOOP Electronics LE-DS01 User Manual

DIGITAL LUGGAGE SCALE

WITH BUILT-IN POWER BANK

DIGITAL LUGGAGE SCALE WITH BUILT-IN POWER BANK

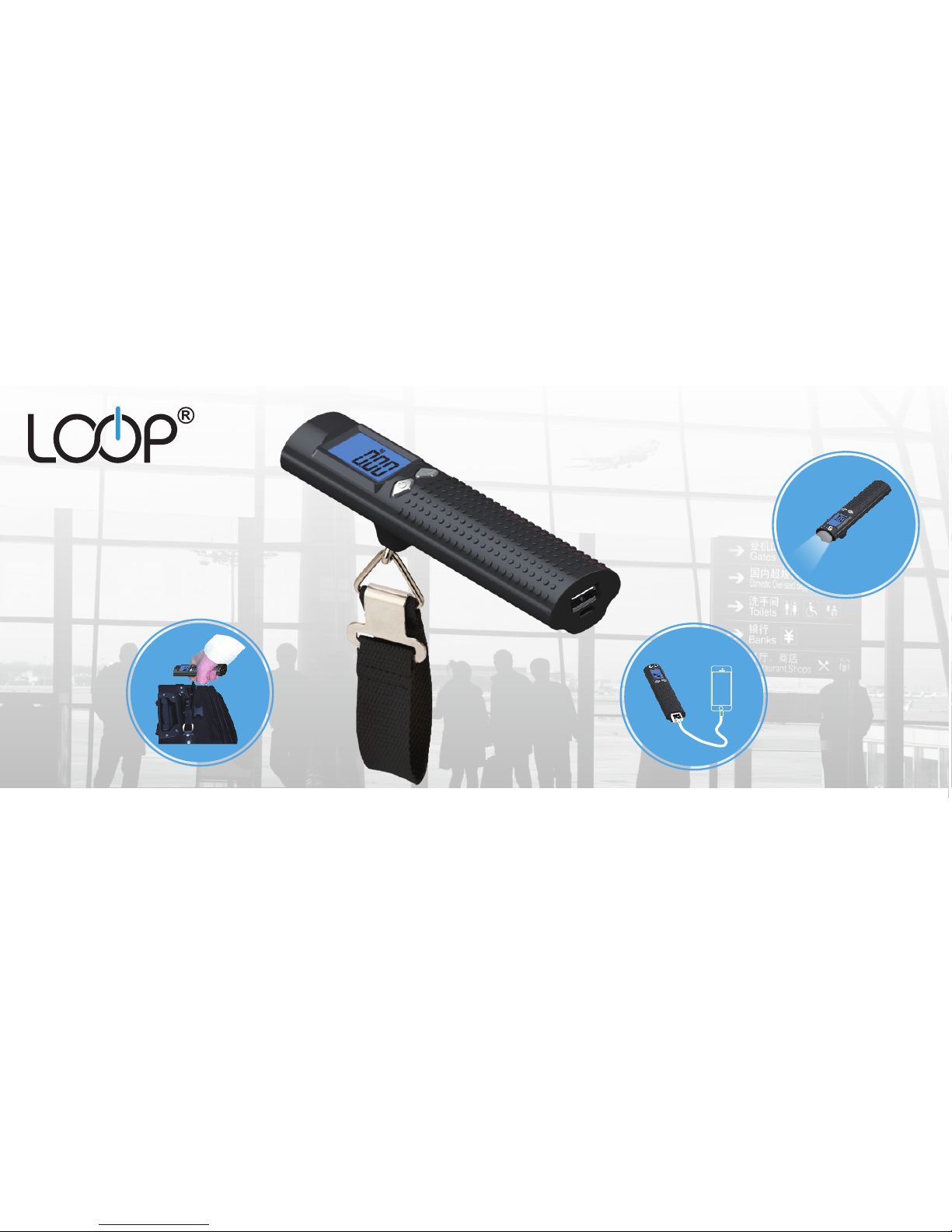

Digital Luggage Scale with built-in Power Bank

LOOP® Digital Scale is made with an embedded microcomputer to
ensure extreme weighing accuracy and lasting performance. It also
has the added benets of an easy to read backlight LCD display,
Flashlight and built-in Power Bank. The Power Bank will allow you
to conveniently charge you cell phone or other personal electronic
device should you run low of charge when traveling. All of this
technology is incased in an ergonomic hardwearing plastic nonslip
shell providing a lasting durable design.

Power Input: DC 5V/800mAh

Power Output: DC 5V/1000mAh

Battery Capacity: 2600mAh

Charging Time: 4~5h

Charging

To charge the Digital Scale connect it to a computer or
USB Charger (Max 1.0A) using the provided Micro USB cable.

Insert the Micro USB plug into the Micro USB port of the
Digital Scale. Then plug the other end of the USB cable into
the USB port of your Computer or USB Charger (Max 1.0A).

Indications

The Red LED will ash while charging, when fully charged the
Red LED will stop ashing.

The Blue LED will illuminate when the Power Bank is in use.
When the Blue LED extinguishes you will need to recharge the device.

Power On

Press the power button “ ” to turn on the Digital Scale. The Digital Scale
will complete a quick self-test then display “0.00” it is now for use.

Instructions to Weigh

Turn on the Digital Scale with the power button “ ”. The Digital Scale
will self-test displaying “0.00”. Hook the device strap around the load
handle; you will then need to clip the hook back onto the Digital Scale
attachment bar. Lift and hold the load off the ground until you get
a weight reading. The LCD display will then show “HOLD” this
weight reading will be displayed until you Tare/turn off the device.

Maximum weighing capacity is 50kg or 110lb. If you over-load the
Digital Scale the display with read “ERR”.

WARNING - You can damage the Digital Scale if you apply
too much load!

Hold Function

Once the load is stable, the LCD will display “HOLD” the data will then
be automatically memorized. To weigh another load case you will need
to press the Power Button “ ” to Tare the Digital Scale.

Tare Function

Push the Power Button “ ” to Tare the Digital Scale when the device
is turned on. Tare resets the weight read out to Zero “0.00“ and
unlocks the “HOLD” mode.

Unit Exchange

Press “UNIT” key to toggle through different weight measurements.
kg/lb/oz (1kg=2.2lb=35.3oz)

Power Bank

To use the Power Bank function insert the USB cable of the electrical
device you wish to charge into the USB port of the Digital Scale. When
Charging is complete remove the electrical device USB cable from the
USB port of Digital Scale.

Flashlight

With the Digital Scale off you can access the Flashlight by pressing the
“UNIT” button. To turn off the Flashlight press the “UNIT” button again.

Power Off

Press and hold the Power Button “ ” for a minimum of 2 seconds
to turn off the device. If the device is locked press the Power Button
“ ” to unlock, the press and hold the Power Button “ ” for 2 seconds
to shutdown. The device also has an auto-off function
if left idle for more than 60 seconds.

Note

1. This device requires a minimum of 8 hours charging before first use.

2. Please keep the product dry; moisture and or liquids will result
in corrosion of electric components and the circuit board.

3. Keep the product away from sources of heat, as high temperatures will
shorten the service life of the battery. Exposure to high heat will damage
the circuit board and may even result in Explosion.

4. Avoid dropping or heavy impacts this could result in internal short circuit.

5. Do not use chemical detergent for cleaning this will damage the plastic shell.

6. Any tampering or opening up of the unit will invalidate the warranty.

ATTENTION

To activate a FREE 18-Month Warranty on your Digital Scale you
will need to register your email address by clicking on the “VIP”
link at www.loopelectronics.com
VIP members also get quarterly product updates and exclusive
member only discount Coupon codes.

LE-DS01

Manufactured for LOOP® Electronics in PRC
