ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
Fine Furniture for every stage of life
PAGE 1 OF 6
Page 2
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.
B1 ( BOX 1 )
HEADBOARD PANEL
A
LEFT HEADBOARD LEG
B
(WITH "L" LABEL)
RIGHT HEADBOARD LEG
C
(WITH "R" LABEL)
HEADBOARD BOTTOM RAIL
D
WOOD CLEAT
E
B2 ( BOX 2 )
FOOTBOARD
F
BED SLAT
G
ASSEMBLY TIME
25 MINUTES

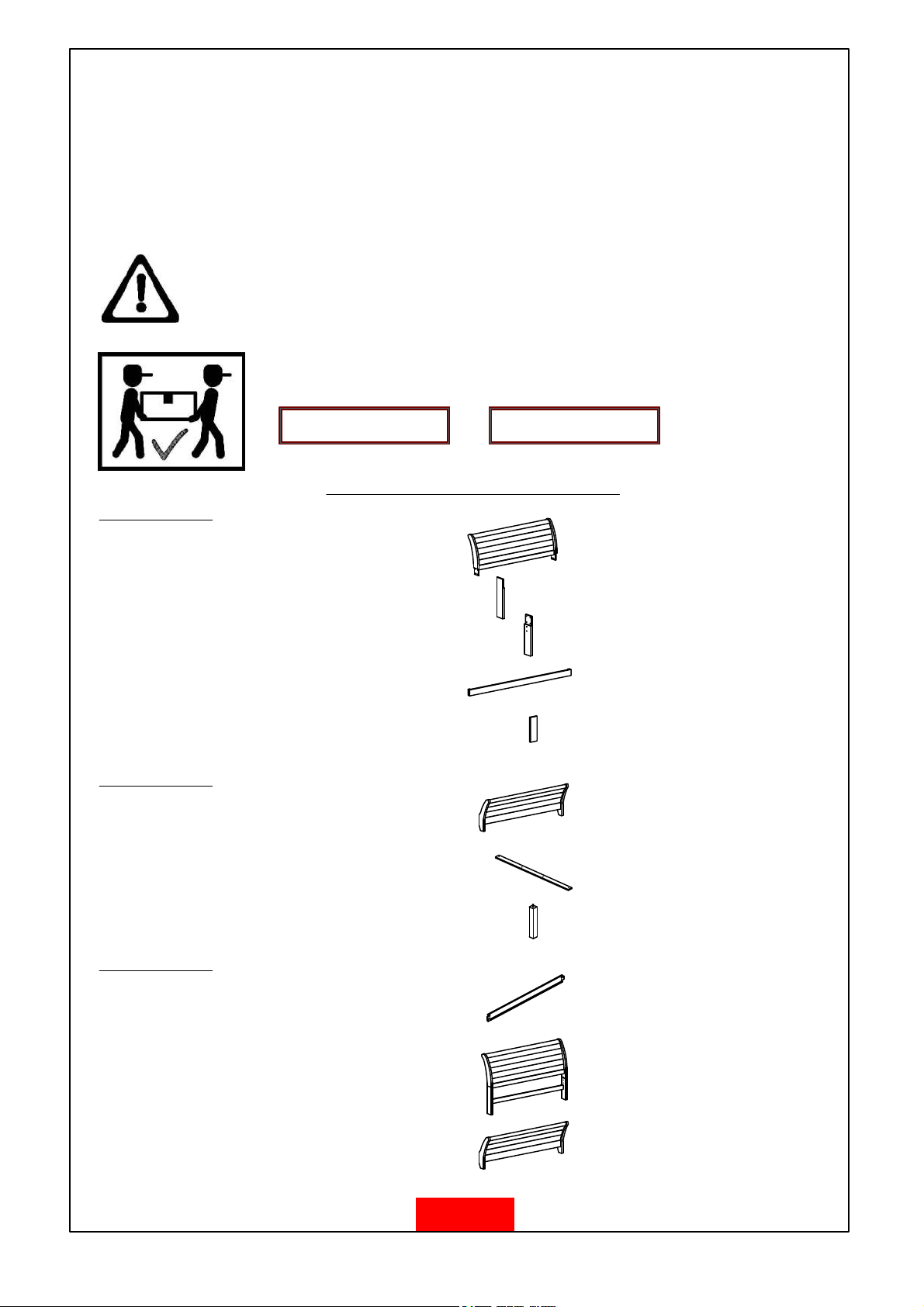

PARTS IDENTIFICATION
1PC
1PC
1PC
1PC
2PCS
1PC
4PCS
BED SLAT SUPPORT WITH LEVELER
H
B3 ( BOX 3 )
I
BED RAIL
222961KE (B1)
FROM BOX 1
HB
HEADBOARD COMPLETE
222961KE (B2)
FROM BOX 2
F
FOOTBOARD
8PCS
2PCS
1PC
1PC
PAGE 2 OF 6
Page 3
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishments.

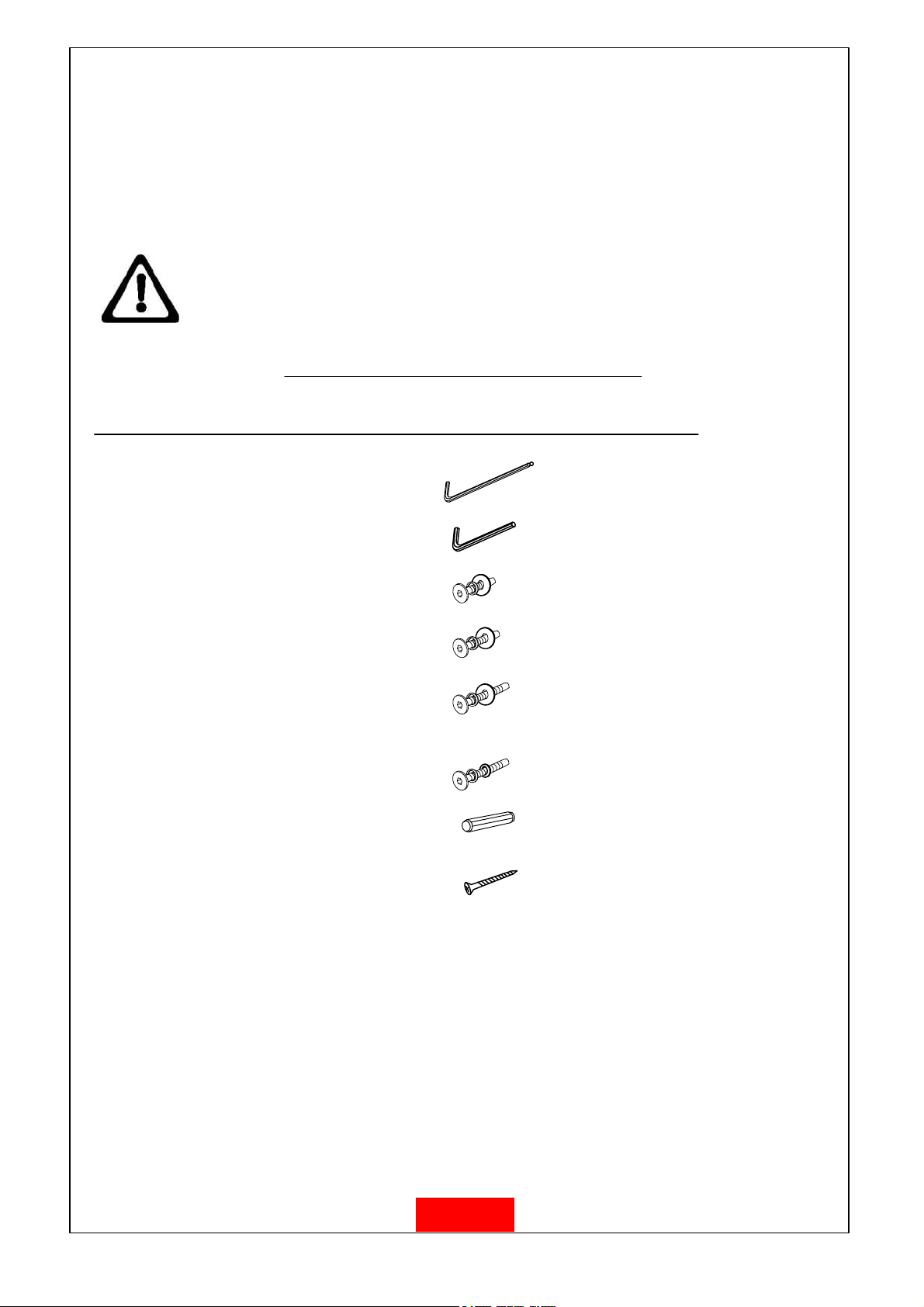

HARDWARE IDENTIFICATION
Z-B1 (BOX 1) - HARDWARE PACK IS LOCATED IN 222961KE (B1)
1
2
3
4
5
6
7
8
SMALL ALLEN WRENCH
(M4 x 110mm - BLK)
BIG ALLEN WRENCH
(M5 - SR)
SHORT BOLT WITH WASHER
(M8 x 20mm-BLK)
MEDIUM BOLT WITH WASHER
(M6 x 40mm-BLK)
LONG BOLT WITH WASHER
(M6 x 60mm-BLK)
LONG BOLT WITH SMALL WASHER
(M6 x 60mm-BLK)
WOOD DOWEL
(M8 x 30mm - BLK)
FLAT HEAD SCREW
(#8 x 28mm - BLK)
1PC
1PC
8PCS
8PCS
2PCS
2PCS
8PCS
8PCS
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
PAGE 3 OF 6
Page 4
ASSEMBLY INSTRUCTIONS

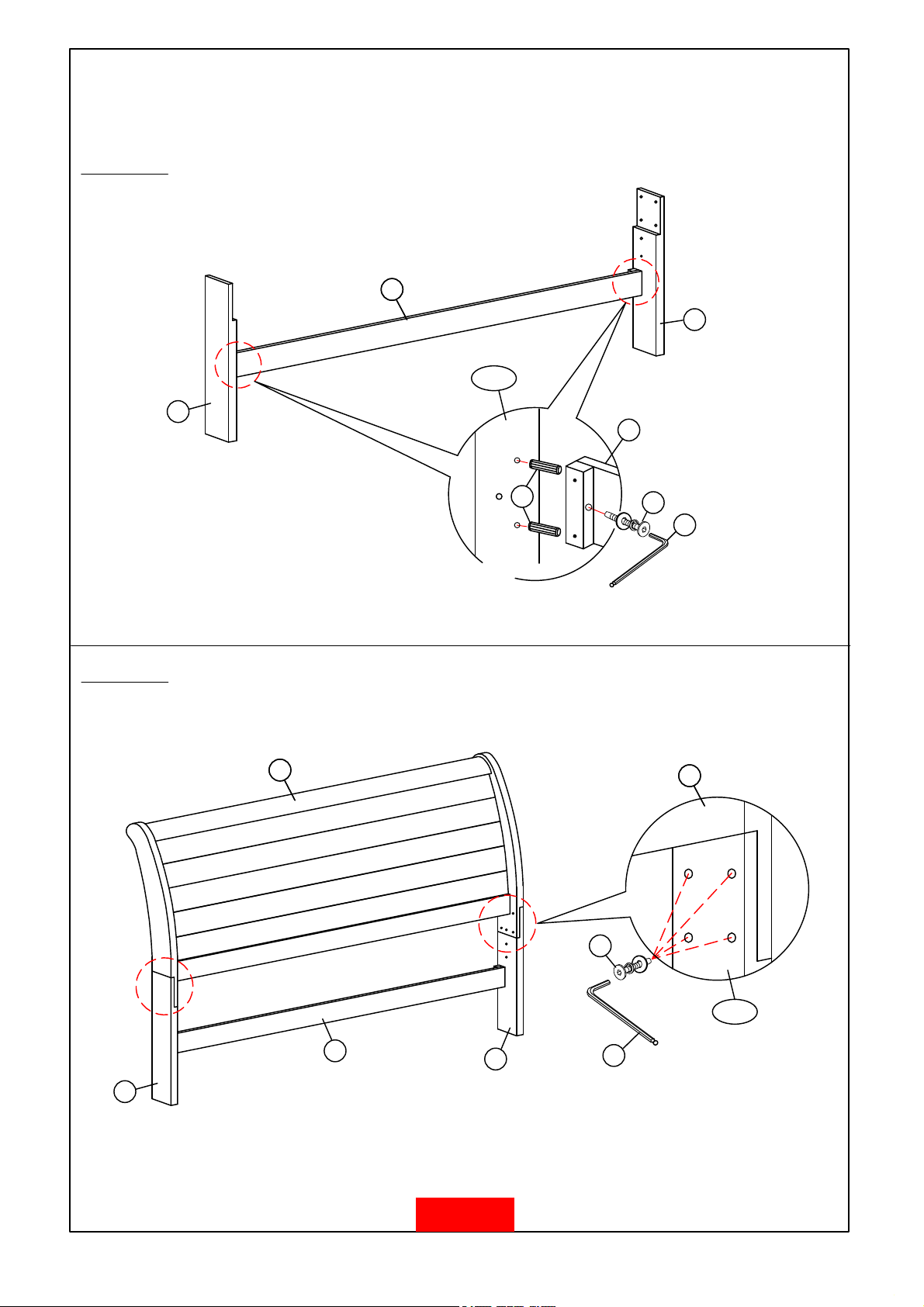

STEP 1
D
B
C
B/C
D
STEP 2
A
7
BACK VIEW
5
1
A
4
B
D
C
PAGE 4 OF 6
B/C
1
Page 5
ASSEMBLY INSTRUCTIONS

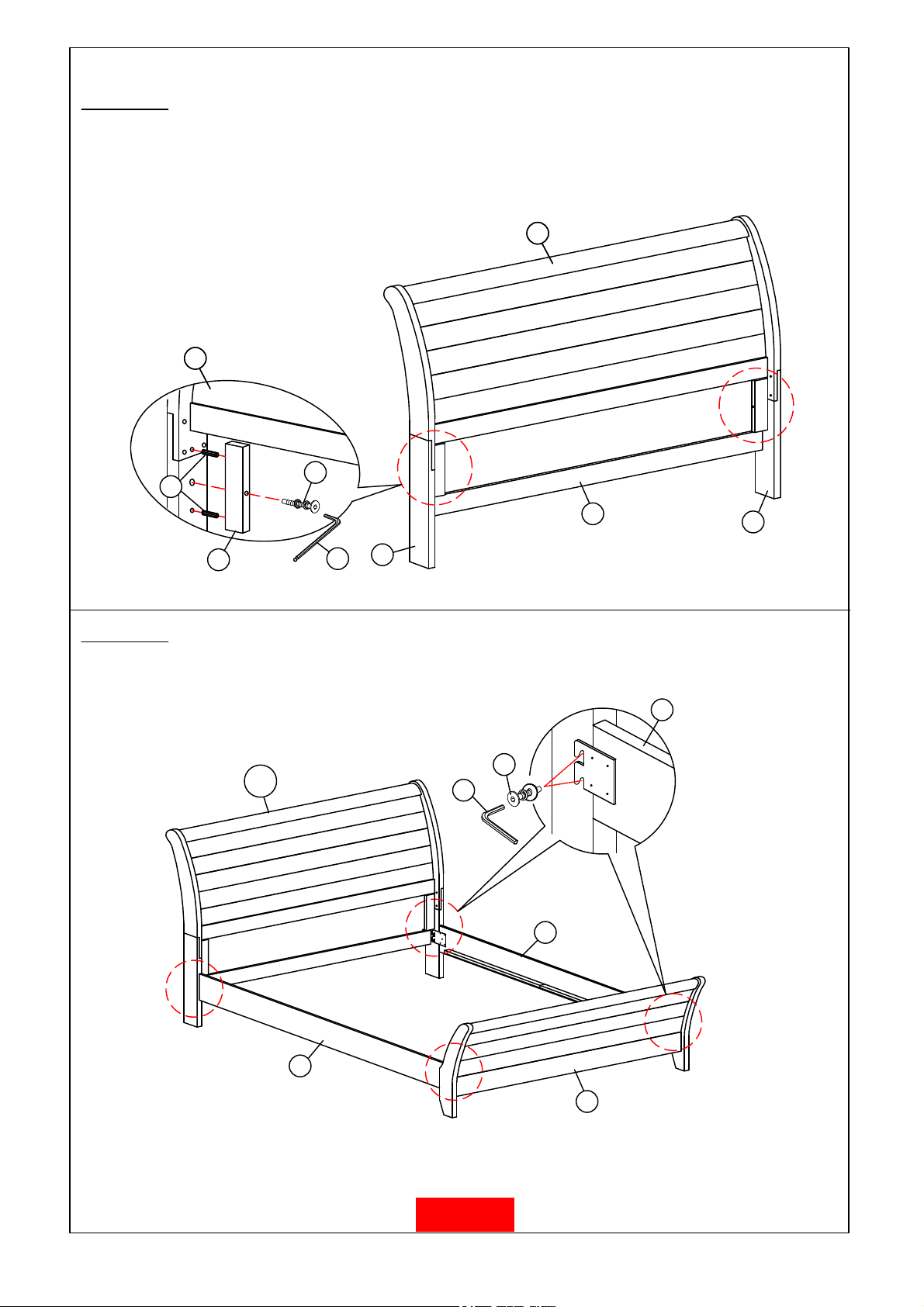

STEP 3
A
A
STEP 4
7
E
HB
6
D
B
1
I
3
2
C
I
I
F
PAGE 5 OF 6
Page 6
ASSEMBLY INSTRUCTIONS

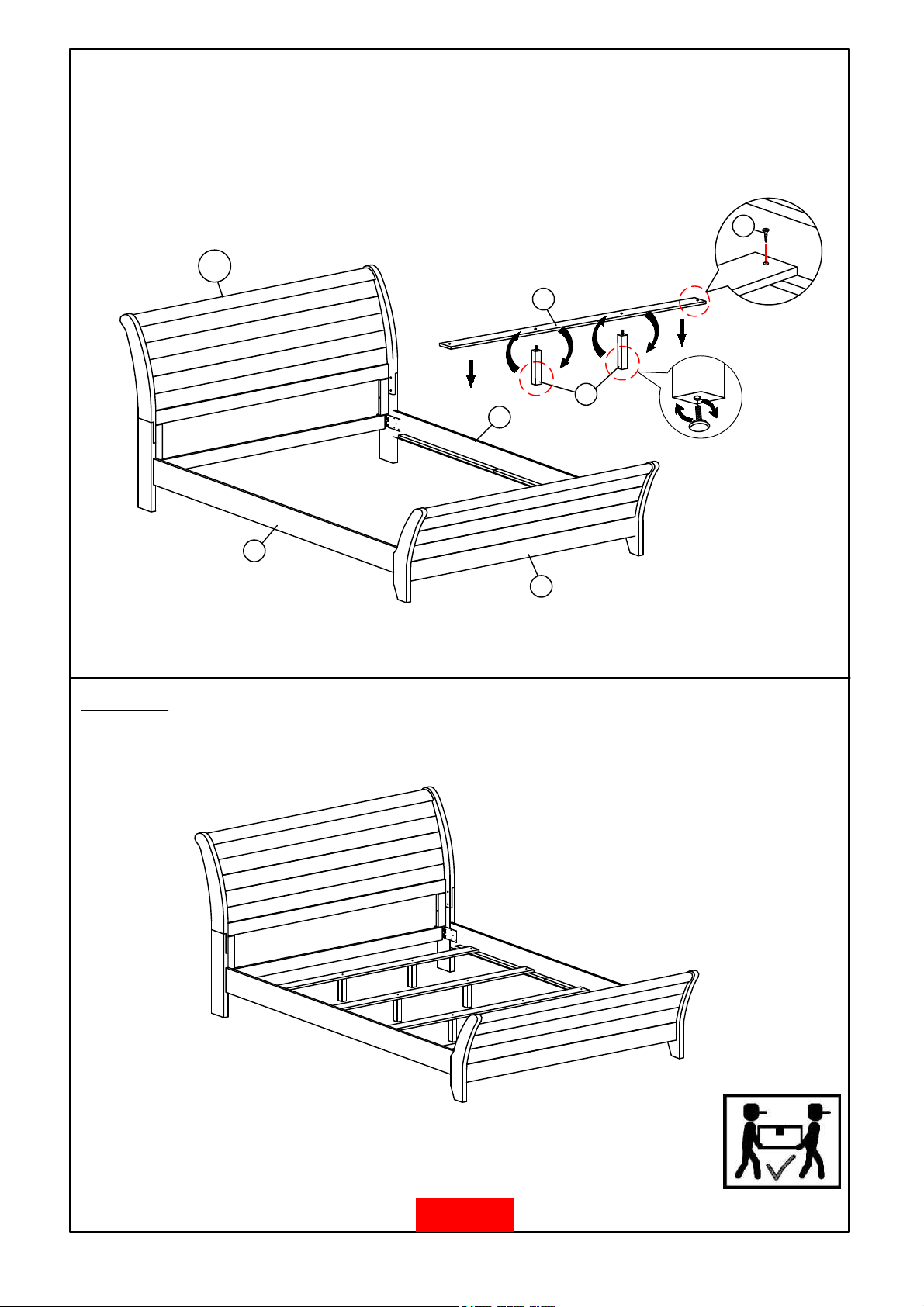

STEP 5
HB
8
G
H
I
STEP 6
COMPLETE
I
F
PAGE 6 OF 6
Page 7

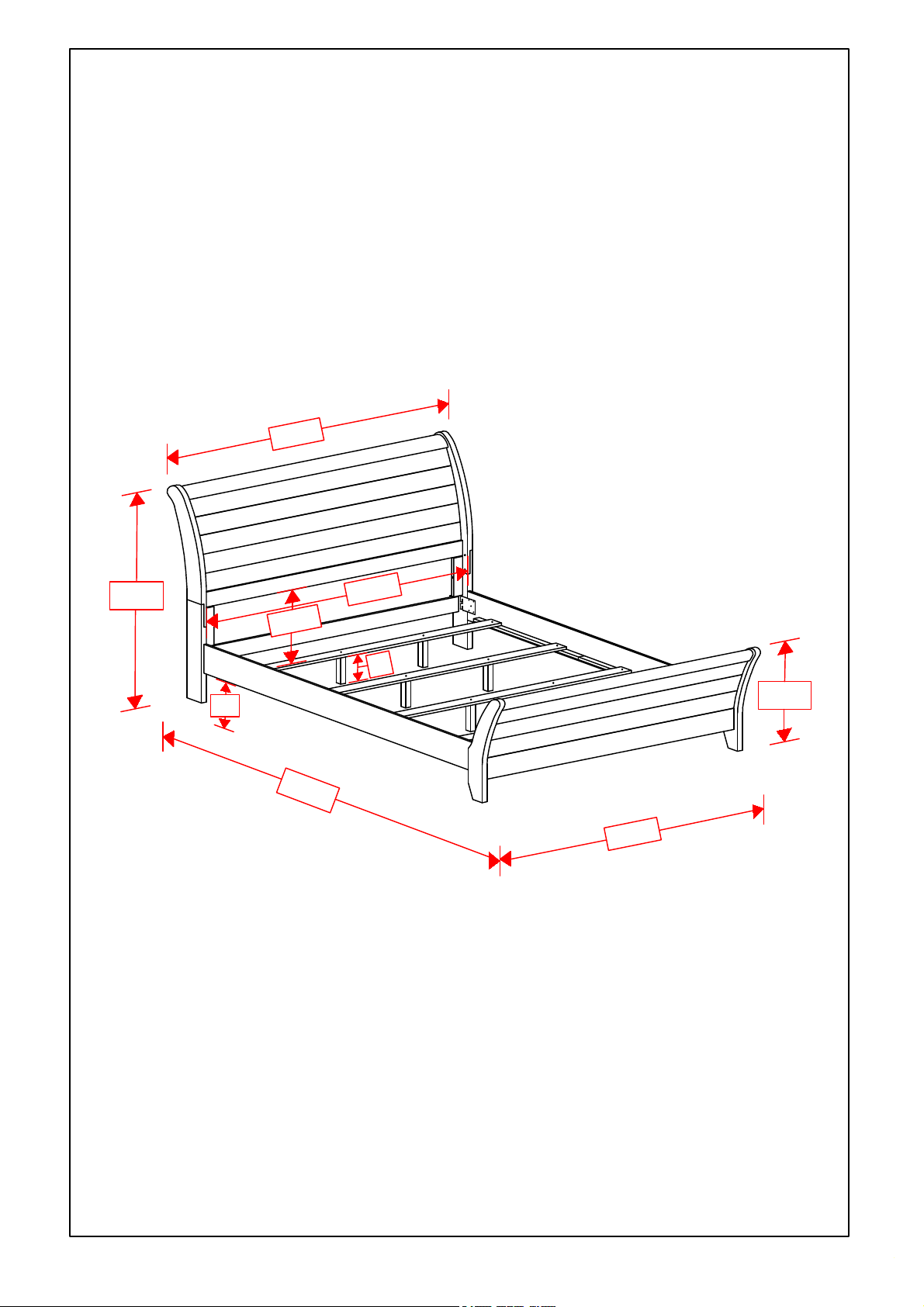

80.6"
INNER: 77.1" x 81.1"
55.1"
77.1"
16.3"
9"
26.7"
8"
95.5"
80.6"
NOTE : DIMENSION TOLERANCE ± 5%
