Page 1
Component List
2
1
NO.
Descriptions
Qty.
TV Concole
1
Assembly Hardware Pack
A
NO.
Descriptions Qty.
B
C
JCBC Bolt
8
Allen Key
1
Side Frame
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.
PAGE 1 OF 1
2

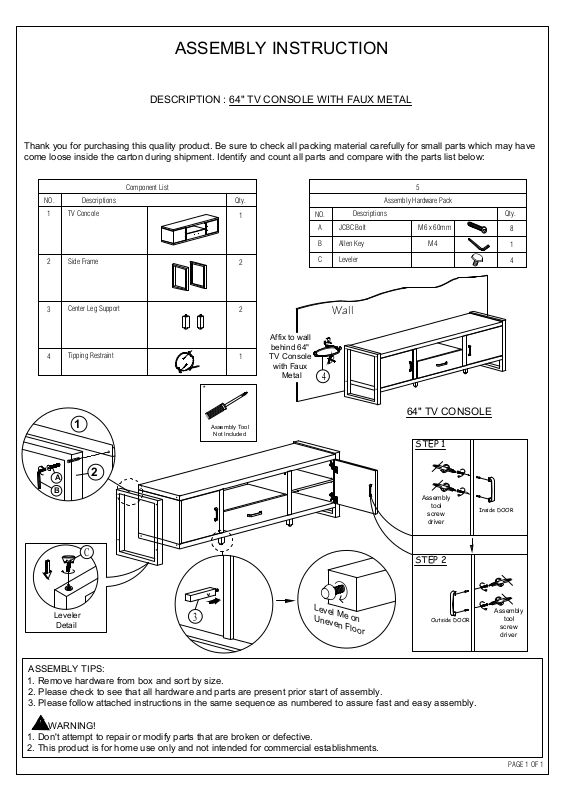

ASSEMBLY INSTRUCTION
Wall
Leveler
4
64" TV CONSOLE
3
Level Me on
Uneven Floor
Leveler
Detail
Outside DOOR
STEP 1
STEP 2
Assembly
tool
screw
driver
Inside DOOR
Assembly
tool
screw
driver
3
Center Leg Support
2
C
2
1
A
B
*
Assembly Tool
Not Included
5
M6 x 60mm
M4
4
Affix to wall
behind 64"
TV Console
with Faux
Metal
4
Tipping Restraint
1
DESCRIPTION : 64" TV CONSOLE WITH FAUX METAL
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have
come loose inside the carton during shipment. Identify and count all parts and compare with the parts list below:
WARNING!
1. Don't attempt to repair or modify parts that are broken or defective.
2. This product is for home use only and not intended for commercial establishments.
