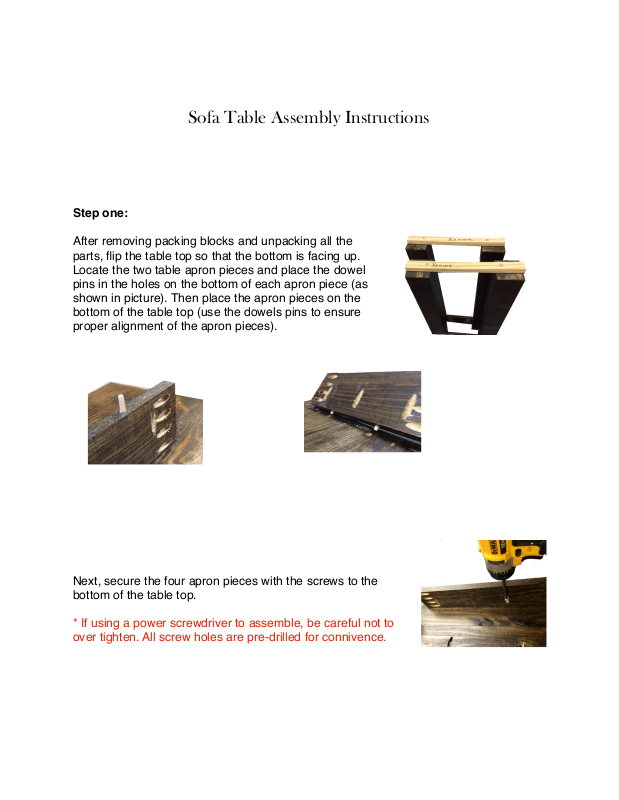

Sofa Table Assembly Instructions
Step one:
After removing packing blocks and unpacking all the
parts, flip the table top so that the bottom is facing up.
Locate the two table apron pieces and place the dowel
pins in the holes on the bottom of each apron piece (as
shown in picture). Then place the apron pieces on the
bottom of the table top (use the dowels pins to ensure
proper alignment of the apron pieces).
Next, secure the four apron pieces with the screws to the
bottom of the table top.
* If using a power screwdriver to assemble, be careful not to
over tighten. All screw holes are pre-drilled for connivence.
Page 2
Step Two:
Align the leg ends flush again table skirt. The legs ends are
pre-drilled so make sure they are facing inward. Use included
screws to secure the leg ends to the apron pieces and to the
bottom of the table.
Step Three:
(Attaching bottom shelf) Insert screw into pocket hole
located on corner of the under side of the shelf. After
aligning, screw up with pre-drilled hole and screw in the
screw. Repeat step for remaining corners of shelf. *It helps
to have a second person hold the other end of the shelf
while the first person attaches one end.
Step Four
Screw the adjustable felt feet onto the bottom of the each leg.
Page 3
Real wood expands and contracts according to its
environment, and your table was engineered with that
in mind. As your table acclimates to your home and
climate, it may need adjusted. Each leg has adjustable
felt feet and can be adjusted by turning them
clockwise to lower and counter clockwise to raise.
Adjust the table so that it sits flat in your room. The
table may need to be adjusted again during seasonal changes.
*Extra screws are included in the hardware bag.
