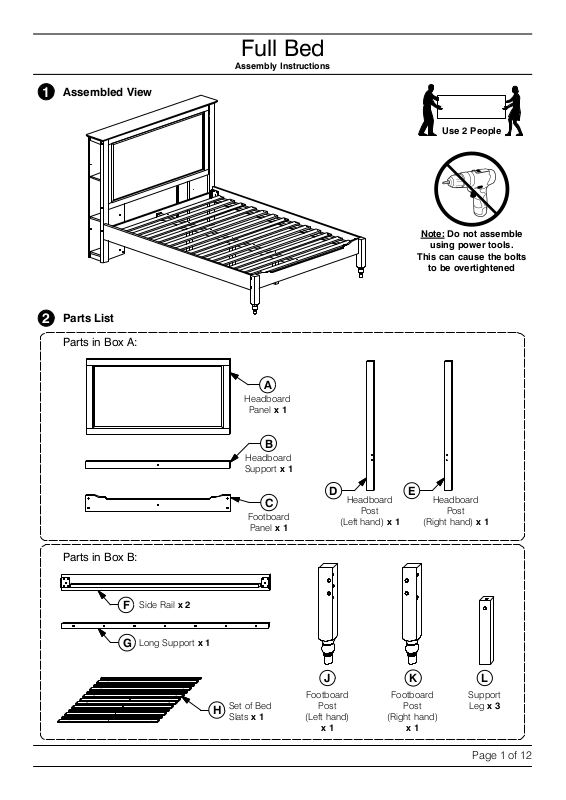

Page 1
Footboard
Post
(Right hand)
x 1
Page 1 of 12
Assembled View
1
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Use 2 People
Parts List
2
Parts in Box A:
Headboard
Panel x 1
A
Headboard
Post
(Left hand) x 1
Headboard
Support x 1
B
Footboard
Panel x 1
C
H
Set of Bed
Slats x 1
Parts in Box B:
F
Side Rail x 2
Footboard
Post
(Left hand)
x 1
J
Support
Leg x 3
L
Headboard
Post
(Right hand) x 1
D E
G
Long Support x 1
K
Full Bed
Assembly Instructions
Page 2
Storage
Support Bar x 1
Page 2 of 12
Parts List
2
Parts in Box C:
Headboard Top Panel x 1
N
Storage Support Block
(with groove) x 4
Storage Panel x 2
Storage
Shelf x 6
M
P
Q
R
Groove
Storage Support
Block x 4
S
Hardware List
3
17
M6 x 100mm JCB
x 9
10
Spring
Washer
x 8
11
Flat
Washer
x 8
2
Center Rail
Bracket x 2
4
Adjustable
Foot x 3
1
M4 Allen Key
x 1
3
'L' Bracket
x 3
5
Wood Screw
(M4 x 16mm)
x 6
6
Wood Screw
(M4 x 32mm)
x 40
7
Barrel Nut
x 11
8
Wood Dowel
(8 x 30mm)
x 24
9
Wood Dowel
(10 x 40mm)
x 8
12
M6 x
15mm JCB
x 4
13
M6 x
20mm JCB
x 8
14
M6 x
30mm JCB
x 20
15
M6 x 40mm JCB
x 20
16
M6 x 90mm JCB
x 4
Storage
Side Panel x 4
O
Assembly Instructions
Page 3
Page 3 of 12
Fix the Adjustable foot to the bottom
of the Support Leg (L).
4
4
L
Assemble the Footboard Post (J & K) to the
Footboard Panel (C).
6
J
K
7
9
9
16
7
16
16
16
C
Short Tab of
Metal Bracket (2)
12
Fit the Center Rail Bracket
to the Footboard Panel (C).
5
C
Assembly Instructions
Page 4
Page 4 of 12
Fit the Center Rail Bracket
to the Headboard Support (B).
7
D
E
9
17
17
B
17
7
9
9
7
17
9
9
9
A
7
Assemble the Headboard Post (D & E) to the
Headboard Panel (A) & Headboard Support (B).
8
B
Short Tab of
Metal Bracket (2)
12
Assembly Instructions
Page 5
13
10
11
F
A/C
Assemble the Side Rail (F) to the
Headboard & Footboard Panel (A & C).
9
Page 5 of 12
Bolt the Long Support (G) to the Center Rail
Brackets on the Headboard Support (B) and
Footboard Panel (C).
10
A
F
C
B
F
F
F
C
G
B
A
12
2
B/C
G
Assembly Instructions
Page 6
17
L
7
H
F
F
G
6
15
6
1515
Page 6 of 12
Fit the first 3 Slats and assemble the
Support Leg (L) to the Bed Slat (H).
Bolt & screw the Bed Slats (H)
to the Side Rail (F) &
Long Support (G).
11
Fit the other Slats out and assemble the
Support Leg (L) to the Bed Slat (H).
Bolt & screw the Bed Slats (H)
to the Side Rail (F) &
Long Support (G).
12
17
L
7
H
F
F
G
6
15
6
15
6
6
1515
Assembly Instructions
Page 7
Bolt & screw the remaining
Bed Slats (H) to the Side Rail (F).
17
L
7
H
F
G
6
15
6
15
6
1515
6
Page 7 of 12
Fit the other Slats out and assemble the
Support Leg (L) to the Bed Slat (H).
Bolt & screw the Bed Slats (H)
to the Side Rail (F) &
Long Support (G).
13
14
15
H
F
15
6
6
15
Assembly Instructions
Page 8
Page 8 of 12
Tap the Wood Dowels (8)
to the Storage Shelf (Q).
Assembly Instructions
R
Q
Q
Q
S
R
O
14
S
14
14
Q
Q
Q
O
6
6
6
Fit the Storage Support Block (R & S)
to the Storage Side Panel (O).
Q
8
8
Fit the Storage Shelf (Q) to the Storage Side Panel (O).
17
Groove
Groove
Groove
15
16
Page 9
Page 9 of 12
Slide the Storage Panel (P) into the groove.
P
O
R
R
S
S
O
O
P
14
14
6
6
6
Q
Q
Q
S
R
R
S
Fit the Storage Side Panel (O) in place.
Groove
18
19
Groove
Assembly Instructions
Page 10
14
D/E
Fit the 'L' Brackets to the
Headboard Panel (A).
Page 10 of 12
Attach the assembled Storage Box to
the Headboard Post (D & E).
20
21
Back
Assembled
Storage Box
Assembled
Storage Box
A
A
Assembled
Storage Box
Back
3
5
Assembly Instructions
Page 11
Page 11 of 12
Fit the Storage Support Bar (N)
in place.
22
Fit the Headboard Top Panel (M) on top of the
assembled Storage Box & Headbooard.
23
6
M
Profile
Assembled
Storage Box
N
Assembled
Storage Box
15
15
A
15
N
Back
Back
Assembled
Storage Box
M
6
6
Assembly Instructions
Page 12
Page 12 of 12
Assembly Instructions
Tighten the Top Cap (M) with M4 x 16mm Wood Screws.
24
Back
Assembled
Storage Box
Assembled
Storage Box
M
N
3
5
A
5
5
