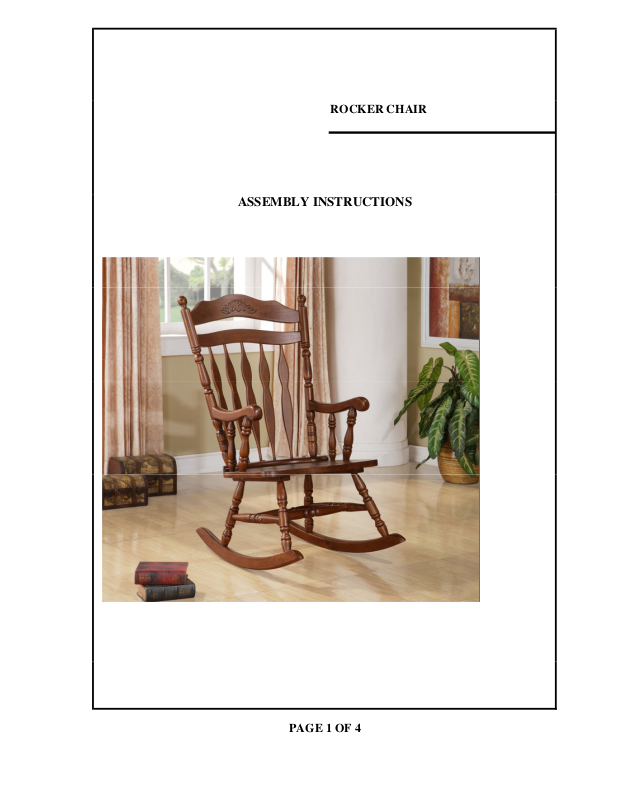

Page 1
ROCKER CHAIR
ASSEMBLY INSTRUCTIONS
PAGE 1 OF 4
Page 2
ASSEMBLY INSTRUCTIONS
1
. Remove hardware from box and sort by size
A
CHAIR BACK
1PC
D
WOOD SEAT
1PC
B2
1PC
RIGHT ARM
ASSEMBLY TIPS:
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy
assembly.
Warning!
!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment.

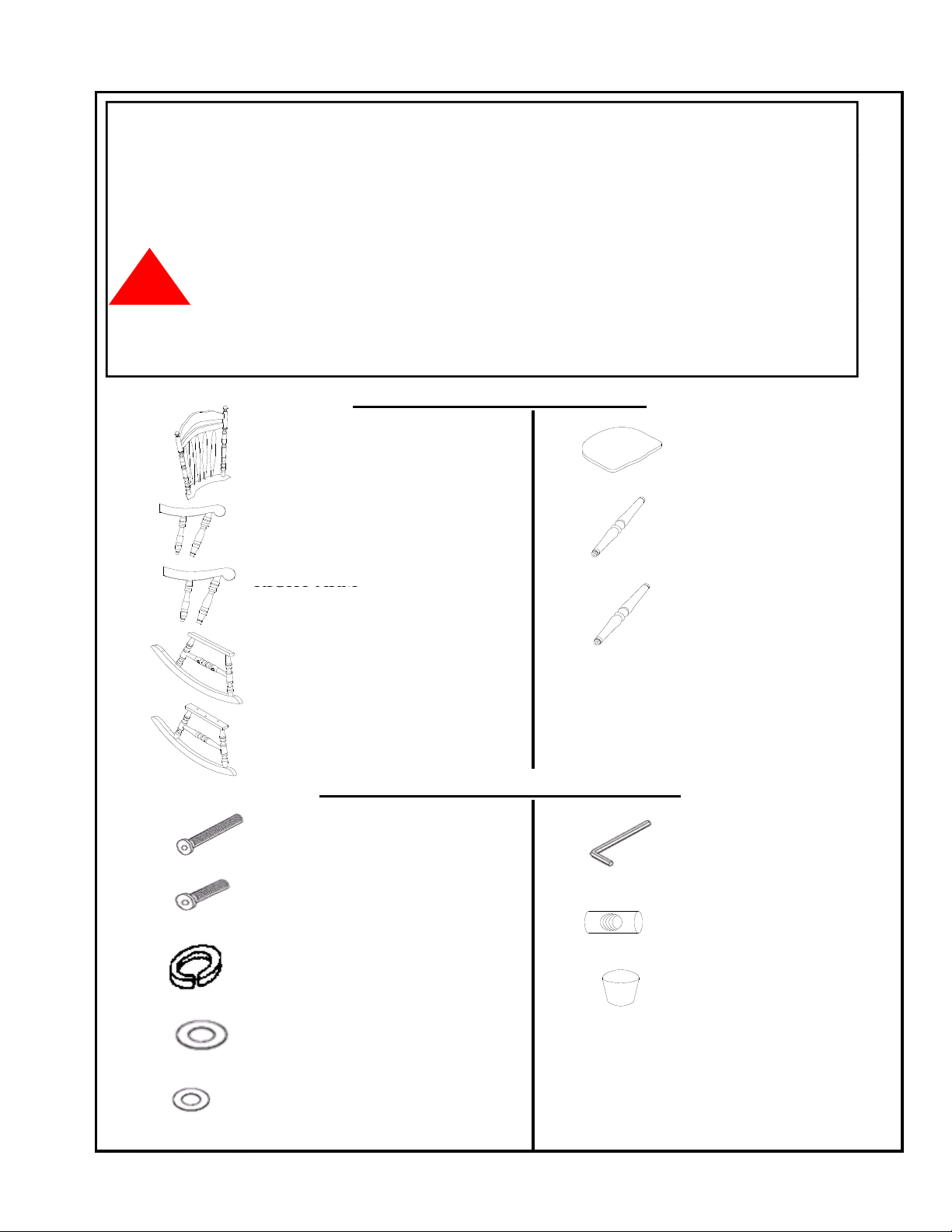

PARTS IDENTIFICATION
B1 1PC E 1PC
B2 1PC
C1
C2 RIGHT LEG 1PC
LEFT ARM
REST
REST
LEFT LEG 1PC
F 1PC
LONG
STRETCHER
SHORT
STRETCHER
HARDWARE IDENTIFICATION
1
2
3
LONG BOLT
SHORT BOLT
LOCK WASHER
8PCS 6
9PCS
17PCS
ALLEN WRENCH
7 BARREL NUT 6PCS
8
WOOD PLUG
1PC
9PCS
4 2PCS
5 15PCS
BIG FLAT
WASHER
SMALL FLAT WASHER
PAGE 2 OF 4
Page 3

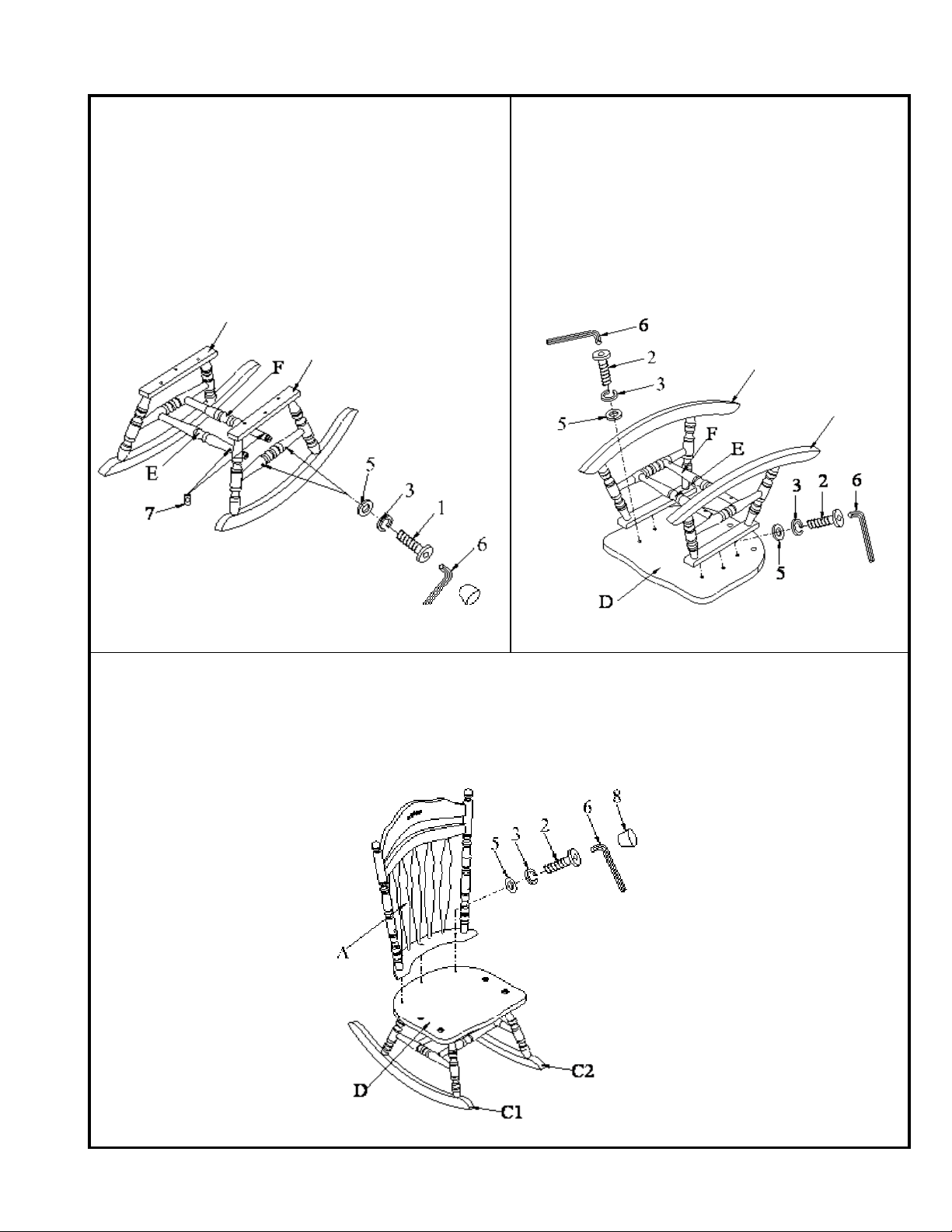

STEP 1 STEP 2
ASSEMBLY INSTRUCTIONS
Align and fasten short and long stretchers to left and
right leg frame using long bolt, lock washer and flat
washer, tighten with Allen wrench. Insert wood plug
into leg frame stretcher.
C1
C2
Place wood seat upside down on soft surface, align
and hand tighten left and right leg frame to wood
seat using short bolt , lock washer and flat washer,
tighten all bolt with Allen wrench.
C2
C1
STEP 3
Align and fasten chair back to wood seat using short bolt, lock washer and flat washer then tighten with
Allen wrench. Insert wood plug into the chair back brace.
PAGE 3 OF 4
Page 4

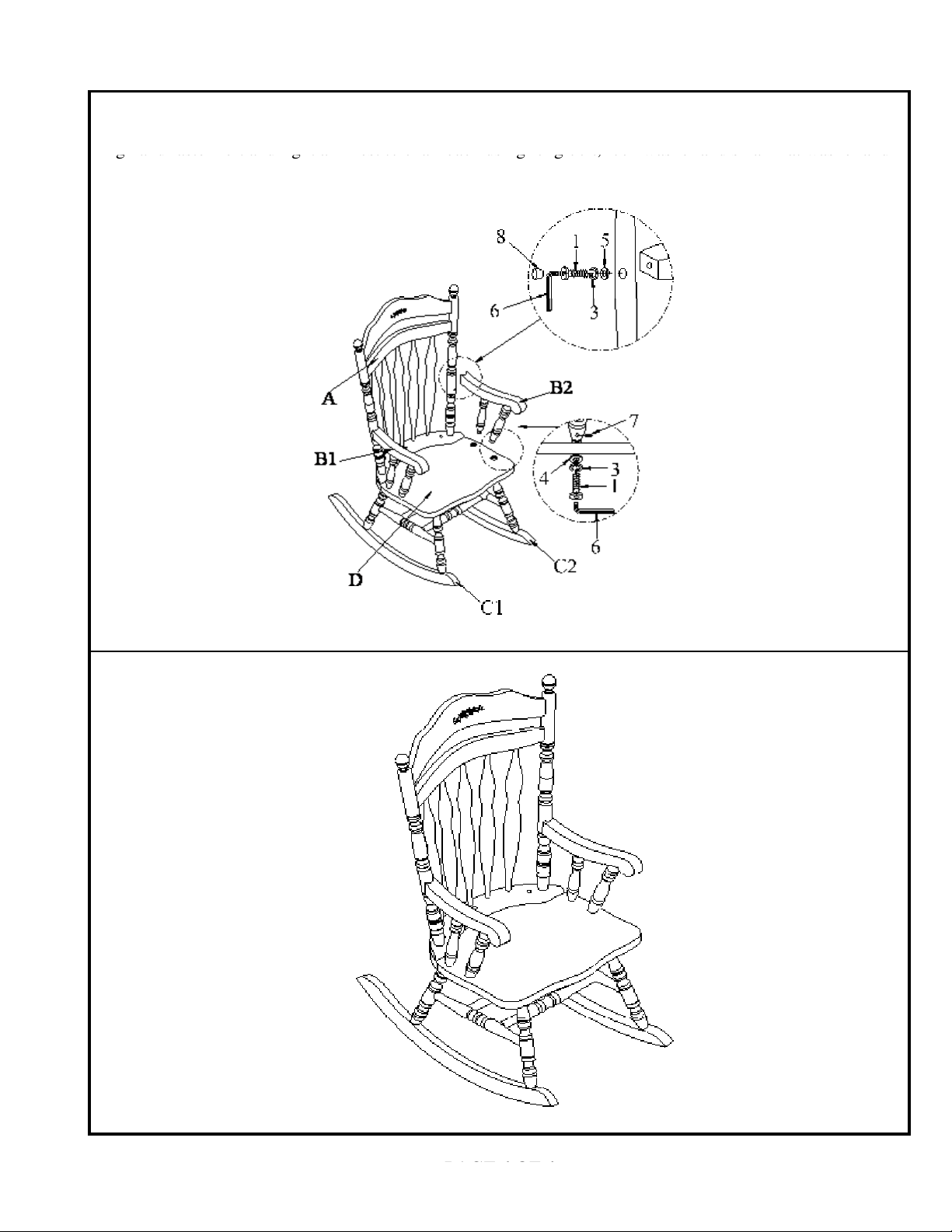

STEP 4
Align and fasten left and right arm rest to chair back using long bolt, lock washer and small flat washer and
tighten with Allen wrench.
ASSEMBLY INSTRUCTIONS
STEP 5
Complete.
PAGE 4 OF 4
