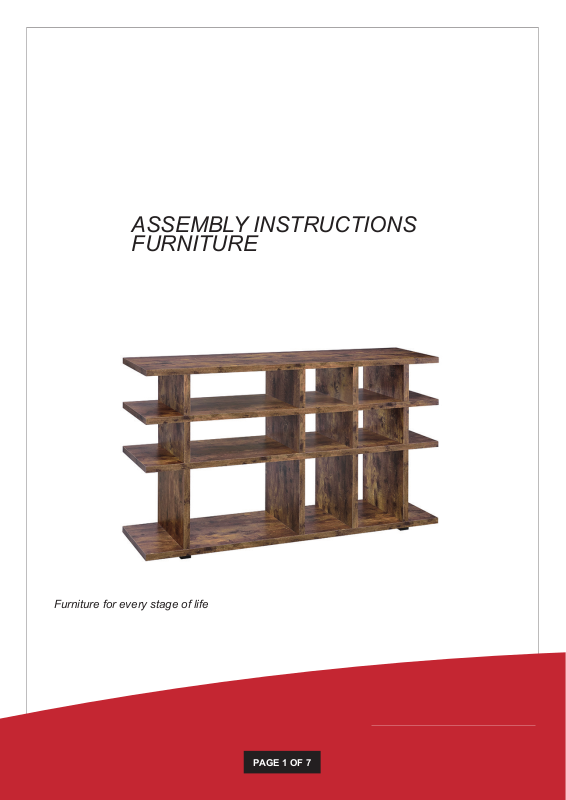

Page 1
Furniture for every stage of life
ASSEMBLY INSTRUCTIONS
FURNITURE
PAGE 1 OF 7
Page 2
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIME
PARTS IDENTIFICATION
40 MINUTES
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provide this item.
A BOT TOM PANEL 1PC
LOWER DIVIDER
B
C
PAN EL
UPPER DIVIDER
PAN EL
Z
NO DESCRIPTION FIGURE Q’TY
HARDWARE IDENTIFICATION
4PCS
8PCS
D CROSS PANEL 2PCS
E TOP PAN EL 1PC
NO DESCRIPTION FIGURE Q’TY
1 GLUE 40g
WOODEN DOWEL
2
3
4
Ø 8x30mm
CA M BOLT
Ø 7x35.5mm SR
CAM LOCK
Ø 15x12mm SR
1PC
48PCS
24PCS
24PCS
PAGE 2 OF 7
5
6
SCREW FOR FOOT
7
8
BOLT
Ø 9.5x55mm SR
FOOT
50x50x18mm
Ø 5x22.5mm BLK
STICKER
Ø 20mm
24PCS
5PCS
10PCS
4PCS
Page 3
STEP 1
3
2
x 48
3
x 24
E
INCORRECT
CORRECT
D x2
C x8
B x4
2
Apply glue on all wooden dowels to
ensure integrity of the structure.
PAGE 3 OF 7
Page 4
STEP 2
4
x 8
5
x 8
8
4
C
E
D
C
4
C
C
1
5
STEP 3
D
C
Apply glue on all wooden dowels to
ensure integrity of the structure.
D
C
C
8
4
x 8
4
5
x 8
8
C
1
5
Apply glue on all wooden dowels to
ensure integrity of the structure.
PAGE 4 OF 7
Page 5
STEP 4
4
x 8
5 8
x 8
4
B
A
D
4
B
B
B
1
8
STEP 5
5
Apply glue on all wooden dowels to
ensure integrity of the structure.
6
x 5
7
x 10
A
6
COMPLETE
7
PAGE 5 OF 7
Page 6
390mm(15.25")
1600m
m
(63")
184mm(7.24")
200mm(7.87")
569mm(22.4")
200mm(7.87")
390mm(15.35")
269mm(10.59")
269mm(10.59")
932mm(36.75")
184mm(7.24")
Note : Dimension tolerance ±5%
PAGE 6 OF 7
Page 7
ANTI-TIPPING INSTALLMENT INSTRUCTIONS
FURNITURE TIPPING RESTRAINT
WARNING
Injury may result from tipping furniture.
This restraint may protect against tipping furniture.
Do not allow children to climb on furniture.
This restraint is not a substitute for proper adult supervision.
Failure to detach this restraint before moving the furniture
may result in injury and damage.
1. To attach the anti-tip strap, securely mount one end to the top of the case piece with
the 5/8” screw.
2. Position the case piece against the wall in the desired location.
3. Pull the anti-tip strap taut and mark the position of where you will secure the other end
on the wall.
4. Drill a 1-1/4” hole in the spot you marked.
5. Tap in plastic wall plug.
6. Fasten anti-tip strap with wall screw provided.
(Please install the anti-tiping kit in the middle of the case piece if only have one set of anti-tipping kit.)
WALL
PAGE 7 OF 7
