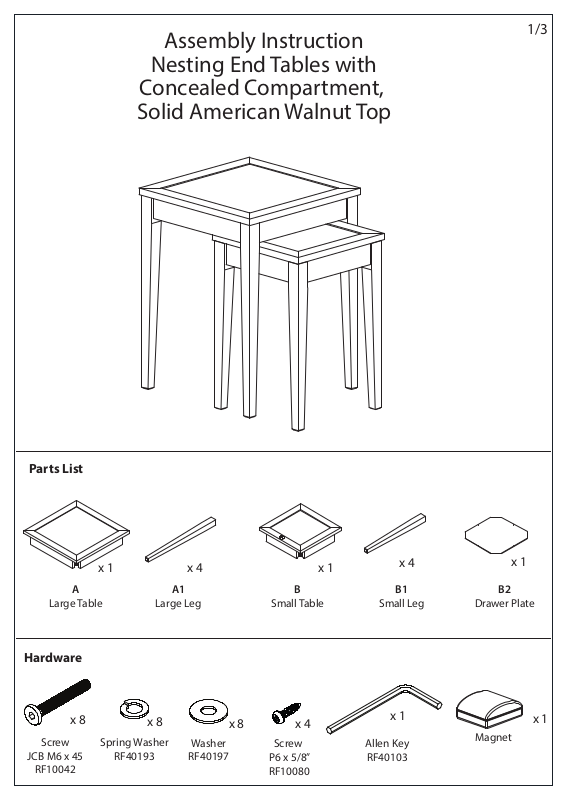

Assembly Instruction
Nesting End Tables with
Concealed Compartment,
Solid American Walnut Top
1/3
Parts List
A
Large Table
Hardware
x 8
Screw
JCB M6 x 45
RF10042
x 1
Large Leg
x 8
Spring Washer
RF40193
x 4
A1
Washer
RF40197
x 8
B
Small Table
x 4
Screw
P6 x 5/8”
RF10080
x 1
x 4
B1
Small Leg
x 1
Allen Key
RF40103
x 1
B2
Drawer Plate
x 1
Magnet
Large Table
A1
2/3
RF40197
RF40193
RF10042
Diagram 1.
Small Table
B1
A
Step 1:
Attach Large legs (A1) into the Large Table (A)
by using Screws (RF10042), Spring Washers (RF40193)
and Washers (RF40197) as per in diagram 1.
RF40197
RF40193
RF10042
Step 2:
Assemble the small table (B), repeat step1
B
as per diagram 2.
Diagram 2.
Diagram 3.
x 4
RF10080
B2
Step 3:
Attach a Drawer Plate (B2) into the unit
by using Screws (RF10080) as per diagram 3.
3/3
WARNING.
compartment are the sole responsibility of the user and are to be stored at the user's discretion.
Regardless of loss, seizure, damage, or changes in condition to the inner contents of the hidden
compartment, the manufacturer is not liable for the contents stored in the hidden compartment.
The hidden compartment is NOT a security safe. The inner contents in the hidden
How to use the concealed compartment
The hidden compartment is built in,
shipped with the locking bolt (if installed),
and is disengaged and unlocked.
In order to engage the hidden compartment lock,
please remove the sticker which blocks the bolt
(see the diagram 4).
Sticker
Diagram 4.
Solid Wood
This sticker identies the designated position.
Place the magnetic key here to unlock
the concealed drawer.
* Before removing the sticker, please note the designated position.
Diagram 5.
Unlock and Open: place the magnetic key
onto the assigned position shown above
to unlock and pull out the drawer as per
diagram 5.
Diagram 6.
Close and Lock: close the drawer
and remove the magnetic key from the
assigned position to lock the drawer
as per diagram 6.
