Assembly Instructions
Caution: You must read this before you proceed
Loveseat
CAUTION: This Loveseat is NOT a TOY.
Keep your child / children at bay during the assembly process of assembly.
For turning the Loveseat and to prevent damage to the Loveseat, 02 persons
may be needed to execute this action
1
Label Picture Description QTY
A Backrest panel 1
B Seat Panel 1
C
Right Leg Panel
(with Leveler)
1
D
Left Leg Panel
(with Leveler)
1
E Leg Support Bar 1
Parts List
2
Label Picture Description QTY
①
Bolt
(M8x55mm)
7
②
Bolt
(M8x25mm)
5
③
Screw
(M7x60 mm)
3
④
Flat Washer
(M8/18x1.5mm)
5
⑤
Allen Key 2
Hardware
Assembly Preparation
Before Beginning Assembly:
3
This Loveseat has multiple parts and may require up to 30 minutes to assemble.
To give you an overview of the Loveseat parts, the above picture is to help you
put the various parts into perspective. Please read through the instructions below
to familiarise yourself with the parts and steps before assembly.
Unpack and place all parts on a clean, non-marring surface.
Step 1
Overview
Assembly Steps
Seat Panel
(B)
Leg Support Bar
(E)
Backrest Panel
(A)
FRONT FACING
Left Leg Panel
(D)
Right Leg Panel
(C)
4
Step 2

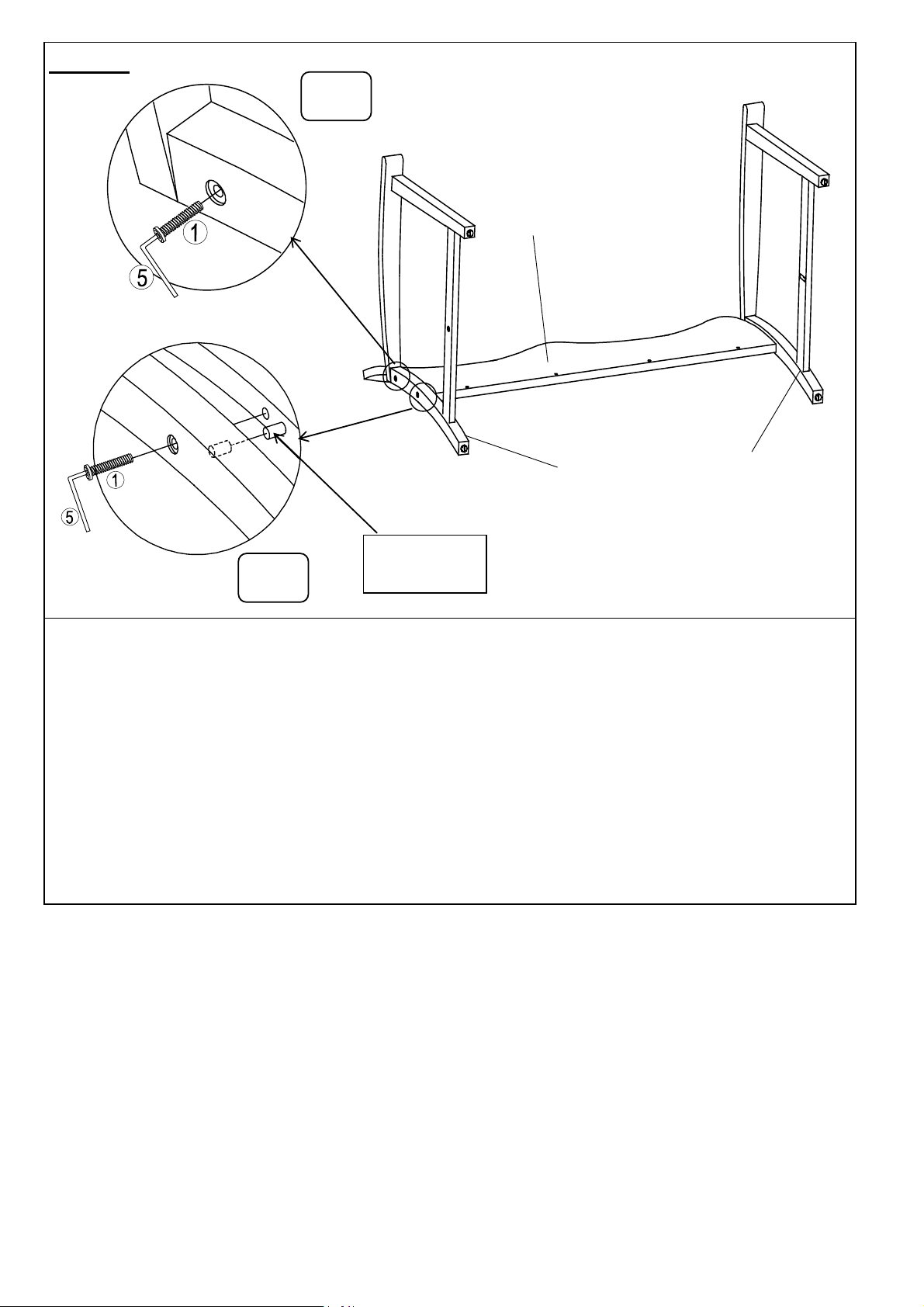

Lay down the Backrest Panel (A) on a clean, non-marring surface.
Step 2.1: With assistance from your adult partners, position housing of Left Leg
Panel (D) into pre-fixed iron dowel on Backrest Panel (A) as picture above.
Step 2.2: Secure Left Leg Panel (D) to Backrest Panel (A) by using Bolt (①) with
Allen Key (⑤)
Repeat the same process to attach Right Leg Panel (C) to Backrest Panel (A)
Do not fully tighten the Bolts.
A
D
2.2
C
Pre-fixed
Iron Dowel
2.1
5
Step 3
With assistance from your adult partner, put the Seat Panel (B) onto the preassembled in step 2.
Repeat same process in step 2.1 and 2.2 to Secure Right Leg Panel (C) and Left
Leg Panel (D) to Seat Panel (B).
Do not fully tighten all the Bolts
A
B
C
D
6
Step 4
Secure Seat Panel (B) to Back Panel (A) using Bolt (②) & Washer (④) with
Allen key (⑤)
Do not fully tighten the Bolts.
Step 5
Insert Leg Support Bar ( to Right Leg Panel (C) and Left Leg Panel (D) using
Screw (③) with Allen key (⑤) as shown above.
Note: You might need to apply a little pressure to the Leg Panels pushing
outwards slightly to insert the Leg Support Bar (E).
Do not fully tighten the Screws.
B
A
C
D
E
7
Step 7:
Your Chair is ready for use
Please use adjustable foot for uneven floors
This Chair can be used on a flat, level surface
With assistance from your adult partners, turn the Chair back to normal flat
ground.
Place the Chair on a LEVEL surface.
Inspect it and make sure all parts are adequately connected.
Gently and gracefully, sit onto the Chair.
This pressure will help to align all the parts at all joint areas.
Check for wobbles on a LEVEL surface.
If no wobbles are found proceed to tighten the Bolts and Screws in a sequential
manner, until evenly secured.
When tightening the Bolts and Screws tighten sequentially.
Adjust the Levellers until the Chair is level with the ground.
To adjust the Levellers, get assistance from an adult partner to lift/lean and hold
the Chair while you are working.
