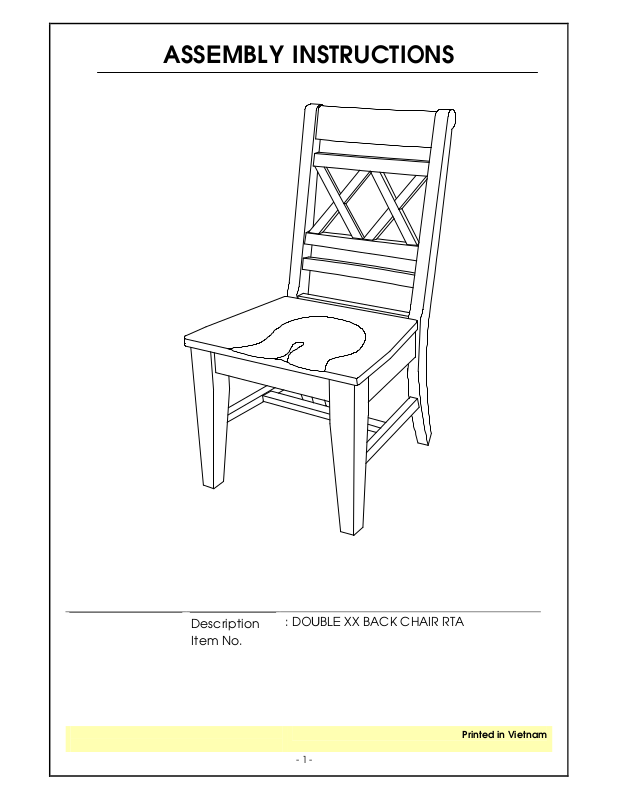

ASSEMBLY INSTRUCTIONS
- 1 -
Description
Item No.
: DOUBLE XX BACK CHAIR RTA
Printed in Vietnam
BEFORE ASSEM
BLY
PART
LIST
NOT INCLUDED
Thank you for purchasing this quality product. This product has been designed for easy assembly and
constructed for durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton
during shipment. Please separate, identify, and count all parts and metal hardware. Compare with part list to be
sure all parts are present.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from
being scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
ASSEMBLY TOOLS REQUIRED
When unpacking, please carefully not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following parts:
NO Description Qty Sketch NO Description Qty Sketch
A Chair back 1
C Chair Seat 1
Side
E
Stretcher
(L-R)
2
B Seat Frame 1
D
F
Front Leg
(L-R)
Middle
Stretcher
2
1
- 2 -
Printed in Vietnam
HARDWARE LIST
NO Description
Qty Sketch
NO
Description
Qty Sketch
STEP 1
When unpacking, please carefully not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
1
3
5
7
Short bolt
( M6 x 40mm)
Long bolt
(M6 x 80mm)
Lock Washer
(6.5 x 11mm)
Screw
(M3.5 x 15)
3
4 4
11
2
2
6
8
Medium bolt
(M6 x 60mm)
Long Screw
(M4 x 35mm)
Flat Washer
(6.5 x 19mm)
Allen Key
(K4x80mm)
4
8
11
1
Attach seat frame (B) to the back (A) by using bolts (1) and (3), washers (5) and (6), as shown below.
Tighten with Allen key (8).
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts.
- 3 -
Printed in Vietnam
STEP 2
STEP 3
Attach Front Legs (D) to the seat frame (B) with bolts (2), and washers (5) and (6), as shown below.
Tighten with Allen Key (8).
Place side stretchers (E) and middle stretcher (F) between front and back legs. Attach stretchers with
the screws (4) and (7) as shown below. Tighten with a screwdriver.
Attach the seat (C) to top of the seat frame (B) with screws (5), as shown below. Tighten with a
screwdriver.
