Printed in Vietnam
Description

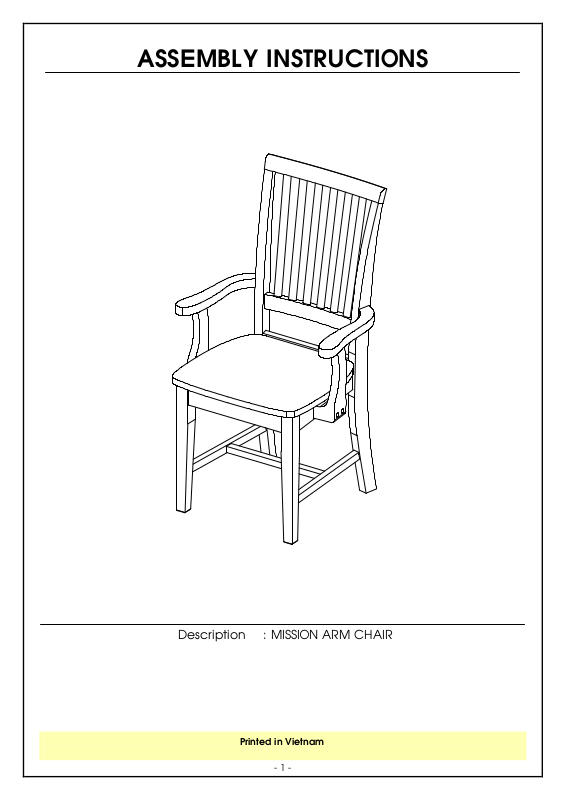

: MISSION ARM CHAIR
ASSEMBLY INSTRUCTIONS
- 1 -
Printed in Vietnam
BEFORE ASSEMBLY
ASSEMBLY TOOLS REQUIRED
NOT INCLUDED
Thank you for purchasing this quality product. This product has been designed for easy assembly
and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to
beginning assembly, however, make sure all parts and hardware are included and free of obvious
defect. If a part is missing or defective, please contact the store where purchased. If hardware is
missing, or you need help with assembly, please call toll free.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the
parts from being scratched.
- Remove all wrapping material, including staples & packing straps before you start to
assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
- 2 -
Printed in Vietnam
PART LIST
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
A
Chair Back
1
B
Seat Frame
1
C
Chair Seat
1
D
Front Leg
(L-R)
2
E
Side Stretcher
(L-R)
2
F
Middle
Stretcher
1
G
Arm Support
(L-R)
2
H
Arm
(L-R)
2
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have the following parts:
- 3 -
Printed in Vietnam
HARDWARE LIST
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
1
Short Bolt
(M6 x 40mm)
3
2
Medium Bolt
(M6 x 60mm)
4
3
Long Bolt
(M6 x 80mm)
4
4
Short Screw
(M3.5 x 15mm)
2
5
Medium Screw
(M4 x 35mm)
4
6
Long Screw
(M4 x 50mm)
6
7
Lock Washer
(6.5 x 11mm)
19
8
Large Flat Washer
(6.5 x 19mm)
15
9
Allen Key
(M4 x 30mm x110mm)
1
10
Hexagon nut
(M6 x 10mm)
4
11
Wrench
(10mm)
1
12
Small Flat Washer
(6.5 x13mm)
4
13
Wood Plug
(14.5)
4
14
Long bolt
(M6 x 100mm)
4
When unpacking, please be careful not to discard any parts with the packaging. Before continuing,
please make sure you have all of the following hardware:
- 4 -
Printed in Vietnam
STEP 1
STEP 2
Insert arm supports (G) into arms (H) as shown below.
Attach seat frame (B) to the back (A) with bolts (1) and (3), and washers (7) and (8), as shown below.
Tighten with Allen key (9).
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts
- 5 -
Printed in Vietnam
STEP 2
STEP 3
Attach front legs (D) to the seat frame (B) with bolts (2), and washers (7) and (8) as shown below. Tighten
with Allen key (9).
Attach middle stretcher (F) to side stretchers (E) with screws (4). Then attach side stretchers (E) to
front and back legs with screws (6) as shown below. Tighten with a screwdriver.
Attach arms support (G) to seat frame with bolts (14), and washers (7) and (12) as shown below. Tighten with
Allen key (9). Then use nuts (10), and washers (7) and (8) as shown below. Tighten with the wrench (11).
Attach arms (H) to the back with screws (6) as shown below. Tighten with a screwdriver.
- 6 -
Printed in Vietnam
STEP 4
Attach the seat (C) to top of the seat frame (B) with screws (5) as shown below. Tighten with a screwdriver.
Then insert wood plugs (13) over bolts to cover them.
- 7 -
