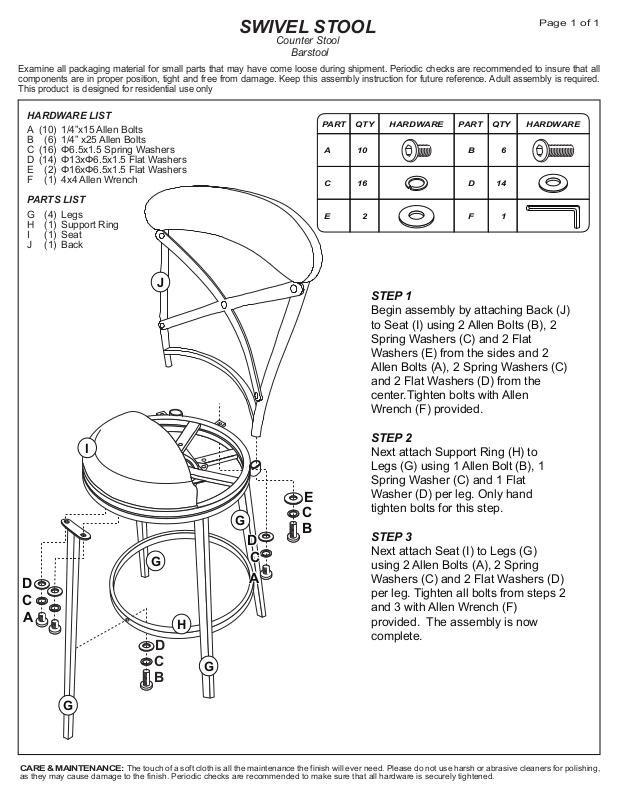

SWIVEL STOOL
Counter Stool
Barstool
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
This product is designed for residential use only
Page 1 of 1
HARDWARE LIST
A (10) 1/4”x15 Allen Bolts
B (6) 1/4” x25 Allen Bolts
C (16) Ф6.5x1.5 Spring Washers
D (14) Ф13xФ6.5x1.5 Flat Washers
E (2) Ф16xФ6.5x1.5 Flat Washers
F (1) 4x4 Allen Wrench
PARTS LIST
G (4) Legs
H (1) Support Ring
I (1) Seat
J (1) Back
J
QTYPAR T
10A 6B
16C
HARDWARE QTYPAR T HARDWARE
14
D
2E
F
1
STEP 1
Begin assembly by attaching Back (J)
to Seat (I) using 2 Allen Bolts (B), 2
Spring Washers (C) and 2 Flat
Washers (E) from the sides and 2
Allen Bolts (A), 2 Spring Washers (C)
and 2 Flat Washers (D) from the
center.Tighten bolts with Allen
Wrench (F) provided.
D
D
C
C
A
A
G
STEP 2
I
Next attach Support Ring (H) to
Legs (G) using 1 Allen Bolt (B), 1
Spring Washer (C) and 1 Flat
Washer (D) per leg. Only hand
tighten bolts for this step.
STEP 3
Next attach Seat (I) to Legs (G)
using 2 Allen Bolts (A), 2 Spring
Washers (C) and 2 Flat Washers (D)
G
G
D
D
C
C
AA
C
C
B
B
E
E
per leg. Tighten all bolts from steps 2
and 3 with Allen Wrench (F)
H
provided. The assembly is now
complete.
D
D
C
C
G
BB
CARE & MAINTENANCE
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
:
The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
