Page 1

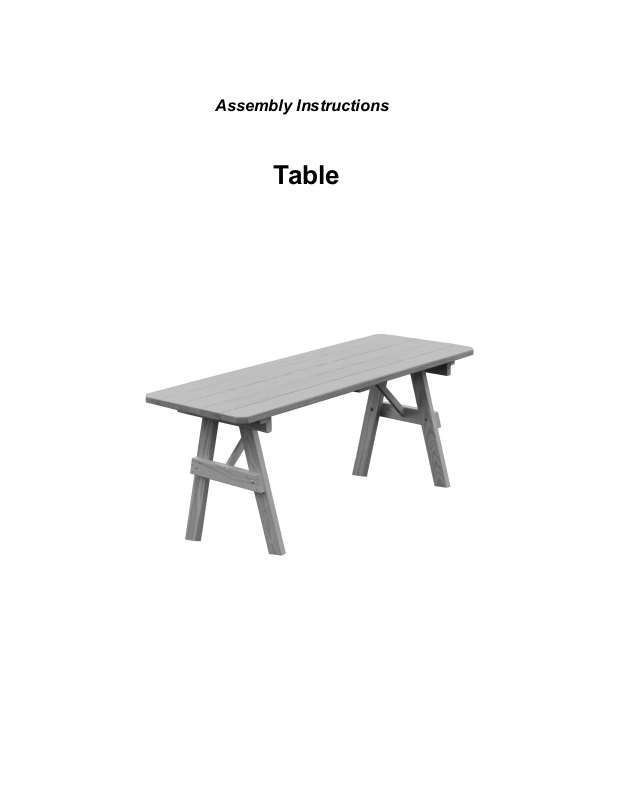

Assembly Instructions
Table
Page 2
PARTS (included)
Table Top (1)
Table Legs (2)
Table Braces (2)
HARDWARE (included)
2¾” Bolts (4)
2½” Lag Screws (4)
Allen Wrench (1)
TOOLS NEEDED
Hammer
7
/
16
” Wrench or Socket
b
c
a
Photo 1 Photo 2
Photo 3 Photo 4
C
C
b
b
STEP 1
Lay the table top upside down on a clean flat surface. Attach the table legs to the inside of the 2x2 cross
support on the table top. (See photo 1.) Insert the 2¾” bolts through the holes in the table legs and turn
them into the metal inserts in the 2x2. (See photo 2.) Tighten with the Allen wrench. Do not overtighten!
STEP 2
Attach the table braces with one end of the brace against the table top and the other end against the
horizontal crosspiece on the leg. (See photo 3.) Insert 2½” lag screws through the holes in the table
braces. (See photo 4.) Tap them lightly with the hammer to get them started into the wood. They are self
drilling and will not crack the wood. Tighten using 7/16” wrench or socket. Do not overtighten as this may
cause them to break!
a
a
