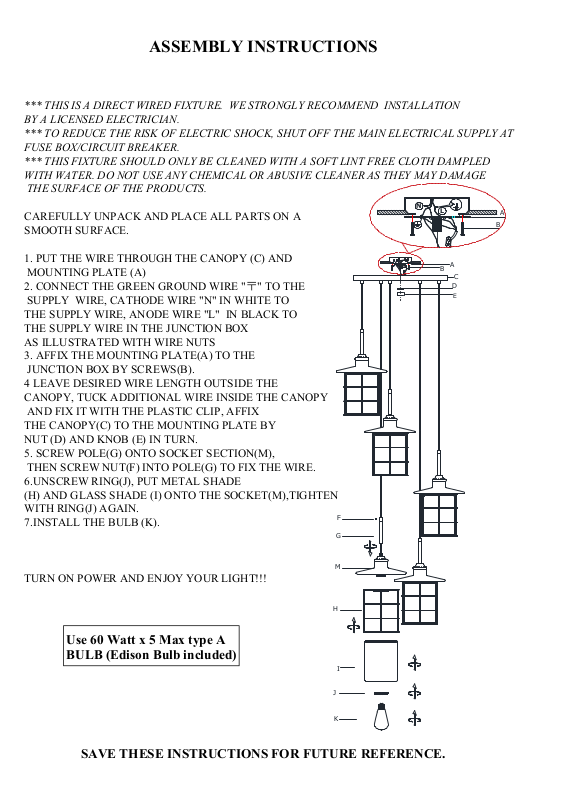

ASSEMBLY INSTRUCTIONS
*** TO REDUCE THE RISK OF ELECTRIC SHOCK, SHUT OFF THE MAIN ELECTRICAL SUPPLY AT
2. CONNECT THE GREEN GROUND WIRE "〒" TO THE
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
*** THIS IS A DIRECT WIRED FIXTURE. WE STRONGLY RECOMMEND INSTALLATION
BY A LICENSED ELECTRICIAN.
FUSE BOX/CIRCUIT BREAKER.
*** THIS FIXTURE SHOULD ONLY BE CLEANED WITH A SOFT LINT FREE CLOTH DAMPLED
WITH WATER. DO NOT USE ANY CHEMICAL OR ABUSIVE CLEANER AS THEY MAY DAMAGE
THE SURFACE OF THE PRODUCTS.
N
CAREFULLY UNPACK AND PLACE ALL PARTS ON A
SMOOTH SURFACE.
L
A
B
1. PUT THE WIRE THROUGH THE CANOPY (C) AND
MOUNTING PLATE (A)
SUPPLY WIRE, CATHODE WIRE "N" IN WHITE TO
THE SUPPLY WIRE, ANODE WIRE "L" IN BLACK TO
THE SUPPLY WIRE IN THE JUNCTION BOX
AS ILLUSTRATED WITH WIRE NUTS
3. AFFIX THE MOUNTING PLATE(A) TO THE
JUNCTION BOX BY SCREWS(B).
4 LEAVE DESIRED WIRE LENGTH OUTSIDE THE
CANOPY, TUCK ADDITIONAL WIRE INSIDE THE CANOPY
AND FIX IT WITH THE PLASTIC CLIP, AFFIX
THE CANOPY(C) TO THE MOUNTING PLATE BY
NUT (D) AND KNOB (E) IN TURN.
5. SCREW POLE(G) ONTO SOCKET SECTION(M),
THEN SCREW NUT(F) INTO POLE(G) TO FIX THE WIRE.
6.UNSCREW RING(J), PUT METAL SHADE
(H) AND GLASS SHADE (I) ONTO THE SOCKET(M),TIGHTEN
WITH RING(J) AGAIN.
7.INSTALL THE BULB (K).
A
B
C
D
E
F
G
M
TURN ON POWER AND ENJOY YOUR LIGHT!!!
H
Use 60 Watt x 5 Max type A
BULB (Edison Bulb included)
I
J
K
