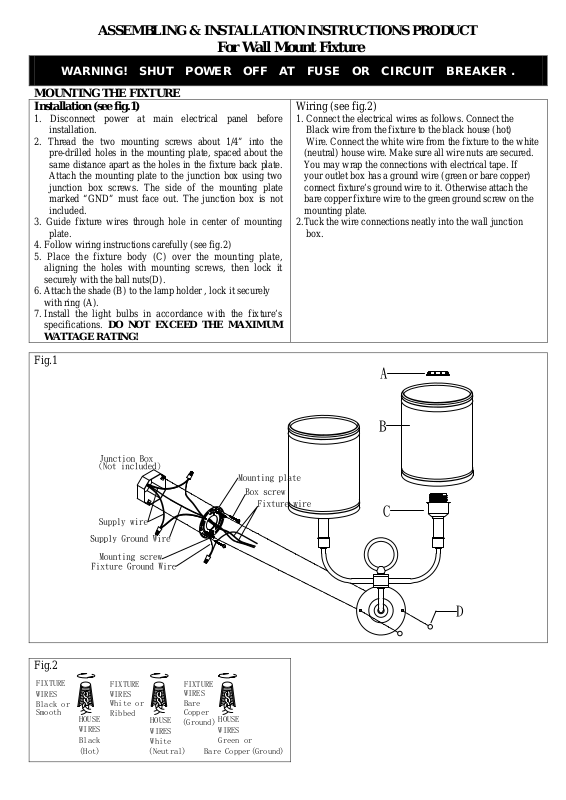

ASSEMBLING & INSTALLATION INSTRUCTIONS PRODUCT
For Wall Mount Fixture
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .
MOUNTING THE FIXTURE
Installation (see fig.1)
1. Disconnect power at main electrical panel before
installation.
2. Thread the two mounting screws about 1/4” into the
pre-drilled holes in the mounting plate, spaced about the
same distance apart as the holes in the fixture back plate.
Attach the mounting plate to the junction box using two
junction box screws. The side of the mounting plate
marked “GND” must face out. The junction box is not
included.
3. Guide fixture wires through hole in center of mounting
plate.
4. Follow wiring instructions carefully (see fig.2)
5. Place the fixture body (C) over the mounting plate,
aligning the holes with mounting screws, then lock it
securely with the ball nuts(D).
6. Attach the shade (B) to the lamp holder , lock it securely
with ring (A).
7. Install the light bulbs in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM
WATTAGE RATING!
Wiring (see fig.2)
1. Connect the electrical wires as follows. Connect the
Black wire from the fixture to the black house (hot)
Wire. Connect the white wire from the fixture to the white
(neutral) house wire. Make sure all wire nuts are secured.
You may wrap the connections with electrical tape. If
your outlet box has a ground wire (green or bare copper)
connect fixture’s ground wire to it. Otherwise attach the
bare copper fixture wire to the green ground screw on the
mounting plate.
2.Tuck the wire connections neatly into the wall junction
box.
Fig.1
A
B
C
D
Fig.2
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
