Page 1
F05L421

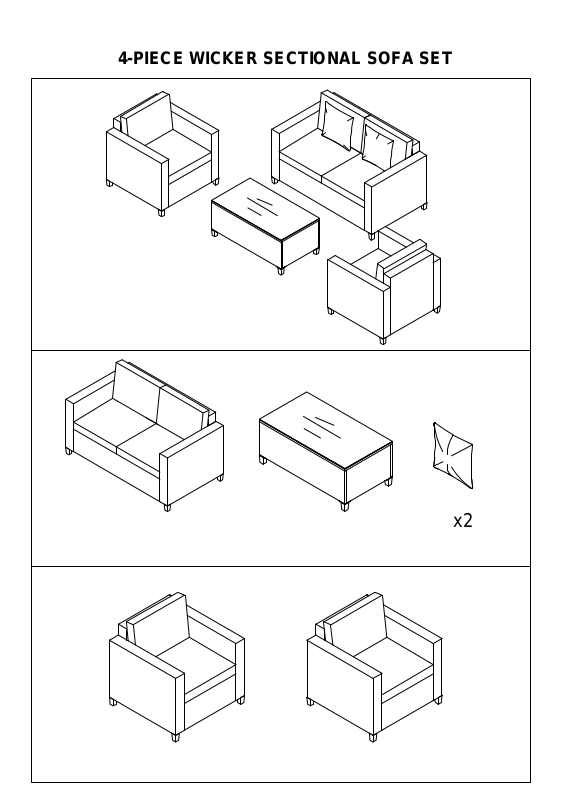

4-PIECE WICKER SECTIONAL SOFA SET
x2
Page 2
F05L421
SINGER SOFA
DO THIS TWO TIMES
Page 1 of 5
A
C
D
E
B
Seat Back
Left Arm
Rest
Right Arm
Rest
Seat Base
Leveling
Foot
1PC
1PC
1PC
1PC
4PCS
1
Flip over the components. Attach seat back (A) to
left and right arm rest (B&C) using M6 x 50 socket
head cap bolt (F), washer (H) and nut (I) as shown.
Do this in four places.
B
C
F
G
H
J
K
L
Socket Head
Cap Bolt
Socket Head
Cap Bolt
Washer
I
Nut
Plastic
Washer
Allen Key
Wrench
6PCS
9PCS
26PCS
11PCS
4PCS
1PC
1PC
Loose attach all connections at the
beginning, adjust alignments then
fully tighten all joints
2
With the assembly still flipped over, attach seat base
(D) to left and right arm rest (B&C) through the
upper holes using M6 x 50 socket head cap bolt (F),
washer (H) and nut (I) as shown. Do this in two
places
B
D
A
A
C
Page 3
F05L421
SINGER SOFA
DO THIS TWO TIMES
3
Attach the lower holes of the seat base (D) to
left and right arm rest (B&C) and seat back (A)
using M6 x 60 socket head cap bolt (G), washer
(H) and nut (I) as shown. Do this in five places.
B
Page 2 of 5
A
C
I
H
4
H
G
D
Attach leveling foot (E) to each corner
using M6 x 60 socket head cap bolt (G),
washer (H), plastic washer (J) and nut (I).
G
H
E
J
Loose attach all connections at the
beginning, adjust alignments then
fully tighten all joints
Page 4
F05L421
DOUBLE SOFA
Page 3 of 5
A
C
D
E
B
Seat Back
Left Arm
Rest
Right Arm
Rest
Seat Base
Leveling
Foot
1PC
1PC
1PC
1PC
4PCS
1
Flip over the components. Attach seat
back (A) to left and right arm rest (B&C)
using M6 x 50 socket head cap bolt (F),
washer (H) and nut (I) as shown. Do this in
four places.
C
B
F
G
H
J
K
L
Socket Head
Cap Bolt
Socket Head
Cap Bolt
Washer
I
Nut
Plastic
Washer
Allen Key
Wrench
6PCS
10PCS
28PCS
12PCS
4PCS
1PC
1PC
Loose attach all connections at the
beginning, adjust alignments then
fully tighten all joints
A
With the assembly still flipped over, attach seat
2
I
H
base (D) to left and right arm rest (B&C)
through the upper holes using M6 x 50 socket
head cap bolt (F), washer (H) and nut (I) as
shown. Do this in two places.
B
D
H
F
A
C
Page 5
F05L421
DOUBLE SOFA
Page 4 of 5
3
4
Attach the lower holes of the seat base (D) to left
and right arm rest (B&C) and seat back (A) using
M6 x 60 socket head cap bolt (G), washer (H) and
nut (I) as shown. Do this in six places.
A
B
C
I
H
H
G
D
Attach leveling foot (E) to each corner using
M6 x 60 socket head cap bolt (G), washer (H),
plastic washer (J) and nut (I) as shown.
Loose attach all connections at the
beginning, adjust alignments then
fully tighten all joints
Page 6
F05L421
COFFEE TABLE
Page 5 of 5
A
C
D
E
F
G
B
Table Top
Front & Back
Panel
Side Panels
Glass
Leveling
Foot
Socket Head
Cap Bolt
Socket Head
Cap Bolt
1PC
2PCS
2PCS
1PC
4PCS
14PCS
8PCS
1
Attach front and back panel (B) to table top (A) using M6 x
35 socket head cap screw (F) and washer (H) as shown. Do
this in six places.
F
H
B
2
Attach side panels (C) to front and back panel (B) using M6 x
35 socket head cap screw (F) and washer (H) as shown. Do
this in eight places.
B
C
C
B
A
H
I
J
4
Flip over the assembly
and place on the glass (D)
Washer
Plastic
Washer
Allen Key
D
22PCS
8PCS
1PC
A
Attach leveling foot (E) to each corner
3
using M6 x 20 socket head cap screw (G),
washer (H) and plastic washer (I) as shown.
E
G
H
I
H
F
E
Loose attach all connections at the
beginning, adjust alignments then fully
tighten all joints
