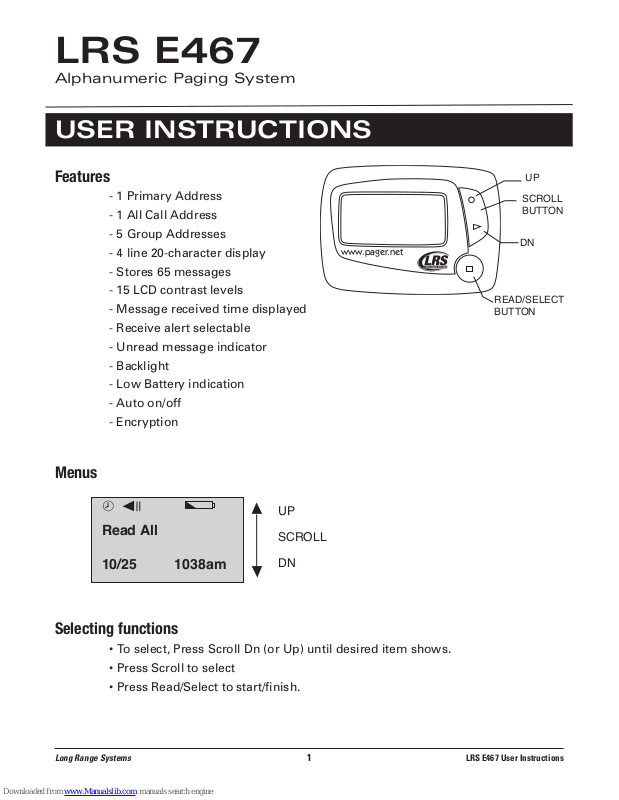

LRS E467
www.pager.net
Alphanumeric Paging System
USER INSTRUCTIONS
Features
- 1 Primary Address
- 1 All Call Address
- 5 Group Addresses
- 4 line 20-character display
- Stores 65 messages
- 15 LCD contrast levels
- Message received time displayed
- Receive alert selectable
- Unread message indicator
- Backlight
- Low Battery indication
- Auto on/off
- Encryption
UP
SCROLL
BUTTON
DN
READ/SELECT
BUTTON
Menus
Selecting functions
Long Range Systems 1 LRS E467 User Instructions
UP
Read All
10/25 1038am
• To select, Press Scroll Dn (or Up) until desired item shows.
• Press Scroll to select
• Press Read/Select to start/finish.
SCROLL
DN
Page 2
Basic Operations
• Power On/Off
• Read Messages
• Delete Messages
Power On/Off
Set ON (if unit is off)
• Press and hold Scroll Up until YES NO shows.
• At Power ON? Select YES.
• Press Read/Select button.
Set OFF
• Select Power OFF?.
• Select YES/No
• Press Read/Select one time
Read Message
[01/16] 01/02/2006
10:04 am
This is the message that you
received this time
Advanced Operations
Assign Tables Auto ON/OFF
Set Alert Mode Set Contrast
Set Time/Date Set Keytone
Select Alert Mode
• Select Set Alert Mode.
• Select Beep.
• Select Loud or Soft
• Select Duration
• Select Vibe
• Select Strong or Weak
• Select Pulse Type
• Select Duration
• Select Both.
• Select Strong or Weak
• Select Duration
Long Range Systems 2 LRS E467 User Instructions
Page 3
Set Time/Date
• Select Set Time/Date.
• Press Read/Select
• Press Scroll to set each time or date segment and press Read/Select to move
through the segments.
Auto ON/OFF
• Select Auto On/Off.
• Press Read/Select.
• Select ON/OFF.
Press Read/Select and Scroll to set on off time segment
Set Contrast
• Select Set Contrast.
• Press Read/Select.
• Scroll DN/UP to adjust.
Set Keytone On/Off
• Select Set Keytone.
• Press Read/Select.
• Select On or Off.
• Press Read/Select to set
Encryption
Encryption is an automatic feature built into the pager designed to meet HIPAA security
requirements. It is keyed by settings and codes on LRS transmitters. When encryption is
used the pager must be programmed from the encrypted transmitter.
Precautions
- Keep unit dry
- Don’t self repair
- Do not overheat in sunlight
- Don’t drop
- Don’t use cleaning agents
- Don’t use sharp objects on screen
FCC
This equipment complies with FCC rules Class B (digital) Part 15. This device may not
cause harmful interference and this device must accept any interference that may cause undesired operation.
Long Range Systems 3 LRS E467 User Instructions
Page 4
Warranty
ong Range Systems, LLC reserves the right to make changes without further notice to any products herein.
L
Long Range Systems, LLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Long Range Systems, LLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation
consequential or incidental damages. “Typical” parameters that may be provided in Long Range Systems, LLC
ata sheets and/or specifications can and do vary in different applications and actual performance may vary
d
over time. All operating parameters, including “Typicals”, must be validated for each customer application by
customer’s technical experts. Long Range Systems, LLC products are not designed, intended, or authorized for
use as components in systems intended to support or sustain life, or for any other application in which the failure
of the Long Range Systems, LLC product could create a situation where personal injury or death may occur.
Should Buyer purchase or use Long Range Systems, LLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold Long Range Systems, LLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney
fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or
unauthorized use, even if such claim alleges that Long Range Systems, LLC was negligent regarding the design
or manufacture of the part, device or system.
Long Range Systems 4 LRS E467 User Instructions
Long Range Systems, LLC
4550 Excel Parkway, Suite 200, Addison, TX 75001
www.pager.net •214. 553.5308
XU-0062 052213
