49

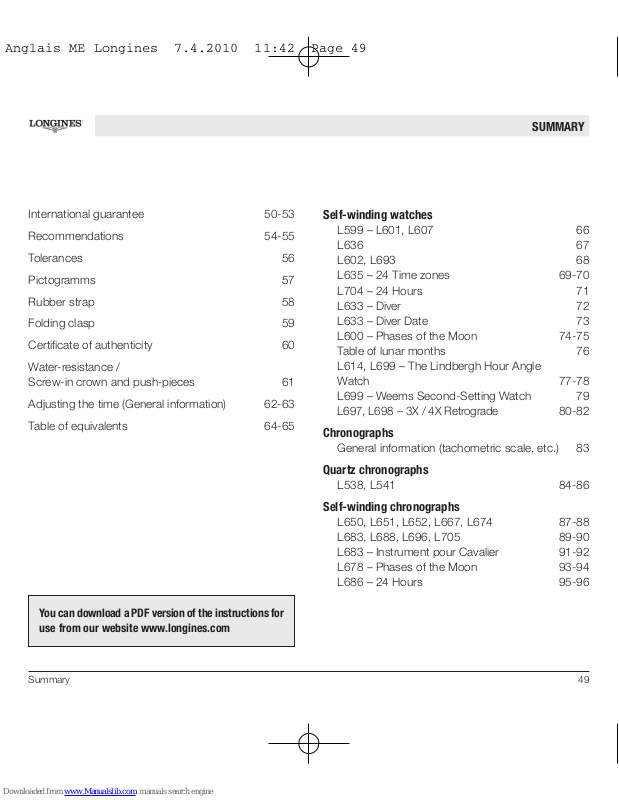

SUMMARY
International guarantee 50-53
Recommendations 54-55
Tolerances 56
Pictogramms 57
Rubber strap 58
Folding clasp 59
Certificate of authenticity 60
Water-resistance /
Screw-in crown and push-pieces 61
Adjusting the time (General information) 62-63
Table of equivalents 64-65
Self-winding watches
L599 – L601, L607 66
L636 67
L602, L693 68
L635 – 24 Time zones 69-70
L704 – 24 Hours 71
L633 – Diver 72
L633 – Diver Date 73
L600 – Phases of the Moon 74-75
Table of lunar month
s 76
L6
14, L699 – The Lindbergh Hour Angle
Watch 77-78
L699 – Weems Second-Setting Watch 79
L697, L698–3X / 4X Retrograde
80-82
Chronographs
General information (tachometric scale, etc.) 83
Quartz chronographs
L538, L541 84-86
Self-winding chronographs
L650, L651, L652, L667, L674 87-88
L683, L688, L696, L705 89-90
L683 – Instrument pour Cavalier 91-92
L678 – Phases of the Moon 93-94
L686 – 24 Hours 95-96
Summary
You candownload a PDF version of the instructions for
use from our website www.longines.com
Anglais ME Longines 7.4.2010 11:42 Page 49
Page 2
50 Limited two-years warranty (USA)
LIMITED TWO-YEARS WARRANTY (USA)
LONGINES is delighted that you should have chosen a
model from our prestigious collection. The little technical marvel you now own will serve you faithfully for many
years. The most advanced techniques were used during its manufacture, and it underwent stringent controls
before it was released for sale.
Your LONGINES
®
watch is warranted by Longines Watch
Co. Francillon Ltd* FOR A PERIOD OF TWENTY-FOUR
(24) MONTHS FROM THE DATE OF PURCH
ASE under
the
terms and conditions of this warranty.
The international LONGINES warranty covers material
and manufacturing defects existing at the time of delivery
of the purchased LONGINES watch (“defects”). The warranty only comes into force if the warranty certificate is
dated, fully and correctly completed and stamped by an
official LONGINES dealer (“valid warranty certificate”).
During the warranty period and by presenting the valid
warranty certificate, yo
u will have the right to have any
de
fect repaired free of charge. In the event that repairs
are improper to restore the normal conditions of use of
your LONGINES watch, Longines Watch Co. Francillon
Ltd guarantees its replacement by a LONGINES watch
of identical or similar characteristics. The warranty for the
replacement watch ends twenty-four (24) months after
the date of purchase of the replaced watch.
This manufacturer’s warranty does not cover:
the life of the battery;
normal wear and tear and aging (e.g. scratched crys-
tal; alteration of the colour and/or material of non metallic straps and chains, such as leather, textile, rubber; peeling of the plating);
any damage on any part of the watch resulting from abnormal/abusive use, lack of care, negligence, accidents
(knocks, dents, crushing, broken crystal, etc.), incorrect
use of the watch and non-observance of the use directions provided by Longines Watch Co. Francillon Ltd;
t
he LONGINES watch handled by non-authorized per-
so
ns (e.g. for battery replacement, services or repairs)
or which has been altered in its original condition beyond
Longines Watch Co. Francillon Ltd’s control.
ALL APPLICABLE IMPLIED WARRANTIES, INCLUDING
THE IMPLIED WARRANTY OF MERCHANTABILITY AND
OF FITNESS FOR A PARTICULAR PURPOSE GIVEN TO
YOU BY LAW ARE HEREBY LIMITED IN DURATION TO
THE DURATION OF THIS WARRANTY. UNDER NO
CIRCUMSTANCES WILL LONGINES WATCH CO.
FRAN
CILLON LTD BE LIABLE FOR ANY INDIRECT OR
CONSEQ
UENTIAL DAMAGES OF ANY KIND.
Some states do not allow limitations on how long implied
warranties last, or exclusions or limitations of incidental or consequential damages, so exclusions or limitations mentioned may not apply to you. This warranty
gives you specific legal rights and you may also have
other rights which may vary from state to state.
Anglais ME Longines 7.4.2010 11:42 Page 50
Page 3
51Limited two-years warranty (USA)
LIMITED TWO-YEARS WARRANTY (USA)
LONGINES WATCH CO. FRANCILLON LTD’S OBLIGATION IS STRICTLY LIMITED TO REPAIR OR REPLACEMENT AS EXPRESSLY STATED IN THIS LIMITED WARRANTY. YOUR OFFICIAL LONGINES DEALER
CARRIES SOLE RESPONSIBILITY FOR ANY OTHER
GUARANTEES.
The Longines Watch Co. Francillon Ltd’s customer service ensures the perfect working order of your LONGINES
watch. If your watch needs maintenance, rely on an official LONGINES dealer or an authorized LONGI
NES
S
ervice Center as set forth in the enclosed list: they can
guarantee service according to Longines Watch Co.
Francillon Ltd’s standards.
* Longines Watch Co. Francillon Ltd,
CH-2610 Saint-Imier, Switzerland.
©2002 Longines Watch Co. Francillon Ltd.
All rights reserved.
LONGINES®is a registered trademark.
Anglais ME Longines 7.4.2010 11:42 Page 51
Page 4
52 International guarantee
INTERNATIONAL GUARANTEE
LONGINES is delighted that you should have chosen a
model from our prestigious collection. The little technical marvel you now own will serve you faithfully for many
years. The most advanced techniques were used during its manufacture, and it underwent stringent controls
before it was released for sale.
Your LONGINES
®
watch is warranted by Longines Watch
Co. Francillon Ltd* for a period of twenty-four (24) months
from the date of purchase unde
r the terms and condi-
ti
ons of this warranty.
The international LONGINES warranty covers material
and manufacturing defects existing at the time of delivery
of the purchased LONGINES watch (“defects”). The warranty only comes into force if the warranty certificate is
dated, fully and correctly completed and stamped by an
official LONGINES dealer (“valid warranty certificate”).
During the warranty period and by presenting the valid
warranty certificate, you will h
ave the right to have any
de
fect repaired free of charge. In the event that repairs
are improper to restore the normal conditions of use of
your LONGINES watch, Longines Watch Co. Francillon
Ltd guarantees its replacement by a LONGINES watch
of identical or similar characteristics. The warranty for the
replacement watch ends twenty-four (24) months after
the date of purchase of the replaced watch.
This manufacturer’s warranty does not cover:
the life of the battery;
normal wear and tear and aging (e.g. scratched crys-
t
al; alteration of the colour and/or material of non metallic straps and chains, such as leather, textile, rubber; peeling of the plating);
any damage on any part of the watch resulting from abnormal/abusive use, lack of care, negligence, accidents
(knocks, dents, crushing, broken crystal, etc.), incorrect
use of the watch and non-observance of the use directions provided by Longines Watch Co. Francillon Ltd;
indirec
t or consequential damages of any kind resulting
from e.g. the use, the non-functioning, the defects or the
ina
ccuracy of the LONGINES watch;
the LONGINES watch handled by non-authorized persons (e.g. for battery replacement, services or repairs)
or which has been altered in its original condition beyond
Longines Watch Co. Francillon Ltd’s control.
Any further claim against Longines Watch Co.
Francillon Ltd e.g. for damages additional to the above
described warrant
y is expressly excluded, except
mandatory statutory rights the purchaser may have
against
the manufacturer.
Anglais ME Longines 7.4.2010 11:42 Page 52
Page 5
53International guarantee
INTERNATIONAL GUARANTEE
The above manufacturer’s warranty is:
independent of any warranty that may be provided by
the seller, for which he carries sole responsibility;
does not affect the purchaser’s rights against the seller nor any other mandatory statutory rights the purchaser
may have against the seller.
The Longines Watch Co. Francillon Ltd’s customer service ensures the perfect maintenance of your LONGINES
watch. If your watch needs attention, rely on an off
icial
LONGINES dealer or an authorized LONGINES Service
Center as set forth in the enclosed list: they can
gua
rantee service according to Longines Watch Co.
Francillon Ltd’s standards.
* Longines Watch Co. Francillon Ltd,
CH-2610 Saint-Imier, Switzerland.
LONGINES®is a registered trademark.
Anglais ME Longines 7.4.2010 11:42 Page 53
Page 6
54 International guarantee / Recommendations
RECOMMENDATIONS
Like any micromechanical precision instrument, your
LONGINES watch should be checked at least every two
years.
If you have a self-winding watch, it has a power-reserve
of around two days. If necessary it can be wound manually.
If you have a quartz watch the electrical power is supplied by a battery. After 12 to 18 months of use (with the
exception of watches with lithium batteries) the voltage
in the battery may drop suddenly and cause your watch
to stop. Som
e models have a battery end-of-life func-
ti
on. The seconds hand will start to jump every 4 seconds. If this happens we recommend that you replace
the battery immediately, because once the battery
runs down totally it may damage your watch.
Collection and treatment of end of life quartz watches*
This symbol indicates that this product
should not be disposed with household
waste. It has to be returned to a local authorized collection system. By following this
procedure you
will contribute to the protection of the environment and human health. The recycling
of the materials will help to conserve natural resources.
*valid in the EU member states and in any countries with corresponding legislation.
Replacing the battery
We recommend that you contact an approved
LONGINES service centre or authorised LONGINES retailer, as they are equipped with the tools and apparatus required to carry out the work and the necessary
checks in a profession
al manner. A worn-out battery
sho
uld be replaced immediately in order to reduce the
risk of leakage and consequent damage to the movement.
Battery type
Button-type zinc-silver oxide primary battery cell
Anglais ME Longines 7.4.2010 11:42 Page 54
Page 7
Recommandations
55International guarantee / Special recommendations
SPECIAL RECOMMENDATIONS
What can I do to ensure that my LONGINES watch
functions perfectly for many years?
Magnetic fields: avoid putting your watch on a loud-
speaker or on a refrigerator because these machines create magnetic fields that may damage it.
Salt-water: always rinse your watch in fresh water after
swimming in the sea.
Shocks: avoid subjecting your watch to any shocks, including sudden changes in temperature.
Screw-in crown: always make sure you have screwed the
crown in ful
ly to avoid any humidity getting into the
mechanism.
Push-in crown: always push the crown back into the neu-
tral position to avoid any humidity getting into the
mechanism.
Cleaning: use a tooth-brush and soapy water to clean
metal bracelets and water-resistant cases and a soft cloth
to dry off afterwards.
Chemical products: avoid all direct contact with solvents,
detergents, perfume, cosmetics, etc. which may damage the bracelet or strap, the case or t
he seals.
T
emperatures: avoid exposing your watch to extreme tem-
peratures (over 60°C or 140°F and under 0°C or 32°F)
and to sudden fluctuations in temperature.
Water-resistance: we cannot guarantee that your watch
will be permanently water-resistant. The seal may be affected by wear or by an accidental shock to the crown.
As recommended in our service instructions, you
should have the water-resistant seals of your watch tested once a year by an approved LONGINES agen
t.
Chronograph push-pieces: do not adjust the push-pieces
unde
r water as this may allow humidity to get into the
mechanism.
Occasional winding: if your watch has not been worn for
44 hours or more, wind it manually with the crown in position 1.
How often should my watch be serviced?
Like any other precision instrument a watch should be
serviced regularly to ensure that it runs perfectly. We cannot say how often you should have your watch serviced
as this depends on the model, t
he climate where you
l
ive and how you look after the watch yourself. As a rule,
a watch should be serviced every 4 or 5 years, depending
on the conditions in which it is worn.
Where should I go to get my watch serviced or for a
new battery?
We recommend that you go to an approved LONGINES
agent or retailer. They are the only people who have the
necessary tools and apparatus to work on your watch
and to carry out the necessary checks to a professional level. Moreover, only specialists ca
n guarantee that their
work
meets the stringent quality standards set by
LONGINES.
Anglais ME Longines 7.4.2010 11:42 Page 55
Page 8
56 Tolerances
TOLERANCES
Mechanical movements
The precision of a mechanical movement varies depending on the wearer’s habits. The majority of
LONGINES watches have a precision of between -15
and +15 seconds per day.
Quartz movements
The ambient temperature affects the precision of a quartz
movement, which will be between -0.3 and +0.5 seconds per day.
Anglais ME Longines 7.4.2010 11:42 Page 56
Page 9

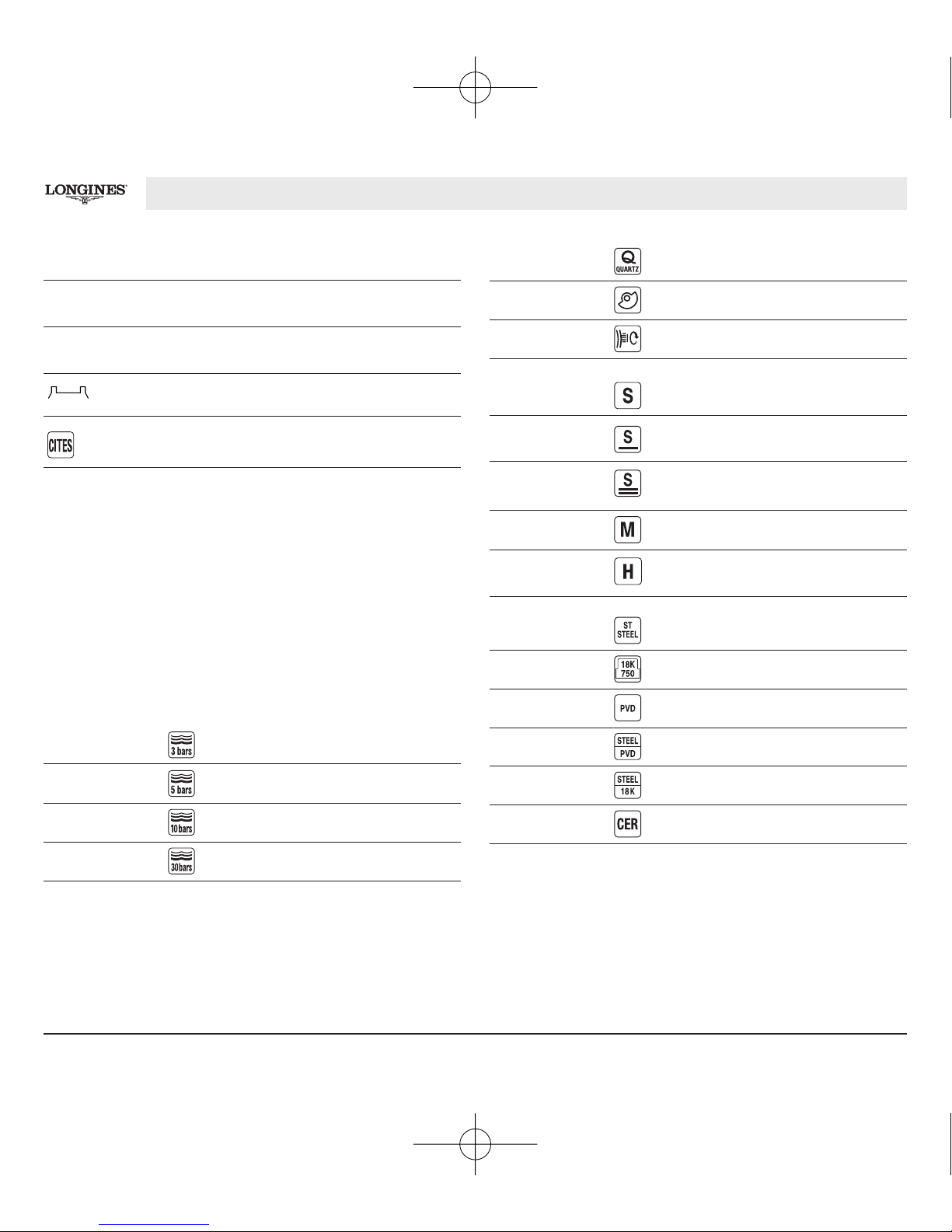

57Pictogramms
PICTOGRAMMS
Cal. Calibre
Ref. Reference
E.O.L. Battery end-of-life
Distance of horns
Convention on International Trade in Endangered Species
of Wild Fauna and Flora
Waterresistance
Water-resistant to 3 bars / 30 m *
Water-resistant to 5 bars / 50 m *
Water-resistant to 10 bars / 100 m *
Water-resistant to 30 bars / 300 m*
*The values given in meters for the water-resistance are
equivalent to the degree of superpressure applied under the ISO
2281 norm.
Movement Quartz
Self-winding
Manually wound
Glass Sapphire glass
Sapphire glass with one layer
of anti-reflection coating on the inside
Sapphire glass with several layers
of anti-reflection coating on the inside
Mineral
PMMA HT
(Polymethyl methacrylate)
Case material Steel
18-carat gold
PVD
Steel/PVD
Steel/18-carat gold
Ceramic
Anglais ME Longines 7.4.2010 11:42 Page 57
Page 10
58
햵
Reinsert the bars in the two
sections of the strap.
햶
Attach the sections to the clasp
so that the graduations are on the
inside, i.e. against your skin, insert
the bars in the holes closest to the
centre of the clasp.
햷
Try your watch on.
햸
For the final adjustment, move
the bar to one of the holes in the
clasp.
If the strap is too long, you can remove another hole.

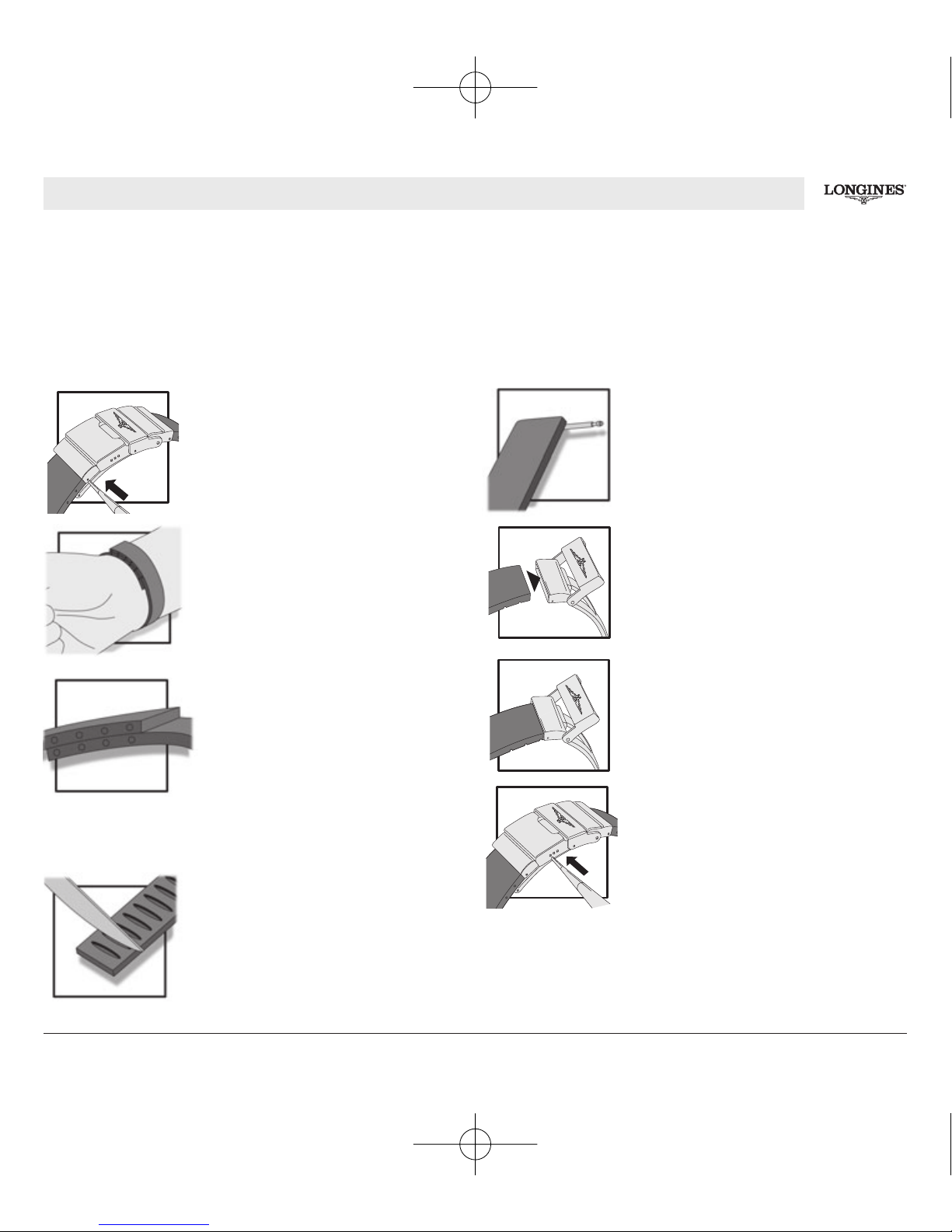

Rubber strap
RUBBER STRAP
• Excellent resistance to water and wear
• Superb mechanical properties
• Very good resistance to aggressive and extreme
environments
• Incomparable suppleness and softness to the touch
• Hi-tech product
• Top-range quality
• Hand-finished
We recommend that, if necessary, you have the length of your strap adjusted by a Longines agent.
We recommend that you wash your rubber strap regularly with soap and water, especially on
the inside.
햲
Detach the two covers over the
c
lasp by pressing on the bars.
햳
Measure the circumference of
your wrist by wrapping the strap
round it. Half the number of holes
that overlap indicates the length that
suits your wrist.
Example:
half resulting in an even number: 8 overlapping holes, half of 8 is
4, remove 2 holes on each section.
Half resulting in a odd number: 14
overlapping holes, half of 14 is 7, remove 4 holes on the section of the
strap at 12 o’clock and 3 holes on
the section at 6 o’clock.
햴
Cut along the c
orresponding
gra
duations.
Anglais ME Longines 7.4.2010 11:42 Page 58
Page 11

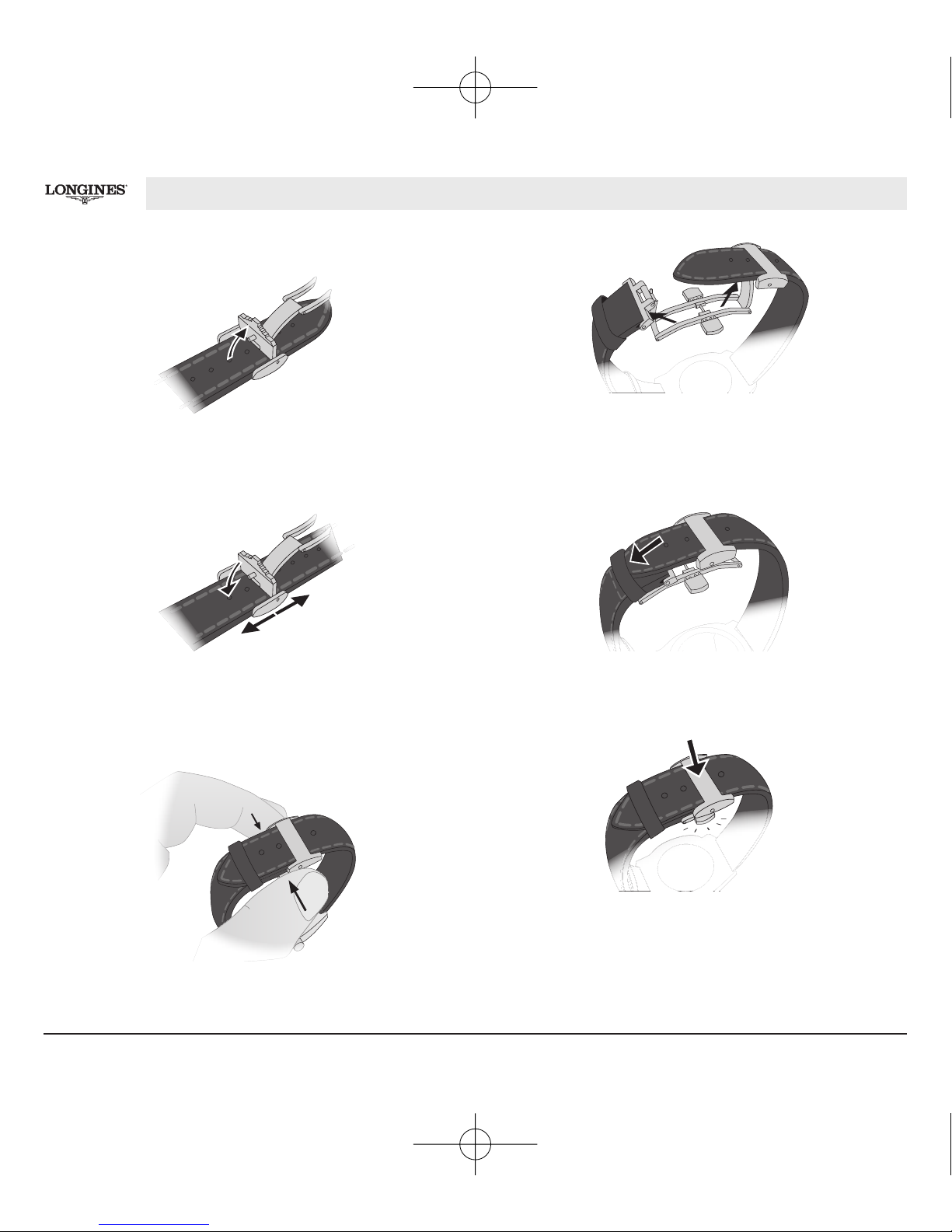

59Folding clasp
FOLDING CLASP
Adjusting the clasp
햲
Release the adjusting mechanism by removing the pin
from the hole in the long section of the strap.
햳
Slide the mechanism along this long section and then
fix it by reinserting the pin in the desired hole.
Opening the clasp
햴
To open the clasp press in the push-pieces on either
side simultaneously.
햵
Open the clasp to enlarge the bracelet and remove
the watch from your wrist.
Closing the clasp
햶
Put the bracelet on your wrist and slide the long sec-
tion through the small fixed buckle.
햷
C
lose the folding clasp until it clicks into place. If necessary, slide the long section through the small mobile
buckle.
Anglais ME Longines 7.4.2010 11:42 Page 59
Page 12
60 Certificate of authenticity
CERTIFICATE OF AUTHENTICITY
Longines bows to the paragon of beauty: the diamond
This certificate of authenticity guarantees the quality of
each precious stone selected by Longines’ specialists.
The cut: Longines diamonds are cut in the traditional brilliant style.
The purity: the degree of purity of a Longines diamond
is VVS (very very small inclusions). This means that it may
include minute imperfections which are hardly visible under tenfold magnification.
The c
olour: the colour of the diamonds used by Longines
is Top Wesse
lton.
The weight: the weight of a diamond is measured in
carats, one carat being equal to one fifth of a gram.
Anglais ME Longines 7.4.2010 11:42 Page 60
Page 13

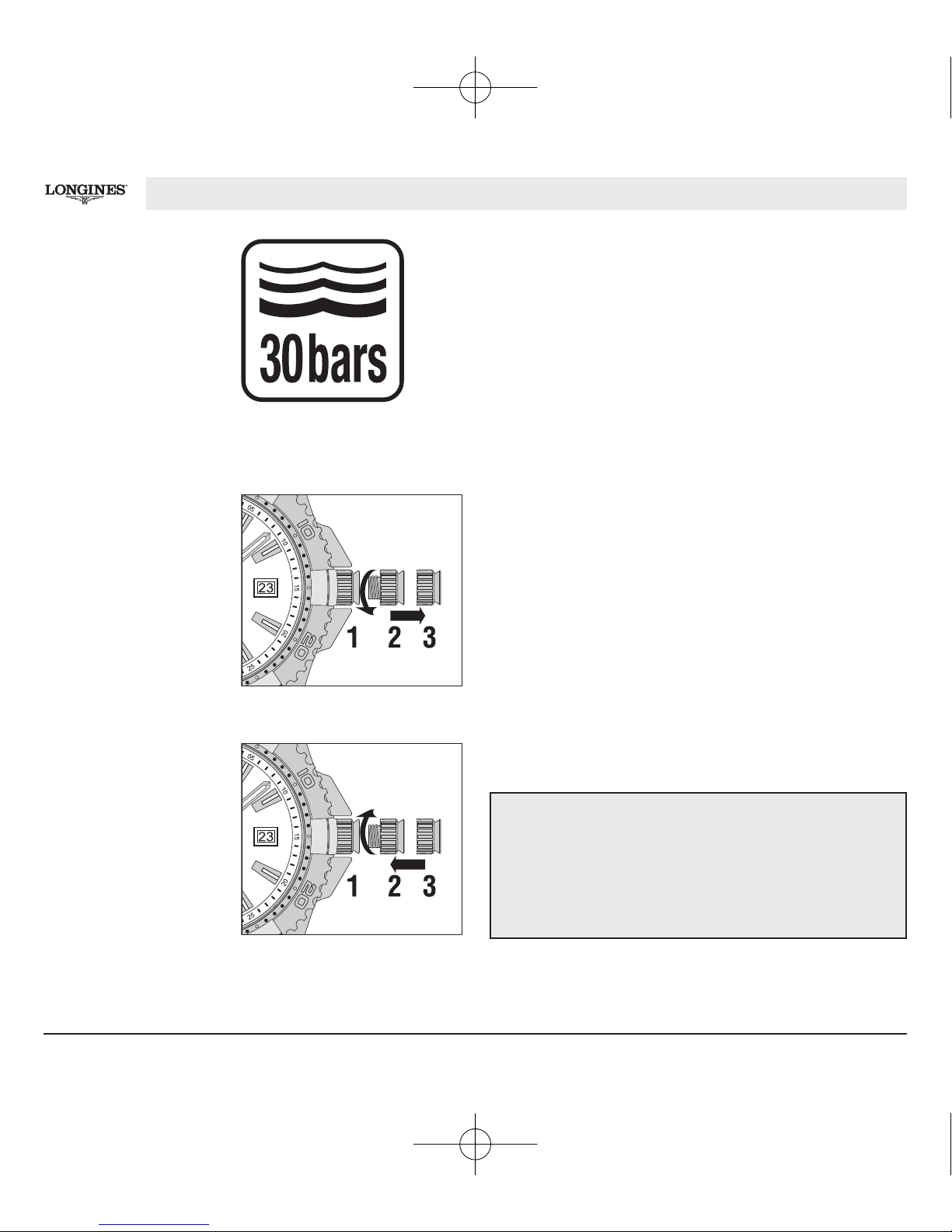

Precautions regarding water-resistance
If your watch is water-resistant it is essential that the seals
be checked each year before the bathing season because, without your realising it, they might have been
damaged as the result of a shock.
If the case has to be opened for any reason the seals
for the glass and the case-back as well as the crown
(and/or push-pieces) must be checked and, if necessary,
replaced.
Screw-in crown and push-pieces
Certain Longines models have a screw-in crown which
has to be unscrewed before each adjustment by turning it anti-clockwise (fig.햲).
After use, return the crown to position 2, then push in
and screw in firmly in position 1 to ensure that the seal
with the case is water-resistant (fig. 햳).
THE SAME APPLIES FOR THE SCREW-IN PUSH-PIECES
IMPORTANT! You should alwayspush the crown (and/or
the push-pieces) right in and screw in firmly to ensure
a water-resistant seal with the case.The crown (and/or
push-pieces) should never be adjusted if the watch is
in a humid atmosphere.
61Water-resistance / Crown and screw-in push-pieces
WATER-RESISTANCE / CROWN AND SCREW-IN PUSH-PIECES
햲
햳
Anglais ME Longines 7.4.2010 11:42 Page 61
Page 14

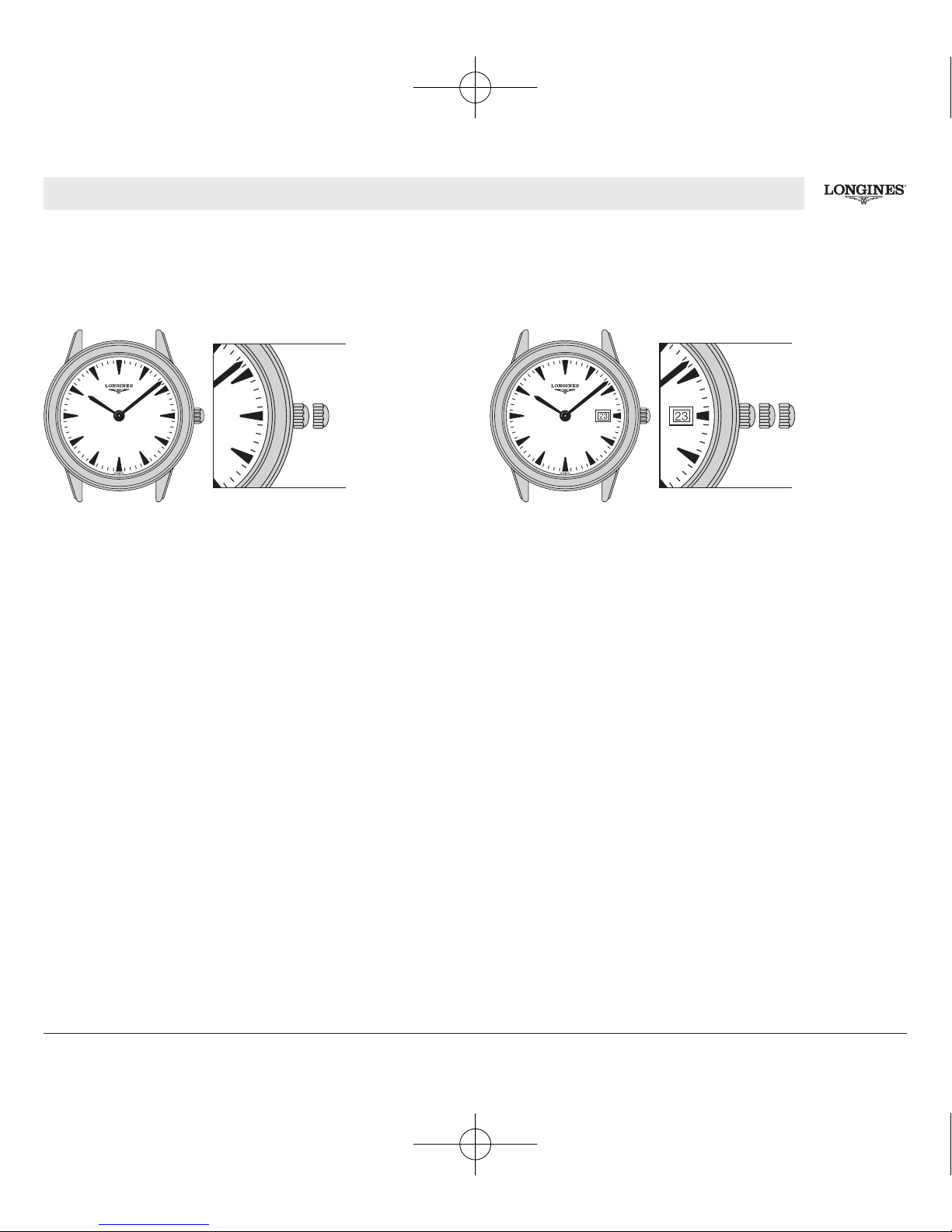

62 Adjusting the time – General information
ADJUSTING THE TIME – GENERAL INFORMATION
MODEL WITH HOUR AND MINUTE HANDS
2-position crown
Adjusting the time
Pull the crown right out to position 2. Adjust the hands
by turning the crown in either direction. Push the
crown back in to position 1.
MODEL WITH HOUR AND MINUTE HANDS AND DATE
3-position crown
Adjusting the time
Pull the crown right out to position 3. Adjust the hands
by turning the crown in either direction. Push the
crown back in to position 1.
Quick date adjustment
Pull the crown out to the intermediate position 2. Adjust
the date by turning the crown in either direction. Push
the crown back in to position 1.
123
12
Anglais ME Longines 7.4.2010 11:42 Page 62
Page 15
63Adjusting the time – General information
ADJUSTING THE TIME – GENERAL INFORMATION
MODEL WITH HOUR, MINUTE AND SECONDS HANDS
AND DATE
3-position crown
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1. The seconds hand will jump again exactly one second later (logical function of adjusting the
time), which means that your watch will now be perfectly
sy
nchronised with the time signal.
Quick date adjustment
Pull the crown out to the intermediate position 2. Adjust
the date by turning the crown in either direction. Push
the crown back in to position 1.
Power-reserve indicator
Certain watches have a power-reserve indicator (calibres
L602, L693, L697).
If the watch is worn rarely or not at all, the hand will gradually shift anti-clockwise. When it indicates that the
power-reserve is below 1/4, the watch should either be
wound
or worn to avoid it stopping.
When the watch is wound the power-reserve indicator
will shift clockwise.
123
Anglais ME Longines 7.4.2010 11:42 Page 63
Page 16
64 Table of equivalents
TABLE OF EQUIVALENTS
The reference number of your watch is engraved on the case-back.
Ref. Calibre Collection Page
L1.641. L650 Conquest Heritage 87
L2.156. L652 Longines evidenza 87
L2.503. L600 The Longines Master Collection 74

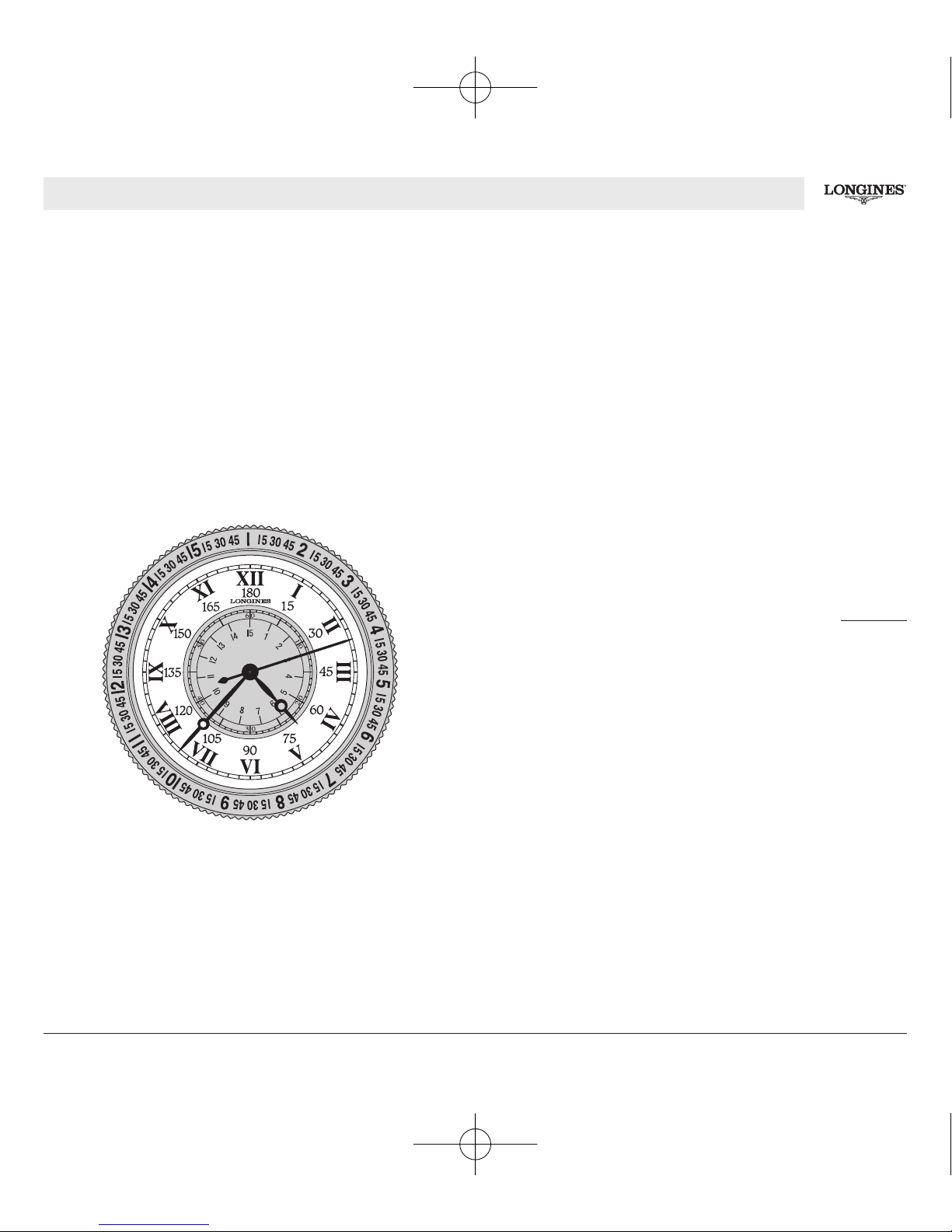

L2.601. L614 The Lindbergh Hour Angle Watch 77
L2.629. L651 The Longines Master Collection 87
L2.631. L635 The Longines Master Collection 69
L2.643. L650 Longines evidenza 87
L2.648. L607 The Longines Master Collection 66
L2.666. L693 The Longines Master Collection 68
L2.669. L651 The Longines Master Collection 87
L2.670. L599 Longines evidenza 66
L2.671. L600 Longines evidenza 74
L2.672. L602 Longines evidenza 68
L2.673. L678 The Longines Master Collection 93
L2.676. L601 The Longines Master Collection 66
L2.678. L699 The Lindbergh Hour Angle Watch 77
L2.688. L678 Longines evidenza 93
L2.693. L696 The Longines Master Collection 89
L2.701. L674 Longines evidenza 87
L2.708. L602 The Longines Master Collection 68

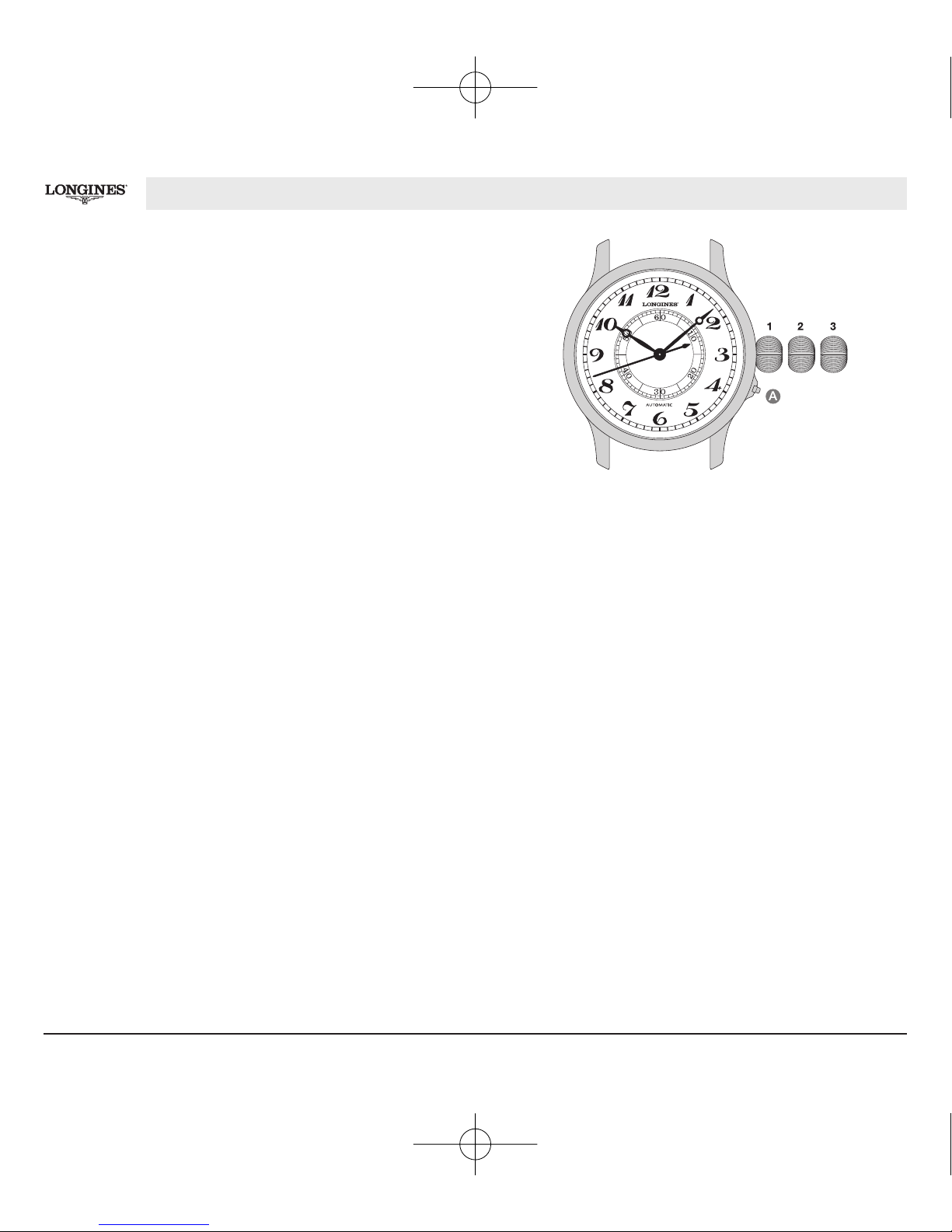

L2.713. L699 The Longines Weems Second-Setting Watch 79
L2.714. L697 The Longines Master Collection 80
L2.715. L698 The Longines Master Collection 80
L2.716. L697 The Longines Master Collection 80
L2.717. L698 The Longines Master Collection 80
L2.718. L704 The Longines Master Collection 71
L2.730. L705 Longines Lindbergh’s Atlantic Voyage Watch 89
L2.733. L688 The Longines Column-Wheel Chronograph 89
L2.741. L667 The Longines Weems Chronograph 87
L2.742. L688 The Longines Column-Wheel Chronograph 89
Anglais ME Longines 7.4.2010 11:42 Page 64
Page 17
65Table of equivalents
TABLE OF EQUIVALENTS
Ref. Calibre Collection Page
L2.743. L688 The Longines Column-Wheel Sports Chronograph 89
L2.744. L688 The Longines Column-Wheel Sports Chronograph 89
L2.745. L683 Longines Heritage 1951 89
L2.747. L674 Longines Heritage 1954 87
L3.279. L538 Conquest 84
L3.635. L683 GrandeVitesse-Instrument pour Cavalier 91
L3.636. L667 GrandeVitesse 87
L3.637. L686 GrandeVitesse 95
L3.643. L541 HydroConquest 84
L3.644. L667 HydroConquest 87
L3.651. L667 HydroConquest 87
L3.660. L541 Conquest 84
L3.661. L667 Conquest 87
L3.662. L667 Conquest 87
L3.665. L696 HydroConquest 89
L3.666. L705 Longines Admiral 89
L3.667. L705 Longines Admiral 89
L3.668. L704 Longines Admiral 71
L3.669. L704 Longines Admiral 71
L3.670. L686 Longines Admiral 95
L3.672. L541 HydroConquest 84
L3.673. L667 HydroConquest 87
L3.674. L633-Diver The Longines Legend Diver Watch 72
L3.678. L667 Conquest 87
L4.756. L651 Flagship Heritage 87
L4.792. L678 Flagship Heritage 93
L4.796. L683 Flagship Heritage 89
L4.797. L698 Heritage Retrograde 80
L4.799. L636 Flagship 67
L5.656. L538 Longines DolceVita 84
L5.680. L538 Longines DolceVita 84
L5.687. L538 Longines DolceVita 84
Anglais ME Longines 7.4.2010 11:42 Page 65
Page 18
66 Self-winding watches
L599 – L601, L607
L599 -L601 L607
Show the hours, minutes, seconds and date.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Synchro
nise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to
position 1.
Quick date adjustment
Pull the crown out to the intermediate position 2. Turn
the crown backwards until the desired date is shown,
then push the crown back in to position 1. It will be
necessary to adjust the date at the end of each month
with less than 31 days.
IMPORTANT!Thedate should neverbe adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
Anglais ME Longines 7.4.2010 11:42 Page 66
Page 19
L636
67

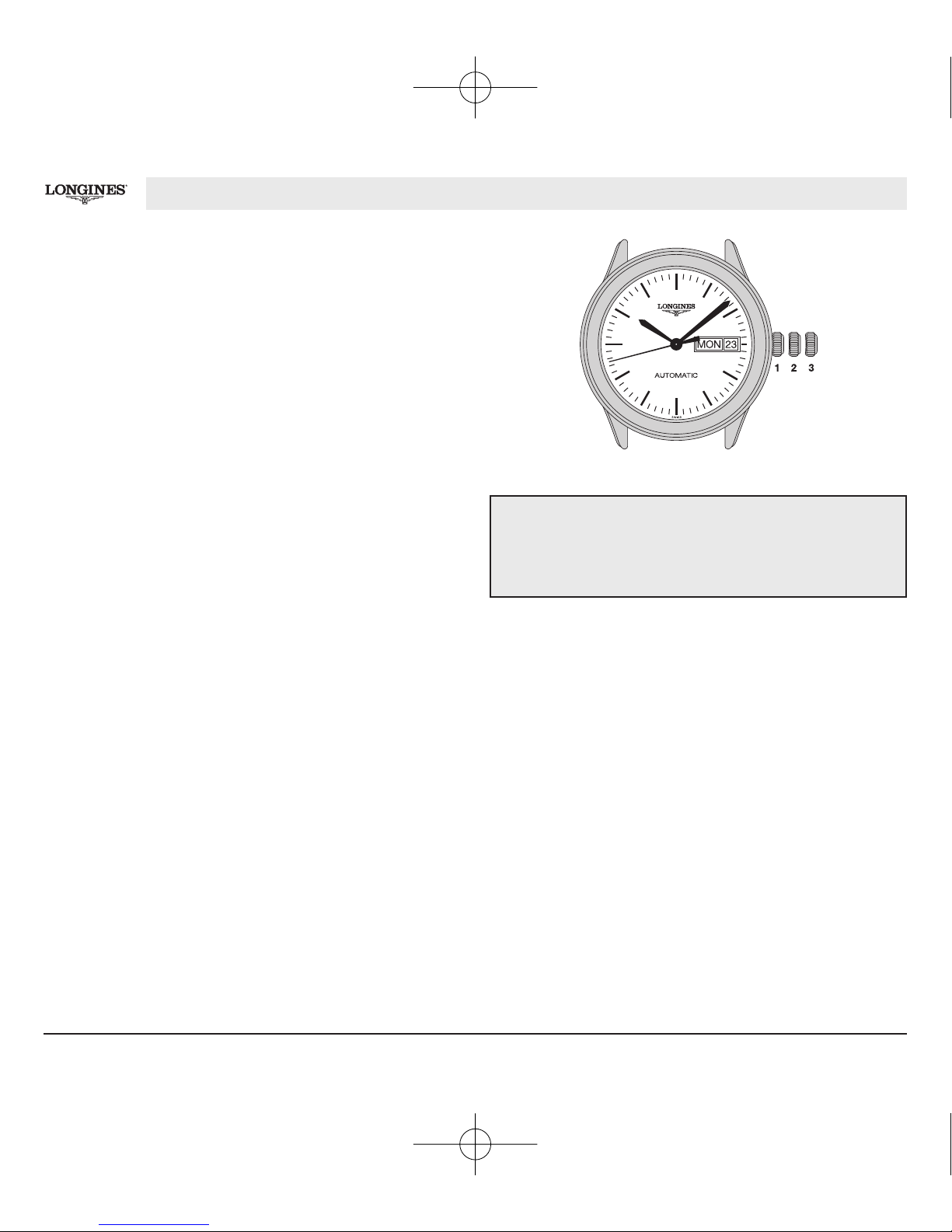

Self-winding watches
L636
Shows the hours, minutes, seconds, date and day.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 38 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Sy
nchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to
position 1.
Adjusting the date and the day
Pull the crown out to the intermediate position 2, turn
it forwards to adjust the date, backwards to change the
day, and then push it back in again to position 1. It is
necessary to adjust the date after each month with less
than 31 days.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
Anglais ME Longines 7.4.2010 11:42 Page 67
Page 20
68 Self-winding watches

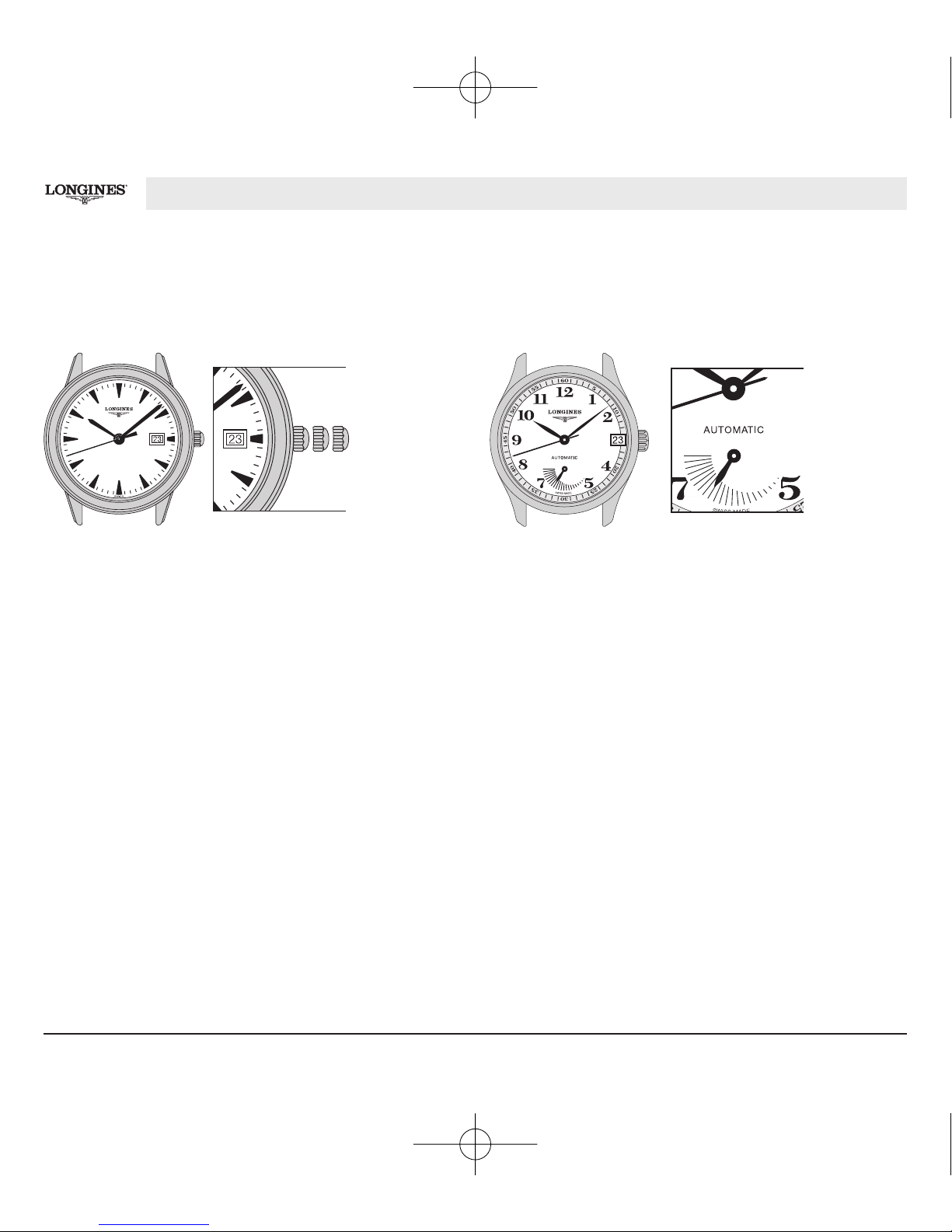

L602, L693
L602 L693
Show the hours, minutes, seconds and date, as well as
the power-reserve.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
The power-reserve indicator moves automatically when
your watch is wound manually or automatically.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1.
Quick date adjustment
Pull the crown out to the intermediate position 2. Turn
the crown backwards (L602) or forwards (L693) until the
desired date is shown, then push the crown back in to
position 1. It will be necessary to adjust the date at the
end of each month with less than 31 days.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
Anglais ME Longines 7.4.2010 11:42 Page 68
Page 21
69Self-winding watches

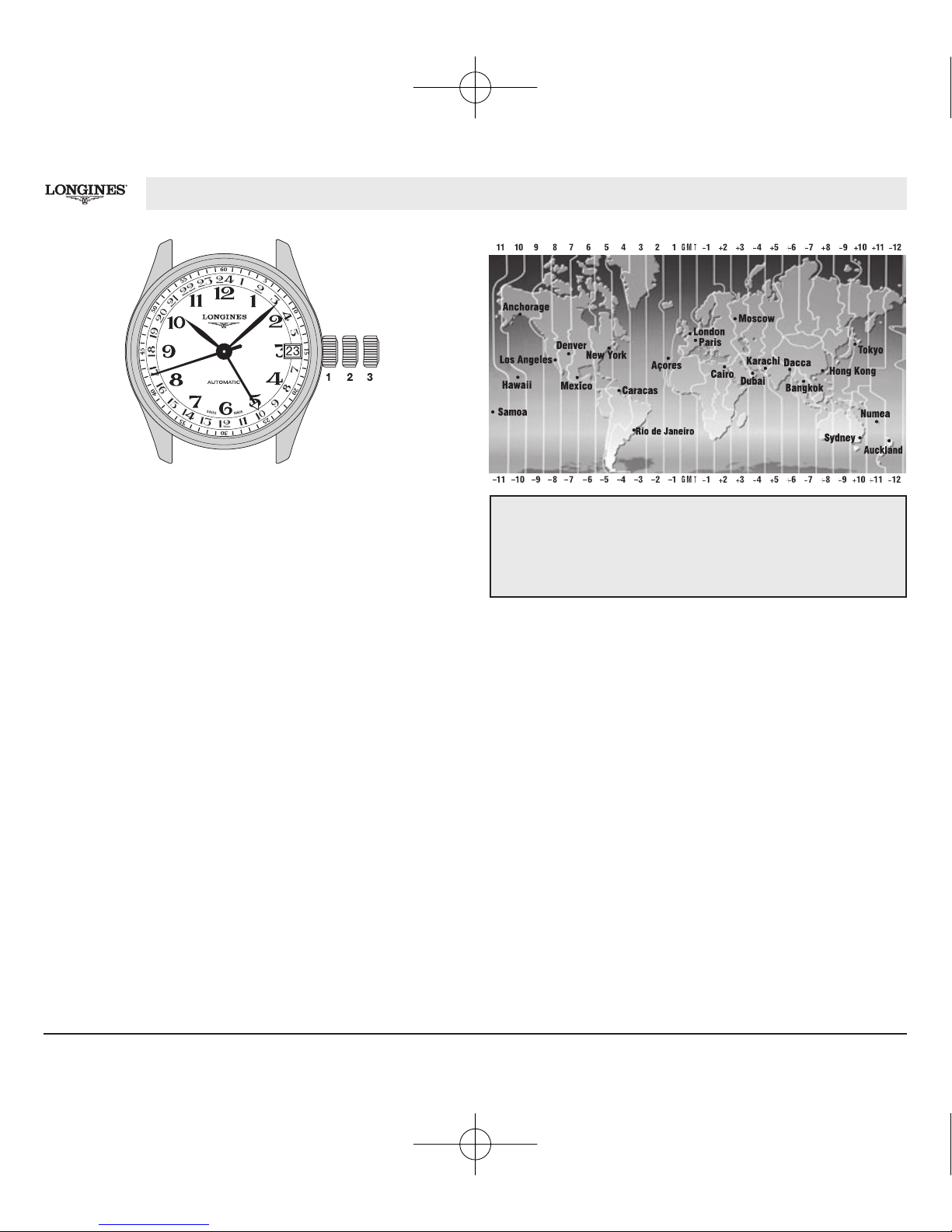

L635 – 24 TIME ZONE
Shows the hours, minutes, seconds and date, as well
as the time in the 24 time zone where there is a reference point (Longines patent no. 02266/92-3).
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time zone and the date
Pull the crown out to the intermediate position 2. Turn
the crown forwards or backwards to adjust the hour hand
in the corresponding direction by successive jumps of
one hour, which will not affect the minute or seconds
hands.
When the hour hand passes midnight, the date will
change automatically, indicating either the next day or
the day before, depending on the direction you turn the
crown. It is necessary to adjust the date at the end of
each month with less than 31 days. Push the crown back
in
to position 1.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. When the crown is turned the 24-hour
disc also turns. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1.
L635
Anglais ME Longines 7.4.2010 11:42 Page 69
Page 22
70 Self-winding watches
L635 – 24 TIME ZONE
How to use your Longines
24 Time zone watch
Pull the crown right out to position 3. The seconds hand
will now stop.
Turn the crown in either direction so that your local time
(winter time) is displayed on the 24-hour disc opposite
the town in the time zone where you are.
Push the crown back in to the intermediate position 2
and adjust the hour hand to local time, checking that the
date jumps at midnight. Push the crown back in to position 1.
Your watch now shows univer
sal time on the 24-hour
di
sc and local time by the hands.
Example : 23 February, Paris, GMT (London) is at
12 o’clock, the hands show 10 hours and 8 minutes and
on the disc the 10 is opposite Paris.
How to use when travelling
Pull the crown out to the intermediate position 2. Adjust
the hour hand to correspond to the time zone of the town
where you are (see table of towns). Push the crown back
in.
Certain countries have summer time; to adjust your
watch, carry out the same procedure.
Exam
ple: 23 February, Tokyo, GMT (London) is at 12
o’clock, the hands show 18 hours and 8 minutes and
on the disc the 10 is opposite Paris: this means that it
is 10.08 a.m. in Paris.
Anglais ME Longines 7.4.2010 11:42 Page 70
Page 23
L704
71Self-winding watches
Shows the hours, minutes, seconds and date, as well
as a second time zone.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 46 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
ei
ther direction. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to
position 1.
Quick date adjustment
Pull the crown out to the intermediate position 2. Turn
the crown forwards until the desired date is shown, then
push the crown back in to position 1. It will be necessary
to adjust the date at the end of each month with less than
31 days.
Adjusting the time in a second time zone
(24-hour hand) when travelling
Pull the crown out to the intermediate position 2. Adjust
the 24-hour hand to correspond to the time zone where
you are by turning the crown backwards. Push the crown
back in to position 1.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
L704 – 24 HOURS
Anglais ME Longines 7.4.2010 11:42 Page 71
Page 24
72 Self-winding watches

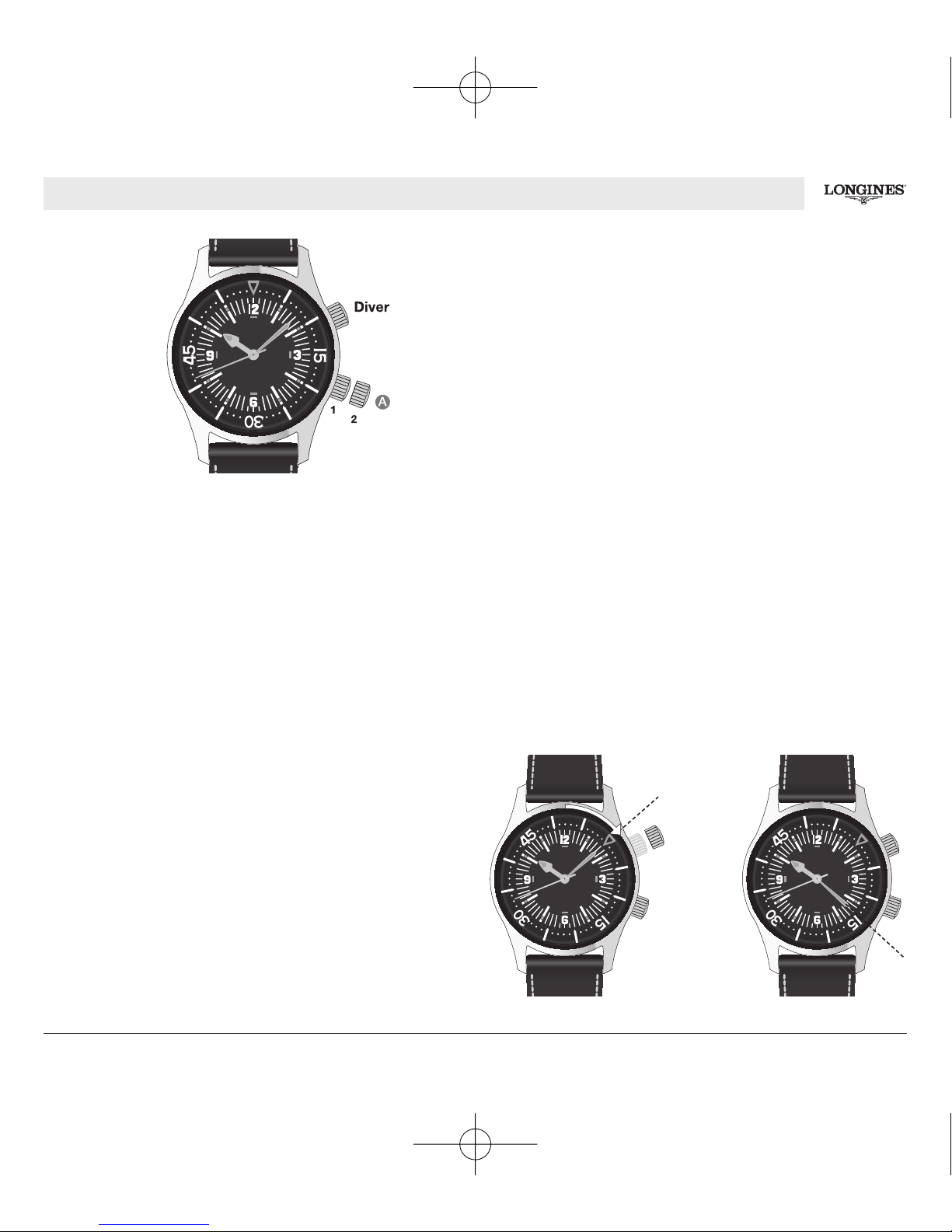

L633 – DIVER
Shows the hours, minutes and seconds and also enables
the user to check his or her diving time.
Your Longines Legend Diver Watch has 2 crowns, A and
Diver, which can be used for specific functions (fig. 햲).
Crown A: 2 positions
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Unscrew crown A and pull it out to position 2. The seconds hand will now stop. Adjust the time by turning the
crown in either direction. Synchronise your watch with
a time signal (telephone, radio, TV) and then push the
crown A back in to position 1, and screw in firmly.
Diver screw-in crown
Verifying your diving time
Unscrew the Diver crown. When you start diving turn the
rotating bidirectional ring to adjust the needle to the
minute hand. Push t
he crown back in again and then
sc
rew in firmly (fig.햳).
You can read off your diving time from the minute hand
on the graduations of the rotating bidirectional ring (fig.햴).
The example shows: 15 minutes diving time.
햴햳
L633 – Diver 햲
Anglais ME Longines 7.4.2010 11:44 Page 72
Page 25
Shows the hours, minutes, seconds and date, and also
enables the wearer to check his or her diving time.
Your Longines Legend Diver Watch has 2 crowns, A and
Diver, which can be used for specific functions (fig. 햲).
Crown A: 3 positions
Winding
(pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind it manually if the
watch is not worn for several days.
Adjusting the time and stop seconds
Unscrew crown A and pull it right out to position 3. The
seconds hand will now stop. Adjust the time by turning
the crown in either direction. Using a time signal (telephone, radio, TV), set the hands and push crown A back
in to position 1 and then screw in firmly.
Adjusting the date
Unscrew crown A and pull it out to the intermediate position 2. Turn it forwards until it shows the desired date.
Push crown A back in to position 1 and screw in firmly.
Diver screw-in crown
Verifying your diving time
Unscrew the Diver crown. When you start diving turn the
rotating bidirectional ring to adjust the needle to the
minute hand. Push the crown back in again and then
screw in firmly (fig.햳).
You can read off your diving time from the minute hand
on the graduations of the rotating bidirectional ring (fig.햴).
The example shows: 15 minutes diving time.
햳햴
IMPORTANT!Thedate should neverbe adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
L633 – Diver Date
햲
73Self-winding watches
L633 – DIVER DATE
Anglais ME Longines 7.4.2010 11:44 Page 73
Page 26
74 Self-winding watches

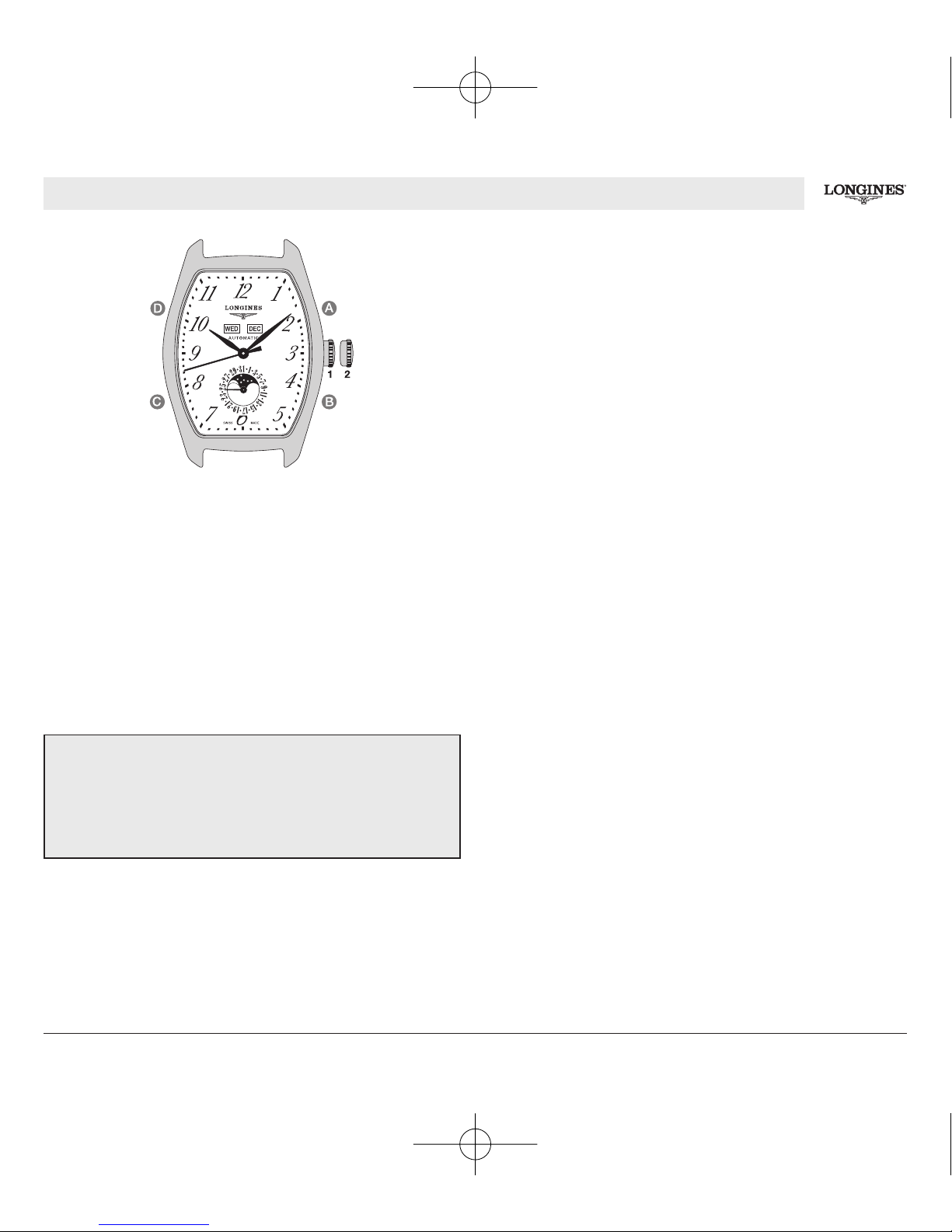

L600 – PHASES OF THE MOON
Shows the hours, minutes, seconds, date, day, month
and the phases of the Moon.
2-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 2. The seconds hand
will now stop. Adjust the time by turning the crown in
e
ither direction. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1.
Adjusting the 31-day date hand
The push-piece B for adjusting the date is situated at
4 o’clock. Using the soft-pointed instrument provided by
Longines, press the push-piece B until the date hand is
positioned on the desired date. It is necessary to adjust
the date at the end of each month with less than 31 days.
Adjusting the month
The push-piece A for adjusting the month is situated at
2 o’clock. Using the soft-pointed instrument provided
by Longines, press the push-piece A until the desired
month is displayed.
IMPORTANT! Avoid adjusting your watchbetween 9 p.m.
and 3 a.m. as well as adjusting the phases of the Moon
using the push-piece for that purpose between 3 p.m.
and 5 p.m. as doing so may damage the mechanism.
L600
Anglais ME Longines 7.4.2010 11:44 Page 74
Page 27
75Self-winding watches
L600 – PHASES OF THE MOON
Adjusting the day
The push-piece D for adjusting the day is situated at 10
o’clock. Using the soft-pointed instrument, press the
push-piece D to obtain the exact day.
Adjusting the phases of the Moon
The push-piece C for adjusting the phases of the
Moon is situated at 8 o’clock. Using the soft-pointed instrument provided by Longines, press the push-piece
until a full Moon appears in the centre of the phases of
the Moon aperture. Determine the date of th
e last full
M
oon from a calendar that contains such information*.
Press the push-piece again once for each day since the
last full Moon.
*See Table of lunar months on page 76
Anglais ME Longines 7.4.2010 11:44 Page 75
Page 28
76 Table of lunar months
L600, L678 – PHASES OF THE MOON TABLE OF LUNAR MONTHS
First quarter
24 December 2009
23 January
22 February
23 March
21 April
20 May
19 June
18 July
16 August
15 September
14 October
13 November
13 December
12 January
11 February
12 March
11 April
10 May
9 June
8 July
6 August
4 September
4 October
2 November
2 December
1 January
31 January
1 March
30 March
29 April
28 May
27 June
26 July
24 August
22 September
22 October
20 November
20 December
18 January
17 February
Full moon
31 December 2009
30 January
28 February
30 March
28 April
27 May
26 June
26 Jul
y
24 August
23 September
23 October
21 November
21 December
19 January
18 February
19 March
18 April
17 May
15 June
15 July
13 August
12 September
12 October
10 November
10 December
9 January
7 February
8 March
6 April
6 May
4 June
3 July
2 August
31 August
30 September
29 October
28 November
28 December
27 January
25 February
Last quarter
7 January 2010
5 February
7 March
6 April
6 May
4 June
4 July
3 August
1 September
1 October
30 October
28 November
28 December
26 January
24 February
26 March
25 Apri
l
24 May
23 June
23 July
21 August
20 September
20 October
18 November
18 December
16 January
14 February
15 March
13 April
12 May
11 June
11 July
9 August
8 September
8 October
7 November
6 December
5 January 2013
3 February
4 March
New moon
15 January 2010
14 February
15 March
14 April
14 May
12 June
11 July
10 August
8 September
7 October
6 November
5 December
4 January 2011
3 February
4 March
3 April
3 May
1 June
1 July
30 July
29 August
27 September
26 October
25 November
24 December
2
3 January
21 February
22 March
21 April
20 May
19 June
19 July
17 August
16 September
15 October
13 November
13 December
11 January 2013
10 February
11 March
2010
2011
2012
2013
Anglais ME Longines 7.4.2010 11:44 Page 76
Page 29
77Self-winding watches
L614, L699 – THE LINDBERGH HOUR ANGLE WATCH
The original Lindbergh Hour Angle Watch was designed
by Charles Lindbergh as a navigational aid for pilots. Used
with a sextant and a nautical almanac, this watch enables the wearer to quickly determine the hour angle from
Greenwich, in other words his or her longitude.
Thanks to its ingenious combination of dials, this timepiece differs from an ordinary watch in three ways:
A The indications on the dial are designed in such a way
that they show simultaneously the time (in h
ours, min-
ute
s and seconds) and the hour angle (in degrees and
minutes of arc).
B The rotating central dial shows the seconds and it can
be turned using the crown in order to synchronise the
watch with a time signal.
C The bezel can be rotated to correct the equation of
time (which varies from one day to the next).
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours.
It is only necessary to wind the watch man-
u
a
lly if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Synchronise the watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1.
Synchronising the watch with a time signal
In the intermediate position 2, the crown can be used
to turn the central dial (in either direction). Pull the crown
out
to the intermediate position 2 and turn the central
dial so that the seconds hand points to the “60/15” position on the last pip of the time signal. Push the crown
back in to position 1.
Push-piece D at 4 o’clock
This is for opening the case back, thus revealing the
movement through a protective sapphire glass.
The space/time dial and how it works
The design of the whole of The Lindbergh Hour Angle
Watch takes into account the fact that the Earth revolves
thr
ough 360° in 24 hours, through 180° in 12 hours,
through 15° in 1 hour and through 15’ of arc in 1 minute.
L614, L699
Anglais ME Longines 7.4.2010 11:44 Page 77
Page 30
78 Self-winding watches
L614, L699 – THE LINDBERGH HOUR ANGLE WATCH
Consequently:
The hour hand indicates 15° per hour. One complete cir-
cle of the dial (12 hours) is equivalent to 180°.
The minute hand indicates 1° per 4’, in other words 15°
per hour. Each of the 15° is subdivided into four sectors
of 15’ of arc. All these indications are engraved on the
rotating bezel.
One complete circle of the centre seconds is equivalent
to 15’ of arc. The rotating central dial is divided into 60’’
and 15’ of arc.
How to use your Lindbergh Hour Angle Watch
Having synchronised your watch with a time signal. As
an example when you check it your watch shows
4 hours, 37 minutes and 12 seconds. The equation of
time for the day in question is minus 4 minutes and
50 seconds.
Therefore move the marker situated at “15” on the bezel
4 graduations to the left. These graduations represent
the minutes engraved around the case.
Your data are as follows:
Seconds hand (centre dial) 3’
Minute hand (bezel) 10° 15’
Hour hand (main dial) 6
0°
As you have only turned the bezel by 4 minutes, you still have to take into account the
50 seconds (the equation of time being
4 minutes and 50 seconds for the day in
question).
On the central dial, the 50 is opposite 12½ . /. 12½’
Greenwich hour angle of the sun
(your longitude) 70° 5½’
Anglais ME Longines 7.4.2010 11:44 Page 78
Page 31
79Self-winding watches
L699 – THE LONGINES WEEMS SECOND-SETTING WATCH
Shows the hours, minutes and seconds. The central rotating dial indicates the seconds; it can be adjusted to
synchronise the watch with a time signal using the crown,
without affecting the seconds, minutes and hours.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines watch, which has a power-reserve
of 42 hours. It is only necessary to wind the watch man
-
u
a
lly if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning the crown in
either direction. Synchronise your watch with a time signal (telephone, radio, TV) and then push the crown back
in to position 1.
Synchronising the watch with a time signal
In the intermediate position 2, the crown can be used
to turn the central dial (in either direction). Pull the crown
out to the intermediate position 2 a
nd turn the central
dial so that the seconds hand points to the “60” position on the last pip of the time signal. Push the crown
back in to position 1.
Push-piece A at 4 o’clock
This is for opening the case back thus revealing the
movement through a protective sapphire glass.
L699-Weems
Anglais ME Longines 7.4.2010 11:44 Page 79
Page 32
80 Self-winding watches

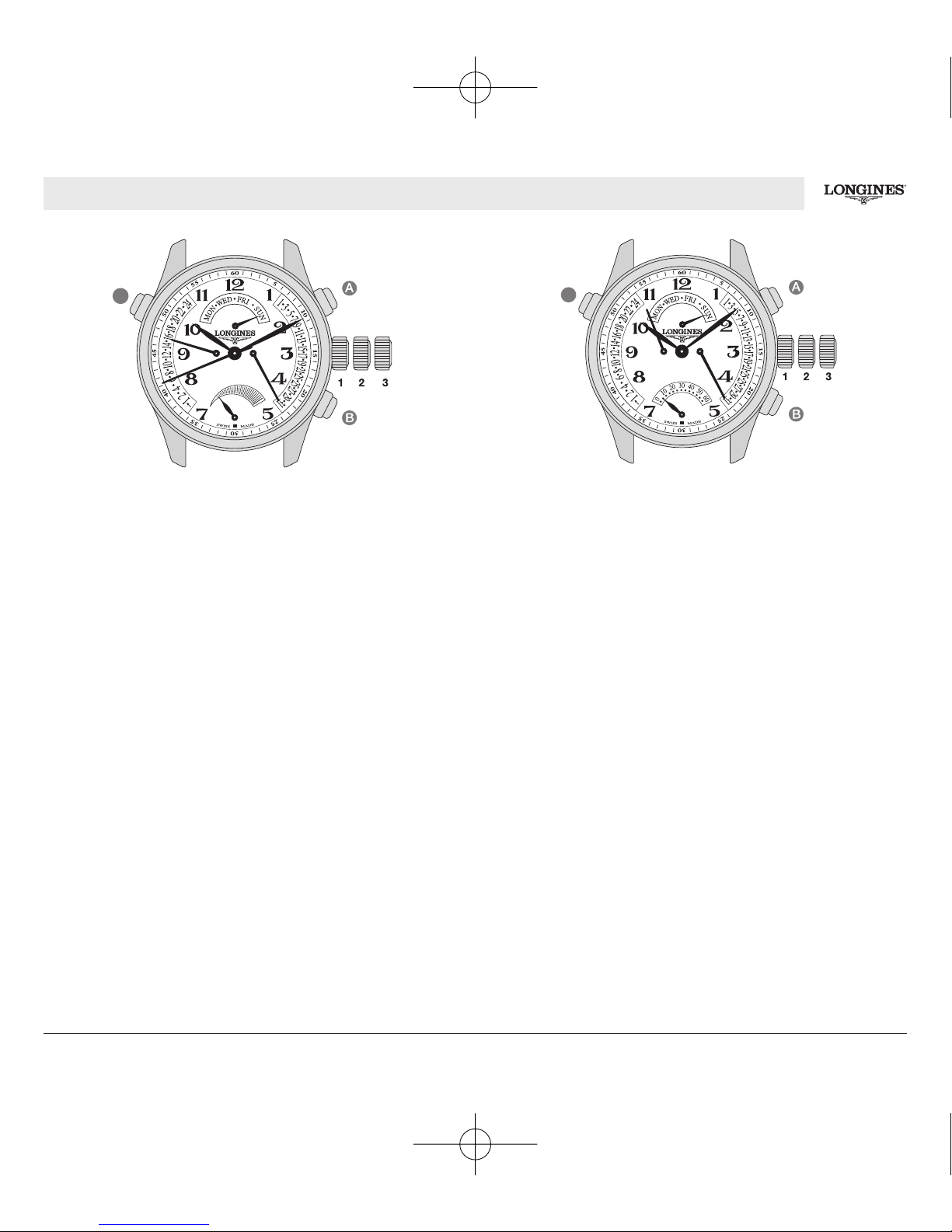

L697, L698 – 3X / 4X RETROGRADE
L697 Shows the hours, minutes, seconds and power-
reserve with a retrograde display of the day, date and
time in a second time zone.
L698Shows the hours and minutes and has a retrograde
seconds aperture, day, date and second time zone.
3-position crown
The crown can be used not only to adjust the hour,
minute and seconds hands but also interdependently the
day, date and time in a second time zone.
Winding (crown pushed right in)
The natural movements of your wrist will automatically
w
ind your Longines watch, which has a power-reserve
of 46 hours. It is only necessary to wind your watch manually if it has not been worn for several days.
The power-reserve indicator (L697) will shift automatically when the watch is wound manually or by the movements of your wrist.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The seconds hand
will now stop. Adjust the time by turning it in either direction. Sy
nchronise your watch with a time signal (telephone, radio, TV) and then push the crown back in. This
adjustment will also affect the time in a second time zone,
as well as the
day and date each time the hand passes midnight, the adjustment being effected when the
crown is pushed back in to position 1. The day, date and
24-hour time zone indicators are excluded from the retrograde sectors when the crown is pulled out to position 3.
Quick time adjustment
Pull the crown out to the intermediate position 2. Turn
it in either direction. The hour hand will jump forwards
by 1 hour at a time without affecting the minute or seconds hands. Then push the crown back in to position 1.
This adjustment will also affect the day and date each
time the hand passes midnight, the adjustment being
effected when the crown is pushed back in to position 1.
L697
C
L698
C
Anglais ME Longines 7.4.2010 11:44 Page 80
Page 33
81Self-winding watches
L697, L698 – 3X / 4X RETROGRADE
The day, date and 24-hour time zone indicators are excluded from the retrograde sectors when the crown is
pulled out to position 2.
Adjusting the time (a.m./p.m.)
The dial is divided into 12 hours. The date and the day
of the week change only once every 24 hours (each time
the hour hand completes two circles of the dial).
In order to ensure that the date and day change at midnight, please follow the instructions below before
changing the date and the
day of the week.
N
ote the day of the week indicated on the dial.
Pull the crown out to position 2 (Quick time adjustment)
and turn it clockwise until the hour hand has completed one circle.
Push the crown back in to position 1 (Winding).
Check that the day of the week has changed.
If so, the watch will now indicate morning (a.m.). If the
watch indicates morning but it is in fact afternoon pull
the crown out to position 2 (Quick time adjustment) and
turn it until the hour hand has comple
ted one circle.
If, however, the day of the week has not changed, the
watch will indicate afternoon (p.m.). If the watch indicates
afternoon but it is in fact morning pull the crown out to
position 2 (Quick time adjustment) and turn it until the hour
hand has completed one circle.
Push the crown back in to position 1 (Winding).
24-hour indicator: if you do not wish to use the Second
time zone function you can convert it into a 24-hour in-
dicator. This will enable you to avoid this ste
p in the fu-
tur
e. See under: Synchronising the time in a second time
zone / 24-hour indicator.
The functions of the 3 push-pieces
The 3 push-pieces can be used when the crown is in
any position.
Adjusting the day of the week
Press push-piece A to adjust the day of the week.
Adjusting the date
Press push-piece B to adjust the date.
IMPORTANT! Do not change the date or use the pushpieces A (for the day) or B (for the date) between 9 p.m.
and 3 a.m. as doing so may damage the mechanism.
IMPORTANT! You will not see any changes on the dial
when using the crown in positions 2 and 3.
Anglais ME Longines 7.4.2010 11:44 Page 81
Page 34
82 Self-winding watches
L697, L698 – 3X / 4X RETROGRADE

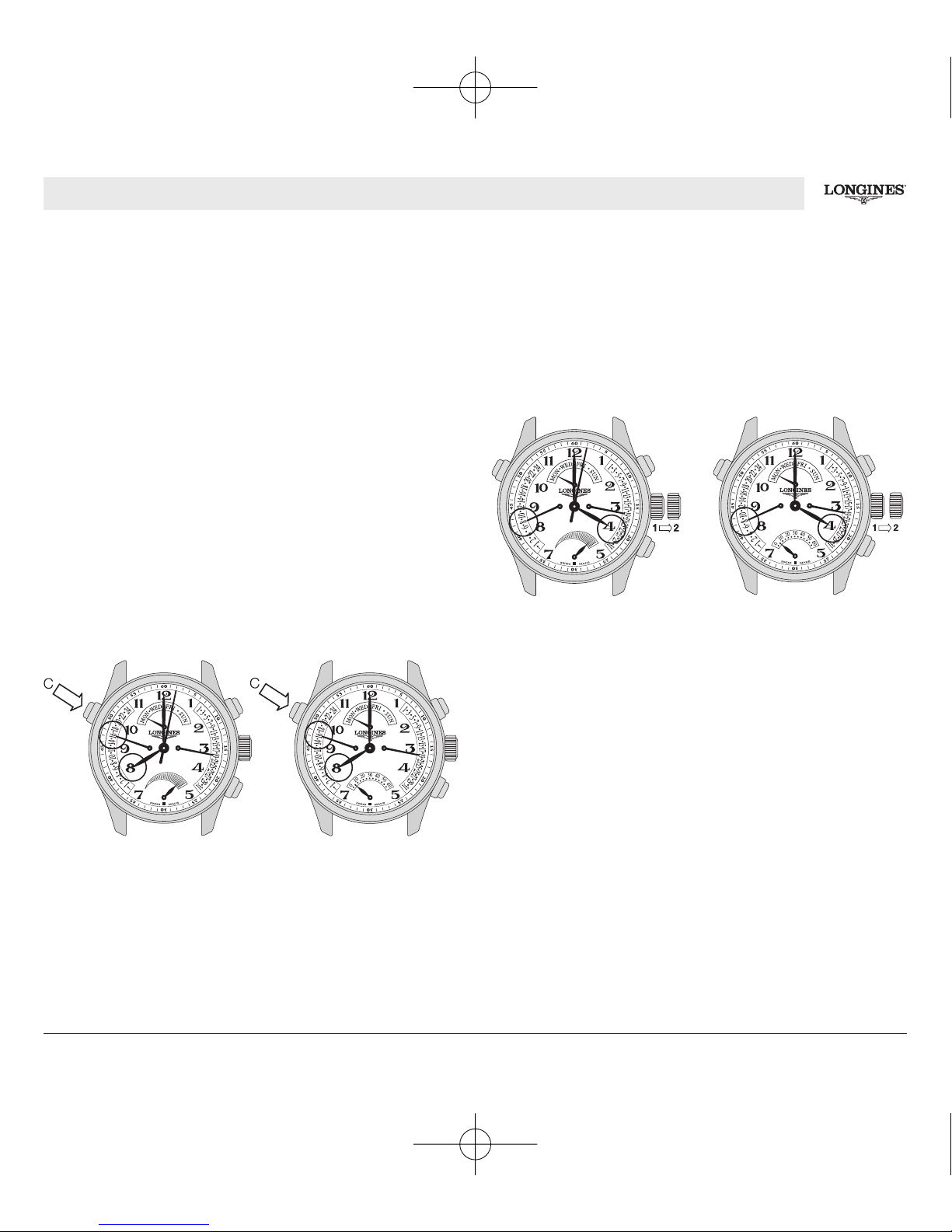

Adjusting the time in the second time zone
(24-hour hand)
IMPORTANT: push-piece C must be unscrewed before use
by turning anti-clockwise. After use screw in firmly to ensure that the seal with the case remains water-resistant.
Press push-piece C to adjust the time in the second time
zone by successive steps of 1 hour, which will not affect the minute and seconds hands.
Example: you are on Geneva time (home) and it is 8 a.m.
You know that there is an
8-hour difference between
Sw
itzerland and Japan.
Option a: you leave your watch on Geneva time and date.
You press push-piece C to adjust the time in the second
time zone so that the 24-hour hand is on 16 (4 p.m.
Japanese time).
Option b: you travel to Japan and want your watch to
show Japanese time and date. You adjust the time by
turning the crown (in position 2) clockwise so that the
24-hour hand is on the 4 (4 p.m. Japanese time). Then
push the crown back in. The time shown in the seco
nd
ti
me zone will stay at 8 a.m. (Geneva time: home).
Synchronising the time in the second time zone /
the 24-hour hand
To synchronise the time in the second time zone with the
actual time where you are, use push-piece C. If the watch
stops you will immediately see from the time in the second time zone whether your watch is showing morning
(a.m.) or afternoon (p.m.).
Please note that if you use the Quick time adjustment func-
tion (crown in position 2), the synchronisation will be i
n-
te
rrupted.
Screw in push-piece C firmly to ensure that the seal with
the case remains water-resistant.
L697 L698
L697 L698
Anglais ME Longines 7.4.2010 11:44 Page 82
Page 35
83Chronographs – General information
CHRONOGRAPHS – GENERAL INFORMATION
The chronograph
The chronograph is an instrument for measuring short
periods of time. It is used mainly in sport but also in aviation or for scientific experiments, for example.
Column Wheel
The column-wheel movement is reputed for the feeling
of crisp efficiency its handling provides. In particular, the
instant responsiveness of its pushpieces adds to the
pleasure of using the chronograph.
Split-seconds function
In a chronograph with a split-seconds function, a second hand is superimposed over the trotteuse. When intermediate times are read off, only the split-seconds hand
stops. When the push-piece is pressed again, it catches up with the trotteuse.

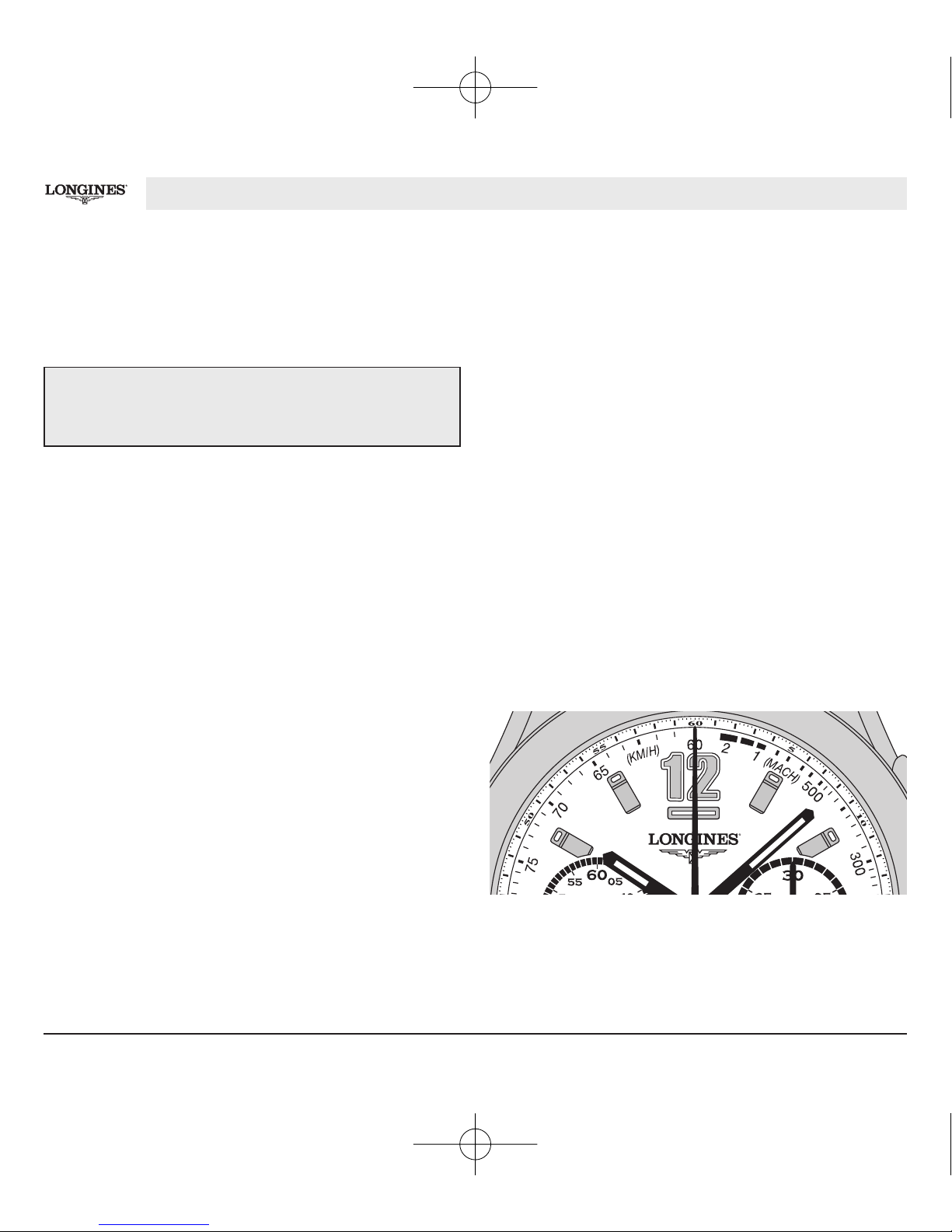

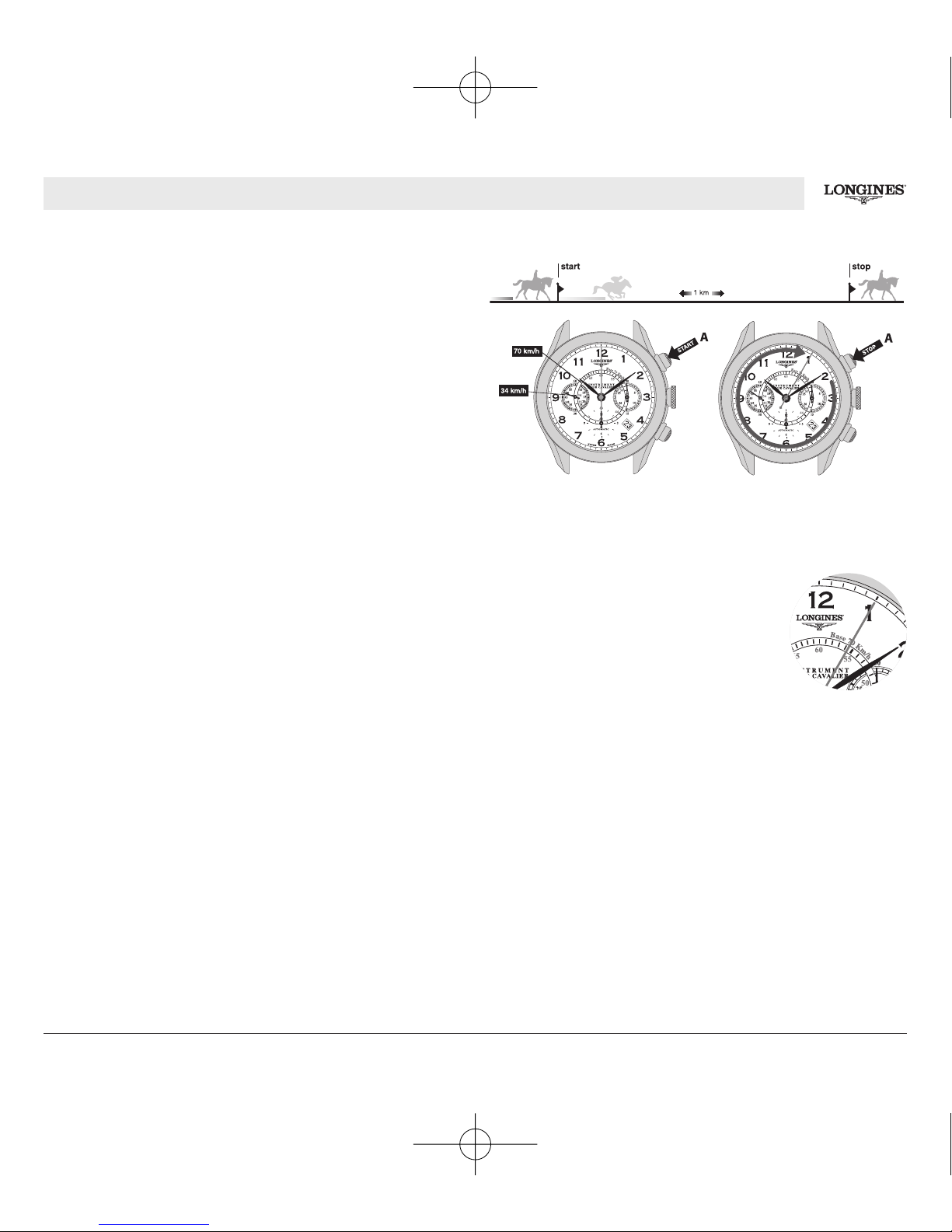

Tachometric scale
The tachometric scale is a series of graduations on the
dial or the bezel of the chronograph that enable the user
to determine mean speeds on the basis of an observation
time of less than 60 seconds.
Measure the time needed to cover 1 kilometre (or 1 mile).
The position of the seconds hand when it stops indicates
the mean speed. If it takes 30 seconds to cover 1 km
(or 1 mile), the scale will indicate a mean speed of
120 kph (or 120 mph).
IMPORTANT! The time should not be adjusted while the
chronograph function is being used.
Anglais ME Longines 9.4.2010 11:14 Page 83
Page 36

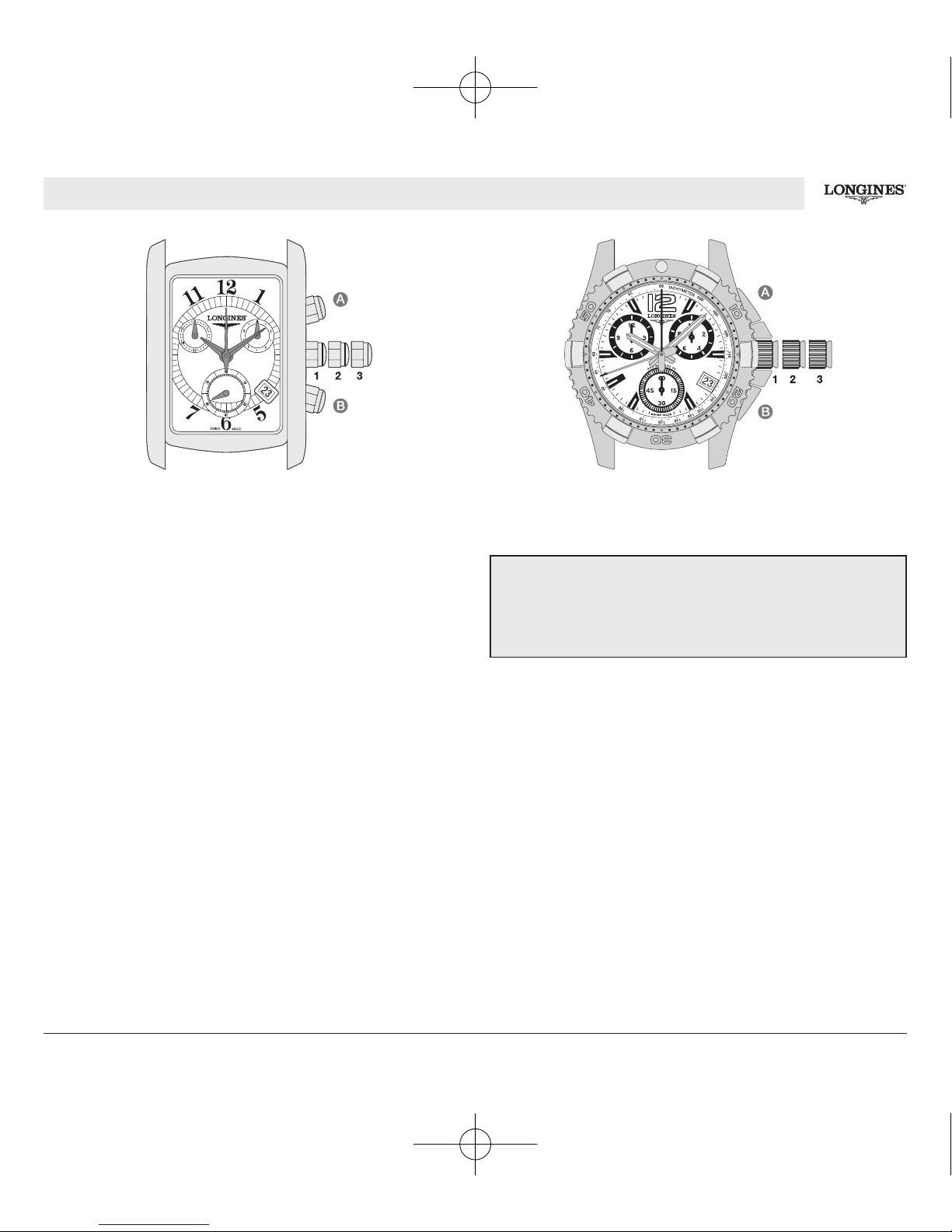

84 Quartz chronographs
L538, L541
L538 L541
Longines’ quartz chronographs fitted with calibre L538
or L541 show the hours, minutes, seconds and the date.
As far as concerns the chronograph functions, these
models can be used to time events that last up to 30
minutes (cal. L538) or 12 hours (cal. L541), and show
the results to a 1/10th of a second.
3-position crown
Adjusting the time and stop seconds
In order to synchronise your watch with a time signal (radio, telephone, etc.), pull the crown right out to position 3,
when the small seconds is on the 60, then push the
c
rown back in again to position 1 on the time signal. The
date will change every time the hour hand passes midnight.
Changing the time zone and the date
Pull the crown out to the intermediate position 2. The hour
hand can be moved in either direction without affecting
the minute and seconds hands. Turn the crown until the
desired date appears. The date changes at midnight.
Push the crown back in to position 1.
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Split (intermediate times)
Standard Start-Stop function
Used for timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A to stop the chronograph.
Press push-piece B to return to zero.
IMPORTANT! Do not leave the crown in the intermediate position 2 for longer than 20 minutes as this may
affect the time function.
Anglais ME Longines 7.4.2010 11:44 Page 84
Page 37
85Quartz chronographs
L538, L541
Add Rally function (partial times)
Used for measuring successive events but not the intervals between them. Each result is automatically
added to the preceding one. To time the different stages
of a car rally, for example:
At the start of the first stage, press push-piece A to start
the chronograph.
At the end of the first stage, press push-piece A again
and the chronograph will stop.
Repeat this procedure for each stage of the rally.
At the end of the final stage the
chronograph will show
the
total time of the rally, in other words, the accumu-
lated time for all the stages.
Press push-piece B to return to zero.
Split function (intermediate times)
This function is used to time one single event. Intermediate times are accumulated throughout the event.
IMPORTANT! While the watch displays an intermediate time
the chronograph function will still be timing the event.
Press push-piece A at the start of the event you wish to
time, for example
a walking race.
Pr
ess push-piece B to see the first intermediate time.
Press push-piece B again and the chronograph hands
will jump to the correct time since the start of the race.
Repeat this procedure, pressing push-piece B once to
see the second intermediate time and again to make the
chronograph hands jump to the current time.
IMPORTANT! Pressing on push-pieces A and B for more
than a second will cause the hands to move forward
rapidly.
Anglais ME Longines 7.4.2010 11:44 Page 85
Page 38
86 Quartz chronographs
L538, L541
At the end of the race, press push-piece A to see the
total time for the race.
Press push-piece B to return to zero.
NB: the split function/intermediate times can also be used
to record consecutively the times of various competitors
as they finish a race.
Return to zero
If for any reason the chronograph hands to not return
exactly to zero, take the following action:
Tachometric scale
See page 83
At the end of the race, press push-piece A to see the
total time for the race.
Press push-piece B to
return to zero.
NB: the split function/intermediate times can also be used
to record consecutively the times of various competitors
as they finish a race.
Return to zero
If for any reason the chronograph hands to not return
exactly to zero, take the following action:
L541
Chronograph 12-hour counter:
With the crown in position 2, press push-piece A.
Chronograph 60-minute counter:
With the crown in position 2, press push-piece B.
Chronograph 60-second counter:
With the crown in position 3, press push-piece A.
Chronograph 1/10th of a second counter:
With the crown in position 3, press push-piece B.
L538
Chronograph 30-minute counter:
With the crown in position 2, press push-piece A.
Chronograph 60-second counter:
With the crown in position 3, press push-piece A.
Chronograph 1/10th of a second counter:
With the crown in position 3, press push-piece B.
Anglais ME Longines 7.4.2010 11:44 Page 86
Page 39

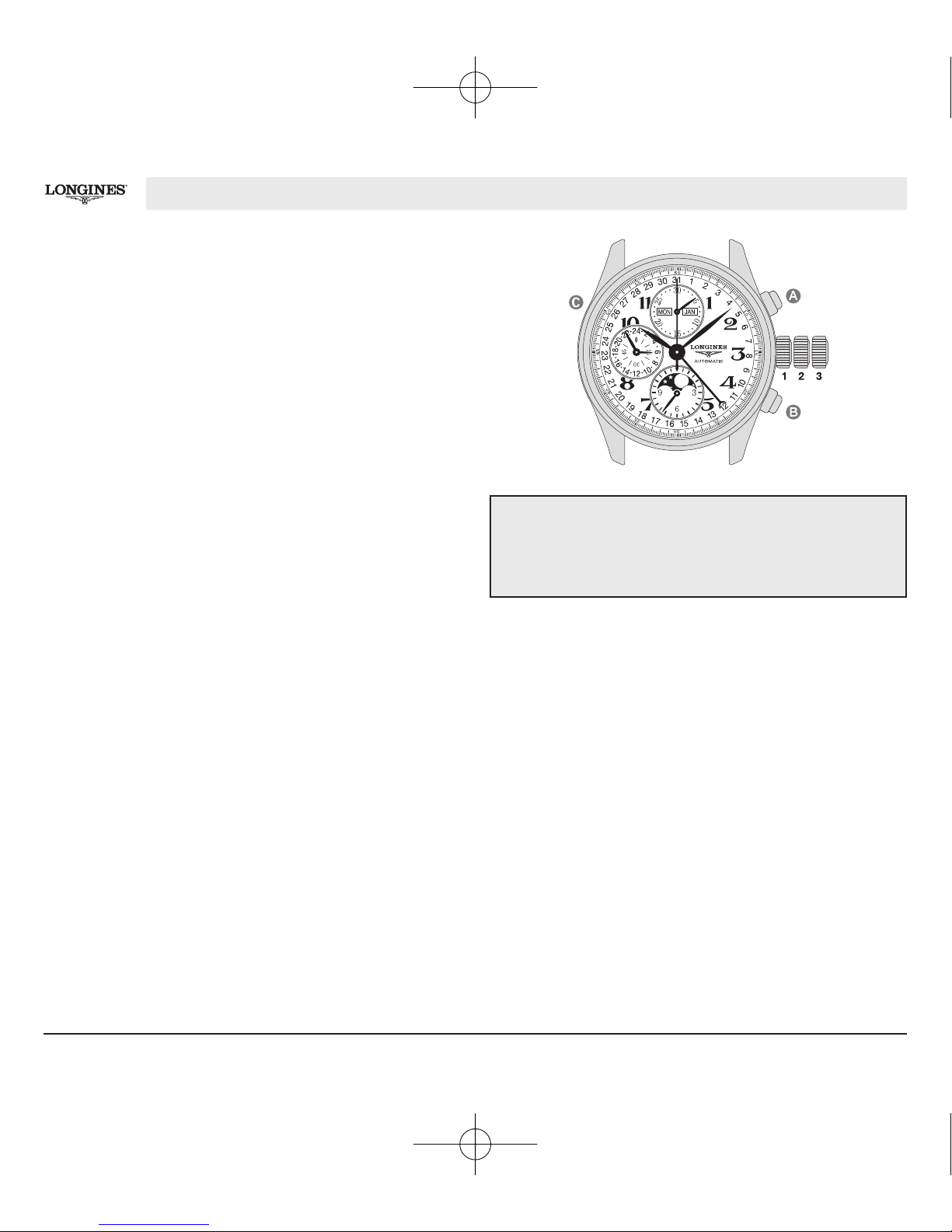

87Self-winding chronographs
L650, L651, L652, L667, L674
Show the hours, minutes, seconds, date, and day (L674).
Can be used to time events that last up to 30 minutes
(cal. L651) or 12 hours (cal. L650, L652, L667, L674),
the results being shown to 1/5th of a second.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines chronograph, which has a powerreserve of 42 hours. It is only necessary to wind it manually if your chronograph is not
worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3, the counter hand
(small seconds) will stop. Adjust the time by turning the
crown in either direction. When the time shown is synchronised with a time signal (telephone, radio, TV), push
the crown right in to position 1 again.
Quick date adjustment (L650, L651, L652)
Pull the crown out to the intermediate position 2, turn
it backwards to adjust the date and then push it back
in again
to position 1.
It is necessary to adjust the date
after each month with less than 31 days.
Quick date adjustment (L667)
Pull the crown out to the intermediate position 2, turn
it forwards to adjust the date and then push it back in
again to position 1. It is necessary to adjust the date after
each month with less than 31 days.
Adjusting the date and the day (L674)
Pull the crown out to the intermediate position 2, turn
it forwards to adjust the date, backwards to change the
IMPORTANT!Thedate should neverbe adjusted between
8 p.m. and 3 a.m. as doing so may damage the
mechanism.
L652
23
60
30
60
30
10
40
50
20
15
5
20
25
10
30
5
35
10
40
15
55
25
50
20
45
L651L650
Anglais ME Longines 7.4.2010 11:44 Page 87
Page 40
88 Self-winding chronographs
L650, L651, L652, L667, L674
day, and then push it back in again to position 1. It is
necessary to adjust the date after each month with less
than 31 days.
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Standard Start-Stop function
Used for timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A to stop the chronograph.
Press push-piece B to return to zero.
Add Rally function (partial times)
Used for measuring successive events but not the intervals between them. Each result is automatically
added to the preceding one. To time the different stages
of a car rally, for example:
At the start of the first stage, press push-piece A to start
the chronograph.
At the end of the first stage, press push-piece A again
and the chronograph will stop.
Repeat this procedure for each stage of the rally. At the
end of the final stage the chronograph will show the total time of the rally, in other
words, the accumulated time
fo
r all the stages.
Press push-piece B to return to zero.
Tachometric scale
See page 83
IMPORTANT! Calibres L650,L651,L652: the time should
not be adjusted while the chronograph function is being used.

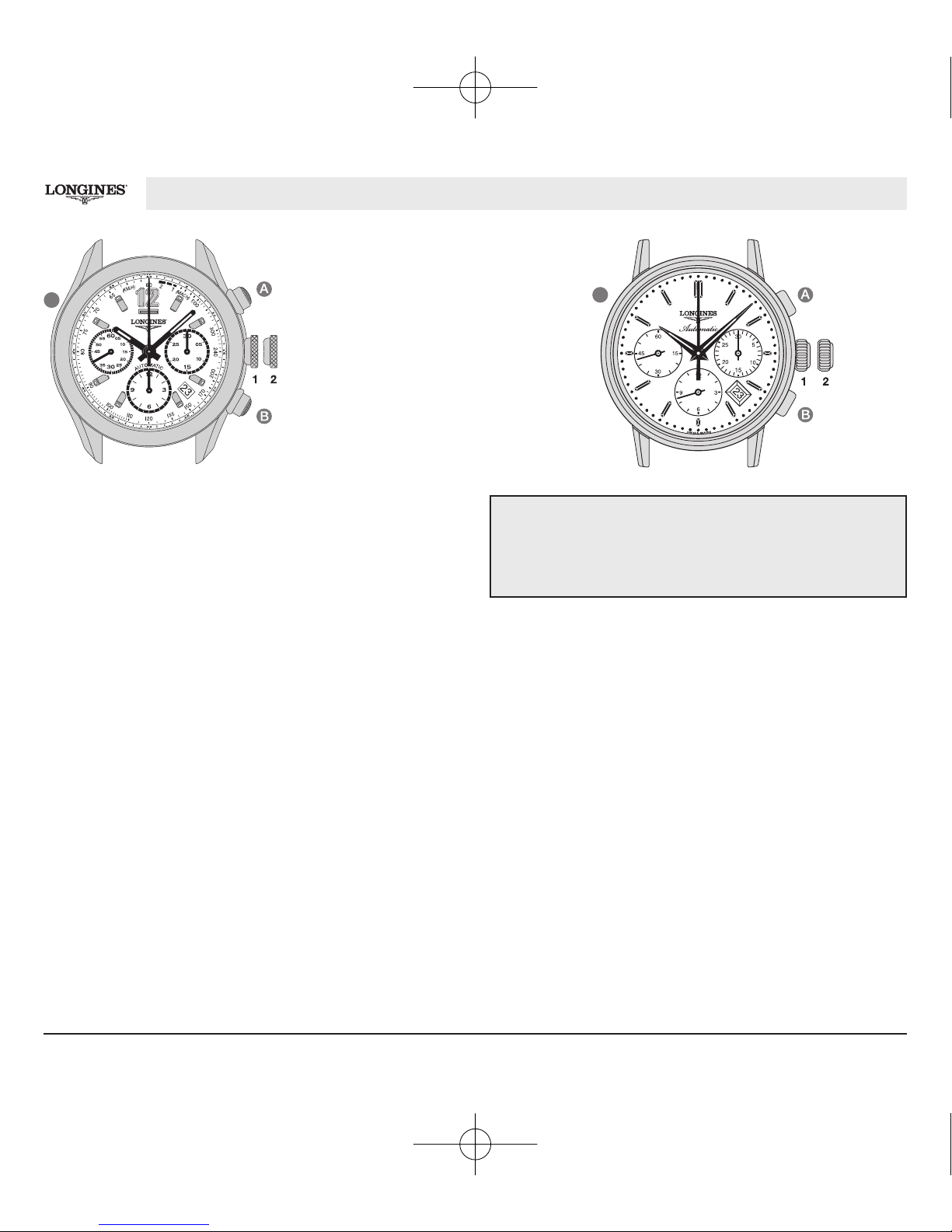

L674L667 (GrandeVitesse)L667 (HydroConquest)
Anglais ME Longines 7.4.2010 11:44 Page 88
Page 41
89Self-winding chronographs

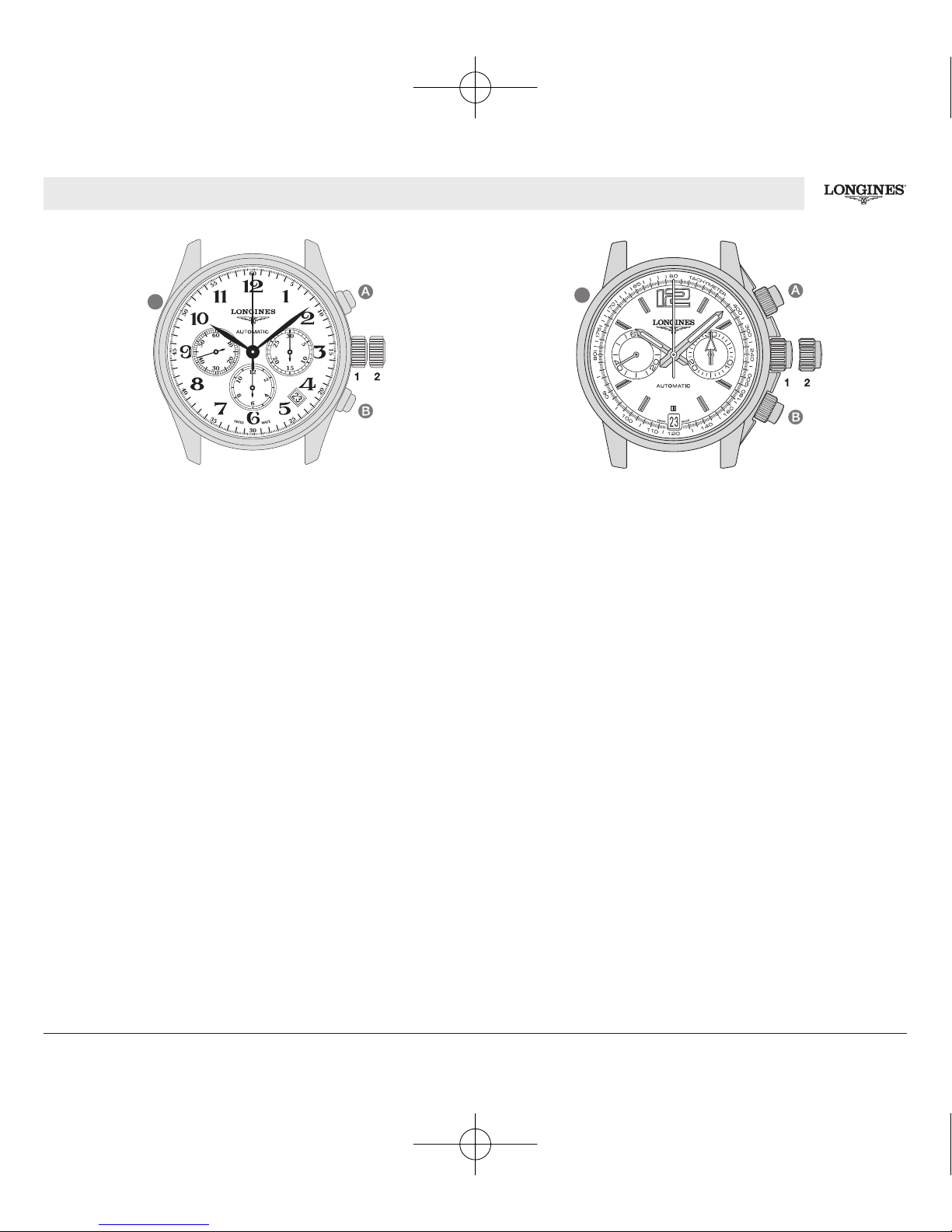

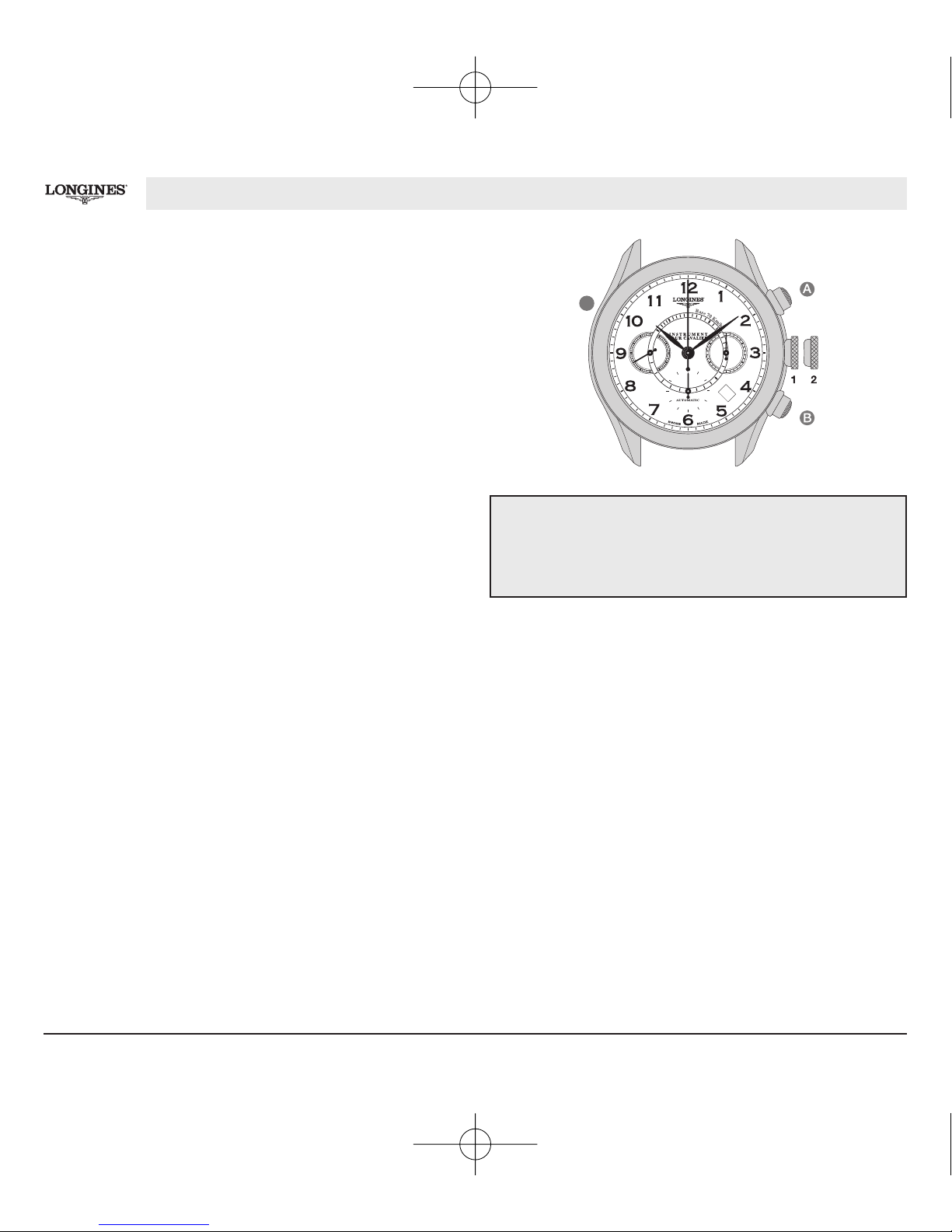

L683, L688 – COLUMN WHEEL, L696, L705
Show the hours, minutes, seconds, and the date. Can
be used to time events that last up to 30 minutes
(cal.L705) or 12 hours (cal. L683, L688, L696), the results being shown to 1/5th of a second.
2-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines chronograph, which has a powerreserve of 46 hours (54 hours for cal. L688). It is only necessary to wind your watch manuall
y if it has not be worn
fo
r several days.
Adjusting the time and stop seconds
Pull the crown right out to position 2, which will stop the
counter hand (small seconds). Adjust the time by turning the crown in either direction. Synchronise the watch
with a time signal (telephone, radio, TV) and push the
crown back in again to position 1.
Quick date adjustment
Push-piece C for adjusting the date is at 10 o’clock. Using the soft-pointed instrument provided by Longines,
press the pu
sh-piece to obtain the exact date. It is necessary to adjust the date at the end of each month with
less
than 31 days.
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Standard Start-Stop function
Used for timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A to stop the chronograph.
Press push-piece B to return to zero.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
C
L683
C
L688 (Column Wheel)
Anglais ME Longines 7.4.2010 11:44 Page 89
Page 42
90 Self-winding chronographs
L683, L688 – COLUMN WHEEL, L696, L705
Add Rally function (partial times)
Used to measure successive events but not the intervals between them. Each time is added to the preceding one. To time different stages of a car rally, proceed
as follows:
At the start of the first stage, press push-piece A to start
the chronograph.
At the end of the first stage, press push-piece A again
to stop the chronograph.
Repeat for each stage of the rally. At the end of the final stage the chronogra
ph will display the total time, in
o
ther words the accumulated time for all the stages.
Press push-piece B to return to zero.
Tachometric scale
See page 83
C
L696
C
L705
Anglais ME Longines 7.4.2010 11:44 Page 90
Page 43
65
60
70
55
65
44
40
35
55
50
45
40
35
30
60
05
10
15
25
20
15
12
93
6
30
10
5
20
25
23
C
L683 CAVALIER
91
Self-winding chronographs
L683 – INSTRUMENT POUR CAVALIER
Shows the hours, minutes, seconds and the date. Can
be used to time events lasting up to 12 hours and displays the results to 1/5th of a second.
2-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines chronograph, which has a powerreserve of
46 hours. It is only necessary to wind your
watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 2, which will stop the
counter hand (small seconds). Adjust the time by turning the crown in either direction. Synchronise the watch
with a time signal (telephone, radio, TV) and push the
crown back in to position 1.
Quick date adjustment
Push-piece C for adjusting the date is at 10 o’clock. Using the soft-pointed instrument provided by Longines,
press the push-piece to obtain the exact date.
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Standard Start-Stop function
Used for timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A to stop the chronograph.
Press push-piece B to return to zero.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
Anglais non corrige? ME Longines 9.4.2010 17:14 Page 91
Page 44
92 Self-winding chronographs
L683 – INSTRUMENT POUR CAVALIER
Add Rally function (partial times)
Used for measuring successive events but not the intervals between them. Each result is automatically
added to the preceding one. To time the different stages
of a car rally, for example:
At the start of the first stage, press push-piece A to start
the chronograph.
At the end of the first stage, press push-piece A again
and the chronograph will stop.
Repeat this procedure for each stage of the rally. At the
end of the final stage the chronograph will show the total time of the rally, in other words, the accumulated time
for all the stages.
Press push-piece B to return to zero.
Tachometric scale
See page 83
Tachometric scale for riders
This scale comprises graduations on the dial of your
chronograph. It can only be used to measure speeds of
between 34 kph and 70 kph over a time period of at least
50 seconds.
Measure the time required to cover
1 km. The position of the seconds
hand upon completion of the 1 km
indicates the mean speed.
Start: press push-piece A when the horse passes a given
marker (fig.햲).
Stop: press push-piece A again when the horse passes
the second marker placed 1 km from the first one (fig.햳).
Speed: in this example, the horse has taken 65 seconds
to cover one kilometre, with an averge speed of around
55 kph.
햲햳
Anglais ME Longines 9.4.2010 11:17 Page 92
Page 45
L678
93
Self-winding chronographs
L678 – PHASES OF THE MOON
Shows the hours, minutes, seconds, day, month, date
and phases of the Moon. Can be used to time events
lasting up to 12 hours, showing the result to 1/5th of a
second.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines chronograph, which has a powerreserve of
42 hours. It is only necessary to wind your
watch manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3. The counter hand
(small seconds) will now stop. Adjust the time by turning the crown in either direction. Synchronise the watch
with a time signal (telephone, radio, TV) and push the
crown back in to position 1.
Quick adjustment of the date and month
Pull the crown right out to position 2 and turn it backwards to adjust the date and month. Then push it back
in to position 1. It is necessary to adjust the date at the
end of each month with less than 31 days.
Adjusting the phases of the Moon
Pull the crown out to the intermediate position 2 and turn
it forwards to adjust the phase of the Moon, which you
can check in the table of lunar months*. Then push the
crown back in to position 1.
Adjusting the day of the week
Push-piece C for adjusting the day of the week is situated at 10 o’clock. Using the soft-pointed instrument provided by Longines, press the push-piece to obtain the
exact day.
IMPORTANT! The dateand the phases of the Moon should
not be adjusted between 7 p.m. and 6 a.m. as doing so
may damage the mechanism.
Anglais non corrige? ME Longines 9.4.2010 17:14 Page 93
Page 46
94 Self-winding chronographs
L678 – PHASES OF THE MOON
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Standard Start-Stop function
Timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A again to stop the chronograph.
Press push-piece B to return to zero.
Add Rally function (partial times)
For timing successive events but not the intervals between them. Each result will be automatically added to
the preceding one. To time different stages of a car rally,
proceed as follows:
At the start of the first stage, press push-piece A and the
chronograph will start.
At the end of the first stage, press push-piece A again
and the chronograph will stop.
Repeat for each stage of the rally. At the end of the final
stage the chronograph will show the total time taken, in
other words the accumulated time for all the stages.
Press push-piece B to return to zero.
*See table of lunar months on page 76
Anglais ME Longines 9.4.2010 11:17 Page 94
Page 47
L686
95
Self-winding chronographs
L686 – 24 HOURS
Shows the hours, minutes, seconds and date, as well
as a second time zone.
The chronograph functions enable the user to time events
lasting up to 12 hours and display the results to 1/5th
of a second.
3-position crown
Winding
(crown pushed right in)
The natural movements of your wrist will automatically
wind your Longines chronograph, which has a powerreserve of
46 hours. It is only necessary to wind the watch
manually if it has not been worn for several days.
Adjusting the time and stop seconds
Pull the crown right out to position 3, which will stop the
small seconds on the dial. Adjust the time by turning the
crown in either direction. Synchronise your watch with
a time signal (telephone, radio, TV) and push the crown
back in again to position 1.
Quick date adjustment
Pull the crown out to the intermediate position 2, turn
it forwards to the desired date and then push it back in
again to position 1. It is necessary to adjust the date at
the end of each month with less than 31 days.
Adjusting the time in a second time zone when travelling (24 hour hand)
Pull the crown out to the intermediate position 2. Tu rn
it backwards to reverse the second time zone hand by
successive 1-hour steps, which will not affect the
minute and seconds hands.
Adjust the 24-hour hand according to the time zone of
your present location. Push the crown back in to position 1 after each adjustment.
IMPORTANT! The date should not be adjusted between
9 p.m. and 3 a.m. as doing so may damage the
mechanism.
Anglais non corrige? ME Longines 9.4.2010 17:14 Page 95
Page 48
96 Self-winding chronographs
L686 – 24 HOURS
CHRONOGRAPH FUNCTIONS
Standard Start-Stop function
Add Rally function (partial times)
Standard Start-Stop function
Used for timing a single event:
Press push-piece A to start the chronograph.
Press push-piece A to stop the chronograph.
Press push-piece B to return to zero.
Add Rally function (partial times)
Used for measuring successive events but not the intervals between them. Each result is automatically
added to the preceding one. To time the different stages
of a car rally, for example:
At the start of the first stage, press push-piece A to start
the chronograph.
At the end of the first stage, press push-piece A again
and the chronograph will stop.
Repeat this procedure for each stage of the rally. At the
end of the final stage the chronograph will show the total time of the rally, in other words, the accumulated time
for all the stages.
Press push-piece B to return to zero.
Instructions for use when travelling
Pull the crown out to the intermediate position 2. Adjust the 24-hour hand according to the time zone of your
present location by turning the crown backwards.
Push the crown back in again.
Anglais ME Longines 9.4.2010 11:17 Page 96
