Longcheer Technology WM62, 081 User Manual
HSDPA MODEM
USER Manual
Index
Introduction .....................................................................................3
Main interface introduction ..............................................................5
Entrance to main interface ..............................................................8
Connect to the Internet.................................................................... 9
SMS Service .................................................................................13
Contacts ........................................................................................16
Settings .........................................................................................19
FAQ...............................................................................................25
FCC Part 15 statement .................................................................29
2
Introduction
This PC Suite is designed to enable users to access the Internet via the
GPRS / EDGE / UMTS / HSDPA networks.
With this application, users can access the following functions:
y Wireless Internet connection
y An SMS service
y A contact manager
y Settings
1. Internet connection
This application will ensure easy connection to the Internet. Users will
be able to enjoy a high-speed data service by clicking on the
button in the main window or by clicking directly on the device.
Users can also access the connection status in the tray bar, including
connection time and volume of data transferred.
2. SMS service
With this PC Suite, users can use the following functions:
3
y New SMS
y Edit SMS
y Group SMS
y Reply
y Forward
y Save number
y Export to PC
y Delete
3. Contacts
It contains 2 memories: PC and (U)SIM card.
It supports the following functions:
y New
y Edit
y Send SMS
y Export vCard file
y Export text file
y Copy to PC and (U)SIM card
y Delete
y Search
4
4. Settings
This contains the following settings:
y Network mode
y Network band
y Network selection
y Request PIN
y Modify PIN
y Connection profile settings
y Diagnostics
y SMS settings
y System settings
y Help
y About
Main interface introduction
1. Function icon
/ : Connect / disconnect to Internet
: Access the SMS service window
5
: Access the contact management window
: Set parameters of the PC suite
2. Status bar information
Current network operator name will be displayed on the status bar.
y If no device is found, ”No device” is displayed
y If no SIM card is found, “No (U)SIM card” is displayed
y If the SIM card is invalid, “Invalid (U)SIM card” is displayed
y During Initialization, ”Initializing” is displayed
y If searching for the network, “Searching” is displayed
y If no network is found,” No service” is displayed
3. Signal status bar
: Indicates the signal strength of the current network
Network type:
is displayed when GSM/GPRS is connected
is displayed when UMTS is connected
Support data service:
is displayed if HSDPA is available
is displayed if EDGE is available
6
Nothing is displayed if GPRS support is available
: Indicates that there is an unread SMS in main interface
: Indicates that the (U)SIM card memory is full
4. Tray Icon
If you click on , the main window is closed and the tray icon will
appear in the tray bar. The main window can be reopened by double
clicking on the tray icon.
5. System tray menu
y Open: Opens the main window
y Connect/Disconnect: Connects/disconnects to the Internet

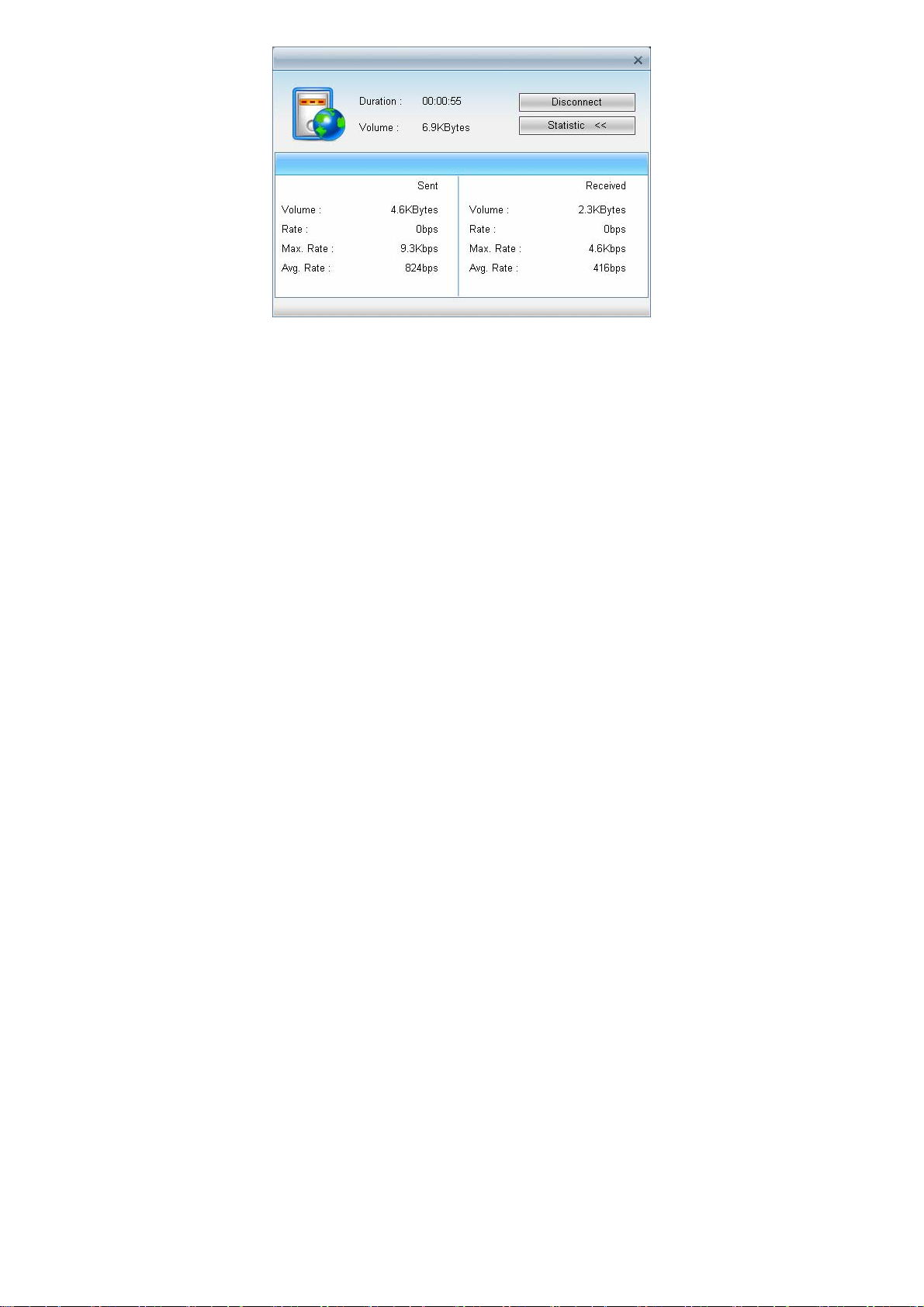

y Statistics: Displays connection status information
y Contacts: Opens contact management window
y SMS: Opens SMS service window
y About: Application version
y Exit: Exits the application
7
Entrance to main interface
y The application runs automatically and the main window will pop
up when a device is connected. Users can also access and run
the application from the <Start> menu.
y If the PIN code is enabled, please enter the correct PIN code in
the entry field, and click on <OK>. Users may try only 3 times to
enter the correct PIN code; after three incorrect attempts, the
(U)SIM card will be blocked.
y A PUK dialog box will then be displayed asking the user to enter
the right PUK code. Click on <OK>, and a default PIN code will be
retrieved. If the user fails to input the correct PUK code after 10
attempts, he should contact the operator.
y If the PIN code is correct, the application will be launched and all
functions can be used.
8
Figure1: Main window
Connect to the Internet
1. Connecting with the default log-on profile
If you want to connect to the Internet without setting any user-defined or
predefined profiles, press
used in accordance with your (U)SIM card.
Connecting
. The default connection profile will be
9
