Longacre Racing Products, Inc.
Monroe, Wa. 360 453 2030 www.longacreracing.com

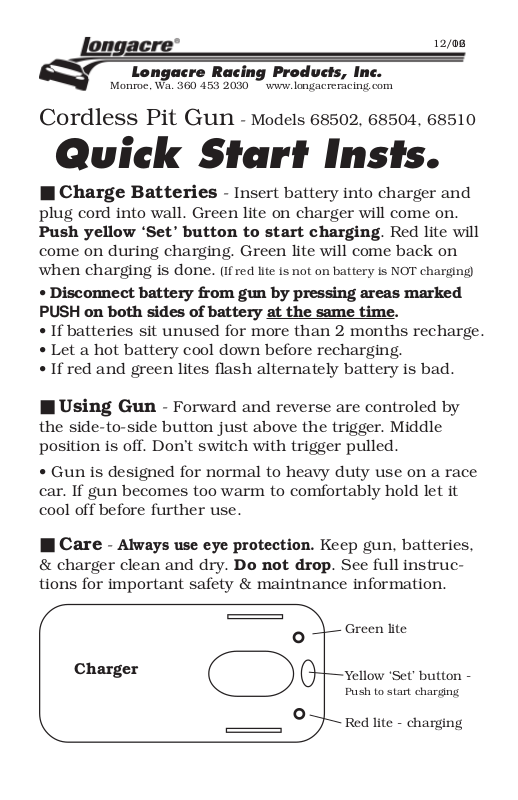

Cordless Pit Gun - Models 68502, 68504, 68510
Quick Start Insts.
■ Charge Batteries - Insert battery into charger and
plug cord into wall. Green lite on charger will come on.
Push yellow ‘Set’ button to start charging. Red lite will
come on during charging. Green lite will come back on
when charging is done. (If red lite is not on battery is NOT charging)
• Disconnect battery from gun by pressing areas marked
PUSH on both sides of battery at the same time.
• If batteries sit unused for more than 2 months recharge.
• Let a hot battery cool down before recharging.
• If red and green lites flash alternately battery is bad.
■ Using Gun - Forward and reverse are controled by
the side-to-side button just above the trigger. Middle
position is off. Don’t switch with trigger pulled.
• Gun is designed for normal to heavy duty use on a race
car. If gun becomes too warm to comfortably hold let it
cool off before further use.
■ Care -
& charger clean and dry. Do not drop. See full instructions for important safety & maintnance information.
Charger
Always use eye protection.
Keep gun, batteries,
Green lite
Yellow ‘Set’ button -
Push to start charging
Red lite - charging
