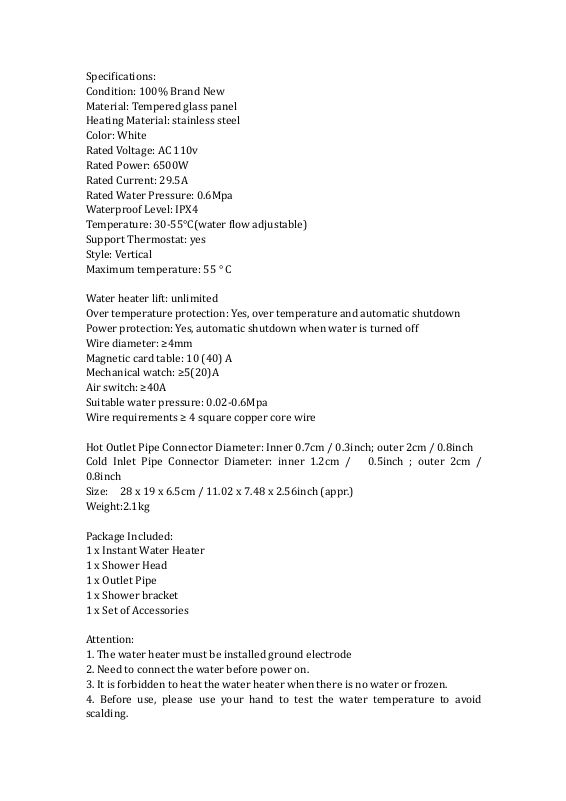

Specifications:
Condition: 100% Brand New
Material: Tempered glass panel
Heating Material: stainless steel
Color: White
Rated Voltage: AC 110v
Rated Power: 6500W
Rated Current: 29.5A
Rated Water Pressure: 0.6Mpa
Waterproof Level: IPX4
Temperature: 30-55℃(water flow adjustable)
Support Thermostat: yes
Style: Vertical
Maximum temperature: 55 ° C
Water heater lift: unlimited
Over temperature protection: Yes, over temperature and automatic shutdown
Power protection: Yes, automatic shutdown when water is turned off
Wire diameter: ≥4mm
Magnetic card table: 10 (40) A
Mechanical watch: ≥5(20)A
Air switch: ≥40A
Suitable water pressure: 0.02-0.6Mpa
Wire requirements ≥ 4 square copper core wire
Hot Outlet Pipe Connector Diameter: Inner 0.7cm / 0.3inch; outer 2cm / 0.8inch
Cold Inlet Pipe Connector Diameter: inner 1.2cm / 0.5inch ; outer 2cm /
0.8inch
Size: 28 x 19 x 6.5cm / 11.02 x 7.48 x 2.56inch (appr.)
Weight:2.1kg
Package Included:
1 x Instant Water Heater
1 x Shower Head
1 x Outlet Pipe
1 x Shower bracket
1 x Set of Accessories
Attention:
1. The water heater must be installed ground electrode
2. Need to connect the water before power on.
3. It is forbidden to heat the water heater when there is no water or frozen.
4. Before use, please use your hand to test the water temperature to avoid
scalding.
