A
C
A
F
C
B

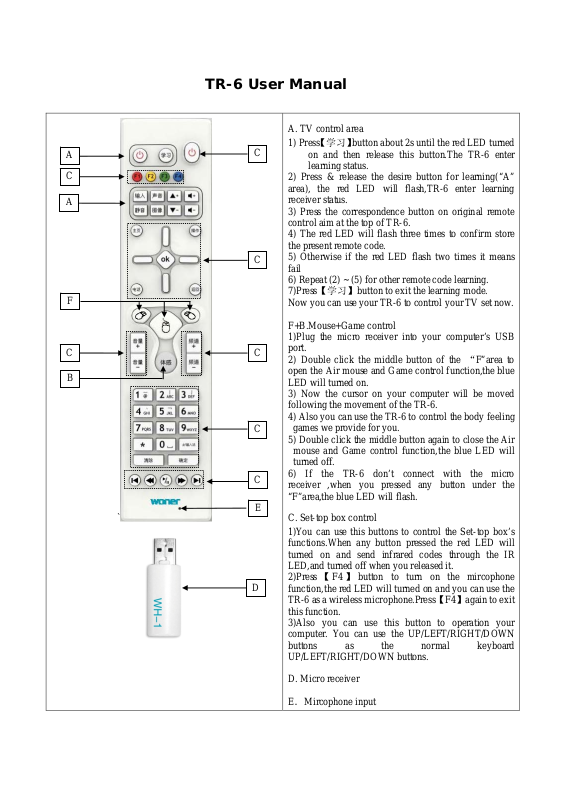

TR-6 User Manual
A. TV control area
1) Press【学习】button about 2s until the red LED turned
C
C
C
C
CC
E
`
D
on and then release this button.The TR-6 enter
learning status.
2) Press & release the desire button for learning(“A”
area), the red LED will flash,TR-6 enter learning
receiver status.
3) Press the correspondence button on original remote
control aim at the top of TR-6.
4) The red LED will flash three times to confirm store
the present remote code.
5) Otherwise if the red LED flash two times it means
fail
6) Repeat (2) ~ (5) for other remote code learning.
7)Press【学习】button to exit the learning mode.
Now you can use your TR-6 to control your TV set now.
F+B.Mouse+Game control
1)Plug the micro receiver into your computer’s USB
port.
2) Double click the middle button of the “F”area to
open the Air mouse and Game control function,the blue
LED will turned on.
3) Now the cursor on your computer will be moved
following the movement of the TR-6.
4) Also you can use the TR-6 to control the body feeling
games we provide for you.
5) Double click the middle button again to close the Air
mouse and Game control function,the blue LED will
turned off.
6) If the TR-6 don’t connect with the micro
receiver ,when you pressed any button under the
“F”area,the blue LED will flash.
C. Set-top box control
1)You can use this buttons to control the Set-top box’s
functions.When any button pressed the red LED will
turned on and send infrared codes through the IR
LED,and turned off when you released it.
2)Press 【 F4 】 button to turn on the mircophone
function,the red LED will turned on and you can use the
TR-6 as a wireless microphone.Press【F4】agai n to exi t
this function.
3)Also you can use this button to operation your
computer. You can use the UP/LEFT/RIGHT/DOWN
buttons as the normal keyboard
UP/LEFT/RIGHT/DOWN buttons.
D. Micro receiver
E．Mircophone input
F．Mouse control
It includes left mouse button,right mouse button and
cursor enable button. Open the Air mouse function and
hold TR-6 at any angle and point in any direction.No
need to keep it level or pointed at the screen.For
maximum responsiveness,hold TR-6 like a remote,point
by tilting the nose of mouse up,down,or side-to-side.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End
users must follow the specific operating instructions for
satisfying RF exposure compliance.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
FCC Caution: Any changes or modifications not
expressly approved by the party responsible for
compliance could void the user's authority to operate
this equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or
transmitter
