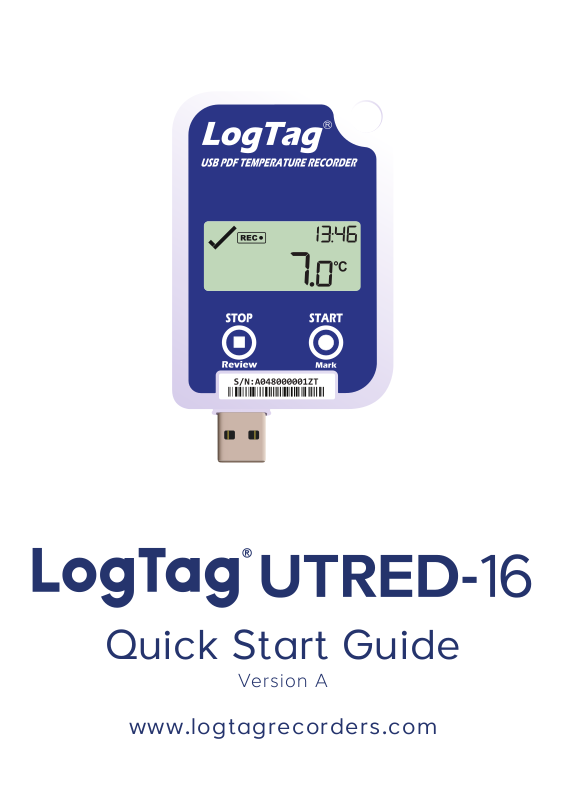

Quick Start Guide
Version A
www.logtagrecorders.com
Quickstart Guide Contents
What’s Included 3
Downloading LogTag Analyzer 4
Confi guring your UTRED-16 6
Starting your UTRED-16 7
During Recording 8
Downloading Results 9
What’s Included
Please check you have the items shown below before
continuing with setting up your UTRED-16.
Optional:
UTRED-16
Glycol Buffer
External Probe
(Not included)
(Not included)
Page 3
Downloading LogTag
Analyzer
To download the latest LogTag Analyzer, open your
browser and navigate to:
https://logtagrecorders.com/software/LTA3/
1. Click ‘Go to downloads page’ to take you to the
download page.
2. Click ‘Download Now’ to start the download. You
can fill in your details beneath and click ‘subscribe’ if
you wish to receive email updates from us.
3. Click ‘Run’ or ‘Save File’ then double-click the
downloaded file to open the LogTag Analyzer Setup
Wizard.
Warning: Please ensure no other LogTag software is
currently running on your computer before running the
Analyzer software.
Page 4
Downloading LogTag
Analyzer continued...
4. Follow the on-screen prompts to install LogTag
Analyzer.
5. Click ‘Finish’ to exit the LogTag Analyzer Setup
Wizard.
Note: If you already have LogTag Analyzer installed,
please see whether you need to update to the latest
version by clicking ‘Check Internet for updates’ from
the ‘Help’ menu.
Page 5
Confi guring your
UTRED-16
Connect your UTRED-16 to
the computer via the USB
port. The USB socket on
the device is located on the
bottom, protected by the cap.
1. Open LogTag Analyzer.
2. Click ‘Configure’ from the ‘LogTag’ menu or click
the ‘Wizard’ icon.
3. Adjust your logger configuration settings as
required. For more information on configuration
settings, please refer to Configuring UTRED-16 in the
Product User Guide or press ‘F1’ for help from your
keyboard.
4. Click ‘Configure’ to upload the configuration
settings to the logger.
5. Click ‘Close’ to exit the configuration page.
Page 6
Starting your UTRED-16
y
.
Display overview:
ALERT/OK
Indicator
Battery Low
Symbol
Alarm Arrows
Recording
Indicators
PAUSED
REC
STOPPED
READY
Recording
Indicators
Mark Indicator
DUR ATION
DEL AY
MARK
Temperature
DAYS HOURS
MIN MAX
°C
°F
Temperature
units
Clock
Min/Max
Indicators
Alarm limit
Markers
Please ensure the sensor is connected before starting
lease ensure the sensor is connected before starting
your UTRED-16.
our UTRED-16
Press and hold the
START/MARK button.
REC symbol will appear.
Release the button once
REC stops flashing.
The UTRED-16 now
records temperature data.
Page 7
During Recording
Reset Trip Min/Max Temperatures:
The currently stored Min/Max temperature values can
be reset at any time while the unit is recording, but not
once the unit has been stopped. To reset the values,
please refer to the Product User Guide.
To view other information about clearing alarms and
reviewing Min/Max trip temperatures, please also refer
to the Product User Guide.
• END OF PAGE
Page 8
Downloading Results
Al
gTag A
.
Connect your UTRED-16 to the
computer via the USB port. The
USB socket on the device is
located on the bottom, protected
by the cap.
A new device drive will appear in file
explorer with the files containing the
recorded data.
ternatively, you can download and view data on
Alternatively, you can download and view data on
o
LogTag Analyzer.
1. Open LogTag Analyzer.
2. Click ‘Download’ from the ‘LogTag’ menu or
press F4.
3. Click ‘Close’ to exit the download page.
nalyzer
By default, auto-download is enabled in LogTag
Analyzer so when you open the program, data results
will be displayed after connecting your UTRED-16 to
the computer.
Page 9
