REC
°C
Quickstart Guide
Version A
www.logtag-recorders.com
Quickstart Guide Contents
What’s Included 3
Downloading LogTag Analyzer 4
Confi guring your USRID-16 6
Starting your USRID-16 7
During Recording 8
Downloading Results 9
What’s Included
Please check you have the item shown below before
continuing with setting up your USRID-16.

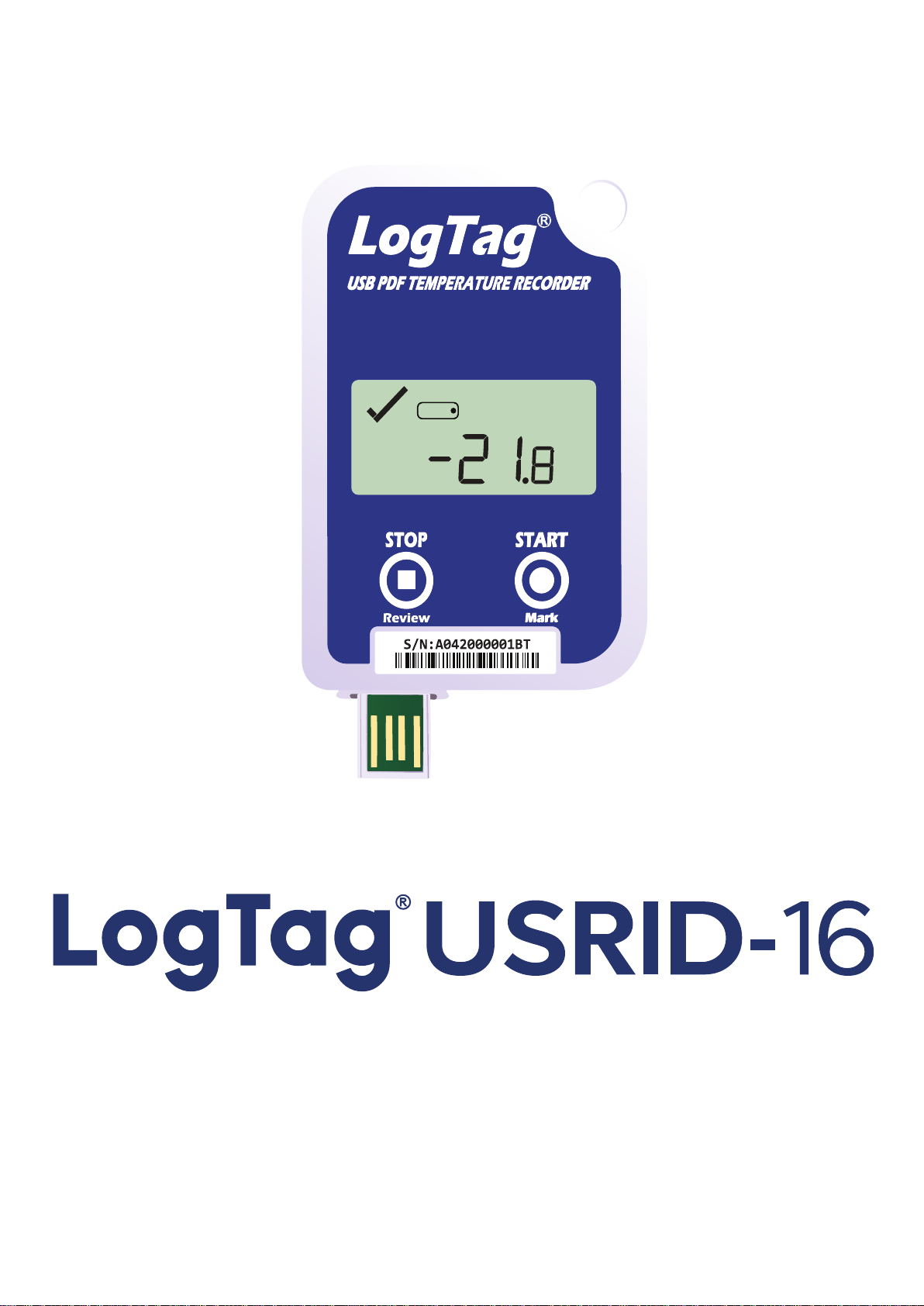

REC
USRID-16
°C
Page 3
Downloading LogTag
Analyzer
To download the latest LogTag Analyzer, open your
browser and navigate to:
1. Click ‘Go to downloads page’ to take you to the
2. Click ‘Download Now’ to start the download. You
3. Click ‘Run’ or ‘Save File’ then double-click the
https://www.logtag-recorders.com/en/support/
download page.
can fill in your details beneath and click ‘subscribe’ if
you wish to receive email updates from us.
downloaded file to open the LogTag Analyzer Setup
Wizard.
Warning: Please ensure no other LogTag software is
currently running on your computer before running the
Analyzer software.
Page 4
Downloading LogTag
Analyzer continued...
4. Follow the on-screen prompts to install LogTag
Analyzer.
5. Click ‘Finish’ to exit the LogTag Analyzer Setup
Wizard.
Note: If you already have the LogTag Analyzer
installed, please see whether you need to update
to the latest version by clicking ‘Check Internet for
updates’ from the ‘Help’ menu.
Page 5
Confi guring your
USRID-16
Connect your USRID-16 to
the computer via the USB
port. The USB socket on
the device is located on the
bottom, protected by the cap.
1. Open LogTag Analyzer.
2. Click ‘Configure’ from the ‘LogTag’ menu or click
the ‘Wizard’ icon.
3. Adjust your logger configuration settings as
required. For more information on configuration
settings, please refer to Configuring USRID-16 in the
Product User Guide or press ‘F1’ for help from your
keyboard.
4. Click ‘Configure’ to upload the configuration
settings to the logger.
5. Click ‘Close’ to exit the configuration page.
Page 6
Starting your USRID-16
Display overview:
Recording
Indicators
Alarm/OK
Indicator
Battery Low
Symbol
Above/Below
Threshold Arrows
Recording
Indicators
Press and hold the
START/MARK button.
PAUSED
REC
STOPPED
READY
DELAY
Mark Indicator
MARK
Temperature
Min/Max
Indicators
MIN MAX
°C
°F
Temperature
units
REC
REC symbol will appear.
Release the button once
REC stops flashing.
The USRID-16 now records
temperature data.
READY
REC
°C
Page 7
During Recording
To view more information about clearing alarms and
reviewing Min/Max trip temperatures, please refer to
the Product User Guide.
• END OF PAGE
Page 8
Downloading Results
.
Connect your USRID-16 to the
computer via the USB port. The
USB socket on the device is
located on the bottom, protected
by the cap.
A new device drive will appear in file
explorer with the files containing the
recorded data.
Alternatively, you can download and view data on
Alternatively, you can download and view data on
LogTag Analyzer.
ogTag Analyzer
1. Open LogTag Analyzer.
2. Click ‘Download’ from the ‘LogTag’ menu or
press F4.
3. Click ‘Close’ to exit the download page.
By default, auto-download is enabled in LogTag
Analyzer so when you open the program, data results
will be displayed after connecting your USRID-16 to
the computer.
Page 9
