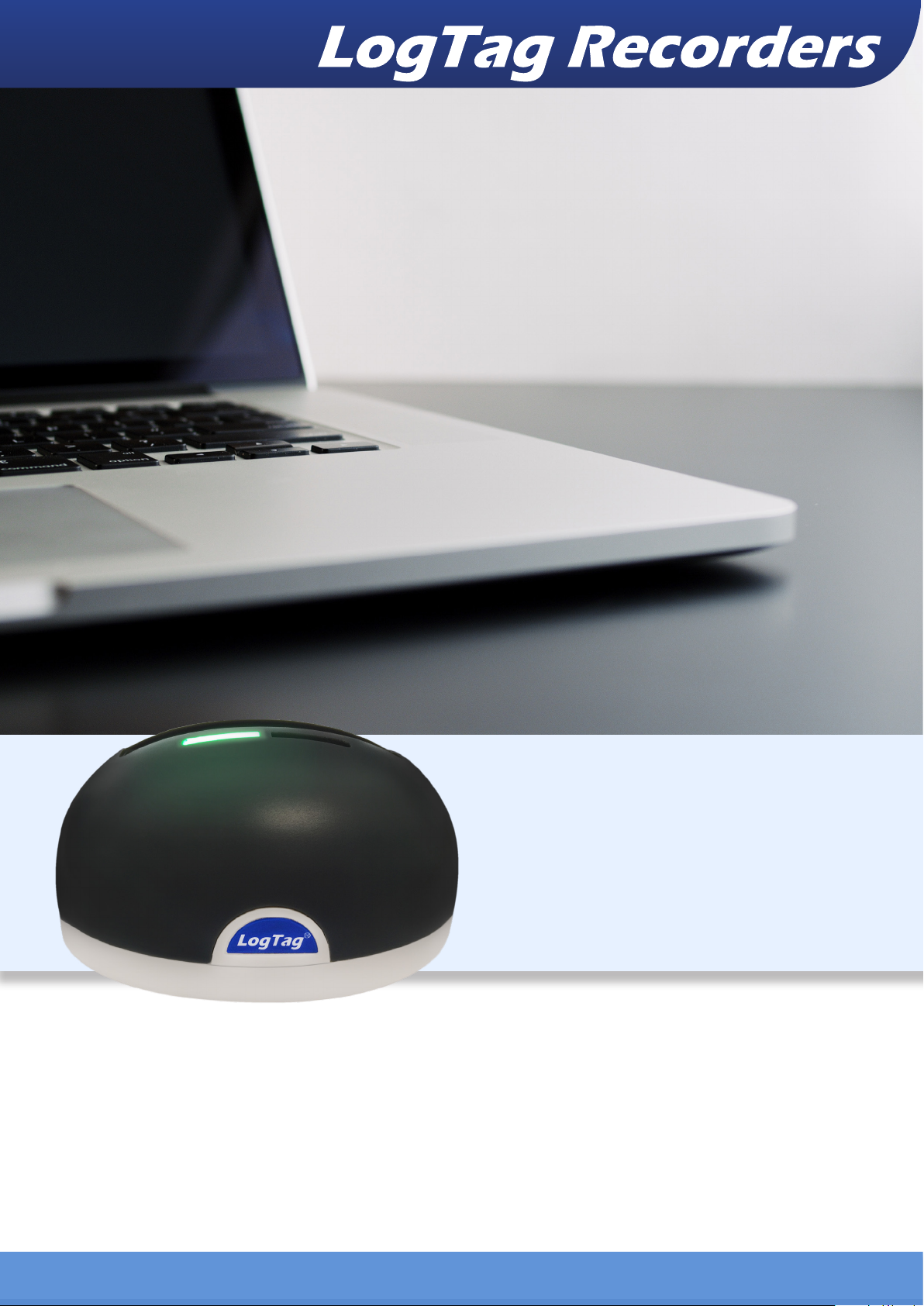

Quick Start Guide
LTI-HID
www.logtagrecorders.com
1. Introduction
The LogTag USB Desktop Interface model LTI-HID serves as the data transfer link between LogTag
Analyzer software and your Logger.
• Used with all models that establish PC communication via the 3 contact pins at the rear of your
Logger.
• Installs without a proprietary driver - uses the Windows built-in communication interface driver
instead.
• Red and green LED’s provide feedback about the data exchange between Logger and software.
• The LTI-HID Interface Cradle comes with micro-USB to USB-A cable to connect your Interface
Cradle to your computer.
2. Connecting the Interface Cradle
Connect the Interface Cradle to your computer using the included USB cable. Please note that the wider
part of the Interface Cradle’s USB socket is oriented towards the bottom.
Both LED’s will briefly blink to indicate your computer has recognized the new device. Windows will now
proceed with the setup. This may take a few moments. Once the setup is complete, the Interface Cradle is
ready for use.
3. Using the Interface Cradle
• Open LogTag Analyzer.
• Insert the Logger into the Interface Cradle. After a few seconds, the downloaded data will appear.
The green LED will turn off and the red will turn on to indicate the software is exchanging
information with the Logger.
• If the data exchange was successful, the green LED blinks. You can now continue with additional
tasks, such as configuring the Logger or hibernating it.
• When the Logger is being configured the red LED turns on again. Once the configuration
parameters have been successfully transfered to the Logger, the green LED blinks.
• If an error occurred (for example, if the recorded data could not be downloaded, or the Logger
could not be configured) the red LED blinks. The most common causes for this are a low battery,
dirty contacts on the Logger or trying to download a while a Logger is still cold.
You will also see the red LED blinking, if you don’t provide a password where required or cancel
an operation mid way. In this case, correct the issue and try again.
• Remove the Logger and the green LED will change from ‘blinking’ to ‘on’, ready for more Loggers
to be inserted.
4. ADDITIONAL INFORMATION
Light patterns
SIGNAL SEQUENCE
Power-up signal
USB setup incomplete
No application running
Ready for Logger
Logger being downloaded
Configuration successful
Logger being hibernated
Hibernation successful
Problems during data exchange
7 alternate flashes of green/red LED’s
3 times slow blinking of red LED’s
No LED signal
Green LED is solid on
Red LED is solid on
Sequence of very quick flashes of green LED’s
Red LED is solid on
Sequence of very quick flashes of green LED’s
Sequence of very quick flashes of red LED’s
