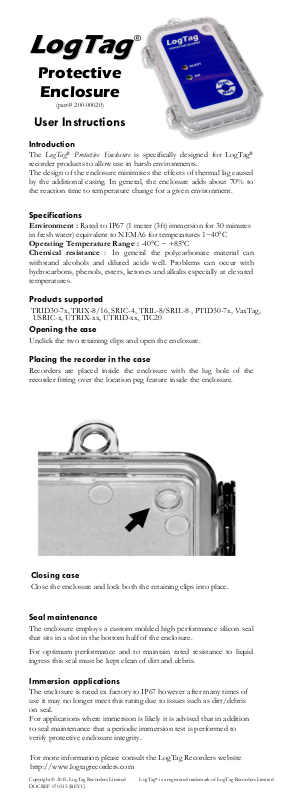

Protective
Enclosure
(part# 200-00020)
User Instructions
Introduction
The LogTag® Protective Enclosure is specifically designed for LogTag®
recorder products to allow use in harsh environments.
The design of the enclosure minimises the effects of thermal lag caused
by the additional casing. In general, the enclosure adds about 70% to
the reaction time to temperature change for a given environment.
Specifications
Environment : Rated to IP67 (1 meter (3ft) immersion for 30 minutes
in fresh water) equivalent to NEMA6 for temperatures 1~40°C
Operating Temperature Range : -40°C ~ +85°C
Chemical resistance : In general the polycarbonate material can
withstand alcohols and diluted acids well. Problems can occur with
hydrocarbons, phenols, esters, ketones and alkalis especially at elevated
temperatures.
Products supported
TRID30-7x, TRIX-8/16, SRIC-4, TRIL-8/SRIL-8 , PTID30-7x, VaxTag,
USRIC-x, UTRIX-xx, UTRID-xx, TIC20
Opening the case
Unclick the two retaining clips and open the enclosure.
Placing the recorder in the case
Recorders are placed inside the enclosure with the lug hole of the
recorder fitting over the location peg feature inside the enclosure.
Closing case
Close the enclosure and lock
Seal maintenance
The enclosure employs a custom molded high performance silicon seal
that sits in a slot in the bottom half of the enclosure.
For optimum performance and to maintain rated resistance to liquid
ingress this seal must be kept clean of dirt and debris.
Immersion applications
The enclosure is rated ex factory to IP67 however after many times of
use it may no longer meet this rating due to issues such as dirt/debris
on seal.
For applications where immersion is likely it is advised that
to seal maintenance that a periodic immersion test is performed to
verify protective enclosure integrity.
For more information please consult the LogTag Recorders website
http://www.logtagrecorders.com
Copyright © 2015, LogTag Recorders Limited
DOCREF 070515 (REVC)
both the retaining clips into place.
®
LogTag
is a registered trademark of LogTag Recorders Li mited
