GPS Walker
User Manual
Version 1.6
May. 2010
GPS Walker User Manual
Table of Content
SAFETY AND WARNINGS............................................................................................................................................1
INTRODUCTION OF THE GPS DATA LOGGER......................................................................................................2
FEATURES.......................................................................................................................................................................2
SYSTEM SUPPORT ...........................................................................................................................................................2
KEYS AND PORTS............................................................................................................................................................3
SCREEN DISPLAY............................................................................................................................................................3
TRANSFERRING DATA TO YOUR GPS DATA LOGGER .....................................................................................................4
REMOVING THE GPS DATA LOGGER FROM YOUR COMPUTER .......................................................................................4
LISTENING TO WMA/MP3 MUSIC FILES WITH THE GPS LOGGER.................................................................................... 4
Lyric Display Function............................................................................................................................................4
BASIC OPERATION.......................................................................................................................................................5
HOLD FUNCTION.............................................................................................................................................................5
BROWSING THE MAIN MENU.....................................................................................................................................5
MENU STRUCTURE .........................................................................................................................................................6
MUSIC...............................................................................................................................................................................7
FM......................................................................................................................................................................................7
START THE FM TUNER ................................................................................................................................................... 7
USING THE FM SETTINGS MENU .....................................................................................................................................7
TUNING INTO FM RADIO STATIONS MANUALLY..............................................................................................................8
ADVANCED SETTINGS.................................................................................................................................................8
TIME...................................................................................................................................................................................8
FORMAT THE GPS DATA LOGGER BY USING THE WINDOWS FORMAT TOOL.........................................9
GPS....................................................................................................................................................................................9
BEFORE MARKING WAYPOINTS .....................................................................................................................................10
MARKING WAYPOINTS MANUALLY ...............................................................................................................................10
LOGGING GPS TRACE................................................................................................................................................... 10
GOING TO THE MARKED WAYPOINT .............................................................................................................................. 11
VIEWING YOUR TRACE ON GOOGLE MAP ......................................................................................................................11
DOWNLOAD POIS AND VIEWING THEM ON GOOGLE MAP............................................................................................. 15
UPLOADING POIS TO GPS DATA LOGGER.....................................................................................................................16
CHECKING F/W VERSION..............................................................................................................................................18
UPGRADING GPS WALKER F/W...................................................................................................................................18
BATTERY.......................................................................................................................................................................19
TROUBLESHOOTING..................................................................................................................................................19
GPS DATA LOGGER SPECIFICATIONS.................................................................................................................20
GPS Walker User Manual
1
Safety and Warnings
Turn the volume down before putting on the headphones. While listening to music, slowly
increase the volume until you are comfortable with the sound.
Static Electricity
To avoid static electricity, do not use the player in an extremely dry environment. In an
environment with electrostatic discharge, GPS Walker may get malfunction and require the
user to reset the product.
USB Storage Device Data Protection
¾ Always insert the USB device in the correct direction. Failure to do so may result in
damage to the USB device and GPS Walker.
¾ Do not remove the USB device whilst it is being accessed.
¾ Electrical interference and electrostatic discharges may cause the USB device to
malfunction and suffer from damage and data loss.
Statement
¾ It is strongly recommended that any important data be backed up on a PC to protect
against corruption, data loss or device malfunction. Please note that our company and
the manufacture shall be not liable for any data loss or corruption.
¾ The operation of the player described in the manual may differ slightly from actual
product. For better performance, it is subject to change without notice.
GPS Walker User Manual
2
Introduction of the GPS Data logger
Features
• Point to point navigation
• 2GB memory size for continuous 2,000,000 GPS data log
• Manual setting frequency and minimum speed for logging
• Embedded SiRF Star III high sensitivity low power chip
• LCD indicator GPS status
• WMA/MP3 Player
• FM tuner
• Synchronous Lyric Display with MP3 Music
• Platform: Windows 2000/XP/Vista/Win 7
• USB 2.0 supported
• 128 x 64 Dots Matrix Display
• Superb Audio Quality
• Standard 3.5Φearphone
• One changeable AA battery
System Support
• Windows 2000/XP/Vista/Win 7, Mac OS 10.5.0 or later version
GPS Walker User Manual
3
Keys and Ports
A. USB port
: Play/Enter
B. GPS power on/off <<: Left/Skip previous/Rewind
C. Battery compartment >>:Right/Skip next/Forward
D. Earphone socket
∧: Up/Volume up
E: Power on/off
∨:Down/Volume down
F: Menu
G: Control key
Screen Display
A. Current track number /
Total track number/Lyrics
display
B. Play/Pause
C. Elapsed time
D. Repeat mode
E. Equalizer
F. GPS status
G. Battery status
H. Title
GPS Walker User Manual
4
Transferring Data to Your GPS Data logger
1. Connect your GPS data logger to USB port by using USB cable. The data logger
will show “Usb-connect” when it is connecting to a computer.
2. Right click on the folders and files you want to transfer to your GPS data logger,
and select Copy.
3. Open the Removable Disk represented your GPS data logger, right click and select
Paste.
Removing the GPS Data Logger from Your Computer
1. Click on the Safely Remove Hardware icon in the taskbar (next to the clock).
2. Click on Safely Remove USB Mass Storage Device.
3. Wait until a Safe to Remove Hardware message is displayed.
4. Remove the GPS data logger.
Listening to WMA/MP3 music files with the GPS logger
1. Follow the instructions to copy WMA/MP3 music files to the player.
2. Connect the supplied earphone to the earphone socket.
3. Press and hold the Play button for about 3 seconds to turn on the player.
4. Select Music and press the Play button to enter.
5. Select a folder or a music file and press the Play button.
6. Use the player controls to adjust playback and volume level to listen to your
WMA/MP3 music.
Lyric Display Function
The GPS data logger supports lyric files in LRC format.
1. Prepare a MP3 or WMA music file. For example, happymusic.mp3;
2. Download a lyric file from the internet. The lyric file needs to be with an extension
file name LRC. For example, happymusic-2004.lrc.
3. Rename the lyric file. For example, happymusic.lrc. This ensures that the GPS data
logger connects the lyric filename with the corresponding music filename.
4. Copy the lyric file & music file to the GPS data logger.
5. The lyrics would be displayed on the screen, synchronous with the music.
Note:
• The GPS data logger supports LRC format only.
• If the lyrics do not synchronize perfectly with the music, this is not a defect of
the GPS data logger. Check the lyric file or download a better lyric file from
the internet and try again.
GPS Walker User Manual
5
• Make sure the MP3 music file and LRC file are located in the same directory
and the filenames are the same. If not, the data logger can not recognize the
lyric file.
Basic Operation
¾ Press and hold the Power button for about 3 seconds to turn on the GPS data
logger.
¾ In playing mode press the Play button to pause, or press it again to continue.
¾ Press (∧/∨) buttons to increase/decrease volume.
¾ Press the Skip buttons (<< / >>) to skip to the previous or next song; press and hold
the Skip buttons to rewind or fast forward the current song.
¾ Press the Menu button to go back to previous menu.
¾ To turn off the GPS data logger, press and hold the Power button until the screen
turns completely dark.
Hold Function
Use the Hold function to deactivate the GPS data logger controls (to avoid accidental
activation).
1. To activate the hold function, press and hold the Menu button.
Locked
2. To deactivate the hold function, press and hold the Menu button.
Unlocked
Browsing the Main Menu
In the main menu, press the Left or Right button to select Menu options, and press the
Play button to enter the menu. Press the Menu button to call up menu options or exit to
the previous menu.
GPS Walker User Manual
6
Menu Structure
Main menu Submenu/Status Submenu Description
GPS Signal Showing the GPS signal status
Log Interval
Off/1Sec/3Sec/5Sec/10Sec/
15Sec
Setting the GPS log interval
Min Speed Off/2KMH/4KMH/10KMH
Setting the GPS log minimum
speed
Mark
Marking the current position as a
waypoint
Mark &Go
Marking the current location as a
waypoint and setting the waypoint
as the destination in Compass
menu
Select Mark
Selecting a history waypoint, or
setting a waypoint and a destination
in Compass page
Compass
Showing the GPS compass
information, Direction to destination,
Distance to destination,
Current Speed and ID of destination
GPS Power Off/On Turning the GPS on/off
GPS
About Showing the F/W version
Music Playing music
AddToPreset
Saving the current station to preset
station
LoadPreset Loading the saved preset station
Delete Deleting one preset station
AutoScan
Searching all available stations
automatically
ManuScan
Searching stations one by one
manually
FM
Return Returning to FM listening interface
Time Displaying time
Equalizer
Normal/Classic/Pop/Jazz
/Xbass/Rock
Setting sound effect in music
playback
Repeat
Normal/Repeat One/Repeat
All/Random/Random All
Setting repeat mode of music
Backlight
3Sec/5Sec/10Sec/15Sec/
Always On
Setting the duration of the backlight
Brightness 0/1/2/3/4/5 Setting the brightness level
Contrast 0/1/2/3/4/5 Setting the contrast level
SetTime Setting time
Language
English/
Simple Chinese/
Traditional Chinese
Selecting a language
FM Band
87.5~108MHz
76~90MHz
Selecting a FM bandwidth
About Logger information
Settings
Default Resetting to factory default
GPS Walker User Manual
7
Music
1. Select Music in the main menu and press the Play button to enter.
2. Press the Up or Down button to choose a song or folder.
3. Press the Play button to enter a folder or play music.
FM
The GPS data logger allows you to listen to FM radio with the built-in digital FM tuner.
Note: The earphones must be connected to the GPS data logger otherwise the FM
tuner will not be able to scan any FM station.
Start the FM Tuner
To switch to FM radio mode, select Radio in the main menu and press the Play button.
If there is no station on the default list, press the Play button and select AutoScan to
search all available stations. After auto search is finished, press the Left or Right button to
listen to another station.
Note: There are two FM bandwidth can be chosen, 87.5~108MHz and 76~90MHz
(for Japan only). Enter the Settings menu to select the proper FM Band.
Using the FM Settings menu
To navigate the FM Settings menu in FM Radio mode, press the Play button to enter the
FM Settings menu.
Item Description
AddToPreset Saving the current station to preset station.
LoadPreset Loading the saved preset station.
Delete Deleting one preset station.
AutoScan Searching all available stations automatically.
ManuScan Searching stations one by one manually.
Return Returning to FM listening interface
A. FM icon
B. Auto scan /manual scan
C. Preset station number
D. Frequency
E. Battery indicator
GPS Walker User Manual
8
Tuning into FM radio stations manually
To tune manually, press the Left or Right button. Each time when the buttons are pressed,
the GPS data logger changes the frequency by 0.1MHz.
Advanced Settings
To navigate the Settings menu,
1. Select Setting in the main menu and press the Play button.
2. Press the Up or Down button to choose a setting and press the Play button to enter
the submenu.
3. After setting is finished, press the Menu button to go back to the previous menu.
Equalizer Normal/Classic/Pop/Jazz/Xbass/Rock
Setting sound effect in music
playback
Repeat
Normal/Repeat One/Repeat All/
Random/Random All
Setting repeat mode of music
Backlight 3Sec/5Sec/10Sec/15Sec/Always On Setting the duration of the backlight
Brightness 0/1/2/3/4/5 Setting the brightness level
Contrast 0/1/2/3/4/5 Setting the contrast level
SetTime Setting time
Language
English/Simple Chinese/Traditional
Chinese
Selecting a language
FM Band
87.5~108MHz
76~90MHz
Selecting a FM bandwidth
About Logger information
Settings
Default Resetting to factory default
Time
Select Time in main menu, and press the play button to display current time.
To set time, go to Settings>SetTime,
1. Press the Play button.
2. Press the Left or Right button to set the time and date.
3. Press the Up or Down button to adjust the value of each item.
4. Press the Play button to confirm.
GPS Walker User Manual
9
Format the GPS data logger by using the Windows
Format Tool
1. Connect the GPS data logger to the computer.
2. Right click on the disk representing the GPS data logger.
3. Select format and start the formatting process.
Note: Do not select NTFS from the Format File System menu. Otherwise, the GPS
data logger will not function, and you will need to format it again.
GPS
Menu options
GPS Menu Description
GPS Power Turning On/Off the GPS function.
Showing the satellite signal strength. Need 3 solid bars for precise
positioning.
Press the Play button to show the Sat View
Shows the satellite number being seen, satellite number being tracked.
GPS Signal
Press Play button again to show the Position
Information such as Current Location coordinates, Date and Time will be
shown.
Log Interval
Setting the time interval for GPS position logging. The data is logged in
standard NMEA format.
Min Speed
Setting a value as the minimum speed for position logging. The system will
log points only when the current speed is above this value.
The minimum speed is valid only if Log Interval is enabled.
Mark
Marking the current location as a waypoint. This command is valid only
when the current position fix is available (2D fix or 3D fix).
Mark&Go
Marking the current location as a waypoint and setting the waypoint as the
destination in Compass menu.
This command is valid only when the current position fix is available (2D fix
or 3D fix).
Select Mark
Selecting a history waypoint, or setting a waypoint and a destination in
Compass page.
This command is valid only when the current position fix is available (2D fix
or 3D fix).
Compass
Displaying following information:
Direction to destination
Distance to destination
Current Speed
ID of destination
Follow the compass. It will guide you to the destination.
This command is valid only when the current position fix is available (2D fix
or 3D fix).
About Information about the firmware version.
GPS Walker User Manual
10
Before marking waypoints
1. Press the Menu button to enter main menu.
2. Select GPS in the main menu.
3. Power on the GPS function. Press the UP button to select GPS Power, select On, and
then press the Play button to confirm.
4. Select GPS Signal in GPS menu. You will see some signal strength bars. The height
of each bar represents the strength of the satellite signal. Wait until there are more
than 3 bars appearing. The screen will show 2D or 3D when the signal is strong
enough to position.
5. Press the Play button to show the Sat View; you will see the satellite number being
seen, satellite number being tracked.
6. Press the Pla y button again to show the Position; you will see current position
information (Latitude, Longitude, and UTC Time).
7. Press the Menu button to exit.
Marking waypoints manually
Select Mark in the GPS menu. The current location will be marked as a waypoint. You can
manually mark waypoints wherever you want.
Note: the maximum number of waypoints is 1000.
Logging file is stored in the internal flash as be named GPS0XXXX.TXT; XXXX stands for
a number from 0001 to 1000
Logging GPS trace
You can use the GPS data logger to record the trip automatically, and view your trace on
the Google map.
GPS Walker User Manual
11
1. Select Log Interval in the GPS menu, and then select an interval to set the time
interval for GPS position logging.
2. Select Mini Speed in the GPS menu, and then select a speed to set a value as the
minimum speed for position Logging.
3. The system will mark trace log automatically in the interval when the current speed is
above the min speed. The data is logged in standard NMEA format (GPS_WPT.BIN) in
folder GPS_DATA on the internal flash of the GPS device.
Going to the marked waypoint
Select Select Mark to select a history waypoint or set a waypoint as the destination in
Compass page. Follow the compass; it will guide you to the destination.
Tip: Push the control key up to select the latest waypoint quickly.
Viewing your trace on Google map
1. First we need records NMEA position data from the GPS data logger.
2. Select GPS in main menu, select Log interval and proper Mini Speed from the
submenu to log the position where you are. You can mark other tracks by the same
way. After the tracks have been marked, the device will create a record file
“GPS_WPT.bin” on its internal flash.
3. Connect your device to a computer.
4. Run the software “MINILINK.exe”. The screen shows the following information and the
number of GPS log files are automatically shown.
GPS Walker User Manual
12
5. Type a name for this group of log files and choose a place to save them by clicking
“Browse”.
z Select a file type which you want to transfer.
z You can also delete these logs under this function.
z Then click “Copy Logs to PC”.
z The folder in which you saved your log files will be open automatically.
GPS Walker User Manual
13
6. Go to Google home page (http://www.google.com) and click “Maps”.
Note: You must register in Google website and sign in beforehand.
7. Go to Maps and click “My maps”.
Click “Maps”
Click “My Maps”
GPS Walker User Manual
14
8. Go to My maps, and click “Get started”.
9. Type map title, and then click “Import”.
10. Click “Browse” to select map data. And then click “Upload from file”.
Click “Get started”
Here we can customize the title
Then click “Import”
Click “Browse” button to select
map data (Converted kml file)
GPS Walker User Manual
15

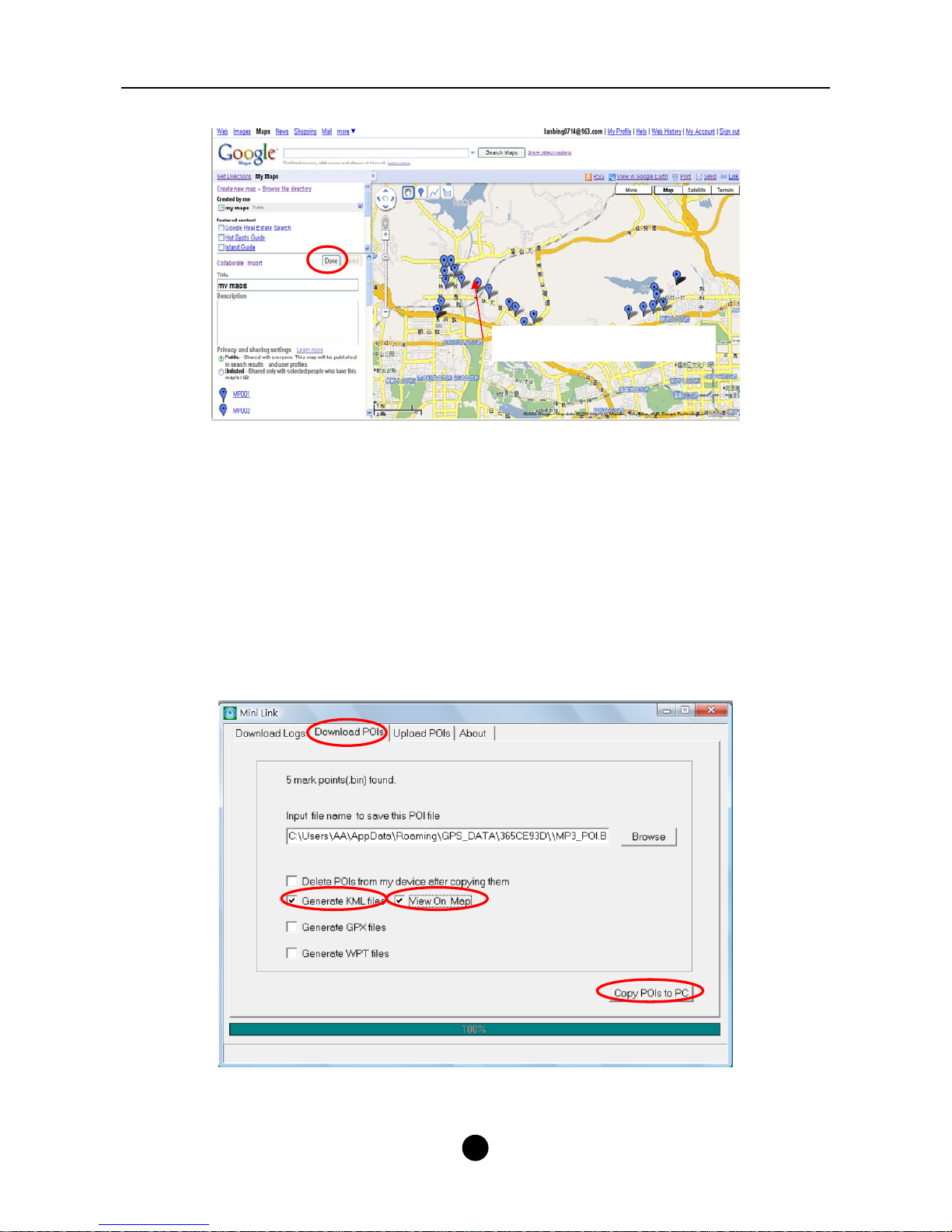

11. Click “Done”. The waypoints will be shown on the Google map.
Download POIs and Viewing them on Google map
z Input a file name.
z Click “Browse” to select a folder to save the POI.
z Choose a format. If you choose KML, the POIs can be viewed on Google earth
directly; and you can also view them on Google map directly by marking the View
on map.
Note: You must download Google earth beforehand.
z Click “Copy POIs to PC”.
z The POIs have been downloaded to the destination folder.
This is one of the waypoints
shown on the google map
GPS Walker User Manual
16
Uploading POIs to GPS data logger
z Choose a waypoint in KML file from Google earth or other map application.
z You can choose Append POI to Device or Copy POI to Device
z Append POI to Device will append new mark points to device, maximum 1000
points, and mark points in device will be overwritten by choosing Copy POI to
Device.
z You can set a POI as a destination by selecting Mark.
To catch a KML file from Google as a POI, follow the steps:
z Use “New Mark” to add a new mark
z Save it as a KML file and use the Upload function of MINILINK
GPS Walker User Manual
17
GPS Walker User Manual
18
Checking F/W version
z The F/W information is shown in it
Upgrading GPS Walker F/W
z Connect with a PC.
z Run the MP3Updater.exe. After the device is shown, click “Start”
z Click “OK” after the Pass information is shown.
O
K
GPS Walker User Manual
19
Battery
z For standalone applications, install a 1.5V AA battery into the battery compartment
first.
z Changing the battery, if “LowPower” appears on screen or buttons do not
response. The device shuts down automatically when the battery is low.
z The device playback, GPS on and standby time vary according to different types,
brands and capacity of battery.
z Remove the battery to avoid damage caused by electrolyte leakage if the device is
not going to be used for a long time.
CAUTION: Risk of explosion if battery is incorrectly replaced. Dispose of used
batteries according to the manufacturer’s instruction”
Troubleshooting
Symptoms Solutions
The volume level is too low to be heard. Increase the
volume level by pressing the volume + button.
No sound
The earphones may not be properly plugged into the
earphone socket. Re-plug the earphones into the
earphone socket carefully.
Intermission when playing music The battery is low. Please replace the battery.
Sound distortion The battery is very low. Please replace the battery.
Some music can’t be played
back.
The music files may be in an incompatible format.
Make sure the music files are in MP3 or WMA format.
No response to pressing buttons
The Hold function is activated. Press and hold the
Menu button to deactivate it. The player may
malfunction due to improper operation. Remove the
battery and reinstall it to reset the player.
Can not turn on the player after
formatting the player with
windows format tool.
The player may have been formatted with the NTFS
file system. Reformat the player into FAT or FAT32
file system with the same windows format tool.
The battery is dead. Charge the battery.
There is not enough space for system files.
Delete some files to free up space.
Can not turn on the player.
The player may have malfunctioned due to improper
operation. Remove the battery and reinstall it to reset
the player.
Can not receive GPS signal It can receive the GPS signal only in an open area.
GPS Walker User Manual
20
GPS Data Logger Specifications
Navigation features
Point to point
navigation
Mark and Go
Waypoints 1000 points
Data logger 2,000,000 points
Format support
Google Earth KML format supported
Standard GPX format supported
GPS performance
Chip SiRF Star III High Sensitivity
Frequency L1 1575.42MHz, C/A code
Channels Support 20 channels
Update rate 1 Hz
Hot start (Open Sky) < 2s
Acquisition time
Cold start (Open Sky) 37s (typical)
Position/Velocity 10m (2D RMS)/0.1 m/s without SA (autonomous mode)
Speed (max.) 515 m/s
Altitude (max.) 18000 m
Dynamics
Acceleration (max.) 4 g
Differential GPS SBAS
Antenna Built-in patch antenna
MP3
Format WMA/MP3
Equalizer Normal, rock, jazz, classic, pop, Xbass
Music play mode Normal, Repeat one, Repeat all, Shuffle, Repeat Shuffle
Background playing Support
FM
Auto / Manual Scan Support
20 Presets Support
Power
non-rechargeable rechargeable
Battery type
Zinc Carbon Alkaline
Nickel-metal hydride
HiMH
Only GPS data logger
enable
2 ~ 3 hrs 6 ~ 11 hrs 9 ~ 12 hrs
Only MP3 enable 6 ~ 10 hrs 18 ~ 20 hrs 15 ~ 17 hrs
Operation time
GPS data logger + MP3 2 hrs 5 ~ 9 hrs 8 ~ 10 hrs
Note:
The operation time is depending on battery brand, type, capacity and operation temperature.
For example, NiMH batteries have nominal charge capacities ranging from 1100 mAh to 2900
mAh at 1.2 V. The larger the capacity, the longer the operation time. Most batteries could
reduce capacity at low temperatures. The operation hour of different battery type above is
provided for reference only. For eco and economic reason, using rechargeable batteries is
encouraged.
Interfaces
Language
ENGLISH, 繁體中文, 简体中文
Data format
NMEA 0183
SiRF binary format
(firmware upgradeable)
GPS Walker User Manual
21
USB connector Mini USB
Earphone jack 3.5mm
OS support Micro soft® Windows 2000/XP/Vista/Win 7 TM
Storage Capacity Built-in NAND flash
Physical
Size 80 x 37.8 x 26.6 mm
Weight 35g (w/o battery)
Mode Black/White, FSTN, Transflective
Size 1.3inch (32mm x 16mm)
Resolution 128W x 64H pixel
Display
Backlight Blue
Environmental
Operating temp. -10°C ~ +40°C
Storage temp. -20°C ~ +55°C
EMC standard CE, FCC
Accessories
Earphone
USB cable
Standard
Neckstrap
Strap
Optional
Arm strap
Packing Blister
<Specifications are subject to change without notice>
Loading...
