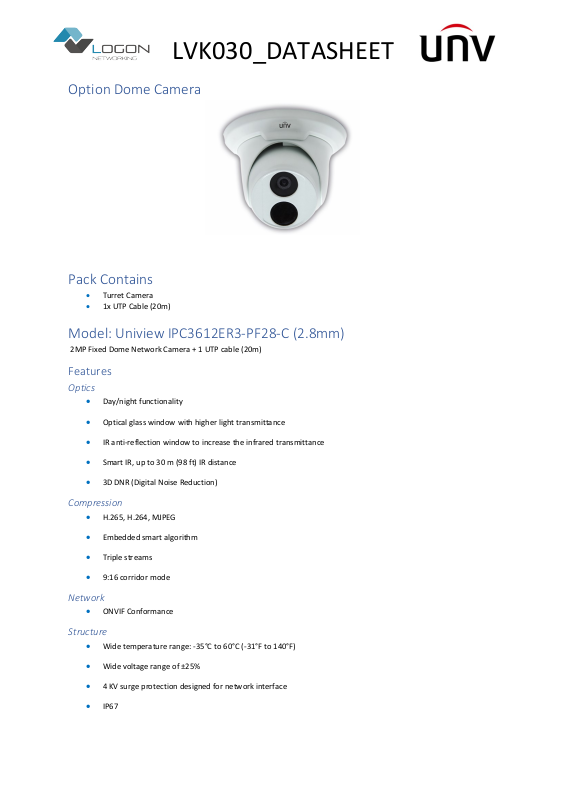

LVK030_DATASHEET
Option Dome Camera
Pack Contains
• Turret Camera
• 1x UTP Cable (20m)
Model: Uniview IPC3612ER3-PF28-C (2.8mm)
2MP Fixed Dome Network Camera + 1 UTP cable (20m)
Features
Optics
• Day/night functionality
• Optical glass window with higher light transmittance
• IR anti-reflection window to increase the infrared transmittance
• Smart IR, up to 30 m (98 ft) IR distance
• 3D DNR (Digital Noise Reduction)
Compression
• H.265, H.264, MJPEG
• Embedded smart algorithm
• Triple streams
• 9:16 corridor mode
Network
• ONVIF Conformance
Structure
• Wide temperature range: -35°C to 60°C (-31°F to 140°F)
• Wide voltage range of ±25%
• 4 KV surge protection designed for network interface
• IP67
Page 2
LVK030_DATASHEET
Specifications
Camera
• Sensor: 1/2.7", 2megapixel, progressive scan, CMOS
• Lens: 2.8mm @F1.8
• Angle of view(H): 109.9°
• Shutter: Auto/Manual, 1/6~1/100000 s
• Min. Illumination:
▪ Colour: 0.02 Lux (F1.8, AGC ON)
▪ 0 Lux with IR
• IR Range: Up to 30m (98 ft) IR range
• Day/Night: IR-cut filter with auto switch (ICR)
• S/N: >52dB
• WDR: Supported
• Noise Reduction: 2D/3D
Video
• Max. Resolution: 1920×1080
• Video Compression: H.265, H.264, MJPEG
• Frame Rate: 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 8 fps
• Video Streaming: Triple
• 9:16 Corridor Format: Supported
• ROI: Supported
• Evaluative Metering: Supported
• OSD: Up to 8 OSDs
• Privacy Mask: Up to 8 areas
Smart
• Behavior Detection: Intrusion, crossing line, motion detection
• Intelligent Identification: Face detection, Defcous, Scene Change
• Statistical Analysis: People counting
Network
• Protocols: L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP,
HTTP, HTTPS, SMTP, 802.1x
• Compatible Integration: ONVIF,API
Interface
• Network: 10M/100M Base-TX Ethernet
Page 3
LVK030_DATASHEET
General
• Power:
▪ 12 V DC, or PoE (IEEE802.3 af)
▪ Power consumption: Max 5.5W
• Dimensions (Ø x H): F126 x 94 mm (Ø5.0” x 3.7”)
• Weight: 0.33 kg (0.73lb)
• Working Environment: -35°C ~ +60°C (-31°F ~ 140°F), Humidity = 95% RH(non-condensing)
• Ingress Protection: IP67
