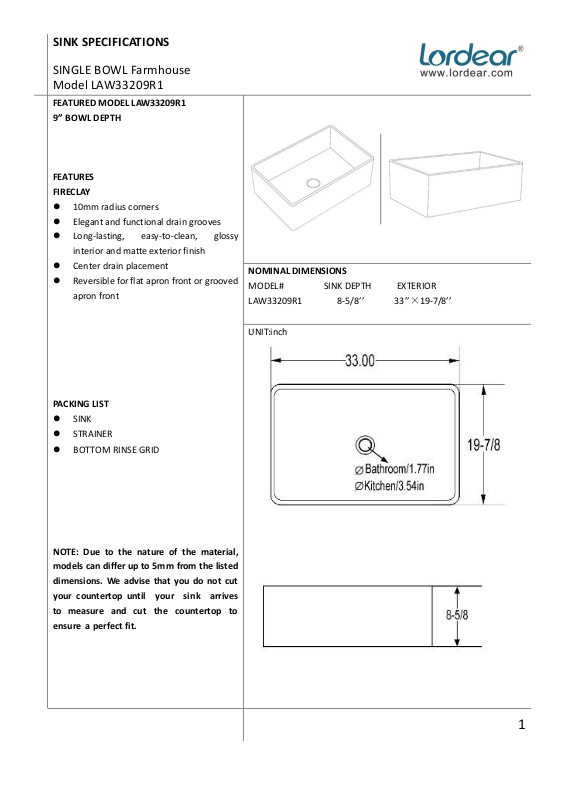

Page 1
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
Model LAW33209R1
FEATURED MODEL LAW33209R1
9’’ BOWL DEPTH
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAW33209R1 8-5/8’’ 33’’×19-7/8’’
UNIT:inch
1
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
Page 2
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.
UNIT: inch
Model LAW2418R1
FEATURED MODEL LAW2418R1
10’’ BOWL DEPTH
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAW2418R1 10.04’’ 24’’×18’’
2
Page 3
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
Model LAW3020R1
FEATURED MODEL LAW3020R1
10’’ BOWL DEPTH
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAW3020R1 10.04’’ 30.16’’×19.96’’
UNIT:inch
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
3
Page 4
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAW3318R2 10.04’’ 33.27’’×18.11’’
UNIT:inch
Model LAW3318R2
FEATURED MODEL LAW3318R2
10’’ BOWL DEPTH
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
4
Page 5
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
Model SAW3018R1
FEATURED MODEL SAW3018R1
10’’ BOWL DEPTH
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
SAW3018R1 10.04’’ 30.08’’×18.11’’
UNIT:inch
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
5
Page 6
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
UNIT:inch
Model LMAW32209R2
FEATURED MODEL LMAW32209R2
9’’ BOWL DEPTH
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LMAW32209R2 .’’ 32.08’’×19.68’’
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
6
Page 7
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
UNIT:inch
Model LAW30209R1
FEATURED MODEL LAW30209R1
9’’ BOWL DEPTH
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAW30209R1 .7’’ 30.16’’×19.96’’
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
7
Page 8
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
UNIT:inch
Model SAW3320R1
FEATURED MODEL MC-AW33R1
10’’ BOWL DEPTH
BOTTOM RINSE GRID
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
SAW3320R1 10’’ 33’’×19-7/8’’
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
8
Page 9
SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
FEATURES
FIRECLAY
10mm radius corners
Elegant and functional drain grooves
Long-lasting, easy-to-clean, glossy
interior and matte exterior finish
Center drain placement
Reversible for flat apron front or grooved
apron front
PACKING LIST
SINK
STRAINER
UNIT:inch
Model LAWH3019R1
FEATURED MODEL MC-AWH30R1
10’’ BOWL DEPTH
BOTTOM RINSE GRID
NOTE: Due to the nature of the material,
models can differ up to 5mm from the listed
dimensions. We advise that you do not cut
your countertop until your sink arrives
to measure and cut the countertop to
ensure a perfect fit.
NOMINAL DIMENSIONS
MODEL# SINK DEPTH EXTERIOR
LAWH3019R1 10’’ 30’’×19 ’’
9
Page 10
Installation instructions Farmhouse Sinks
General Recommendations:
Read installation and maintenance instructions thoroughly before installation. Inspect your sink for any noticeable
damage before installation. Check all local applicable plumbing and building codes.
These instructions are based on application to composite material or solid surface countertop installation only; countertop
application to stone, marble, granite or butcher-block should be referred to experienced countertop fabricator for custom
installation.
LORDEAR Farmhouse series sinks are individually hand-crafted and LORDEAR suggests using experienced and professional
installers only. For custom cutting of countertop and installation of the actual sink, on-site installation is also
recommended. Acceptable variances are approximately 1/2 of an inch. Alignment to cut-out and precise application and
trimming of any adhesive sealant are critical to a superior fit and finished look. Please take extra care in this regard.
LORDEAR Farmhouse series sinks require custom order cabinets. Consult your cabinet dealer.
LORDEAR does not accept any liability for damage to countertop, sink fixture, faucets or personal injury during installation.
Warranty is void if installation instructions are not followed.
Tools and Materials needed:
Tape Measure Denatured Alcohol Wood Braces
Pencil (NOT ink) Ear Protection Framing Square
Silicone Adhesive Sealant Eye Protection Shims
Rags Hacksaw/jigsaw
Be sure to use proper tools and always wear personal safety accessories for your protection.
10
Page 11
Installation Options:
LORDEAR Farmhouse series sinks offer installation options depending on your design.
Under mount Installation Flush mount Installation Above counter Installation
(Recommended)
Figure 1 Figure 2 Figure 3
Caution: All installation types need to allow room for faucet installation. Ensure adequate clearance behind the sink for
any faucet and backsplash, as well as range of motion for faucet spouts and handles.
Typical under mount installation with 1/4’’ reveal recommended.
Figure 4 Figure 5
Typical flush mount and above counter installation.
Above counter installation may expose sink sides to be raised above the countertop.
Figure 6 Figure 7
Contact your retailer if any product is damaged or missing prior to installation. Never install a damaged sink as it can void
your warranty.
11
Page 12
1. Prepare the sink base cabinet
Farmhouse sinks require custom order sink base cabinets with a front
cutout to accommodate a 10’’ deep sink. Build structural supports on the
inside frame of the sink base cabinet. The structural supports must
support the weight of the sink and any attachments such as garbage
disposals. When the sink is placed onto the cabinet support, make sure
the top of the sink is evenly flush against the bottom of the countertop.
Allow clearance for water supply line and drains or garbage disposal, as
necessary.
2. Make template and cutout
Depending on the installation option, make proper cutout of the
countertop. LORDEAR recommends a 1/4’’ reveal on 3 sides when
installed under mount style. For a flush mount or above counter
installation, cut countertop along with outside of sink profile. Front end of
LORDEAR Farmhouse sinks are designed to be installed 3/4’’ extended out
beyond the front end of the countertop. Cut countertop accordingly. No
template is provided due to the custom nature of each application and
installation. The actual sink is used as the template guide for each
installation. After centering the sink and allowing for faucets and
backsplashes, use a pencil to outline the sinks as your guide for the cutout,
allowing for any reveal before the actual cutting.
3. Set the sink
Set the sink on top of the cabinet or into the cabinet front cutout. Apply
sealant if necessary as a gasket between the sink and cabinet.
4. Install the countertop
Carefully clean bottom of countertop and top flange of sink with denatured
alcohol. Apply bead of silicone adhesive (not supplied) around the top edge of
the sink. Place countertop onto the sink. Recommended by manufacture of
adhesive sealant.
12
Page 13
Care and Maintenance
ALWAYS
Clean everyday by thoroughly rinsing with a mild soap and warm water and wipe dry.
Rub lightly with a soft cloth in the direction of grain lines on a regular basis for additional preventative cleaning.
Keep the sink free of any standing water as this can cause a buildup of mineral deposit, which can affect the
appearance of your sink.
Always rinse the sink after using any cleaning agent and wipe dry. Clean any mineral deposits built up over time
with a mild solution of vinegar and water followed by a thorough flushing with water.
NEVER
Use a steel wool or scoring pad as it damages the sink surface and causes discoloration.
Let household cleaning agents or bleach sit in your sink for long period of time as this may ruin the finish of your
sink.
Leave rubber mats, sponges, or cleaning pads in the sink for long period of times as this may ruin the finish of
your sink.
Use any drain cleaning products containing sulfuric acid or hydrochloric acid as this will attack the sink. Sliver
cleaners can also contain acids that will damage the sink surface.
Use the inside of the sink as cutting surface.
13
Page 14
LORDEAR warrants the product to be free from defects in workmanship and materials under normal use and service
for the penod commencing from the initial date of purchase by the owner or end-user, contractor, or builder, from
LORDEAR or an authorized LORDEAR dealer, through the lifetime of the original owner or end-user.
one (1) year from the initial date of purchase, any product reported to the authorized dealer or to LORDEAR as
being defective within the warranty period will be repaired or replaced or replaced (with a product of equal value) at the
option of LORDEAR . This warranty extends to the original owner or end-user and is not transferable to a subsequent
owner.
Limitations
This warranty shall not apply to instances of incorrect operating procedures, breakages, or damages caused by fault
through improper installation, carelessness, abuse, misuse. Misapplication, improper maintenance, or alteration of the
product, as well as chemical or natural corrosion, accident, fire, flood, an act of god, or any other casualty. Avoid abrasive
cleaners, steel wools, and harsh chemicals as these will scratch, damage, and/ or dull the product and / or finish and void
this warranty. The owner/end-user of the product covered by the present warranty is entirely responsible for its proper
installation and any applicable plumbing or electrical wiring, LORDEAR neither installs nor supervises the installation
nor hires a contractor for this purpose; consequently. LORDEAR cannot be held responsible for any default, breakage or
damages caused thereby or resulting thereof, either directly or indirectly.
LORDEAR is a leading luxury kitchen and bath products manufacturer. We firmly believe that only the best designs
and highest quality materials can meet the way you live. So our team combine the needs of the times and the market to
develop new styles of products. Using new technology and high quality materials to design the unique and practical
faucet、 Kitchen sink and other accessories. reduce installation time, save water, and add durability and dependability,
LORDEAR products are your best choice to.
E-mail: [email protected]
URL:www.lordear.com
14
Loading...
