Operation Manual Network Camera logiware IPC1901A
i
Operation Manual Network Camera
logiware IPC1901A
Default: DHCP, Fallback IP: 192.168.178.178
Username: admin, Password: admin
logiware gmbh
Alfred-Mozer-Str. 51
D-48527 Nordhorn
Tel: +49 (0)5921 7139925
Fax: +49 (0)5921 7139929
Internet: https://www.go1984.com
E-Mail Sales: [email protected]
Page 2
Operation Manual Network Camera logiware IPC1901A
ii
Table of Contents
1 Network Config ...........................................................................................................................1
1.1 Network Connection ....................................................................................................1
1.2 Log in ...........................................................................................................................2
2 Live .............................................................................................................................................6
2.1 Encode Setup ..............................................................................................................7
2.2 System Menu ...............................................................................................................7
2.3 Video Window Function Option ...................................................................................8
2.4 Video Window Setup ...................................................................................................9
2.4.1 Image Adjustment ................................................................................................9
2.4.2 Original Size .......................................................................................................10
2.4.3 Full Screen .........................................................................................................10
2.4.4 Width and Height Ratio ......................................................................................10
2.4.5 Fluency Adjustment ............................................................................................10
2.4.6 Rules Info ...........................................................................................................10
3 Setting ......................................................................................................................................11
3.1 Camera ......................................................................................................................11
3.1.1 Conditions ...........................................................................................................11
3.1.2 Video ..................................................................................................................21
3.2 Network ......................................................................................................................27
3.2.1 TCP/IP ................................................................................................................27
3.2.2 Port .....................................................................................................................29
3.2.3 PPPoE ................................................................................................................30
3.2.4 DDNS .................................................................................................................31
3.2.5 SMTP (Email) .....................................................................................................32
3.2.6 UPnP ..................................................................................................................33
3.2.7 Bonjour ...............................................................................................................34
3.2.8 Multicast .............................................................................................................35
3.2.9 802.1x .................................................................................................................36
3.2.10 QoS.....................................................................................................................36
3.2.11 ONVIF Access ....................................................................................................38
3.3 Event ..........................................................................................................................39
3.3.1 Video detection ...................................................................................................39
3.3.2 Smart Plan ..........................................................................................................44
3.3.3 Intelligence Behavior Analytics ..........................................................................45
3.3.4 Abnormality .........................................................................................................50
3.4 Storage Management ................................................................................................51
3.4.1 Schedule .............................................................................................................51
3.4.2 Destination ..........................................................................................................55
3.4.3 Record control ....................................................................................................57
Page 3
Operation Manual Network Camera logiware IPC1901A
iii
3.5 System .......................................................................................................................58
3.5.1 General ...............................................................................................................58
3.5.2 Account ...............................................................................................................60
3.5.3 Safety .................................................................................................................64
3.5.4 Default ................................................................................................................75
3.5.5 Import/Export ......................................................................................................75
3.5.6 Auto Maintenance ..............................................................................................76
3.5.7 Upgrade ..............................................................................................................76
3.5.8 Version ...............................................................................................................77
3.5.9 Log ......................................................................................................................77
3.5.10 Online User .........................................................................................................78
4 Alarm ........................................................................................................................................79
5 Log out......................................................................................................................................80
Page 4
Operation Manual Network Camera logiware IPC1901A
1
1 Network Config
1.1 Network Connection

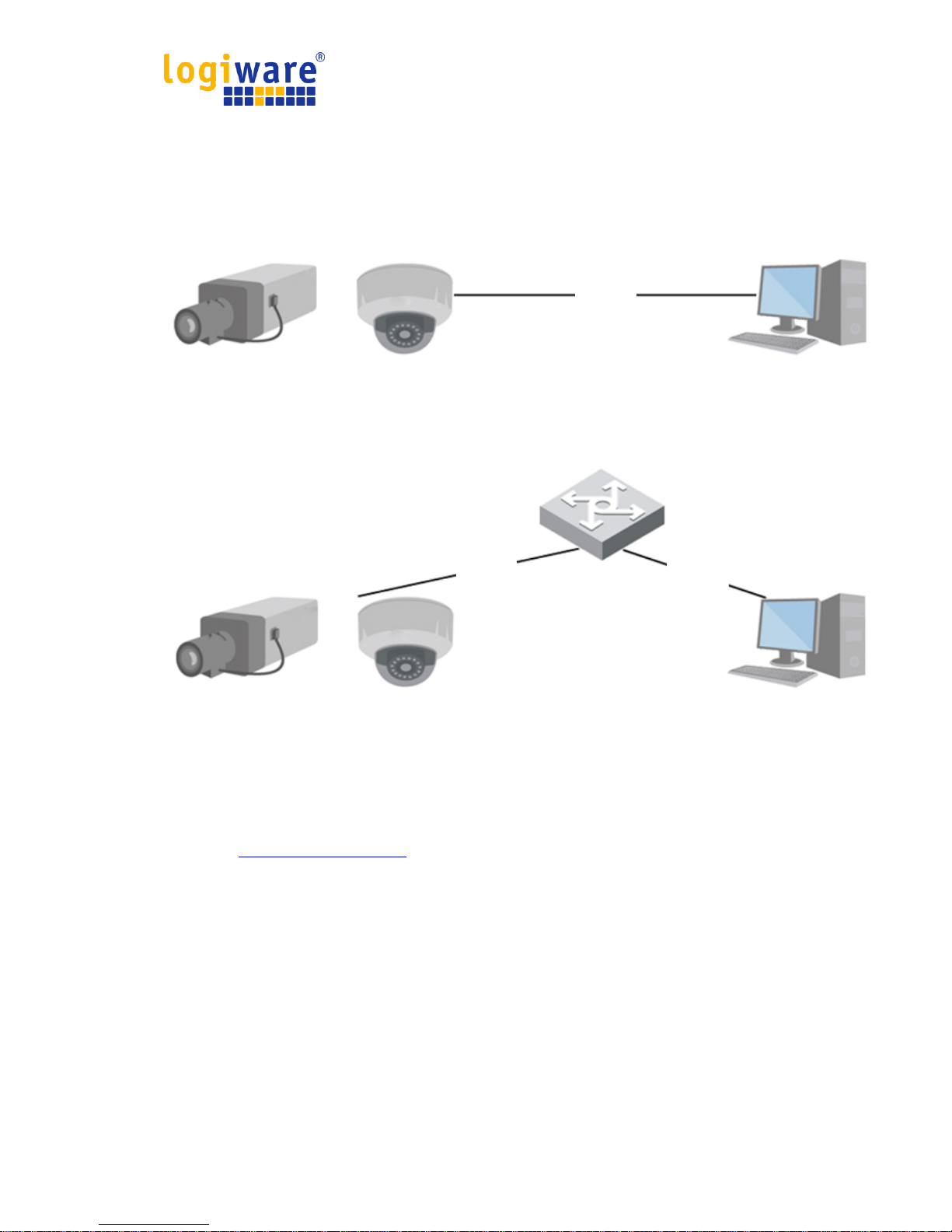

Network camera and PC connection mainly has two ways, see Figure 1-1 and Figure 1-2.
Figure 1-1
Figure 1-2
To access the network camera, you need to know its IP address. The default IP address is
192.168.178.178 if there is no DHCP server in the network. The user can use the configuration
tool to find the IP address of the network camera. The configuration tool can be found on our
website at https://www.go1984.com. The default username is admin, and the default password is
also admin. You should change the default password after logging in for the first time.
switch or
router
cable
cable
cable
Page 5
Operation Manual Network Camera logiware IPC1901A
2
1.2 Log in
It needs to install WEB plug-in when you use WEB client for the first time, the exact operation
steps are shown as follows:
Open Internet Explorer and enter the address of the network camera in the address bar. The
default IP address is 192.168.178.178 if there is no DHCP server in the network.

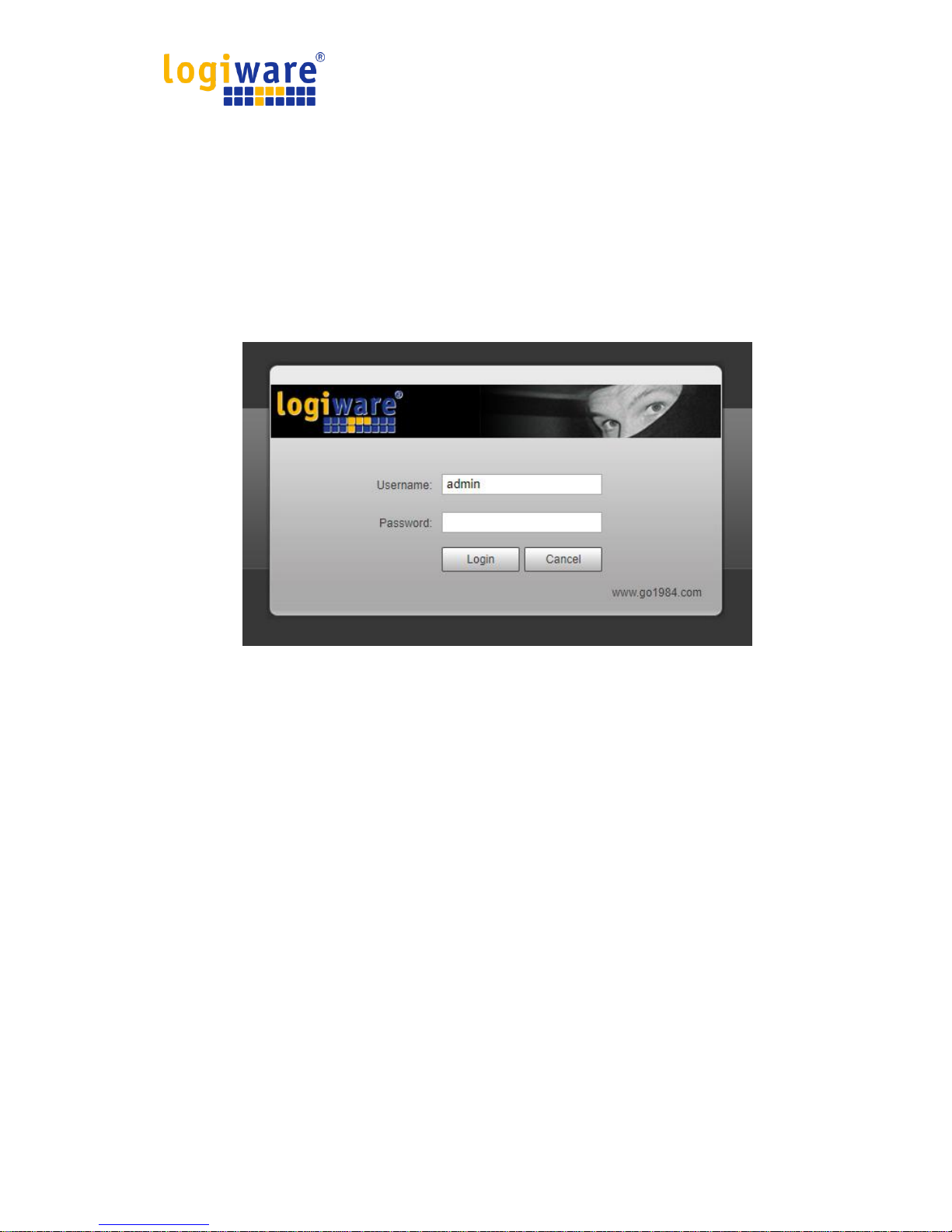

After successful connection, the login interface is shown as in Figure 1-3; input your username
and password. Default factory username is admin and password is admin.

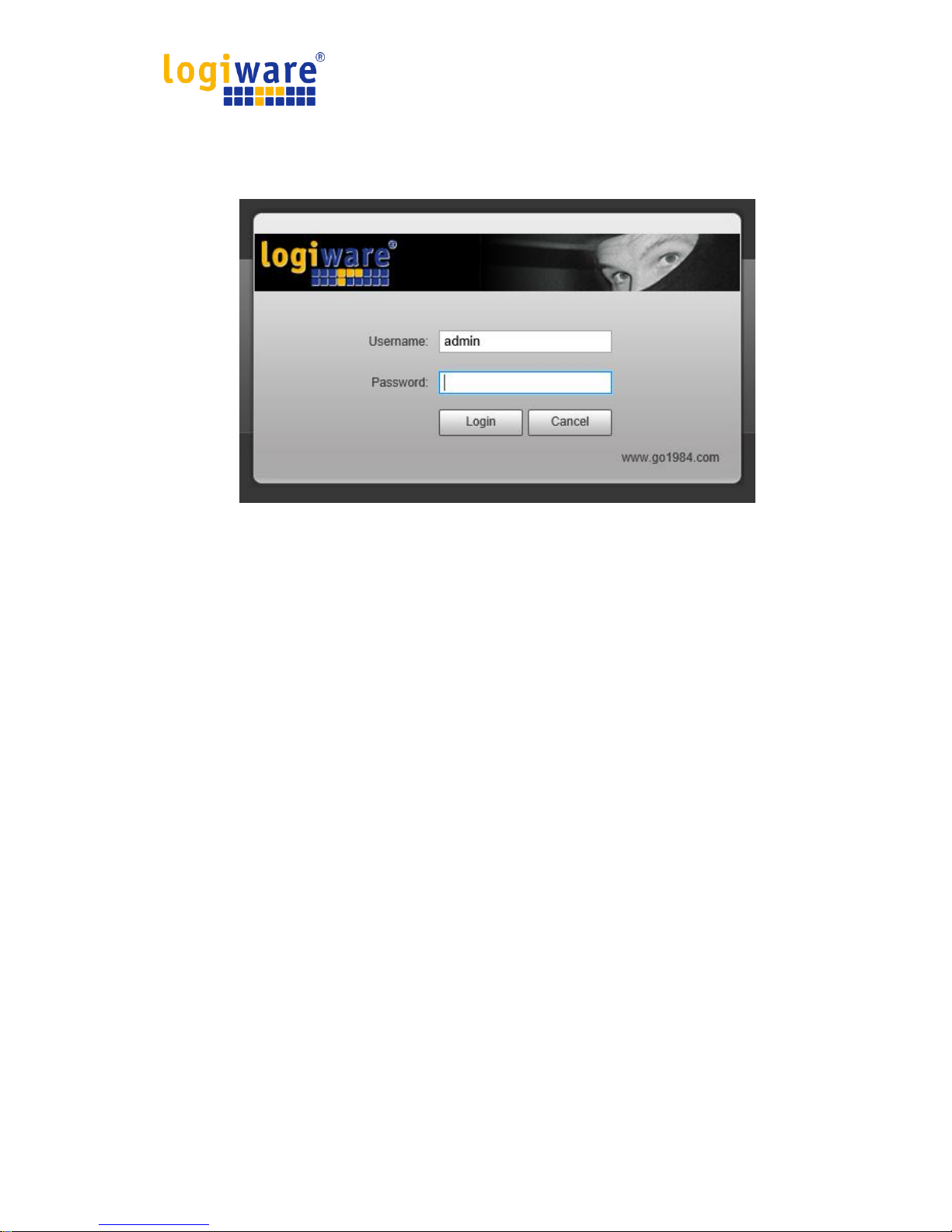

Figure 1-3
Page 6
Operation Manual Network Camera logiware IPC1901A
3
After successful login, you may see the interface shown as in Figure 1-4.
Figure 1-4

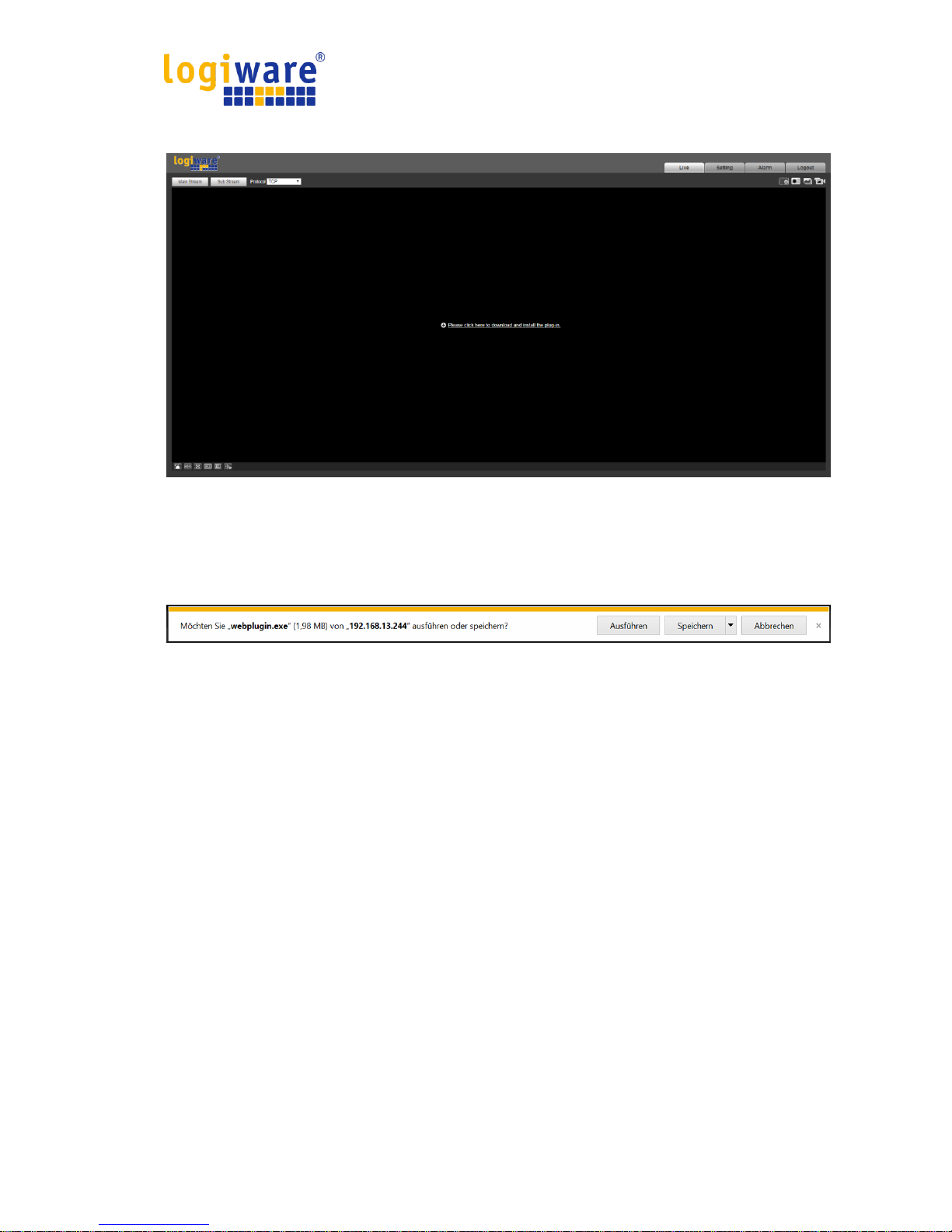

Click on “Please click here to download and install the plug-in”. The system pops up warning
information to ask you whether run or save this plug-in. See Figure 1-5.
Figure 1-5
Page 7
Operation Manual Network Camera logiware IPC1901A
4

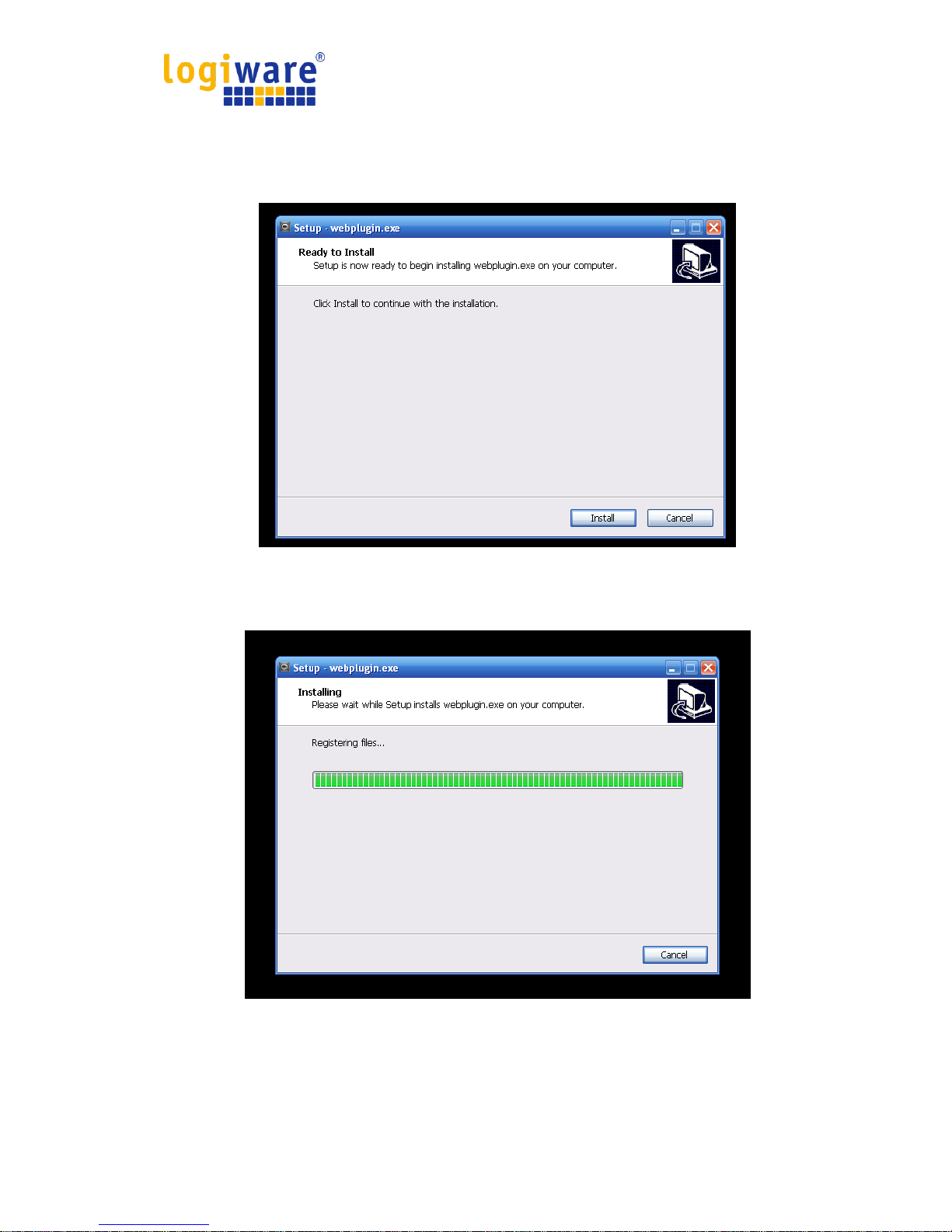

You must either run or save the file to local and install it. Follow the following steps. Click on run,
you will see Figure 1-6 and Figure 1-7.
Figure 1-6
Figure 1-7
Page 8
Operation Manual Network Camera logiware IPC1901A
5
When plug-in installation completes, the installation page closes automatically. The web-end will
refresh automatically, and then you can view video captured by the camera.
Figure 1-8
Page 9
Operation Manual Network Camera logiware IPC1901A
6
2 Live

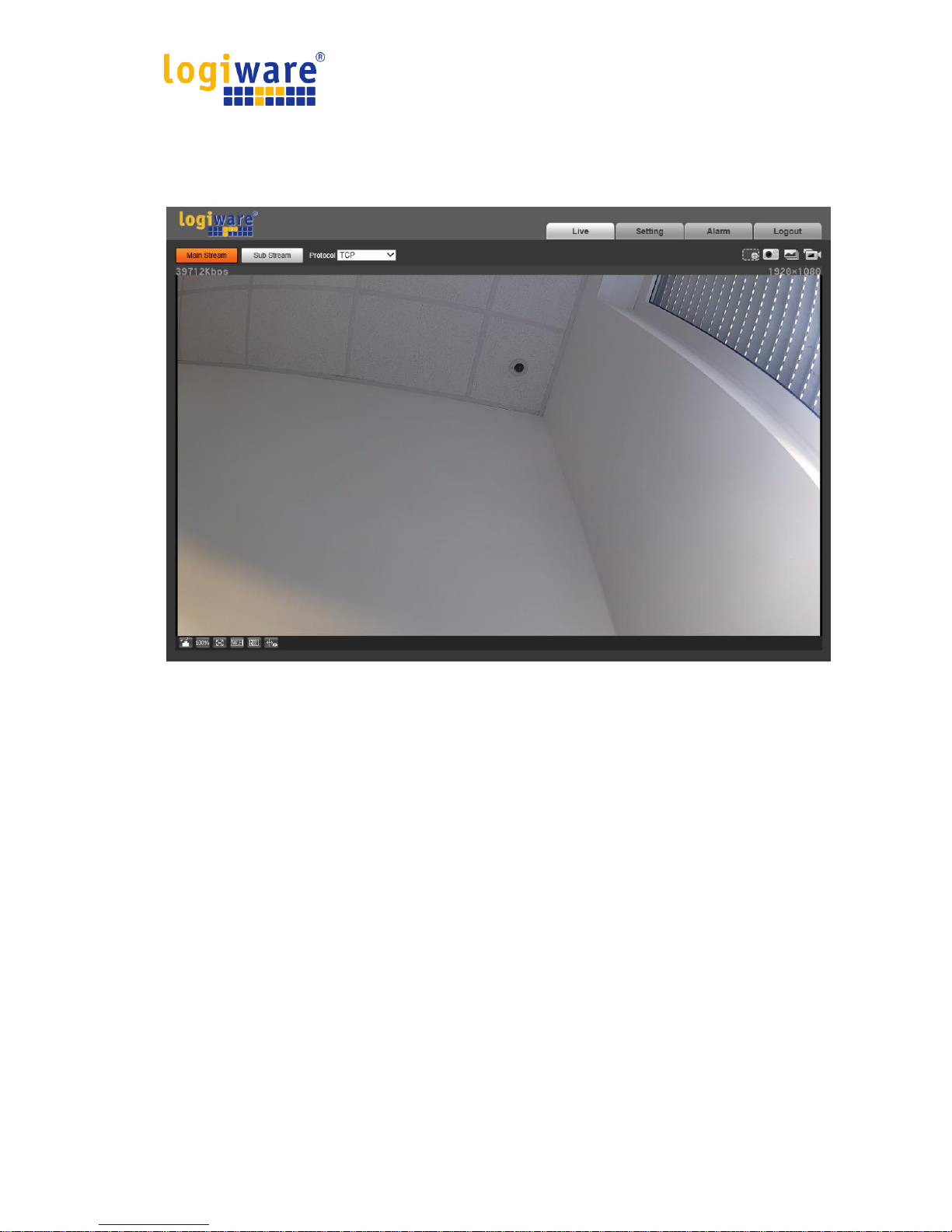

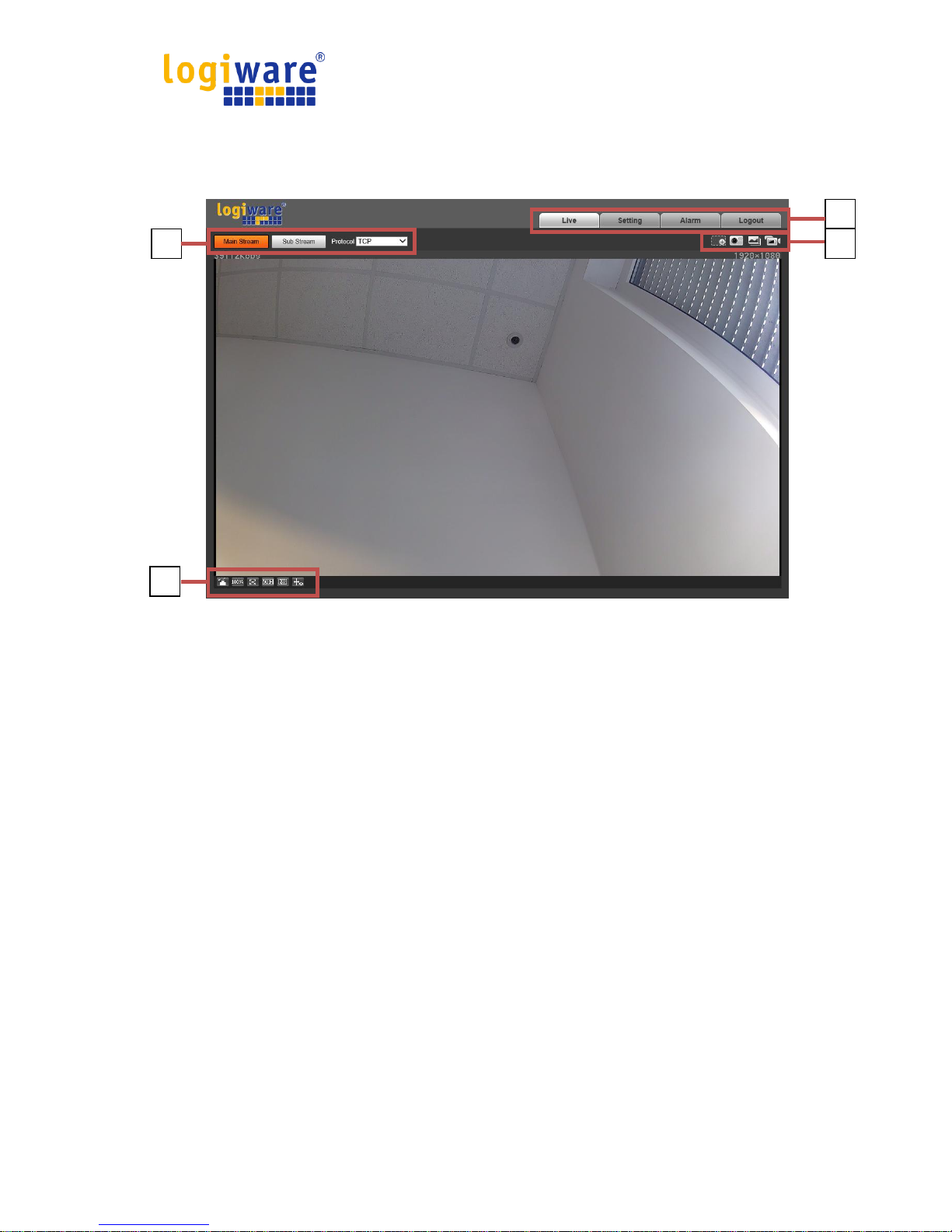

After you logged in, you can see the live monitor window. See Figure 2-1.
Figure 2-1
There are four sections:
Section 1: Encode setup bar
Section 2: System menu
Section 3: Window function option bar
Section 4: Window adjust bar
2 3 4
1
Page 10
Operation Manual Network Camera logiware IPC1901A
7
2.1 Encode Setup
Note: Some series don’t support sub stream 2.
The encode setup interface is shown as in Figure 2-2.

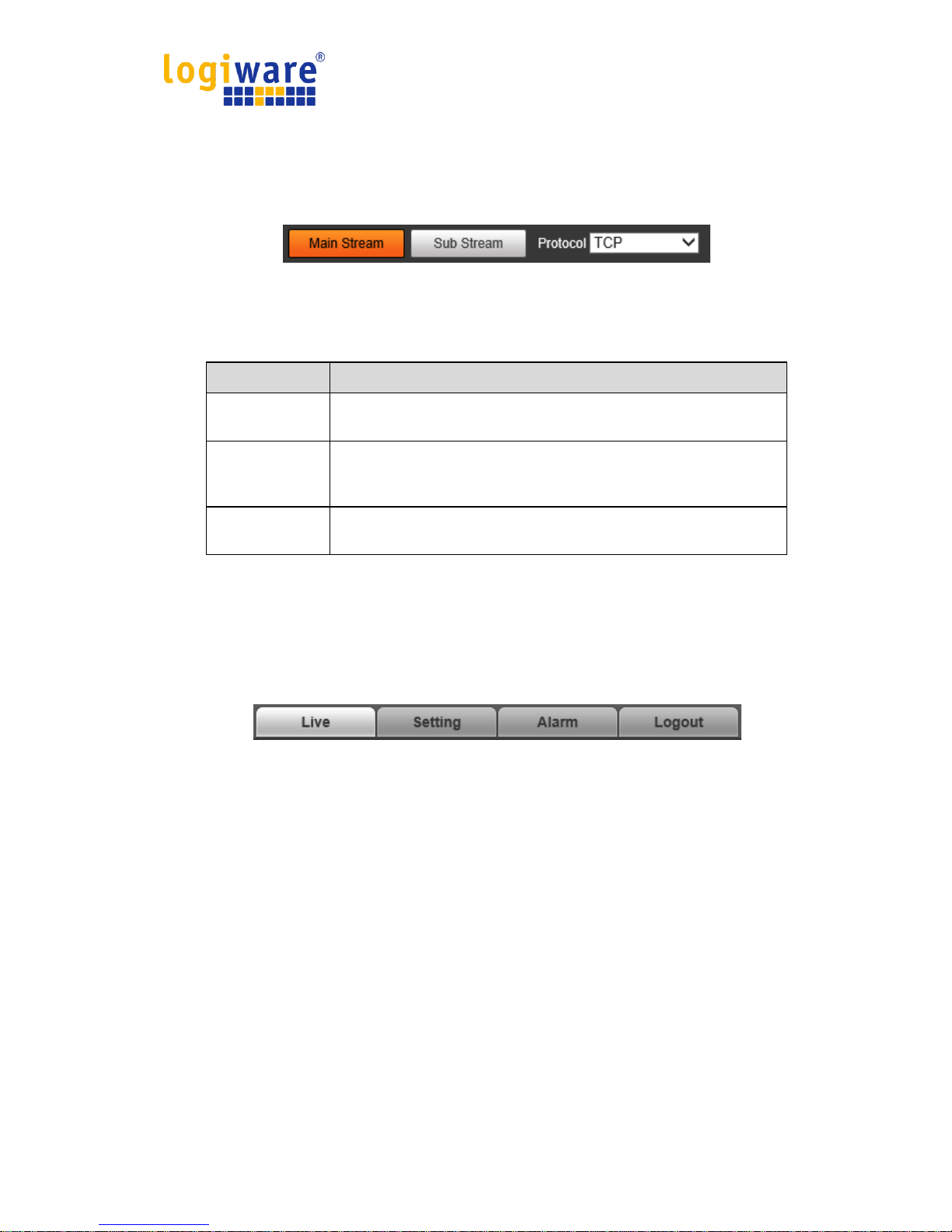

Figure 2-2
Please refer to the following sheet for detailed information.
Parameter
Function
Main stream
Click it to enable main stream video monitoring and click again
to disable it. Generally for storage and monitor.
Sub Stream
Click it to enable Sub Stream video monitoring and click again to
disable it. When network bandwidth is insufficient, it substitutes
main stream for monitoring.
Protocol
You can select stream media protocol from the dropdown list.
There are three options: TCP/UDP/Multicast
2.2 System Menu
System menu is shown as in Figure 2-3.
Please refer to chapter 2 Live, chapter Setting, chapter 4 Alarm, chapter 5 Log out for detailed
information.
Figure 2-3
Page 11
Operation Manual Network Camera logiware IPC1901A
8
2.3 Video Window Function Option
The interface is shown as below. See Figure 2-4.
Figure 2-4

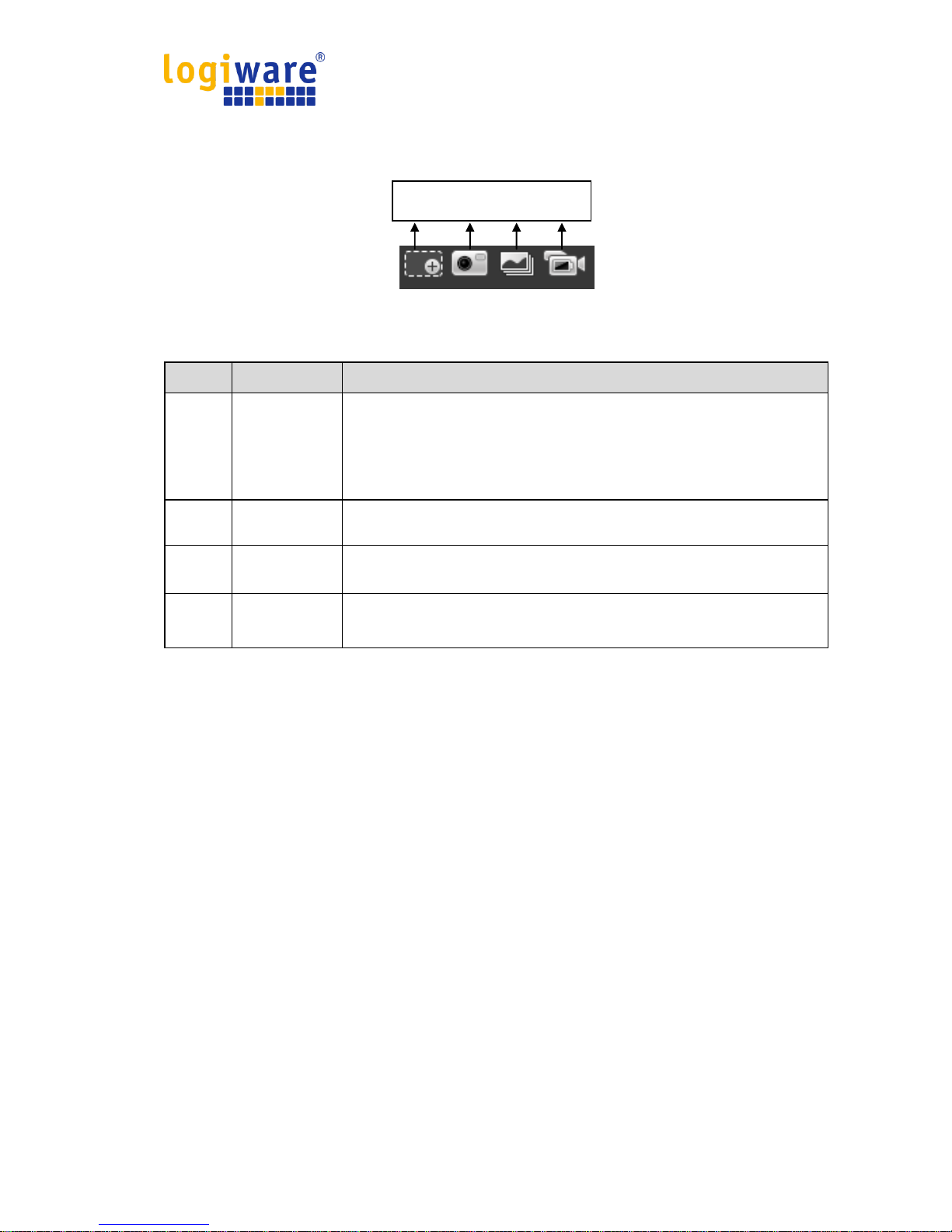

Please refer to the following sheet for detailed information.
SN
Parameter
Function
1
Digital Zoom
When the video is in the original status, click it you can select
any zone to zoom in. In the non-original status, you can drag the
zoom-in zone in specified range. Right click mouse to restore
previous status.
Click it; you can use the middle button of the mouse to zoom
in/out the video size.
2
Snapshot
Click on the button to snapshot, save picture to path in Ch 3.1.2.5.
3
Triple
Snapshot
Click it to take snapshot upon the video at the frequency of one
picture per second. All images are saved to path in Ch 3.1.2.5.
4
Record
Click it to record the video. All videos are saved to path in Chapter
3.1.2.5.
1 2 3 4
Page 12
Operation Manual Network Camera logiware IPC1901A
9
2.4 Video Window Setup
The interface is shown as in Figure 2-5.
Figure 2-5
2.4.1 Image Adjustment

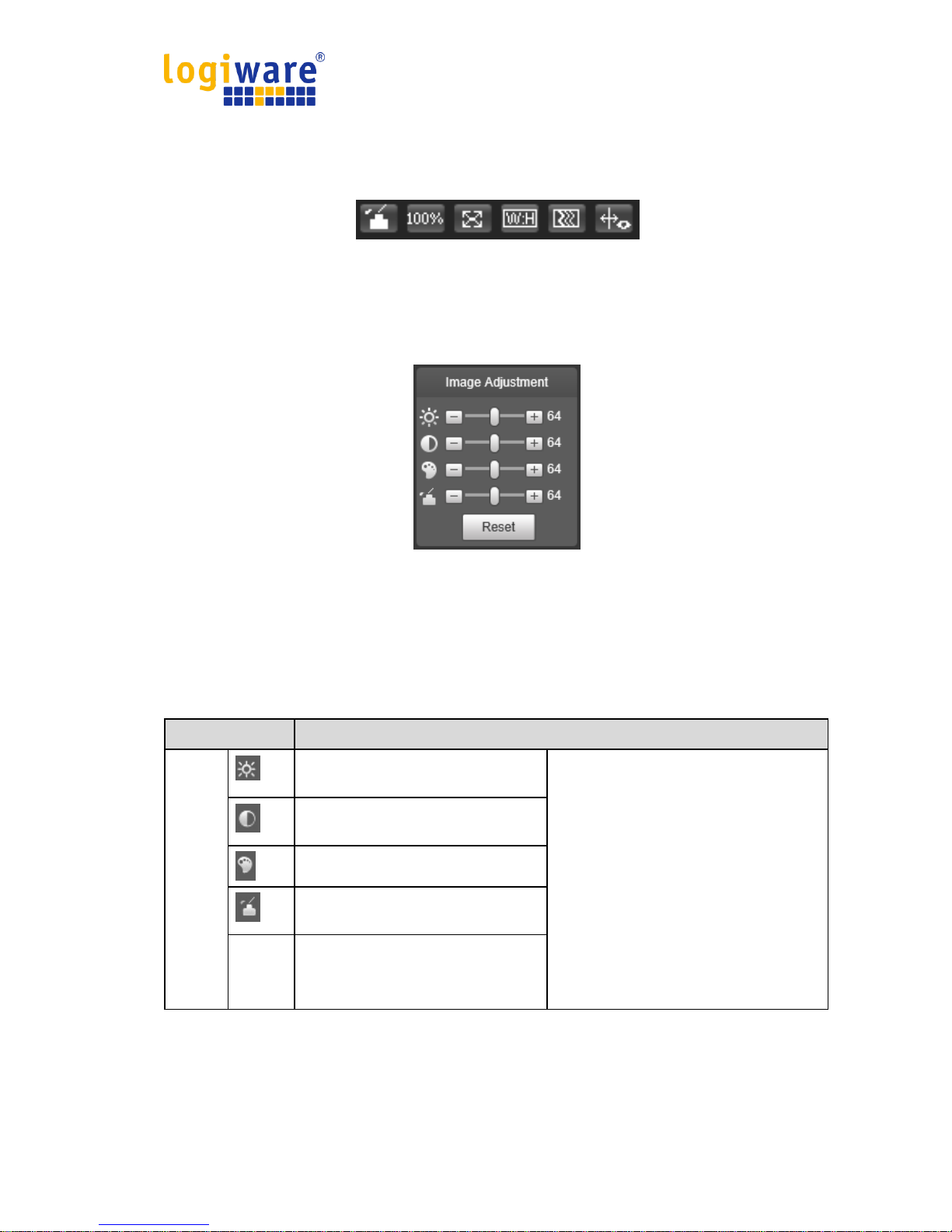

See Figure 2-6 for image adjustment.
Figure 2-6
Click this button to display/hide image control interface. Click it to open picture setup interface.
This interface is on the top right pane.
Please refer to the following sheet for detailed information.
Parameter
Function
Video
setup
It is to adjust monitor video
brightness.
Note:
All the operations here apply to
WEB end only.
Please go to Setup->Camera
->Conditions to adjust
corresponding items.
It is to adjust monitor video
contrastness.
It is to adjust monitor video hue.
It is to adjust monitor video
saturation.
Reset
R
e
Restore brightness, contrastness
saturation and hue to system
default setup.
Page 13
Operation Manual Network Camera logiware IPC1901A
10
2.4.2 Original Size
Click this button to go to original size. It is to display the actual size of the video stream. It
depends on the resolution of the bit stream.
2.4.3 Full Screen
Click it to go to full-screen mode. Double click the mouse or click the Esc button to exit the full
screen.
2.4.4 Width and Height Ratio
Click it to restore original ratio or suitable window.
2.4.5 Fluency Adjustment
There are three levels of fluency for you to select (Realtime, Normal, and Fluency). The default is
normal.
2.4.6 Rules Info
Click the button, preview image will display intelligent rules after enabling; it is “enable” by default.
Page 14
Operation Manual Network Camera logiware IPC1901A
11
3 Setting
Web client setup support camera, network, time, storage, system and system info view.
3.1 Camera
The camera setting includes conditions, profile management, zoom and focus.
3.1.1 Conditions
Note:
The camera parameter may be different according to different models, please refer to the actual
product for more details.
3.1.1.1 Picture
Step 1

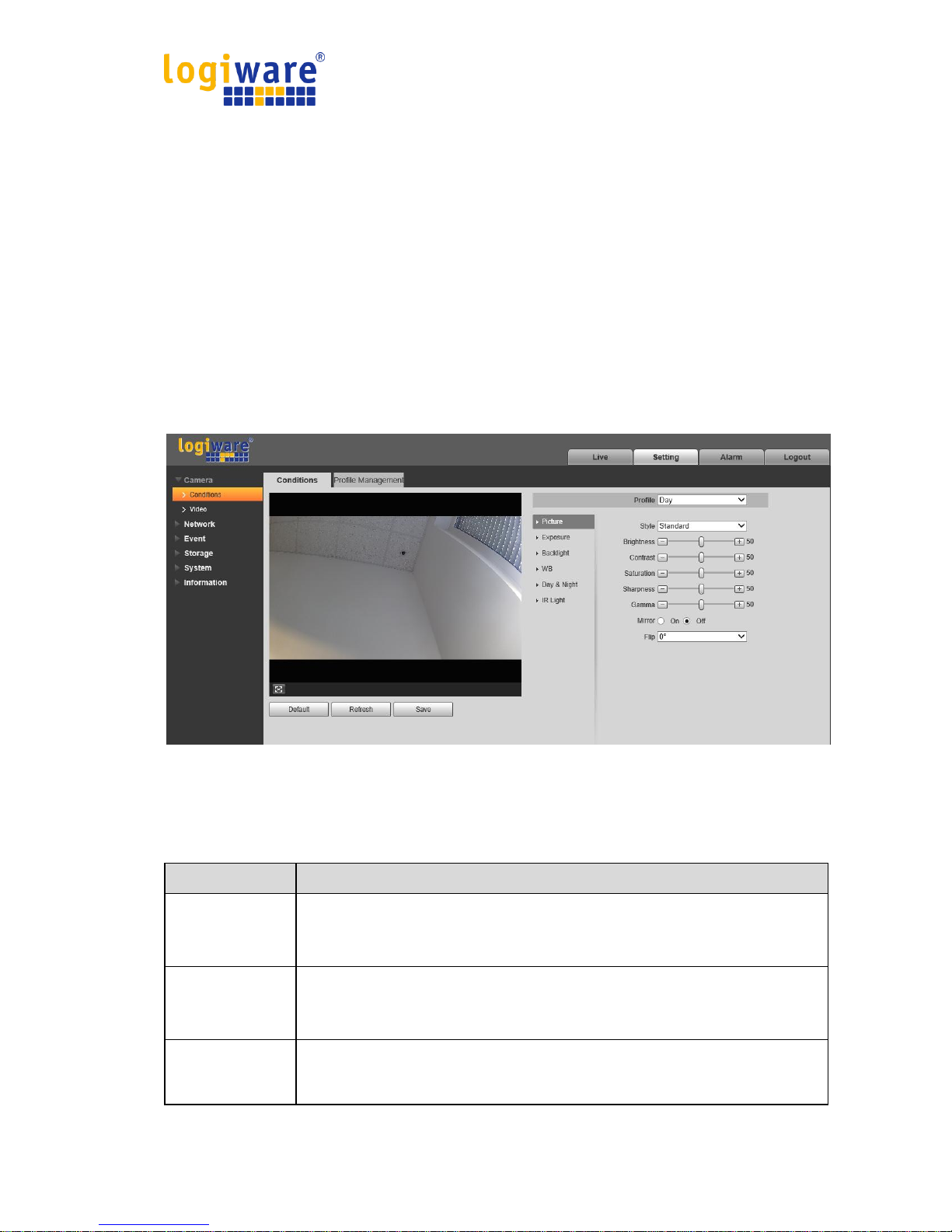

Select “Setting > Camera > Conditions > Picture” and the system will display the “Picture” image
which is shown in Figure 3-1.

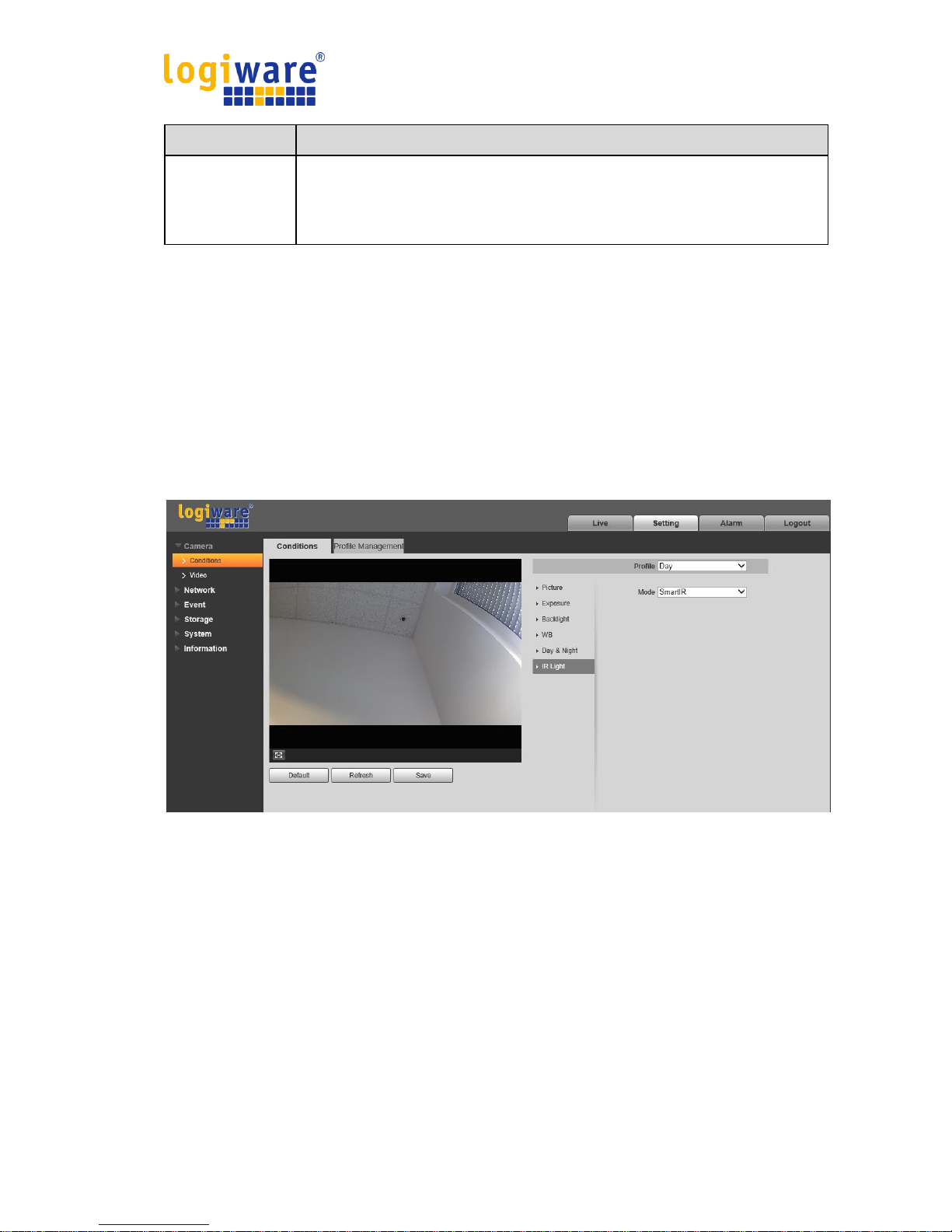

Figure 3-1
Step 2
Set picture parameters; please refer to the following sheet for more details about parameter
setting.
Parameter
Note
Style
It is to set the picture style, which includes standard, soft and vivid.
Brightness
It is to adjust the image overall brightness via linear adjustment mode. The
larger the number is, the brighter the picture is, and on the contrary it is
opposite. The picture get blurry easily when the value is set too big.
Contrast
It is to adjust the picture contrast. The bigger the value is, the bigger the
bright contrast becomes, and on the contrary it is smaller. The dark area
becomes darker and the bright area becomes overexposed easily when the
Page 15
Operation Manual Network Camera logiware IPC1901A
12
Parameter
Note
value is set too big. The picture becomes blurry when the value is set too
small.
Saturation
It is to adjust the color darkness and lightness. The color becomes darker
when the value is bigger; on the contrary it becomes lighter. The value
causes no influence to the overall brightness of the image.
Sharpness
It is to adjust the sharpness level of the picture edge. The bigger the
sharpness value is, the more obvious the image edge becomes, the image
is likely to generate noise more easily when the value is set too big.
Gamma
It is to change image brightness and improve the dynamic display range of
the image via nonlinear adjustment mode. The bigger the value is, the
brighter the picture becomes, and on the contrary it is opposite.
Mirror
After mirror is enabled, the monitoring image will be displayed invertedly.
Flip
It is to change the display direction of the monitoring image.
It includes following options:
Normal: The monitoring picture is normally displayed.
Flip mode 1: The monitoring picture is displayed with clockwise rotation
90°
Flip mode 2: The monitoring picture is displayed with anticlockwise
rotation 90°
180°: The monitoring picture is displayed upside down.
Note:
Please set the video resolution as 1080P or lower when applying flip mode
for some devices.
Step 3
Click “Save” and complete the image parameter configuration of the camera.
3.1.1.2 Exposure
Step 1
Select “Setting > Camera > Conditions > Exposure”. The system will display the “Exposure”
interface which is shown in Figure 3-2.
Page 16
Operation Manual Network Camera logiware IPC1901A
13
Figure 3-2
Step 2
It is to set the exposure parameter, please refer to the following sheet for more details.
Parameter
Note
Anti-flicker
You can switch to exposure mode when it is in outdoor mode,
it can realize the result in the corresponding exposure mode.
50Hz: When the current is 50Hz, system can auto adjust the
exposure according to the environment brightness in case
there is any stripe.
60Hz: When the current is 60Hz, system can auto adjust the
exposure according to the environment brightness in case
there is any stripe.
Mode
It is the camera exposure mode.
Note:
When “Anti-flicker” is “Outdor”, the “exposure mode” can be
set as “gain priority” or “shutter priority” mode.
Different devices have different exposure modes; please refer
to the actual interface.
It includes the following options:
Auto: It can auto adjust the image brightness according to the
environment.
Gain priority: The device can auto adjust according to the gain
range which is set by priority during normal exposure range
according to the different scene brightness. The device will
auto adjust shutter value if the image brightness fails to reach
the effect and the gain value has reached to upper limit or
lower limit, which is to make the image reach the best
brightness.
Shutter priority: The device can auto adjust according to the
shutter range which is set by priority during normal exposure
Page 17
Operation Manual Network Camera logiware IPC1901A
14
Parameter
Note
range according to the different scene brightness. The device
will auto adjust shutter value if the image brightness fails to
reach the effect and the shutter value has reached to upper
limit or lower limit, which is to make the image reach the best
brightness.
Manual: It is to manually set gain value and shutter value,
adjust the the displayed brightness of the image.
3D NR
It is to process the image with multiframe (at least two frames), it
can realize noise reduction of the image by using the interframe
information between the previous and latter frame.
Grade
It can set the parameter when “3D NR” is enabled.
The bigger the grade is, the better NR effect it can realize.
Step 3
Click “Save” to complete the parameter configuration of camera exposure.
3.1.1.3 Backlight
Backlight mode can be divided into BLC, WDR and HLS.
BLC: it can avoid cucoloris phenomenon of the darker area in the backlight environment.
WDR: It can suppress the overbright area and compensate darker area by enabling WDR, which
can make the overall image clear.
HLC: It is to weaken the high light, which can be applied in the areas such as toll gate, entrance
and exit of the parking lot and etc. As for extreme light, it can snapshot the human face in the
dark environment and it can realize better effect for the details of the plate number.
Step 1
Select “Setting > Camera > Condition > Backlight”, the system will display the interface of
“Backlight” which is shown in Figure 3-3.
Page 18
Operation Manual Network Camera logiware IPC1901A
15

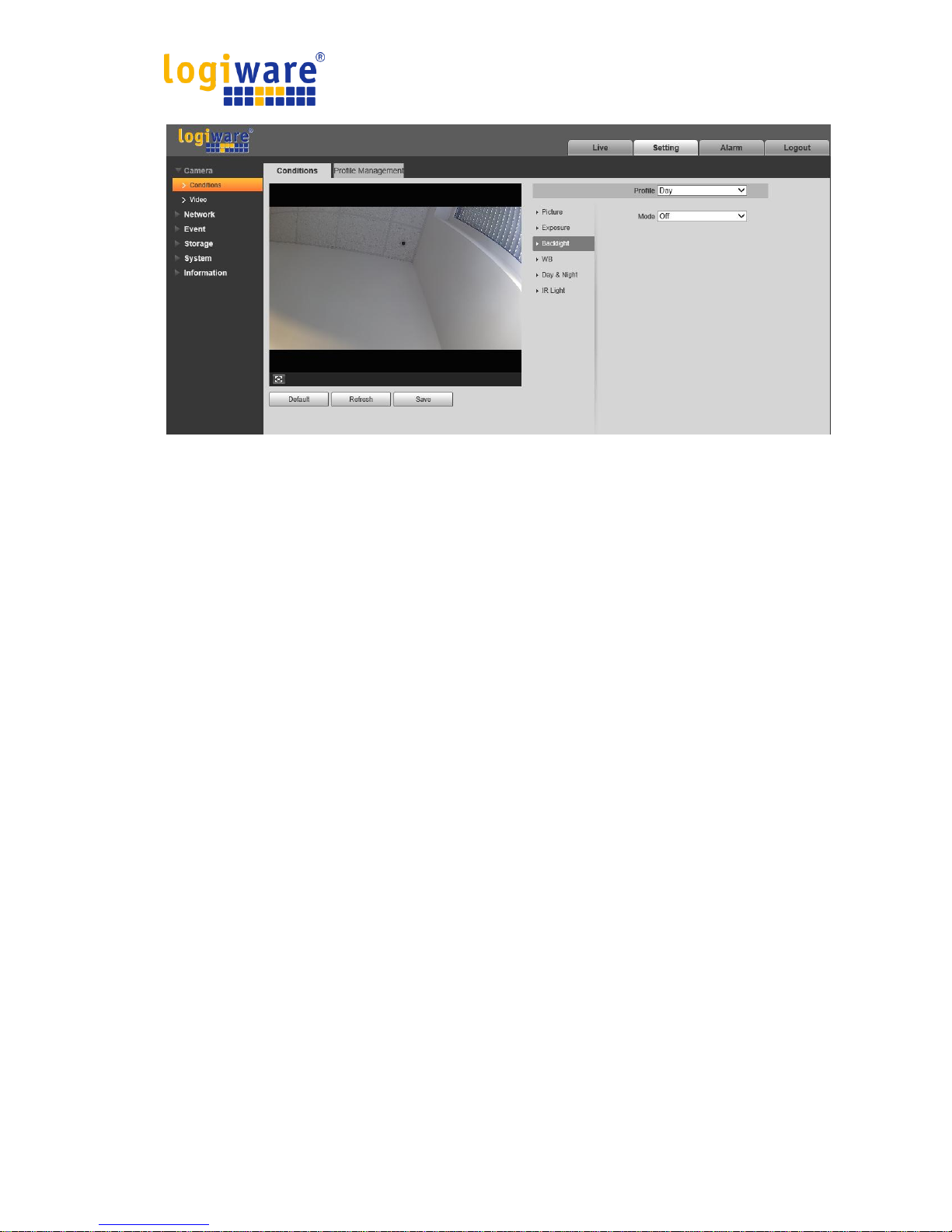

Figure 3-3
Step 2
Set the backlight parameter.
When the “Mode” is set as “Scene Self-adaptation”, the system will auto adjust the image
brightness according to the environmental brightness, which is to make the object display
clearly in the scene.
When the “Mode” is set as “BLC”, it can select default mode or customized mode.
When selecting “Default” mode, the system can realize auto exposure according to the
environment, which is to make the image in the darkest area clear to be seen.
When selecting “Customized” mode, the system can realize exposure upon the
selected area after it set customized area, which is to make the image of the selected
area reach appropriate brightness.
When the “Mode” is set as “WDR”, it will lower the brightness of the area with high
brightness and enhance the brightness of the area with low brightness, which is to make the
objects in both high brightness and low brightness area display clearly.
Note:
There may be video loss of a few seconds when the camera is switched from non WDR mode to
WDR mode.
When the “Mode” is set as “HLC”, the system will constrain the brightness of the area with
high brightness and decrease the size of the halo area, which is to lower the brightness of
the whole image.
Step 3
Click “Save” to complete the configuration of the backlight mode.
Page 19
Operation Manual Network Camera logiware IPC1901A
16
3.1.1.4 WB
WB is used to restore the white object in the scene by the camera, after WB mode is set, it can
make the white object look white in different environments.
Step 1

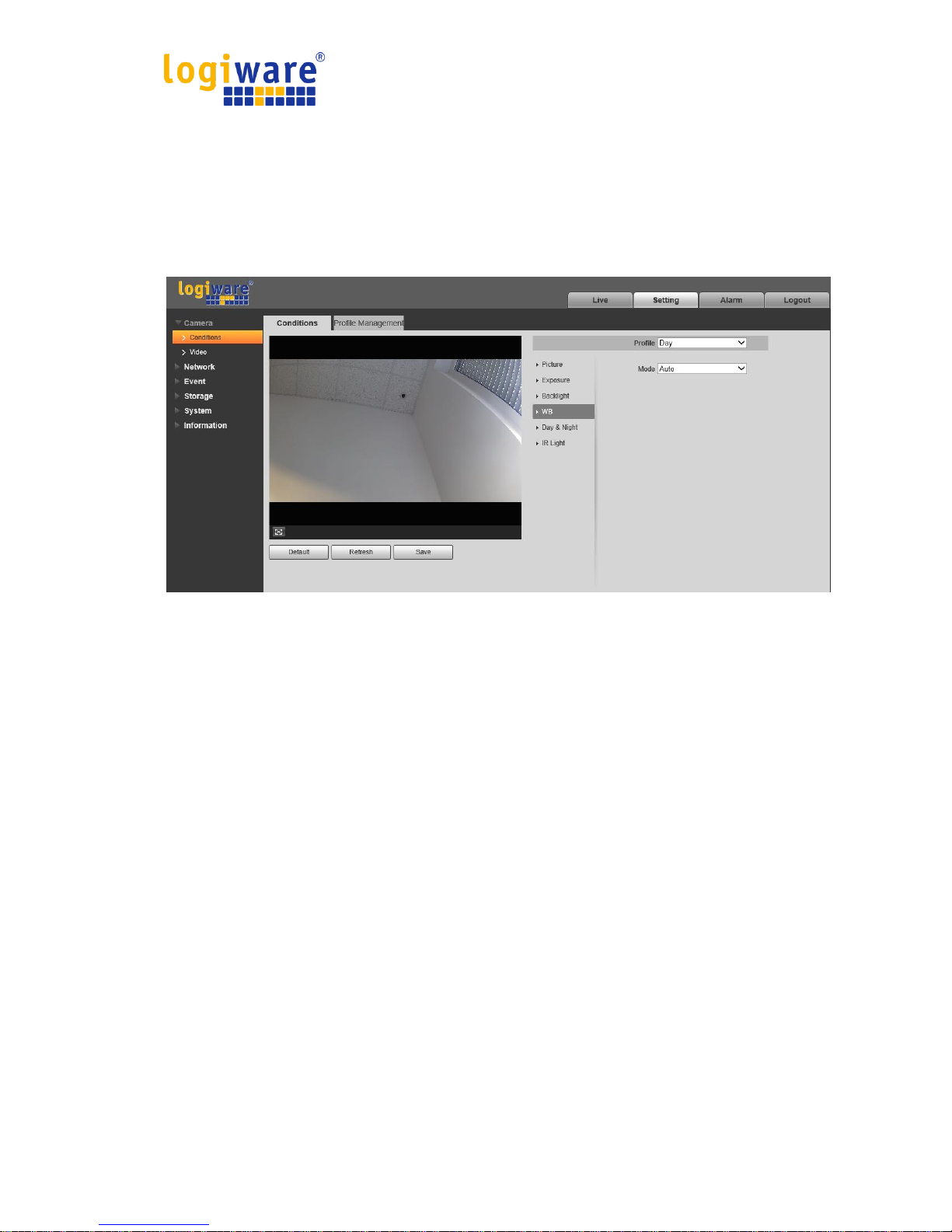

Select “Setting > Camera > Conditions > WB”, the system will display the interface of “WB”, which
is shown in Figure 3-4.
Figure 3-4
Step 2
Set WB mode.
When the “Mode” is set as “Auto”, the system can auto compensate white balance upon
different color temperatures, which is to make the image color normal.
When the “Mode” is set as “Natural”, the system can auto compensate white balance to the
scene without artificial light, which is to make the image color normal.
When the “Mode” is set as “Street Lamp”, the system can auto compensate white balance to
the outdoor scene at night, which is to make the image color normal.
When the “Mode” is set as “Outdoor”, the system can auto compensate white balance to the
most outdoor scenes with natural light and artificial light, which is to make the image color
normal.
When the “Mode” is set as “Manual”, it can manually set the value of red gain and blue gain;
the system can compensate the different color temperatures in the environment according to
the settings.
When the “Mode” is set as “Regional Custom”, it is to set customized area, the system can
compensate white balance to different color temperature of the images in the area, which is
to make the image color normal.
Page 20
Operation Manual Network Camera logiware IPC1901A
17
Step 3
Click “Save” to complete the configuration of WB mode.
3.1.1.5 Day & Night
It is to set the switch between color mode and black & white mode.
Step 1

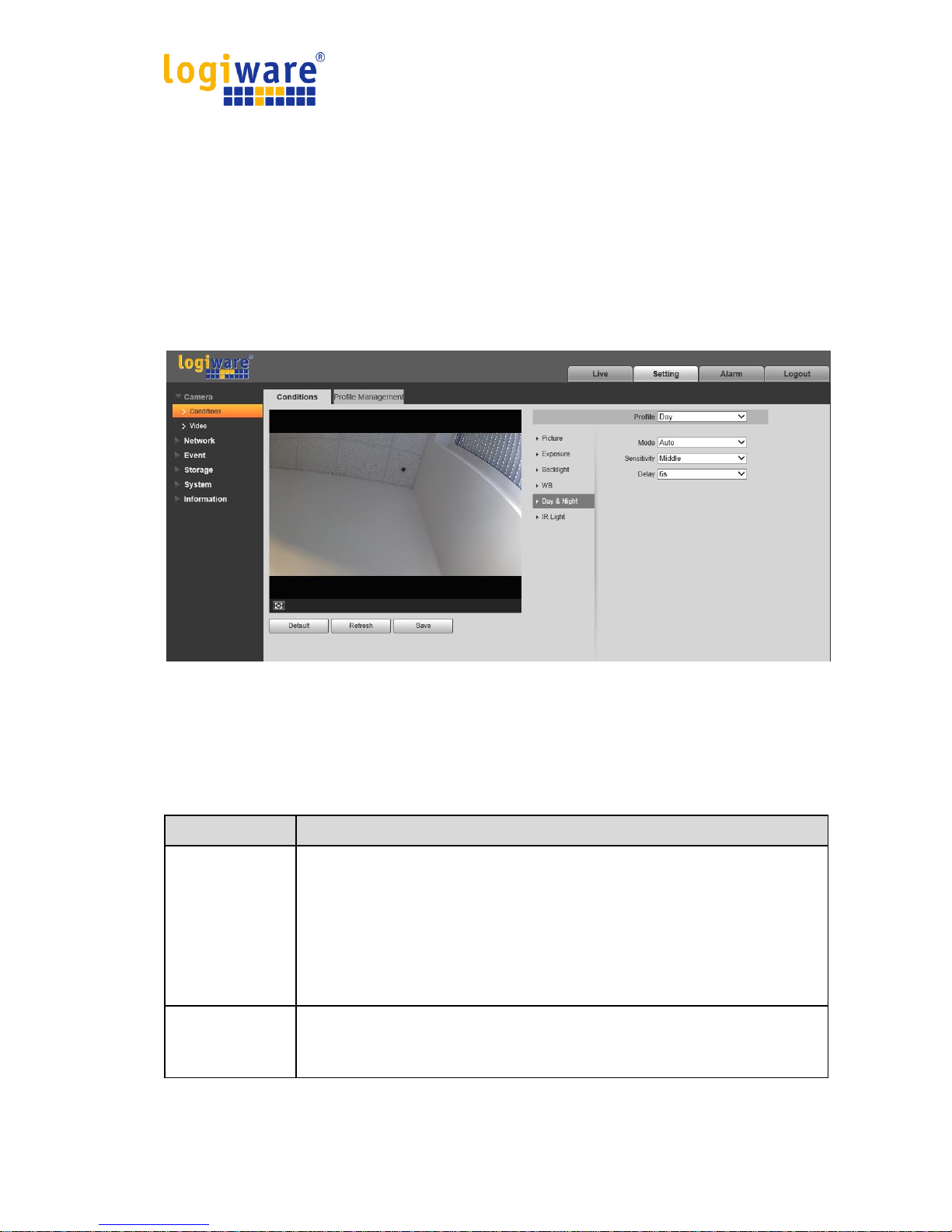

Select “Setting > Camera > Conditions > Day & Night” and the system will display the interface of
“Day & Night”, which is shown in Figure 3-5.
Figure 3-5
Step 2
Set day & night parameter; please refer to the following sheet for more details.
Parameter
Note
Mode
It is to set the camera image displayed as color or black & white mode.
Note:
The setting of “Day/Night Mode” is not affected by the setting of “Profile
Management”.
It includes the following options:
Color: The camera image is displayed as color image.
Auto: The camera can auto select color image or black & white image
to be displayed according to the environmental brightness.
Black & white: The camera image is displayed as black & white image.
Sensitivity
The parameter can be set when the “Day/Night Mode” is “Auto”.
It is to set the sensitivity of the switch between image color display and
black & white display.
Page 21
Operation Manual Network Camera logiware IPC1901A
18
Parameter
Note
Delay
The parameter can be set when the “Day/Night Mode” is “Auto”.
It is to set the switch delay between image color display and white & black
display. The smaller the delay is, the faster of the switch becomes between
color display and black & white display.
Step 3
Click “Save” to complete the configuration of day/night mode.
3.1.1.6 IR Light
You can directly set the mode of IR light if the device is equipped with IR light.
Step 1
Select “Setting > Camera > Conditions > IR Light” and the system will display the interface of “IR
Light” which is shown in Figure 3-6.
Figure 3-6
Step 2
It is to set IR light mode according to the actual scene.
When the “Mode” is set as “Manual”, it can manually set the brightness of IR light; the system
will realize light compensation to the image according to the IR light intensity.
When the “Mode” is set as “Smart IR”, the system can adjust the light brightness according to
the actual scene.
When the “Mode” is set as “Zoomprio”, the system can auto adjust the IR light according to
the brightness change of the actual scene.
Page 22
Operation Manual Network Camera logiware IPC1901A
19
The system will enable near light by priority when the actual scene becomes dark, the
system will enable the far light when the near light fails to meet the requirement of
scene brightness even if it is adjusted to the brightest.
The system will adjust far light brightness by priority to off and then adjust the
brightness of near light when the actual scene becomes bright. The system will always
disable far light when the focal length of the lens is adjusted to a certain wide angle,
which is to avoid near overexposure. Meanwhile, it can manually set light
compensation to slightly adjust the brightness of IR light.
When the “mode” is set as “Off”, it will not enable the IR light.
Step 3
Click “Save” and complete the configuration of IR light.
3.1.1.7 Profile Management
Step 1
Select “Setting > Camera > Conditions > Profile Management” and the system will display the
interface of “Profile Management”.
Step 2
Set profile management.
When the “Profile Management” is set as “Normal”, the system will monitor according to the
normal config.
Figure 3-7

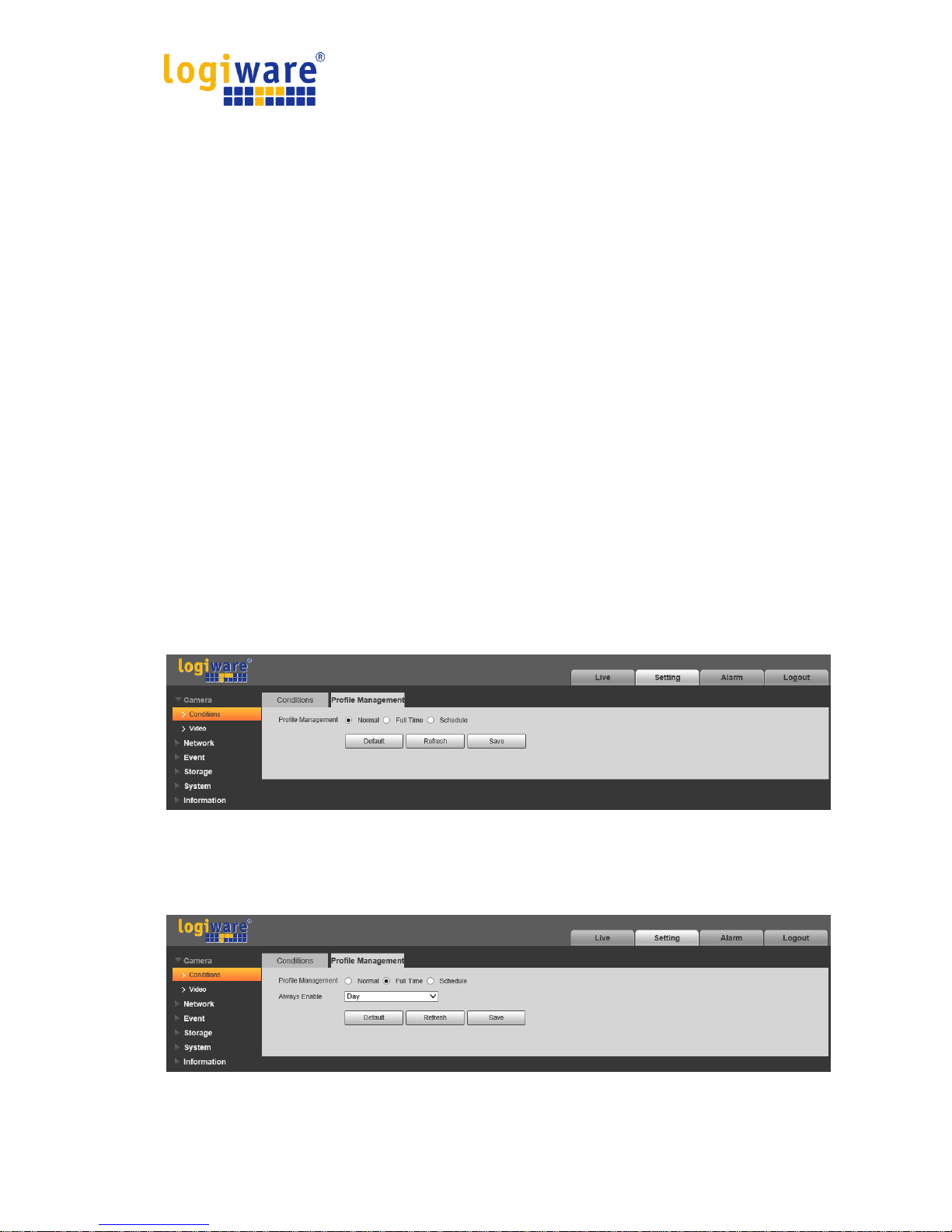

When the “Profile Management” is set as “Full Time”, you can select “Always Enable” in “Day”
or “Night’, the system will monitor according to the configuration of “always enable”.
Page 23
Operation Manual Network Camera logiware IPC1901A
20
Figure 3-8

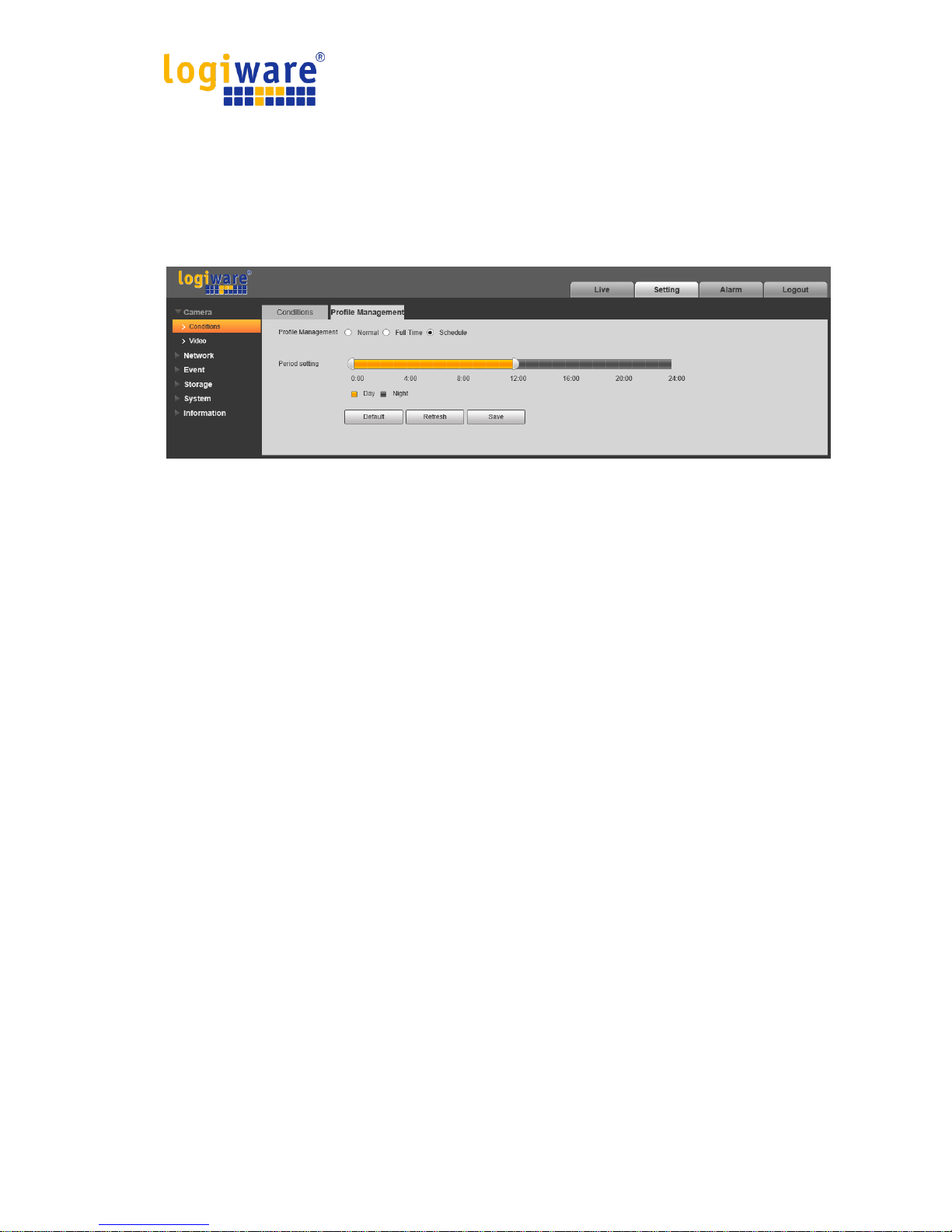

When the “Profile Management” is set as “Schedule”, you can set some period as day and
another period as night, for example, if it sets 0:00~12:00 as day, 12:00~24:00 as night, then
the system will monitor by adopting corresponding configuration in different periods.
Figure 3-9
Step 3
Click “Save” to complete the settings of profile management.
Note:
Click “Default” to restore the device to default config; click “Refresh” to check the latest
configuration file of the device.
Page 24
Operation Manual Network Camera logiware IPC1901A
21
3.1.2 Video
3.1.2.1 Video
Step 1

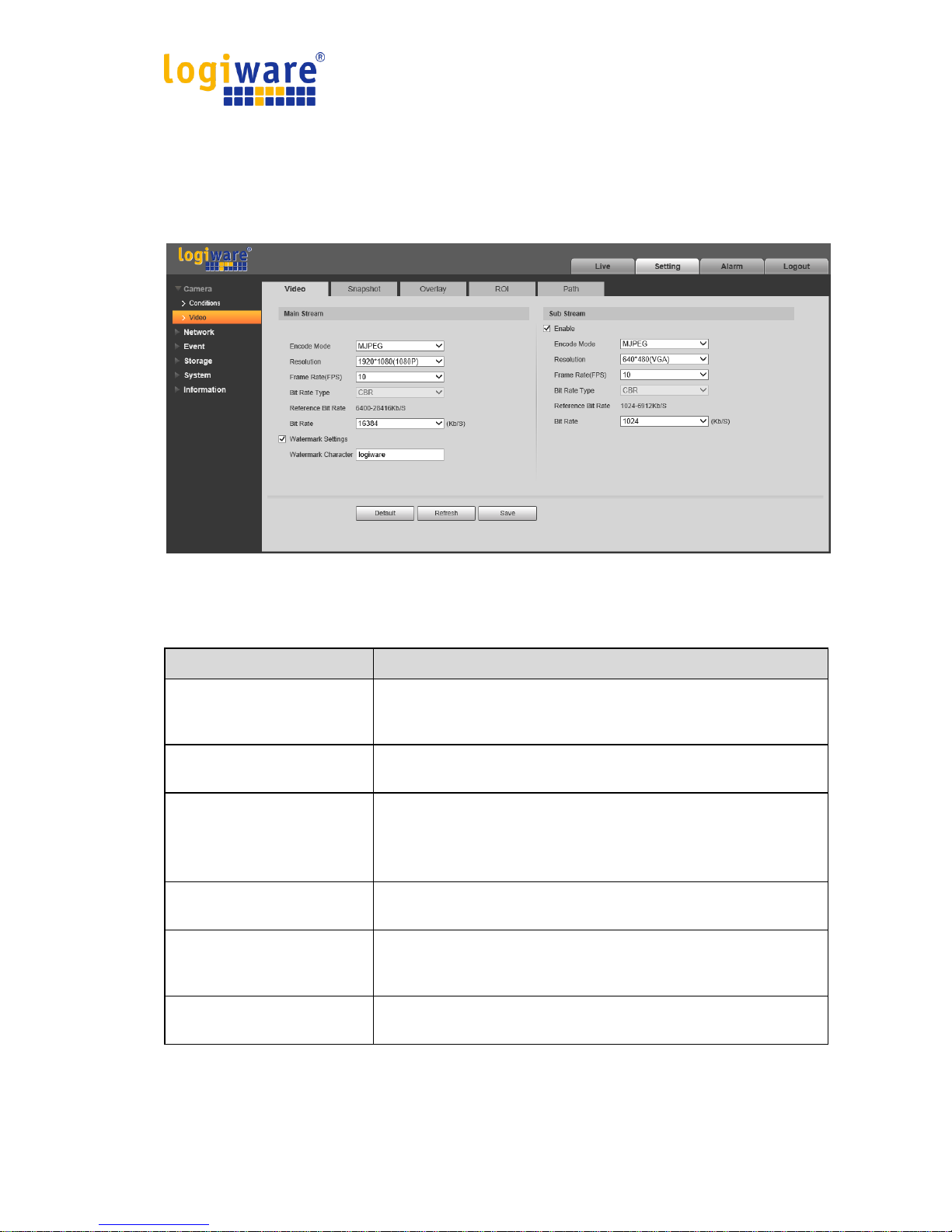

Select “Setting > Camera > Video > Video” and the system will display the interface of “Video”
which is shown in Figure 3-10.
Figure 3-10
Step 2
Set video bit stream, please refer to the following sheet for more details about the parameters.
Parameter
Function
Sub Stream Enable
Select “Enable” to enable sub stream.
The device supports enabling sub stream 1 and sub stream 2 at
the same time.
Encode mode
There are three options: H.264H (high profile standard), H.265
(main profile standard) and MJPEG encode.
Resolution
There are multiple resolutions. You can select from the
dropdown list.
For each resolution, the recommended bit stream value is
different.
Frame Rate (FPS)
1~25 fps
The frame rate may vary due to different resolutions.
Bit Rate Type
There are two options: VBR and CBR.
Please note, you can set video quality in VBR mode.
Under MJPEG mode, only CBR is available.
Recommended Bit Rate
Recommended bit rate value according to the resolution and
frame rate you have set.
Page 25
Operation Manual Network Camera logiware IPC1901A
22
Parameter
Function
Bit Rate
In CBR, the bit rate here is the max value. In dynamic
video, system needs to low frame rate or video quality to
guarantee the value.
The value is null in VBR mode.
Please refer to recommend bit rate for the detailed
information.
I Frame
Here you can set the P frame amount between two I frames.
The value ranges from 1 to 150. Default value is 50.
Recommended value is frame rate *2.
Watermark Settings
Select “Watermark Setting” and enable watermark function.
After the watermark function is enabled, you can check if the
video is tampered via verifying watermark character.
Watermark Character
It is the character of watermark verification; it is ‘logiware’ by
default.
Step 3
Click “Save” to complete video stream setup.
3.1.2.2 Snapshot

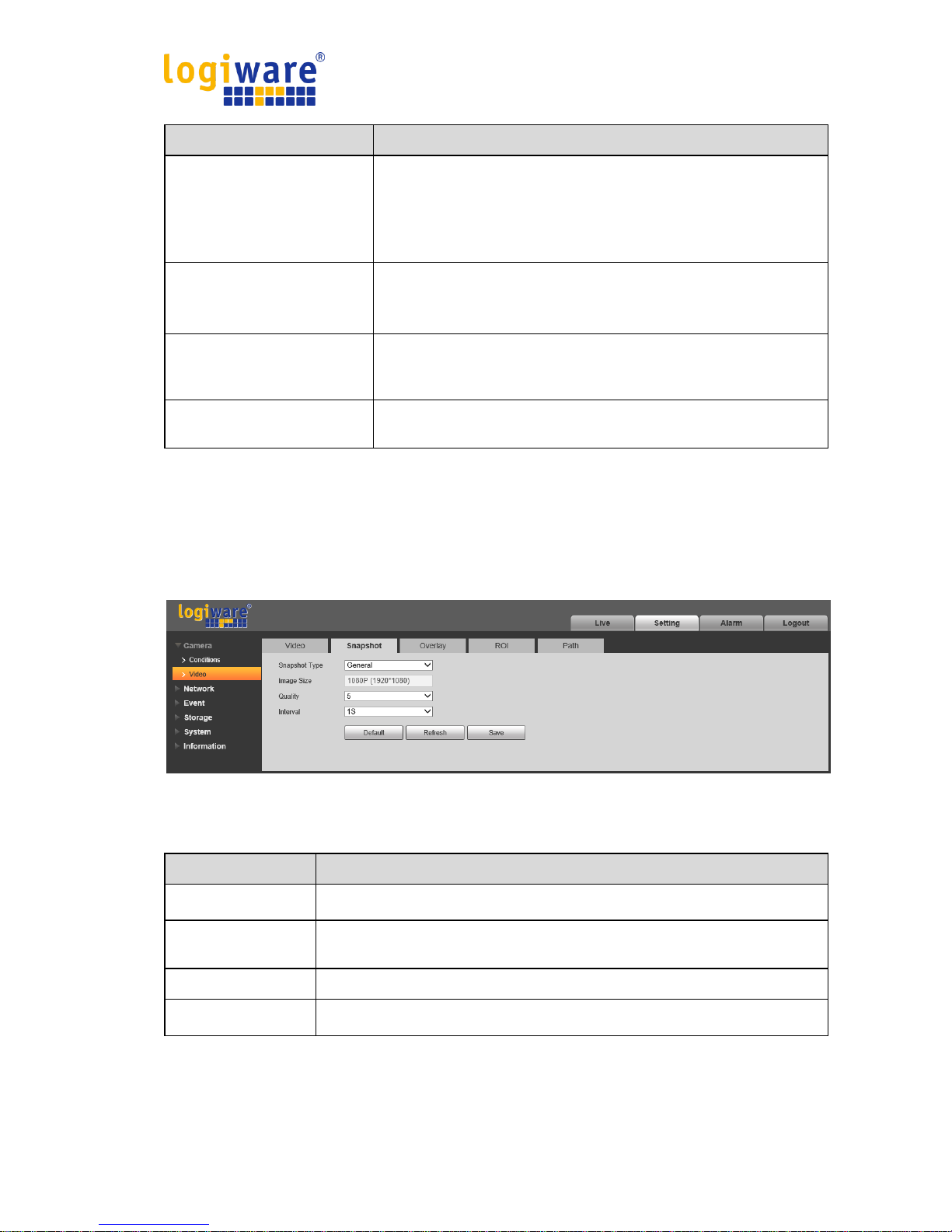

The snapshot interface is shown as in Figure 3-11.
Figure 3-11
Please refer to the following sheet for detailed information.
Parameter
Function
Snapshot type
There are two modes: general (schedule) and Event (activation).
Image size
It is the same as the resolution of main stream.
Quality
It is to set the image quality. There are six levels.
Interval
It is to set snapshot frequency. Optional1~7s/picture, customized.
Page 26
Operation Manual Network Camera logiware IPC1901A
23
3.1.2.3 Video Overlay

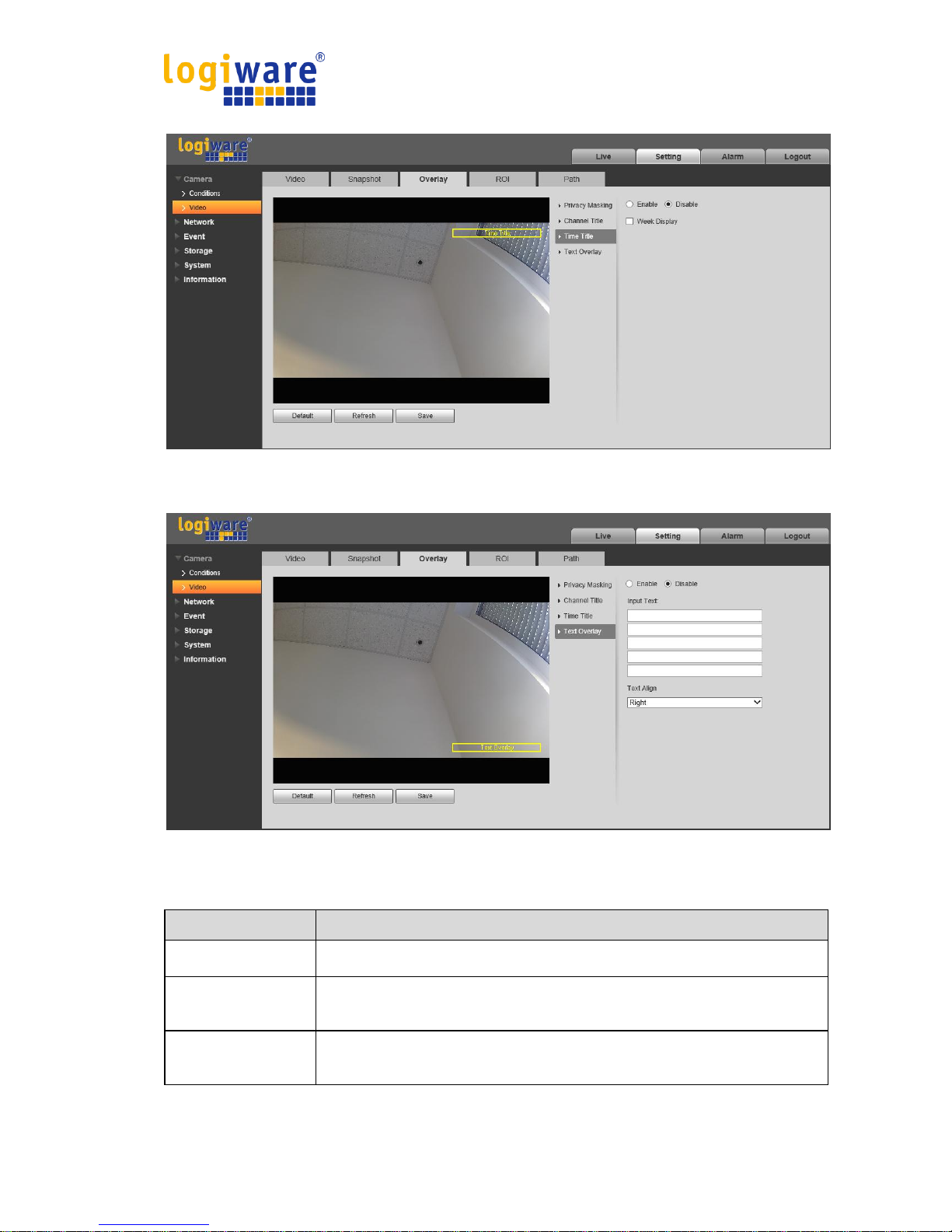

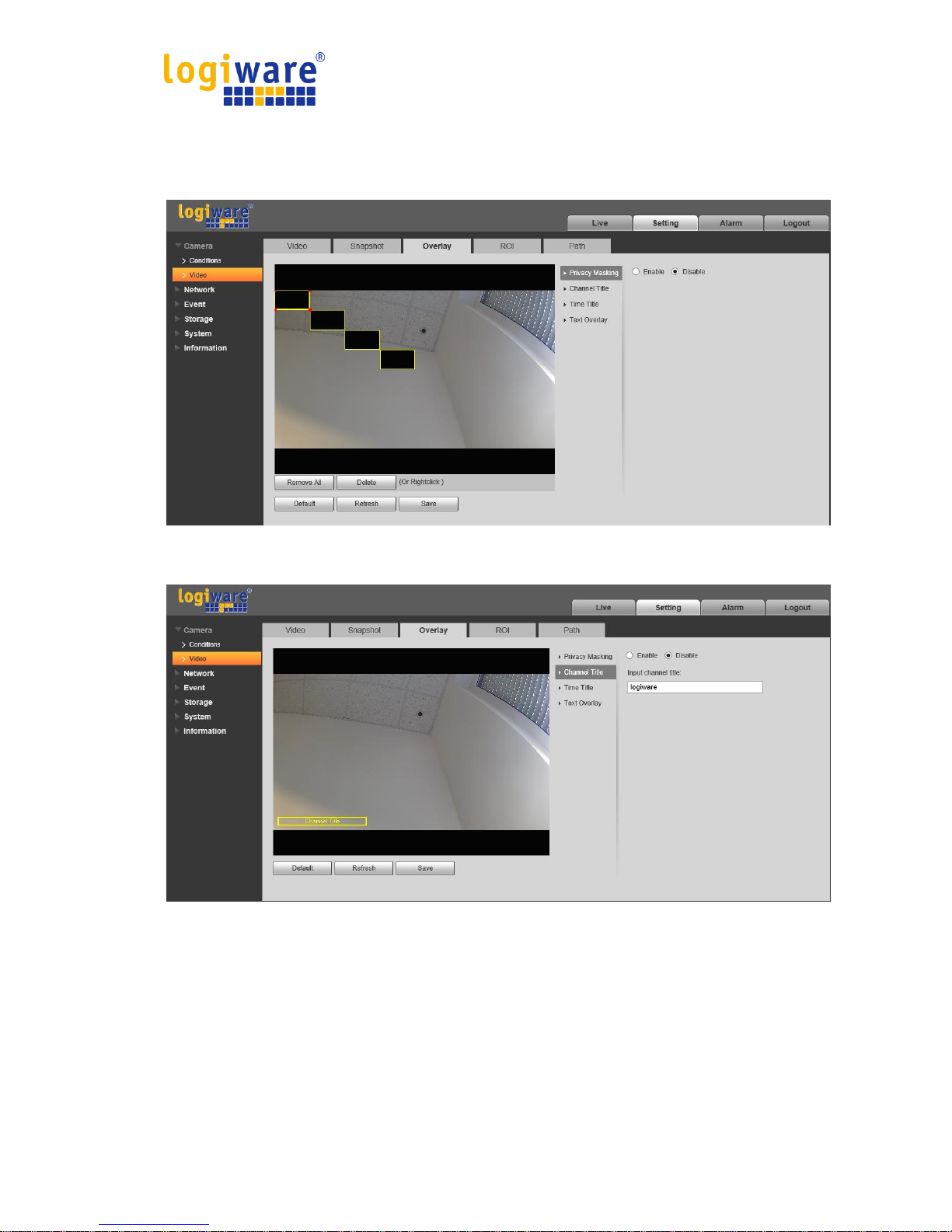

The video overlay interface is shown as in Figure Figure 3-12 to Figure 3-15.
Figure 3-12
Figure 3-13
Page 27
Operation Manual Network Camera logiware IPC1901A
24
Figure 3-14
Figure 3-15
Please refer to the following sheet for detailed information.
Parameter
Function
Privacy Masking
Here you can privacy mask the specified video in the monitor video.
System max supports 4 privacy mask zones.
Time Title
You can enable this function so that system overlays time
information in video window.
You can use the mouse to drag the time tile position.
Channel Title
You can enable this function so that system overlays channel
information in video window.
You can use the mouse to drag the channel tile position.
Page 28
Operation Manual Network Camera logiware IPC1901A
25
Text Overlay
You can enable this function to overlay text in video window.
Private protocol is connected to mobile NVR, support GPS
information overlay.
You can use the mouse to drag location box to adjust its position.
Alignment include align left and align right.
Refresh
Set privacy mask, channel title, time title, location, overlay and save
the change. You can click on Refresh to see effect.
Default
Click it to restore default config.
Save
Click it to complete video settings.
3.1.2.4 ROI

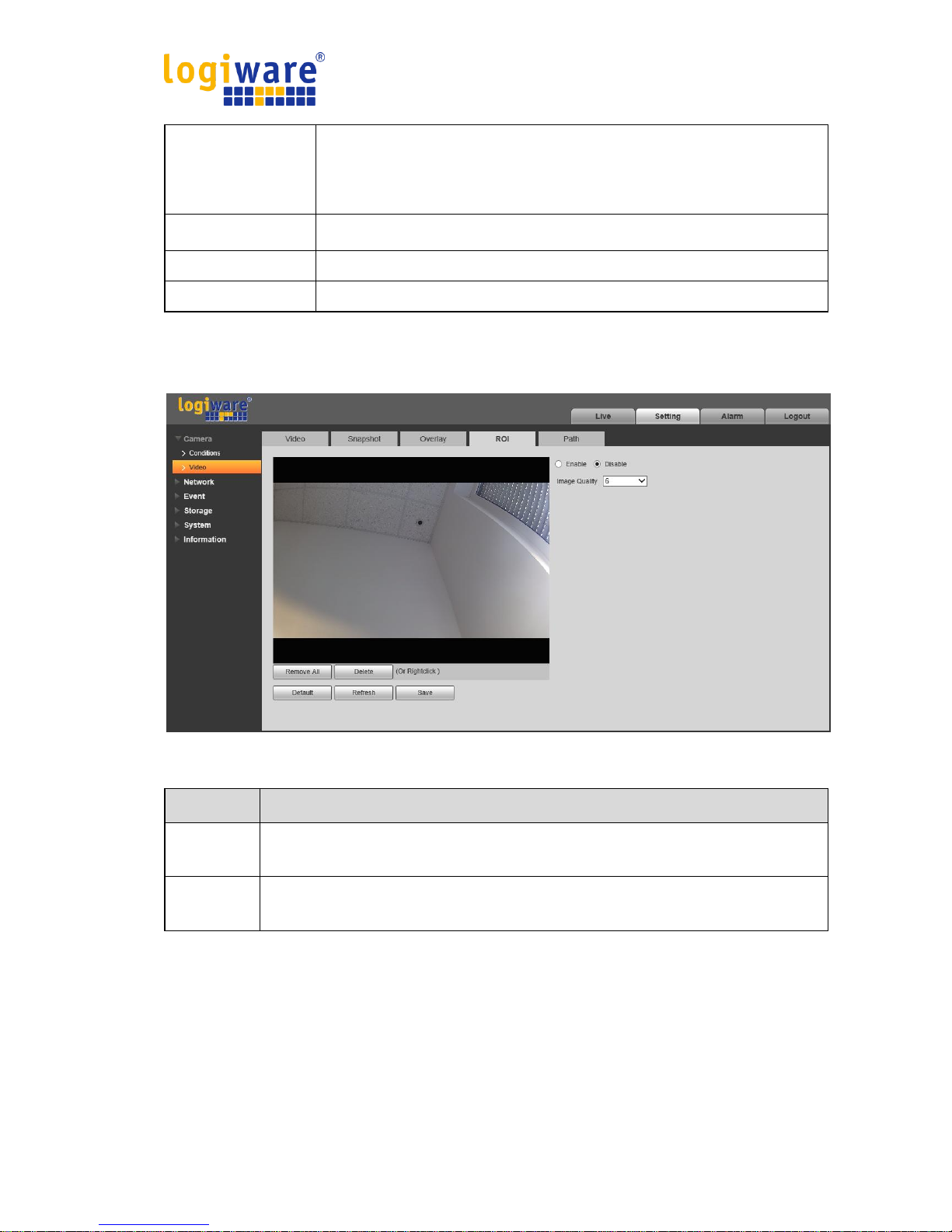

Figure 3-16
Parameters
Note
Enable
Check “Enable”, then it will display the ROI in the video monitoring window;
Check “Disable”, then it won’t display.
Quality
Set the image quality of ROI, ranging from 1~6, default is 6.
Able to set area block, max 4 areas.
Page 29
Operation Manual Network Camera logiware IPC1901A
26
3.1.2.5 Path

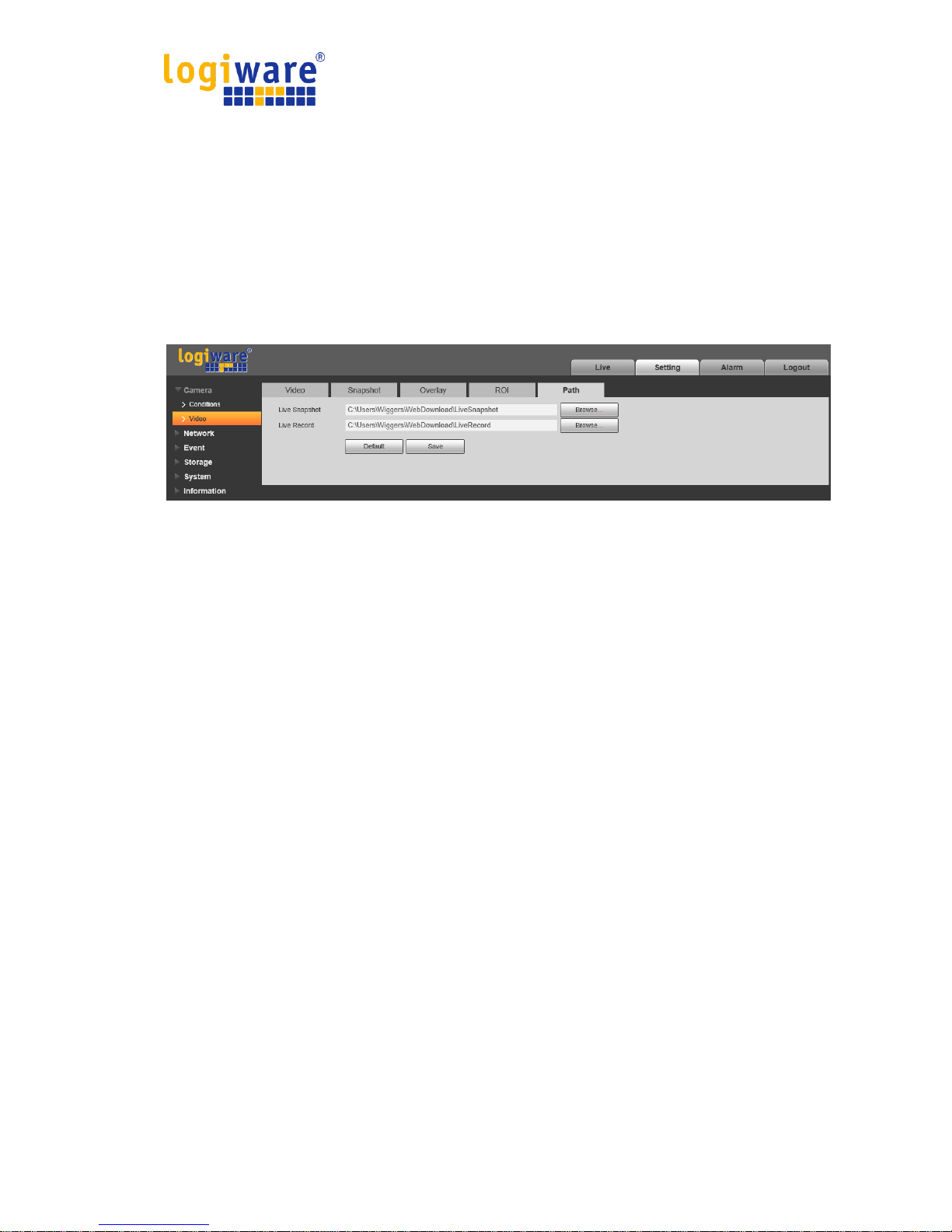

The storage path interface is shown as in Figure 3-17.
Here you can set snap image saved path and the record storage path.
The default monitor image path is C:\Users\admin\WebDownload\LiveSnapshot.
The default monitor record path is C:\Users\admin\WebDownload\LiveRecord.
Note:
admin is locally logged in PC account.
Please click the Save button to save current setup.
Figure 3-17
Page 30
Operation Manual Network Camera logiware IPC1901A
27
3.2 Network
3.2.1 TCP/IP

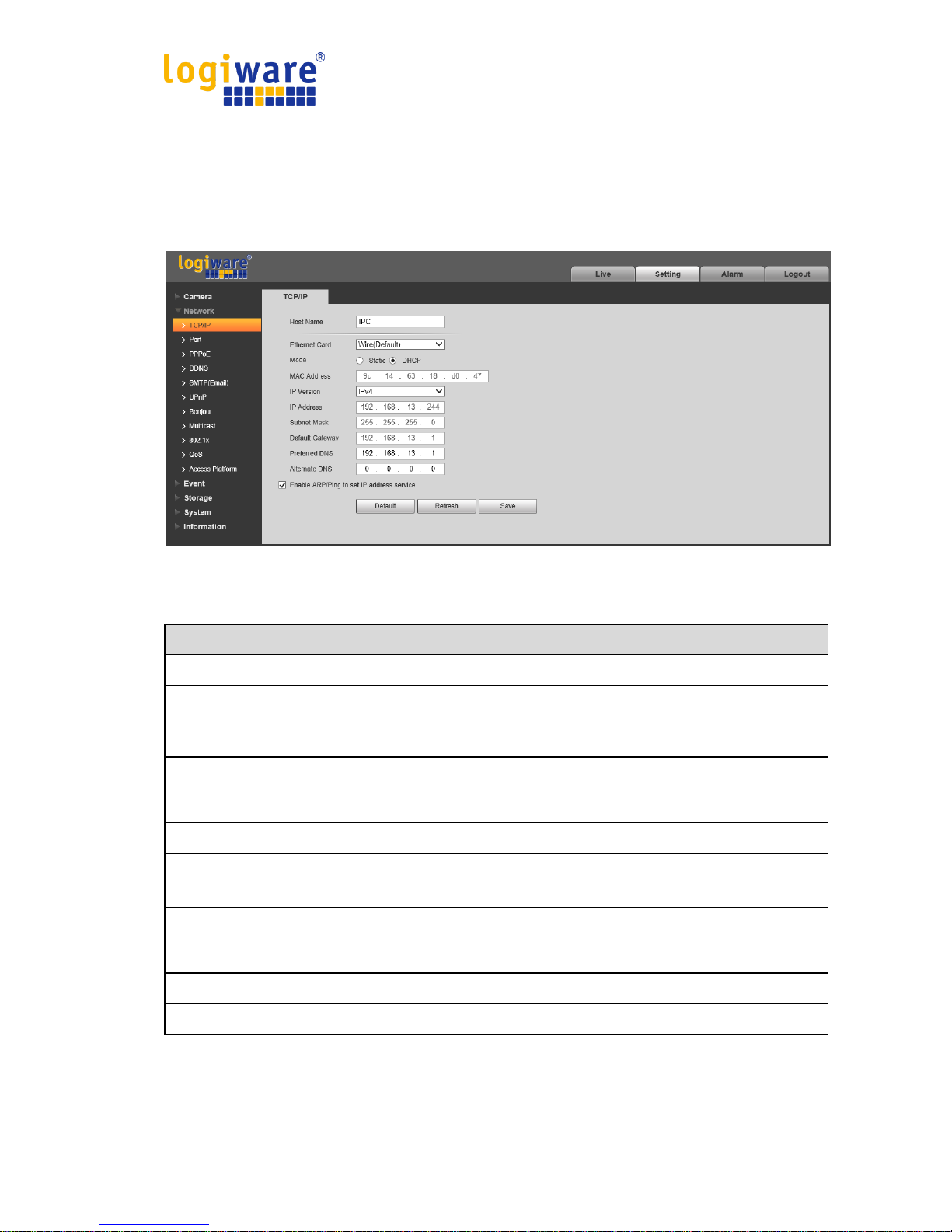

The TCP/IP interface is shown as in Figure 3-18. It supports IPv4 and IPv6. IPv4 supports static
IP and DHCP. IPv6 supports static IP only. When users manually modify IP address, WEB will
automatically jump to the new IP address.
Figure 3-18
Please refer to the following sheet for detailed information.
Parameter
Function
Host Name
It is to set current host device name. It max supports 15 characters.
Ethernet Card
Please select the Ethernet port. Default is wired.
Please note you can modify the default Ethernet card if there is more
than one card.
Mode
There are two modes: static mode and the DHCP mode. Select DHCP
mode, it auto searches IP, and you cannot set IP/subnet mask/gateway.
Select static mode, you must manually set IP/subnet mask/gateway.
Mac Address
It is to display hose Mac address.
IP Version
It is to select IP version. IPV4 or IPV6.
You can access the IP address of these two versions.
IP Address
Please use the keyboard to input the corresponding number to modify
the IP address and then set the corresponding subnet mask and the
default gateway.
Preferred DNS
DNS IP address.
Alternate DNS
Alternate DNS IP address.
Page 31
Operation Manual Network Camera logiware IPC1901A
28
Enable ARP/Ping
set device IP
address service.
You can use ARP/Ping command to modify or set the device IP address
if you know the device MAC address.
Before the operation, please make sure the network camera and the PC
in the same LAN. This function is on by default.
You can refer to the steps listed below.
Step 1: Get an IP address. Set the network camera and the PC in the
same LAN.
Step 2: Get the physical address from the label of the network camera.
Step 3: Go to the Run interface and then input the following commands.
arp –s <IP Address> <MAC>
ping –l 480 –t <IP Address>
Such as：arp -s 192.168.0.125 11-40-8c-18-10-11
ping -l 480 -t 192.168.0.125
Step 4: Reboot the device.
Step 5: You can see the setup is OK if you can see there are output
information such as “Reply from 192.168.0.125 …” from the command
output lines. Now you can close the command line.
Step 6: Open the browse and then input http://<IP address>. Click the
Enter button, you can access now.
Page 32
Operation Manual Network Camera logiware IPC1901A
29
3.2.2 Port
3.2.2.1 Port

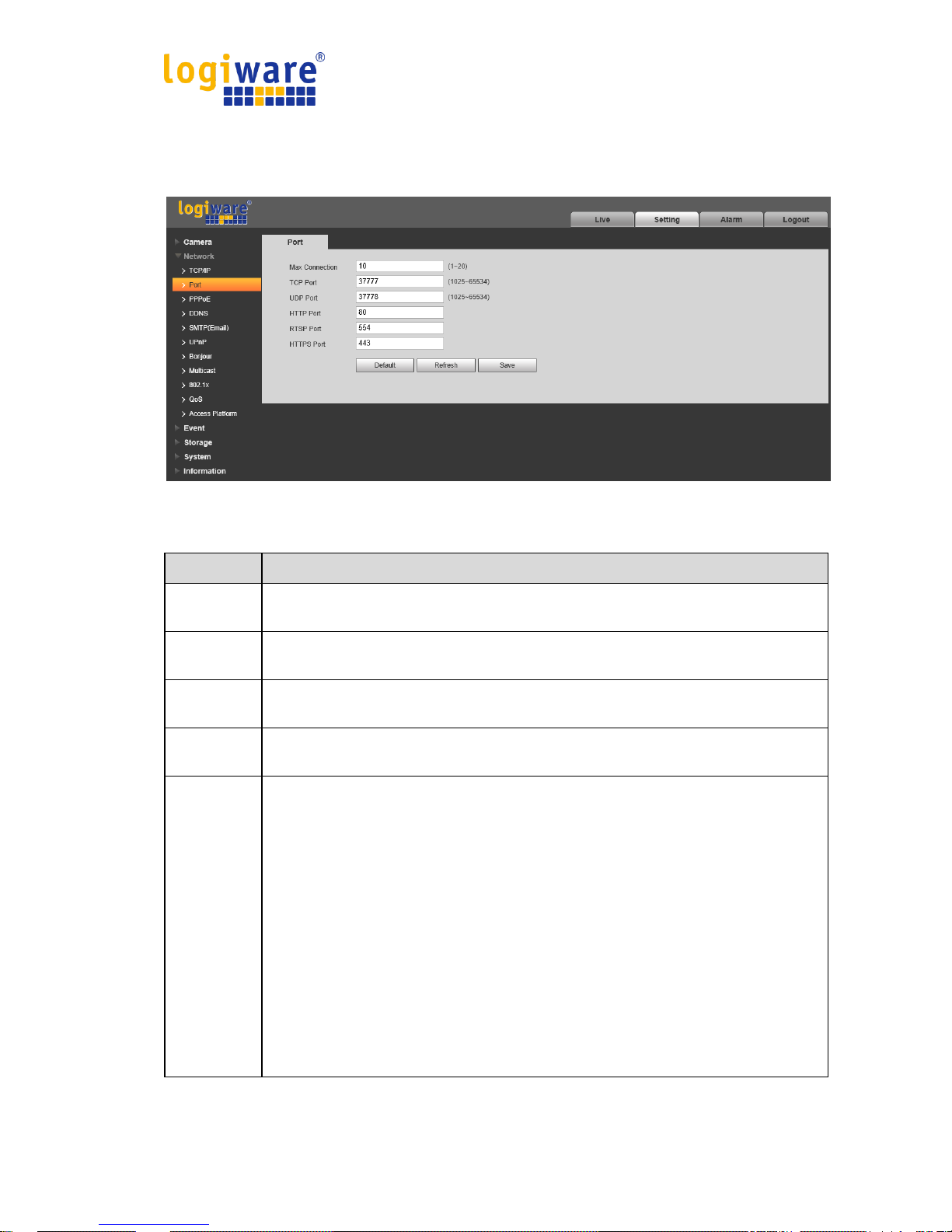

The Port interface is shown as in Figure 3-19.
Figure 3-19
Please refer to the following sheet for detailed information.
Parameter
Function
Max
connection
It is the max Web connection for the same device. The value ranges from 1 to
20. Default connection amount is 10.
TCP port
Port range is 1025~65534. The default value is 37777. You can input the actual
port number if necessary.
UDP port
Port range is 1025~65534. The default value is 37778. You can input the actual
port number if necessary.
HTTP port
Port range is 1025~65524. The default value is 80. You can input the actual port
number if necessary.
RTSP port
The default value is 554. Please leave blank if use default. User uses
QuickTime or VLC can play the following formats. BlackBerry can play too.
Real-time monitoring URL format, please require real-time RTSP media
server, require channel no., bit stream type in URL. You may need
username and password.
User uses BlackBerry need to set encode mode to H.264B, resolution to CIF
and turn off audio.
URL format is:
rtsp://username:password@ip:port/cam/realmonitor?channel=1&subtype=0
Username/password/IP and port.
The IP is device IP and the port default value is 554. You can leave it in blank if it
is the default value.
Follow standard RTP protocol and when encode mode is MJPEG, the max
resolution only supports 2040*2040.
Page 33
Operation Manual Network Camera logiware IPC1901A
30
HTTPs Port
HTTPs communication port, range is 1025~65534, default is 443.
Note:
0～1024, 37780～37880, 1900, 3800, 5000, 5050, 9999, 37776, 39999, 42323 are all
special ports. User cannot modify them.
Avoid using default port value of other ports.

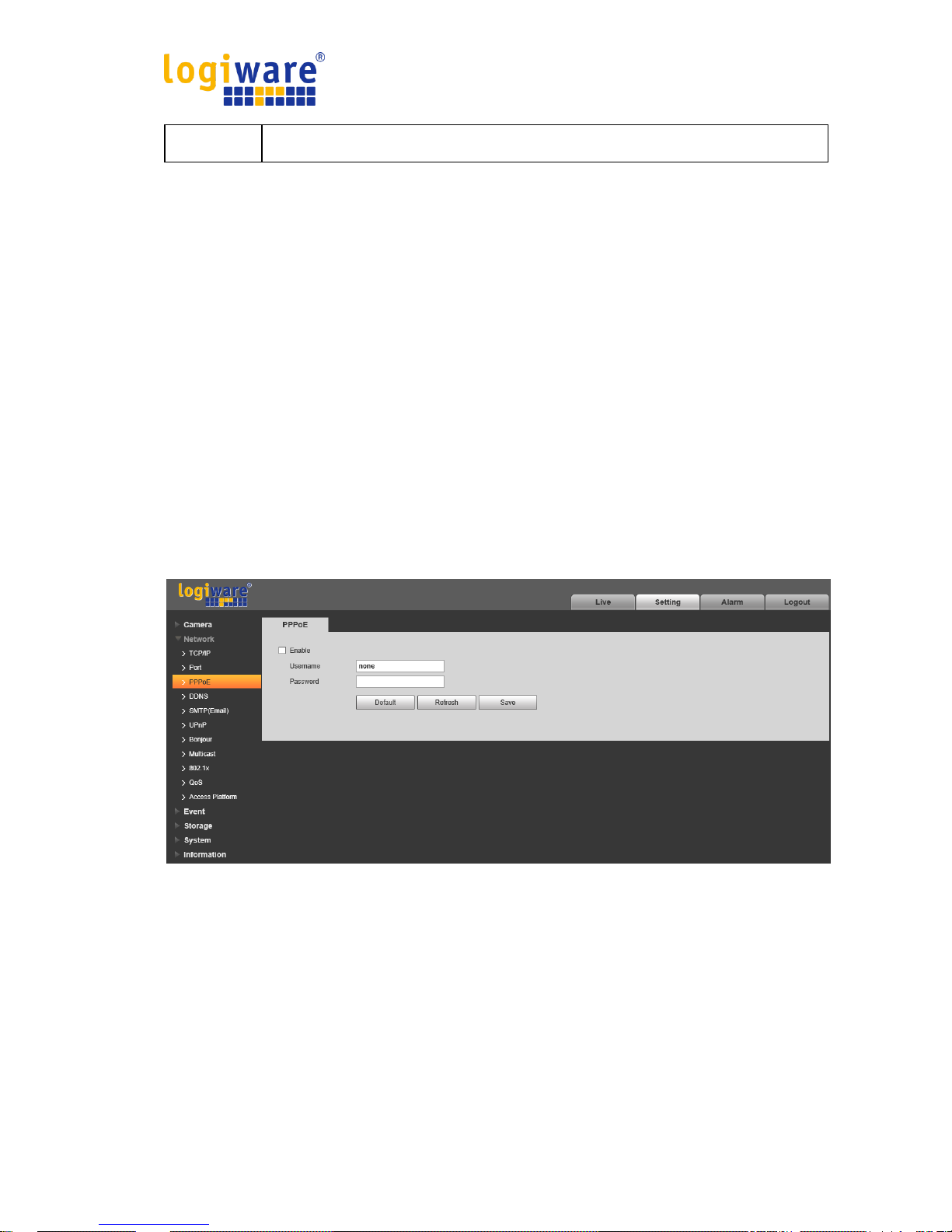

3.2.3 PPPoE
The PPPoE interface is shown as in Figure 3-20.
Enter the PPPoE username and password which are provided by ISP (Internet Service Provider),
and click “Enable”. The network camera will automatically establish network connection in the
mode of PPPoE after it is enabled, after it is successful, the IP of the “IP Address” will be
automatically modified into the dynamic IP address of the acquired WAN.
Note:
After PPPoE dial-up is successful, it needs to log in the device via the IP which is set before dialup; in the PPPoE setup interface, it will display the registered IP address, and then it can visit the
IP address via client.
Please disable UPnP when clicking PPPoE enable, which is to avoid causing influence to PPPoE
dial-up.
Figure 3-20
Page 34
Operation Manual Network Camera logiware IPC1901A
31
3.2.4 DDNS
The DDNS interface is shown as in Figure 3-21.
The DDNS is to set to connect the various servers so that you can access the system via the
server. Please go to the corresponding service website to apply a domain name and then access
the system via the domain. It works even your IP address has changed. When the device
connects to WLAN, you should disable UPnP.

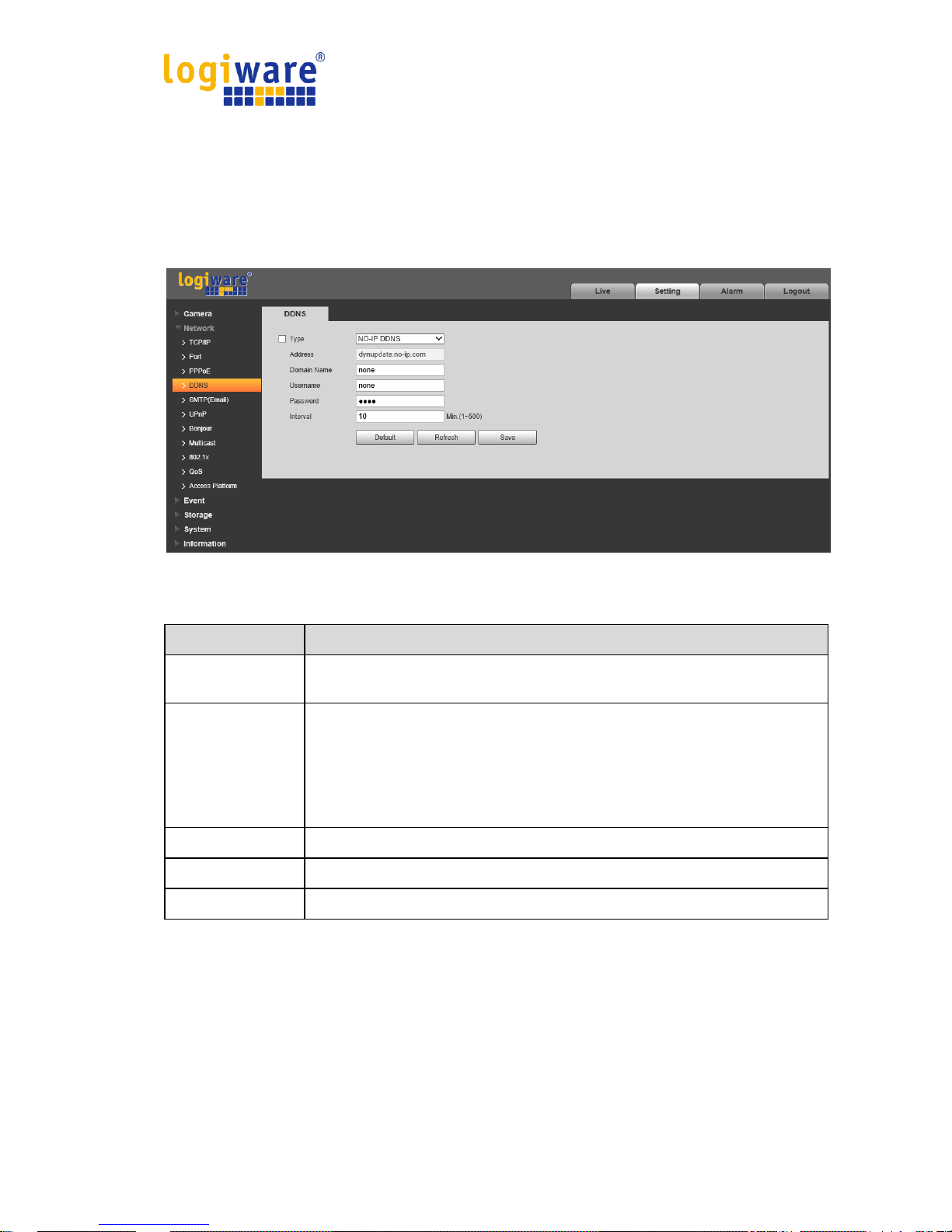

Figure 3-21
Please refer to the following sheet for detailed information.
Parameter
Function
Server Type
You can select DDNS protocol from the dropdown list: NO-IP DDNS or
Dyndns DDNS.
Server Address
DDNS server IP address
NO-IP DDNS
Server address: dynupdate.no-ip.com
Dyndns DDNS
Server address: members.dyndns.org
Mode
Default is auto, able to choose manual
Domain Name
Enter your domain name from the respective DDNS service here.
Username
The user name you input to log in the server, optional.
Page 35
Operation Manual Network Camera logiware IPC1901A
32
3.2.5 SMTP (Email)

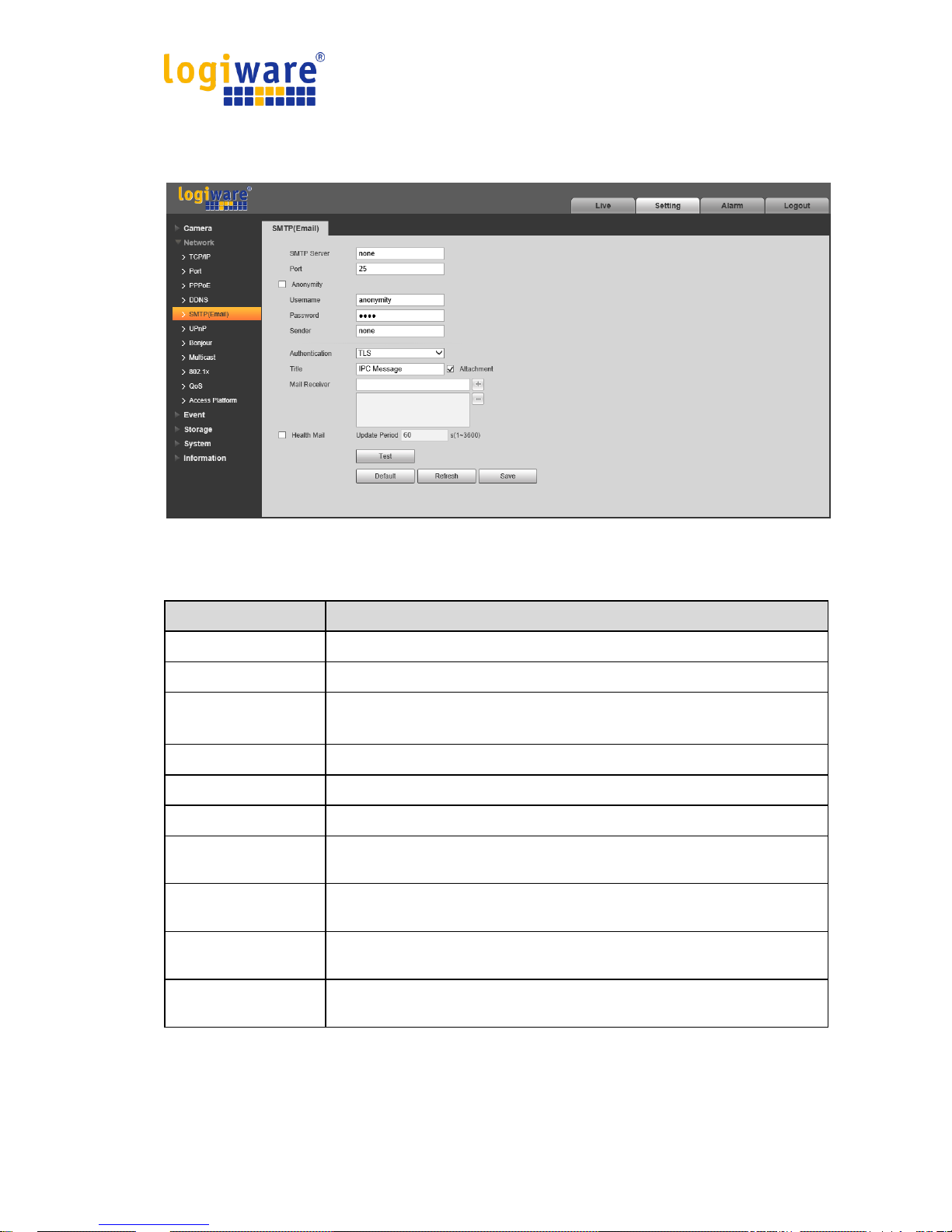

The SMTP interface is shown as in Figure 3-22.
Figure 3-22
Please refer to the following sheet for detailed information.
Parameter
Function
SMTP Server
Input server address and then enable this function.
Port
Default value is 25. You can modify it if necessary.
Anonymity
For the server which supports the anonymity email function, it won’t
display the information of the sender.
User Name
The user name of the sender email account.
Password
The password of sender email account.
Sender
Sender email address.
Authentication
(Encryption mode)
You can select SSL, TLS or none.
Title (Subject)
Input email subject here.
Attachment
System can send out the email of the snapshot picture once you check
the box here.
Mail receiver
Input receiver email address here. Max three addresses.
Page 36
Operation Manual Network Camera logiware IPC1901A
33
Parameter
Function
Interval
The send interval ranges from 0 to 3600 seconds. 0 means there is no
interval.
Please note system will not send out the email immediately when the
alarm occurs. When the alarm, motion detection or the abnormity event
activates the email, system sends out the email according to the
interval you specified here. This function is very useful when there are
too many emails activated by the abnormity events, which may result in
heavy load for the email server.
Health mail enable
Please check the box here to enable this function.
Email test
The system will automatically sent out a email once to test the
connection is OK or not .Before the email test, please save the email
setup information.
3.2.6 UPnP

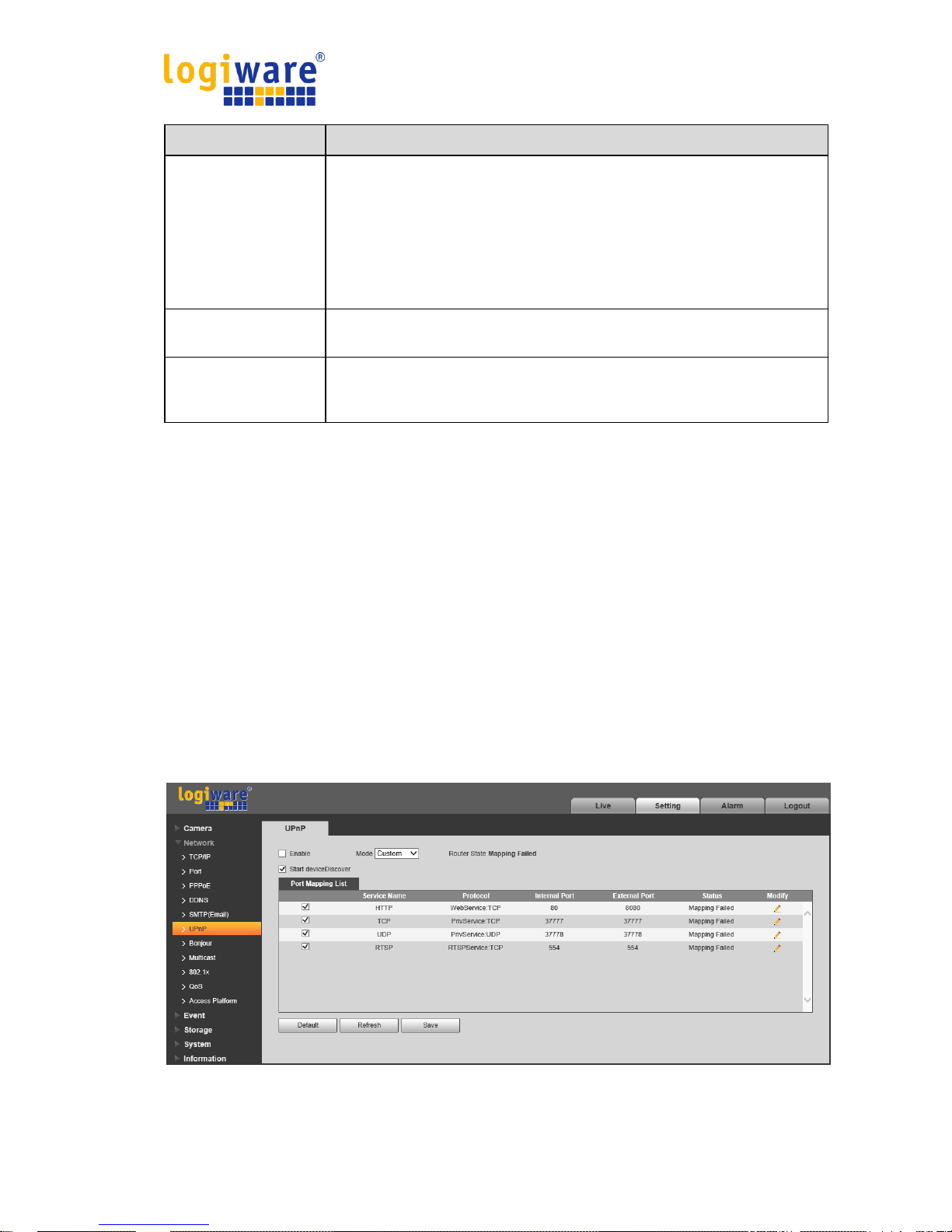

It allows you to establish the mapping relationship between the LAN and the public network.
Here you can also add, modify or remove UPnP item. For UPnP on different routers, you must
disable UPnP function. See Figure 3-23.
In the Windows OS, From Start->Control Panel->Add or remove programs. Click the
“Add/Remove Windows Components” and then select the “Network Services” from the Windows
Components Wizard.
Click the Details button and then check the “Internet Gateway Device Discovery and Control
client” and “UPnP User Interface”. Please click OK to begin installation.
Enable UPnP from the Web. If your UPnP is enabled in the Windows OS, the network camera
can auto detect it via the “My Network Places”.
Under manual mode, you can modify external port. Under auto mode, select idle port for auto port
mapping without user modification.
Figure 3-23
Page 37
Operation Manual Network Camera logiware IPC1901A
34
3.2.7 Bonjour
The Bonjour interface is shown as below. See Figure 3-24.
Bonjour is based on the multicast DNS service from the Apple. The Bonjour device can
automatically broadcast its service information and listen to the service information from other
device.
You can use the browse of the Bonjour service in the same LAN to search the network camera
device and then access if you do not know the network camera information such as IP address.
You can view the server name when the network camera is detected by the Bonjour. Please note
the safari browse support this function. Click the “Display All Bookmarks: and open the Bonjour,
system can auto detect the network camera of the Bonjour function in the LAN.

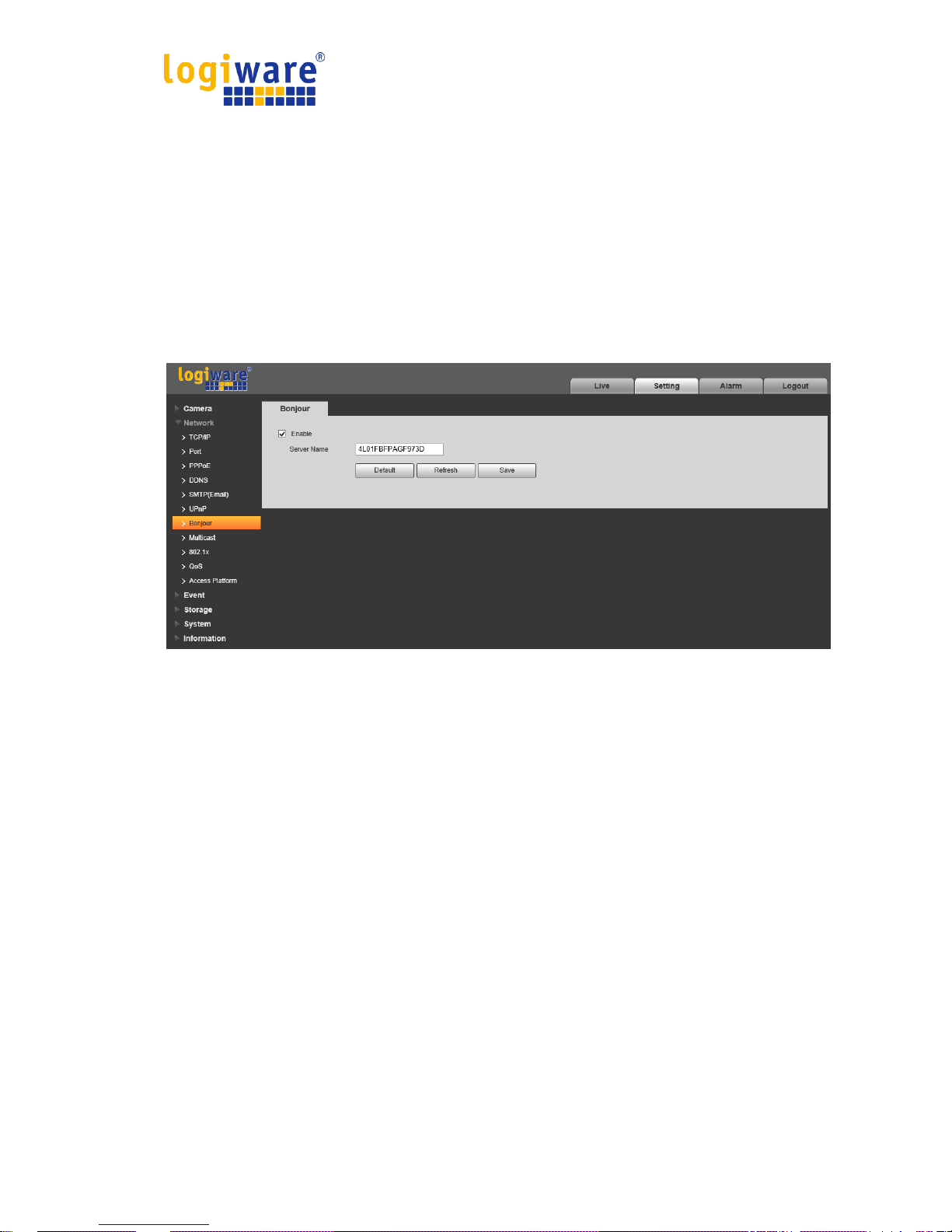

Figure 3-24
Page 38
Operation Manual Network Camera logiware IPC1901A
35
3.2.8 Multicast
The multicast interface is shown as in Figure 3-25.
Multicast is a transmission mode of data packet. When there is multiple-host to receive the same
data packet, multiple-cast is the best option to reduce the broad width and the CPU load. The
source host can just send out one data to transit. This function also depends on the relationship
of the group member and group of the outer.
Note:
Open preview, streaming media protocol, select multicast, and monitor via multicast format.
Here you can set multicast address and port. You also need to go to Live interface to set the
protocol as Multicast.

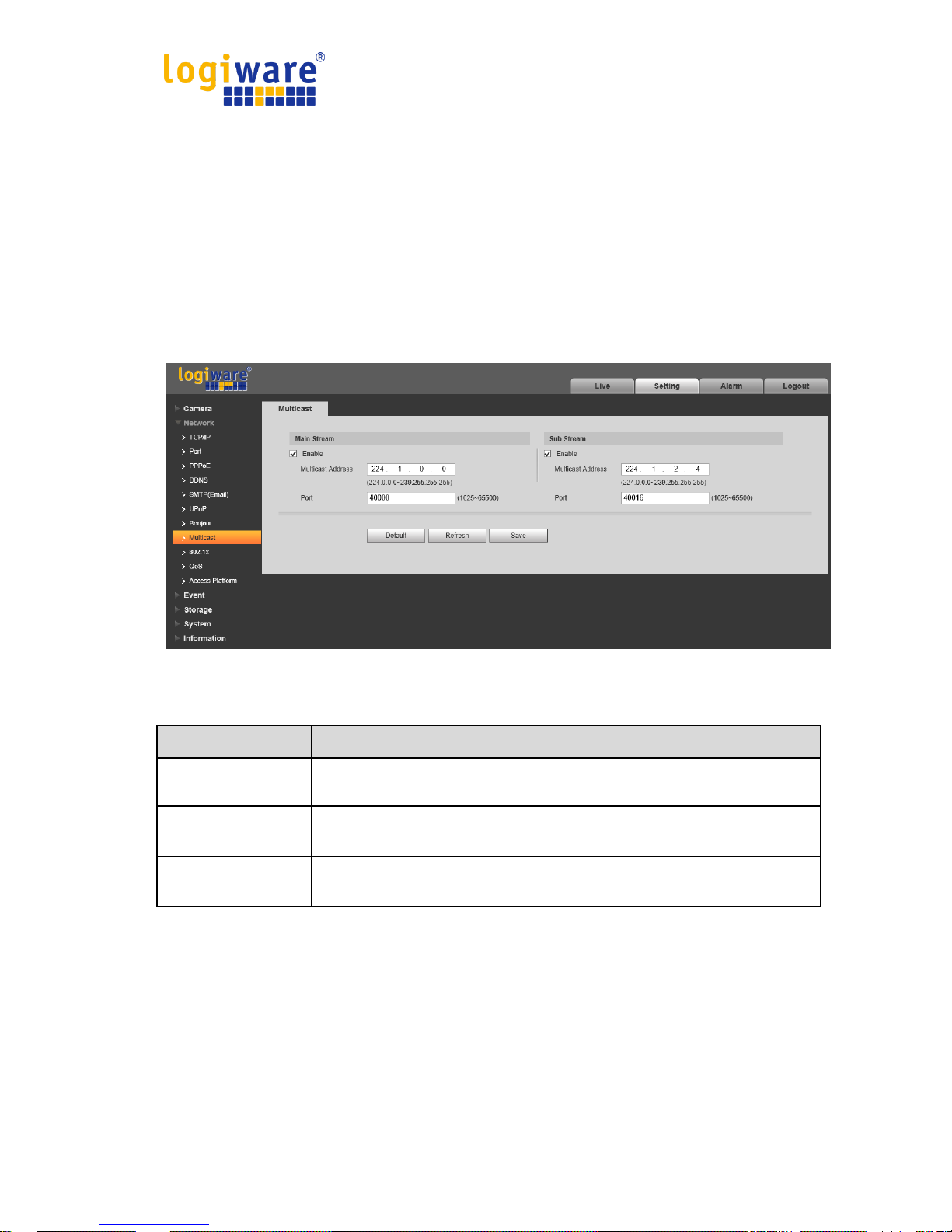

Figure 3-25
Please refer to the following sheet for detailed information.
Parameter
Function
Enable
Select to enable multicast function. Main stream and sub stream cannot
be used at the same time.
Multicast address
Main/sub stream multicast default address is 224.1.2.4 and its range is
224.0.0.0～239.255.255.255.
Port
Multicast port. Main stream is 40000, sub stream1 is 40016,sub
stream2 is 40032 and the range is 1025～65534.
Page 39
Operation Manual Network Camera logiware IPC1901A
36
3.2.9 802.1x
802.1x (port based network access control protocol) supports manual selection of authentication
method to control if device connected to LAN can join the LAN. It well supports authentication,
charging, safety and management requirement of network.

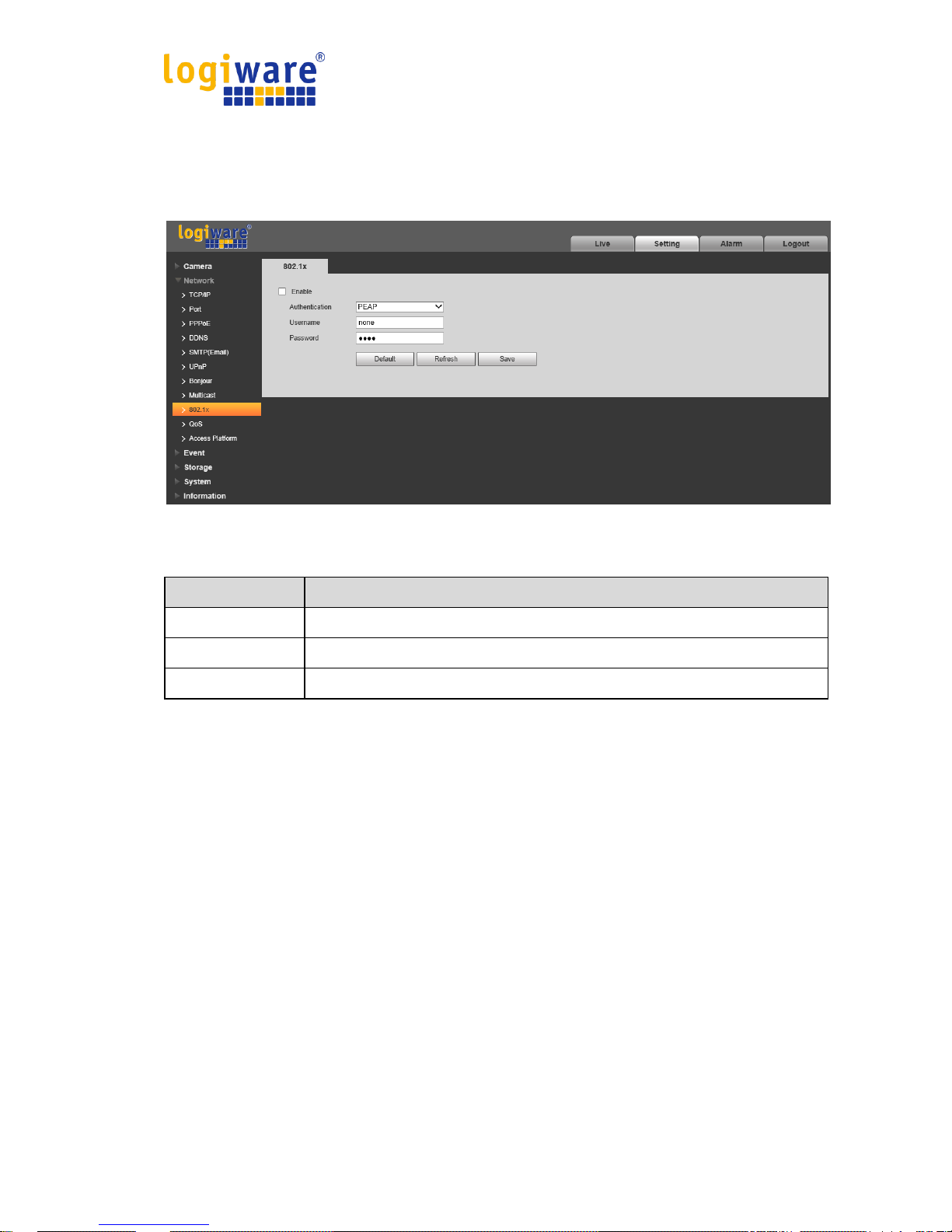

Figure 3-26
Please refer to the following sheet for detailed information.
Parameter
Function
Authentication
PEAP (protected EAP protocol).
Username
It needs the username to login, which is authenticated by the server.
Password
Please input password here.
3.2.10 QoS
The QoS interface is shown as below. See Figure 3-27.
Qos (Quality of Service) is network security mechanism. It is a technology to fix the network delay
and jam problem and etc. For the network service, the quality of service includes the transmission
bandwidth, delay, the packet loss and etc. We can guarantee the transmission bandwidth, lower
the delay, and reduce the loss of the data packet and anti-dither to enhance the quality.
We can set the DSCP (Differentiated Services Code Point) of the IP to distinguish the data packet
so that the router or the hub can provide different services for various data packets. It can select
the different queues according to the priority (64 different priority levels) of the packets and select
the bandwidth of the each queue. Level 0 is the lowest, and level 63 is the highest. It can also
discard at the different ratio when the broad bandwidth is jam.
Page 40
Operation Manual Network Camera logiware IPC1901A
37

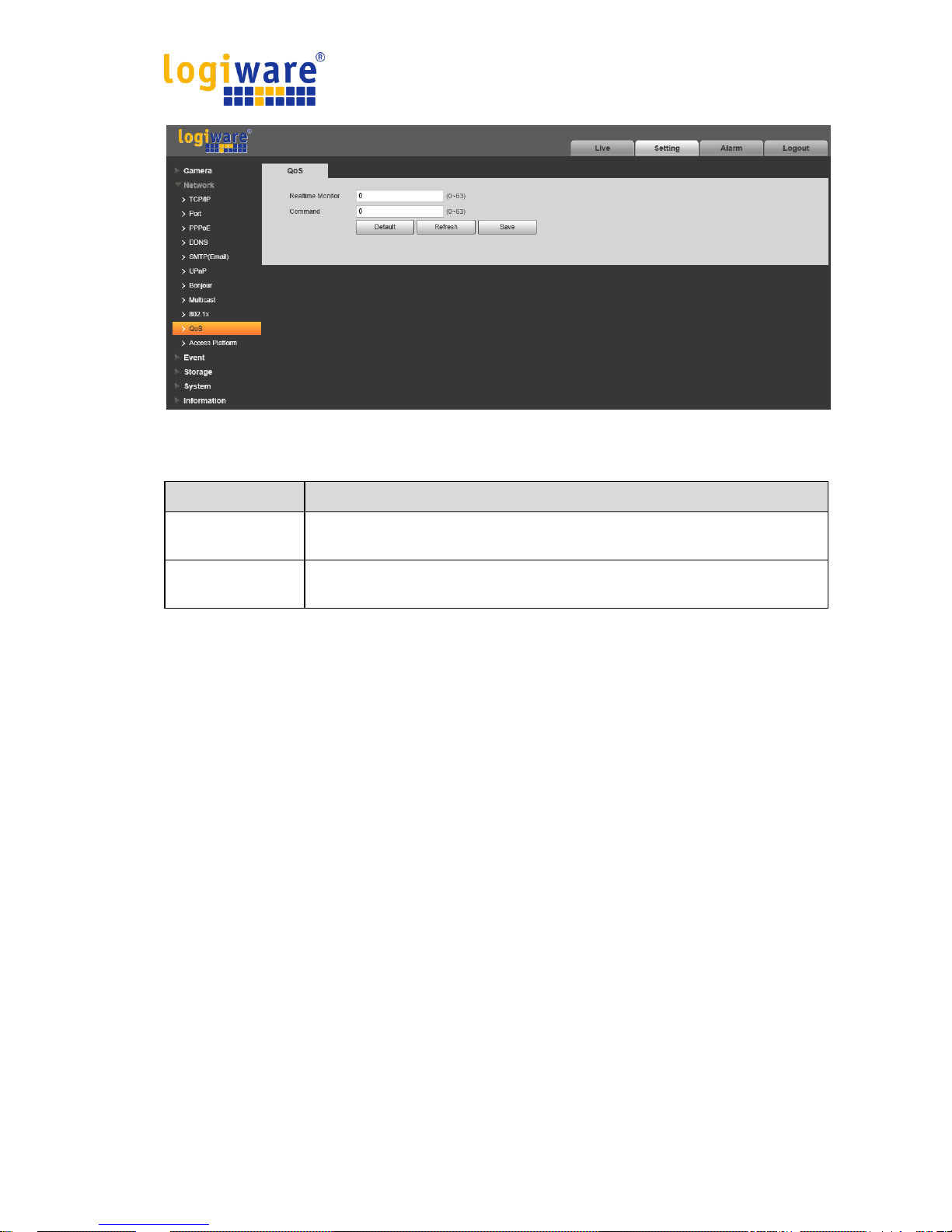

Figure 3-27
Please refer to the following sheet for detailed information.
Parameter
Function
Real-time monitor
The value ranges from 0 to 63. The router or the switcher can provide
different service for various data packets.
Command
The value ranges from 0 to 63. The router or the switcher can provide
different service for various data packets.
Page 41
Operation Manual Network Camera logiware IPC1901A
38
3.2.11 ONVIF Access
ONVIF（Open Network Video Interface Forum, this standard describes network video mode,
interface, data type and data interaction mode. ONVIF Standard’s aim is to achieve a network
video frame agreement and makes the network video products (including video front-end, video
equipment, etc.) from different manufacturers completely compatible.
ONVIF function is on by default.

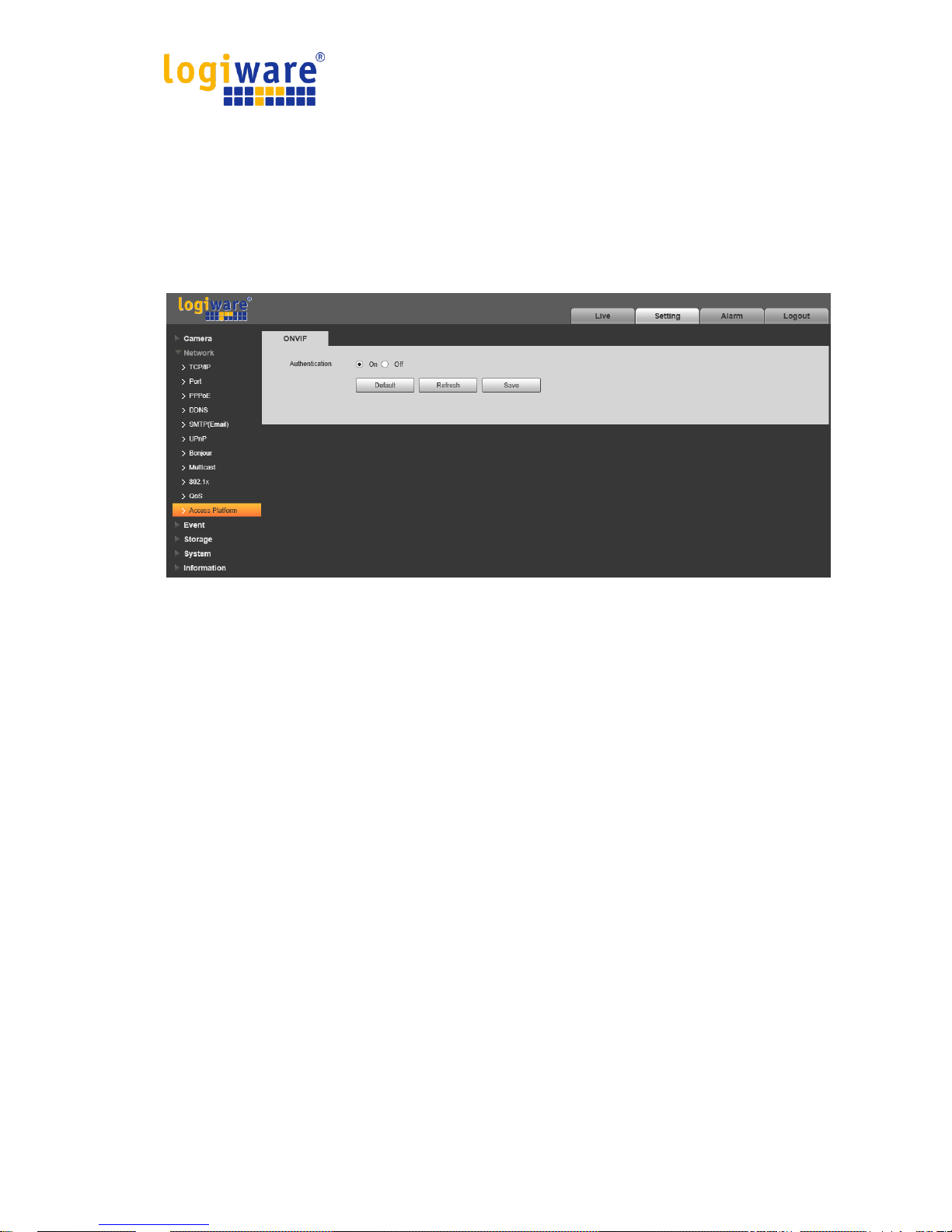

Figure 3-28
Page 42
Operation Manual Network Camera logiware IPC1901A
39
3.3 Event
3.3.1 Video detection
3.3.1.1 Motion Detection
Step 1

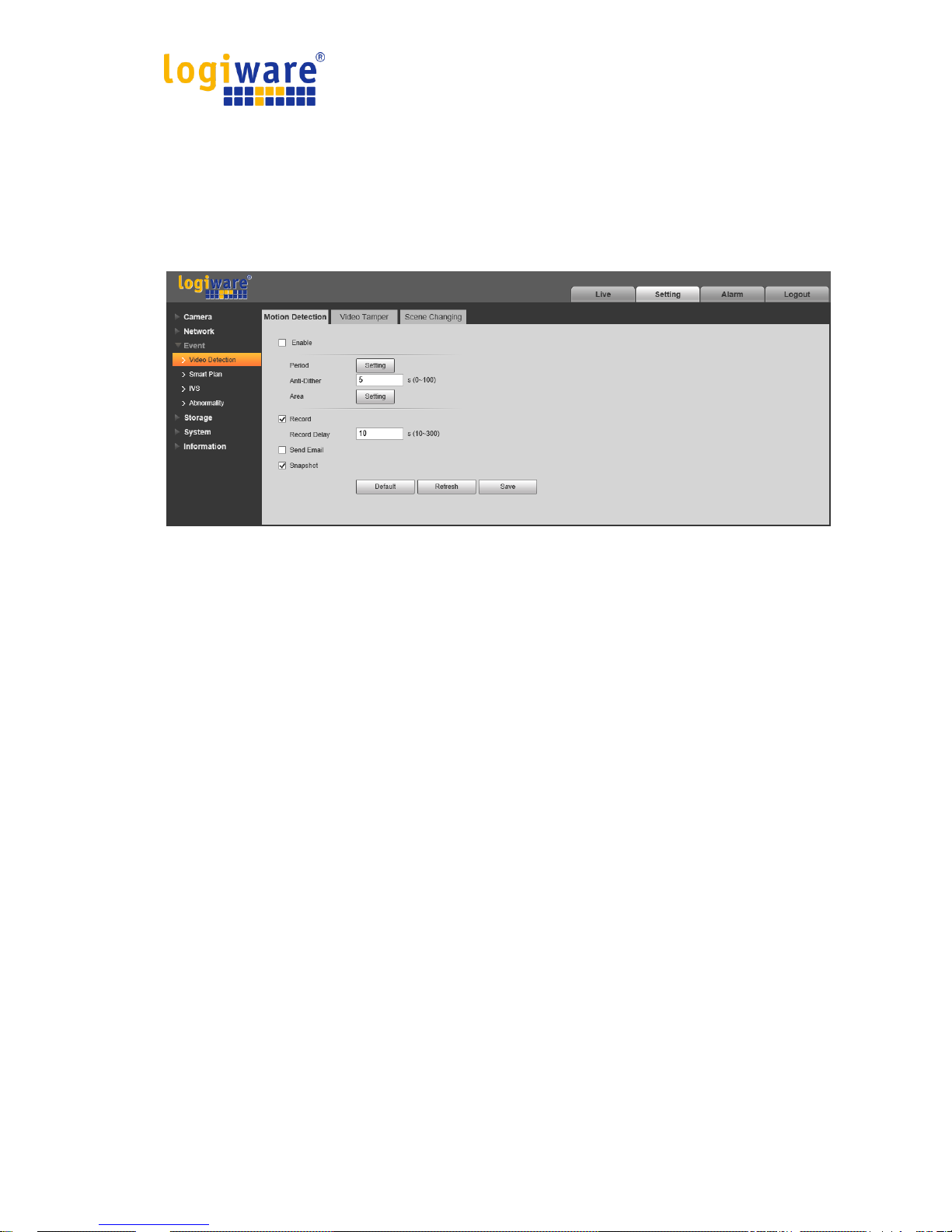

Select “Setting > Event > Video Detection > Motion Detection’ and the system will display the
interface of “Motion Detection” which is shown in Figure 3-29.
Figure 3-29
Step 2
Select “Enable” to enable motion detection function.
Step 3
Set motion detection area.

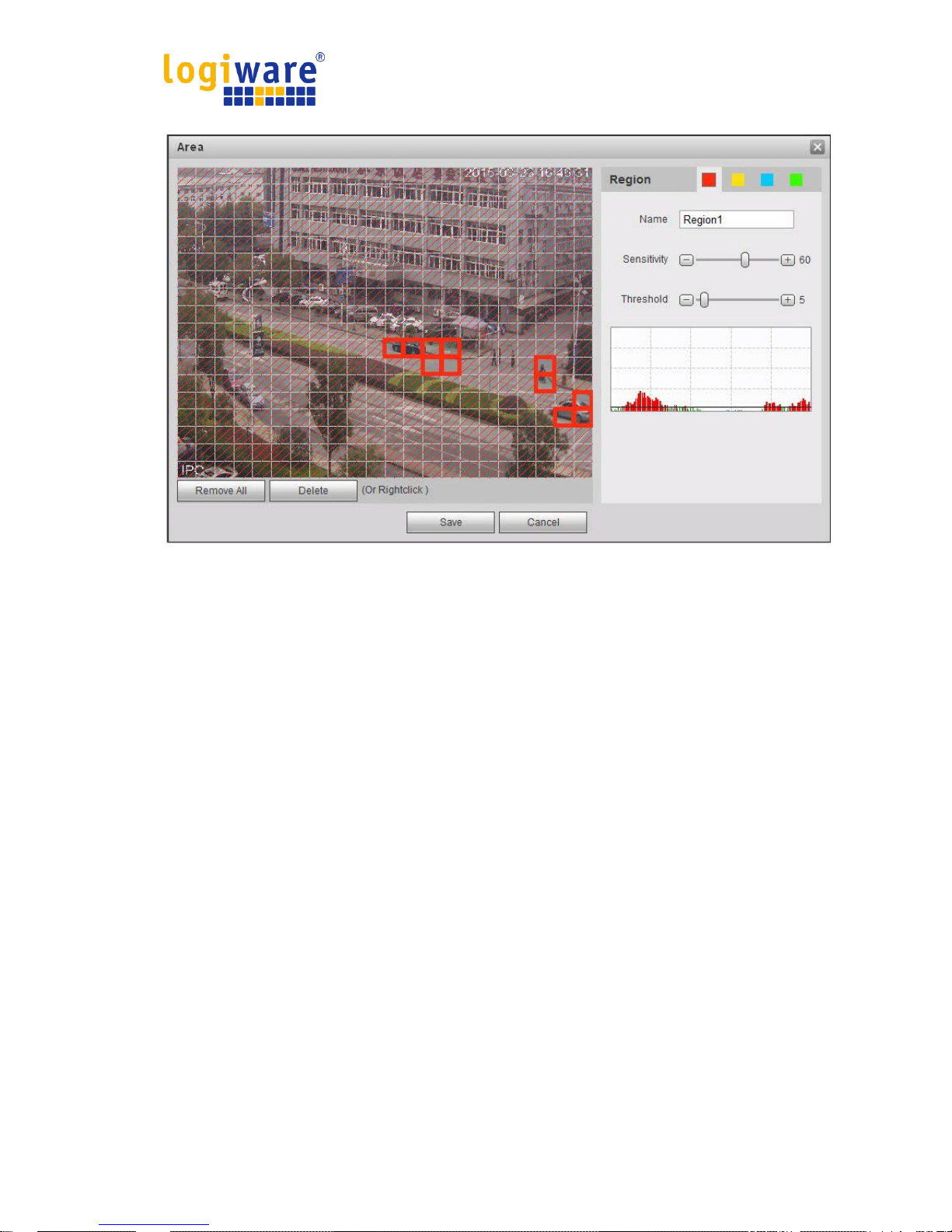

1. Click “Setup” and the system will pop out the interface of “Setting Area”, which is shown in
Figure 3-30
Page 43
Operation Manual Network Camera logiware IPC1901A
40
Figure 3-30
2. Set area name, it is to set valid area of motion detection according to the actual situation, and
it can set the value of sensitivity and threshold respectively.
The bigger the sensitivity is, the easier it is to generate motion detection, the smaller the
threshold is, the easier it is to generate motion detection; the entire video image is the valid
area of motion detection by default.
Note:
Different colors represent different areas; each area can set different detection area.
The red line in the Oscillogram means triggering motion detection; green line means not
triggering motion detection.
3. Click “Save” to complete area setting.
Step 4
It is to set other parameters of motion detection, please refer to the following sheet for more
details.
Page 44
Operation Manual Network Camera logiware IPC1901A
41
Parameter
Function
Working Period
Note:
It is to set the alarm period, it can enable alarm event only during the period
range which has been set.
1. Click “Setup” and the system will pop out the interface of “Working
Period”.
2. It is to set working period according to the following methods:
Press the left mouse button and drag it on the setup interface to set.
Click "
There are six periods to be set every day, select the check box in front
of the period, and then the period is valid.
Select week number (it selects Sunday by default, if it selects the whole
week, then it means the setup can be applied to the whole week, you
can also select the check box in front of the week number to implement
independent setting for some days).
3. Click “Save” to complete the setup of working period.
Anti-dither
System only memorizes one event during the anti-dither period. The value
ranges from 0s to 100s.
Area
1. Click “Setup” and the system will pop out the interface of “Set Area”.
2. Set the area name, it is to set the valid area of motion detection
according to the actual situation, and it can set its sensitivity and
threshold respectively. The higher the sensitivity is, the easier it is to
trigger motion detect, the smaller the area threshold is, the easier it is to
generate motion detect, the whole video image is the valid area of the
motion detect by default.
Note:
Different colors represent different areas; each area can set different
detection areas.
The red line in the Oscillogram means triggering motion detect, the green
line means not triggering motion detect.
3. Click “Save” to complete area setup.
Record
Check it and so when alarm occurs, system will auto record. You shall set
record period in Storage>Schedule and select auto record in record control
interface.
Record Delay
System can delay the record for specified time after alarm ended. The value
ranges from 10s to 300s.
Send Email
If you enabled this function, System can send out email to alert you when
alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot
You need to check the box here so that system can backup motion
detection snapshot file. You shall set snapshot period in Storage>Schedule.
Step 5
Click “Save” to complete the setting of motion detection.
Page 45
Operation Manual Network Camera logiware IPC1901A
42
3.3.1.2 Video Tampering
Step 1
Select “Setting > Event > Video Detection > Video Tampering” and the system will display the
interface of “Video Tampering” which is shown in Figure 3-31.

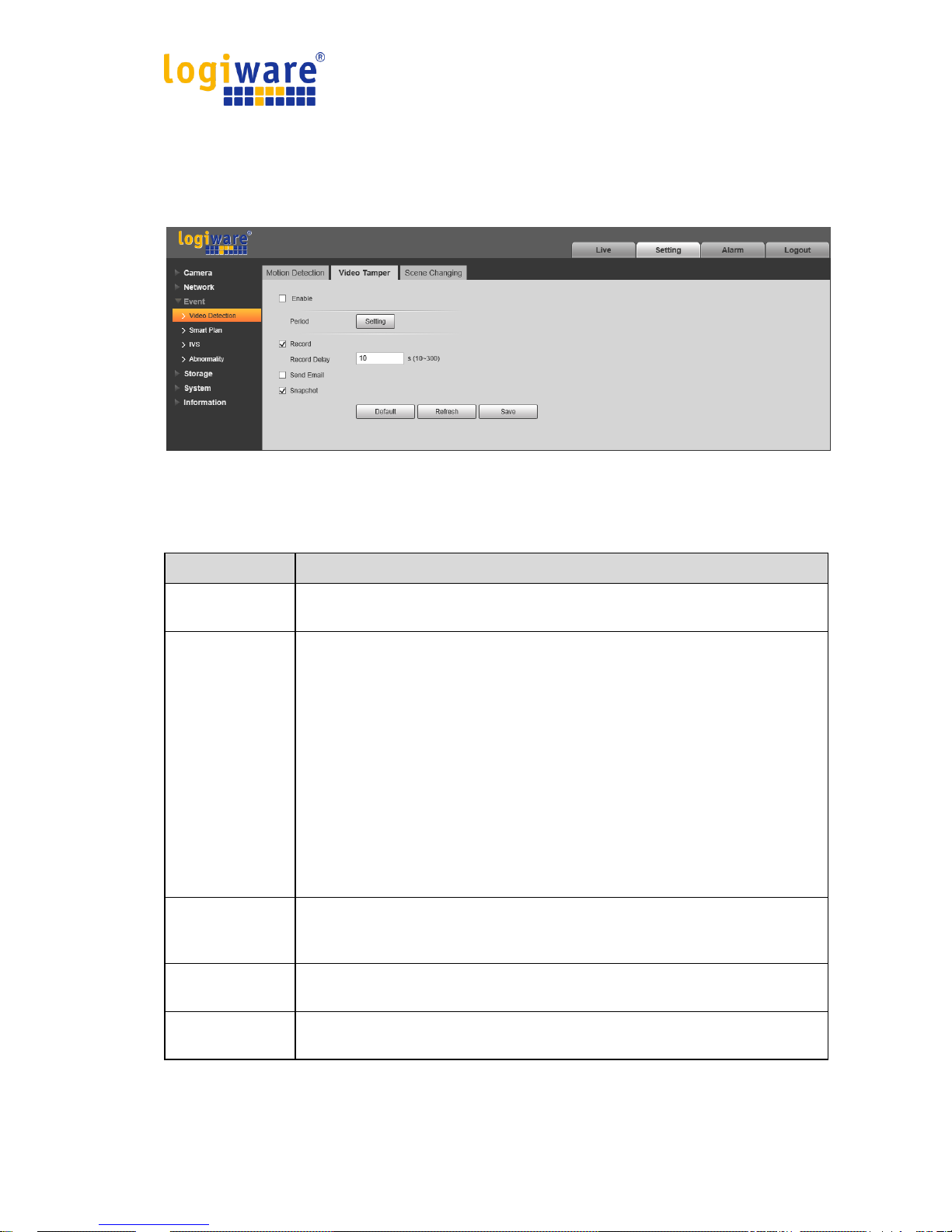

Figure 3-31
Step 2
Set the parameter of video tampering; please refer to the following sheet for more details.
Parameter
Function
Enable video
tampering
You need to check the box to enable video mask detection alarm.
Working Period
Note:
It is to set the alarm period, it can enable alarm event only during the period
range which has been set.
1. Click “Setup” and the system will pop out the interface of “Working
Period”.
2. It is to set working period according to the following methods:
You can input time numerical value or press the left mouse button to
drag on the setup interface to set.
There are six periods to be set every day, select the check box in front
of the period, and then the period is valid.
Select week number (it selects Sunday by default, if it selects the whole
week, then it means the setup can be applied to the whole week, you
can also select the check box in front of the week number to implement
independent setting for some days).
3. Click “Save” to complete the setup of working period.
Record
Check it and so when alarm occurs, system will auto record. You shall set
record period in Storage>Schedule and select auto record in record control
interface.
Record Delay
System can delay the record for specified time after alarm ended. The value
ranges from 10s to 300s.
Send Email
If you enabled this function, System can send out email to alert you when
alarm occurs and ends. User can set email address in Network>SMTP.
Page 46
Operation Manual Network Camera logiware IPC1901A
43
Parameter
Function
Snapshot
You need to check the box here so that system can backup motion
detection snapshot file. You shall set snapshot period in Storage>Schedule.
Step 3
Click “Save” to complete the setup of video tampering.
3.3.1.3 Scene Changing
Step 1
Select “Setting > Event > Video Detection > Scene Changing” and the system will display the
interface of “Scene Changing” which is shown in Figure 3-32.

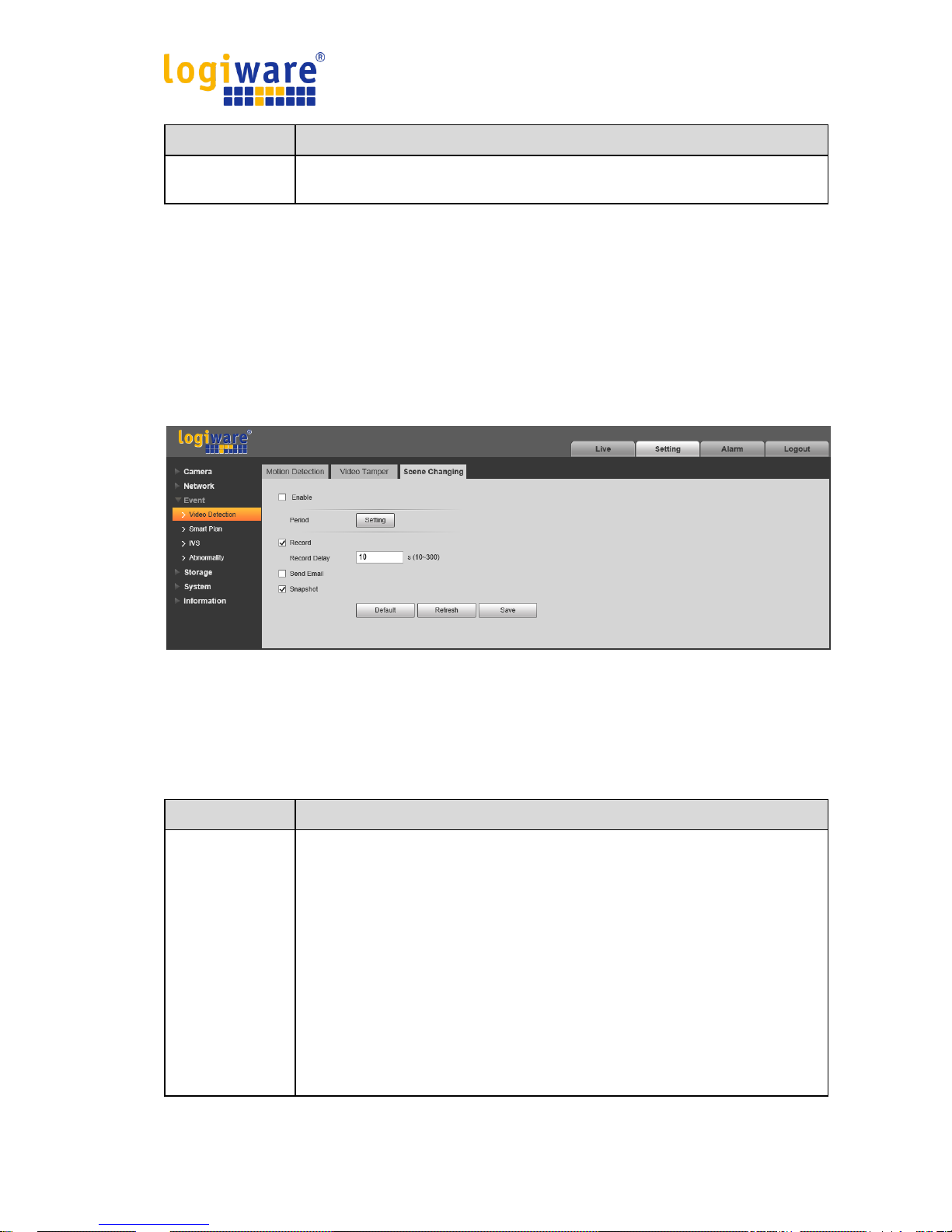

Figure 3-32
Step 2
Check “Enable” to enable the function of scene changing.
Step 3
It is to set the parameters of scene changing, please refer to the following sheet for more details.
Parameter
Function
Working Period
Note:
It is to set the alarm period, it can enable alarm event only during the period
range which has been set.
1. Click “Setup” and the system will pop out the interface of “Working
Period”.
2. It is to set working period according to the following methods:
You can input time numerical value or press the left mouse button to
drag on the setup interface to set.
There are six periods to be set every day, select the check box in front
of the period, and then the period is valid.
Select week number (it selects Sunday by default, if it selects the whole
week, then it means the setup can be applied to the whole week, you
can also select the check box in front of the week number to implement
independent setting for some days).
3. Click “Save” to complete the setup of working period.
Page 47
Operation Manual Network Camera logiware IPC1901A
44
Parameter
Function
Record
Check it and so when alarm occurs, system will auto record. You shall set
record period in Storage>Schedule and select auto record in record control
interface.
Record Delay
System can delay the record for specified time after alarm ended. The value
ranges from 10s to 300s.
Send Email
If you enabled this function, System can send out email to alert you when
alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot
You need to check the box here so that system can backup motion
detection snapshot file. You shall set snapshot period in Storage>Schedule.
Step 4
Click “Save” to complete the setup of scene changing.
3.3.2 Smart Plan
Smart plan is the master switch for intelligent analysis “IVS”. The corresponding intelligent
functions can be valid after smart plan is enabled.
Step 1
Select “Setting > Event > Smart Plan”. The system will display the interface of “Smart Plan”,
which is shown in Figure 3-33.
Figure 3-33
Step 2
Click “Save” to complete the configuration of smart plan.
Page 48
Operation Manual Network Camera logiware IPC1901A
45
3.3.3 Intelligence Behavior Analytics
The basic requirements of scene selection.
The total proportion of the target shall not exceed 10% of the image.
The target size in the image can’t be less than 10 pixel ×10 pixel, the size of abandoned
target can’t be less than 15 pixel × 15 pixel (CIF image); The height and width of the target
can’t exceed 1/3 of the image; it is recommended that the target height is about 10% of the
image height.
The difference of brightness value between target and background can’t be less than 10 gray
levels.
Make sure the target appears at least over 2 seconds continuously in the field; the movement
distance has to be bigger than the width of the target itself and makes sure it is no less than
15 pixels (CIF image).
Try to lower the complexity of the monitoring scene analysis if it is possible; it is not advised
to use IVS functions in the environment where the targets are dense and light change is very
frequent.
Try to keep away from the areas such as glass, ground reflected light, water surface, branch,
shadow, mosquito disturbance and etc. try to keep away from the backlight scene to avoid
direct light.
Page 49
Operation Manual Network Camera logiware IPC1901A
46
3.3.3.1 Tripwire
It will trigger alarm when the target crosses the warning line according to the movement direction
which has been set.
It needs some time from when the target appears to when the target is confirmed, so it has to
leave some space on both sides of the warning line when setting the warning line, please do not
set the warning line near the obstructions.
Application scene: it can be applied to the scene with sparse target and there is barely any blocks
between the targets, such as the unmanned perimeter defense.
Step 1
Select “Setting > Event > IVS > IVS” and the system will display the interface of “IVS”.
Step 2
Click “ ” to set rule name and select the rule type as “Tripwire” which is shown in Figure 3-34.

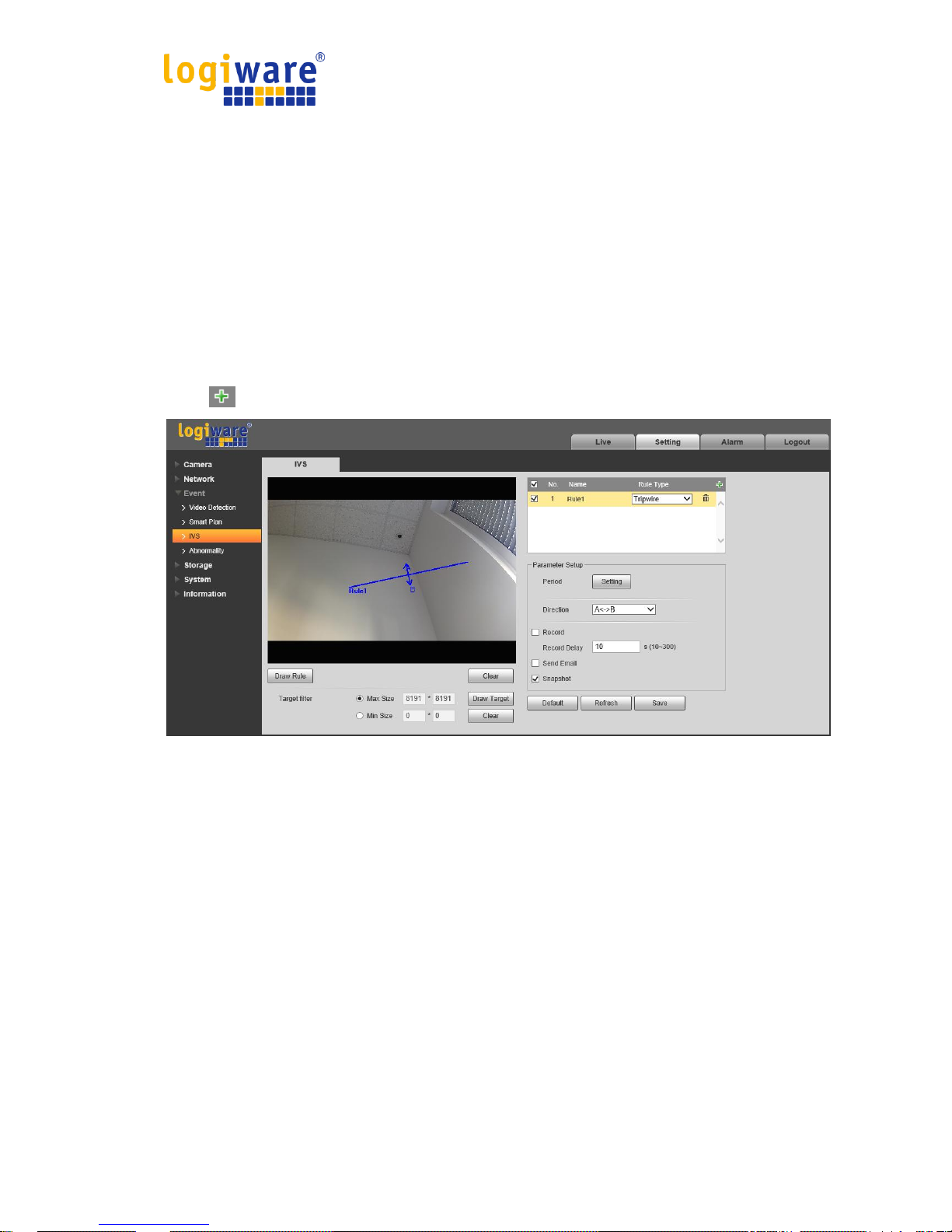

Figure 3-34
Page 50
Operation Manual Network Camera logiware IPC1901A
47
Step 3
Click “Draw Rule” to draw tripwire in the monitoring scene, click the right mouse button to
complete tripwire setting.
Step 4
Click “Draw Target” to draw the size model of filtered target in the video image.
Step 5
It is to set the parameters of tripwire, please refer to the following sheet for more details.
Parameter
Function
Working Period
Note:
It is to set the alarm period, it can enable alarm event only during the period
range which has been set.
1. Click “Setup” and the system will pop out the interface of “Working
Period”.
2. It is to set working period according to the following methods:
You can input time numerical value or press the left mouse button to
drag on the setup interface to set.
There are six periods to be set every day, select the check box in front
of the period, and then the period is valid.
Select week number (it selects Sunday by default, if it selects the whole
week, then it means the setup can be applied to the whole week, you
can also select the check box in front of the week number to implement
independent setting for some days).
3. Click “Save” to complete the setup of working period.
Direction
It is to set the direction of tripwire, you can select A->B、B->A、A<->B.
Record
Check it and so when alarm occurs, system will auto record.
Record Delay
System can delay the record for specified time after alarm ended.
Send Email
If you enabled this function, System can send out email to alert you when
alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot
Select “Snapshot” and the system will auto trigger alarm and snapshot
when alarm occurs.
Step 5
Click “Save” to complete the setup of tripwire.
Page 51
Operation Manual Network Camera logiware IPC1901A
48
3.3.3.2 Intrusion
Intrusion includes cross and appears.
Cross means that it will trigger alarm when the target enters or exits the area.
Appears means that it will trigger alarm when the target appears in the area.
As for the report interval of the IVS function in the area, the system will trigger an alarm if it
detects same event happened during the interval; the alarm counter will become zero if there
is no same event happened in the interval.
It needs to leave some space for target movement for the area periphery if it is to detect enter &
exit event, which is similar to the warning line.
Application scene; it can be applied to the scene where the target is sparse and there is barely
any obstruction between the targets, such as the unmanned perimeter defense.
Step 1
Select “Setting > Event > IVS > IVS” and the system will display the interface of “IVS”.
Step 2
Click “ ” to set rule name, select the rule type as “Intrusion” which is shown in Figure 3-35.

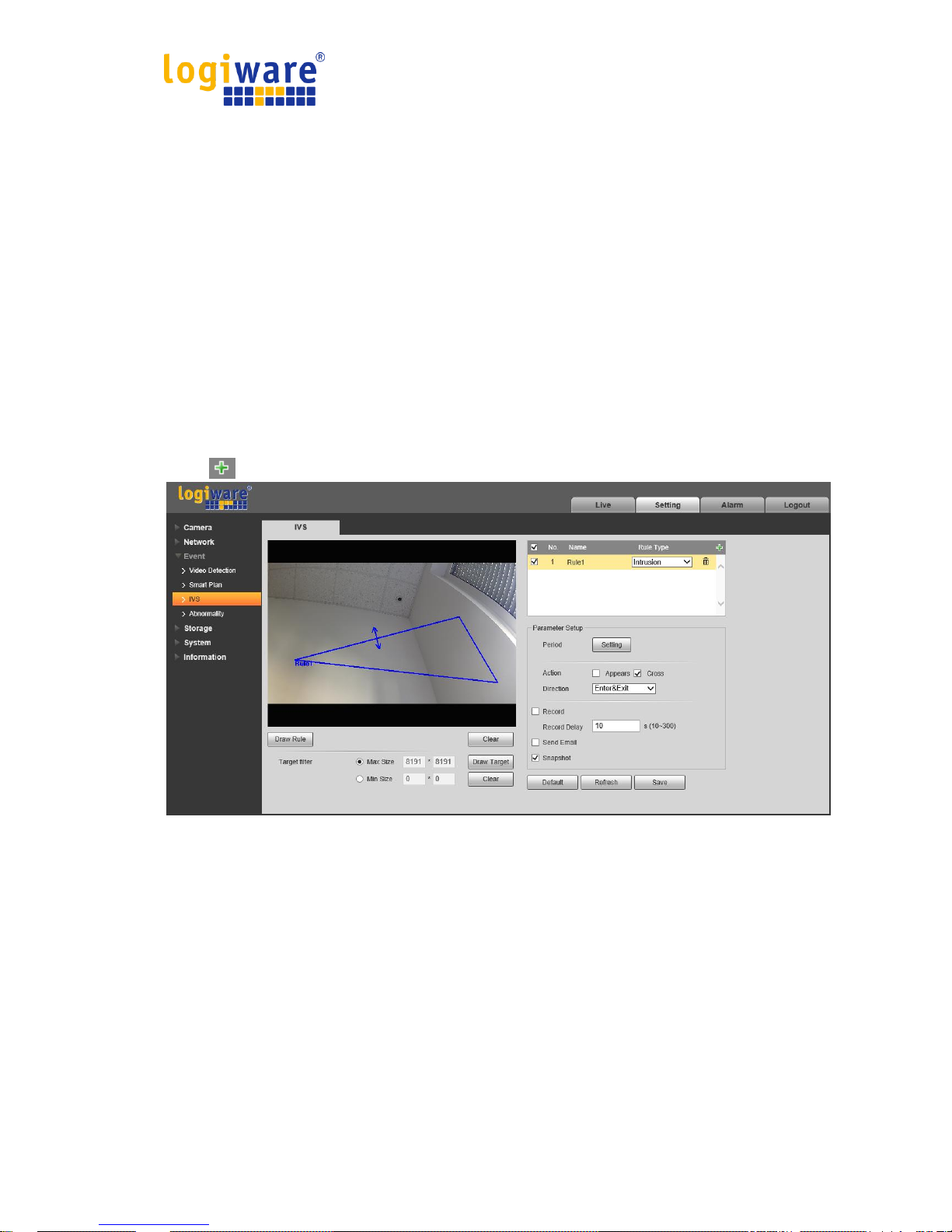

Figure 3-35
Step 3
Click “Draw Rule” to draw an area in the monitoring image.
Step 4
Click “Draw Target” to draw the size model of filtered target in the video image.
Step 5
It is to set the parameters of intrusion, please refer the following sheet for more details.
Page 52
Operation Manual Network Camera logiware IPC1901A
49
Parameter
Function
Working Period
Note:
It is to set the alarm period, it can enable alarm event only during the period
range which has been set.
1. Click “Setup” and the system will pop out the interface of “Working
Period”.
2. It is to set working period according to the following methods:
You can input time numerical value or press the left mouse button to
drag on the setup interface to set.
There are six periods to be set every day, select the check box in front
of the period, and then the period is valid.
Select week number (it selects Sunday by default, if it selects the whole
week, then it means the setup can be applied to the whole week, you
can also select the check box in front of the week number to implement
independent setting for some days).
3. Click “Save” to complete the setup of working period.
Action
It is to set the action of intrusion, you can select appears and cross.
Direction
It is to set the direction of intrusion, you can select enter, exit and
enter&exit.
Record
Check it and so when alarm occurs, system will auto record.
Record Delay
System can delay the record for specified time after alarm ended.
Send Email
If you enabled this function, System can send out email to alert you when
alarm occurs and ends. User can set email address in Network>SMTP.
Snapshot
Select “Snapshot” and the system will auto trigger alarm and snapshot
when alarm occurs.
Step 5
Click “Save” to complete the setup of intrusion.
Page 53
Operation Manual Network Camera logiware IPC1901A
50

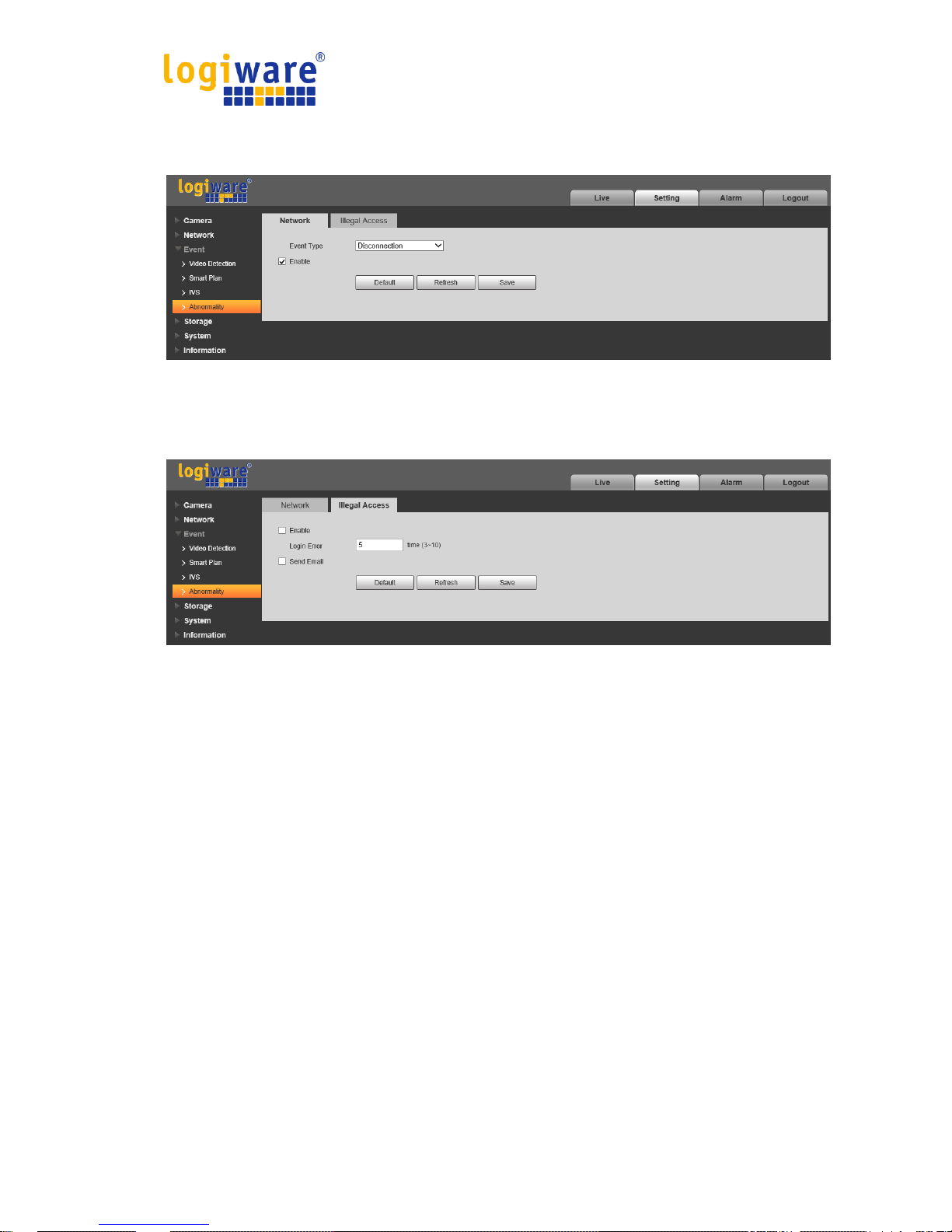

3.3.4 Abnormality
Abnormality includes Disconnection, IP Conflict and Illegal Access.
Figure 3-36
When login password keep been wrong for a few times, unauthorized access alarm occurs. Allow
login error times as when it exceeds this limit, user account will be locked.
Figure 3-37
Page 54
Operation Manual Network Camera logiware IPC1901A
51
3.4 Storage Management
3.4.1 Schedule
Before schedule setup, user must set record mode is auto or manual.
Note:
If record mode in record control is off, then device will not snapshot according to schedule.

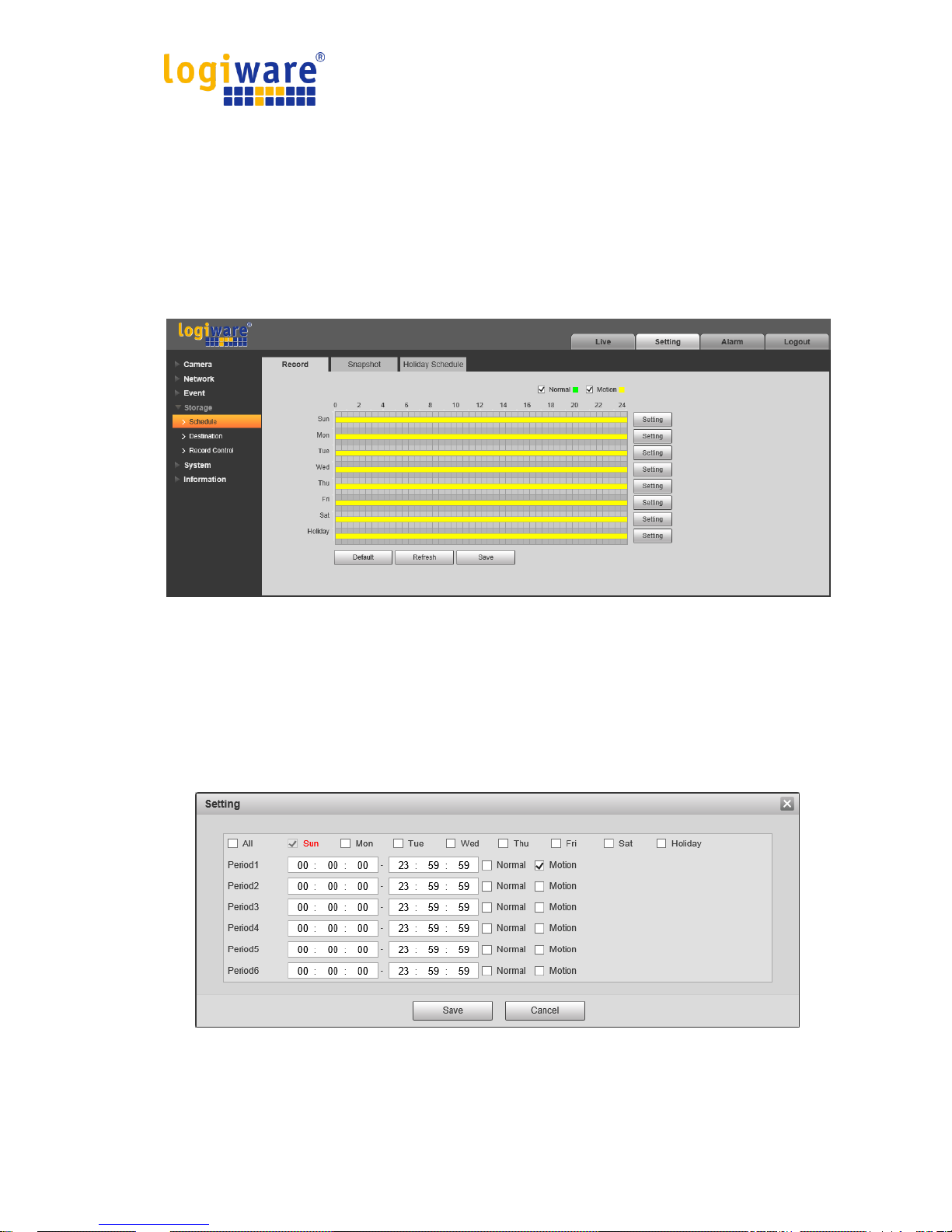

3.4.1.1 Record Schedule
Record schedule steps:
Step 1. Click on Record Schedule, see Figure 3-38.
Figure 3-38
Step 2. From Monday to Sunday select record time, click on setup on the right, see Figure 3-38.
Set period according to actual need. There are six periods available each day.
By checking or unchecking, you can add or delete two types of record schedule: Normal and
Motion.
Note:
Period setup can be done by dragging in record schedule interface while not releasing left mouse.
Figure 3-39
Page 55
Operation Manual Network Camera logiware IPC1901A
52

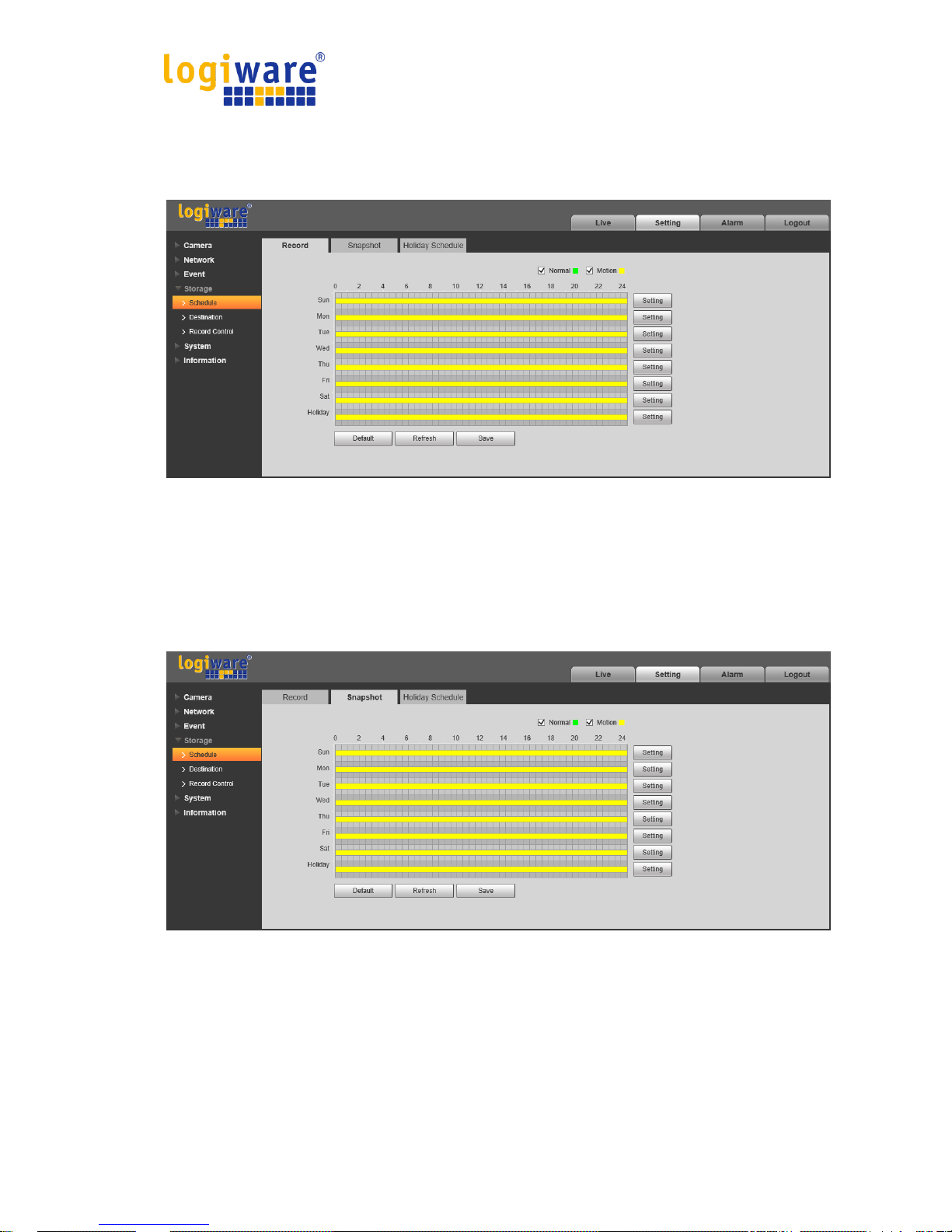

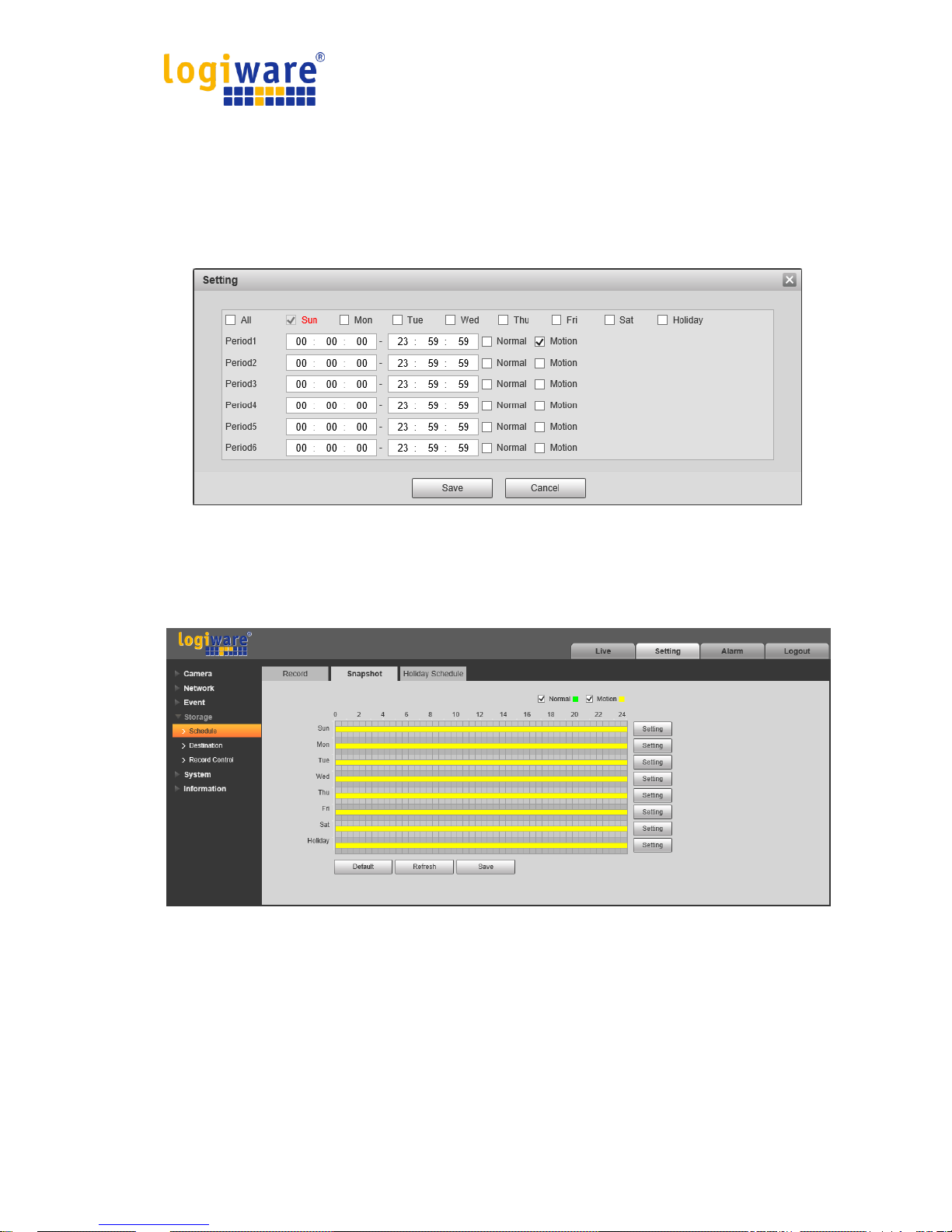

Step 3. Click on OK, return to record schedule interface. See Figure 3-40.
Green color stands for the normal record/snapshot.
Yellow color stands for the motion detect record/snapshot.
Figure 3-40
Step 4. In record schedule interface, click on OK. System prompts it is successfully saved.
3.4.1.2 Snapshot Schedule
Snapshot setup as:
Step 1. Click on Snapshot Schedule tab, see Figure 3-41.
Figure 3-41
Page 56
Operation Manual Network Camera logiware IPC1901A
53
From Monday to Sunday select snapshot time, click on setup on the right. See Figure 3-41.
Set snapshot period according to actual need. There are six periods available each day.
By checking or unchecking, user can add or delete two types of snapshot schedule: Normal
and Motion.
Note: Period setup can be done by dragging in snapshot schedule interface while not releasing
left mouse.
Figure 3-42
Step 2. Click on OK, return to snapshot schedule interface. See Figure 3-41.
Green color stands for the normal record/snapshot.
Yellow color stands for the motion detect record/snapshot.
Figure 3-43
Step 5. In snapshot interface, click on OK. System prompts it is successfully saved.
Page 57
Operation Manual Network Camera logiware IPC1901A
54

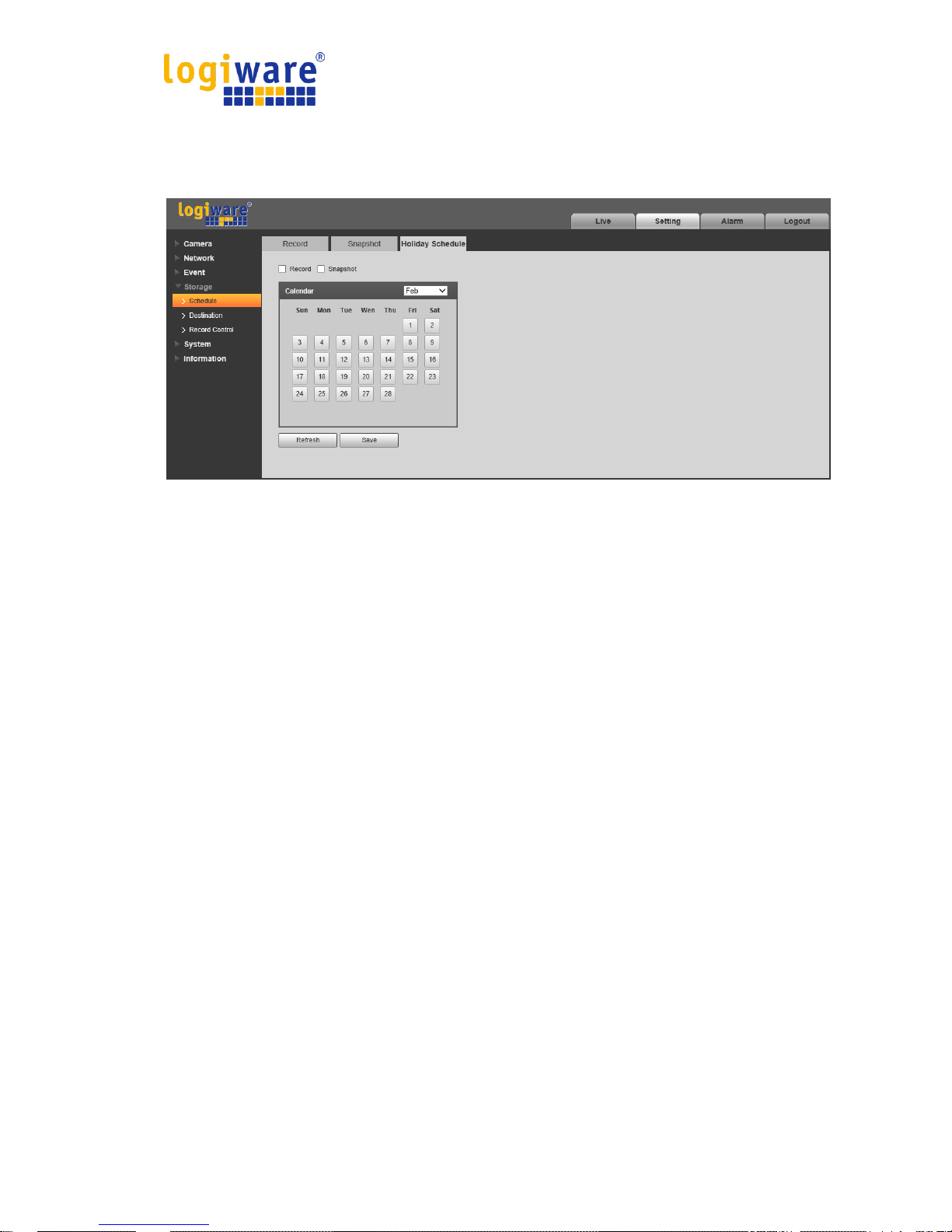

3.4.1.3 Holiday Schedule
Holiday schedule can set specific date as holiday.
Step 1. Click on Holiday Schedule tab, see Figure 3-44.
Figure 3-44
Step 2. Select date to set as holiday. The selected date will be highlighted in yellow.
Step 3. Check Record/Snapshot, click on Save. System prompts it is successfully saved.
Step 4. Check Record Schedule/Snapshot Schedule interface, click on setup next to Holiday, and
refer to setup of Monday to Sunday.
Step 5. Complete setup of holiday, then it records/snapshots according to date in holiday
schedule.
Page 58
Operation Manual Network Camera logiware IPC1901A
55

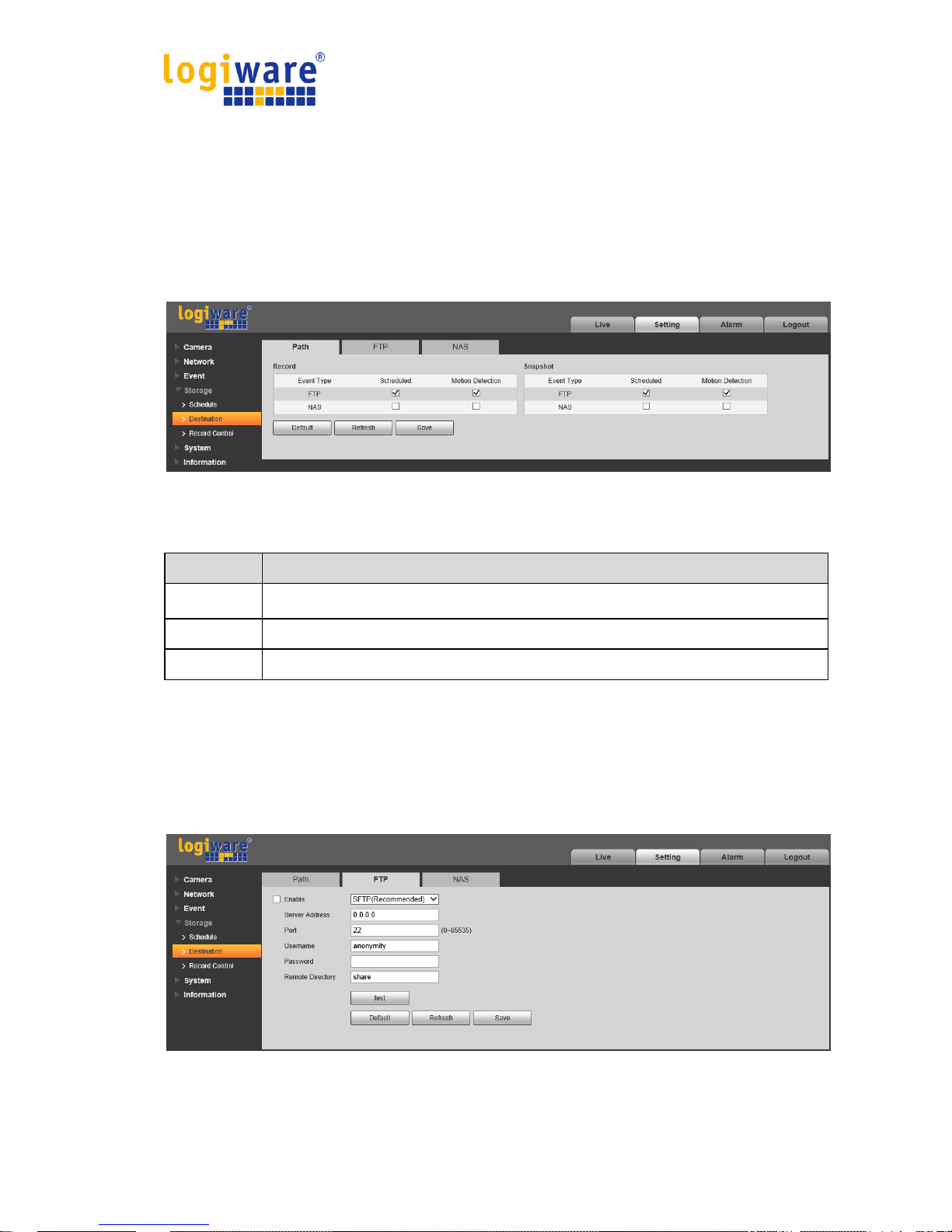

3.4.2 Destination
3.4.2.1 Path
The destination interface is shown as in Figure 3-45.
Path can configuration record and snapshot storage path. There are two options: FTP and NAS.
You can only select one mode. System can save according to the event types. It is corresponding
to the three modes (general/motion/alarm) in the Schedule interface. Please check the box to
enable the save functions.
Figure 3-45
Please refer to the following sheet for detailed information.
Parameter
Function
Event Type
It includes: scheduled and motion detection
FTP
It saved in the FTP server.
NAS
It saved in NAS disk.
3.4.2.2 FTP
The FTP interface is shown as in Figure 3-46.
You need to check the box to enable the FTP function. When network disconnect occurred or
there is malfunction. Emergency storage can save the record/snapshot picture to the local SD
card. Click the test button to check if the FTP server can be connected for test.
Figure 3-46
Page 59
Operation Manual Network Camera logiware IPC1901A
56
3.4.2.3 NAS
You need to check the box to enable the NAS function. Select NAS storage, fill in NAS server
address and corresponding store path, then you can store video file or pictorial information in the
NAS server. See Figure 3-47.

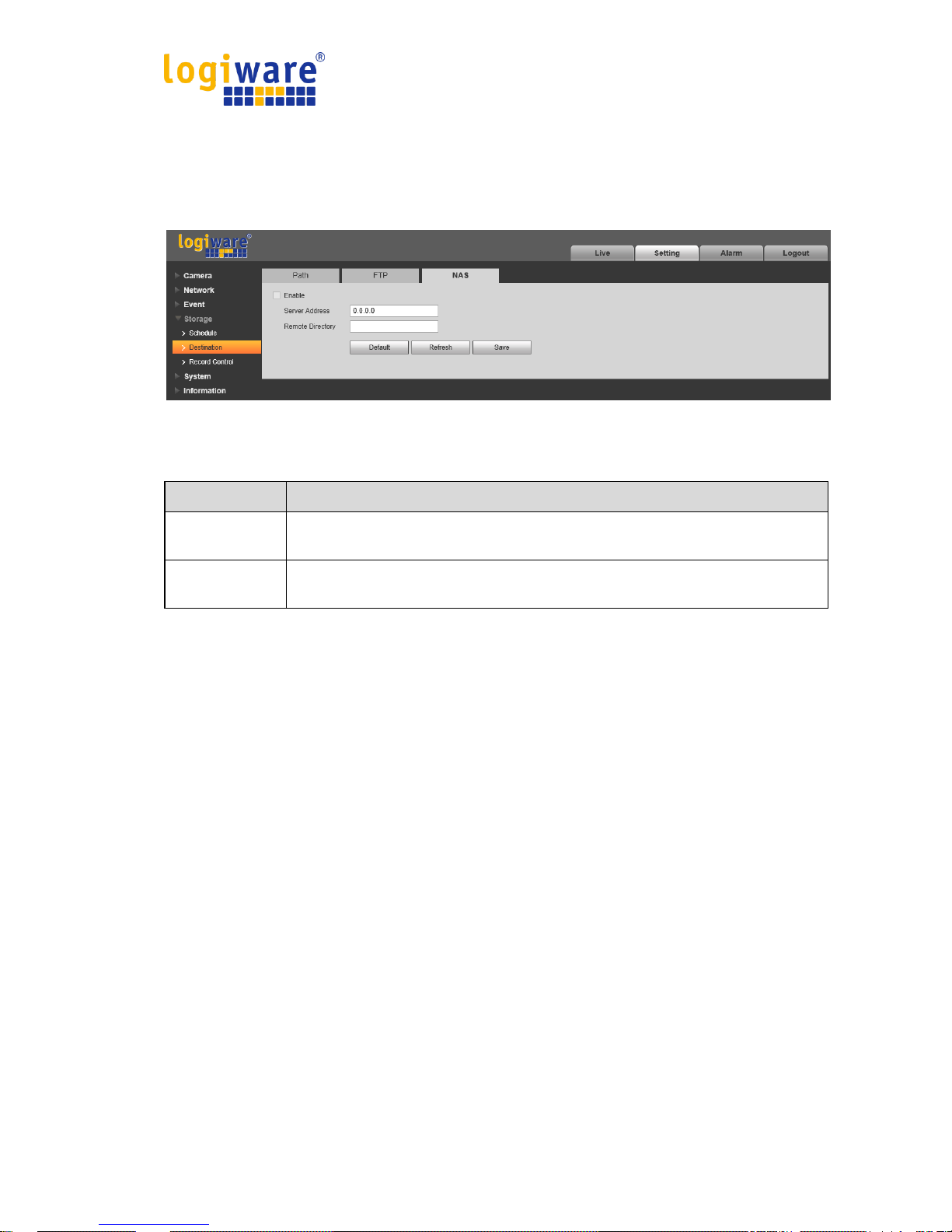

Figure 3-47
Parameter
Function
Server
Address
Set IP address of NAS server.
Remote
Directory
Set storage directory, videos and pictures can be stored in to corresponding
server directory.
Page 60
Operation Manual Network Camera logiware IPC1901A
57

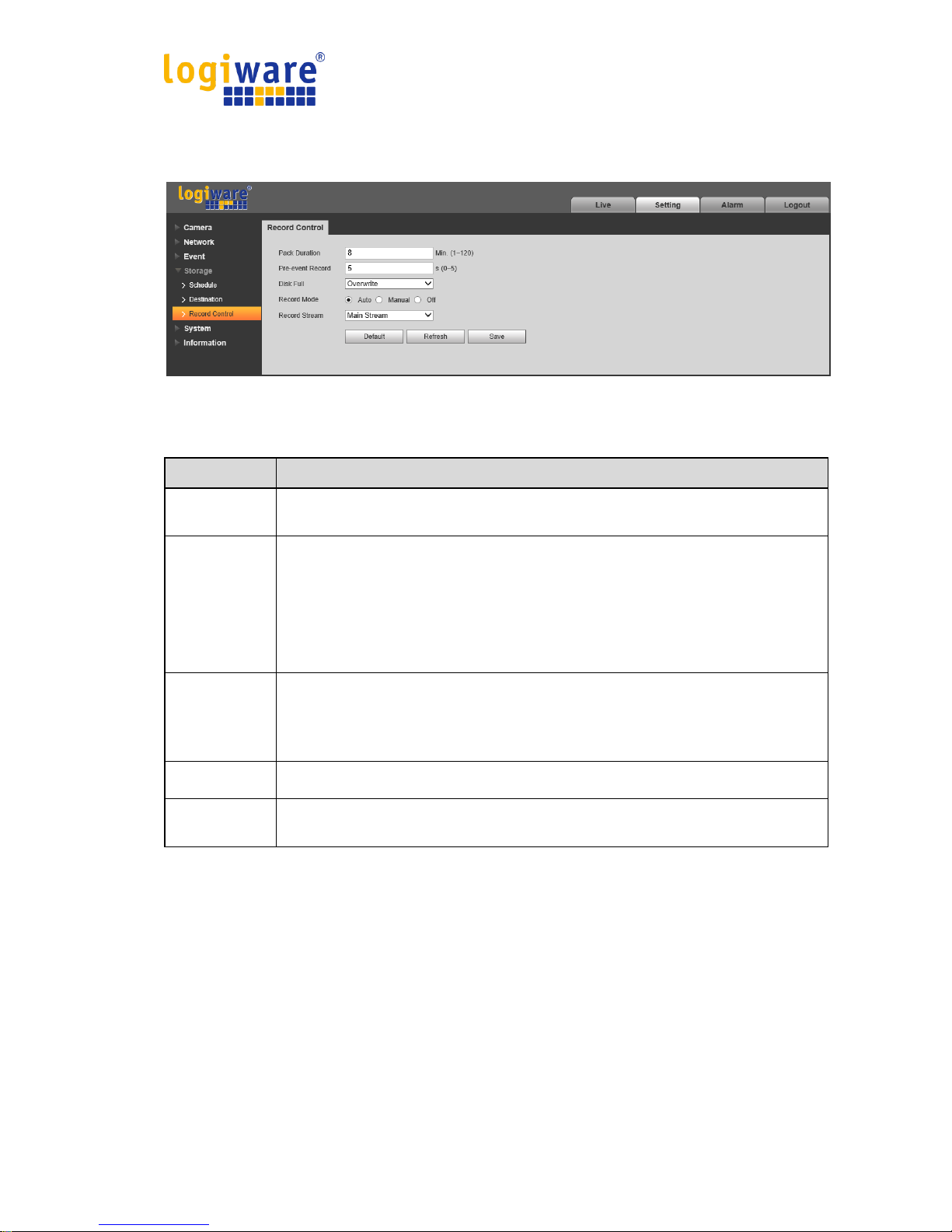

3.4.3 Record control
The record control interface is shown as in Figure 3-48.
Figure 3-48
Please refer to the following sheet for detailed information.
Parameter
Function
Pack
Duration
Here you can select file size within 1min~120min. Default setup is 8 minutes.
Pre-record
Please input pre-record value here.
For example, system can record the four seconds video in the buffer. The
record begins from the fifth second.
Note:
Configure pre-record time, when alarm or motion detection occurs, if there is
no record, system will record the preceding n seconds record.
Disk Full
There are two options: stop recording or overwrite the previous files when
HDD is full.
Stop: Current working HDD is overwriting or current HDD is full, it will stop
record.
Overwrite: Current working HDD is full; it will overwrite the previous file.
Record mode
There are three modes: Auto/manual/close.
Record
stream
There are two options: main stream and sub stream.
Page 61
Operation Manual Network Camera logiware IPC1901A
58
3.5 System
3.5.1 General
The General interface is shown as in Figure 3-49.

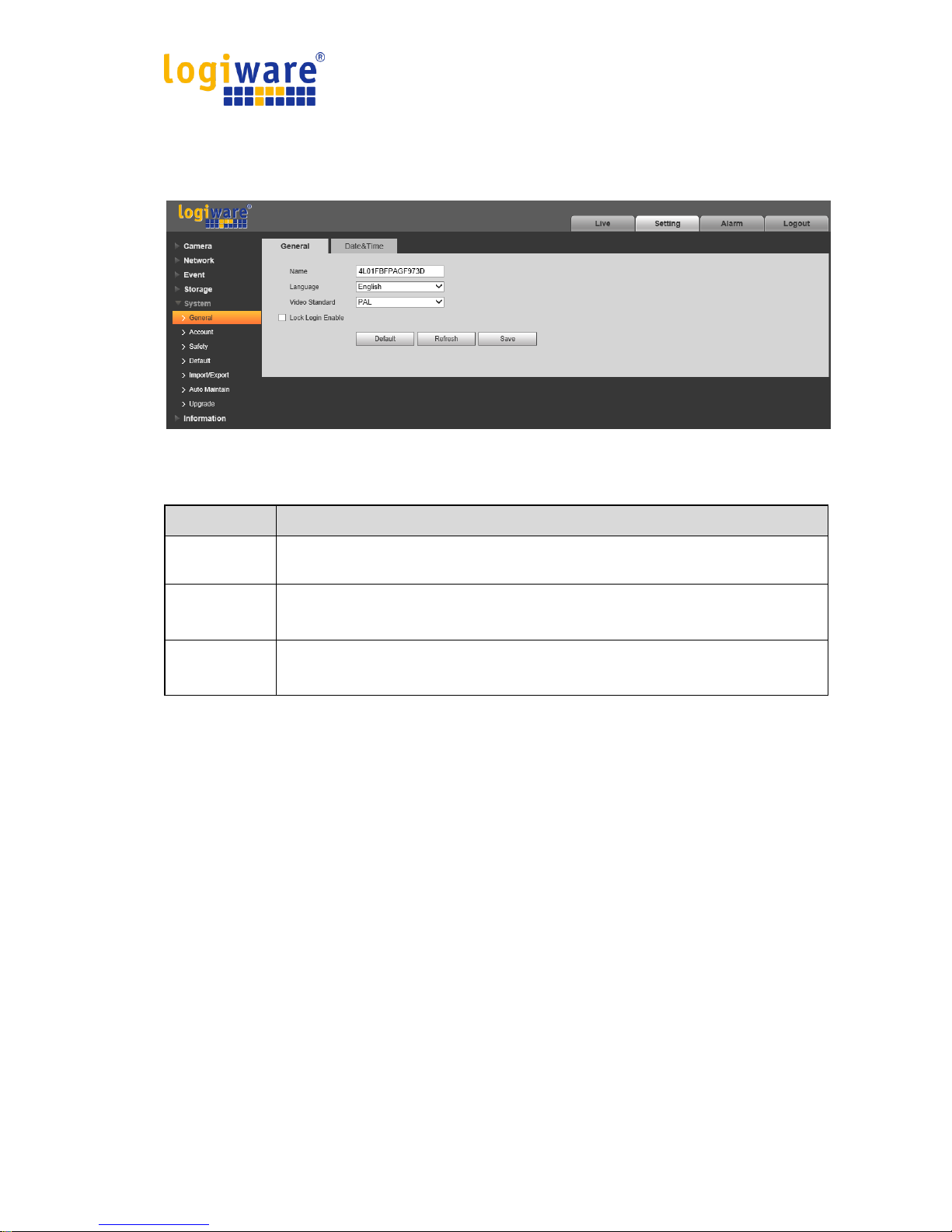

Figure 3-49
Please refer to the following sheet for detailed information.
Parameter
Function
Device Name
It is to set device name.
Note: Different devices have different names.
Language
You can select the language from the dropdown list.
Video
Standard
This is to display video standard such as PAL.
Page 62
Operation Manual Network Camera logiware IPC1901A
59
The Date & Time interface is shown as in Figure 3-50.

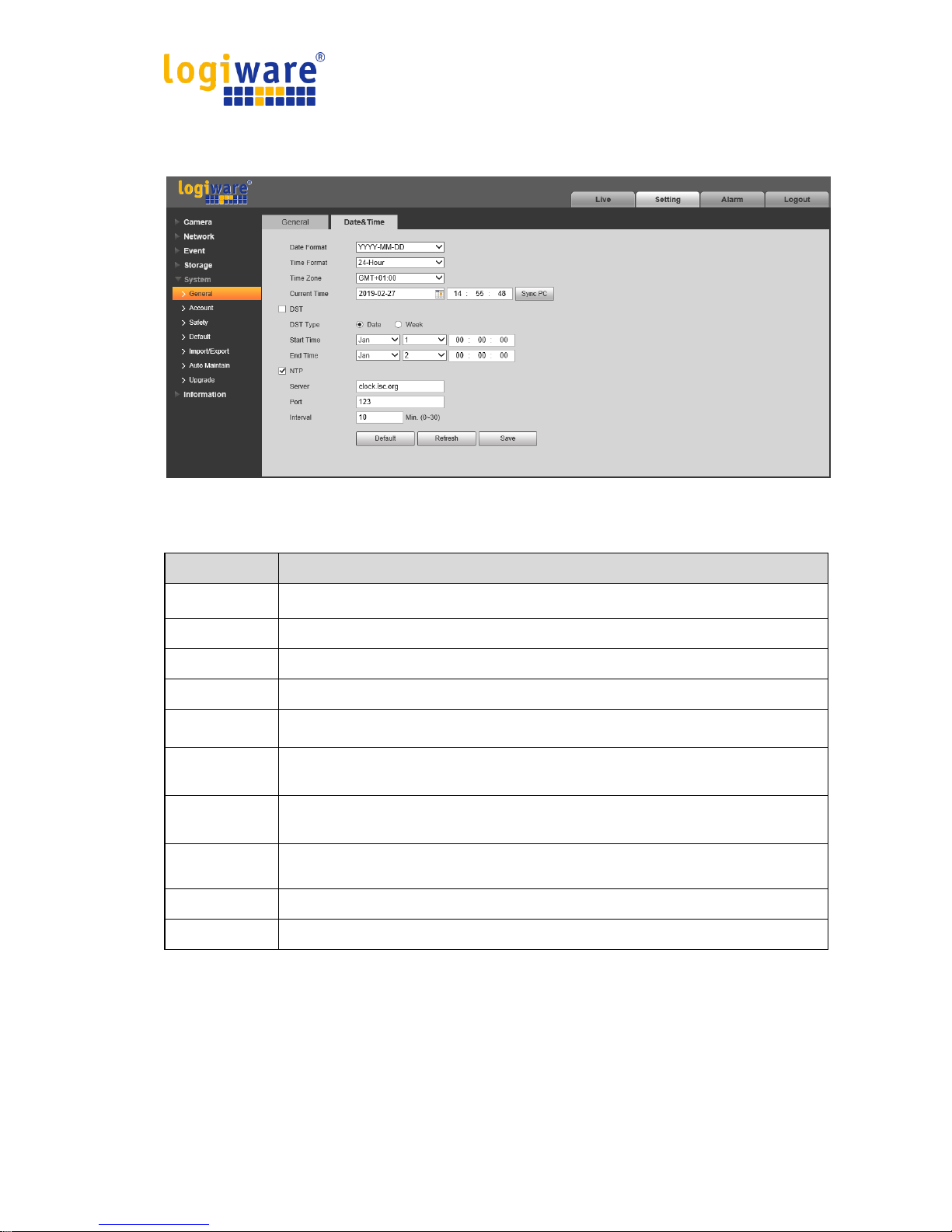

Figure 3-50
Please refer to the following sheet for detailed information.
Parameter
Function
Date format
Here you can select date format from the dropdown list.
Time Format
There are two options: 24-H and 12-H.
Time zone
The time zone of the device.
Current Time
It is to set system time. It becomes valid after you set.
Sync PC
You can click this button to save the system time as your PC current time.
DST Enable
Here you can set both begin and end time of daylight saving time. You can set
according to the date format or the week format.
Synchronize
with NTP
You can check the box to enable NTP function.
NTP server
You can set the time server address.
Port
It is to set the time server port.
Update period
It is to set the sync periods between the device and the time server.
Page 63
Operation Manual Network Camera logiware IPC1901A
60
3.5.2 Account
For user name and user group, the max length is 31 characters, which can be made up of
digit, letter, underline, hyphen, dot and @.
Password can be 0~32 characters in number and letter only. User can modify other user’s
password.
User and group can be manually added to 18 and 8 respectively.
User management adopts group/user modes. The user name and the group name shall be
unique. One user shall be included in only one group.
Currently logged in user cannot change his/her own right.
3.5.2.1 Username
In this interface you can enable anonymity login, add/remove user and modify user name. See
Figure 3-51.

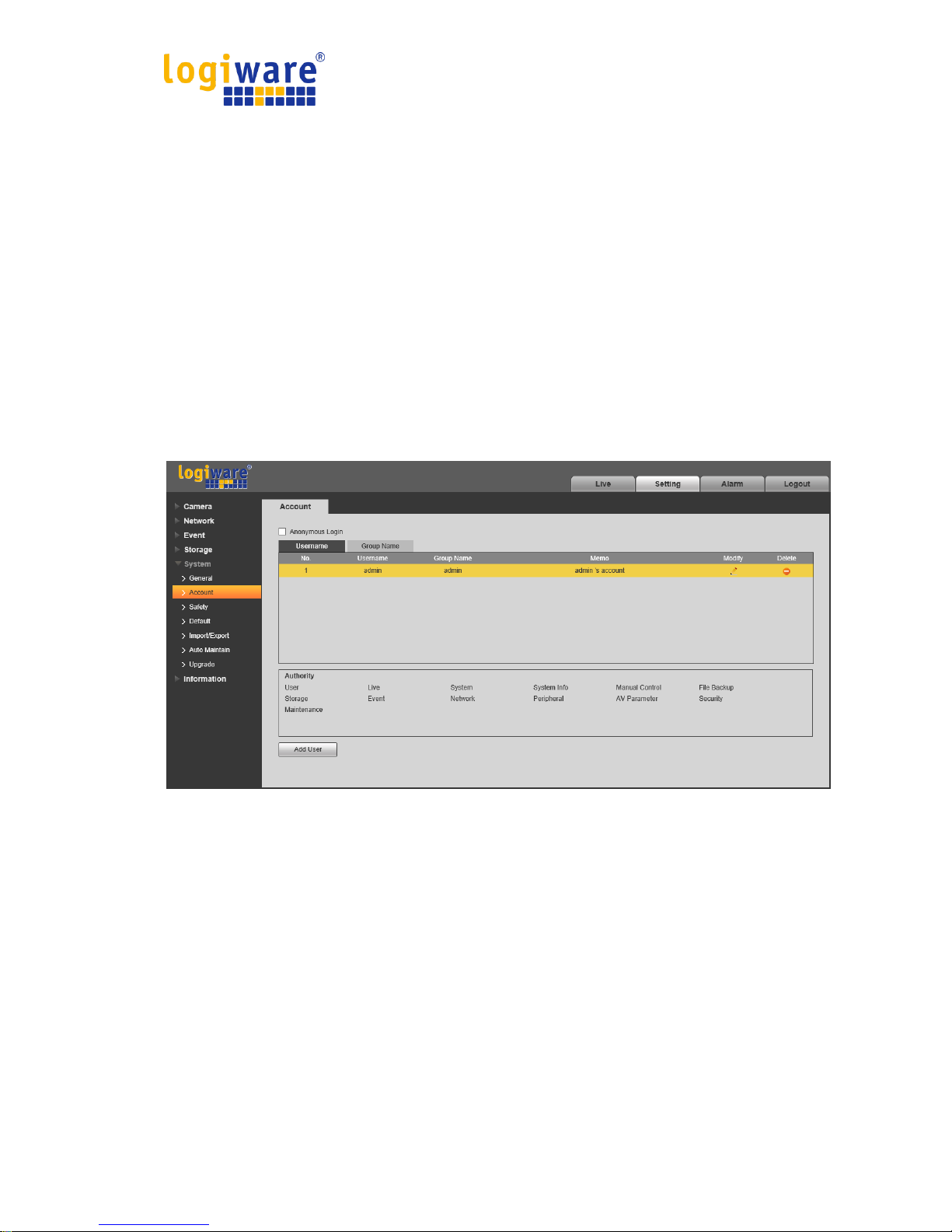

Figure 3-51
Enable anonymity login: Enable anonymity login, and input IP. No username or password is
required, you can log in by anonymity (with limited rights). You can click logout to end your
session.
Add user: It is to add a name to group and set the user rights.
Hidden user “default” is for system interior use only and cannot be deleted. When there is no
login user, hidden user “default” automatically login. You can set some rights such as monitor for
this user so that you can view some channel view without login.
Here you can input the user name and password and then select one group for current user.
Please note the user rights shall not exceed the group right setup.
For convenient setup, please make sure the general user has the lower rights setup than the
admin.
Page 64
Operation Manual Network Camera logiware IPC1901A
61

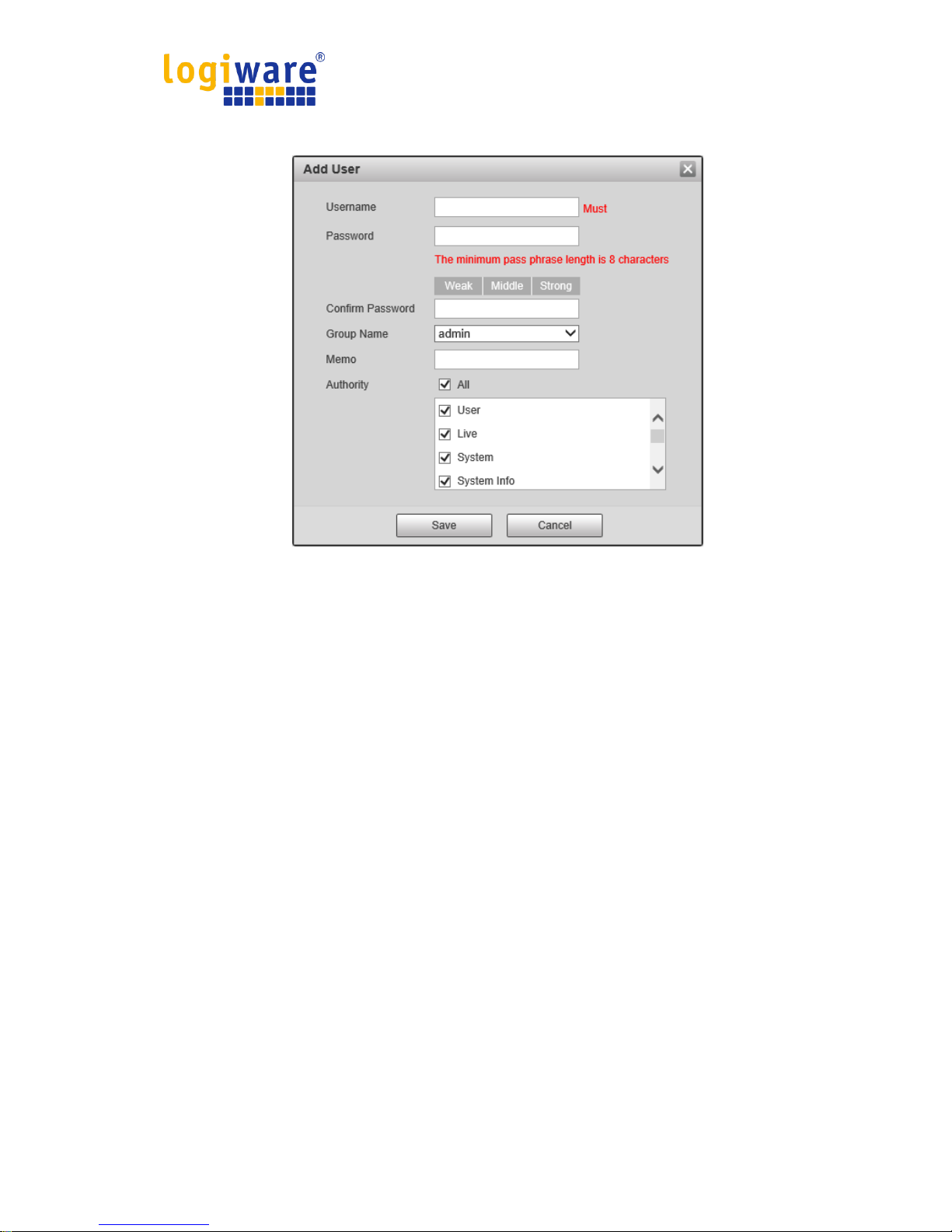

Figure 3-52
Modify user
It is to modify the user property, belonging group, password and rights.
Modify password
It is to modify the user password. You need to input the old password and then input the new
password twice to confirm the new setup. Please click the OK button to save.
Please note, the password ranges from 0-digit to 32-digit. It shall include the number and letter
only. For the user who has the account rights, he can modify the password of other users.
Page 65
Operation Manual Network Camera logiware IPC1901A
62

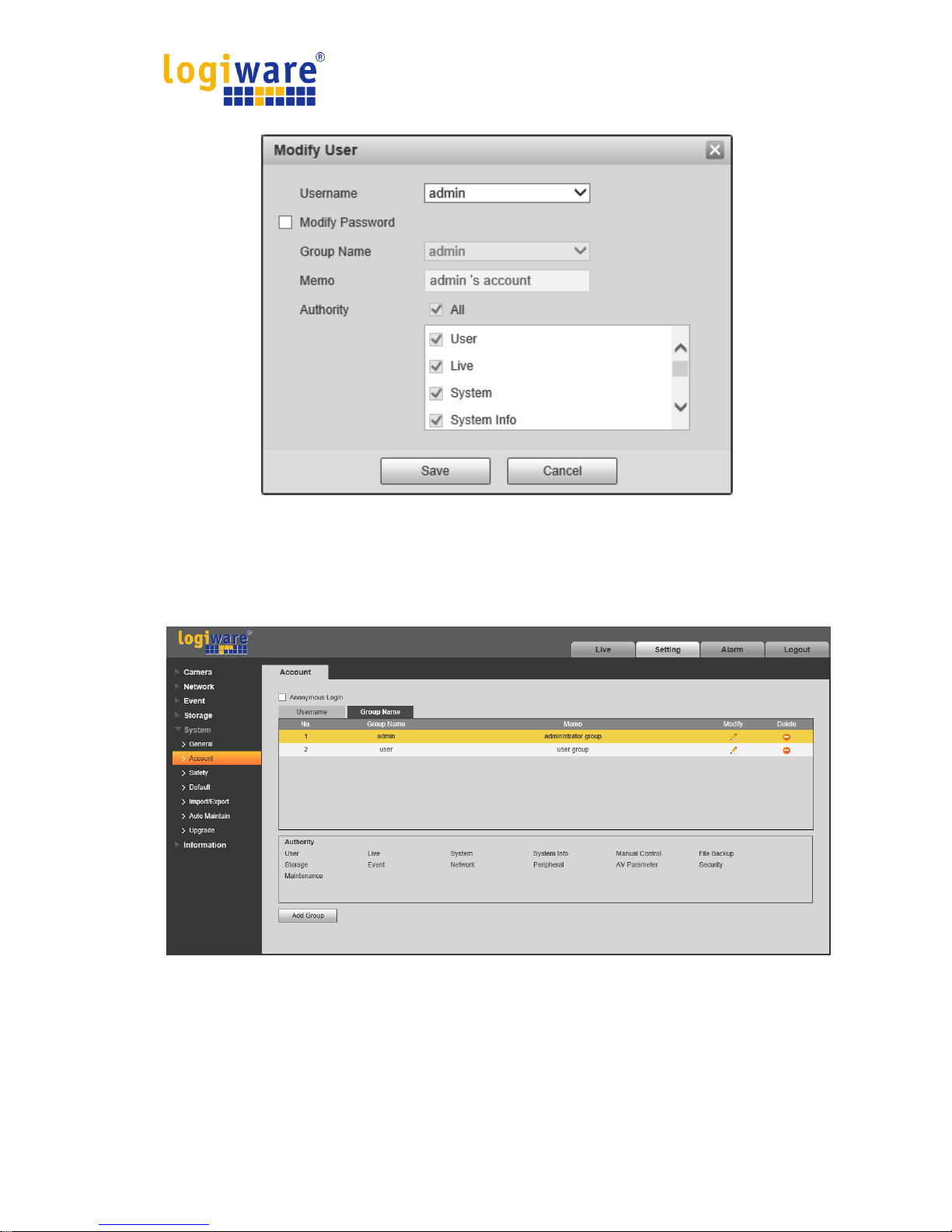

Figure 3-53
3.5.2.2 Group
The group management interface can add/remove group, modify group password and etc.
The interface is shown as in Figure 3-54.
Figure 3-54
Add group: It is to add group and set its corresponding rights. See Figure 3-55.
Please input the group name and then check the box to select the corresponding rights. It
includes: preview, playback, record control, PTZ control and etc.
Page 66
Operation Manual Network Camera logiware IPC1901A
63

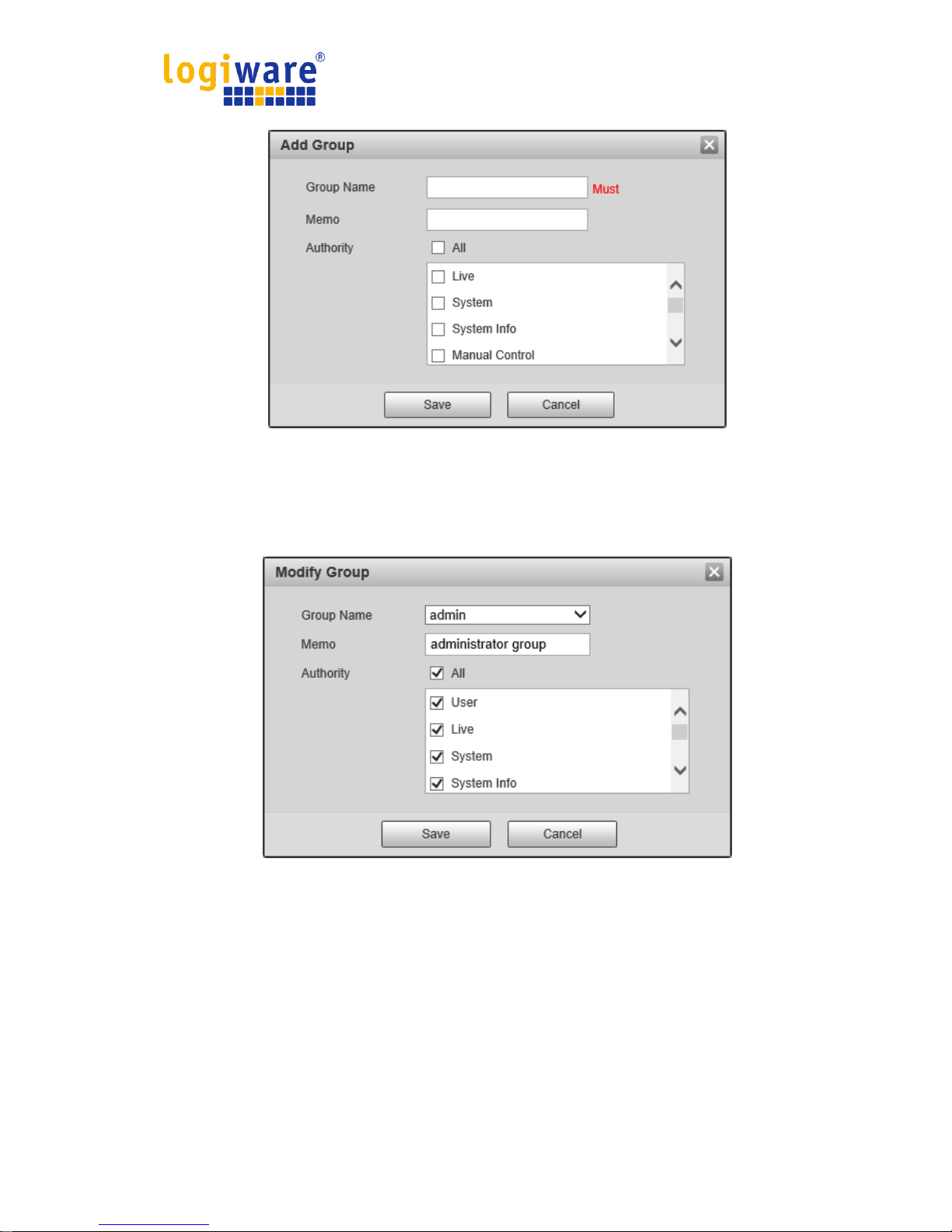

Figure 3-55
Modify group
Click the modify group button, you can see an interface is shown as in Figure 3-56.
Here you can modify group information such as remarks and rights.
Figure 3-56
Page 67
Operation Manual Network Camera logiware IPC1901A
64

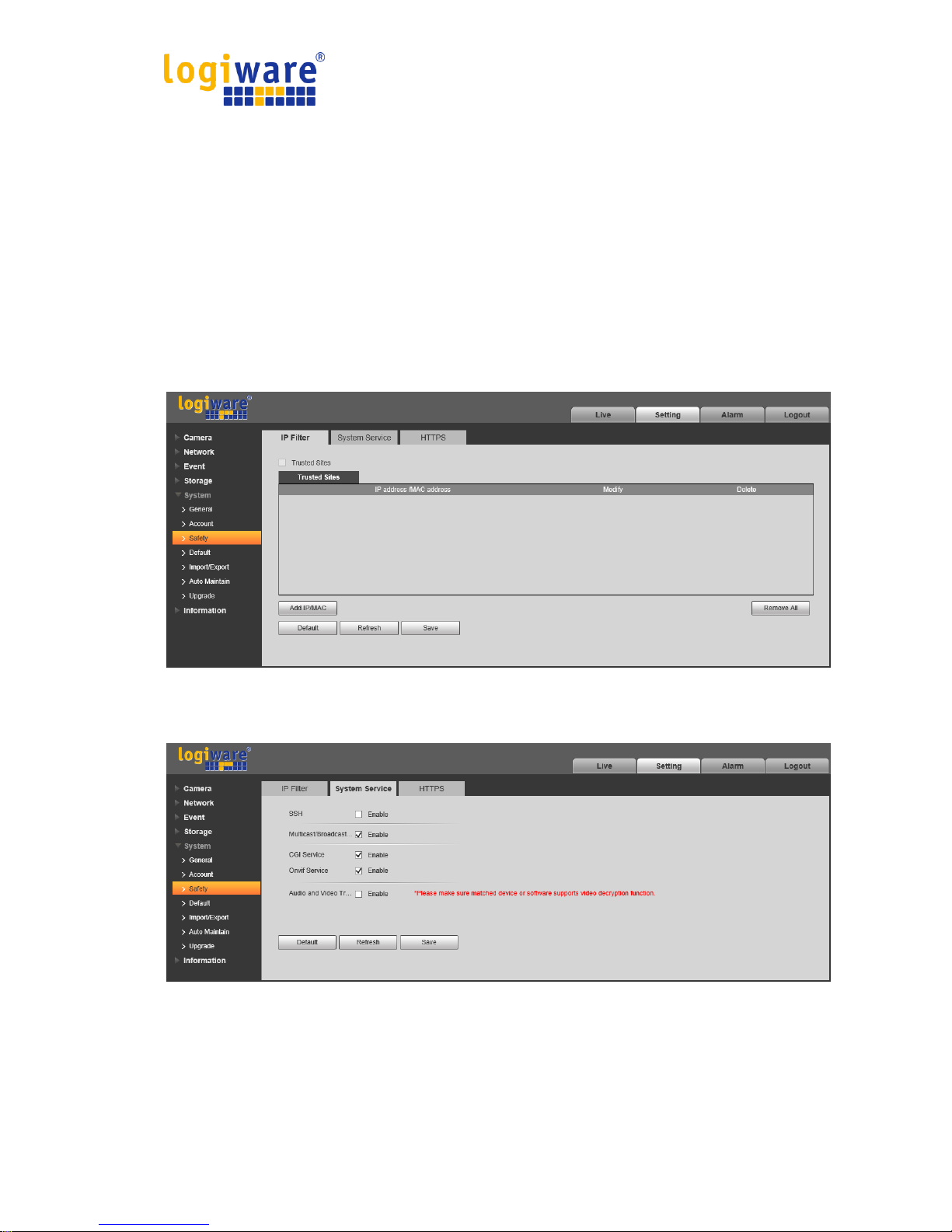

3.5.3 Safety
3.5.3.1 IP filter
The IP filter interface is shown as in Figure 3-57.
You can enable IP filter function so that some specified IP/MAC user can access the network
camera.
You can add IP address or IP segment.
If you do not check the box here, it means there is on access limit.
Here you can add IP address and MAC address. You must add these addresses before enabling
the trusted sites.
Please note: You must set MAC address in the same network segment.
Figure 3-57
3.5.3.2 System Services
Figure 3-58
Page 68
Operation Manual Network Camera logiware IPC1901A
65

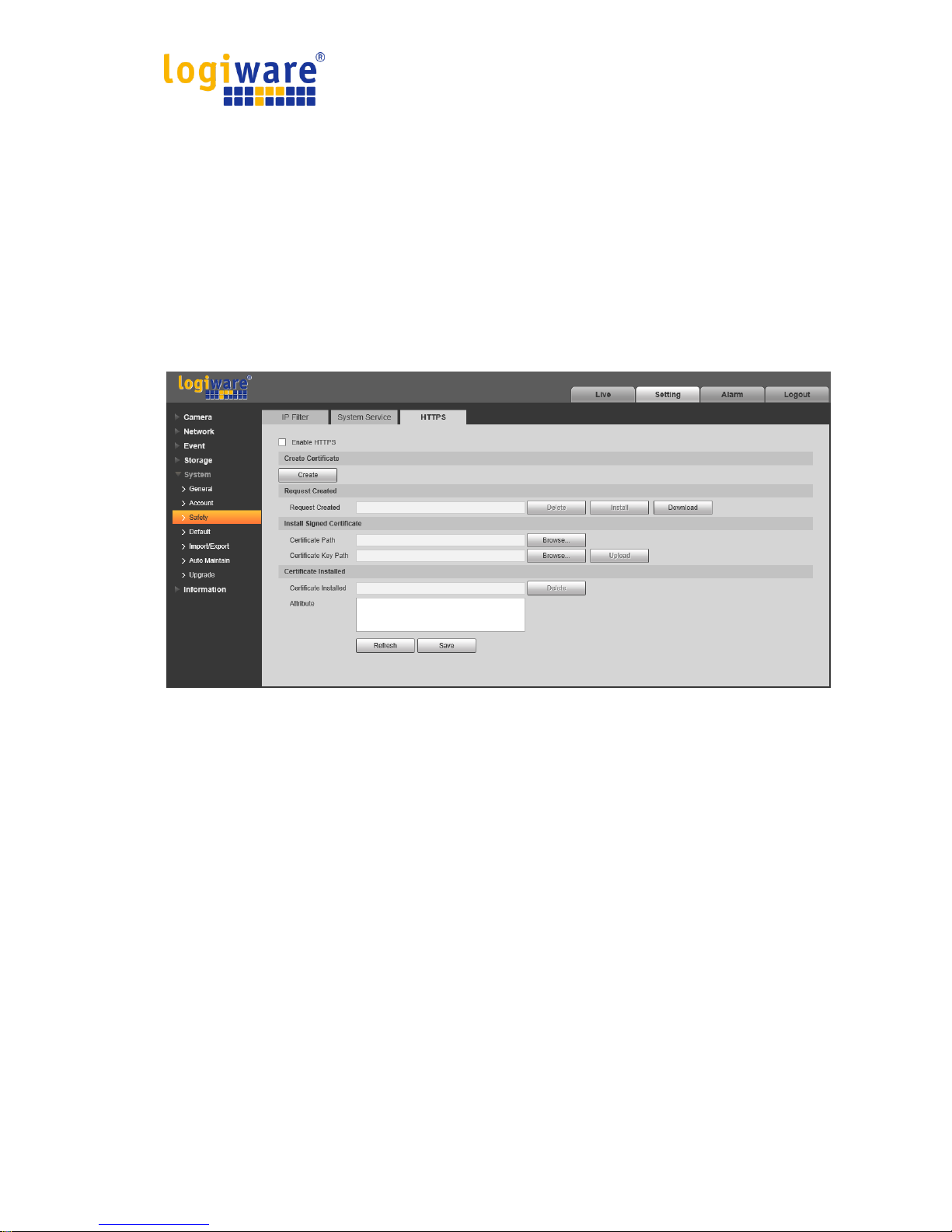

3.5.3.3 HTTPs
In the HTTPs setting interface, users can make PC log in normally via HTTPs by creating
certificate or uploading signed certificate, which is to guarantee the security of communication
data and provide safeguard for user information and device security with reliable and stable
technical means.
Step 1
Create certificate or upload the signed certificate.
Please refer to the following steps if you select “Create Certificate”.
1. Select “Setting > Network > HTTPs”, and the system will display the interface of HTTPs,
which is shown in Figure 3-59.
Figure 3-59
2. Click “Create” and it will pop out the dialog box of “HTTPs”, which is shown in Figure 3-60.
Page 69
Operation Manual Network Camera logiware IPC1901A
66

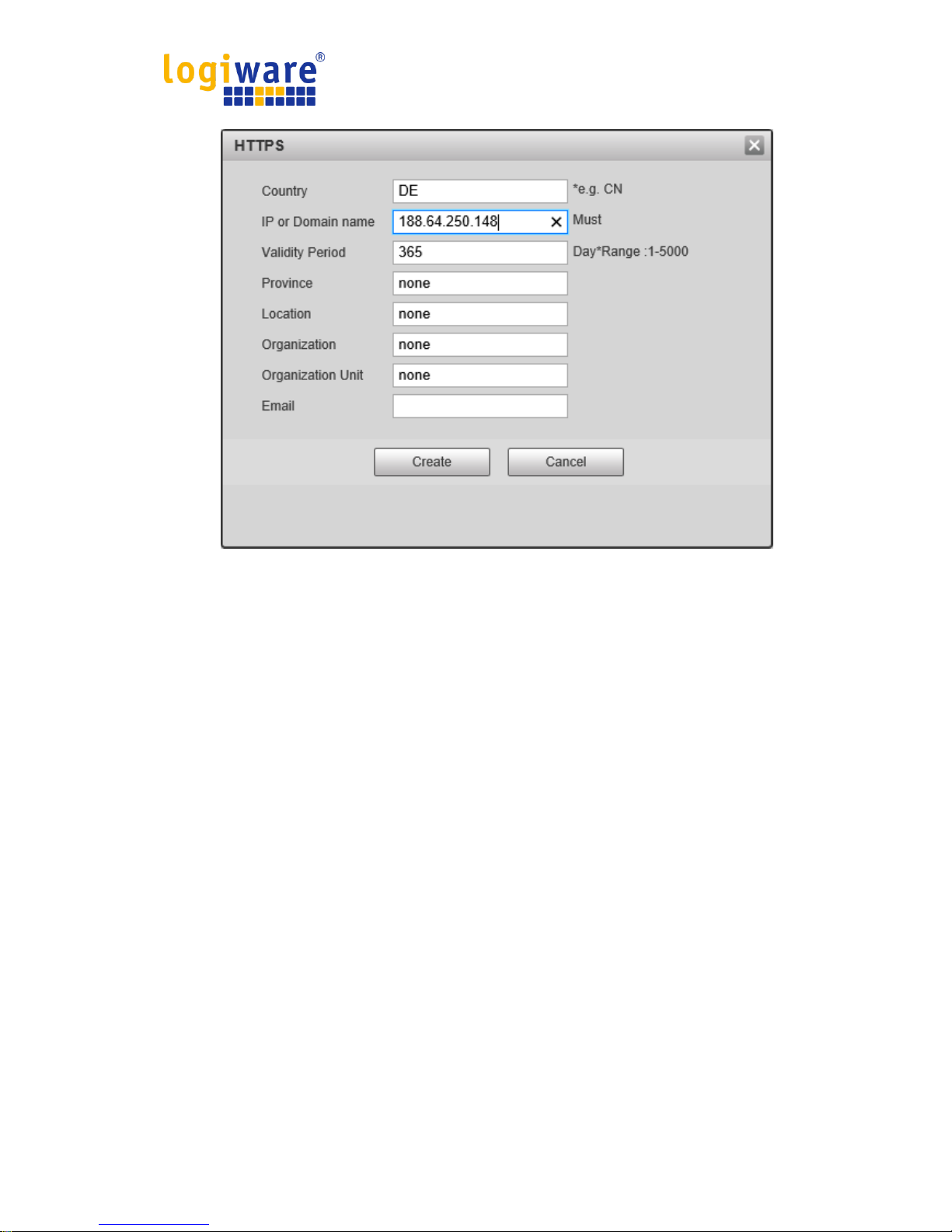

Figure 3-60
3. Fill in corresponding “Country”, “Province” and some other information, click “Create” after
filling in. It will show the prompt of “Create Successfully”, which means the server certificate
has been successfully created.
Note:
Make sure the “IP or domain name” is the same as that of the device.
4. Click “Install” and it will install the certificate on the device end, which is shown in Figure 3-61.
Page 70
Operation Manual Network Camera logiware IPC1901A
67

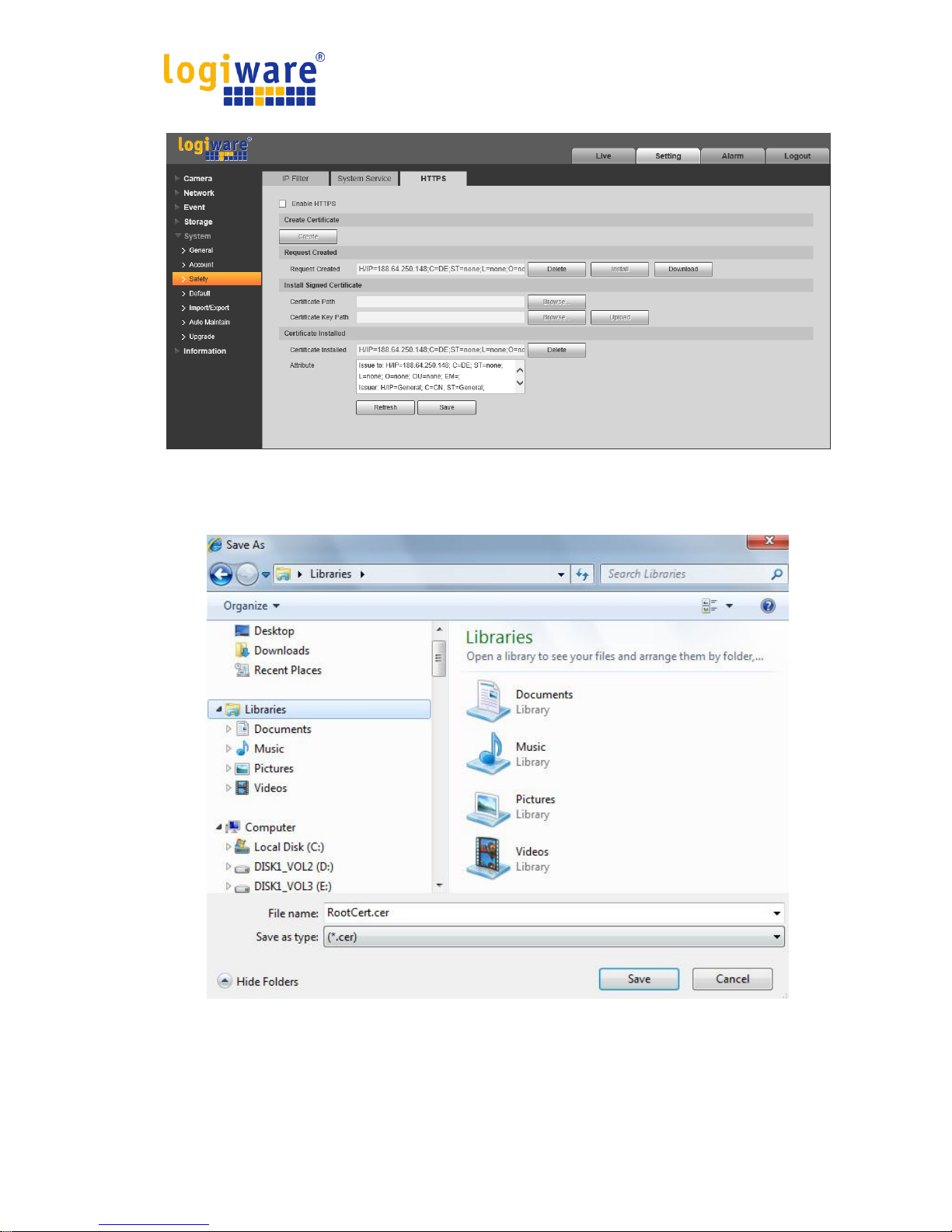

Figure 3-61
5. Click “Download”. It will pop out the dialog box of “Save as”, save the file into the computer.
Figure 3-62
6. Double click the downloaded icon of “RootCert.cer”. The system will display the information
interface of “Certificate”, which is shown in Figure 3-63.
Page 71
Operation Manual Network Camera logiware IPC1901A
68

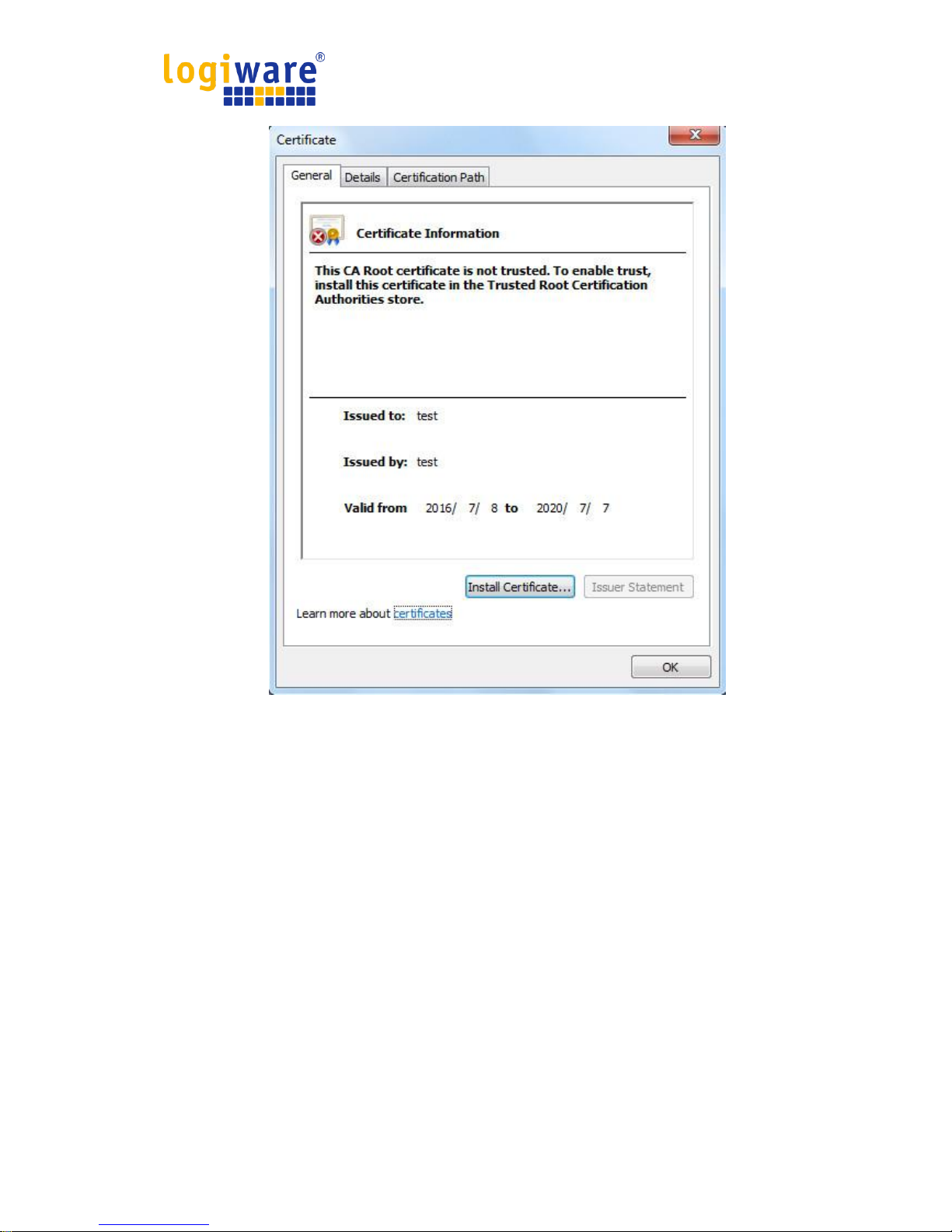

Figure 3-63
7. Click “Install Certificate” and it will pop out the interface of “Certificate Import Wizard”, which is
shown in Figure 3-64.
Page 72
Operation Manual Network Camera logiware IPC1901A
69

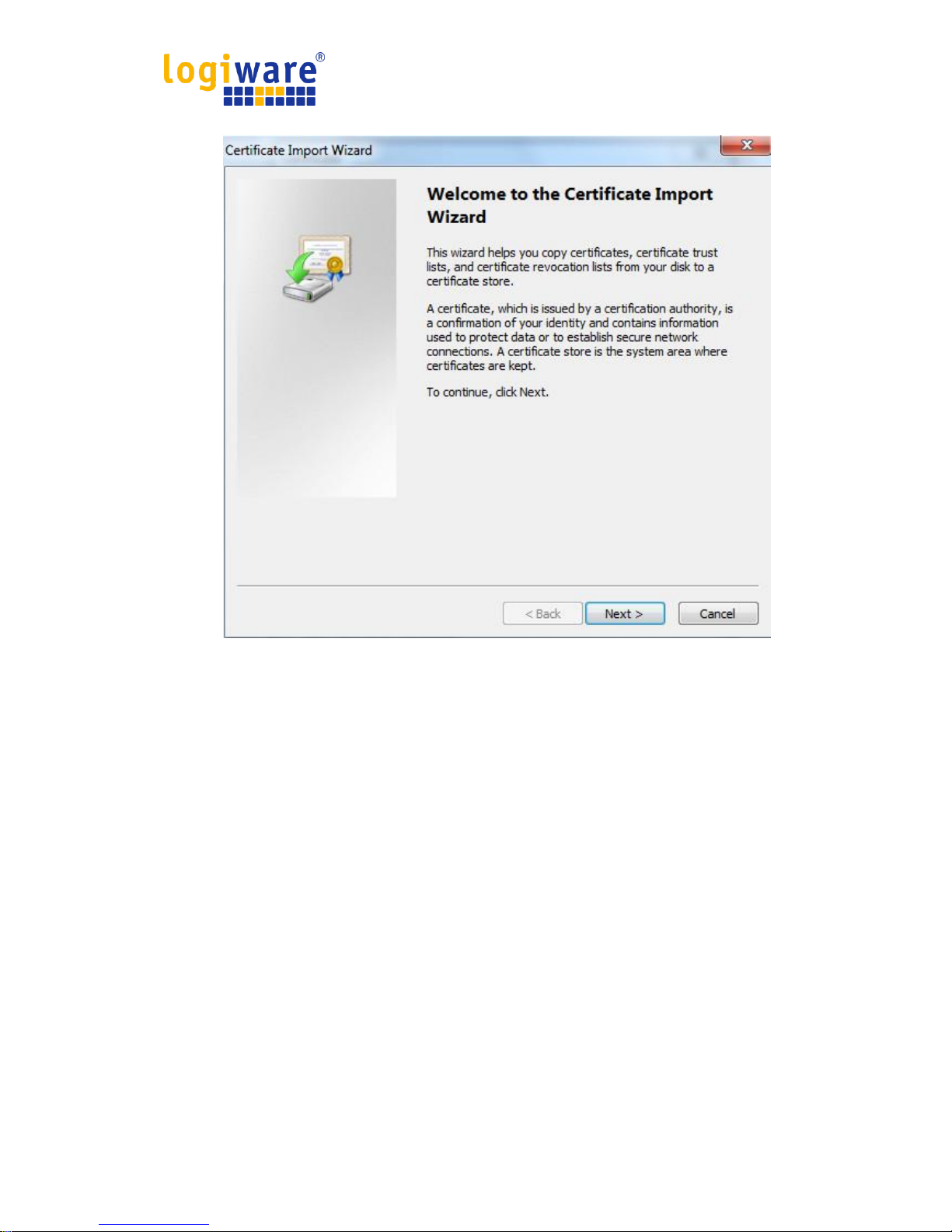

Figure 3-64
8. Click “Next”. Select “Trusted Root Certification Authorities”, which is shown in Figure 3-65.
Page 73
Operation Manual Network Camera logiware IPC1901A
70

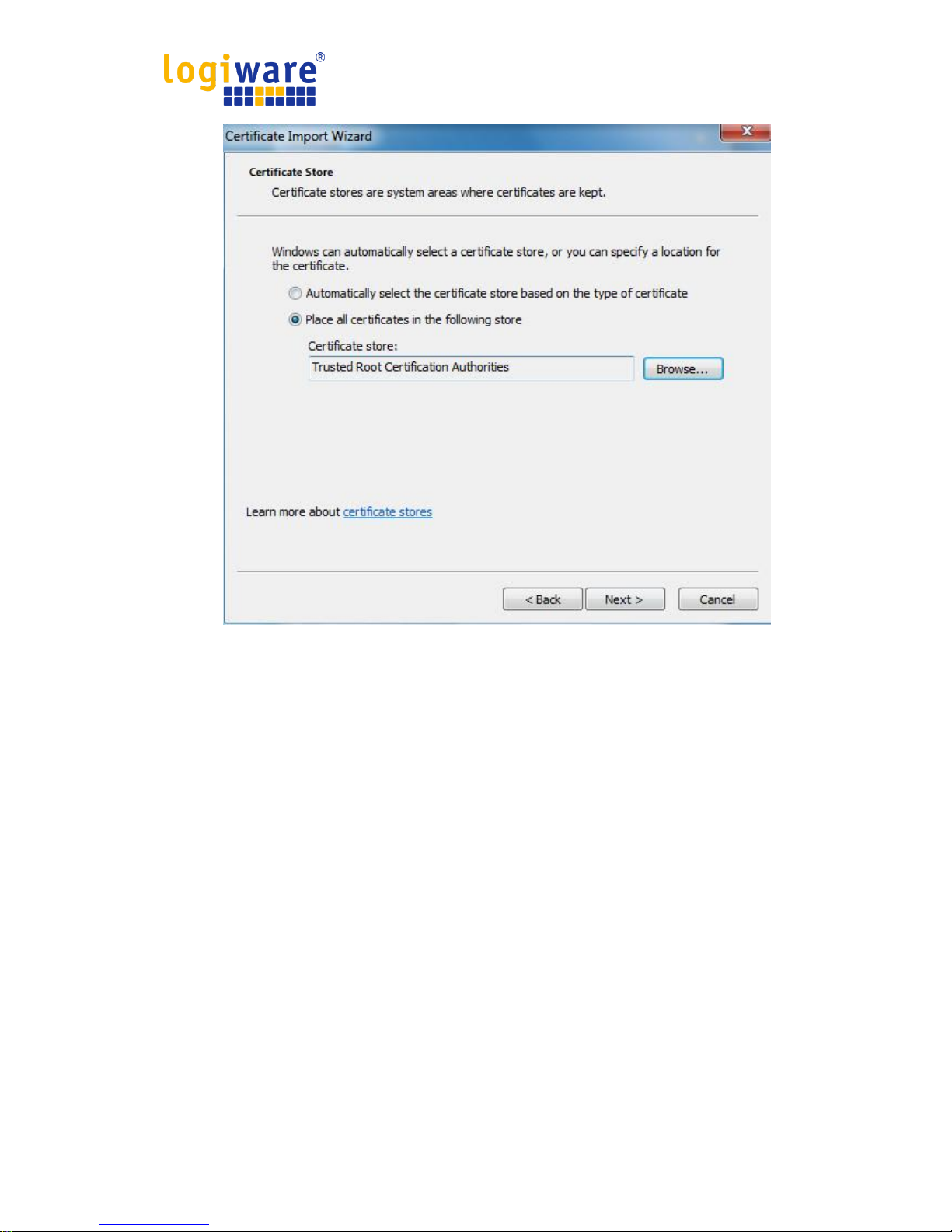

Figure 3-65
9. Click “Next”. The system will display the interface of “Completing the Certificate Import
Wizard”, which is shown in Figure 3-66.
Page 74
Operation Manual Network Camera logiware IPC1901A
71

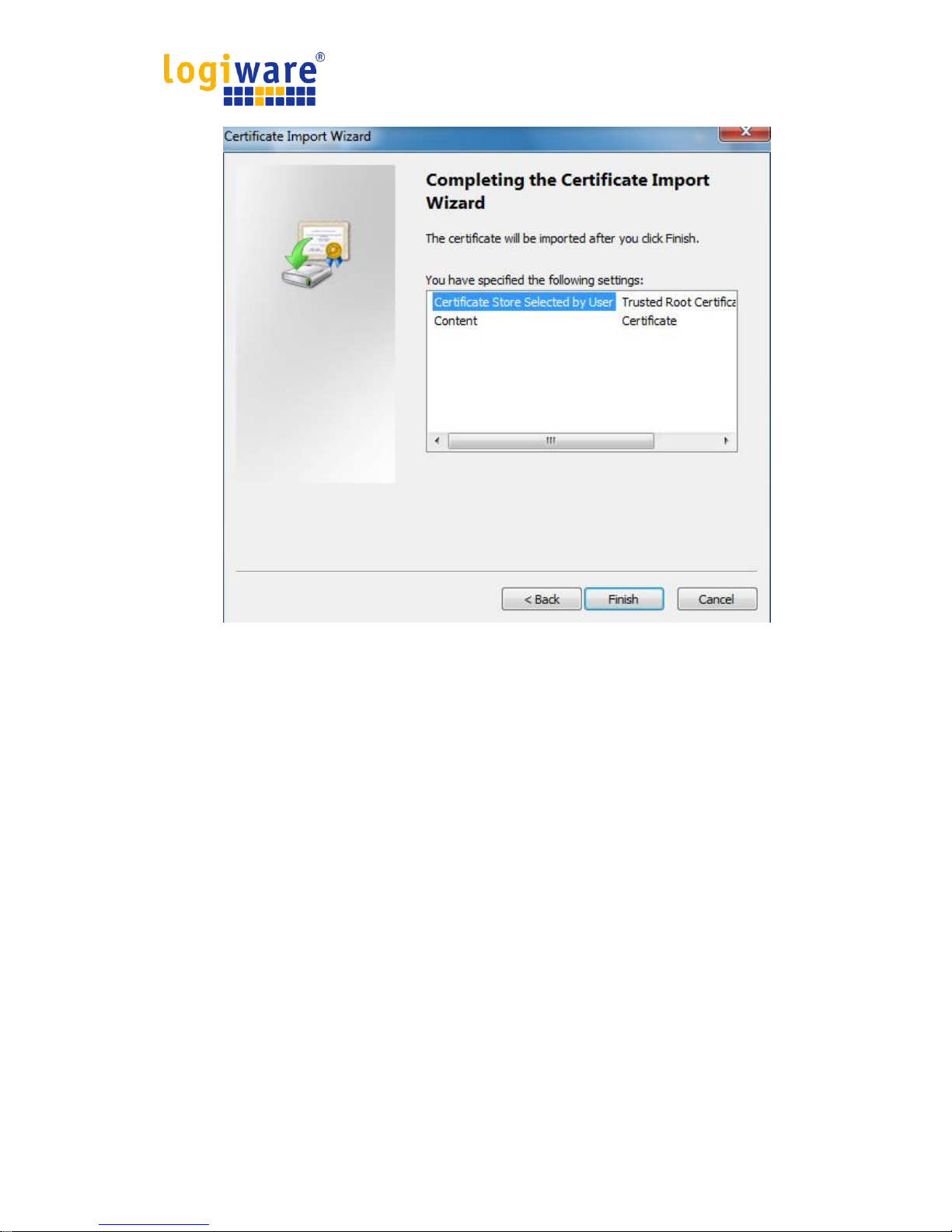

Figure 3-66
10. Click “Finish”, and it will pop out the dialog box of “Security Warning”, which is shown in
Figure 3-67.
Page 75
Operation Manual Network Camera logiware IPC1901A
72

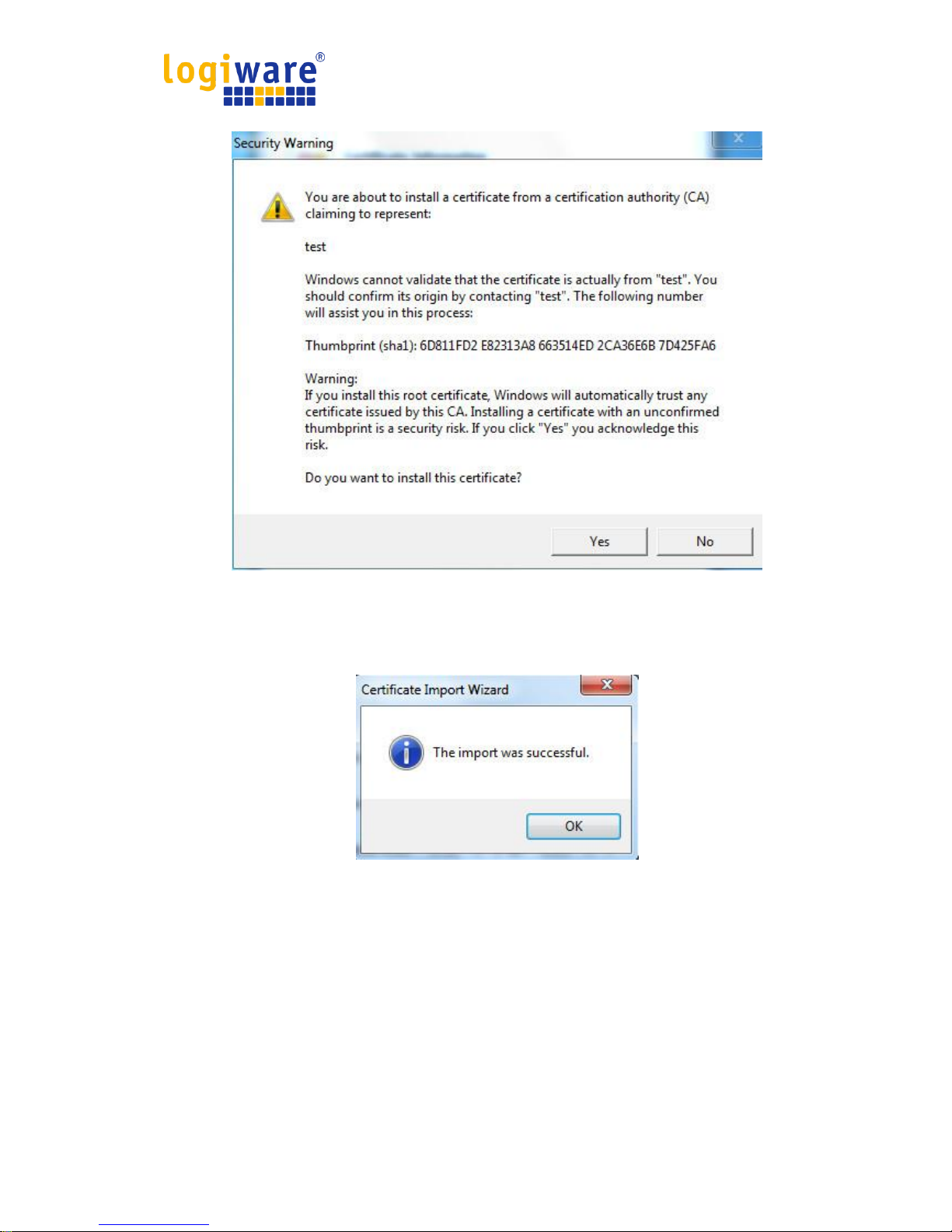

Figure 3-67
11. Click “Yes”. It will pop out the dialog box of “Import Successful”, click “Ok” to complete
downloading certificate, which is shown in Figure 3-68.
Figure 3-68
Please refer to the following steps if you select “Install Signed Certificate”.
1. Select “Setting > Network > HTTPs”. The system will display the interface of HTTPs, which is
shown in Figure 3-69.
Page 76
Operation Manual Network Camera logiware IPC1901A
73

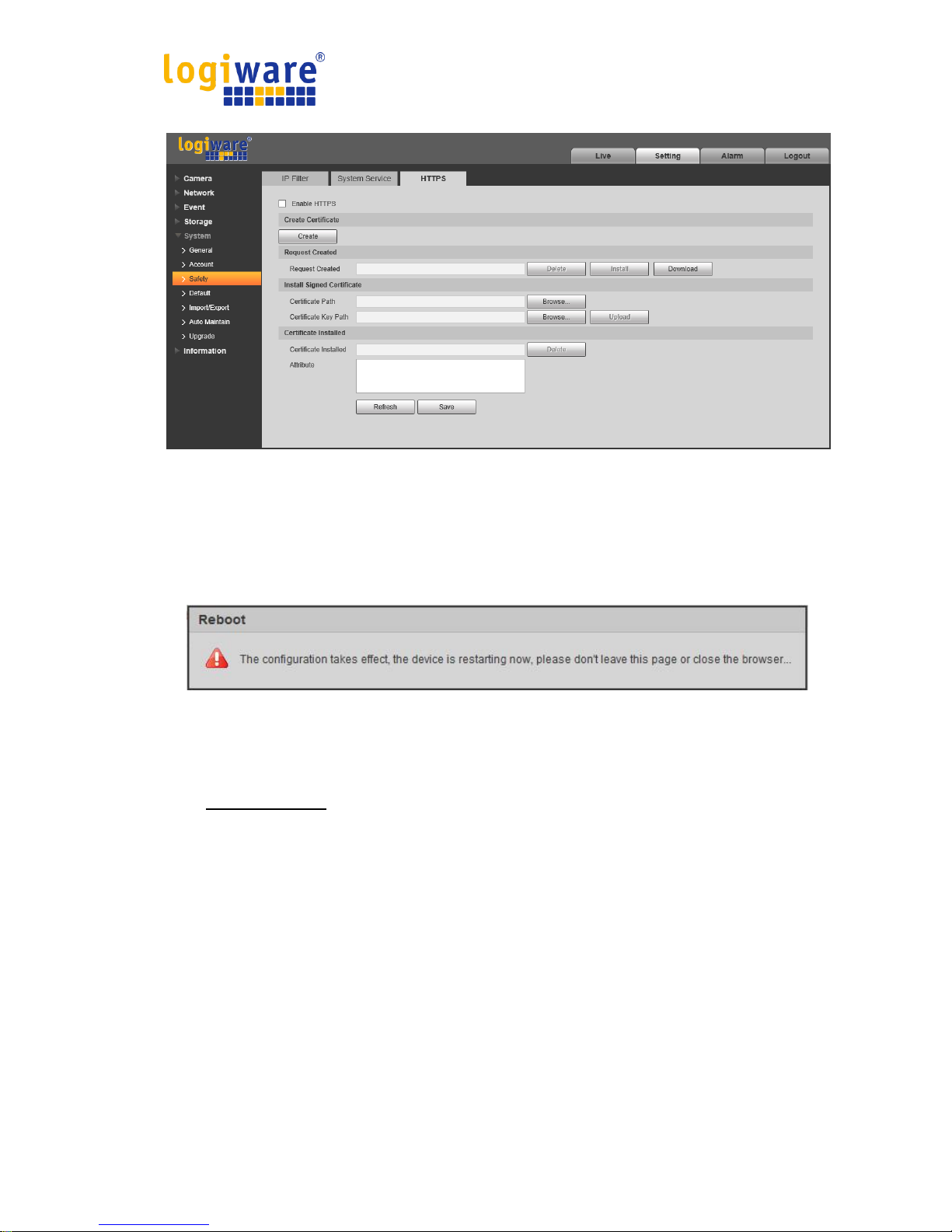

Figure 3-69
2. Select signed certificate and certificate key path respectively via “Browse”, click “Upload”.
3. Install root certificate, please refer to step 6~11 for more details.
4. Check “Enable HTTPs”, click “Save”. The system will display the dialog box of “Need to
reboot the device”, and then the configuration is valid.
Figure 3-70
5. Use HTTPs
Use HTTPs to log in.
Enter https://xx.xx.xx.xx in the browser, and it will pop out normal login interface; the browser will
prompt certificate error if the certificate is not installed, which is shown in Figure 3-71.
Page 77
Operation Manual Network Camera logiware IPC1901A
74

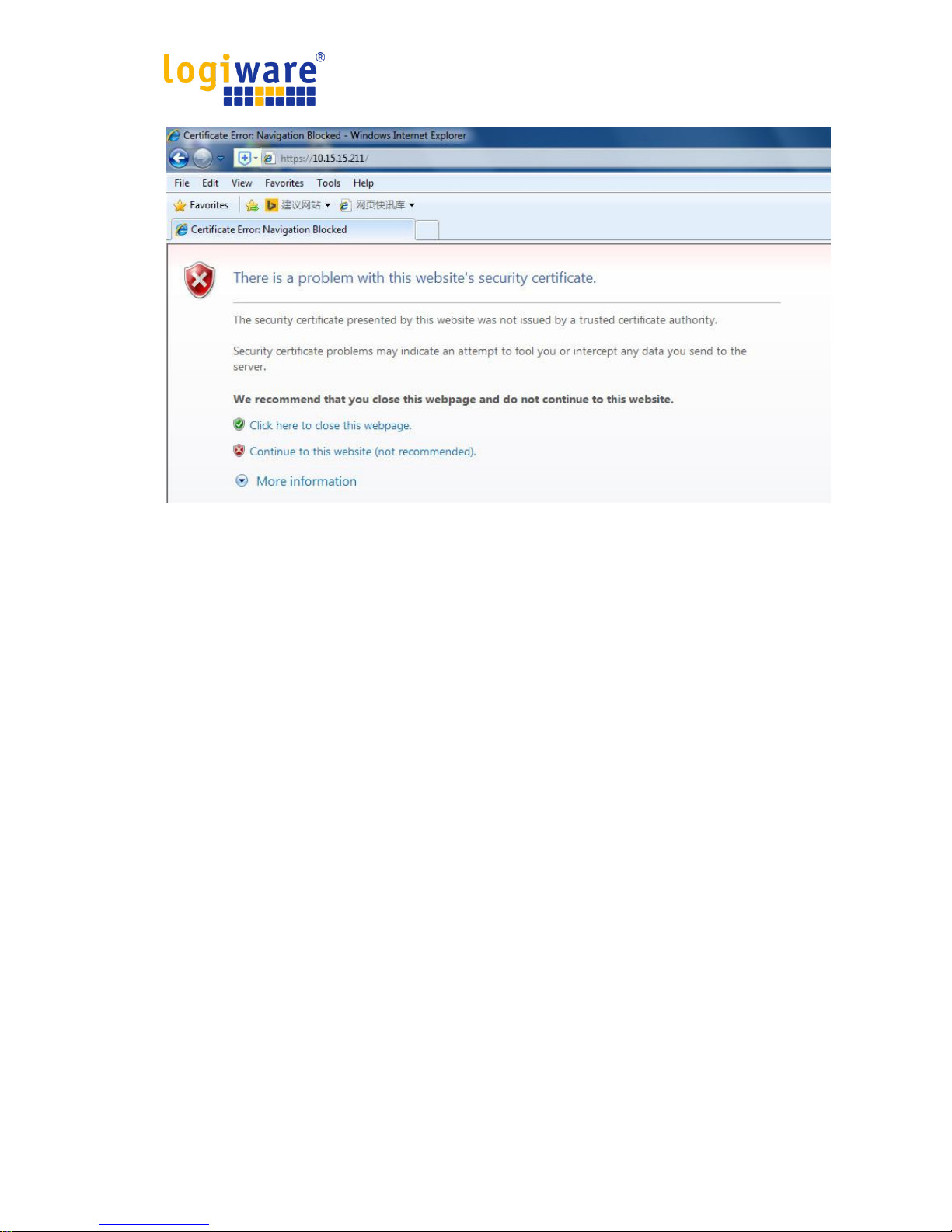

Figure 3-71
Note:
“xx.xx.xx.xx” is corresponding to your IP or domain name.
Page 78
Operation Manual Network Camera logiware IPC1901A
75
3.5.4 Default
The default setup interface is shown as in Figure 3-72.
Please note system cannot restore some information such as network IP address, account and
so on.

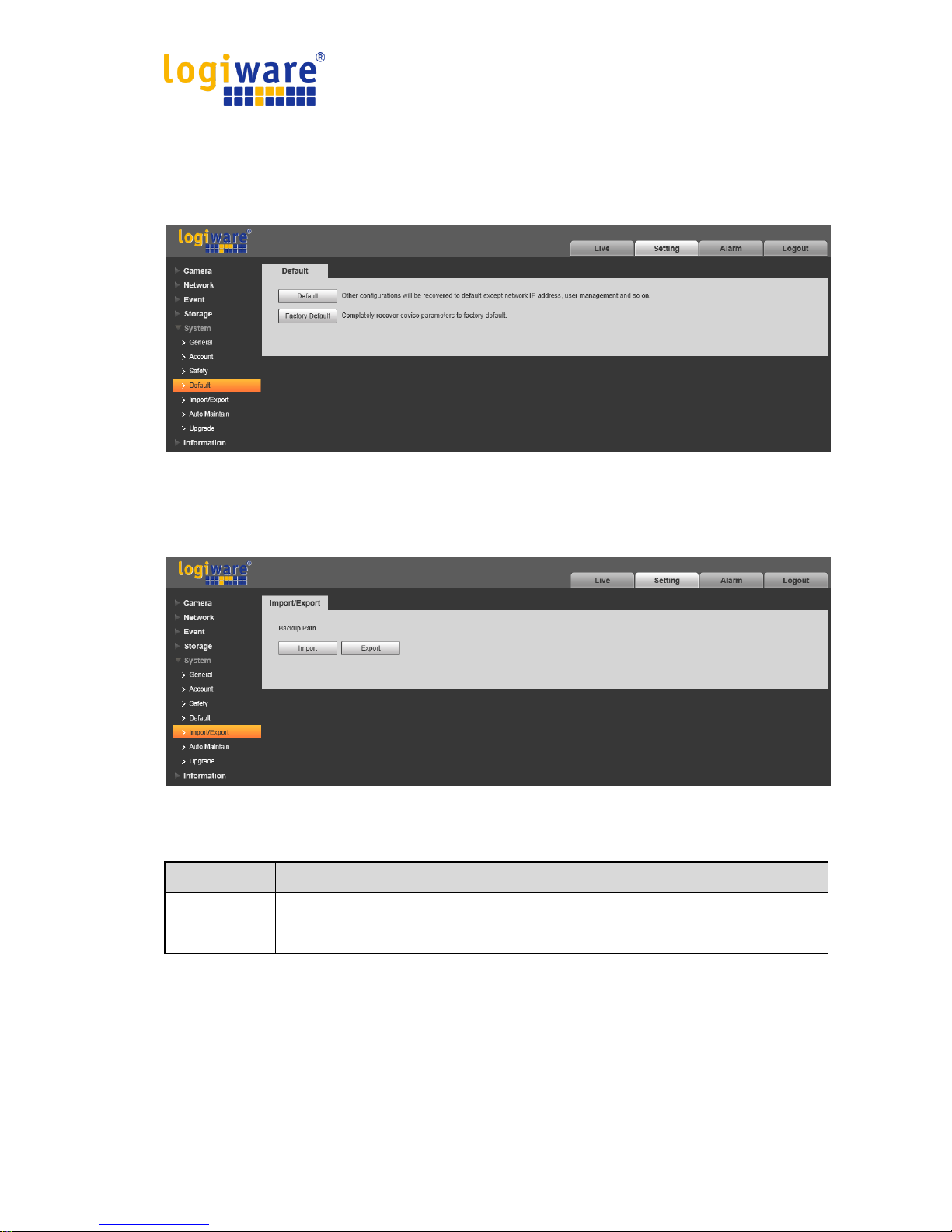

Figure 3-72
3.5.5 Import/Export
The interface is shown as in Figure 3-73.
Figure 3-73
Please refer to the following sheet for detailed information.
Parameter
Function
Import
It is to import the local setup files to the system.
Export
It is to export the corresponding system setup to your local PC.
Page 79
Operation Manual Network Camera logiware IPC1901A
76

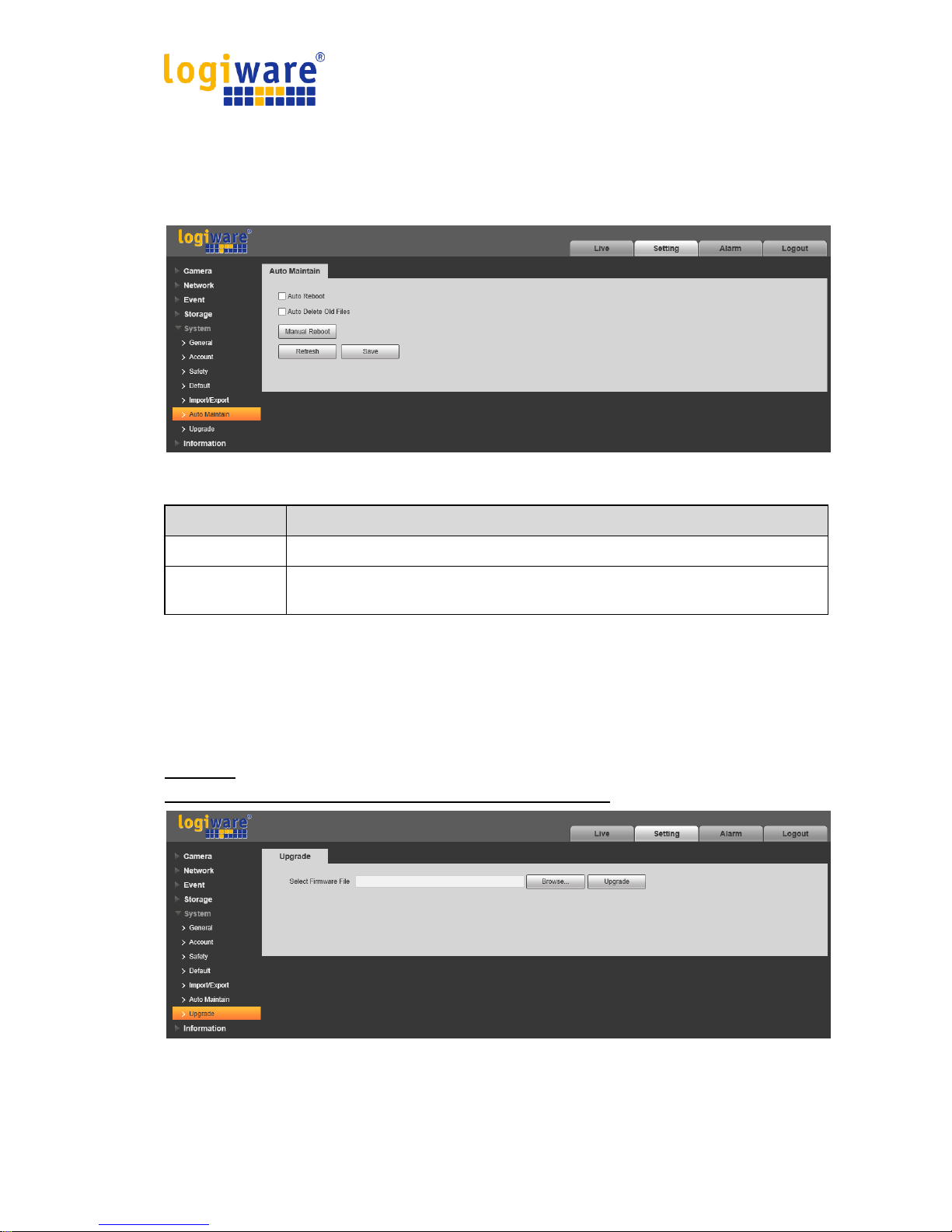

3.5.6 Auto Maintenance
The auto maintenance interface is shown as in Figure 3-74.
Here you can select auto reboot and auto delete old files interval from the dropdown list.
If you want to use the auto delete old files function, you need to set the file period.
Figure 3-74
Parameter
Function
Auto Reboot
Check it and set auto reboot time.
Auto Delete
Old Files
Check it and set period within 1~31 days.
3.5.7 Upgrade
The upgrade interface is shown as in Figure 3-75.
Please select the upgrade file (file extension is “.bin”) and then click the update button to begin
firmware update.
Important
Improper upgrade program may result in device malfunction!
Figure 3-75
Page 80
Operation Manual Network Camera logiware IPC1901A
77
Information

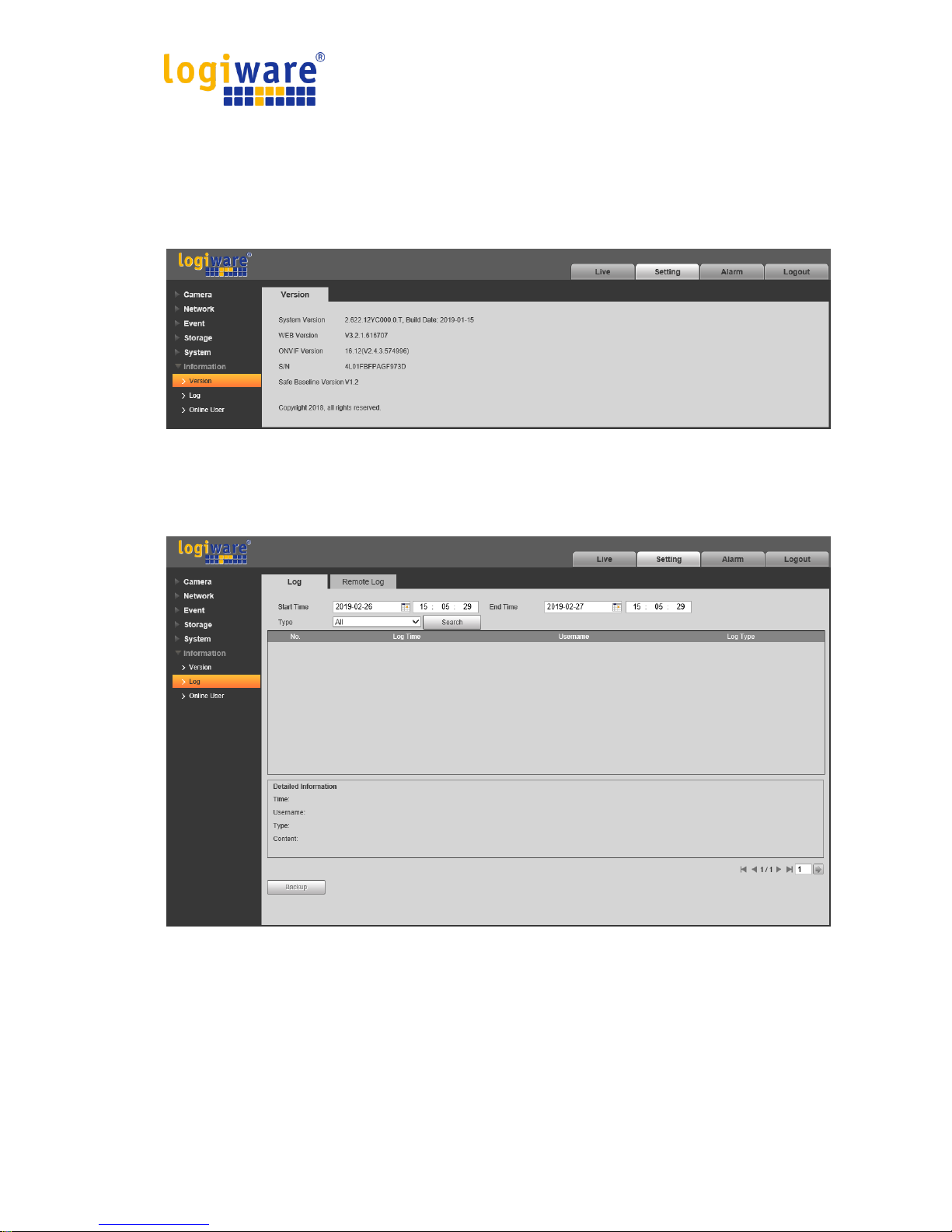

3.5.8 Version
The version interface is shown as in Figure 3-76.
Here you can view system hardware features, software version, release date and etc. Please
note the following information is for reference only.
Figure 3-76
3.5.9 Log
Here you can view system log. See Figure 3-77.
Figure 3-77
Page 81
Operation Manual Network Camera logiware IPC1901A
78

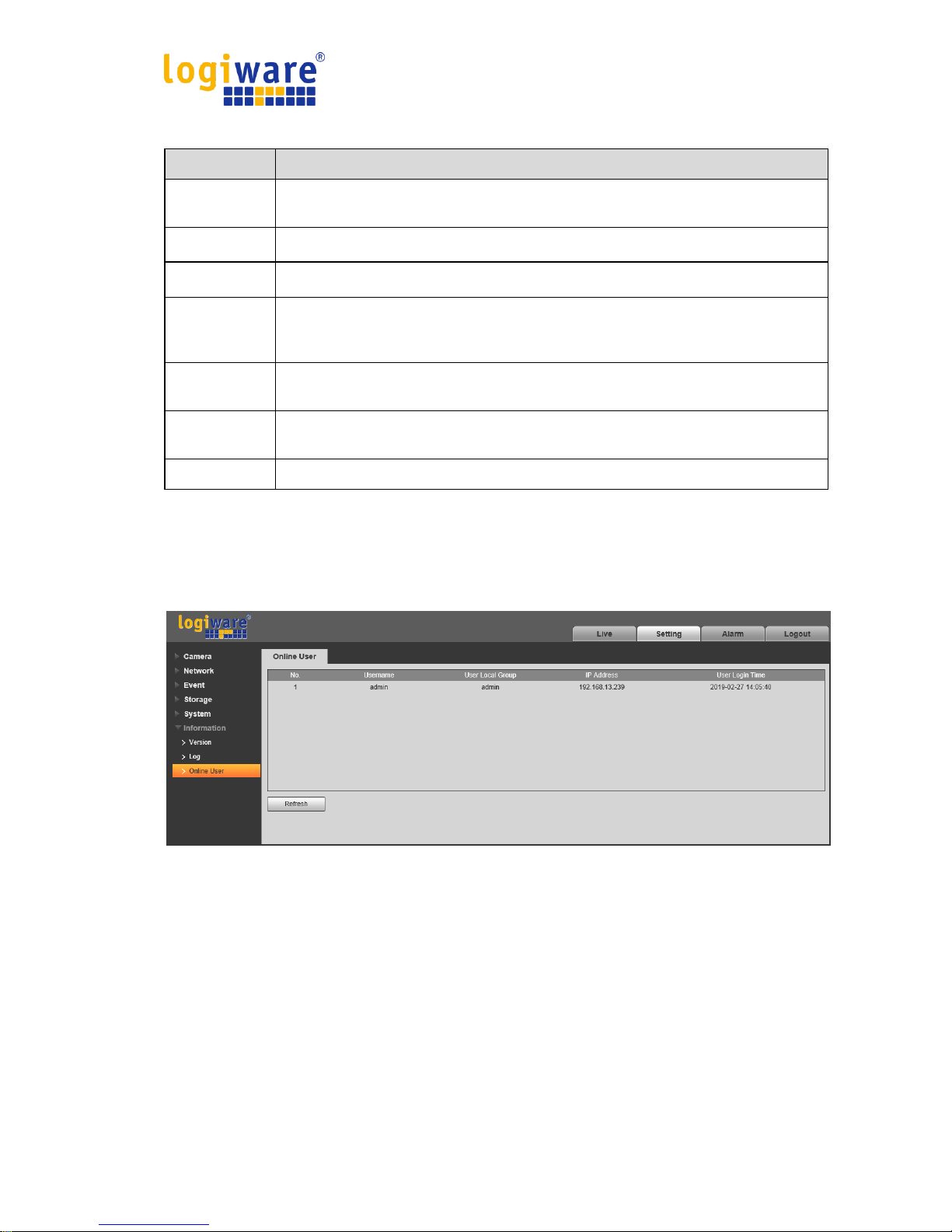

Please refer to the following sheet for log parameter information.
Parameter
Function
Start time
Set the start time of the requested log. (The earliest time is 2000/1/1)
End time
Set the end time of the requested log. (The latest time is 2037/12/31)
Type
Log type.
Search
You can select log type from the drop down list and then click search button to
view the list.
You can click the stop button to terminate current search operation.
Log
information
You can select one item to view the detailed information.
Clear
You can click this button to delete all displayed log files. Please note system
does not support clear by type.
Backup
You can click this button to backup log files to current PC.
3.5.10 Online User
The online user interface is shown as in Figure 3-78.
Here you can view current online user, group name, IP address and login time.
Figure 3-78
Page 82
Operation Manual Network Camera logiware IPC1901A
79
4 Alarm
Click alarm function, you can see an interface is shown as in Figure 4-1.
Here you can set device alarm type and alarm sound setup.

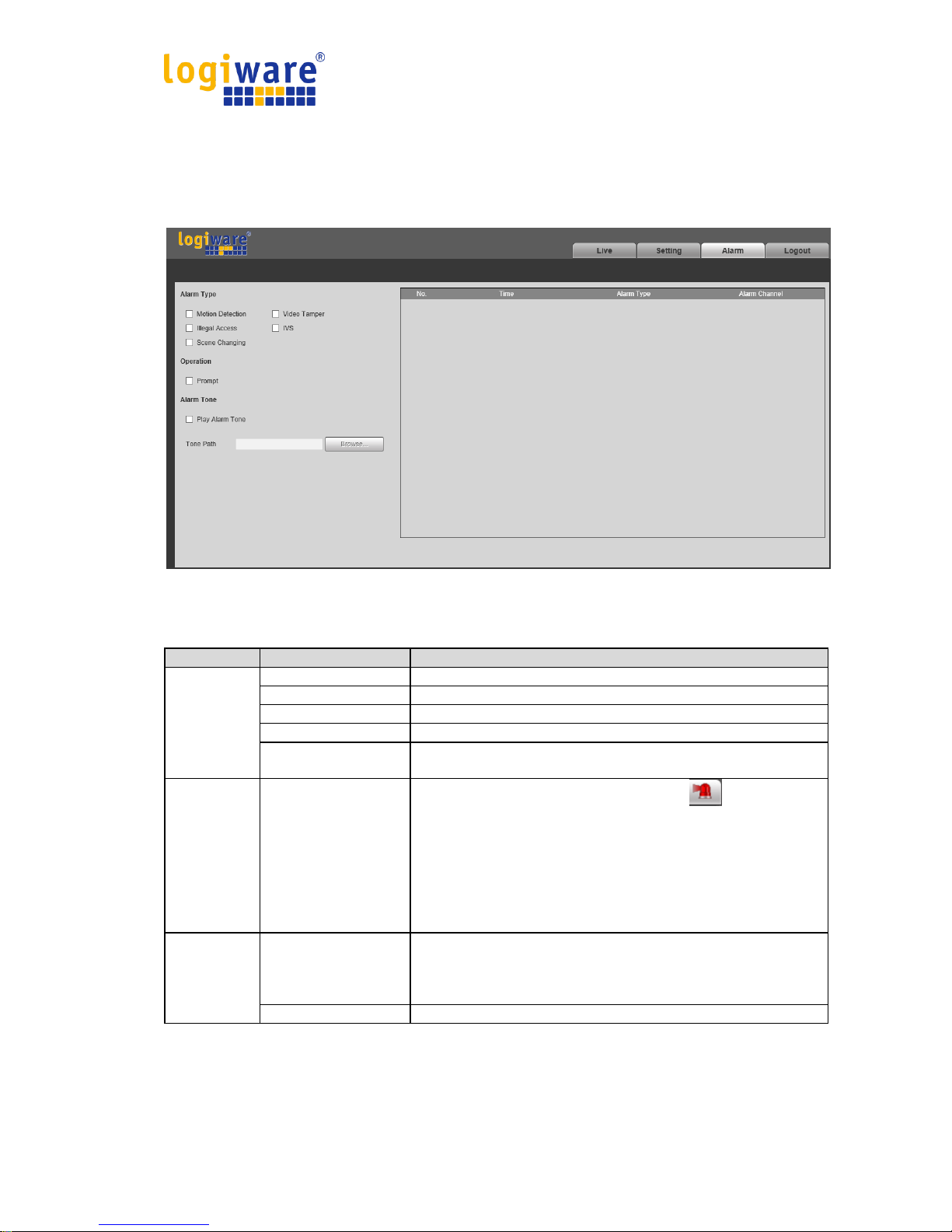

Figure 4-1
Please refer to the following sheet for detailed information.
Type
Parameter
Function
Alarm type
Motion detection
System alarms when motion detection alarm occurs,
Video Tampering
System alarms when video is tampering.
Illegal Access
System alarms when there is illegal access.
IVS
System alarms when IVS event is triggered.
Scene Changing
System will record alarm info when triggering scene
changing.
Operation
Prompt
When alarm is triggered, there will be s inmain menu
of alarm interface and system automatically records alarm
info. The icon disappears when user click on alarm menu
bar.
Note:
If alarm interface is displayed, when alarm is triggered,
there will be no image prompt, but alarm record will be in
list on the right.
Alarm Tone
Play Alarm Tone
Click it and select the path of audio file to be played in the
tone path, when the subscribed alarm event triggers, it will
play the selected audio file to prompt that there is alarm
event which has been triggered.
Tone Path
You can customize the storage path of the alarm tone.
Page 83
Operation Manual Network Camera logiware IPC1901A
80
5 Log out
Click log out button, system goes back to log in interface. See Figure 5-1.
Figure 5-1
Note:
This manual is for reference only. Slight difference may be found in user interface.
All the designs and software here are subject to change without prior written notice.
All trademarks and registered trademarks mentioned are the properties of their
respective owners.
If there is any uncertainty or controversy, please refer to the final explanation of us.
Please visit our website for more information.
Page 84
Operation Manual Network Camera logiware IPC1901A
81
logiware gmbh
Alfred-Mozer-Str. 51
D-48527 Nordhorn
Germany
Tel: +49 (0)5921 7139925
Fax: +49 (0)5921 7139929
Internet: https://www.go1984.com
E-Mail Sales: [email protected]
E-Mail Support: [email protected]
Loading...
