JetStream MINI Reference Manual

Revision 2.2

Feb 2012

Logitek Electronic Systems, Inc. 5622 Edgemoor Drive Houston, Texas 77081 USA

Tel +1-713-664-4470 Fax +1-713-664-4479

Email support@logitekaudio.com Web www.logitekaudio.com

Notice

Every effort has been made to supply complete and accurate information. However, Logitek Electronic Systems, Inc. assumes no responsibility for its use, nor any infringement of patents or other rights of third parties, which would result.

Worldwide rights reserved. Except for your own personal use, no part of this publication may be stored in a retrieval system, transmitted or reproduced in any way, including but not limited to photocopy, photograph, magnetic or other record, without the prior agreement and written permission of Logitek Electronic Systems, Inc.

Logitek is a trademark of Logitek Electronic Systems, Inc. StudioHub+ is a registered trademark of Radio Systems, Inc. and is used with permission.

All other trademarks acknowledged.

All specifications are subject to change without notice.

Document Revisions

Date Revision Author Notes

October 2010 1.0 John Davis, CBNT First release of JetStream MINI v1.0 Reference Manual December 2011 1.1 John Davis, CBNT Corrected Appendix D to add command for HSM-MIC-DB February 2012 2 John Davis, CBNT Added information regarding second generation JSM chassis & PC August 2012 2.1 John Davis, CBNT Added Master/Slave synchronization information September 2012 2.2 John Davis, CBNT Added Livewire Compatability Mode

Contents

Document Revisions....................................................................................................................3

Contents....................................................................................................................................... 4

1 Introduction............................................................................................................................... 7

About this Manual...............................................................................................................7

Intended Audience.............................................................................................................. 7

Manual Conventions............................................................................................................ 7

About the JetStream MINI.................................................................................................... 8

System Requirements........................................................................................................... 9

System Architecture............................................................................................................. 9

2 Unpacking................................................................................................................................ 10

Parts List............................................................................................................................10

Unpacking......................................................................................................................... 10

Contacting Logitek............................................................................................................. 10

3 Physical Installation................................................................................................................11

Installation......................................................................................................................... 11

Cabling.............................................................................................................................. 11

Audio Cable...................................................................................................................... 11

Data Cable........................................................................................................................ 12

Pre Assembled Cables........................................................................................................ 12

4 System Components................................................................................................................13

Power Supply Unit.............................................................................................................13

LED Display....................................................................................................................... 14

Rear Panel Connections – First Generation (s/n 1-199).......................................................15

Rear Panel Connections – Second Generation (s/n 200-299)..............................................16

GPI Inputs & Outputs........................................................................................................18

External Sync..................................................................................................................... 18

Synchronizing JetStreams (Master/Slave).............................................................................18

Find Me Button................................................................................................................. 19

“Open” Control Protocol...................................................................................................19

Surface Connections – First Generation (s/n 1-199)............................................................19

Surface Connections – Second Generation (s/n 200-299)...................................................20

Communication verification...............................................................................................22

Audio Cards....................................................................................................................... 23

JSM-AIN-RJ Analog Input Card...........................................................................................23

JSM-AIN-DB Analog Input Card.........................................................................................23

JSM-MICIN-RJ Analog Input Card.......................................................................................24

JSM-MICIN-DB Analog Input Card..................................................................................... 24

JSM-DIN-RJ Digital Input Card........................................................................................... 24

JSM-DIN-DB Digital Input Card......................................................................................... 24

JSM-AOUT-RJ Analog Output Card....................................................................................25

JSM-AOUT-DB Analog Output Card..................................................................................25

Logitek JetStream MINI Reference Manual

JSM-DOUT-RJ Digital Output Card.................................................................................... 25

JSM-DOUT-DB Digital Output Card..................................................................................25

5 Configuration........................................................................................................................... 26

First Generation JetStream Configuration (s/n 1-199)..........................................................26

Second Generation JetStream Configuration (s/n 200 & up)................................................27

6 Operation................................................................................................................................ 28

Initial Power-Up................................................................................................................ 28

Power Loss at Audio Engine...............................................................................................28

Recovering From a Bad Upload.........................................................................................28

Idle Reset.......................................................................................................................... 28

Resets from AEConfig & JetStream Server........................................................................... 29

Soft Reset.......................................................................................................................... 29

Full Reset........................................................................................................................... 29

7 Maintenance............................................................................................................................ 30

Warranty........................................................................................................................... 30

Firmware Updates............................................................................................................. 30

LogMeIn Access ................................................................................................................ 30

Component Replacement.................................................................................................. 31

Card swap-out................................................................................................................... 31

Contacting Support............................................................................................................32

North America................................................................................................................... 32

Outside of North America.................................................................................................. 32

Appendix A Using AEConfig ...................................................................................................... 33

Differences in Hardware between the AE-32 and JSM........................................................33

Notes pertaining to all input cards:..................................................................................... 35

Notes pertaining to all output cards:..................................................................................36

Important note on slots G & H........................................................................................... 38

Independent Bus Switching, Pre-Fader Aux Bus, Mix Minus Setup......................................38

Surface Settings.................................................................................................................. 38

JetNet JetStream Networking.............................................................................................. 38

Streaming Audio – The Executive Summary.......................................................................39

Overview........................................................................................................................... 39

Assigning an Output to the Network .................................................................................40

Defining Non-Logitek Network Sources.............................................................................42

Appendix B Specifications .........................................................................................................43

General............................................................................................................................. 43

Audio Processor Card........................................................................................................43

GPIO Card........................................................................................................................ 43

Microphone Input Cards....................................................................................................43

Analog Input Card............................................................................................................. 44

Analog Output Card.......................................................................................................... 44

Digital Input Card..............................................................................................................44

Digital Output Card........................................................................................................... 45

Logitek JetStream MINI Reference Manual

Network & Video Processor Card.......................................................................................45

Appendix C Pinout Data............................................................................................................. 46

Audio I/O with RJ-45 Connectors....................................................................................... 46

Audio I/O with DB Connectors.......................................................................................... 47

Audio Inputs/Outputs........................................................................................................47

GPIO................................................................................................................................. 48

DB-15 Connector 1 (top)................................................................................................... 48

DB-15 Connector 2 (upper middle)...................................................................................48

DB-15 Connector 3 (lower middle)....................................................................................48

DB-15 Connector 4 (bottom)............................................................................................. 48

JSM-DSP (Surface)............................................................................................................. 49

Port 1 to 4 – RJ45.............................................................................................................. 49

Control Surfaces & Utility Panels........................................................................................49

Artisan/Mosaic Surface RS-485 – RJ45................................................................................49

Remora Surface/BTN-12/RTE-3/RTE-XY/GST-20 Panel RS-485 – DB9.................................49

RJ-45 to DB-9 Adaptor Color Codes................................................................................... 50

Appendix D Microphone Phantom Power.................................................................................52

Appendix E USB To Serial Converter........................................................................................53

Two Year Limited Warranty.......................................................................................................55

Logitek JetStream MINI Reference Manual

1 Introduction

About this Manual

This manual describes the installation and operation of the Logitek JetStream MINI.

Intended Audience

This manual is aimed at Engineers and Technical Operators responsible for installing, configuring and supporting a Logitek Networked Console System.

In the context of a system installation, or to become familiar with the entire Logitek Networked Console System, the reader should also reference:

 Surface Reference Manual for each surface you are installing  AEConfig Reference Manual  JetStream Server Reference Manual (JetNet equipped systems)

It is assumed the person responsible for installing and configuring any PC application has a solid understanding of Microsoft Windows desktop operating systems, or has ready access to IT support.

Manual Conventions

The following conventions are used in this manual:

This text indicates a menu choice to be made, with an arrow separating a multi-level selection, eg Control Panel  Users & Passwords. This can be a menu choice in a Logitek application, or within Windows.

 Indicates a “see-also” section in this manual, or another Logitek manual.

The exclamation symbol signifies an important note or critical information.

This text represents a command, script block example, instruction to

be typed, or directory path.

TIP: A useful tip from our knowledge base!

Logitek JetStream MINI Reference Manual

About the JetStream MINI

The heart of every Logitek digital console is the JetStream audio router. With 8 slots for microphone input cards, analog input cards, analog output cards, digital input cards, and digital output cards, one JetStream Mini easily handles all audio channels in a typical studio and is capable of mixing, routing, creating mix minuses, and all other functions of traditional consoles.

With the addition of JetNet audio networking, the JetStream Mini becomes an Audio over IP router, which allows for direct network transfer of audio to other JetStream devices, hard-disk playout systems, and other Logitek JetNet partners without using computer sound cards. Using standard IP protocols, JetNet is the simplest way to connect IP accessible devices to the audio network.

The JetStream Mini provides seamless integration of analog and digital sources or destinations. The

JetStream can accept both digital and/or analog inputs and provide digital and/or analog outputs.

Logitek consoles retain the look and feel of traditional broadcast audio boards, adding input

routing, multiple mix minus buses, dynamics, EQ controls, and more. Consoles supported by the JetStream as of this writing include the Pilot, Remora, and Mosaic surfaces. The JetStream can also drive multiple utility panels such as the COM-12 intercom panel, RTE-3 and RTE-XY rack-mount router control heads, BTN-12 button panels, and GST-20 and GST-22 guest headphone amplifiers.

With the addition of the JetNet audio networking module, remote IP control of the JetStream is possible using the Logitek vTools software suite.

StudioHub+ wiring allows for rapid installation of the JetStream using standard CAT-5 cabling.

The following cards may be installed in a JetStream Mini's 8 I/O slots:

 JSM-MIC-RJ 4 channel microphone pre-amp card with StudioHub+ connectors

 JSM-MIC-DB 8 channel microphone pre-amp card with DB-25 connector

 JSM-AIN-RJ 4 stereo/8 mono analog input card with StudioHub+ connectors

 JSM-AIN-DB 4 stereo/8 mono analog input card with DB-25 connector

 JSM-AOUT-RJ 4 stereo/8 mono analog output card with StudioHub+ connectors

 JSM-AOUT-DB 4 stereo/8 mono analog output card with DB-25 connector

 JSM-DIN-RJ 4 AES/EBU or S/PDIF digital input card with StudioHub+ connectors

 JSM-DIN-DB 8 AES/EBU or S/PDIF digital input card with DB-25 connector

 JSM-DOUT-RJ 4 AES/EBU or S/PDIF digital output card with StudioHub+ connectors  JSM-DOUT-DB 8 AES/EBU or S/PDIF digital output card with DB-25 connector

Logitek JetStream MINI Reference Manual

System Requirements

Console Surfaces

Jetstream

1 Audio

Network

Surfaces Audio Engines Ethernet Switches

Control Panels

Console Surfaces

Jetstream

Control Panels

Business

Network

Serial Comms IP TCP/IP

Remote Support

Software vTools

Surfaces are remote control panels for

Audio Engine

Audio Engines process Audio and

GPI control events

Network switches distribute audio, control & sync

Client PCs

Software tools provide remote control & system maintenance

Software vTools

Serial TCP/IP

UDP/IP

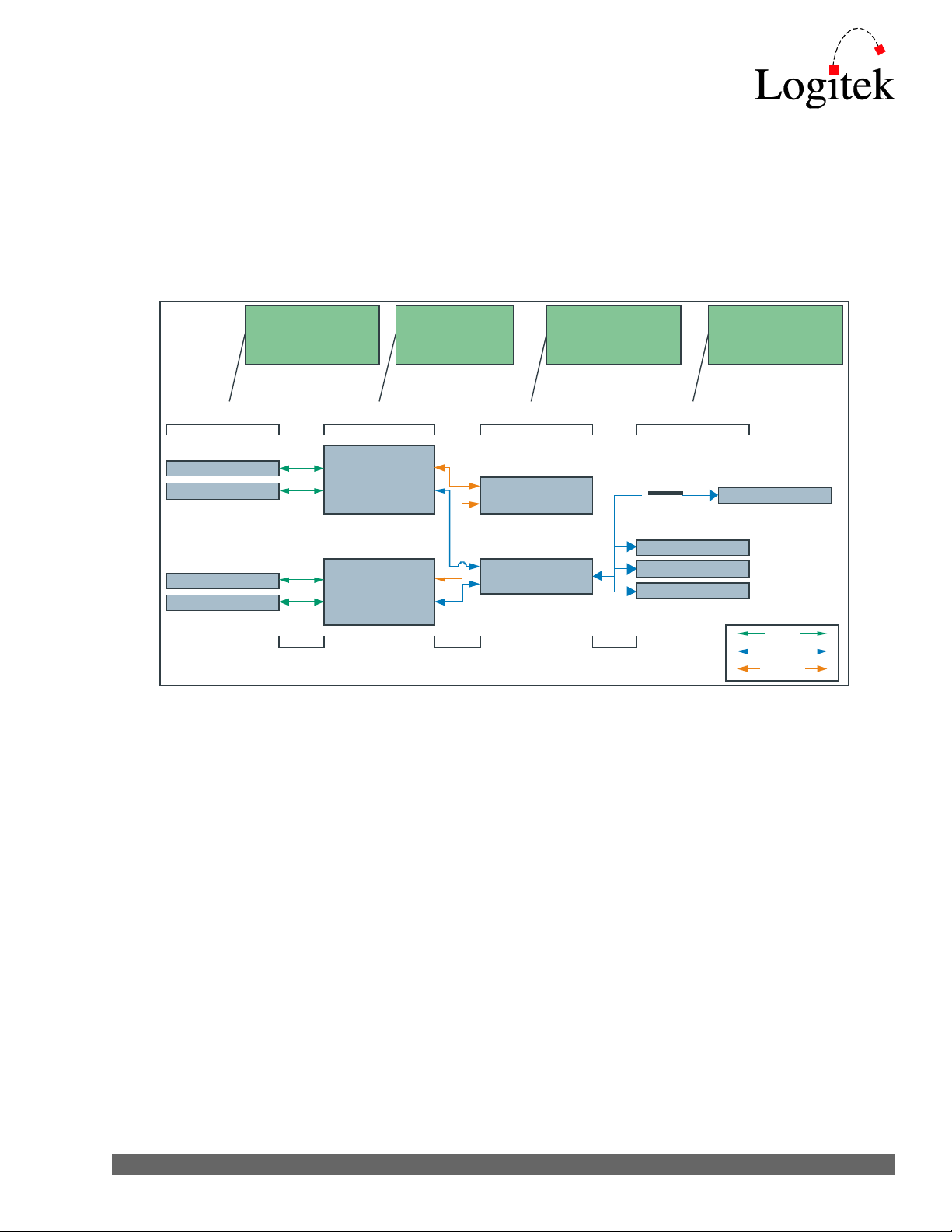

Figure 1 - Logitek System Architecture (v4.x)

The JetStream Mini is designed to be installed in a standard 19” equipment rack. It is two rack-units high. The unit is convection-cooled without a fan, therefore it is suitable for mounting inside a studio near operators and microphones. For best performance, leave at least one rack-unit empty above the JetStream for proper cooling and design the rack to allow air to circulate.

System Architecture

Audio I/O cards plug into slots A-H on the JetStream. That audio is mixed on the JSM-DSP card (labeled “Surface”) Consoles and utility panels connect directly to the JSM-DSP card via RS-485. All audio mixing, equalization, and dynamics processing is done on the DSP card. Local audio from the JetStream MINI is ready within two seconds of power-up.

The optional JetNet Audio Networking module is an embedded PC equipped with an Intel Atom processor and 1GB of RAM with a server-class dual Gigabit Ethernet card. Audio from the I/O cards is processed by the JSM-DSP card and streamed via USB 2.0 internally to the PC and sent to the network.

The PC runs Windows Embedded Standard and has been optimized for audio networking. No other applications should be installed on the PC.

JetNet networked audio is available within 90 to 120 seconds of power-up.

Logitek JetStream MINI Reference Manual

2 Unpacking

This section details what you should do when unpacking your newly arrived JetStream MINI.

Parts List

The exact list of parts received will vary depending on your order, but should generally include:

 1x fully assembled JetStream MINI frame, containing cards and Power Supply/Supplies as

ordered.

You will receive a parts list with the system that is specific to the JetStream and cards on your order.

Unpacking

Carefully unpack the cartons whilst looking for any signs of shipping damage. You may wish to save the shipping cartons until the operation of the system is verified.

Report any damage to the shipping carrier immediately. Verify that the contents of each box match the packing list and report any discrepancies immediately to Logitek in writing.

Contacting Logitek

In the event of a shipping problem, you can contact Logitek Electronic Systems in several ways:

U.S. Mail Logitek Electronic Systems, Inc.

5622 Edgemoor Drive Houston, Texas 77081 USA

Telephone 877-231-5870

+1-713-664-4470 (outside U.S. and Canada)

Fax +1-713-664-4479 Email support@logitekaudio.com Website www.logitekaudio.com

Logitek JetStream MINI Reference Manual

3 Physical Installation

This chapter covers basic installation and cabling information, and details some cabling examples. As preferences and techniques for installation vary widely, this information should primarily be used as a starting point for planning your install.

Installation

The JetStream MINI is designed to be mounted in a standard 19” rack, and occupies two rack units.

The main power supply is mounted internally. A redundant 12 volt, 40 watt DC power supply, PSU-40W connects to the rear of the unit.

The JetStream should be mounted in a clean, dry and well-ventilated area. Because the unit is convection cooled and there is no cooling fan, leave at least one rack unit empty above and preferably one empty rack unit below the JetStream for best performance,

Cabling

All cables to the JetStream enter at the rear of the cabinet.

Audio Cable

Be sure to use properly rated digital cable for digital audio connections. For twisted pair, this is normally 110 ohm low capacitance cable such as Belden 1800A or Gepco 5524EZ.

These cable types are also excellent for analog audio so using digital cable for all audio connections would be an acceptable and wise choice, negating the need to order separate types of cable.

For a neater installation, a multi-pair cable may be preferred. CAT5 cable is a popular alternative, due to its high availability and low cost. The impedance range of CAT5 cable fits entirely within the range allowed by the AES/EBU specification. The tightly matched wire resistance also makes CAT5 an excellent analog cable.

For installations where an intense AM RF field is present, shielded CAT5 cable may also be used.

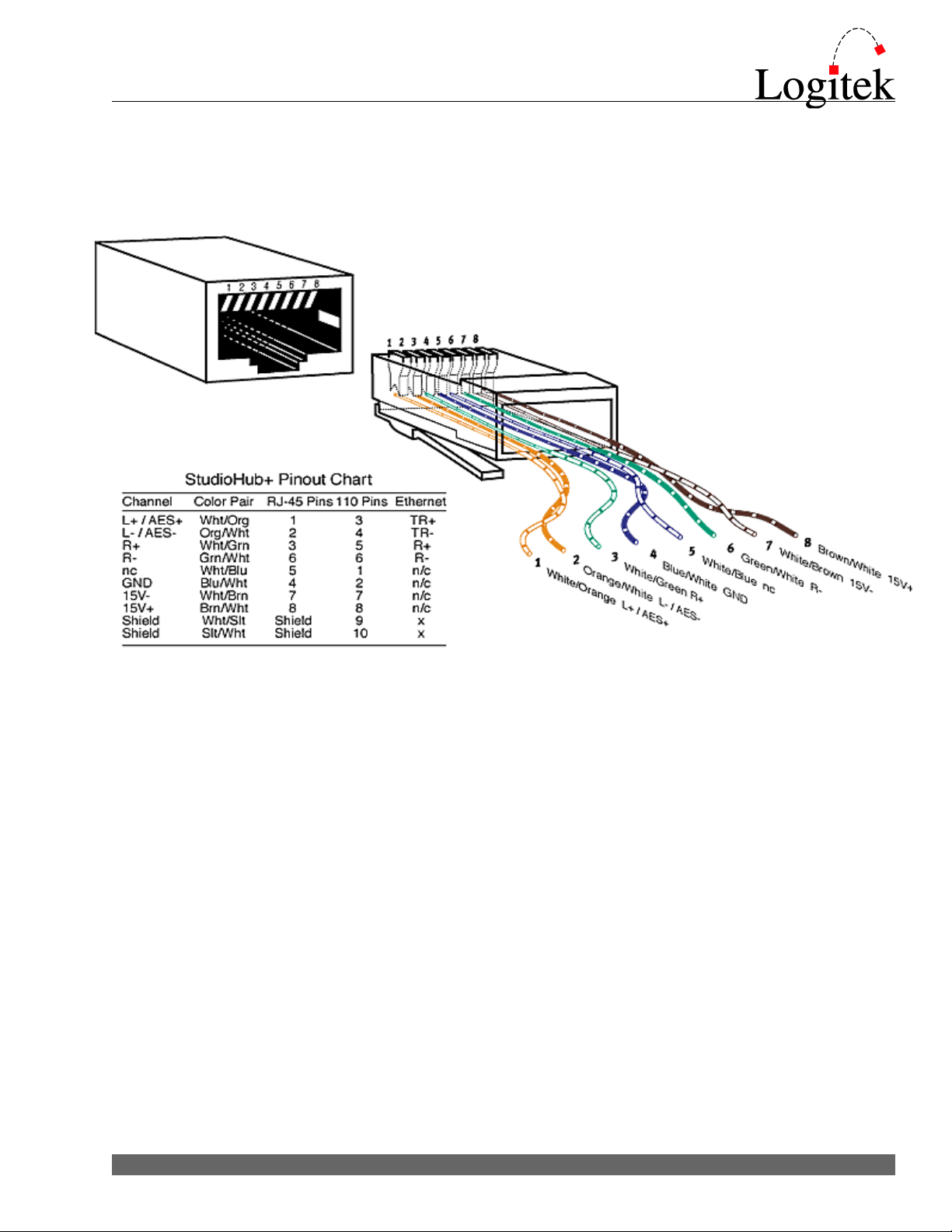

JetStream I/O cards with RJ-45 connectors utilize the StudioHub+ wiring standard made popular by Radio Systems. Using a variety of dongles that connect to standard CAT5 network cable, installing a JetStream is as simple as plugging the cable into the I/O card, plugging the matching dongle into the other end, and connecting the studio equipment.

The StudioHub+ wiring standard calls for shielded CAT5 cable, and all Logitek StudioHub+ wiring kits come with a short length of pre-made shielded CAT5 cable for each input and output. Nonshielded CAT5 cable can work for most analog and digital connections. However, shielded CAT5 cable must be used with the JSM-MIC-RJ card without exception.

Logitek JetStream MINI Reference Manual

Data Cable

Recommended cable for the Control Surface data is CAT5 cable. The maximum length cable for Control Surface connections is 1000 feet (300 meters). Shielded cable can also be used if there is a

risk of heavy interference to the signals, however this is normally not required.

Recommended cable for the JetNet Audio Networking module is CAT5e or CAT6 cable. The maximum length cable for network connections is 100 meters (roughly 328 feet). Shielded cable can be used if there is a risk of heavy interference to the signals, however this is normally not required.

 See Appendix C for pinouts of all cards.

Pre Assembled Cables

Logitek offers pre-made cable assemblies to M-66 block, Krone block, XLR connectors, BNC connectors, or bare ends.

Logitek JetStream MINI Reference Manual

4 System Components

Power Supply Unit

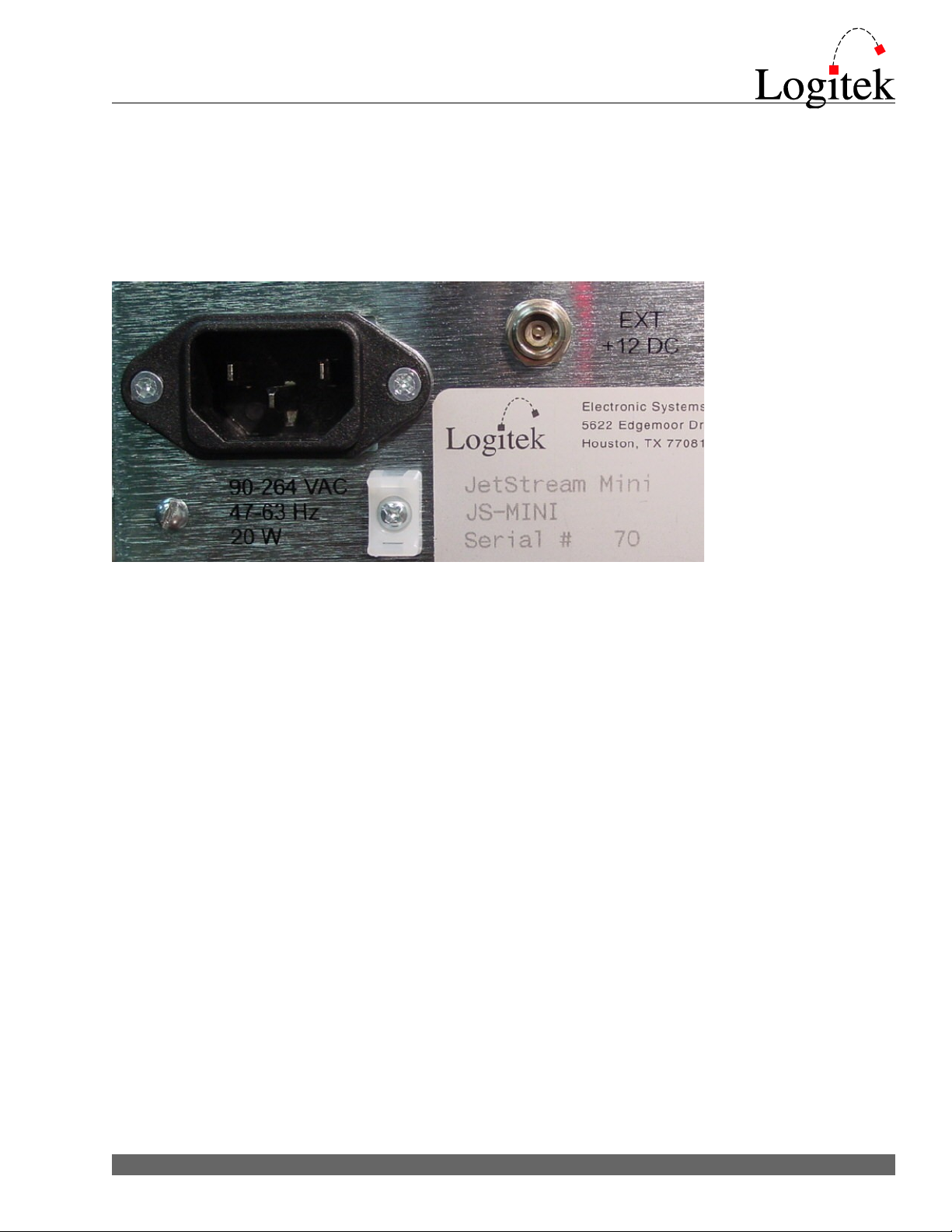

A switching 110/220 volt power supply is mounted internally inside the JetStream MINI. Connect the mains to the standard IEC power inlet on the rear of the unit.

For redundancy, the optional PSU-40W power supply may be connected to the 12v DC power connector on the rear of the JetStream. This is a standard external power “brick.” The connector is wired with tip positive and sleeve negative.

Each supply has a blue LED that lights on the front and rear of the JetStream when it is operating.

TIP: The use of an uninterruptible power supply (UPS) to power the JetStream is highly

recommended to preserve stable operation and to avoid audio interruptions. Power consumption of the JetStream is approximately 20 watts. Size the UPS according to the length of time needed to protect against outage.

Logitek JetStream MINI Reference Manual

LED Display

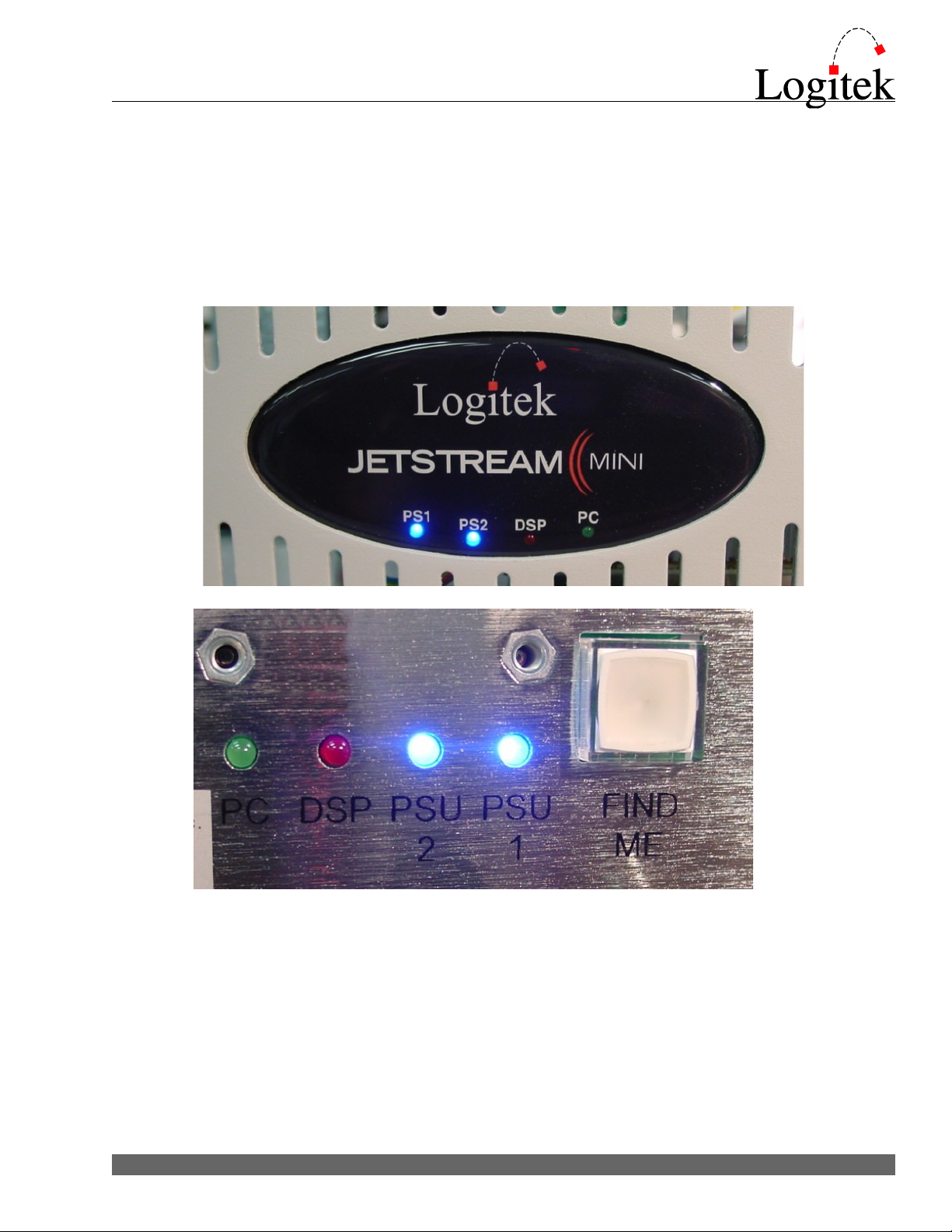

The JetStream MINI has an LED display on the front and rear of the unit.

These LEDs show the status of the unit, and information is displayed on front and rear simultaneously.

PS1/PSU 1 – Main power supply. This blue LED lights when the power supply is operating. PS2/PSU 2 – Redundant power supply. This blue LED lights when the redundant 12 volt power

brick is connected and operating. DSP – This red LED will blink when the JetStream is in an idle state and waiting for a configuration file to be uploaded. PC – This green LED indicates that the unit is rate locked to either external sync or another JetStream.

Logitek JetStream MINI Reference Manual

Rear Panel Connections – First Generation (s/n 1-199)

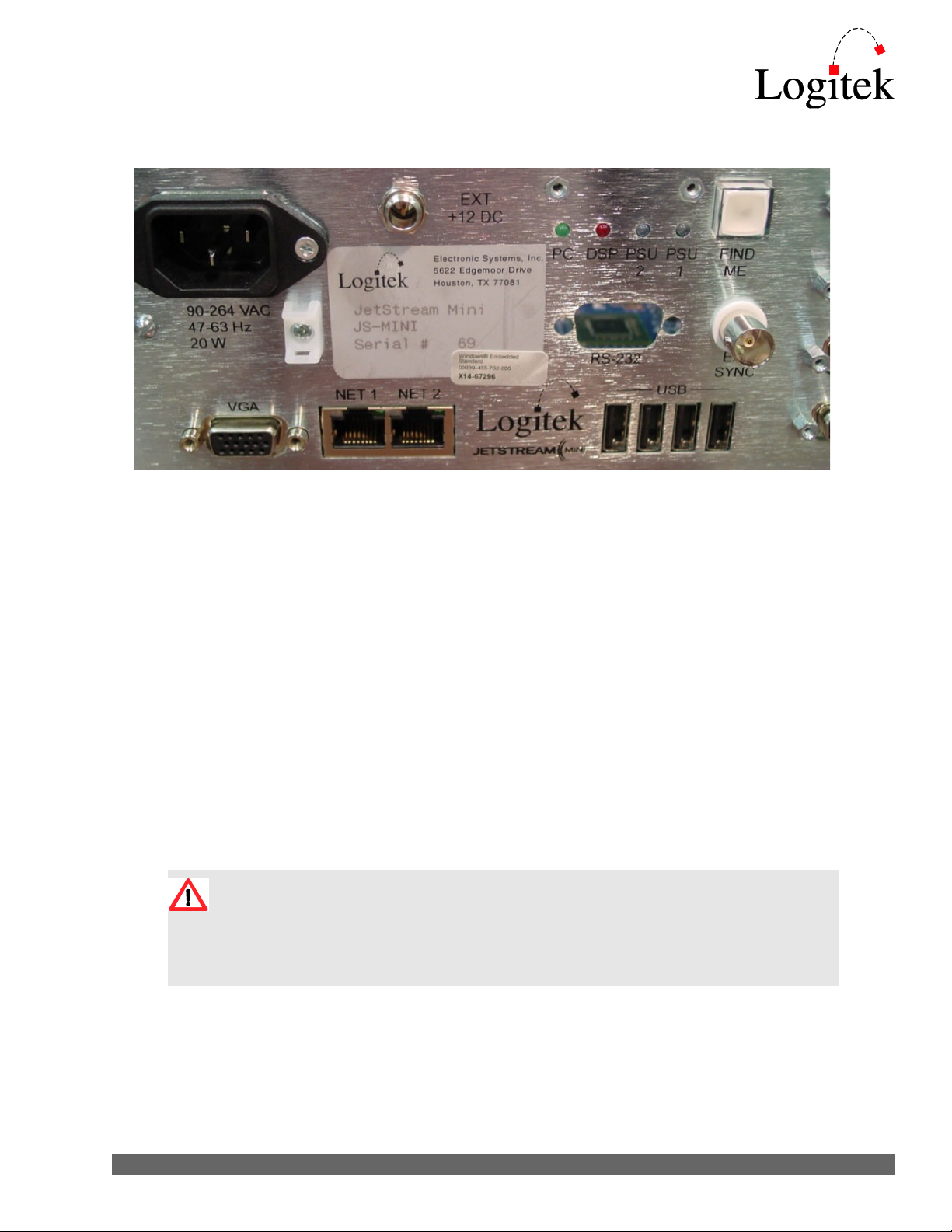

VGA – (installed with purchase of JetNet Audio Networking option) Allows for connection of a

computer monitor to the JetStream for configuration or for running Logitek vTools applications on the embedded PC.

NET 1 – (installed with purchase of JetNet Audio Networking option) Gigabit Ethernet port for

primary audio network. Connect this port to an appropriate Ethernet switch or directly to another JetStream if connecting two units as an audio snake.

NET 2 – (Installed with purchase of JetNet Audio Networking option) Gigabit Ethernet port for

administrative LAN or for secondary (redundant) audio network. Connect this port to an appropriate Ethernet switch.

USB – (Installed with purchase of JetNet Audio Networking option) 4 USB 2.0 ports for the

embedded PC. Use for connecting a keyboard, mouse, or portable media.

Before removing a portable disk drive or flash drive from the JetStream Mini, make sure to click the Eject icon in the Windows system tray and wait for Windows to stop the drive. Networked audio will be interrupted if the drive is removed before Windows has stopped the drive and marked it as “safe to remove.”

If JetNet Audio Networking is not installed:

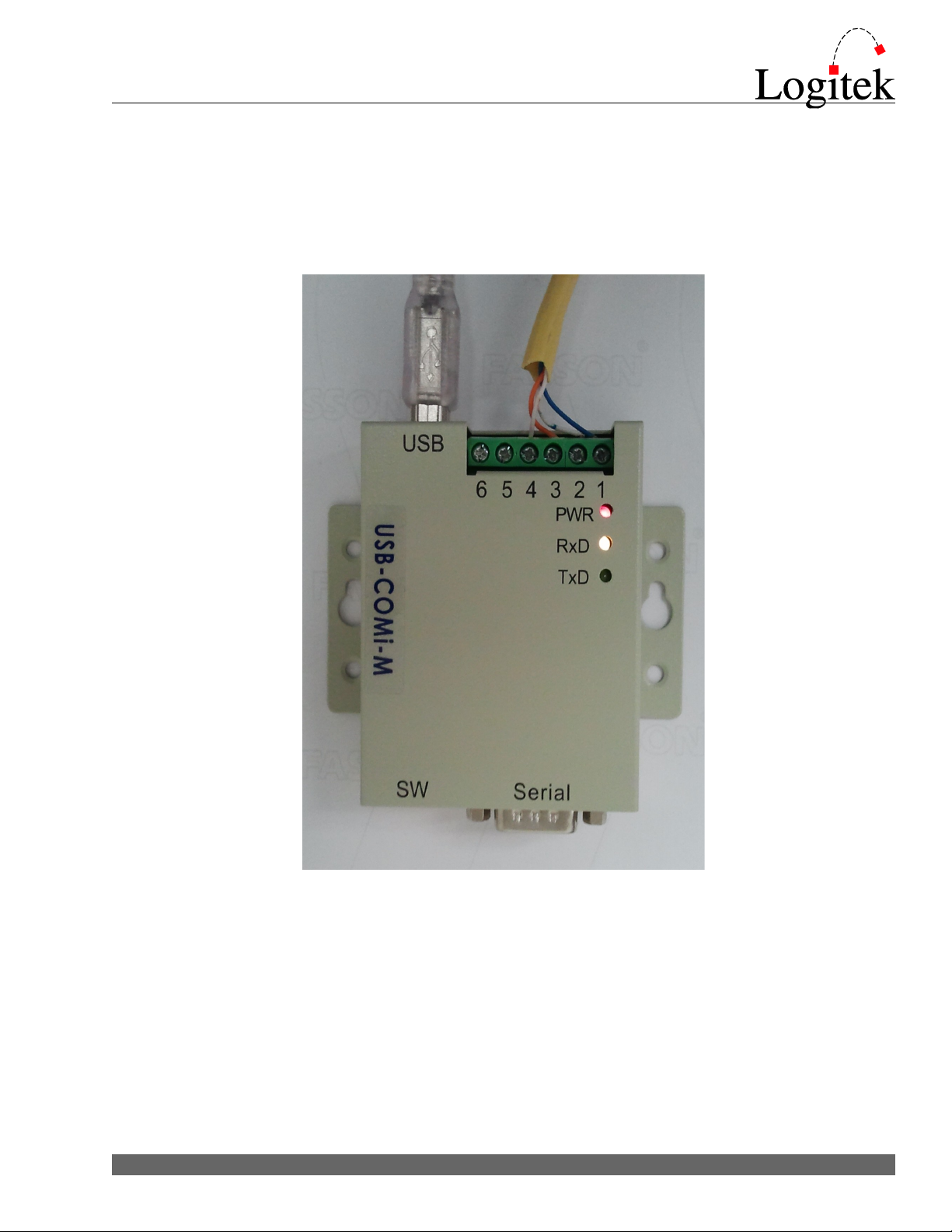

A USB to RS-485 Adaptor will be provided to connect the JetStream to a PC or laptop. The adaptor should connect to port 4 on the SURFACE card. See Appendix E.

Logitek JetStream MINI Reference Manual

RS-232 – (Installed on selected units only) Used in special installations for serial control of

a video router.

If a Second Generation DSP/Network card is installed in a First Generation JetStream enclosure, NET 1 will be used for the ADMIN NET connection. The primary audio LAN connection will be on SURFACE port 3. The secondary audio LAN connection will be on SURFACE port 4. Contact Support if you have any questions after the upgrade.

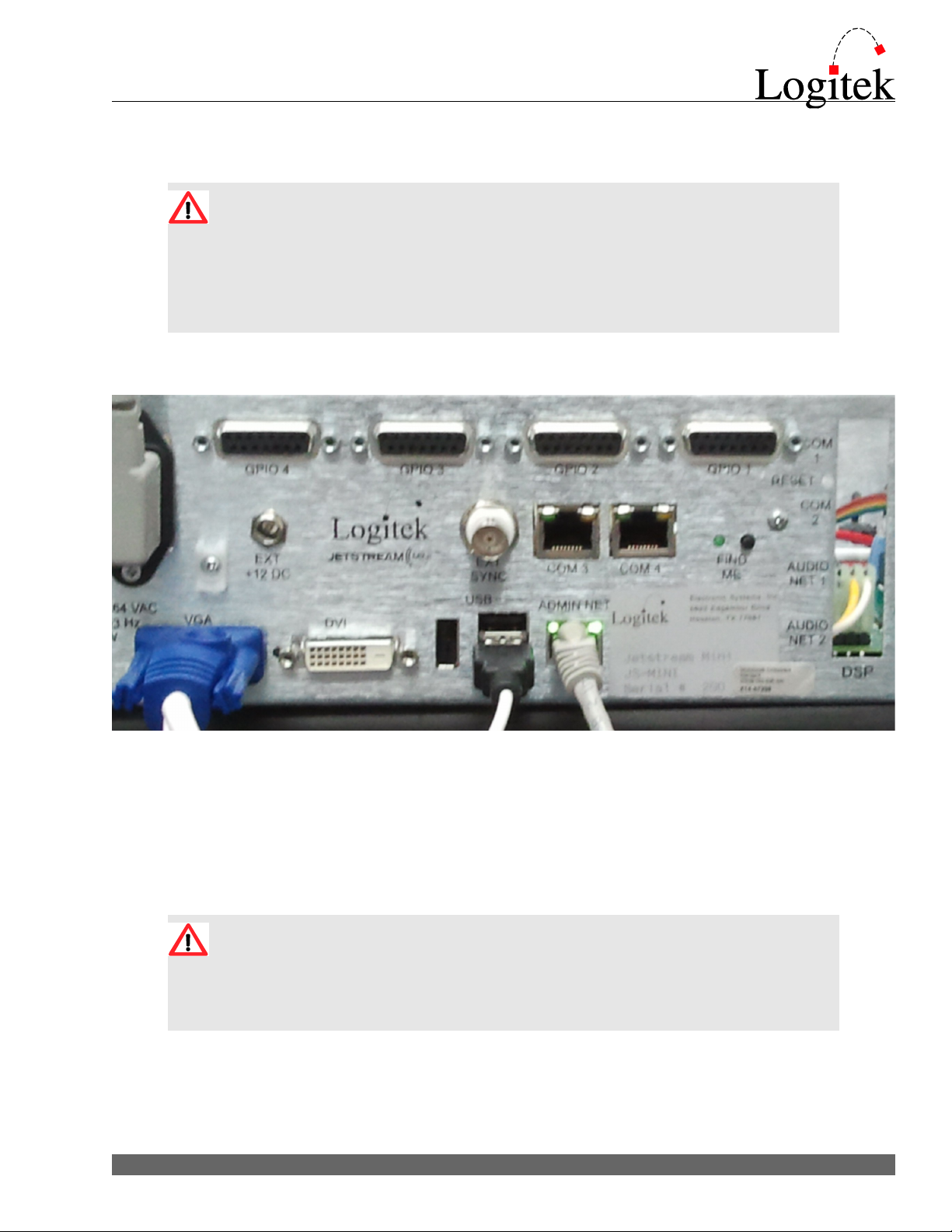

Rear Panel Connections – Second Generation (s/n 200-299)

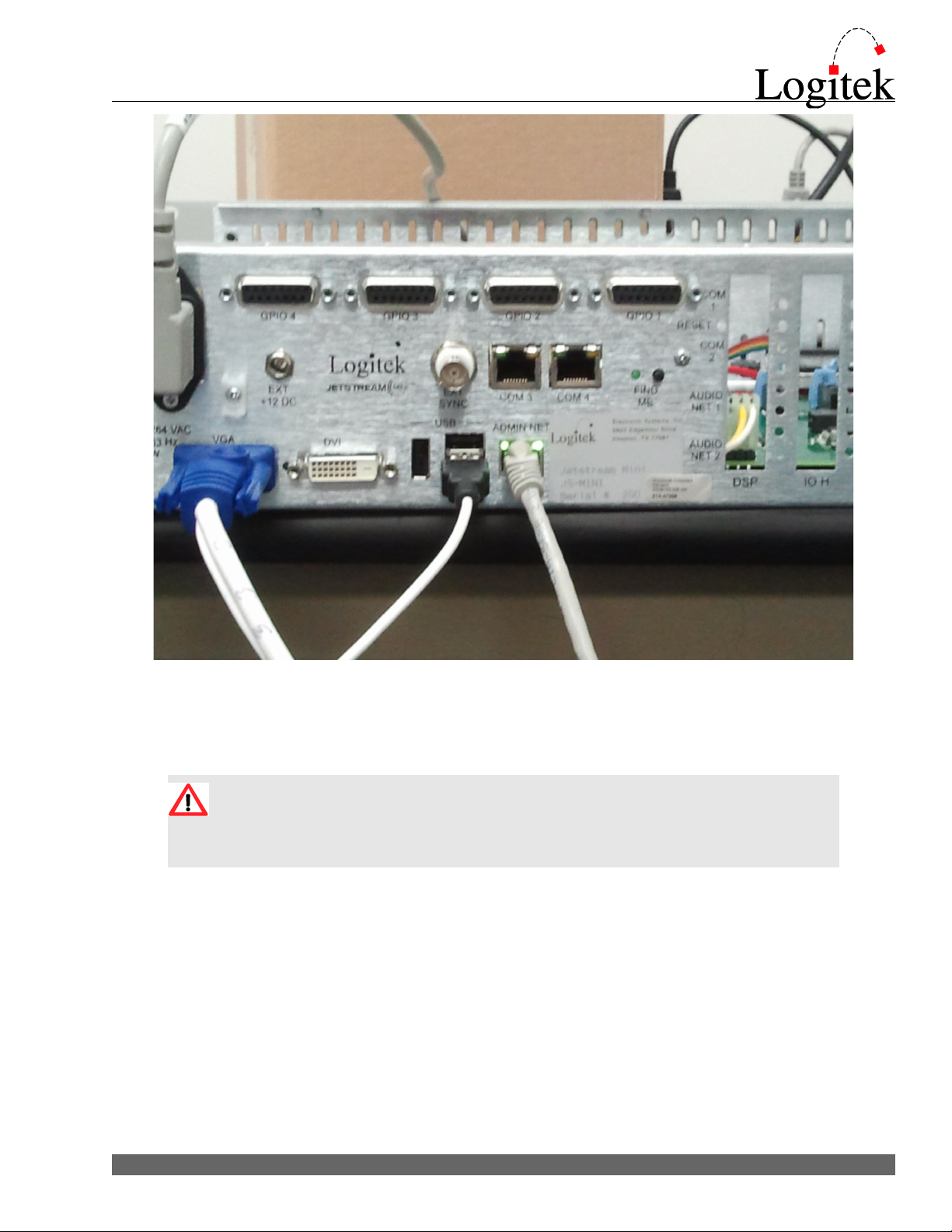

VGA – Used to connect a computer monitor with a VGA port. The VGA and DVI ports operate simultaneously.

DVI – Used to connect a computer monitor with a DVI port. The VGA and DVI ports operate simultaneously.

USB (3 ports) – Used to connect keyboards, mice, or portable media.

If a KVM switch is connected to the JetStream instead of a separate keyboard, the computer will display an error message saying that the keyboard was not found after the BIOS POST message. After 5 seconds, the message will clear and the computer will continue to boot. The keyboard on

your KVM switch will function normally despite the error message. AUDIO NET 1: Located on the DSP card. This is a gigabit Ethernet connection. When automatic failover is implemented, this will be the primary audio network. As of this writing, this port is not

used.

Logitek JetStream MINI Reference Manual

AUDIO NET 2: Located on the DSP card. This is a gigabit Ethernet connection. When automatic failover is implemented, this will be the secondary audio network. As of this writing, this is the

only active audio network port. The audio network cable should be connected here.

ADMIN NET: Located next to the USB ports. This is the administrative LAN connection used to configure and control the unit. No audio is passed on this network, therefore it may be connected to the office network without concern. This is a Gigabit Ethernet connection, although it can connect to a 10/100 network if Gigabit is not available.

RESET: Used to perform a hardware reset of the DSP card. The button is recessed; use a pen or pencil tip to depress.

Second Generation JetStreams do not have LED power, PC, or DSP lights on the back. Those indicators are only on the front panel.

Logitek JetStream MINI Reference Manual

GPI Inputs & Outputs

The JetStream MINI provides 12 logic input connections along with 16 relay closures for external device control. Three GPI inputs and four GPI outputs are on each of four DB-15 connectors.

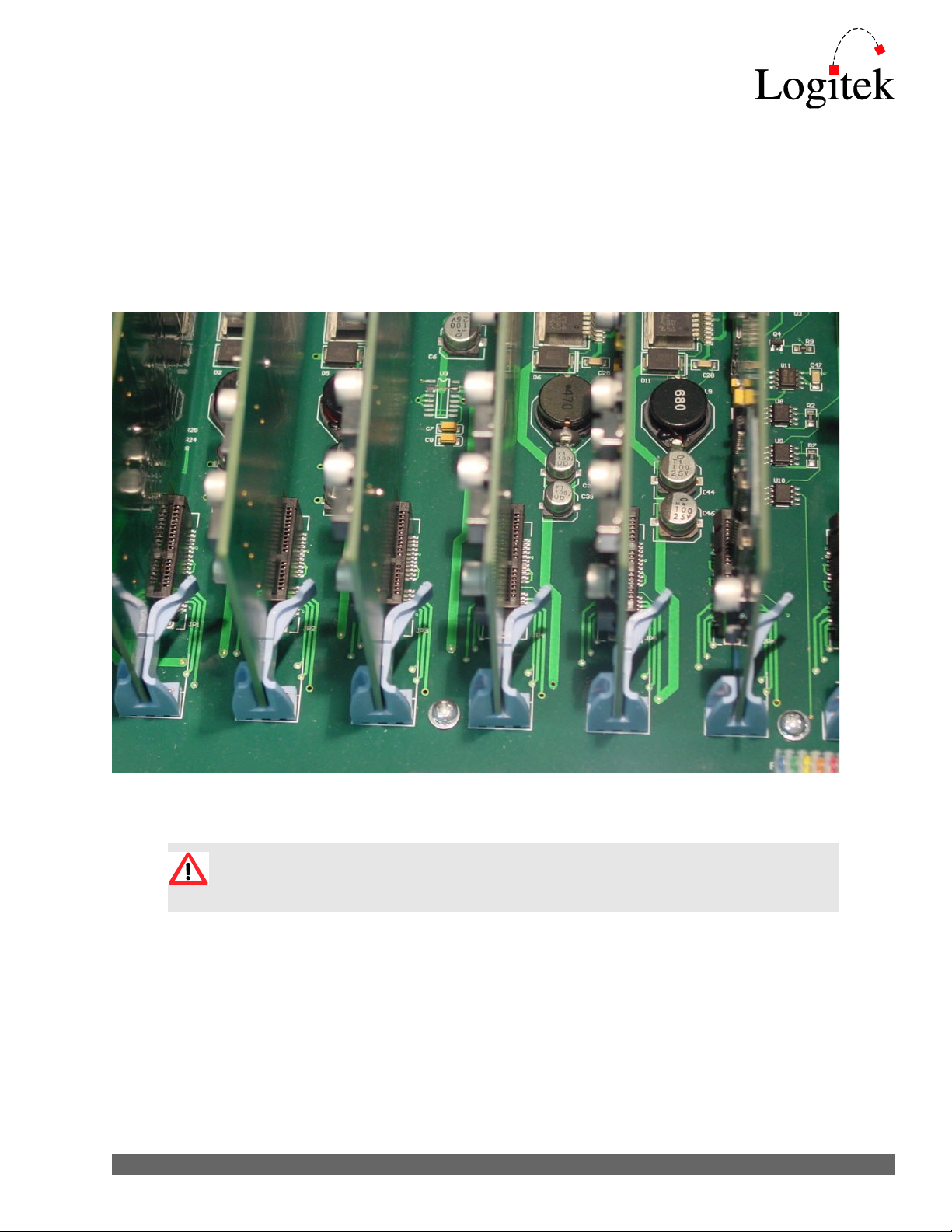

TIP: The 4 GPIO connectors on the back panel plug into a circuit card with electronic

relays on it inside of the JetStream. It is possible to pull the back of the frame away

so the card with the relays does not make good contact with the card with the

connectors if the JetStream is mounted in a rack without its top lid. We recommed

that the lid always be fastened with all screws tightened down.

 See Appendix C for connector pinouts.

External Sync

The JetStream MINI may be synchronized to an external sample clock, which is connected to the Ext Sync port. The external clock is an alternative to the internally set sample rate. For example, this

would be used if all devices in a facility were to be tied to the same sample-rate and clock.

The JetStream MINI will accept any AES source and lock to it. The green PC light will turn on when external sync is present.

The JetStream MINI automatically matches any sample rate of digital inputs from approximately 25 KHz to over 50 KHz. The outputs can be set to sample rates of 32 KHz, 44.1 KHz, and 48 KHz or locked to an external clock source (at one of these frequencies).

When integrating a JetStream MINI with an AoIP system made by another manufacturer, you should connect an AES output from the other system to the External Sync input to rate lock the two systems together.

 See Appendix C for connector pinouts.

Synchronizing JetStreams (Master/Slave)

By default, a JetStream is independent and will run on its own sample rate clock or external sync input as described above. In a networked environment, JetStreams can lock to each other across the network.

One JetStream can be set as Master by turning on device 26 bus 14. The red DSP LED on the rear and/or front of the unit will turn on to indicate that the JetStream is the master.

To set a JetStream as a slave, turn on device 26 bus 15. The green PC light will turn on to indicate that the JetStream is a slave.

Logitek JetStream MINI Reference Manual

If integrating the JetStream with an AoIP system made by another manufacturer, connect an AES output to the External Sync input of one JetStream as described above and set this unit as the master. The red and green lights will be lit on the rear and/or front of the unit. Set the other JetStreams as slaves. The green lights will be lit on those units. This will ensure that all AoIP devices are rate locked.

Contact support for assistance with turning on the Master/Slave busses.

Find Me Button

The Find Me button is used to put the JetStream into Idle mode, where the JetStream stops processing audio and waits for a new configuration to be uploaded to the DSP card.

 See Chapter 6 for further details on Resets

“Open” Control Protocol

The control protocol of the JetStream MINI is “open”. If a user wishes to write software control or to interface other devices through software control, contact Logitek Electronic Systems, Inc. for a copy of the protocol.

Surface Connections – First Generation (s/n 1-199)

Control Surfaces (Audio Consoles) and Control Panels (Guest Turrets and router control heads)

connect via RS-485 to the JSM-DSP card, which is labeled as Surface. The ports are labeled 1 to 4, with the first port at the top.

Logitek JetStream MINI Reference Manual

Surface Connections – Second Generation (s/n 200-299)

Logitek JetStream MINI Reference Manual

Control Surfaces (Audio Consoles) and Control Panels (Guest Turrets and router control heads)

connect via RS-485 to the JSM-DSP card, which is labeled as DSP, and the back panel. The first two ports, COM 1 and COM 2 are on the DSP card; the second two ports, COM 3 and COM 4 are on the rear panel as shown.

Although RJ-45 connectors are used for surface connections, these are NOT

Ethernet connections. Use the CAT5 cable to connect the JetStream MINI

directly to the control surface or panel. Do NOT connect the CAT5 cable from

a Surface port to an Ethernet Switch.

 See Appendix C for connector pinouts.

Communication verification

You can verify communications between the JetStream Mini and Control Surface, by watching the LED lamps on the Surface port. The top green LED is transmit and the bottom yellow LED is receive.

Logitek JetStream MINI Reference Manual

Audio Cards

The JetStream MINI will accept from one to eight audio cards in slots A-H, which can be either analog or digital.

JSM-AIN-RJ Analog Input Card

The JSM-AIN-RJ card provides 8 mono or 4 stereo inputs using RJ-45 connectors, following the StudioHub+ wiring standard. Trim pots to the left of the slot provide precise level adjustment. All JSM-AIN-RJ cards ship from the factory calibrated to a reference of +4 dBu. The reference level may also be set using AE Config software, although adjustments made to the analog cards in AE Config may not be as clean or as precise as by using the trim pots. The top LED on each connector will blink as an audio meter when audio is present on the left channel and the bottom LED will blink when audio is present on the right.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

 See Appendix C for connector pinouts.

JSM-AIN-DB Analog Input Card

The JSM-AIN-DB card provides 8 mono or 4 stereo inputs using a DB-25 connector. Trim pots to the left of the slot provide precise level adjustment. All JSM-AIN-RJ cards ship from the factory calibrated to a reference of +4 dBu. The reference level may also be set using AE Config software, although adjustments made to the analog cards in AE Config may not be as clean or as precise as by using the trim pots. LED lamps above the connector will flash as a meter to show audio presence.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

Logitek JetStream MINI Reference Manual

 See Appendix C for connector pinouts.

JSM-MICIN-RJ Analog Input Card

The JSM-MICIN-RJ card provides 4 microphone pre-amplified inputs using RJ-45 connectors, following the StudioHub+ wiring standard. Trim pots to the left of the slot provide precise level adjustment. The top LED will blink like a meter when audio is present and the bottom LED will turn on when Phantom Power is turned on.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

 See Appendix C for connector pinouts.

JSM-MICIN-DB Analog Input Card

The JSM-MICIN-DB card provides 8 microphone pre-amplified inputs using DB-25 connectors, following the StudioHub+ wiring standard. Trim pots to the left of the slot provide precise level adjustment. LED lamps above the connector will flash as a meter to show audio presence.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

 See Appendix C for connector pinouts.

JSM-DIN-RJ Digital Input Card

The JSM-DIN-RJ card provides 4 AES/EBU or S/PDIF digital inputs using RJ-45 connectors, following the StudioHub+ wiring standard. The reference level may only be set using AE Config software. The top LED will blink like a meter when audio is modulating; the bottom LED will turn on solid when a valid digital signal is present.

 See Appendix C for connector pinouts.

JSM-DIN-DB Digital Input Card

The JSM-DIN-DB card provides 8 AES/EBU or S/PDIF digital inputs using a DB-25 connector. The reference level may only be set using AE Config software. LED lamps above the connector will flash as a meter to show audio presence.

 See Appendix C for connector pinouts.

Logitek JetStream MINI Reference Manual

JSM-AOUT-RJ Analog Output Card

The JSM-AOUT-RJ card provides 8 mono or 4 stereo inputs using RJ-45 connectors, following the StudioHub+ wiring standard. Trim pots to the left of the slot provide precise level adjustment. All JSM-AOUT-RJ cards ship from the factory calibrated to a reference of +4 dBu. The reference level may also be set using AE Config software, although adjustments made to the analog cards in AE Config may not be as clean or as precise as by using the trim pots. The top LED on each connector will blink as an audio meter when audio is present on the left channel and the bottom LED will blink when audio is present on the right.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

 See Appendix C for connector pinouts.

JSM-AOUT-DB Analog Output Card

The JSM-AOUT-DB card provides 8 mono or 4 stereo outputs using a DB-25 connector. Trim pots to the left of the slot provide precise level adjustment. All JSM-AIN-RJ cards ship from the factory calibrated to a reference of +4 dBu. The reference level may also be set using AE Config software, although adjustments made to the analog cards in AE Config may not be as clean or as precise as by using the trim pots. LED lamps above the connector will flash as a meter to show audio presence.

TIP: The trim pots must be used for gain changes of more than 4 dB to preserve the

signal to noise ratio!

 See Appendix C for connector pinouts.

JSM-DOUT-RJ Digital Output Card

The JSM-DOUT-RJ card provides 4 AES/EBU or S/PDIF digital outputs using RJ-45 connectors, following the StudioHub+ wiring standard. The reference level may only be set using AE Config software. The top LED will blink like a meter when audio is modulating; the bottom LED will turn on solid when a valid digital signal is present.

 See Appendix C for connector pinouts.

JSM-DOUT-DB Digital Output Card

The JSM-DOUT-DB card provides 8 AES/EBU or S/PDIF digital inputs using a DB-25 connector. The reference level may only be set using AE Config software. LED lamps above the connector will flash as a meter to show audio presence.

 See Appendix C for connector pinouts.

Logitek JetStream MINI Reference Manual

5 Configuration

First Generation JetStream Configuration (s/n 1-199)

Configuration of the Control Surface port is accomplished in conjunction with configuration of the JetStream MINI. Configuration of the JetStream takes place using the Logitek Configuration Software, AEConfig. Systems with the JetNet Audio Networking module have AE Config preinstalled. Systems without JetNet will use a customer supplied laptop and connect via USB to serial adaptor.

First Generation customers who upgrade to the Second Generation

DSP/Network card should follow the Second Generation instructions.

 AEConfig was written for the Logitek Audio Engine. See Appendix A to learn

how to use AE Config with the JetStream.

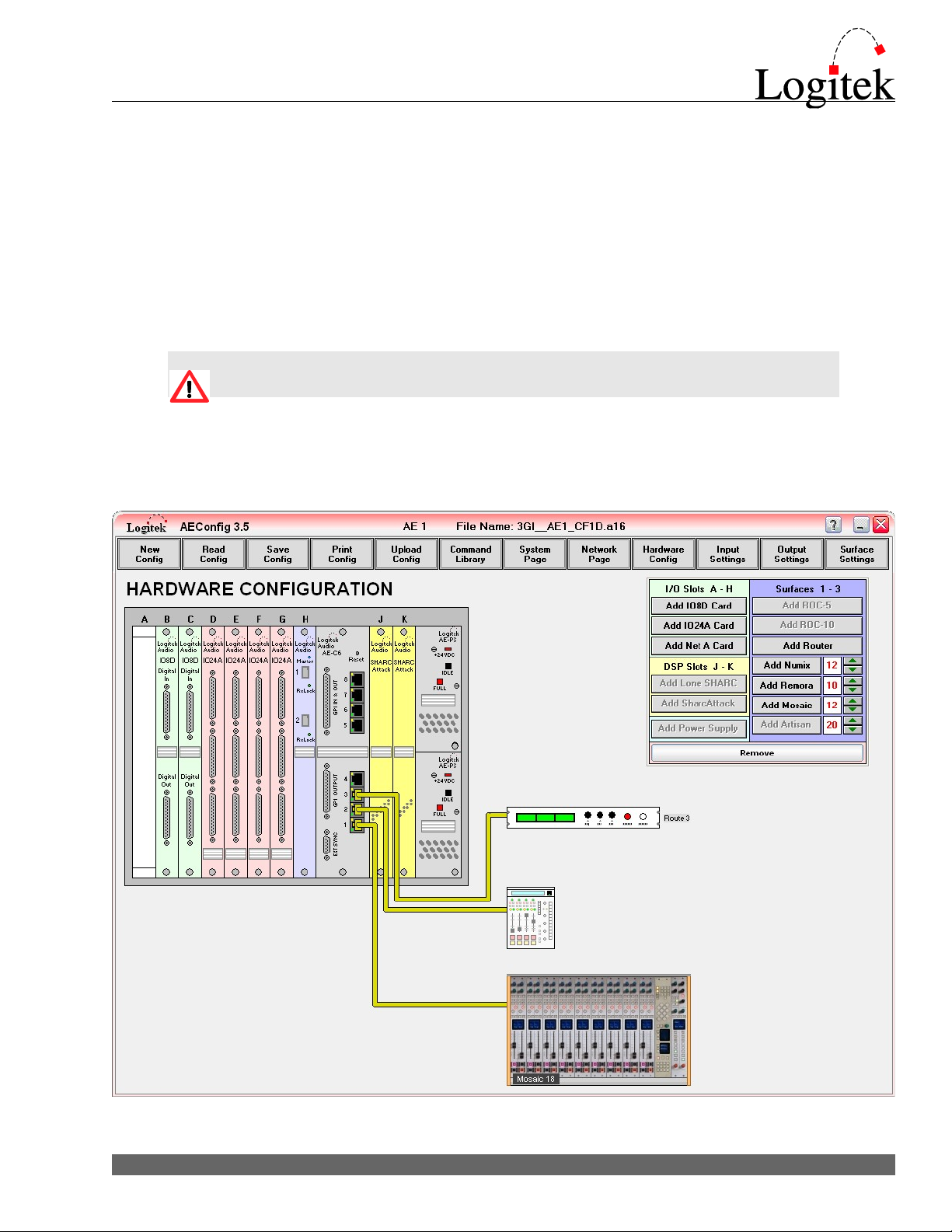

Figure 1 - AEConfig - Hardware Configuration Page

Logitek JetStream MINI Reference Manual

Second Generation JetStream Configuration (s/n 200 & up)

Configuration of the Control Surface port is accomplished in conjunction with configuration of the JetStream MINI. JetSet is a web-based system that lets you configure a JetStream using any popular web browser (Internet Explorer, Firefox, Chrome, Safari) either on the JetStream itself or on any laptop, computer, or tablet connected to the ADMIN network connection.

JetSet is currently in testing. The manual will be updated to describe JetSet operation at the time of its release.

See Appendix A.

Logitek JetStream MINI Reference Manual

6 Operation

This chapter covers the basic operation of the JetStream Mini.

Initial Power-Up

Depending on your distance from Logitek Electronic Systems’ factory, your JetStream may have had a long journey to get to you. It’s always a good idea to re-seat all I/O cards prior to powering on your unit.

Power Loss at Audio Engine

In the event of loss of power at the JetStream, upon the resumption of power, it will return to the same state it was in prior to the power failure.

Audio from local sources will begin to play within 3 seconds of power up. It can take up to two minutes for networked JetStreams to find each other and begin streaming after a power failure. Networked sources will remain silent until they automatically restore the connection..

Recovering From a Bad Upload

If the configuration stored on the JetStream is corrupted for any reason, the DSP will refuse to start. When this occurs, all LED lamps on all I/O cards and on the DSP (Surface) card will light simultaneously and no audio will be present. After a few seconds, the DSP will restart; the lamps will shut off and turn back on again, and the process will repeat every few seconds. You may hear a popping noise in your monitor speakers as the unit resets.

Recover from this condition with an idle reset.

Idle Reset

Unplug the power to the unit. Press and hold the Find Me button on the back of the JetStream and apply power. Release the Find Me button when you see the DSP lamp begin to blink. You may now upload a good configuration to the JetStream to resume operation.

TIP: If the JetStream is constantly rebooting, you can often force an Idle Reset by

pressing and holding Find Me while it reboots without pulling the power. If you're

not successful doing an Idle Reset with this method, pulling the power cord and

holding Find Me during a power up will definitely work.

Logitek JetStream MINI Reference Manual

Resets from AEConfig & JetStream Server

The following resets are performed from the JetStream Server and AEConfig PC applications:

Soft Reset

A Soft Reset is executed by clicking Soft Reset from the JetStream Log page in JetStream Server or during the upload process in AEConfig. This reset will tell JetStream to read its current routing table and perform every route again. This reset will also ask JetNet to refresh its list of network routes.

A Soft Reset will NOT read the default route table. (A default route is anything

in Surface Settings or Output Selections in AE Config with an I mark on the

grid.) Therefore, if you are changing a default route, it will not take effect until

a full reset is performed. Also, any changes made to the Mix Minus grid on

AEConfg's System Page will not take effect until a Full Reset.

TIP: A Soft Reset does not interrupt audio. Therefore, if you need to change default

routes but do not wish to interrupt programming, do a Soft Reset, then force the

routing change manually using the JetStream State page in JetStream Server.

Full Reset

A Full Reset is executed by clicking Full Reset from the JetStream Log page in JetStream Server or during the upload process in AEConfig.

A Full Reset copies the default startup state of the last configuration saved, erasing any routing, level or on/off information currently held in memory. This function is required to activate the routing portion of a new configuration file or to clear the current state memory if it becomes corrupted.

A Full Reset will tell JetNet to remove all of its network routes, unplug the USB

connection to the DSP card, and then restore all of its network routes. It can

take up to 30 seconds for this process to take place before network routes are

restored.

TIP: As a Full Reset will reset to default routes and turn off all faders, audio interruption

will likely result.

Logitek JetStream MINI Reference Manual

7 Maintenance

The Audio Engine uses multi-layer boards with surface mount technology. As such, the majority of the engine and its cards are not user-serviceable. However, there are some basic tasks that can be performed by suitably qualified technical personnel.

Warranty

Logitek Electronic Systems, Inc. will honor the warranty of the system when conducting field

maintenance, provided:

 Repairs or updates only relate to recommended and documented procedures  Care is taken and procedures are followed  Repairs are conducted by suitably trained or experienced service personnel

If you do not feel comfortable performing maintenance or repairs, please do not proceed. If you would like advice prior to attempting a repair, please contact Logitek Electronic Systems or your reseller.

Firmware Updates

Each card has a firmware chip that is field upgradeable. Logitek Electronic Systems, Inc. or your value-added reseller may from time-to-time supply firmware updates to add new features or fix bugs.

Firmware is uploaded via the embedded JetNet PC or via a PC connected by USB for non-JetNet systems. Logitek Support will contact you if your system's cards need an update.

LogMeIn Access

Logitek installs the LogMeIn utility to the JetNet embedded PC prior to shipping in order to provide remote support. Please contact Logitek Support if you would like to be granted remote access to your machines.

Logitek JetStream MINI Reference Manual

Component Replacement

Card swap-out

If you need to swap a card with an on-site spare, you can simply unhook the blue tab from the card, pull up on the card to remove it, insert the replacement and snap it in. Be sure to push the RJ45 or DB-25 connector firmly through the rear panel slot prior to inserting the card into the edge connector.

Cards are fully hot-swappable. Rack rails are available from Logitek to make maintenance easier.

As the Engine config is stored within the JSM-DSP (“Surface”) card, when

swapping a JSM-DSP, the config will need to be reloaded before normal

operation can be resumed.

Logitek JetStream MINI Reference Manual

Contacting Support

North America

Contact the factory directly via phone: (877) 231-5870 Toll Free or +1-713-664-4470 or email

support@logitekaudio.com

Outside of North America

Contact your local Logitek dealer for factory-trained assistance.

Logitek JetStream MINI Reference Manual

Appendix A Using AEConfig

First Generation JetStream AoIP routers that do not have a built-in PC or who have the embedded PC but have not upgraded to the Second Generation DSP?Network card use the legacy AE Config

3.6 software for system setup and maintenance.

This guide is intended for use by Logitek staff for creating a JetStream configuration in AE Config v3.6.3.1(31 December 2009) and for use by station personnel who wish to make minor modifications to their JetStreams. Please note that during this transition period from the AE-32 Audio Engine platform to the JetStream platform, Logitek support will create and modify a JetStream configuration at no charge.

Differences in Hardware between the AE-32 and JSM

The AE-32 uses the IO24A for analog input and output and the IO8D for digital input & output. It uses up to two LS-DSP or SA-DSP cards. There are 8 slots for I/O cards (A-H). A fiber network card (NETA) may be installed in place of an I/O card in slot H. A control card is installed in slot I. The DSP cards are installed in slots J & K. The JetStream uses 5 different I/O cards, which are installed in slots A - H. There is one combination control/DSP card which is installed in the DSP slot. Networking is handled by an optional embedded computer.

When setting up a JetStream, make the following substitutions on the Hardware Configuration page in AE Config:

Logitek JetStream MINI Reference Manual

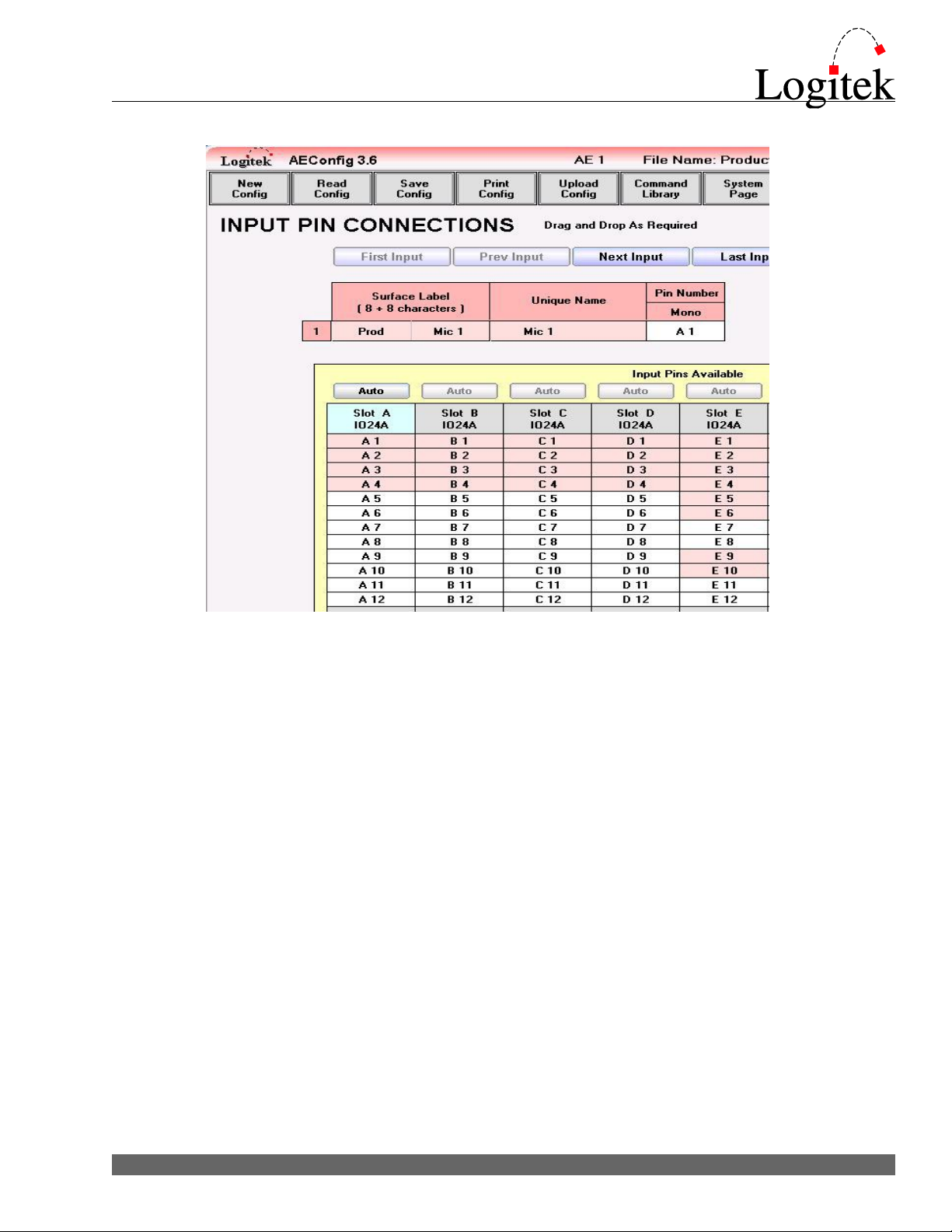

JSM-MIC IN: 4/8 input Microphone Preamp card. Assign an IO24A in AE Config to the slot

where this is installed and only assign the first 4 input pins in the software to inputs for a RJ card and 8 input pins for a DB card. Do not assign any outputs in the software to this slot.

To enable phantom power on the input, turn on the “Cue at Infinity” checkmark on the input in AE Config. When phantom power is enabled on the input, the yellow LED on the input jack will turn on. The green LED on the input jack will light when audio is present as confidence metering.

TIP: If you choose to enable phantom power by using Cue at Infinity, the microphones

will turn cue on when potted down, which may engage monitor muting in some

studios. To avoid this, phantom power may be turned on by adding some assembly

language code in Command Builder or Command Library. The command is

documented in Appendix D, however we strongly recommend that only Logitek

Support add this to your system as assembly language programming is meant for

advanced users only.

JSM-AIN: 4 stereo/8 mono Analog Input card. Assign an IO24A in AEConfig to the slot where this is installed and only assign the first 8 input pins in the software to inputs. Do not assign any outputs in the software to this slot. The green LED will light when audio is present on the left and yellow LED will light when audio is present on the right.

Logitek JetStream MINI Reference Manual

JSM-DIN: 4 or 8 (depending upon RJ or DB card type) AES/SPDIF Digital Input card. Assign an IO8D in AE Config to the slot where this is installed and assign the matching input pins in the software to inputs. Do not assign any outputs to this card. [Note: A stereo source connected to an input should be set to 2 channels with the L/R pins. A mono source connected to an input should be set to 1 channel with the appropriate L/R pin.

Examples: A stereo CD player connected to input 1 should be set as 2 channels, 1L & 1R; if connected to input 2, set it to 2 channels, 2L & 2R; if connected to input 3, set it to 2 channels, 3L & 3R; if connected to input 4, set it to 2 channels, 4L & 4R. If you have a phone hybrid that puts out 2 discrete mono outputs on the same AES wire, then create 2 inputs, each set to one channel. The first input would be set as 1L and the second input would be set to 1R if it were plugged into the first jack.]

Notes pertaining to all input cards:

1. As with the AE-32, to have a group of microphones mute when on, set Monitor Muting to Yes and select the bus that should be muted when the mics are on (most commonly Monitor In) from the drop-down menu. Up to three mute tallies may be set to latch on while the monitors are muted by entering in the appropriate GPI output number in the Mute Tally 1/2/3 box. AE Config will write the mute tally command based on the last microphone it finds in the mute group, so make sure you enter the same tally numbers for all microphones in the group for best results.

2. Multiple inputs can be created using the same input pins. This way, the same audio would appear yet different GPI, muting, or mix minus bus information may be entered in for the different inputs. Make sure that the unique names are different for each input in order for Command Builder to tell them apart and that the surface labels are different so your operators can tell them apart.

3. The JetStream supports 12 GPI inputs and 16 GPI outputs on the back of the unit. To assign a GPI input or Output, enter the GPI number into the appropriate box in AE Config’s Input Settings Editor. You have the following choices:

GPI INPUT

Audio On – when the specified GPI input turns on, the fader for this source will turn on.

Audio Off – when the specified GPI input turns on, the fader for this source will turn off.

Cue – when the specified GPI input turns on, the fader for this source will be put into cue.

GPI OUTPUT

Audio Start – when the fader for this source turns on, the specified GPI output will be pulsed.

Audio Stop – when the fader for this source turns off, the specified GPI output will be pulsed.

Audio Tally – when the fader for this source turns on, the specified GPI output will latch on and remain on until the fader turns off.

In addition, GPI connections are available on the control surfaces. When entering the number for a GPI connected on the back of the JetStream, enter the number only. (GPI 1 = 1, GPI 2 = 2, etc.) When entering the number for a GPI connected to surface 1, add 100. (Surface 1 GPI 1 = 101, Surface 1 GPI 2 = 102, etc.) When entering the number for a GPI connected to surface 2, add 200. (Surface 2 GPI 1= 201, Surface 2 GPI 2 = 202, etc.)

4. The Normal Input Level box in AE Config is only recognized by JetStreams with DSP v1.34 and higher. This is the only way to adjust levels for digital inputs. In addition, analog cards have trim-pot adjustable gains. Using the trimpots provides better noise and headroom performance for analog inputs.

5. Mix minus busses are assigned as in the AE-32. See the AE Config manual for a full discussion of Mix Minus

Logitek JetStream MINI Reference Manual

JSM-AOUT: 8 mono/4 stereo Analog Output card. Assign an IO24A to the slot where this is plugged

in and use the first 8 channels in the software. Do not assign any inputs to this slot. The green and yellow LEDs will light when audio is present on the left and right channels, respectively.

JSM-DOUT: 4 or 8 AES/SPDIF Digital Output card (depending upon RJ or DB connector). Assign an IO8D to the slot where this is plugged in and use the matching pins in the software. For stereo sources, assign 2 channels and set them to L+R. For mono sources, assign one channel and choose the appropriate L/R side. Do not assign any inputs to this card.

Notes pertaining to all output cards:

1. The Normal Output Level box in AE Config is only recognized by DSP v1.34 and higher. This is the only way to adjust levels for digital outputs. In addition, analog cards have trimpot adjustable gains. Using the trimpots provides better noise and headroom performance for analog outputs.

2. When connecting an output to a consumer (S/PDIF) device, change the format box from AES to S/PDIF. This suppresses some bits used by AES that consumer devices do not support. Most consumer grade CD, DAT and minidisk machines will not record unless the S/PDIF format is selected.

3. Output pins may not be duplicated for the I/O cards. Duplicate output pins are allowed only for creating network outputs, which will be discussed later in this document. Please take care to not

duplicate your pins when setting up the I/O cards.

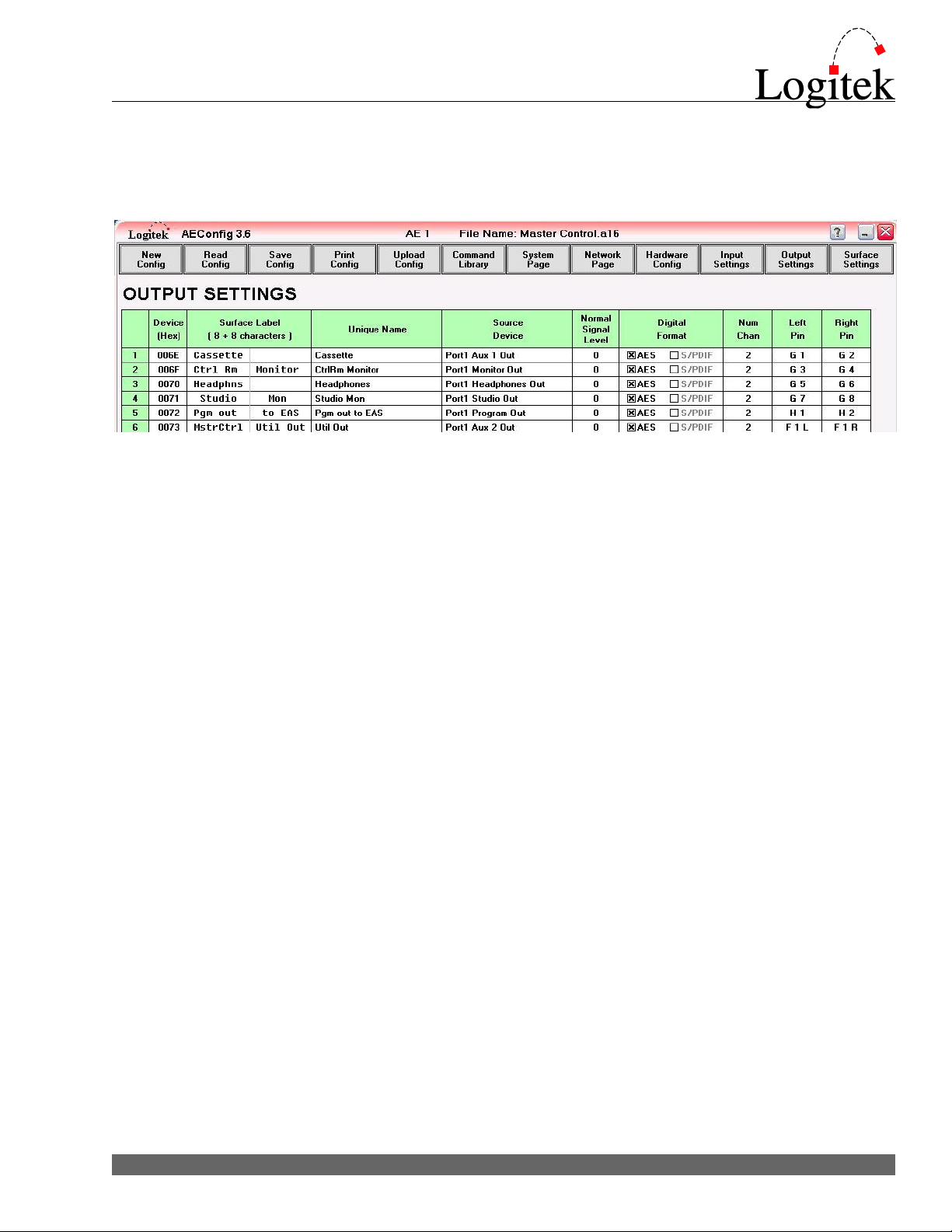

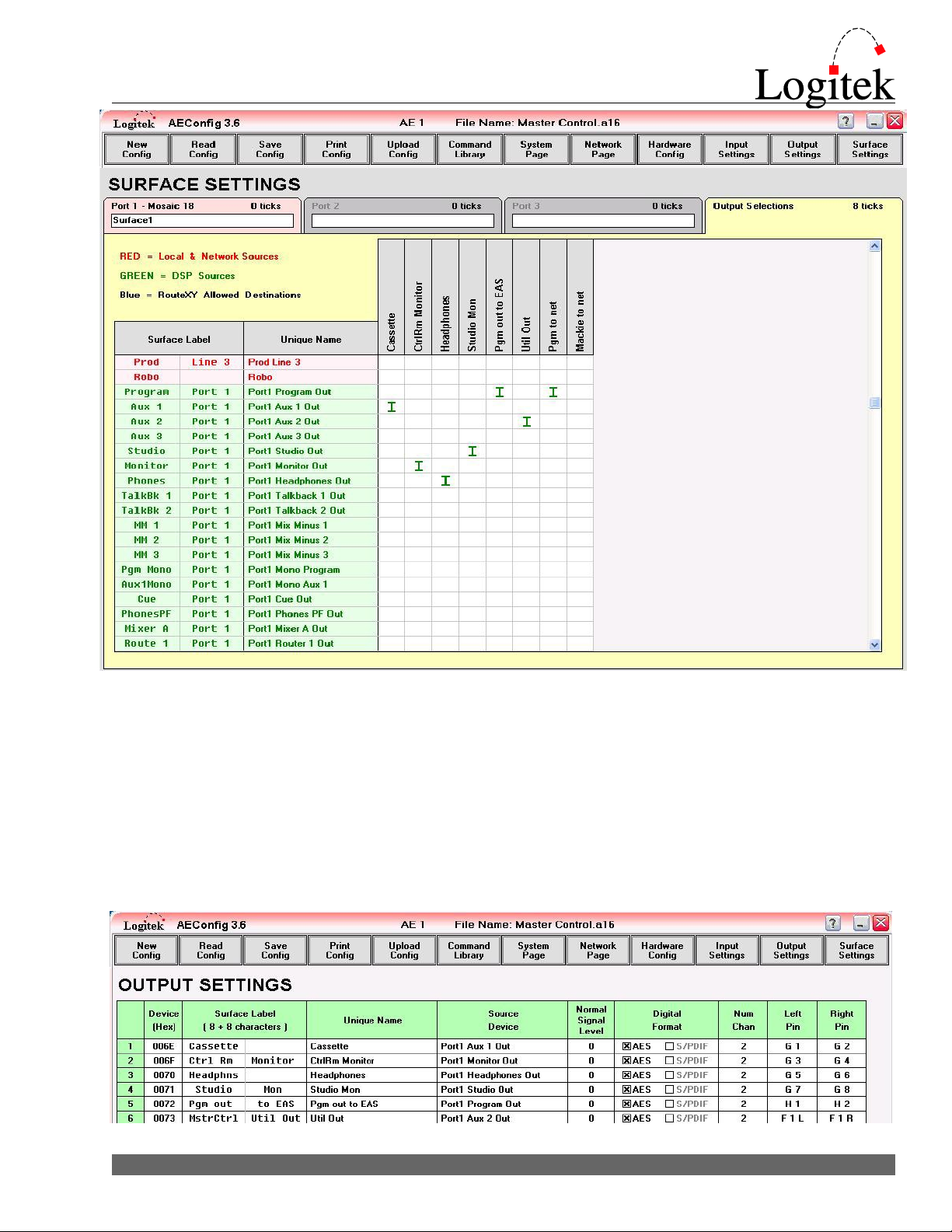

4. As with the AE-32, output routing is done on the surface settings page on the yellow Output Selections tab. This process is outlined on the following page.

Logitek JetStream MINI Reference Manual

The columns in the grid represent the outputs; the pink rows represent inputs, green rows represent DSP outputs. Right click to create an I (Initial Route) mark in the column to connect the desired DSP or input signal to the output.

The blue section below the green DSP outputs is used for filtering on the Route X-Y and is not part of the output selection process. Refer to the Utility Panels manual to learn more about the Route XY.

When you have successfully routed an input or DSP source to an output, you will see it listed under Source Devices on the Output Settings page.

Logitek JetStream MINI Reference Manual

Important note on slots G & H

If slots G&H have cards installed, they must both be inputs or both be outputs. If the directions are mixed, the output card will not function.

Independent Bus Switching, Pre-Fader Aux Bus, Mix Minus Setup

Independent Bus Switching, Pre-Fader Aux busses, and Mix Minus busses are set up exactly the same way as in 3.x Audio Engines. See page 28 of the AE Config Reference Manual (Rev. 3.6) for an explanation of these features and how to enable them on the System Page.

As with the Audio Engine, to tell the JetStream to remove a certain input from a mix minus bus, enter the mix minus bus number in the Input Settings Editor. (In other words, the JetStream won’t know to mix out the phone from mix minus 1 until you go to the phone input and put a 1 in the Mix Minus Bus box.)

Surface Settings

In order for a source to appear on a console's fader, it must be assigned in Surface Settings. See page 45 of the AEConfig v3.6 Reference Manual.

JetNet JetStream Networking

Before we begin with AE Config, let's review how the network cards have been set up prior to shipping.

In first generation units, NET 1 is the primary audio network. It is set up with a static IP address of

192.168.87.xxx, where xxx represents the unit's serial number.

In first generation units, NET 2 is most often used for connection to the faciltiy's administrative LAN. It is set up to receive an IP address automatically via DHCP.

In second generation units, the audio network connections are on the DSP card. They are assigned arbitrary static IP addresses in the JetStream Server application. However, these addresses are not used to access the unit. The multicast streams are assigned automatically by the network card. The network connection on the computer is the administrative LAN; this address is assigned via DHCP by default.

When it's time to plug in the JetStreams, all of the audio NET 1 or audio NET 2 cables will go into the same switch or VLAN for the audio network. (Also, two JetStreams may be connected back to back as an audio snake. The network cards are auto-sensing, so a crossover cable is not required when setting up a snake.)

Logitek JetStream MINI Reference Manual

Streaming Audio – The Executive Summary

Networked audio is sent out as multicast IP streams. Each stream is assigned a different IP address automatically by the JetStream. The JetStreams on the audio network communicate to each other so each JetStream becomes aware of what sources are available. In addition, JetStreams can send and receive audio to other Audio over IP devices that follow standard RTP over UDP protocols. However, because those other devices are not JetStreams, they cannot announce their presence to a JetStream (nor can the JetStream announce its presence to a non-Logitek box, therefore a common table is kept for the JetStreams to send and receive audio to non-Logitek AoIP devices.

Overview

The first step in setting up a JetStream MINI for JetNet Networking is to configure all of the local inputs and outputs in AEConfig and assigning the appropriate Surface Settings checkmarks.

The second step is to create network outputs, either for individual sources that you wish to share with other devices or for mix busses (Program, Aux 1, Aux 2, Mix Minus 1, etc.) that you wish to share with other devices. When uploading this initial configuration to each JetStream, do a Full Reset at the end of the upload.

The third step is to connect the JetStreams on the network and let them discover each other's network outputs. The JetStream Server application, which runs on each embedded PC, caches a list of these sources as well as the local sources that you uploaded with AE Config.

In JetStream Server, under the JetStream State tab is another tab labeled Surface Settings. This tab will show a similar grid to the Surface Settings in AEConfig, and it will show the checkmarks and I markers that were uploaded from AEConfig. As the JetStream discovers the network sources from other devices, they will be added as rows in the grid. Then, add check and/or I markers as desired to assign those network sources to the surface; they will then be available for the surface to route and control.

JetStream Server will keep these network source names and checkmarks in its cache and store it to a local file. The JetStream will keep this cache, even though power cycles, until a Full Reset is performed. After the Full Reset, the cache-building process begins again and the network sources will need to be added to the Surface Settings again.

Non-Logitek AoIP devices are kept in a text file called JSM_Net_Def.txt. This file is placed in D:\Logitek of each JetStream and should be identical on all machines.

Logitek JetStream MINI Reference Manual

Assigning an Output to the Network

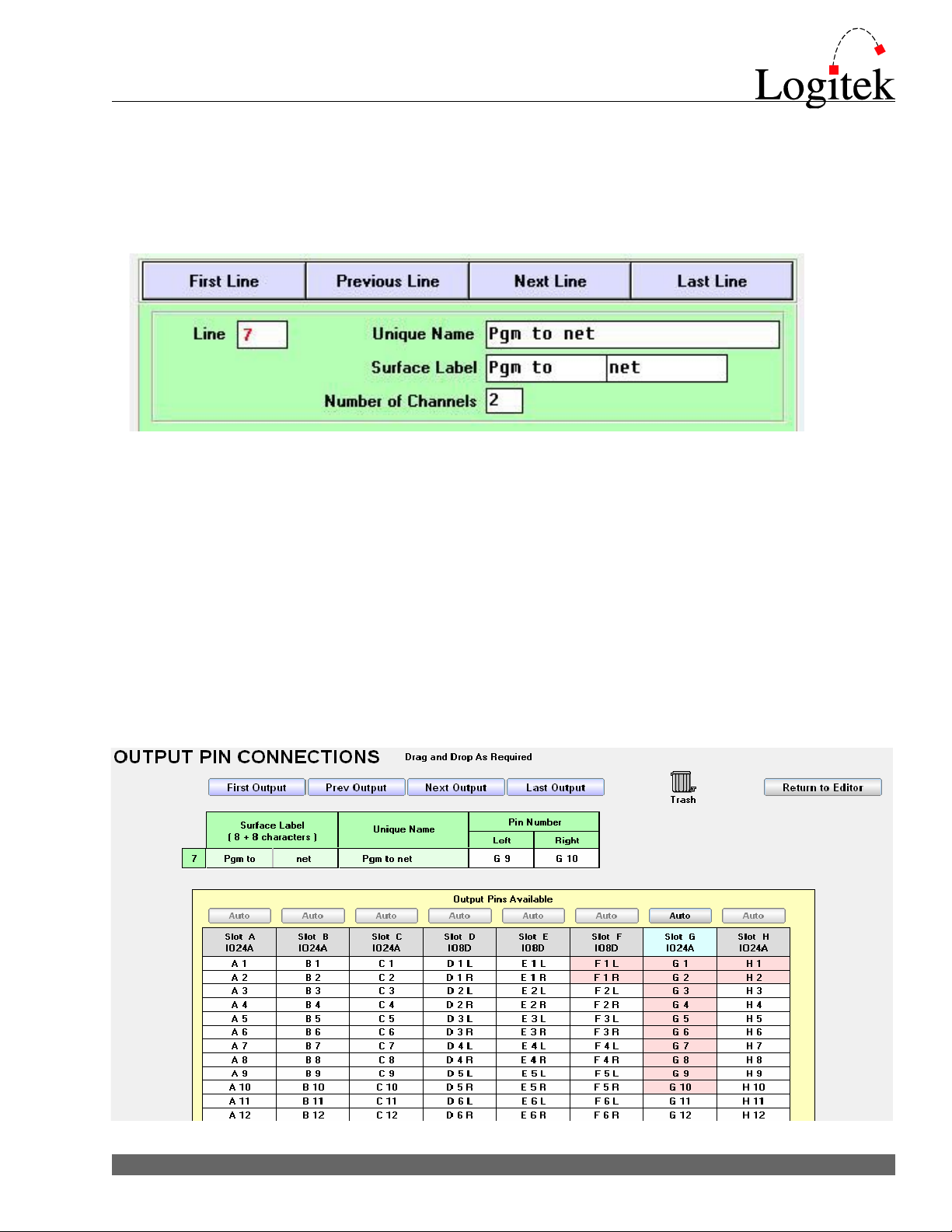

In AE Config, create a new output. Assign it the appropriate number of channels (1 for mono, 2 for stereo). Give it a Unique Name and surface label. For example, let’s put program out on the network for another studio to listen to:

The Unique Name and Surface Label will be transmitted to all other JetStreams on the network. The Surface Label will appear on the control surface (console) and the Unique Name will appear in the JetStream Server software where you are assigning the sources to the faders and destinations. The Unique Name is a good place to put studio names (ie “Studio 1 Mic 1” whereas on the console itself you may only want to call it “Mic 1.” The Unique Name should be unique throughout the entire system. It is acceptable to have identical surface labels so long as they don't both appear on the same control surface.

In our example, “Pgm to net” will appear on the other JetStreams. In your environment, you would probably want to have your call letters or studio name there: “Studio A Program” “KUHF Program” or “WKDF Aux 1.”

In Number of Channels, put 1 for mono and 2 for stereo.

Logitek JetStream MINI Reference Manual

Now, to assign the pins. The JetStream will look for any output that is assigned a pin with an invalid number and know that it is destined for the network. So, if outputs 1-8 are valid for an analog output card, assign this to outputs 9 and 10.

Second Generation JetStreams using AE Config need to define whether a stream is fast audio (low latency) or slow audio before the audio will begin to stream. To define it as fast audio, put a 7 in the output's Normal Signal Level box. To define it as slow audio, put an 8 in the output's Normal Signal Level box. Fast audio streams use smaller but more frequent packets and generate more network traffic than slow audio streams. If the JetStream is being integrated with AoIP equipment that follows the Livewire protocol, use 8 in the Normal Signal Level box for slow audio and a 6 in the Normal Signal Level box to send Livewire compatible fast audio streams.

Logitek handles mono AoIP differently than other vendors. Some companies (ie Livewire) do not have a special mono packet type and transmit mono sources as left channel only with the right channel silent; their consoles know to then take left channel only. If you are integrating JetNet into an existing Livewire installation, set up mono network outputs as stereo and assign the left side to both channels in order for everything to match on their consoles as with ours. In this example, a mono network output would be assigned to a stereo pair as G9/G9. A stereo network output would go to G9/G10.

Assign all subsequent network outputs to the same pins. AEConfig 3.6 from 31 December 2009 and later will allow you to repeat output pins. (Just take care to not repeat output pins to a physical output; use this feature only for the “virtual” network outputs.

To send an input source to the network, create a network output and route the input to that output on Surface Settings/Output Selections, just as you would if you were routing an input to a physical output.

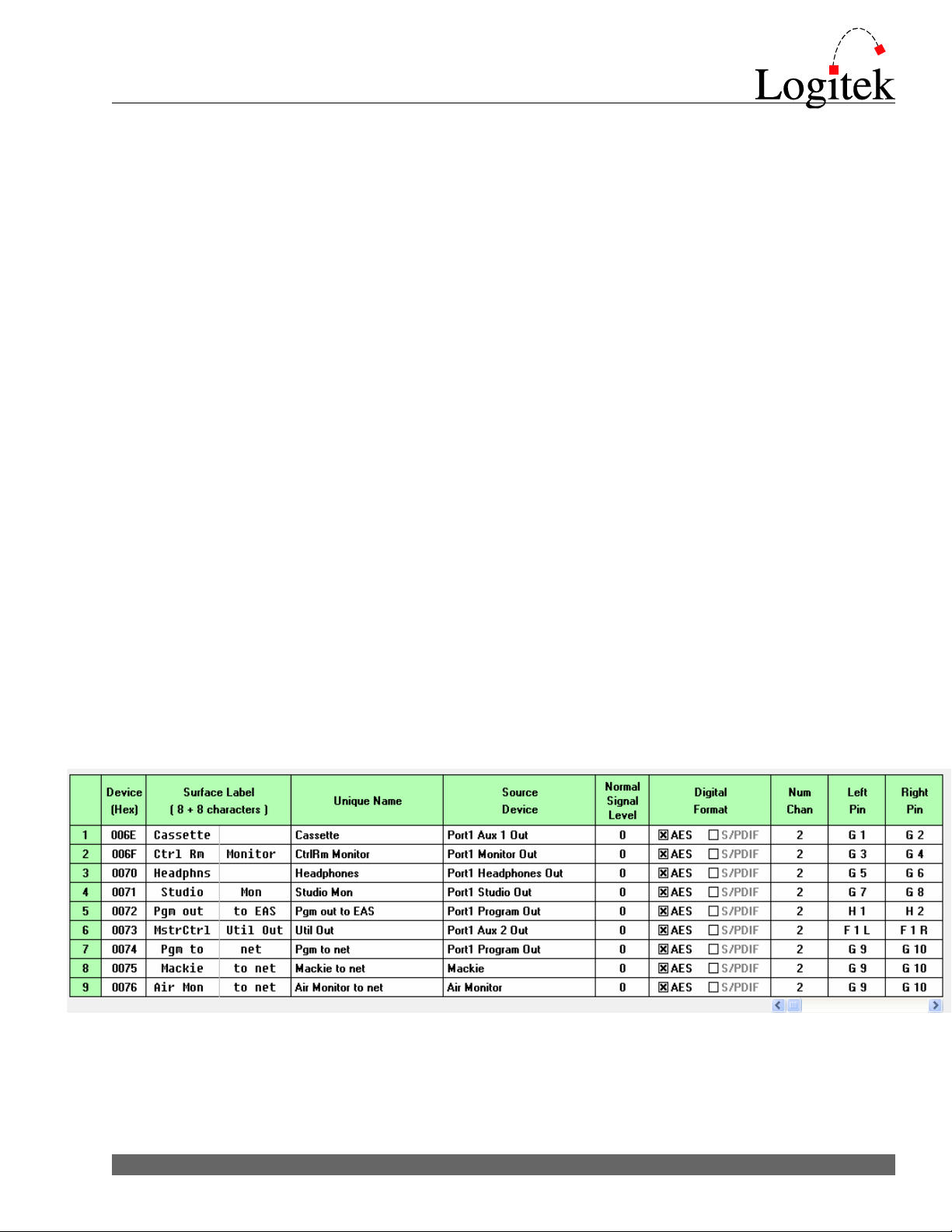

When you’re done, your output settings page will look like this:

Logitek JetStream MINI Reference Manual

Defining Non-Logitek Network Sources

A small text file is kept in D:\Logitek named JSM_Net_Def.txt. Multicast information about AoIP sources from non-Logitek JetNet partners is placed in this file in order for JetStream Server to know it is available on the network. Either spaces or tabs may be used as delimiters in the file. Text following two forward slashes // will be treated as a comment and ignored.

The following information is kept in the file: Stream Name: Two sets of 8 character fields. This is the 16 character surface label that will be sent to the console. Text should be enclosed in quotes. If a blank field is desired, put a space between quote marks.

Destination IP: Enter the multicast address of the stream coming from the Non-Logitek device. Host Name: One 14 character field. Computer Name used in some IGMP implementations. The

host need not be specified; if you do not want to list the host you must enter a space between quotation marks.

Host IP: Used in some IGMP implementations. If not needed, enter 0.0.0.0. Net 1: Y or N. For most JetNet installations, this will be Y, as audio is transmitted on this LAN. Net 2: Y or N. For most JetNet installations, this will be N, as we will not transmit audio on this

LAN.

A sample JSM_Net_Def.txt follows:

// JetStream Manual Channel Guide File // // Stream Name Destination IP Host Name Host IP Net 1 Net 2 // 16-char 2x8 0.0.0.0 14-char 0.0.0.0 Y / N Y / N //--------------------------------------------------------------------------------// “12345678””12345678” 239.193.1.1 “12345689901234” 0.0.0.0 Y N // “Phone””1” 239.192.0.1 “ “ 0.0.0.0 Y N “SS-32””A” 239.192.0.2 “LiveIO” 0.0.0.0 Y N “A-Serv 1””Out 1” 239.192.8.32 “RCS1” 0.0.0.0 Y N “A-Serv 1””Out 2” 239.192.8.33 “ “ 0.0.0.0 Y N

Logitek JetStream MINI Reference Manual

Appendix B Specifications

General

Card slots: 1 Audio processor, 1 Network processor, 1 GPIO, 8 Audio I/O Local audio I/O: 64 channels max (mono RJ-45) on 8 I/O cards 112 channels max (mono DB-25) on 8 I/O cards Power: 95 - 120 volt or 220-240 volt, 47-63 Hz single phase (25 watts maximum) Backup power: Connection for external backup PSU Start up time: 3 sec to local audio, 120 sec to networked audio Cooling: Convention only, requires 1RU empty space above unit Environmental: 10oC – 38oC, 10 – 90% RH (non-condensing) Dimensions Actual - 19“ w x 11.5” d x 3.5” h (2RU) (48.2 cm w x 29.2 cm d x 8.9 cm h) Weight fully loaded - 10 lbs.

Audio Processor Card

DSP: 32 bit floating point processing Mixing: 36 channels (stereo) shared between 1 to 4 consoles EQ & Dynamics: 24 channels allocated to either inputs or outputs Profanity delay: 2x delays, 9 sec stereo each Mix-Minus outputs: 24 channels mono, may be combined for stereo 0 VU Reference Level: -20 or -18 dBFs Factory default reference: 0VU = +4 dBu = -20 dBFs (+20 VU = +24 dBu = 0 dBFs) Internal sampling rate: User selectable 32K, 44.1K, or 48K (Sample/Sec) External sync input: AES3-1992 or word clock, 44.1k or 48K (Sample/Sec) Console connections: 4 serial ports with activity indicators

GPIO Card

Inputs: 12 channels Input level: +3.3 volts, ground to activate, reverse voltage and over voltage protected Outputs: 16 channels Outputs format: optical isolated relay, non-polarized (50 volt, 500 milliamp max load) Functionality: assigned in setup program

Microphone Input Cards

Number of Channels: 4 microphones (RJ) or 8 microphones (DB) Connectors: 4 StudioHub format RJ-45 sockets with audio presence & phantom power indicators or 1 DB-25 with audio presence indicators Phantom power: +48 volts switched via software Normal input level: -65 to -30 dBu, rear panel trim-pot adjustable Input impedance: 4k ohms balanced Common mode rejection ratio: -90 dB (1 kHz) THD+N: .01% (-35 dBu input, +4 dBu output, 20 Hz to 20 kHz) Frequency response: +/- .2 dB (20 Hz to 20 kHz) Equivalent input Noise: < -124 dB (-60 dBu input, +4 dBu output, 20 Hz to 20 kHz) Conversion resolution: 24 bits

Logitek JetStream MINI Reference Manual

Analog Input Card

Number of Channels: 8 mono inputs, may be combined for stereo Connectors: 4 StudioHub format RJ-45 sockets with audio presence indicators or 1 DB-25 with audio presence indicators Signal format: Balanced or unbalanced Maximum input level: +24 dBu Normal input level: -20 to +8 dBu, rear panel trim-pot adjustable Factory preset level: +4 dBu, +20 dB headroom Input impedance: 50k ohms balanced or 25k ohms unbalanced Common mode rejection ratio: -90 dB @ 1 kHz THD+N: < .01% (0 dBu input, +4 dBu output, 20 Hz to 20 kHz) THD+N: < .008% (+4 dBu input, -20 dBFs output, 20 Hz to 20 kHz) Frequency response: +/- .2 dB (20 Hz to 20 kHz) Signal to Noise Ratio: > 80 dB (+4 dBu input, +4 dBu output, 20 Hz to 20 kHz) Conversion resolution: 24 bits

Analog Output Card

Number of Channels: 8 mono outputs, may be combined for stereo Connector: 4 StudioHub format RJ-45 sockets with audio presence indicators or 1 DB-25 with audio presence indicators Signal format: Balanced or unbalanced Maximum output level: +24 dBu into 600 Ohms Normal output level: -20 to +8 dBu, rear panel trim-pot adjustable Factory preset level: +4 dBu, +20 dB headroom Output impedance: 60 Ohms THD+N: < .01% (+0 dBu input, +4 dBu output, 20 Hz to 20 kHz) THD+N: < .008% (-20 dBFs input, +4 dBu output, 20 Hz to 20 kHz) Frequency response: +/- .2 dB (20 Hz to 20 kHz) Signal to Noise Ratio: > 80 dB (+4 dBu input, +4 dBu output, 20 Hz to 20 kHz) Conversion resolution: 24 bits Stereo Separation: > 80 dB (+23 dBu input, +23 dBu output, 20 Hz to 20 kHz) Inter-Channel Crosstalk: > 90 dB (+23 dBu input, +23 dBu output, 20 Hz to 20 kHz)

Digital Input Card

Number of channels: 4 inputs (RJ) or 8 inputs (DB) (stereo input may be split into 2 mono) Connector: 4 StudioHub format RJ-45 sockets with audio presence & sync indicators or 1 DB-25 with audio presence indicators Digital format: AES3-1992 or S/PDIF Rate conversion: All inputs, 24 bit resolution, 24kHz to 96kHz, switchable in or out Input sample rate: same as audio processor card when rate conversion turned off Precision: up to 24 bits Input impedance: 110 ohms, transformer balanced and isolated THD+N: < .004% (-20 dBFs input, -20 dBFs output, 20 Hz to 20 kHz) Frequency response: +/- .1 dB (20 Hz to 20 kHz) Dynamic range: 140 dB Subcode detection: validity bit, audio/no audio bit

Logitek JetStream MINI Reference Manual

Digital Output Card

Number of channels: 4 outputs (RJ) or 8 outputs (DB) (2 mono may be combined into 1 output) Connector: 4 StudioHub format RJ-45 sockets with audio presence indicators or 1 DB-25 with audio presence indicators Digital format: AES3-1992 or S/PDIF, user switchable Sample rate: same as audio processor card AES output compliance: 24 bits Output impedance: 110 ohms, transformer balanced and isolated THD+N: < .004% (-20 dBFs input, -20 dBFs output, 20 Hz to 20 kHz) Frequency response +/- .1 dB (20 Hz to 20 kHz) Dynamic range 140 dB Subcode generation: copyright not asserted when in SPDIF mode

Network & Video Processor Card

Embedded processor: 1.6 GHz, 1Meg DDR2 OS: XP embedded Video: VGA, 1280 x 1024 resolution Video application: vScreen user configurable meter bridge replacement GUI USB: 2 ports for pointing devices or memory sticks Ethernet: 2 wired Gigabit ports Simultaneous audio streams: 64 per JetStream System size: 2000 streams total Network delay: 1 mSec max Fault tolerance: dual redundant networks when using two network switches Snake Mode: up to 3 JetStream units can be directly connected without a switch Streaming protocols: RTP, multicast and unicast Network sync: user settable address & port, packet rate 1 Hz to 3 KHz

Sync rate is independent of audio sample rate

Network can be locked to house sync input via a single JetStream

Automatic system master selection, automatic failover

** Specifications are subject to change **

Logitek JetStream MINI Reference Manual

Appendix C Pinout Data

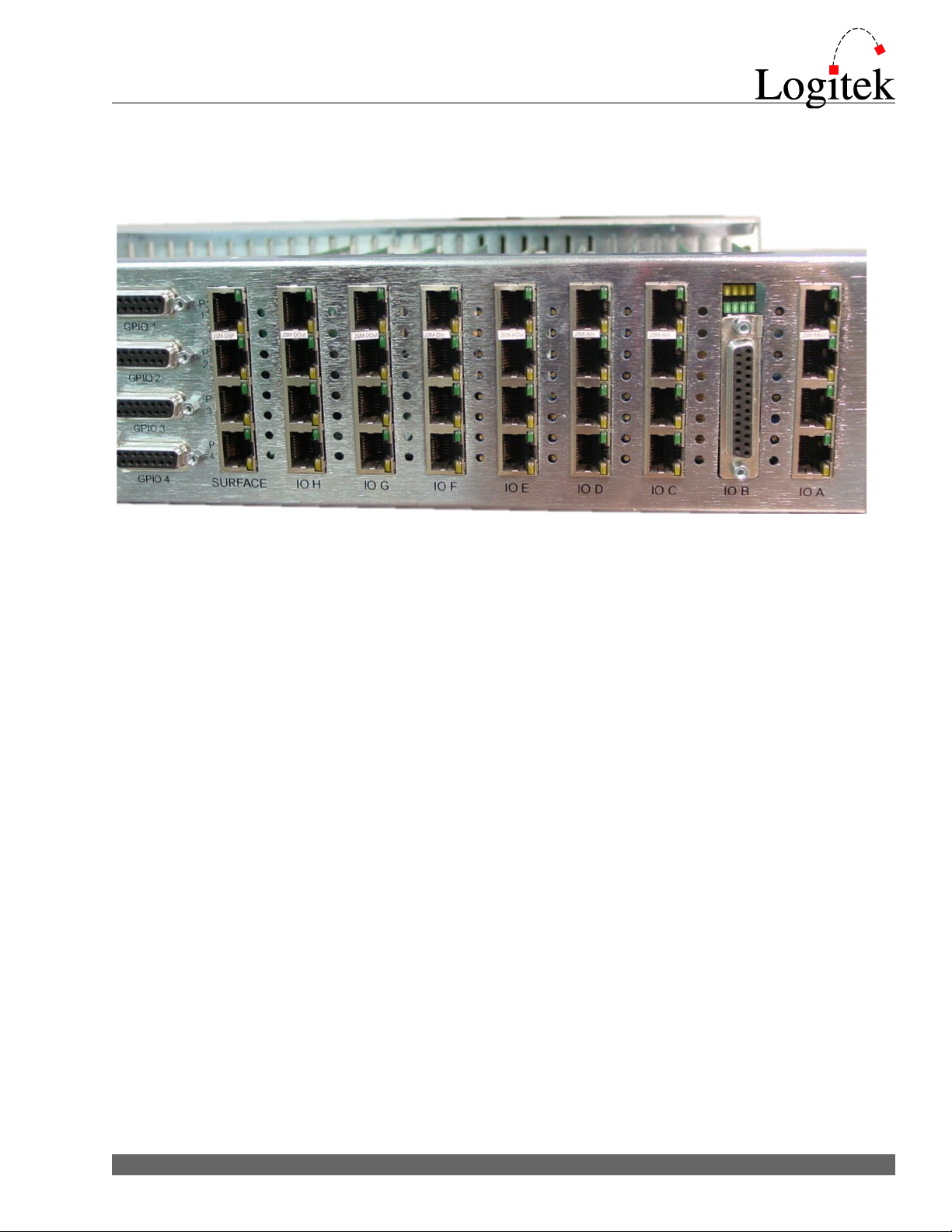

Audio I/O with RJ-45 Connectors

TIP: The StudioHub+ standard calls for all connections being electronically balanced.

TIP: Pre-wired CAT-5 cables may swap the orange and green pairs.

Logitek JetStream MINI Reference Manual

Audio I/O with DB Connectors

DB25M plugs are required.

Audio Inputs/Outputs

Pin Connection Pin Connection

1 I/O 1 + 14 I/O 2 + 2 I/O 1 - 15 I/O 2 - 3 Ground 16 Ground 4 I/O 3 + 17 I/O 4 + 5 I/O 3 - 18 I/O 4 - 6 Ground 19 Ground 7 I/O 5 + 20 I/O 6 + 8 I/O 5 - 21 I/O 6 - 9 Ground 22 Ground 10 I/O 7 + 23 I/O 8 + 11 I/O 7 - 24 I/O 8 - 12 Ground 25 Ground 13 No connect

TIP: If using unbalanced input connections, jumper the negative pins to ground. For

unbalanced output connections, leave the negative pins unconnected.

Logitek JetStream MINI Reference Manual

GPIO

There are four DB-15 connectors, with 3 GPI inputs and 4 GPI outputs each. The contacts of the internal electronic relays are rated at 50 volts DC maximum and 500 milliamps maximum. Higher voltages should be connected to larger external relays.

DB-15 Connector 1 (top)

Pin Connection Pin Connection 1 IN 1-A (+) 9 IN 1-B (gnd) 2 IN 2-A (+) 10 IN 2-B (gnd) 3 IN 3-A (+) 11 IN 3-B (gnd) 4 Out 1 A 12 Out 1 B 5 Out 2 A 13 Out 2 B 6 Out 3 A 14 Out 3 B 7 Out 4 A 15 Out 4 B

DB-15 Connector 2 (upper middle)

Pin Connection Pin Connection 1 IN 4-A (+) 9 IN 4-B (gnd) 2 IN 5-A (+) 10 IN 5-B (gnd) 3 IN 6-A (+) 11 IN 6-B (gnd) 4 Out 5 A 12 Out 5 B 5 Out 6 A 13 Out 6 B 6 Out 7 A 14 Out 7 B 7 Out 8 A 15 Out 8 B

DB-15 Connector 3 (lower middle)

Pin Connection Pin Connection 1 IN 7-A (+) 9 IN 7-B (gnd) 2 IN 8-A (+) 10 IN 8-B (gnd) 3 IN 10-A (+) 11 IN 10-B (gnd) 4 Out 9 A 12 Out 9 B 5 Out 10 A 13 Out 10 B 6 Out 11 A 14 Out 11 B 7 Out 12 A 15 Out 12 B

DB-15 Connector 4 (bottom)

Pin Connection Pin Connection 1 IN 10-A (+) 9 IN 10-B (gnd) 2 IN 11-A (+) 10 IN 11-B (gnd) 3 IN 12-A (+) 11 IN 12-B (gnd) 4 Out 13 A 12 Out 13 B 5 Out 14 A 13 Out 14 B 6 Out 15 A 14 Out 15 B 7 Out 16 A 15 Out 16 B

Logitek JetStream MINI Reference Manual

JSM-DSP (Surface)

Port 1 to 4 – RJ45

Pin Cable Color Connection 1 White/Orange Cue - 2 Orange Cue + 3 White/Green RS-485 Tx - 4 Blue RS-485 Rx - 5 White/Blue RS-485 Rx + 6 Green RS-485 Tx + 7 White/Brown No connect 8 Brown Ground

TIP: Pre-wired CAT-5 cables may swap the orange and green pairs.

Control Surfaces & Utility Panels

Pinouts for Logitek Control Surfaces are also included below. For further information see the relevant manual for the Surface you are connecting.

Artisan/Mosaic Surface RS-485 – RJ45

Pin Connection 1 Cue - 2 Cue + 3 RS-485 Rx - 4 RS-485 Tx - 5 RS-485 Tx + 6 RS-485 Rx + 7 No connect 8 Ground

TIP: Pre-wired CAT-5 cables will match the JetStream pin for pin.

Remora Surface/BTN-12/RTE-3/RTE-XY/GST-20 Panel RS-485 – DB9

Pin Connection 1 Cue + 2 RS-485 Tx + 3 RS-485 Rx + 4 No connect 5 Ground 6 Cue - 7 RS-485 Tx - 8 RS-485 Rx - 9 No connect

TIP: There is no cue audio available on a RTE-3, RTE-XY, or GST-20, so pins 1 and 6 may

be omitted on those panels.

TIP: Using a pre-wired CAT-5 cable and a RJ-45 to DB 9 adapter is a fast way to wire

these surfaces and panels.

Logitek JetStream MINI Reference Manual

RJ-45 to DB-9 Adaptor Color Codes

Pin Color

1 Orange

2 Yellow

3 Green

4 (no connect)

5 White

6 Blue

7 Black

8 Red

9 Brown

Logitek JetStream MINI Reference Manual

Appendix D Microphone Phantom Power

Phantom Power on the JSM-MIC-DB or JSM-MIC-RJ cards may be enabled by selecting Cue @ Infinity in AEConfig. However, the Cue @ Infinity function remains active, so when the fader is brought down to zero (infinity mark) the channel will engage cue. If microphone muting is enabled for Monitor In, engaging cue will mute the control room monitors.

To avoid this situation, we need to send the same command to the MIC IN card that enabling Cue @ Infinity does without checking the box. This is accomplished using an ASM assembly language command in Command Builder.

Assembly language programming is an advanced function best performed by Logitek Support personnel. Please contact Support and have them implement this feature for you.

For the JSM-MIC-RJ card:

cmd ae1 asm “02 09 86 a1 cs 00 04 86 02 00 mi”

For the JSM-MIC-DB card:

cmd ae1 asm “02 0A 86 a1 cs 00 05 86 02 00 00 mi”

where CS = Card Slot and MI = Mic ID

Card Slot is defined as follows:

Slot A = 01 Slot B = 02 Slot C = 03 Slot D = 04 Slot E = 05 Slot F = 06 Slot G = 07 Slot H = 08

Mic ID is defined as follows:

All Off = 00 Mic 1 = 01 Mic 2 = 02 Mic 3 = 04 Mic 4 = 08 Mic 5 = 10 Mic 6 = 20 Mic 7 = 40 Mic 8 = 80 All Mics = FF Add hex numbers together to enable several microphones on the same card. (8 mics = FF)

This command is best placed in the init trigger, ensuring that the phantom power is turned on when the unit boots up. (trigger init)

Logitek JetStream MINI Reference Manual

Appendix E USB To Serial Converter

First generation JetStreams (serial numbers 199 and below) that do not have the embedded PC installed for networking use a USB to RS-485 adaptor to connect a laptop or computer for configuration.

The adaptor is a VSComm USB-COMi-M. Use a standard RJ-45 cable wired for Ethernet. Note that some pre-made cables will swap the orange and green pairs.

Terminal 1: Blue Terminal 2: Blue/White Terminal 3: Orange Termnal 4: Orange/White

Logitek JetStream MINI Reference Manual

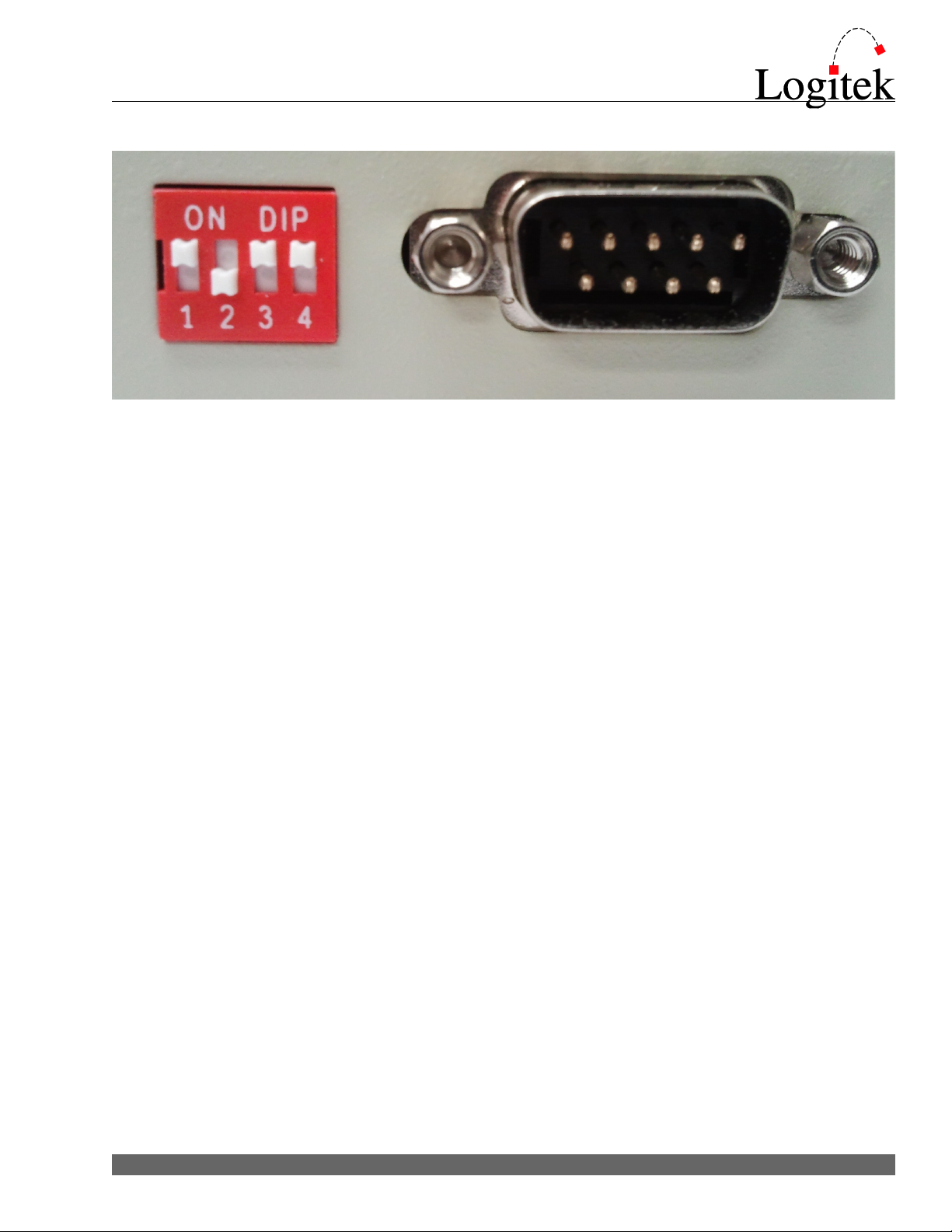

Set the DIP switches as shown:

Logitek JetStream MINI Reference Manual

Two Year Limited Warranty

Logitek Electronic Systems, Inc. warrants its professional equipment (excluding Logitek Software, which is covered by a separate warranty) against defects in materials and workmanship for two years pursuant to the following terms and conditions. The warranty extends to the original purchaser only.

LOGITEK will repair or replace, at its option, at its factory without charge professional equipment if a defect in materials or workmanship develops during the first two years following purchase, when the equipment is returned to the factory or LOGITEK authorized service centers freight prepaid with a description of the nature of the failure. No reimbursements can be made for repair charges that are not factory authorized. After repair or replacement, LOGITEK will return the equipment to the purchaser freight prepaid.

In the event that any part of this professional equipment becomes defective during the first two years following purchase, and purchaser wishes to attempt repair, purchaser may obtain a replacement part by notifying LOGITEK of the part of the equipment which has failed. LOGITEK will thereafter ship a replacement part, freight prepaid. LOGITEK may require the purchaser to return the defective part to LOGITEK freight prepaid as a condition of such replacement, either before or after LOGITEK ships the replacement part. LOGITEK shall not be responsible for any other charges or liabilities associated with purchaser-made repairs.

No part or equipment shall be considered defective if it fails to operate due to exposure to extreme temperatures or excessive moisture in the atmosphere.

Light bulbs, batteries, potentiometers or other equipment not manufactured by Seller shall carry only the warranty, if any, of the original equipment manufacturer in effect at the time of shipment of this order; and Seller’s obligation under this warranty shall be limited to such adjustment as Seller may obtain from the original manufacturer.

This limited warranty is void if equipment is modified or repaired without authorization; subjected to misuse, abuse, accident, water damage or other neglect; or has had its serial number defaced or removed. No obligation is assumed by LOGITEK to update previously manufactured equipment. Specifications are subject to change without notice. EXCEPT AS SPECIFICALLY PROVIDED HEREIN, LOGITEK MAKES NO WARRANTY,

REPRESENTATION, PROMISE, OR GUARANTEE, EITHER EXPRESS OR IMPLIED, STATUTORY OR OTHERWISE, WITH RESPECT TO THE EQUIPMENT, USER DOCUMENTATION OR RELATED TECHNICAL SUPPORT, INCLUDING THEIR QUALITY, PERFORMANCE, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL LOGITEK BE LIABLE FOR INDIRECT, SPECIAL, INCIDENTAL, TORT, ECONOMIC, COVER, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF OR INABILITY TO USE LOGITEK PRODUCTS, EQUIPMENT, OR SERVICES, INCLUDING, WITHOUT LIMITATION, DAMAGES OR COSTS RELATING TO THE LOSS OF PROFITS, BUSINESS, GOODWILL, DATA OR COMPUTER PROGRAMS, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO CASE SHALL LOGITEK ‘S LIABILITY FOR MONEY DAMAGES EXCEED THE AMOUNT PAID BY YOU FOR THE LOGITEK EQUIPMENT OUT OF WHICH SUCH CLAIM AROSE. THE FOREGOING LIMITATIONS SHALL NOT APPLY TO CLAIMS RELATING TO DEATH OR PERSONAL INJURY WHICH ARISE OUT OF PRODUCTS DEEMED TO BE CONSUMER GOODS UNDER APPLICABLE LAW.

Some states or provinces do not allow the exclusion or limitation of implied warranties or limitation of liability for incidental or consequential damages, so the above exclusion or limitation may not apply to you.

The warranty and remedies set forth herein are exclusive and in lieu of all others, oral or written,express or implied. No Logitek dealer, distributor, agent, or employee is authorized to make any modification or addition to this warranty.

Logitek JetStream MINI Reference Manual

Logitekaudio JetStream Audio Networking Platform User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Introduction

2 Unpacking

3 Physical Installation

4 System Components

5 Configuration

6 Operation

7 Maintenance

Appendix A Using AEConfig

Appendix B Specifications

Appendix C Pinout Data

Appendix D Microphone Phantom Power
