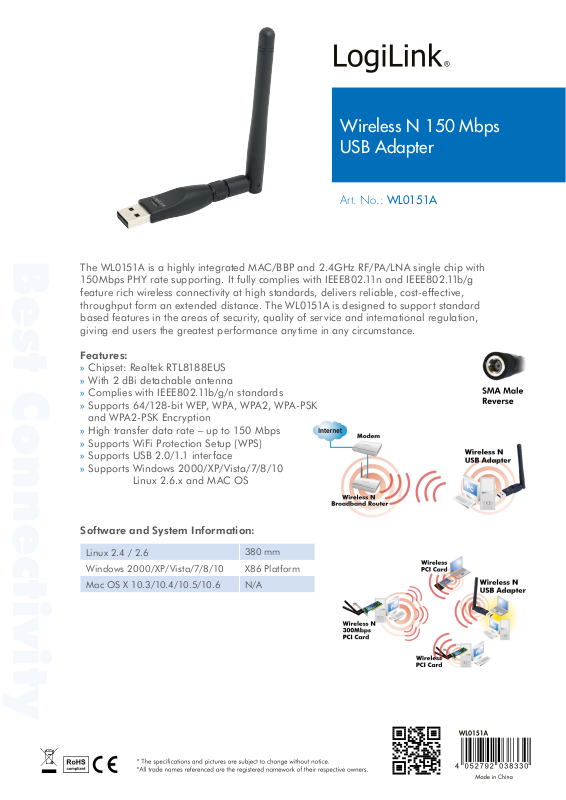

Wireless N 150 Mbps
USB Adapter
Art. No.: WL0151A
Best Connectivity
The WL0151A is a highly integrated MAC/BBP and 2.4GHz RF/PA/LNA single chip with
150Mbps PHY rate supporting. It fully complies with IEEE802.11n and IEEE802.11b/g
feature rich wireless connectivity at high standards, delivers reliable, cost-effective,
throughput form an extended distance. The WL0151A is designed to support standard
based features in the areas of security, quality of service and international regulation,
giving end users the greatest performance anytime in any circumstance.
Features:
» Chipset: Realtek RTL8188EUS
» With 2 dBi detachable antenna
» Complies with IEEE802.11b/g/n standards
» Supports 64/128-bit WEP, WPA, WPA2, WPA-PSK
and WPA2-PSK Encryption
» High transfer data rate – up to 150 Mbps
» Supports WiFi Protection Setup (WPS)
» Supports USB 2.0/1.1 interface
» Supports Windows 2000/XP/Vista/7/8/10
Linux 2.6.x and MAC OS
Software and System Information:
Linux 2.4 / 2.6
Windows 2000/XP/Vista/7/8/10 X86 Platform
Mac OS X 10.3/10.4/10.5/10.6
380 mm
N/A
Wireless N 150 Mbps
USB Adapter
Art. No.: WL0151A
Best Connectivity
Specification:
Hardware
Main Chipset Realtek RTL8188EUS
Host interface
LED Link/Activity
RF Performance
Standards IEEE802.11b/g & 802.11n (1T1R mode, 150 Mbps)
Antenna 2 dBi detachable antenna
Antenna Connector SMA Male Reverse
USB 2.0 / 1.1 Type A
Operation Frequency 2412–2483.5 MHz (varies according to different regions)
802.11b (CCK) 11 Mbps: 19±1 dBm; 802.11g (OFDM)
Typical Tx Power (E.R.I.P)
Receive Sensitivity
Software Support
Operation System Windows 2000/XP/Vista/7/8/10; Linux 2.6.X; Mac OS X
Security WEP 64/128bit, WPA, WPA2, 802.1x, and 802.11i, Cisco CCS
Operation conditions
Voltage Range/Current DC 5.0V ±5% <160 mA
Temperature
Humidity (Non-Condensing)
Physical Specification
Dimensions 16.4 x 14.7 x 58 mm (Main body)
Net Weight 9.8 g
54 Mbps: 16 ±1 dBm
802.11n (HT20@MCS7), 15 ±1 dBm;
802.11n (HT40@MCS7), 15 ±1 dBm
802.11b: -86 ±1 dBm; 802.11g: -74 ±1 dBm
802.11n (HT20), -70 ±1 dBm; 802.11n (HT40), -70 ±1 dBm
Operation: -10 – 60°C
Storage: -20 – 70°C
Operation: RH 95%
Storage: RH 95%
Wireless N 150 Mbps
USB Adapter
Art. No.: WL0151A
Best Connectivity
System Block Diagram:
Physical Characteristics:
Package Contents:
» 1x Wireless N USB Adapter
» 1x Quick Installation Guide
» 1x CD (Driver + Utility + Manual)
Packaging Informations:
» Packing Dimension: 100 x 165 x 26 mm
» Packing Weight: 0.057 kg
» Carton Dimension: 490 x 450 x 390 mm
» Carton Q‘ty: 200 pcs
» Carton Weight: 13.6 kg
