Best Connectivit
y

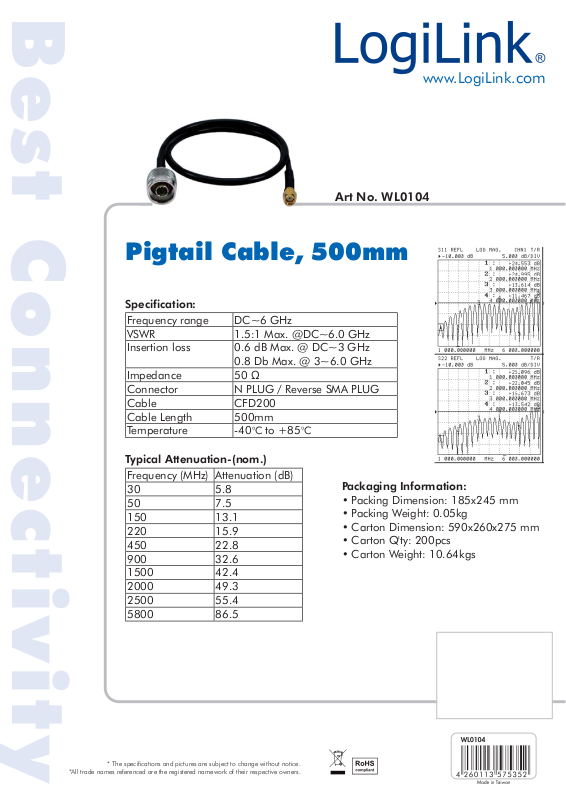

Art No. WL0104
Pigtail Cable, 500mm
Specification:
Frequency range DC~6 GHz
VSWR 1.5:1 Max. @DC~6.0 GHz
Insertion loss 0.6 dB Max. @ DC~3 GHz
0.8 Db Max. @ 3~6.0 GHz
Impedance 50 Ω
Connector N PLUG / Reverse SMA PLUG
Cable CFD200
Cable Length 500mm
Temperature -40
°C
to +85
°C
www.LogiLink.
com
Typical Attenuation-(nom.)
Frequency (MHz) Attenuation (dB)
30 5.8
50 7.5
150 13.1
220 15.9
450 22.8
900 32.6
1500 42.4
2000 49.3
2500 55.4
5800 86.5
Packaging Information:
• Packing Dimension: 185x245 mm
• Packing Weight: 0.05kg
• Carton Dimension: 590x260x275 mm
• Carton Q'ty: 200pcs
• Carton Weight: 10.64kgs
*All trade names referenced are the registered namework of their respective owners.
* The specifications and pictures are subject to change without notice.
